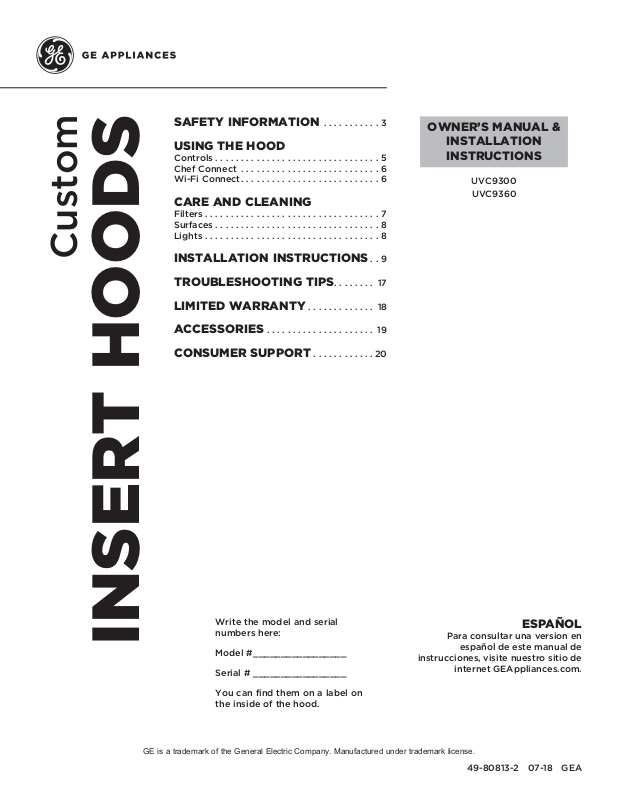

INSERT HOODS
Custom
SAFETY INFORMATION . . . . . . . . . . . 3
USING THE HOOD
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Chef Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Wi-Fi Connect. . . . . . . . . . . . . . . . . . . . . . . . . . . 6
CARE AND CLEANING
Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
INSTALLATION INSTRUCTIONS . . 9
TROUBLESHOOTING TIPS. . . . . . . . 17
LIMITED WARRANTY . . . . . . . . . . . . . 18
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . 19
CONSUMER SUPPORT . . . . . . . . . . . . 20
Write the model and serial numbers here:
Model #_________________
Serial # _________________
You can find them on a label on the inside of the hood.
OWNER’S MANUAL &
INSTALLATION
INSTRUCTIONS
UVC9300
UVC9360
ESPAÑOL
Para consultar una version en español de este manual de instrucciones, visite nuestro sitio de internet GEAppliances.com.
GE is a trademark of the General Electric Company. Manufactured under trademark license.
49-80813-2 07-18 GEA
THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME.
Whether you grew up with GE Appliances, or this is your first, we’re happy to have you in the family.
We take pride in the craftsmanship, innovation and design that goes into every GE Appliances product, and we think you will too. Among other things, registration of your appliance ensures that we can deliver important product information and warranty details when you need them.
Register your GE appliance now online. Helpful websites and phone numbers are available in the Consumer Support section of this Owner’s Manual. You may also mail in the pre-printed registration card included in the packing material.
2 |
|
49-80813-2 |
IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING
WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
A.Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
B.Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched
on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
C.Do not use this unit with any solid-state speed control device.
D.This unit must be grounded.
CAUTION FOR GENERAL VENTILATING USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS AND VAPORS.
WARNING TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:
A.SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
B.NEVER PICK UP A FLAMING PAN—You may be burned.
C.DO NOT USE WATER, including wet dishcloths or towels—a violent steam explosion will result.
D.Use an extinguisher ONLY if:
1.You know you have a Class ABC extinguisher, and you already know how to operate it.
2.The fire is small and contained in the area where it started.
3.The fire department is being called.
4.You can fight the fire with your back to an exit.
*Based on “Kitchen Fire Safety” published by NFPA.
CAUTION TO REDUCE RISK OF FIRE AND
TO PROPERLY EXHAUST AIR, BE SURE TO DUCT
AIR OUTSIDE. DO NOT VENT EXHAUST AIR INTO
SPACES WITHIN WALLS OR CEILINGS OR INTO
ATTICS, CRAWL SPACES OR GARAGES.
READ AND SAVE THESE INSTRUCTIONS
INFORMATION SAFETY
49-80813-2 |
3 |
SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING
WARNING TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A.Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on medium settings.
B.Always turn hood ON when cooking at high heat or when flambéing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
C.Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
D.Use proper pan size. Always use cookware appropriate for the size of the surface element.
WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
A.Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
B.Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer’s guidelines and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
C.When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
D.Ducted fans must always be vented to the outdoors.
E.When applicable, install any makeup (replacement) air system in accordance with local building
code requirements. Visit GEAppliances.com for available makeup air solutions.
F.Turn off breaker to adjacent rooms while working.
WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
Ŷ 'R QRW DWWHPSW WR UHSDLU RU UHSODFH DQ\ SDUW RI \RXU hood unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.
How to Remove Protective Shipping Film and Packaging Tape
Carefully grasp a corner of the protective shipping film with your fingers and slowly peel it from the appliance surface. Do not use any sharp items to remove the film. Remove all of the film before using the appliance for the first time.
To assure no damage is done to the finish of the product, the safest way to remove the adhesive from packaging tape on new appliances is an application of a household liquid dishwashing detergent. Apply with a soft cloth and allow to soak.
NOTE: The adhesive must be removed from all parts.
NOTE: For further cleaning instructions/suggestions, please refer to the Care and Cleaning section.
READ AND SAVE THESE INSTRUCTIONS
4 |
49-80813-2 |

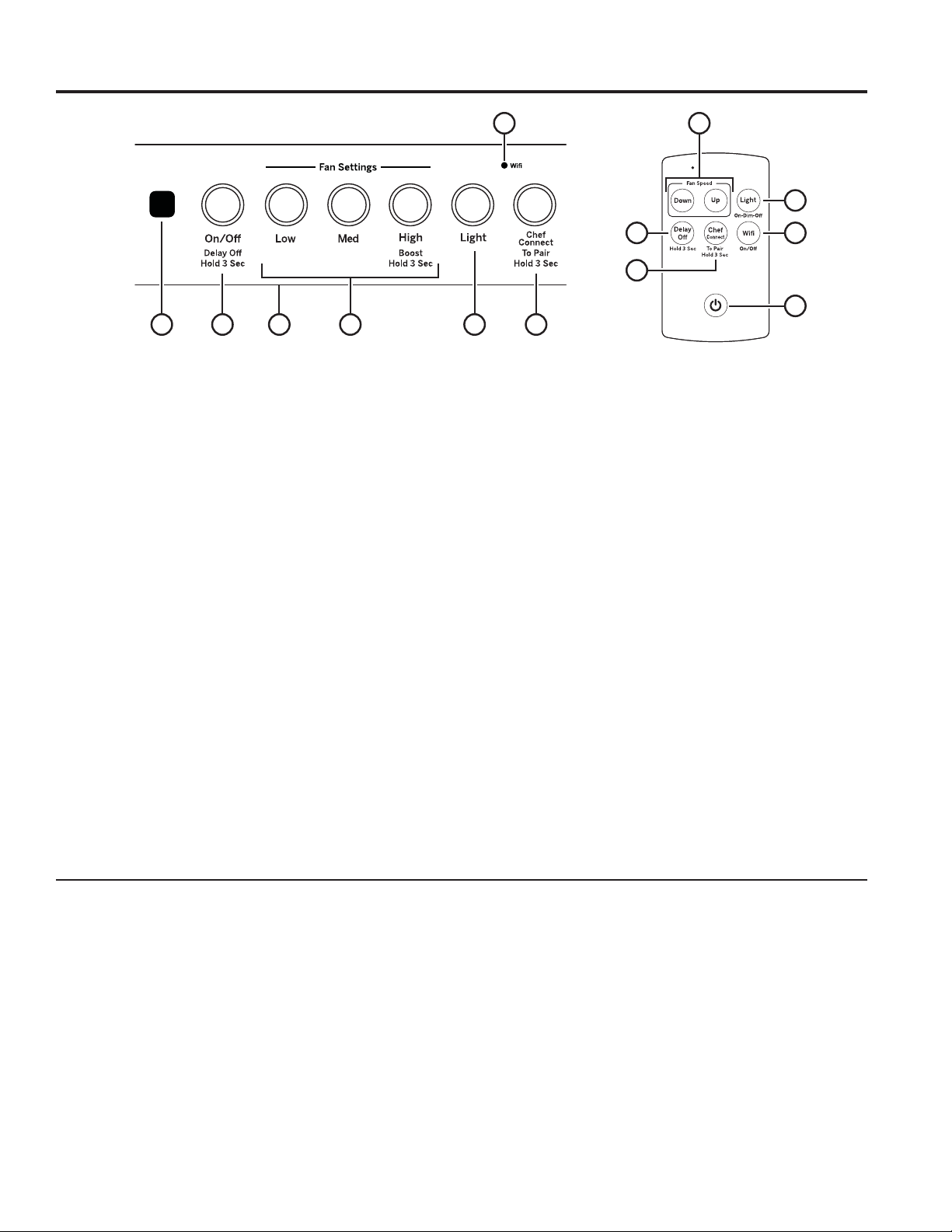

Controls
7 |
3 |
4 8
7 5
2
6 |
2 |
1 |
3 |
4 |
5 |
Remote Control
1. Rangehood Control Panel: The control panel is located on the front of the canopy. The position and function of each control button are noted below.
2. Fan On/Off Button: On/Off switch for the fan. The fan can be operated by pressing any of the fan setting buttons. Hold for 3 seconds to activate Delay Off feature, which automatically turns the fan off after 15 minutes.
3. Fan Setting Button: Speed control for the fan. Press the Low button for LOW speed, Med for MEDIUM speed, and High for HIGH speed. Hold down the High button for 3 seconds to activate the BOOST speed that will run for 10 minutes.
On Remote, press Up to increase fan speed, press Down to decrease fan speed, including Boost.
4. Light Button: On/Dim/Off switch for the LED lights. Press the Light button to turn the lights on, again to set the lights to dim setting, and again to turn the lights off.
5. Chef Connect: This is a Bluetooth® pairing feature for use with other compatible Chef Connect enabled products on a cooktop or range. When the device is paired, the light and fan will turn ON at the Default Sync Settings upon receiving a command from the range or cooktop. It will remain ON at that setting until the user changes it. To pair devices, hold down the Chef Connect button for 3 seconds. To turn it back off, hold the button down for another 3 seconds, see the Chef Connect section for details.
6. IR Sensor: Remote control reciever when used with Remote Control Kit (UXRC1).
7. Wi-Fi: Hold down the Light and Chef Connect buttons for 3 seconds to activate the Wi-Fi. The Wi-Fi light turns on when connected, see the Wi-Fi Connect section for details. On Remote, press Wi-Fi to toggle Wi-Fi function.
8. Delay Off (Remote only): Press and hold
Delay Off to toggle Delay Off function.
Heat Sensor
Your hood is equipped with a HEAT SENSOR thermostat. This thermostat is a device that will turn on or speed up the blower if it senses excessive heat above the cooking surface.
Ŷ ,I EORZHU LV 2II LW WXUQV EORZHU 2Q WR 0HG VSHHG
Ŷ ,I EORZHU LV 2Q DW D ORZHU VSHHG VHWWLQJ LW WXUQV blower up to Med speed.
When the temperature level drops to normal, the blower will return to its original setting.
Controls HOOD: THE USING
49-80813-2 |
5 |
USING THE HOOD: Chef Connect / Wi-Fi Connect
Chef Connect
Chef Connect Operation Bluetooth® Connection
To pair with another device:
To start the pairing process on the hood, press and hold the Chef Connect button for 3 seconds. The backlight for the Low-Med-High-Light-Chef Connect buttons will flash in that sequence until the hood is paired with the range or other device. If the pairing is successful, all five backlights (Low, Med, High, Light, Chef Connect) will flash simultaneously three times and then turn off and the backlight for the Chef Connect button will turn on.
It will time out after 2 minutes if the pairing is not completed, after which the pairing sequence will need to be restarted.
To cancel pairing:
To cancel the pairing, hold the Chef Connect button down for 3 seconds and then turn off the hood.
Default Sync Settings:
The factory default setting for the light will be the brightest.
The factory default setting for the fan sync will be OFF.
The user can change the Default Sync Settings by pressing and holding the Low button for 3 seconds. This will enter the Default Settings Mode. Once in this mode, the backlights for all buttons (Low, Med, High, Light, Chef Connect) will blink On/Off indefinitely and the fan and light will switch to the current Default Sync Setting, so the user knows what the current default value is.
At this time, set the light and fan to the desired default levels. Once the user is satisfied with the selection, press and hold the On/Off button for 3 seconds. This will exit this mode. At that time the backlights will stop blinking and the state of the fan and light will change back to their prior state before entering the Default Settings Mode.
Wi-Fi Connect
Connecting your Wi-Fi Connect Enabled hood (on some models)
Your GE Appliances hood is designed to provide you with two-way communication between your appliance and smart device. By using the GE Appliances Wi-Fi Connect features, you will be able to control essential hood operations such as fan speed, light functions, timer/clock function, delay off and filter reset using your smartphone or tablet.*
What you will need
Your GE Appliances hood uses your existing home Wi-Fi network to communicate between the appliance and your smart device. In order to setup your GE Appliances hood, you will need to gather some information:
1.Each GE Appliances hood has a connected appliance information label that includes an Appliance Network Name and Password. These are the two important details that you will need to connect to the appliance. The label is located on the side of the unit behind the filters.
Connected Appliance Information
FCC ID: ZKJ-WCATA005 |
Network: ************ |
IC: 10229A-WCATA001 |
Password: ********** |
Connect your GE Appliances hood
1.On your smart phone or tablet visit
GEAppliances.com/connect to learn more about connected appliance features and to download the appropriate app.
2.Follow the app onscreen instructions to connect your GE Appliances hood.
3.Once the process is complete, the connection light located on your GE Appliances hood display will stay on solid and the app will confirm you are connected.
4.If the connection light does not turn on or is blinking, follow the instructions on the app to reconnect. If issues continue please call 800.220.6899 and ask for assistance regarding hood wireless connectivity.
To connect additional smart devices, repeat steps 1 and 2.
MAC ID: ************
Sample Label
2.Have your smart phone or tablet ready with the ability to access the internet and download apps.
3.You will need to know the password of your home Wi-Fi router. Have this password ready while you are setting up your GE Appliances hood.
Note that any changes or modifications to the remote enable device installed on this hood that are not expressly approved by the manufacturer could void the user’s authority to operate the equipment.
* Compatible Apple or Android devices and home Wi-Fi network required.
6 |
49-80813-2 |
Filters
Be sure the circuit breaker is off and all surfaces are cool before cleaning or servicing any part of the vent hood.

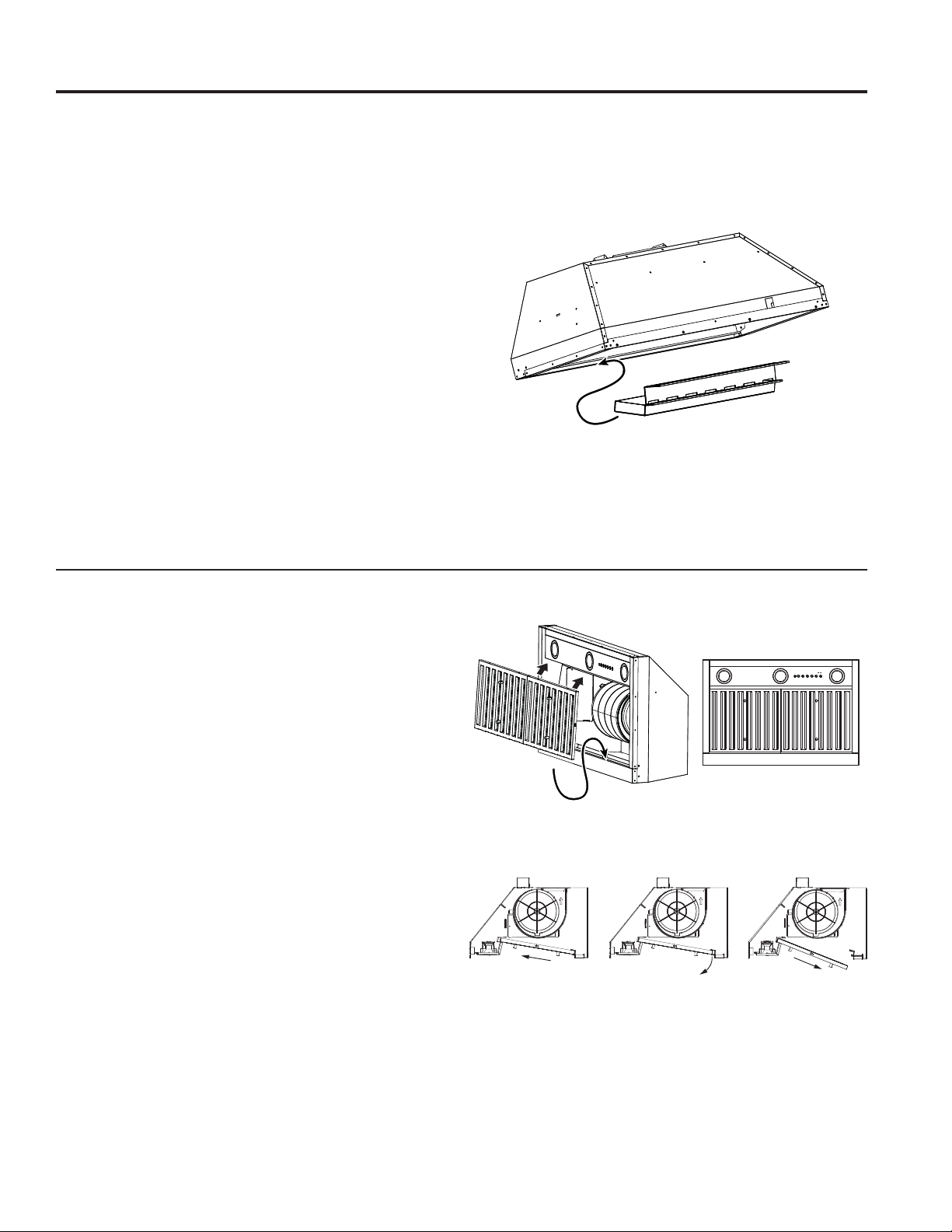

The metal baffles channel grease released by foods on the cooktop into the drip trays. The baffles also help prevent flaming foods on the cooktop from damaging the inside of the hood.
The baffles must ALWAYS be in place when the hood is in use. The grease baffles and drip trays are dishwashersafe and should be cleaned every month, depending on usage of the hood.
Grease Drip Tray
To install:
Place and seat the drip trays into the designated hood track. Slide them left or right until all trays are side-by- side in place in the track.
To remove:
Carefully, use the grease tray lip to lift the tray upwards and out. The tray will be free of the designated hood track.
To clean:
Swish the drip tray in hot soapy water and rinse in clean
water or wash it in the dishwasher. Do not use abrasive Drip Tray Replacement cleaners.
NOTE: Some discoloration of the filter may occur in the dishwasher.
Baffle Metal Grease Filter
To install:
Insert the top of the baffle into the track behind the control panel. The arrows on the side of the baffle should be pointing towards the front of the unit. Slide the baffle up and push the bottom end back until it firmly seats into place.
To remove:
Use front knob to pull filter forward, towards the control panel. The bottom of the filter becomes free of the grease drip tray. Use back knob to pull the baffle away from the track behind the control panel.
It is important for baffles to be placed correctly with arrows on the side pointing towards the front of the unit to channel grease to the drip trays and avoid grease accumulation in the baffles.
To clean:
Swish the filter in hot soapy water and rinse in clean water or wash it in the dishwasher. Do not use abrasive cleansers.
NOTE: Some discoloration of the filter may occur in the dishwasher.
1
2
Baffle Replacement
Baffle Removal
Filters CLEANING: AND CARE
49-80813-2 |
7 |

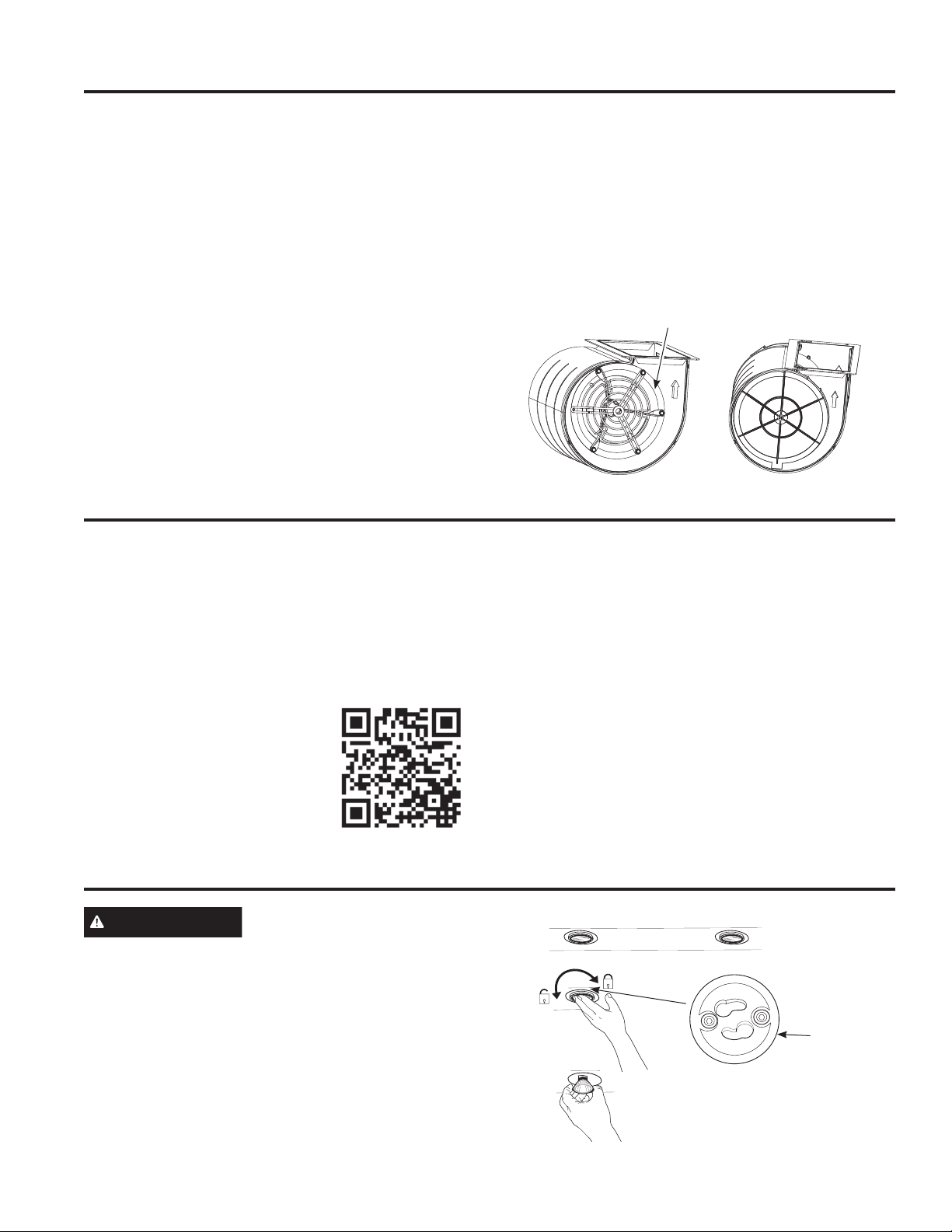

CARE AND CLEANING: Surfaces / Lights / Filters
Filters (Cont.)
Charcoal Filter (for recirculation installation only)
NOTE: DO NOT rinse, or put charcoal filter in an automatic dishwasher.
The charcoal filter is included with the unit. It cannot be cleaned; it must be replaced. It is recommended that the charcoal filter be replaced every 6 months or if it is noticeably dirty or discolored.
Order Charcoal Filter UXCF91
To inquire about purchasing replacement charcoal filters or to find the location of a dealer nearest you, please call our toll-free number:
National Parts Center 800.626.2002 To Install
1.Remove the grease filters. See Filters section.
2.Install the charcoal filter mounts to either side of the motor using three screws per side.
3.Insert the tab on the charcoal filter into the triangular slot on the mount.
Surfaces
4.Clip the charcoal filter in until it is locked
5.Repeat with second filter on the other side of the motor.
6.Reattach the metal filters. See Filters section.
To Remove
1.Remove grease filters-See Filters section
2.Unclip the charcoal filter by pressing the release clip.
3.Carefully remove charcoal filter from tab.
Charcoal Filter Mount
Stainless Steel Surfaces (on some models)
Do not use a steel wool pad; it will scratch the surface.
To clean the stainless steel surface, use warm sudsy water or a stainless steel cleaner or polish. Always wipe the surface in the direction of the brush line. Follow the cleaner instructions for cleaning the stainless steel surface. Cleaners with oxalic acid such as Bar Keepers Friend Soft Cleanser™ will
remove surface rust, tarnish, and small blemishes. To receive a coupon for a trial sample of Bar
Keepers Friend Soft Cleanser™ follow the link below or scan the QR Code.
barkeepersfriend.com/ge
Use only a liquid cleanser free of grit and rub in the direction of the brush lines with a damp soft sponge.
To inquire about purchasing stainless steel appliance cleaner or polish, or to find the location of a dealer nearest you, please call our toll-free number:
National Parts Center 800.626.2002
GEApplianceParts.com
Lights
CAUTION Allow lights to cool before touching.
1.Before attempting to replace the lights, make sure that the light switch is turned off.
2.Rotate light counterclockwise to unlock and pull out. Wearing latex gloves may offer a better grip.
3.Replace with new light of same type, making sure pins are inserted properly into the sockets of the lamp holder and turn clockwise to lock.
All lamps need to be GU10 compatible.
Lamp
Holder
Rotate the lamp until the pins are located in narrow neck of the socket to lock.
8 |
49-80813-2 |
Installation |
Custom Insert Hood |
Instructions |
UVC9300, UVC9360 |
|
|
|
|
“If you have questions, call GE Appliances at 800.GE.CARES (800.432.2737) or visit our website at: GEAppliances.com”

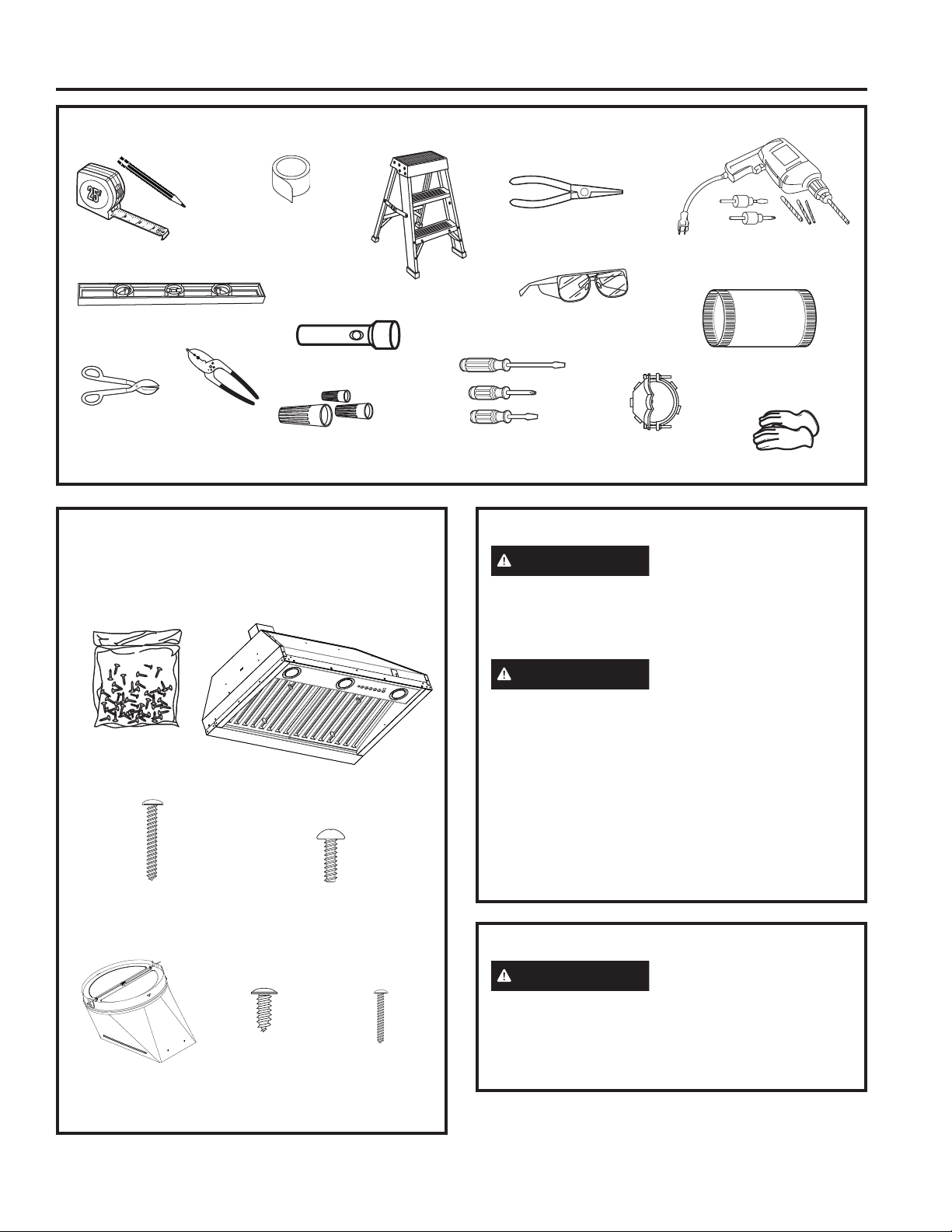

BEFORE YOU BEGIN
Read these instructions completely and carefully.
Ŷ IMPORTANT— Save these
instructions for local inspector’s use.
Ŷ IMPORTANT— Observe all governing codes and ordinances.
ŶNote to Installer – Be sure to leave these instructions with the Consumer.
ŶNote to Consumer – Keep these instructions for future reference.
ŶSkill level – Installation of this vent hood requires basic mechanical and electrical skills.
ŶCompletion time – Approximately 1 to 3 hours
ŶProper installation is the responsibility of the installer.
ŶProduct failure due to improper installation is not covered under the Warranty.
CAUTION Due to the weight and size of these vent hoods and to reduce the risk of personal injury or damage to the product, TWO PEOPLE
ARE REQUIRED FOR PROPER INSTALLATION.
FOR YOUR SAFETY
WARNING Before beginning the installation, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
A.Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
B.Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer’s guidelines and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
C.When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
D.Ducted fans must always be vented to the outdoors.
E.Turn off breaker to adjacent rooms while working.
WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCT WORK.
WARNING Disconnect all electrical power at the main circuit breaker or fuse box before installing.
INSTRUCTIONS INSTALLATION
49-80813-2 |
9 |

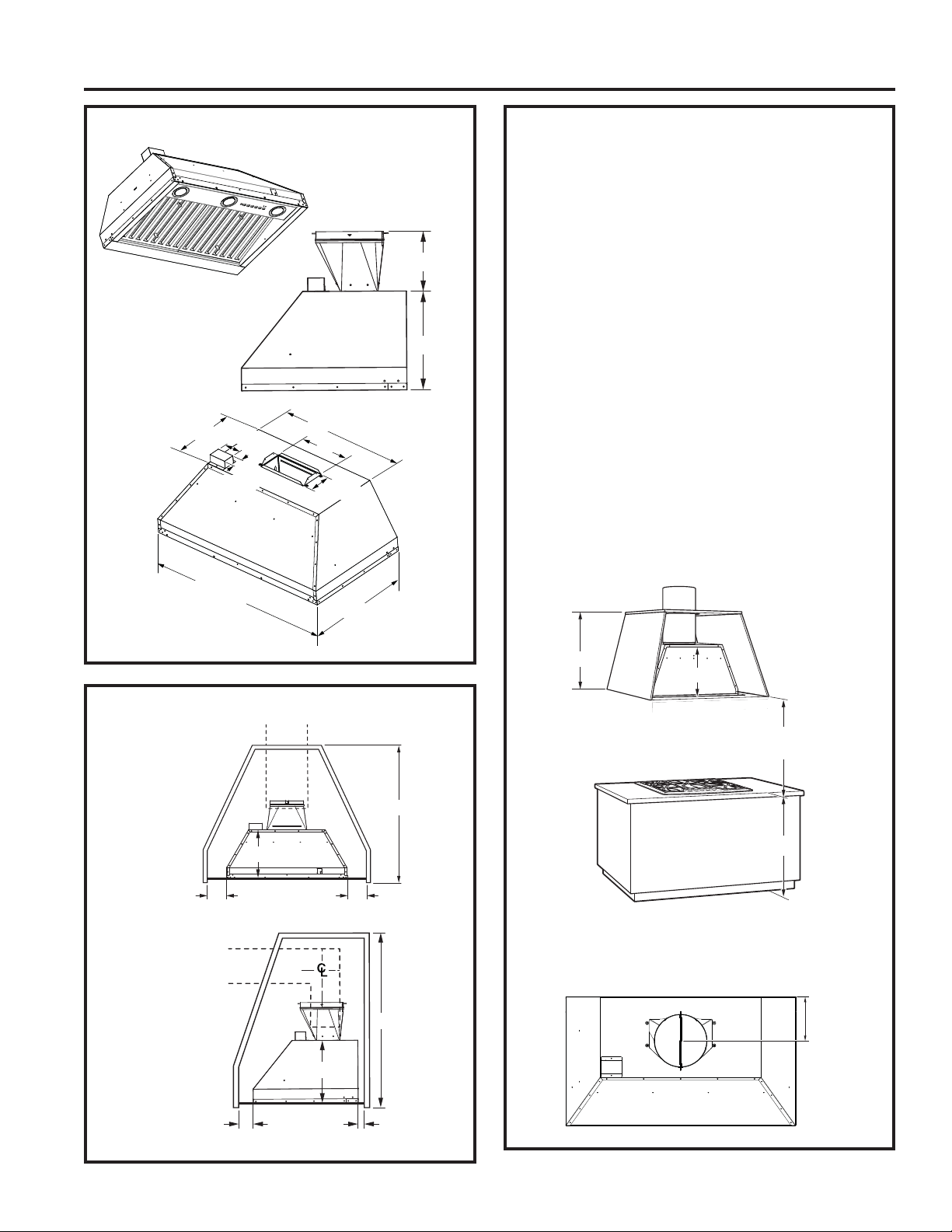

INSTALLATION PREPARATION
Installation Preparation
PRODUCT DIMENSIONS |
||
|
6-15/16" |
|
Design varies by model |
|
|
|
11-1/2" |
|
12" 3-1/8" |
18" or 24" |
|
9" |
||
|
||
1-15/16" |
4-1/4" |
|
|
||
28-1/4" or |
|
|
34-1/4" |
19-1/8" |
|
|
||
CABINET PREPARATION
FRONT VIEW
18-1/2" min.
11-1/2"
1" 1"
SIDE VIEW
29" min.
11-1/2"
3" 1"
INSTALLATION CLEARANCES
This vent hood must be installed between the 24" required minimum and 36" recommended maximum above the cooking surface.
Ŷ $OZD\V UHIHU WR WKH FRRNWRS RU UDQJH LQVWDOODWLRQ instructions for product-specific clearances.
NOTE: Installation height should be measured from the cooking surface to the bottom edge of the cabinet surface.
NOTE: UL requires any combustible surface to be a minimum of 30" above the cooking surface. Lower combustible surfaces may be covered to meet requirements.
Ŷ 7KH FXVWRP FDELQHW LQWHUQDO KHLJKW PXVW EH
18-1/2" minimum for vertical venting and 29" minimum for recirculation.
Ŷ 7KLV KRRG FDQ EH YHQWHG WR WKH RXWGRRUV RU LW can be installed for recirculating operation. For recirculating operation, refer to Recirculating Installation Planning.
Ŷ 7KLV KRRG PD\ EH PRXQWHG LQ D ZDOO FDELQHW RU installed over an island.
18-1/2" min.
11-1/2"
*24" Minimum required
*36" Maximum recommended
Typically 36"
NOTE: The exhaust duct on the hood is closer to the rear of the hood. It is important to plan for the alignment to the connection point of the hood.
6-1/2" |
10 |
49-80813-2 |
Installation Preparation
TOOLS AND MATERIALS REQUIRED (NOT SUPPLIED) |
|
||||
|
|
Aluminized |
Needle-nose pliers |
Electric drill and |
|
|
|
|
|
||
Pencil and tape measure |
duct tape |
|
|
||
|
|
|
appropriate bits |
||
|
|
Step ladder |
|
|
|
Level |
|
|
Safety glasses |
|
|
|
|
|
|
|
|
|
|
Flashlight |
|
|
8" ducting and |
|
|
|
|
caps as needed |
|
Tin snips |
Wire cutter/ |
UL listed wire nuts |
Phillips and flat-blade |
Strain relief for |
Gloves |
|
|||||
|
stripper |
screwdrivers |
junction box |
||
PARTS PROVIDED
Locate the parts packed with the hood.
NOTE: The hardware bag may contain extra pieces to accommodate a variety of installation methods for various models.
Hardware Bag
Hood
A
B
Phillips Head |
|
Philips Head |
|
Wood Screws |
Machine Screw |
Damper |
|
3/16" x 1-1/2" |
|
1/8" X 3/8" |
|
|
Assembly |
||
(QTY: 4) |
|
(QTY: 16) |
|
|
|
||
D |
|
L |
|
Phillips Head |
|
Phillips Head |
|
Wood Screws |
|
Wood Screws |
|
1/8" X 3/8" (QTY: 4) |
3/16" x 1" |
|
|
|
|
(QTY: 8) |
|
PLAN THE INSTALLATION
CAUTION To reduce risk of fire and to properly exhaust air, be sure to duct the air outside – Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
WARNING
PERSONAL INJURY HAZARD
It is recommended that 2 people are used to install the range hood. Failure to properly lift rangehood could result in damage to the product or personal injury.
NOTE: This rangehood can be installed as either ducted or recirculation. In a ducted application, this rangehood can be vented through the wall or ceiling. When installed for recirculation, the rangehood vents back into the room.
REMOVE THE PACKAGING
CAUTION Wear gloves to protect against sharp edges.
ŶRemove the hardware bag, literature package and other boxed parts.
ŶRemove and properly discard the protective plastic wrapping and other packaging materials.
PREPARATION INSTALLATION
49-80813-2 |
11 |
INSTALLATION PREPARATION
Installation Preparation

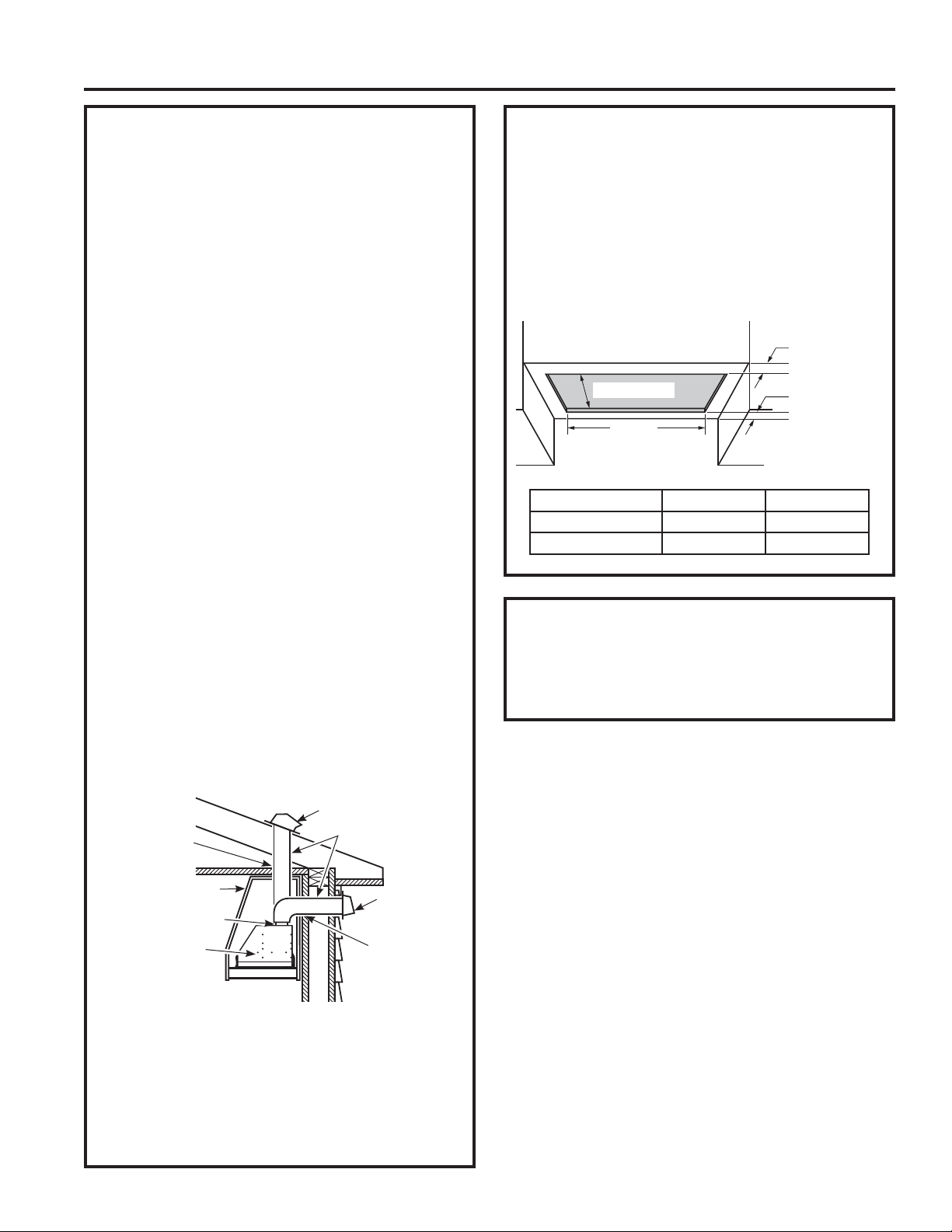

ADVANCE PLANNING
Duct Install Planning
Ŷ 7KLV KRRG LV GHVLJQHG WR EH YHQWHG YHUWLFDOO\ through the ceiling. Use a 8" round duct. Use locally supplied elbows to vent horizontally through the rear wall.
Ŷ 8VH PHWDO GXFWZRUN RQO\ Ŷ 'HWHUPLQH WKH H[DFW ORFDWLRQ RI WKH YHQW KRRG
Ŷ Plan the route for venting exhaust to the outdoors. To maximize the ventilation performance of the vent system:
1.Minimize the duct run length and number of transitions and elbows.
2.Maintain a constant duct size.
3.Seal all joints with duct tape to prevent any leaks.
NOTE: Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that greatly reduces performance.
Ŷ 0D[LPXP HTXLYDOHQW GXFW OHQJWK IRU &)0
150 foot for vent hoods.
Ŷ ,QVWDOO D ZDOO FDS RU URRI FDS ZLWK GDPSHU DW WKH exterior opening. Purchase the wall or roof cap and any transition and length of duct needed in advance.
Ŷ When applicable, install any makeup (replacement) air system in accordance with local building
code requirements. Visit GEAppliances.com for available makeup air solutions.
Vent system can terminate either through the roof
RU WKH ZDOO 7R YHQW WKURXJK D ZDOO D HOERZ LV needed and installed immediately above the hood.
Roof Cap
Round Duct
Add Insulation
and/or Caulk
Cabinet |
Wall Cap |
|
|
Add tape to joint |
|
Hood |
Add Insulation |
|
and/or Caulk |
Wall and Ceiling Framing for Adequate Support
This vent hood is heavy and the cabinet structure needs to support the weight of the loaded insert sleeve. Adequate structural support must be provided in all types of installations.
Ŷ ,QVWDOODWLRQ ZLOO EH HDVLHU LI WKH YHQW KRRG LV installed before the cooktop is installed.
ADVANCE PLANNING (CONT.)
Custom Cabinet Frame Planning
Ŷ The custom canopy or cabinet should have a rectangular hole to accommodate the custom hood insert by itself. This hole is the same size for both a wall installation and an island installation. Ensure parallelism and levelness of the cabinet so that it doesn't affect flushness of the hood with the cabinet.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Front of hole |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
must be 3" |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
minimum from |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
cabinet front |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Back of hole |
||||||||||
|
|
|
|
|
|
|
Depth |
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
must be 1" |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
minimum from |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
Width |
|
|
|
|
|
|
|
|
|
back wall |
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
UVC9300 |
|
|
|
UVC9360 |
|
||||||||
|
|
|
|
Width (in.) |
|
28-1/4 |
|
|
|
34-1/4 |
|
|
||||||||||||
|
|
|
|
Depth (in.) |
|
19-1/8 |
|
|
|
19-1/8 |
|
|
||||||||||||
RECIRCULATION INSTALL PLANNING
This hood may be installed in recirculation mode. The charcoal filter is necessary for recirculation installation and is included with the unit.
12 |
49-80813-2 |
Loading...
