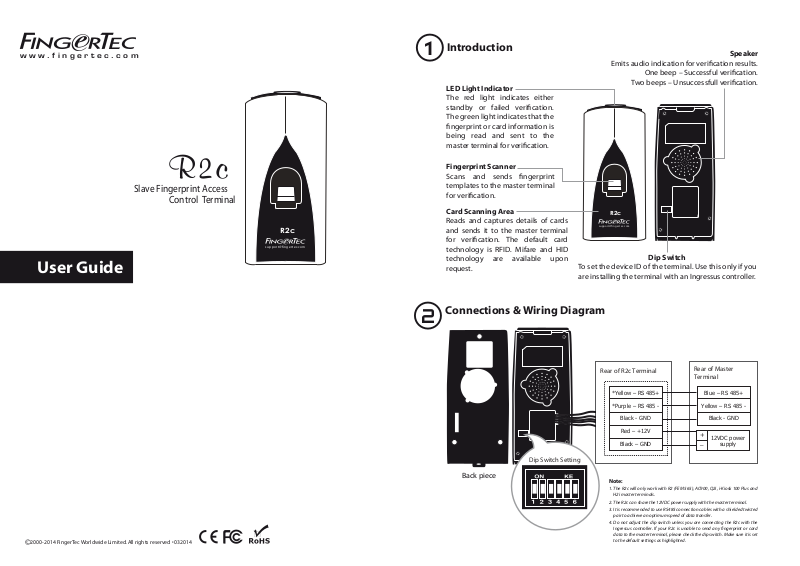

FingerTec R2c User Manual

w w w . f i n g e r t e c . c o mw w w . f i n g e r t e c . c o m

Introduction

1

LED Light Indicator

The red light indicates either
standby or failed verication.
The green light indicates that the
ngerprint or card information is
being read and sent to the
master terminal for verication.

Speaker

Emits audio indication for verication results.

One beep – Successful verication.

Two beeps – Unsuccessfull verication.

User Guide

R2c

Slave Fingerprint Access

Control Terminal

R2c

sup po rt@ fi nge rt ec. com

Fingerprint Scanner

Scans and sends ngerprint
templates to the master terminal
for verication.

Card Scanning Area

Reads and captures details of cards
and sends it to the master terminal
for verication. The default card
technology is RFID. Mifare and HID
technology are available upon
request.

Connections & Wiring Diagram

2

R2c

sup por t@ fin ger te c.c om

Dip Switch

To set the device ID of the terminal. Use this only if you

are installing the terminal with an Ingressus controller.

Rear of R2c Terminal

*Yellow – RS 485+

*Purple – RS 485 -

Black - GND

Red – +12V

Black – GND

Rear of Master
Terminal

Blue – RS 485+

Yellow – RS 485 -

Black - GND

+

12VDC power

_

supply

2000-2014 FingerTec Worldwide Limited. All rights reserved • 032014

©

Back piece

Dip Switch Setting

Note:

1. The R2c will only work with R2 (FEM 565), AC900, Q2i, i-Kiosk 100 Plus and
H2i master terminals.

2. The R2c can share the 12VDC power supply with the master terminal.

3. It is recommended to use RS485 connection cables with a shielded twisted
pair to achieve an optimum speed of data transfer.

4. Do not adjust the dip switch unless you are connecting the R2c with the

Ingressus controller. If your R2c is unable to send any ngerprint or card

data to the master terminal, please check the dip switch. Make sure it is set
to the default settings as highlighted.

Installation

3

Note: Please read the instructions carefully before installing the R2c.

2

R2c

Remove the back piece of the R2c from the main piece. Secure the back piece of R2c onto

1

wall using the 3 screws provided but make sure that you have some space for the wires to go
through the hole.

2

Pass the wire from R2c through the small gap in the back piece.

3

Secure the R2c on the back piece and tighten the screw at the bottom.

Verication • Fingerprints

4

Make sure the R2c is in its standby mode, where the green LED light is blinking and the

1

user’s ngerprint has been enrolled into a master terminal before you proceed to verify.

2

Place a nger on the ngerprint scanner to scan a ngerprint. You will hear a beep, to
indicate the ngerprint has been captured and sent to master terminal to verify.

Verication result:

3

a. Successful Verication:

Green LED blinks accompanied by a beeping sound.

b. Failed Verication:

Red LED blinks accompanied by 2 beeping sounds.

5

Verication • Cards

1

Make sure the R2c is in standby mode, where the green LED light is blinking and a card ID
has been enrolled into a master terminal before you proceed to verify.

2

Wave card on the inducation area to capture the card information. You will hear a beep,
indicating the card information has been captured and sent to the master terminal to

1

verify.

3

Verication result:

a. Successful Verication:

Back piece

Green LED blinks accompanied by a beeping sound.

b. Failed Verication:

Red LED blinks accompanied by 2 beeping sounds.

1

3

1

NOTE: Specifications are subject to change. Check http://product.ngertec.com for latest product information.

MODEL

SURFACE FINISHING

TYPE OF SCANNER

MICROPROCESS OR

MEMORY

ALGORITHM

PRODUCT DIMENSION (L x W x H), mm

STORAGE

• Fingerprint templates

• Transaction

ENROLLMENT & VERIFICATION

• Methods

• Recommended fingerprint per us er ID

• Fingerprint placement

• Verification time (sec)

• FAR (%)

• FRR (%)

CARD TECHNOLOGY

• RFID: 64-bit, 125kHz

• MIFARE: MF1S50/S70, 13.56MHz

COMMUNICATIONS

• Method

OPERATING ENVIRONME NT

• Temperature (°C)

• Humidity (%)

• Power input

ACCESS CONTROL

• EM lock d riving output

• Alarm out put

• Antipassback

SPECIFICATIONS

R2c

Acrylonitrile butadiene styrene (ABS)

Optical ng erprint scanner

Managed by master terminal

Support BioBridge VX 10.0

64 x 42 x 1 35

Storage in master termin al

Fingerprint (1:N) & card

Managed by master terminal

Any angle

Managed by master terminal

Yes

Made to order

RS485

0 ~ 45

20 ~ 80

Managed by master terminal

Managed by master terminal

R2c

R2c

Slave Fingerprint Access

Control Terminal

Fingerprint Card
