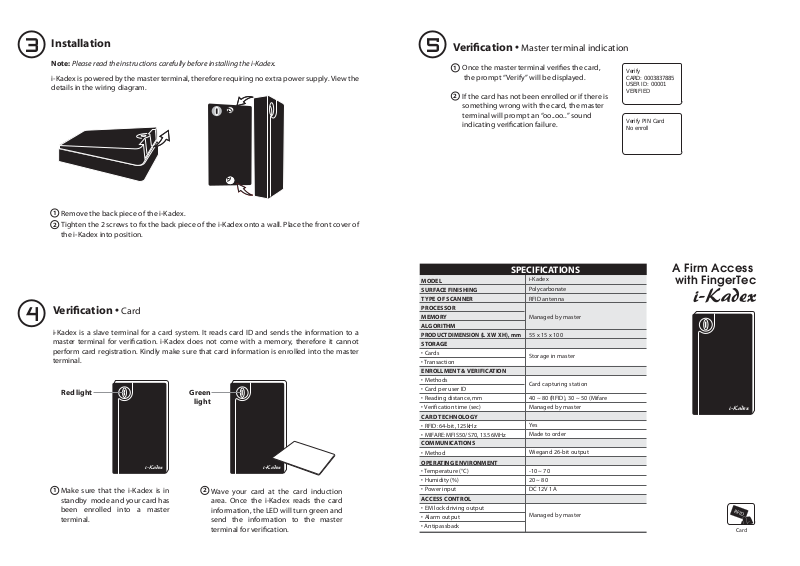

FingerTec i-Kadex User Manual
Installation
3
Note: Please read the instructions carefully before installing the i-Kadex.
i-Kadex is powered by the master terminal, therefore requiring no extra power supply. View the
details in the wiring diagram.
1
Remove the back piece of the i-Kadex.
2
Tighten the 2 screws to fix the back piece of the i-Kadex onto a wall. Place the front cover of
the i-Kadex into position.
Verification • Master terminal indication
5
1
Once the master terminal verifies the card,
the prompt “Verify” will be displayed.
2
If the card has not been enrolled or if there is
something wrong with the card, the master
terminal will prompt an “oo..oo..” sound
indicating verification failure.
Verify
CARD: 0003837885
USER ID: 00001
VERIFIED
Verify PIN Card
No enroll
Verification • Card
4
i-Kadex is a slave terminal for a card system. It reads card ID and sends the information to a
master terminal for verification. i-Kadex does not come with a memory, therefore it cannot
perform card registration. Kindly make sure that card information is enrolled into the master
terminal.
Red light Green
light
i-Kadex i-Kadex
1 2
Make sure that the i-Kadex is in
standby mode and your card has
been enrolled into a master
terminal.
Wave your card at the card induction
area. Once the i-Kadex reads the card
information, the LED will turn green and
send the information to the master
terminal for verification.
SPECIFICATIONS
MODEL
SURFACE FINISHING
TYPE OF SCANNER
PROCESSOR
MEMORY
ALGORITHM
PRODUCT DIMENSION (L X W X H), mm
STORAGE
• Cards
• Transaction
ENROLLMENT & VERIFICATION
• Methods
• Card per user ID
• Reading distance, mm
• Verification time (sec)
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz
• MIFARE: MFIS50/S70, 13.56MHz
COMMUNICATIONS
• Method
OPERATING ENVIRONMENT
• Temperature (°C)
• Humidity (%)
• Power input
ACCESS CONTROL
• EM lock driving output
• Alarm output
• Antipassback
i-Kadex
Polycarbonate
RFID antenna
Managed by master
55 x 15 x 100
Storage in master
Card capturing station
40 ~ 80 (RFID), 30 ~ 50 (Mifare
Managed by master
Yes
Made to order
Wiegand 26-bit output
-10 ~ 70
20 ~ 80
DC 12V 1A
Managed by master
A Firm Access
with FingerTec
i-Kadex
i-Kadex
Card
www.fingertec.comwww.fingertec.com
A Firm Access with
i-Kadex
User Guide
FingerTec
i-Kadex
INTRODUCTION
1
i-Kadex is a slave terminal for a card door access control system. The i-Kadex reads and captures
information from a card, and sends the information to a master terminal for verification. The iKadex communicates with the master terminal via Wiegand 26-bit output and requires a master
terminal with a Wiegand 26-bit input to accept signals from the slave.
LED light indicator
Red light: indicates standby
mode
Green light: indicates that the
card information is being read
and sent to the master
terminal for verification.
Card scanning area
To scan and receive card
information for verification at
the master reader. Default card
type: RFID Card, 125kHz 40 to
80mm. Made to order: MIFARE,
i-Kadex
13.56MHz 30 to 50mm
2012 FingerTec Worldwide Sdn. Bhd. All rights reserved • 052012
©
Connections &
2
Wiring Diagram
Color
Wire
Black
GND
Red
PWR
Green
WD0
White
WD1
Black
GND
Grey
LED
Purple
Beep
Function
Supplies power (DC12V 3A)
toi-Kadex
Wiegand 26-bit output connects
to a master terminal’s. Wiegand
26-bit input
LED input from the master
terminal
Buzzer input from the master
terminal.
Rear of i-Kadex Terminal
BEEP
GLED
INWD0
INWD1
GND
+12V
Connect to master
Power Supply: GND
Power Supply: +12V
INWD0
INWD1
GND
G LED
BEEP
Rear of Master Terminal
BEEP
Purple
Grey
Green
White
Black
Red
Note: Only 1 black wire is provided. It can be shared for
GND for power supply and Wiegand 26-bit output.
INWD0
INWD1
+12V
+12V
DC12V 3A Power Supply
GLED
RLED
GND
GND
485B
485A
GND
232T
232R
GND
WD1
WD0
RJ45-1
RJ45-2
RJ45-3
RJ45-4
NC2
COM2
NO2
NC1
COM1
NO1
BUT
GND
SEN
