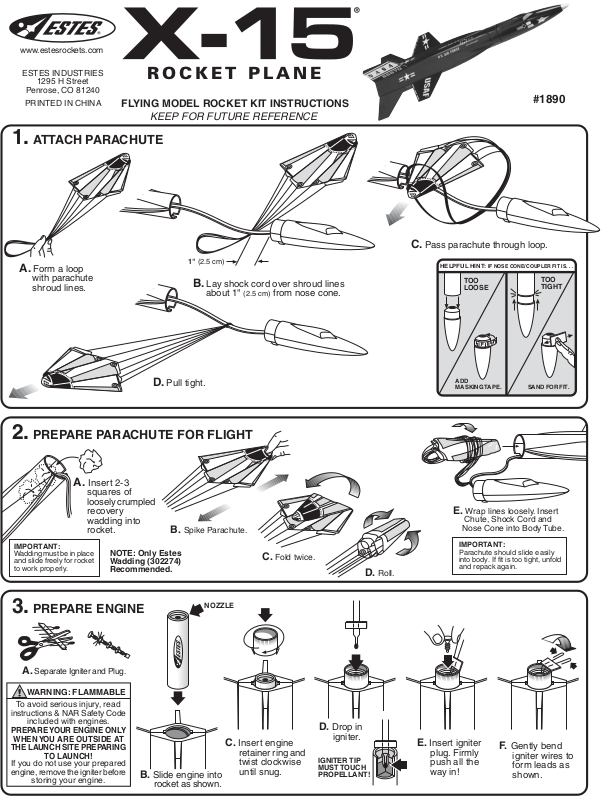

ROCKET PLANE
FLYING MODEL ROCKET KIT INSTRUCTIONS
KEEP FOR FUTURE REFERENCE
1. ATTACH PARACHUTE
A. Form a loop
with parachute
shroud lines.
1" (2.5 cm)
B. Lay shock cord over shroud lines
about 1" (2.5 cm) from nose cone.
#1890
C. Pass parachute through loop.
HELPFUL HINT:
IF NOSE CONE/COUPLER FIT IS. . .
TOO
LOOSE
TOO
TIGHT
D. Pull tight.
2. PREPARE PARACHUTE FOR FLIGHT
A.
Insert 2-3
squares of
loosely crumpled
recovery
wadding into
rocket.
IMPORTANT:
Wadding must be in place
and slide freely for rocket
to work properly.
NOTE: Only Estes
Wadding (302274)
Recommended.
3. PREPARE ENGINE
A.
Separate Igniter and Plug.
B.
Spike Parachute.
NOZZLE
C.
Fold twice.
D.
Roll.
ADD
MASKING TAPE.
E.
Wrap lines loosely. Insert
Chute, Shock Cord and
Nose Cone into Body Tube.
IMPORTANT:
Parachute should slide easily
into body. If fit is too tight, unfold
and repack again.
SAND FOR FIT.
WARNING: FLAMMABLE
To avoid serious injury, read
instructions & NAR Safety Code
included with engines.
PREPARE YOUR ENGINE ONLY
WHEN YOU ARE OUTSIDE AT
THE LAUNCH SITE PREPARING
If you do not use your prepared
engine, remove the igniter before
TO LAUNCH!
storing your engine.
B.
Slide engine into
rocket as shown.
C.
Insert engine
retainer ring and
twist clockwise
until snug.
D.
Drop in
igniter.
IGNITER TIP
MUST TOUCH
PROPELLANT!
E.
Insert igniter
plug. Firmly
push all the
way in!
F.
Gently bend
igniter wires to
form leads as
shown.
COUNTDOWN AND LAUNCH
KEY ALWAYS
OUT UNTIL
FINAL
COUNTDOWN!
1...
1...
Masking
Tape
8" (20 cm)
2...
2...
3...
3...
15 FT. (5 M)
PRECAUTIONS
NAR Safety Code
5...
5...
LAUNCH BUTTON
4...
4...
INSERT KEY.
PUSH DOWN
AND HOLD.
4... 3... 2... 1...
HOLD KEY DOWN AND
PRESS LAUNCH BUTTON
UNTIL LIFT-OFF!
KEY
NO DRY
GRASS
OR
WEEDS
FLYING YOUR ROCKET
Choose a large field (500 ft. [152 m] square) free of dry weeds and
brown grass. The larger the launch area, the better the chance of
recovering your rocket. Football fields and playgrounds are great.
Launch only with little or no wind and good visibility.
Always follow the National Association of Rocketry (NAR) Safety Code.
MISFIRES
TAKE THE KEY OUT OF THE CONTROLLER. WAIT ONE MINUTE
BEFORE GOING NEAR THE ROCKET! Disconnect the igniter clips. Take
the plug and igniter out of the engine. If the igniter has burned, it worked
but did not ignite the engine because it was not touching the propellant
inside the engine. Put a new igniter all the way inside the engine without
bending it. Push the plug in place. Repeat the steps under Countdown
and Launch.
