Esoteric I-03 User Manual
D01141820A
I-03
Integrated Amplifier
OWNER’S MANUAL
2
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
o Do not expose this apparatus to drips or splashes.
o Do not place any objects filled with liquids, such as vases, on the
apparatus.
o Do not install this apparatus in a confined space such as a book
case or similar unit.
o The apparatus draws nominal non-operating power from the
AC outlet with its POWER or STANDBY/ON switch not in the ON
position.
o The apparatus should be located close enough to the AC outlet so
that you can easily grasp the power cord plug at any time.
o The mains plug is used as the disconnect device, the disconnect
device shall remain readily operable.
o Products with Class © construction are equipped with a power
supply cord that has a 3-prong grounding plug. The cord of such
a product must be plugged into an AC outlet that has a protective
grounding connection.
o If the product uses batteries (including a battery pack or installed
batteries), they should not be exposed to sunshine, fire or excessive
heat.
o Caution should be taken when using earphones or headphones
with the product because excessive sound pressure (volume) from
earphones or headphones can cause hearing loss.
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9) Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided
for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10) Prote ct the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused
for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION
o DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE
THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE WITHIN.
o IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT,
CONTACT ESOTERIC FOR A SERVICE REFERRAL. DO NOT USE THE
PRODUCT UNTIL IT HAS BEEN REPAIRED.
For U.S.A.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the equipment and/or the receiving
antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
CAUTION
Changes or mo difications to this equipment not expressly
approved by TEAC CORPORATION for compliance will void the
user’s warranty.
3
Contents What’s in the box
Thank you for choosing ESOTERIC. Read this manual carefully
to get the best performance from this unit.
What’s in the box ....................................................3
Before Use ...........................................................4
Identifying the Parts (Main Unit) .....................................5
Identifying the Parts (Remote Control Unit) ..........................6
Remote Control Unit .................................................7
Connections .........................................................8

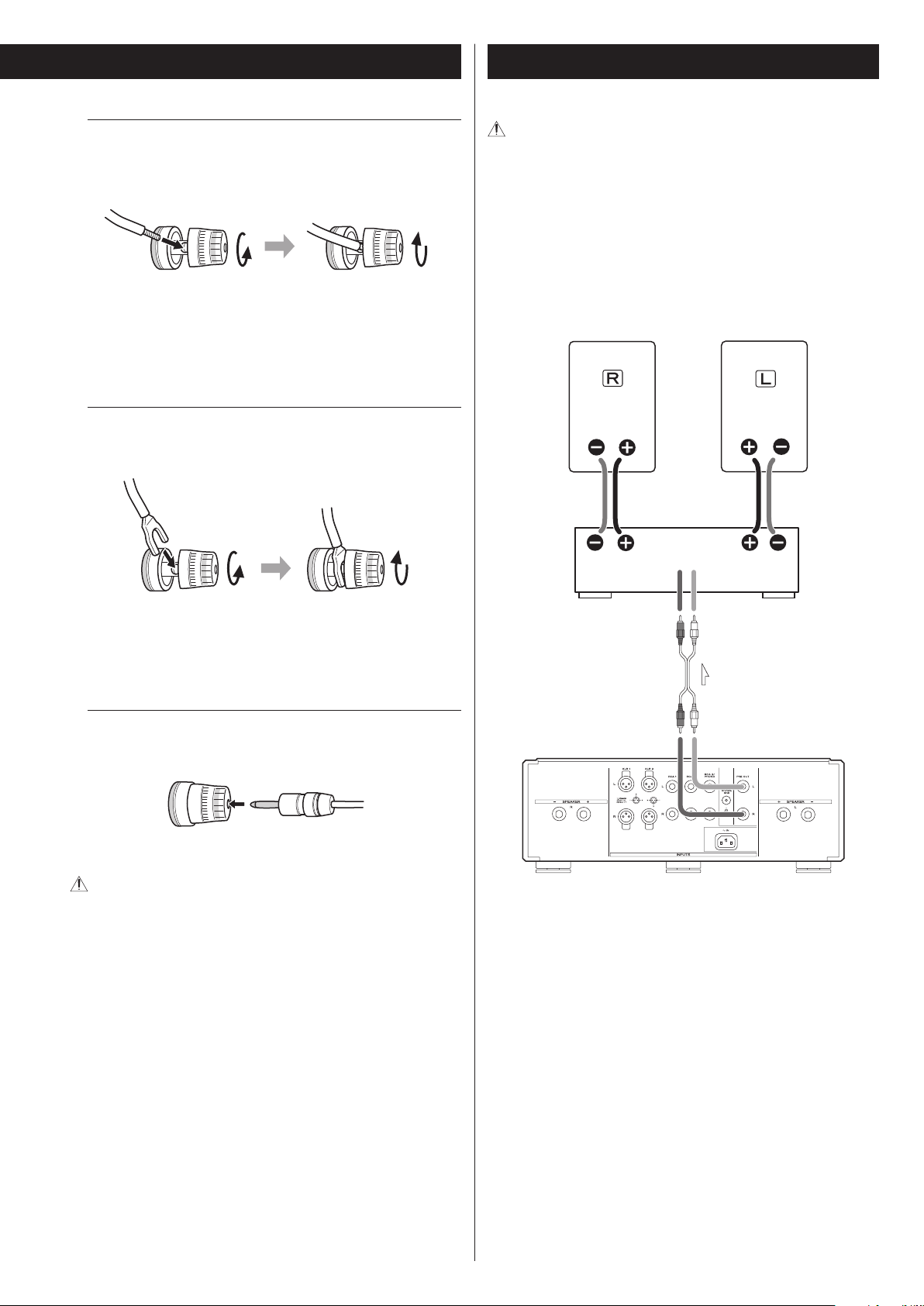

Speaker Connections ...............................................10
Connections When Using as a Pre Amplifier .........................11
Basic Operation .....................................................12
Dimmer/Muting ....................................................13
Balance and Input Level Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Additional Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
What’s in the box
Check to be sure the box includes all the supplied accessories shown
below.
Please contact the store where you purchased this unit if any of these
accessories are missing or have been damaged during transportation.
Remote control unit (RC-1251) x 1
Batteries (AA, R6 or SUM-3) x 2
Power cord x 1
Felt pads x 3
Troubleshooting ....................................................19
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

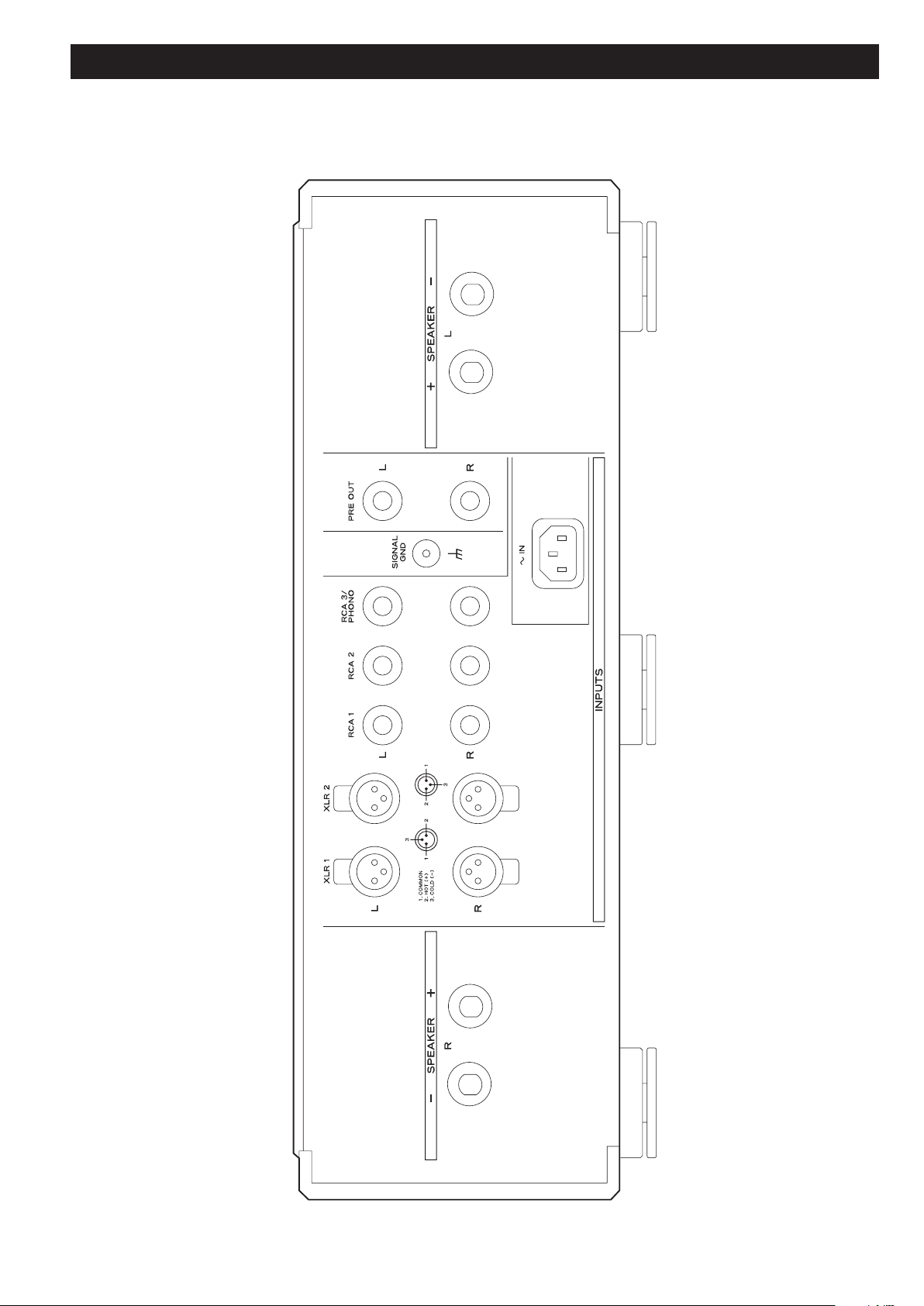

Rear Panel Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
o To protect the supporting furniture surface, you may stick the
felt pads to the bottom of the feet.
Owner’s manual (this document) x 1
o Keep this manual for future reference.
Warranty card x 1
Before Use
Bottom plate
of the unit
Spike foot
Protection foot Retaining screws
Read this before attempting any operations.
Placement of the unit
This unit is heavy. Take care to prevent injuries when lifting and
installing it.
o High-quality tool steel is used for the spike feet, securely attached
to the bottom of the unit. Although the outer feet may appear
loose, the weight of the unit causes them to become firm and
secure. The design effectively damps and reduces vibration.
To protect the supporting furniture surface, you may stick the
supplied felt pads to the bottom of the protection feet.
o Place the unit in a stable location near the audio system that you
will use.
o Choose the installation location of your unit carefully. Avoid placing
it in direct sunlight or close to a source of heat. Also avoid locations
subject to vibrations and excessive dust, heat, cold or moisture.
o As the unit may become warm during operation, always leave
sufficient space around the unit for ventilation.
Make sure there is at least 8” (20 cm) of space above and at least 2”
(5 cm) of space on each side of the unit.
When you install the unit in a rack, use one which has ventlations
and take care of temperature of the unit.
CAUTION
o Do not place any objects on this unit.
o Do not cover this unit with a cloth.
o The voltage supplied to the unit should match the voltage as
printed on the rear panel. If you are in any doubt regarding this
matter, consult an electrician.
o Do not open the cabinet as this might result in damage to the
circuitry or cause electric shock. If a foreign object should get into
the unit, contact your dealer or service company.
o When removing the power plug from the wall outlet, always pull
directly on the plug, never yank on the cord.
Maintenance
If the surface of the unit gets dirty, wipe it with a sof t cloth or
use diluted mild liquid soap. Allow the surface of the unit to dry
completely before using.
For safety, disconnect the power cord from the socket before
cleaning.
o Never spray liquid directly on this unit.
o Do not use thinner or alcohol as they could damage the surface of
the unit.
o Avoid allowing rubber or plastic materials to touch this product for
long periods of time. It could damage the cabinet.
o Do not place this unit on a thick carpet.
o When the unit is turned on, switching on the TV may cause lines
to appear on the TV screen, depending on the condition of the
electric waves of the TV broadcast. This is not malfunction in the
unit or the T V. If you see such lines, keep this unit well away from
the TV set.
4
Identifying the Parts (Main Unit)
A
B
C ED
F
INPUT
A
Turn this knob to select a source. Select the terminal that is
connected to the device you want to play (page 12).
In setup mode, turn this knob to change the setting of each item
(pages 14, 15).
o You can assign names to the input terminals. You can also set
the terminals to be skipped when you do not want to use them
(pages 17, 18).
POWER
B
Press this button to turn the unit on and off.
The blue indicator lights when the unit is turned on.
Turn the volume to a minimum level before you turn
the unit on or off. Failure to do so may cause sudden
loud noises and hearing damage when you turn on the
unit next time.
o Turn off the power when not using this unit.
Display
C
Displays the current input terminal names, volume, setting items
etc.
Remote sensor
D
When operating the remote control unit, point it towards this
area on the front panel.
PHONES
E
For private listening, insert a 6.35 mm (1/4”) stereo headphone
plug into this jack, and then adjust the volume by turning the
VOLUME knob.
TO AVOID DAMAGING YOUR HEARING
Do not connec t headphones to the PHONES jack while
wearing them. Moreover, do not disconnect headphones or
turn the unit on or off while wearing them.
Very loud sounds could be output from the headphones if
volume is not turned down prior to plugging on or prior to
unplugging. It may cause damage to your hearing.
VOLUME
F
Tu r n thi s k n ob c l oc k wise to in c r eas e v ol u m e an d
counterclockwise to reduce the volume.
o When the volume value exceeds the maximum total gain value
of this unit, the volume display blinks. Lower the volume until the
display stops blinking.
o When you set the RCA2 terminals to “THRU”, the VOLUME knob
does not work on RCA2 signal inputs (page 16).
o When you set the PRE OUT terminals to “REC”, the VOLUME knob
does not work on this output. In this setting the unit sends a fixed
output level for recording (page 16).
A sudden loud noise heard over the speakers may damage
your hearing or the speakers. Turn the volume to a minimum
level before you begin playback of source devices. Then
gradually increase the volume as desired.
5
6
Identifying the Parts (Remote Control Unit)
a
b
f
c
d
e
g
The buttons not mentioned in this chapter do not work with the I-03.
However, they can be used for other Esoteric products.
a
ON (confirm settings)
Some settings can be changed using this button in “Additional
settings” (pages 16, 18).
You can also assign names to the terminals using this button
(page 18).
o You can not turn the power on or off using this button.
b
INPUT (</>)
Press these buttons to select a source. Select the input terminal
that is connected to the device that you want to play (page 12).
In setup mode, press these buttons to change the setting of each
item (pages 14, 15).
c
DIMMER
Use this button to select one of four brightness levels for the
display and indicator lamps (page 13).
d
SETUP
Press this button to enter the setup mode for balance and output
level adjustments (page 14).
Press this button for more than 2 seconds to enter additional
setup modes (page 15 ).
e
CLEAR
In setup mode, use this button to exit the setup mode (pages 14,
15).
VOLUME (+/−)
f
Use these buttons to adjust the volume.
o When you set the RCA2 terminals to “THRU” (page 16), or when
you set the PRE OUT terminals to “REC” (page 16), the VOLUME
control buttons do not work.
To simplify explanations, instructions in this manual might refer to
the main unit or remote control unit only. In such cases, the same
controls on the remote control and main unit will operate similarly.
g
MUTING
Press this button to mute the sound. Press this button again to
restore the sound (page 13).
7
Remote Control Unit
Remote sensor
7m
(23 feet)
The included remote control allows this unit to be operated from a
distance.
Point the remote control unit at the main unit’s remote sensor
within 23 feet (7 m) of the main unit.
o Depending on the angle, reception might be dif ficult. Use the
remote control from directly in front of the unit as much as
possible.
o Even if the remote control unit is used within its effective range,
operation by remote control might be impossible if there are any
obstacles between the unit and the remote control.
o If direct sunlight or strong artificial illumination shines on the
remote sensor, the remote control might not function.
o If the remote control unit is operated near other devices that
generate infrared rays, or if other remote controls that use infrared
rays are operated near the unit, this unit might operate incorrectly.
The other devices might also operate incorrectly.
Battery Replacement
If the operating range between the remote control unit and main
unit decreases, the batteries are exhausted. In this case replace the
batteries with new ones.
For more information about collection of batteries, please contact
your local municipality, your waste disposal service or the point of sale
where you purchased the items.
Precautions concerning batteries
Misuse of batteries could cause them to rupture or leak leading
to fire, injury or the staining of nearby things. Please read and
observe the following precautions carefully.
o Be sure to insert the batteries with correct positive (¥) and
negative (^) orientations.
o Use batteries of the same t ype. Never use different types of
batteries together.
o Both rechargeable and non-rechargeable batteries can be used.
Refer to the precautions on their labels.
o If the remote control will not be used for a long time (more than a
month), remove the batteries to prevent them from leaking.
o If the batteries leak, wipe away the leakage inside the battery
compartment and replace the batteries with new ones.
o Do not use batteries of types other than those specified. Do not
mix new batteries with old ones or use different types of batteries
tog ether.
o Do not heat or disassemble batteries. Never throw batteries into
fire or water.
Battery Installation
Use a Philips screwdriver to remove the cover from the bottom of
the remote control, and slowly pull out the battery case. Insert two
AA batteries in the correct ¥/^ orientations, reinsert the case
and close the cover.
o Do not carry or store batteries with other metallic objects. The
batteries could short circuit, leak or explode.
o Ne ver rech arg e a bat tery unless it is conf irme d to be a
rechargeable type.
Connections
A
A
B
C
D
XLR cable
RCA audio cable
RCA audio cable
Power cord
LRLR
LR
Turntable
Recorder etc.
Super Audio CD Player
etc.
Super Audio CD Player/
Tuner etc.
XLR pin assignment
1. COMMON
2. HOT (+)
3. COLD (−)
AUDIO IN
AUDIO OUTAUDIO OUT
Wall socket
After all other connections are complete, connect the power cord plug to the AC wall socket.
o Read the instructions of each component you intend to use with this unit.
o Be sure to connect each plug securely. To prevent hum and noise, do not bundle the connection cords.
8
Loading...
