Epson WF-8090DW User Guide

User's Guide

NPD5018-00 EN

User's Guide

Copyright

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation. No patent liability is assumed with respect to the use of the information contained herein. Neither is any liability assumed for damages resulting from the use of the information herein. information contained herein is designed only for use with this Epson printer. Epson is not responsible for any use of this information as applied to other printers.

Neither Seiko Epson Corporation nor its aliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of accident, misuse, or abuse of this product or unauthorized modications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation's operating and maintenance instructions.

Seiko Epson Corporation and its aliates shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as Original Epson Products or Epson Approved Products by Seiko Epson Corporation.

e

Seiko Epson Corporation shall not be held liable for any damage resulting from electromagnetic interference that occurs from the use of any interface cables other than those designated as Epson Approved Products by Seiko Epson Corporation.

contents of this manual and the

e

specications

of this product are subject to change without notice.

User's Guide

Trademarks

❏ EPSON® is a registered trademark, and EPSON EXCEED YOUR VISION or EXCEED YOUR VISION is a

trademark of Seiko Epson Corporation.

❏ PRINT Image Matching™ and the PRINT Image Matching logo are trademarks of Seiko Epson Corporation.

❏ Intel

❏ Microso

❏ Apple, Macintosh, Mac OS, OS X, and Bonjour are trademarks of Apple Inc., registered in the U.S. and other

❏ Apple Chancery, Chicago, Geneva, Hoeer Text, Monaco and New York are trademarks or registered

❏ Google Cloud Print™ is a registered trademark of Google Inc.

❏ Monotype is a trademark of Monotype Imaging, Inc. registered in the United States Patent and Trademark

❏ Albertus, Arial, Gill Sans, Joanna and Times New Roman are trademarks of e Monotype Corporation.

❏ ITC Avant Garde, ITC Bookman, ITC Lubalin, ITC Mona Lisa Recut, ITC Symbol, ITC Zapf-Chancery, and

❏ Clarendon, Helvetica, New Century Schoolbook, Optima, Palatino, Stempel Garamond, Times and Univers are

❏ Wingdings is a registered trademark of

❏ Antique Olive is a registered trademark of Marcel Olive and may be registered in certain jurisdictions.

is a registered trademark of Intel Corporation.

, Windows®, and Windows Vista® are registered trademarks of Microso Corporation.

countries. AirPrint is a trademark of Apple Inc.

trademarks of Apple Inc.

Oce and may be registered in certain jurisdictions.

ITC Zapf Dingbats are trademarks of International Typeface Corporation registered in the United States Patent and Trademark Oce and may be registered in certain jurisdictions.

registered trademarks of Heidelberger Druckmaschinen AG, which may be registered in certain jurisdictions, exclusively licensed through Linotype Library GmbH, a wholly owned subsidiary of Heidelberger Druckmaschinen AG.

Microso

Corporation in the United States and other countries.

❏ Adobe SansMM, Adobe SerifMM, Carta, and Tekton are registered trademarks of Adobe Systems Incorporated.

❏ Marigold and Oxford are trademarks of AlphaOmega Typography.

❏ Coronet is a registered trademark of Ludlow Type Foundry.

❏ Eurostile is a trademark of Nebiolo.

❏ Bitstream is a registered trademark of Bitstream Inc. registered in the United States Patent and Trademark

Oce and may be registered in certain jurisdictions.

❏ Swiss is a trademark of Bitstream Inc. registered in the United States Patent and Trademark Oce and may be

registered in certain jurisdictions.

❏ PCL is the registered trademark of Hewlett-Packard Company.

❏ Adobe, Adobe Reader, PostScript3, Acrobat, and Photoshop are trademarks of Adobe systems Incorporated,

which may be registered in certain jurisdictions.

User's Guide

Trademarks

❏ Getopt

Redistribution and use in source and binary forms, with or without modication, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

4. Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this soware without specic prior written permission.

THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ''AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

❏ Arcfour

is code illustrates a sample implementation of the Arcfour algorithm.

Redistribution and use in source and binary forms, with or without modication, are permitted provided that this copyright notice and disclaimer are retained.

THIS SOFTWARE IS PROVIDED BY KALLE KAUKONEN AND CONTRIBUTORS ''AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL KALLE KAUKONEN OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

❏ microSDHC Logo is a trademark of SD-3C, LLC.

Note: microSDHC is built into the product and cannot be removed.

❏ General Notice: Other product names used herein are for

of their respective owners. Epson disclaims any and all rights in those marks.

identication

purposes only and may be trademarks

User's Guide

Contents

Trademarks

About This Manual

Introduction to the Manuals...................8

Marks and Symbols.........................8

Descriptions Used in this Manual...............9

Operating System References..................9

Important Instructions

Safety Instructions.........................10

Printer Advisories and Warnings.............. 11

Advisories and Warnings for Setting Up/

Using the Printer........................11

Advisories and Warnings for Using the

Printer with a Wireless Connection...........12

Advisories and Warnings for Using the LCD

Screen................................12

Advisories and Warnings for Using the

Optional Cabinet........................12

Protecting Your Personal Information...........13

Administrator Settings

Locking the Printer Settings Using an

Administrator's Password....................14

Unlocking the Printer Settings................ 14

Printer Basics

Part Names and Functions...................15

Control Panel............................ 19

Buttons and Lights.......................19

Icons Displayed on the LCD Screen...........19

Menu Options............................20

Menu................................ 20

Loading Paper

Paper Handling Precautions..................27

Available Paper and Capacities................27

List of Paper Types.......................30

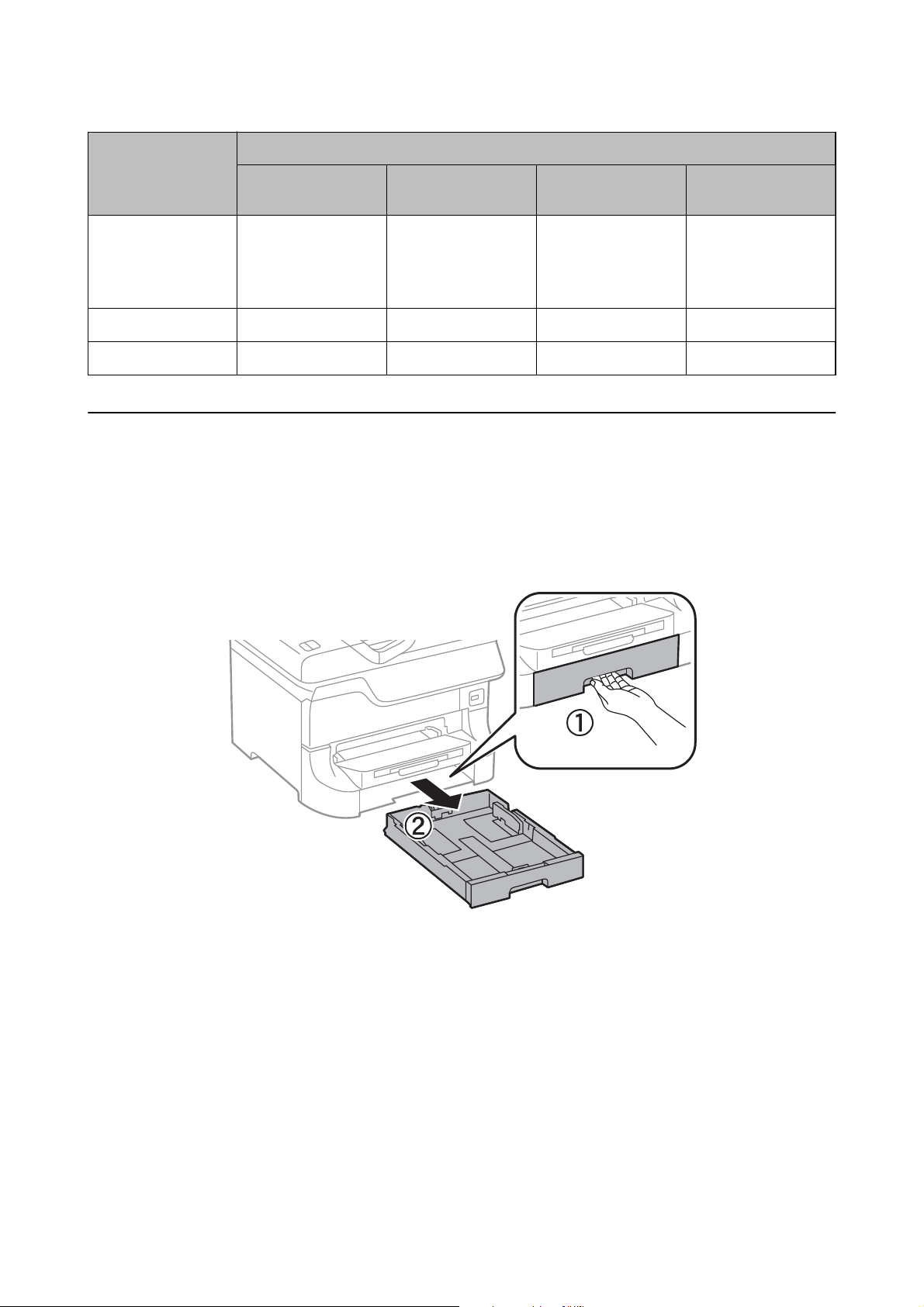

Loading Paper in the Paper Cassette............31

Loading Paper in the Rear Paper Feed...........33

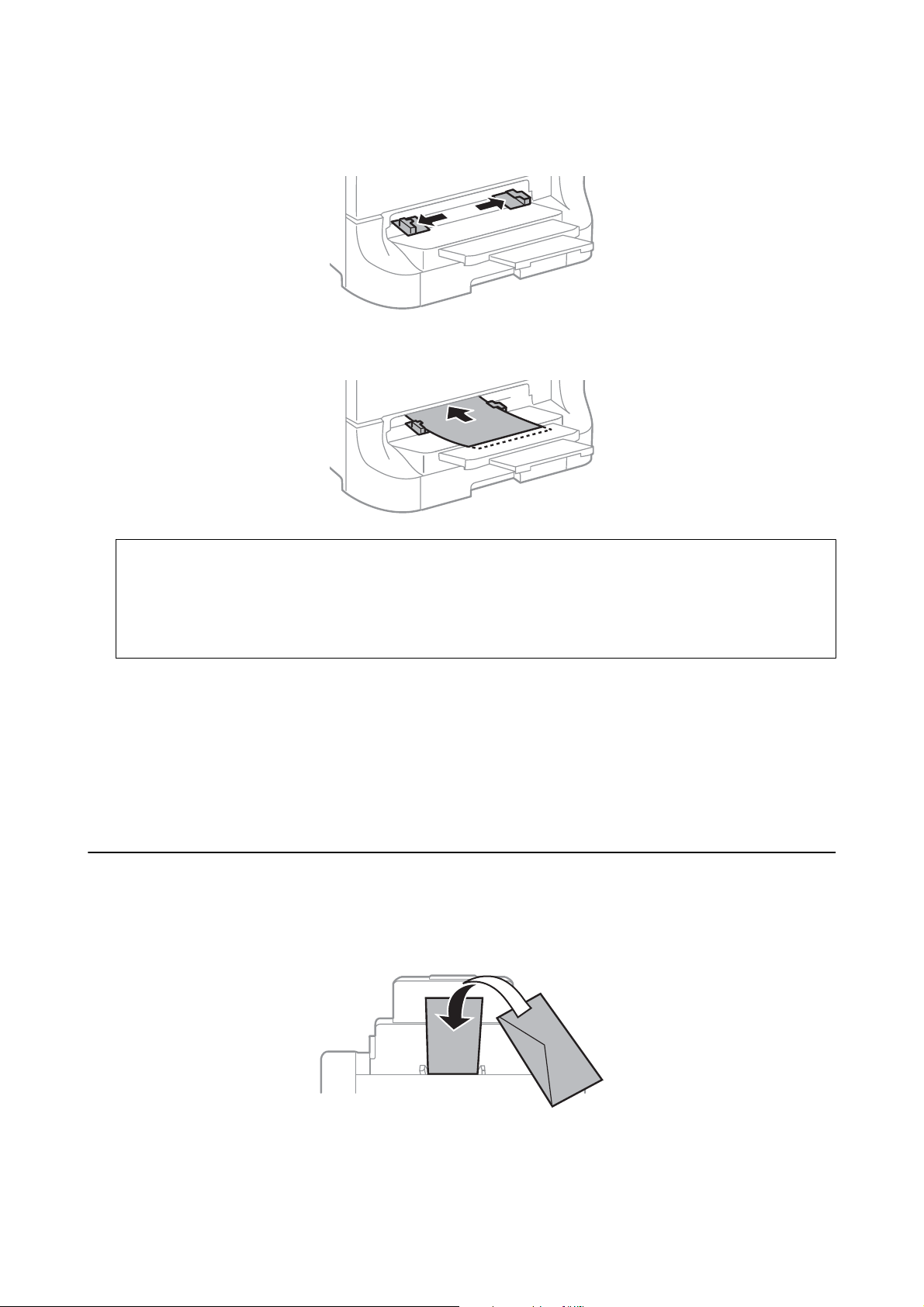

Loading Paper in the Front Paper Feed Slot. . . . . . . 35

Loading Envelopes and Precautions............ 36

Setting the Paper Size and Paper Type for Each

Paper Source.............................37

Printing

Printing from a Computer...................38

Printing Basics - Windows.................38

Printing Basics - Mac OS X.................39

Printing on 2-Sides.......................41

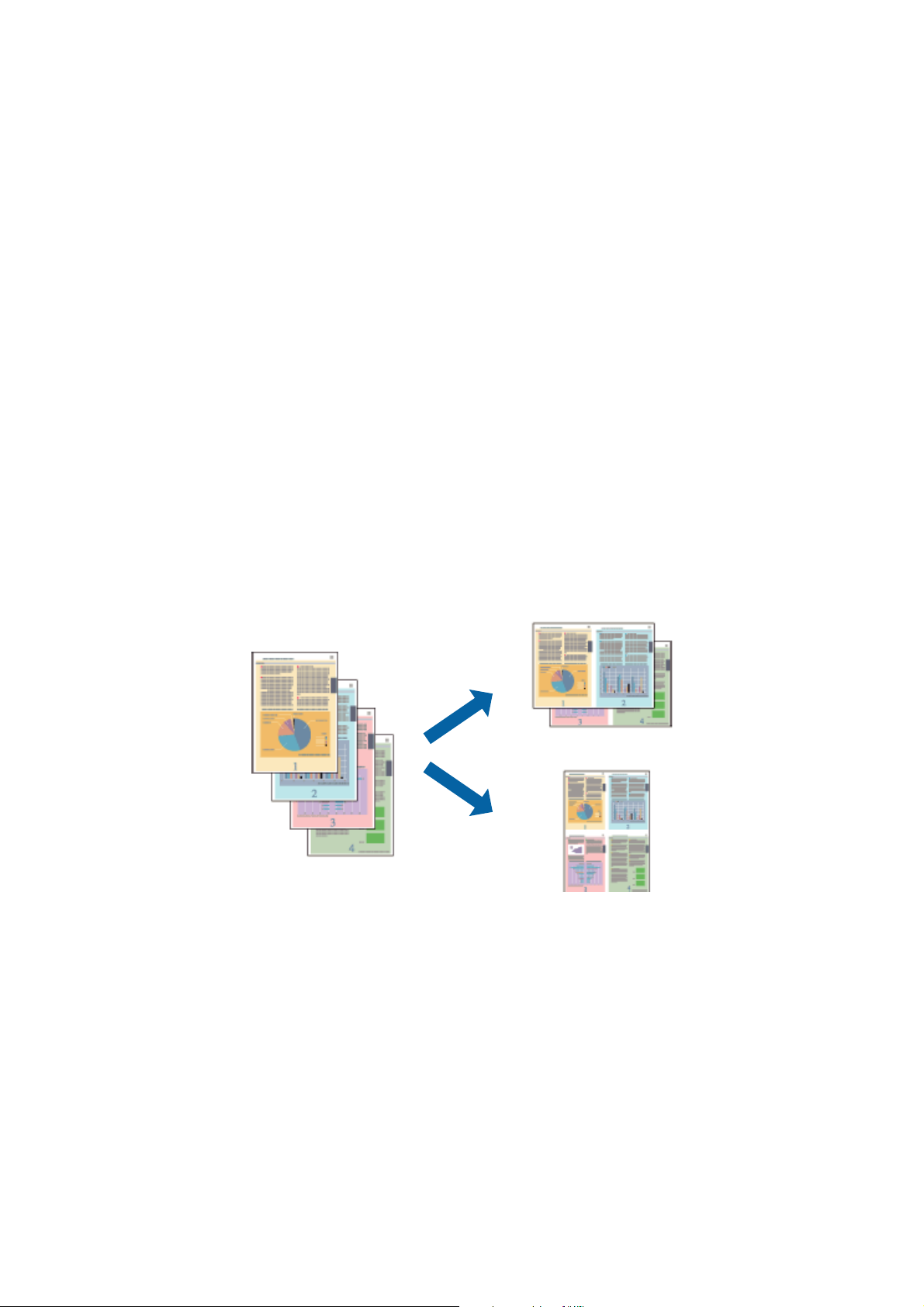

Printing Several Pages on One Sheet..........43

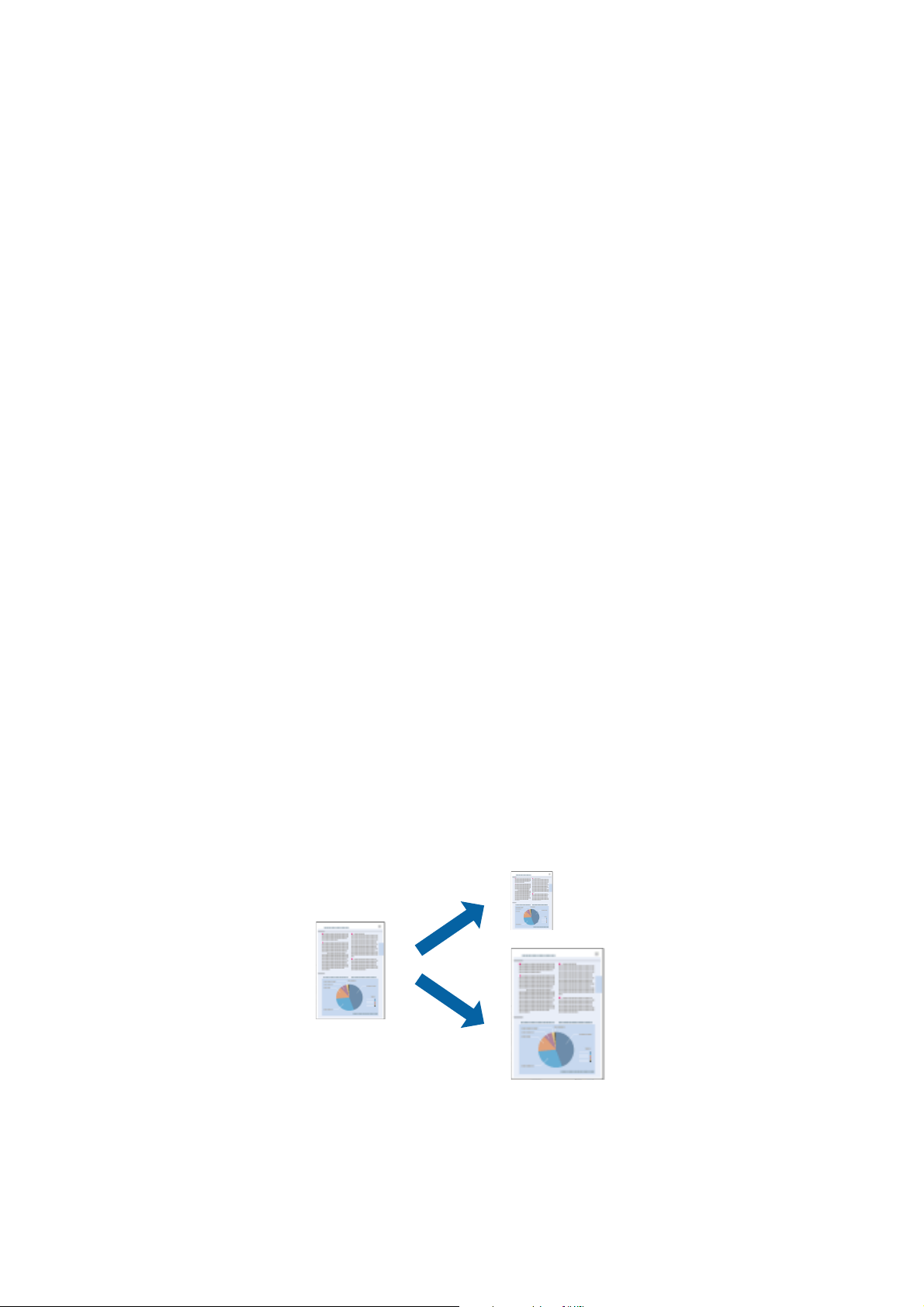

Printing to Fit the Paper Size................44

Printing Multiple Files Together (for

Windows Only).........................46

Enlarged Printing and Making Posters (for

Windows Only).........................47

Printing on Envelopes.................... 53

Printing Using Advanced Features........... 54

Printing Using a PostScript Printer Driver........56

Printing Using a PostScript Printer Driver -

Windows..............................56

Printing Using a PostScript Printer Driver -

Mac OS X.............................58

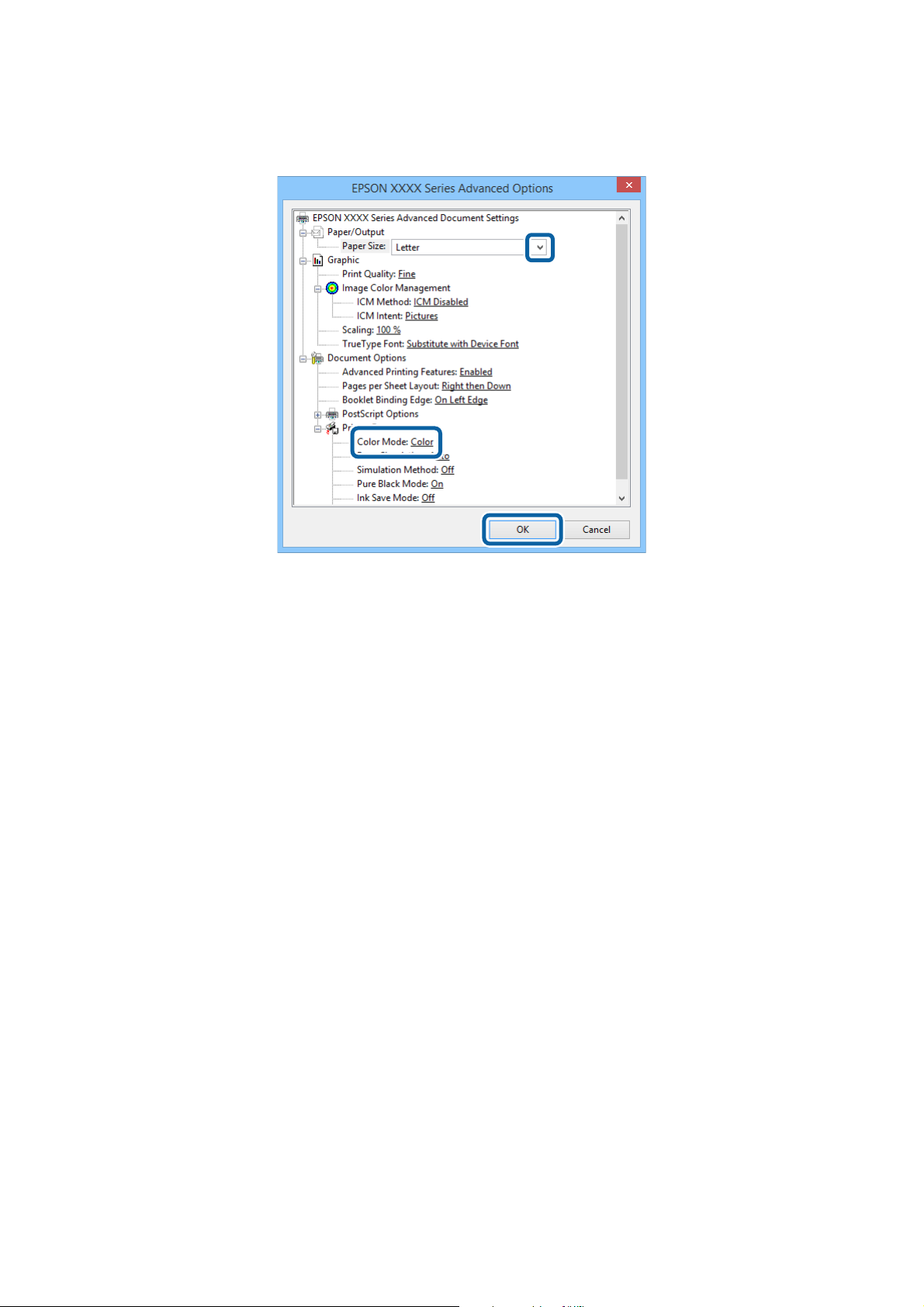

Setting Items for the PostScript Printer Driver. . . 61

Printing Using the Epson Universal P6 Printer

Driver (for Windows Only)...................61

Smart Devices Printing......................62

Canceling Printing.........................62

Canceling Printing - Printer Button...........62

Canceling Printing - Windows.............. 62

Canceling Printing - Mac OS X..............63

Replacing Ink Cartridges and Other Consumables

Checking the Status of the Ink Cartridges and

the Maintenance Box.......................64

Checking the Status of the Ink Cartridges and

the Maintenance Box - Control Panel.........64

Checking the Status of the Ink Cartridges and

the Maintenance Box - Windows.............64

Checking the Status of the Ink Cartridges and

the Maintenance Box - Mac OS X............64

Ink Cartridge Codes........................65

Ink Cartridge Handling Precautions............65

Replacing Ink Cartridges.................... 66

Maintenance Box Code..................... 68

User's Guide

Contents

Maintenance Box Handling Precautions.........68

Replacing a Maintenance Box.................69

Maintenance Rollers Codes.................. 70

Replacing Maintenance Rollers in Paper

Cassette 1............................... 70

Replacing Maintenance Rollers in Paper

Cassette 2 to 4............................74

Temporarily Printing with Black Ink............77

Temporarily Printing with Black Ink - Windows. 78 Temporarily Printing with Black Ink -

Mac OS X.............................79

Conserving Black Ink when the Black Ink Is

Low (for Windows Only)....................80

Improving Print Quality

Checking and Cleaning the Print Head..........81

Checking and Cleaning the Print Head -

Control Panel.......................... 81

Checking and Cleaning the Print Head -

Windows..............................82

Checking and Cleaning the Print Head -

Mac OS X.............................82

Aligning the Print Head.....................82

Aligning the Print Head - Control Panel.......83

Aligning the Print Head - Windows...........83

Aligning the Print Head - Mac OS X..........84

Cleaning the Paper Path.....................84

Applications and Network Service Information

Epson Connect Service......................85

Web Cong..............................85

Necessary Applications......................85

Windows Printer Driver...................85

Mac OS X Printer Driver..................87

E-Web Print (for Windows Only)............89

EPSON Soware Updater..................89

EpsonNet Cong........................89

Uninstalling Applications....................90

Uninstalling Applications - Windows......... 90

Uninstalling Applications - Mac OS X.........90

Installing Applications......................91

Installing a PostScript Printer Driver..........92

Installing the Epson Universal P6 Printer

Driver (for Windows Only).................94

Updating Applications and Firmware...........95

Solving Problems

Checking the Printer Status.................. 96

Checking Messages on the LCD Screen........96

Checking the Printer Status - Windows........97

Checking Printer Status - Mac OS X..........97

Removing Jammed Paper....................98

Removing Jammed Paper from the Front

Cover (A)............................. 98

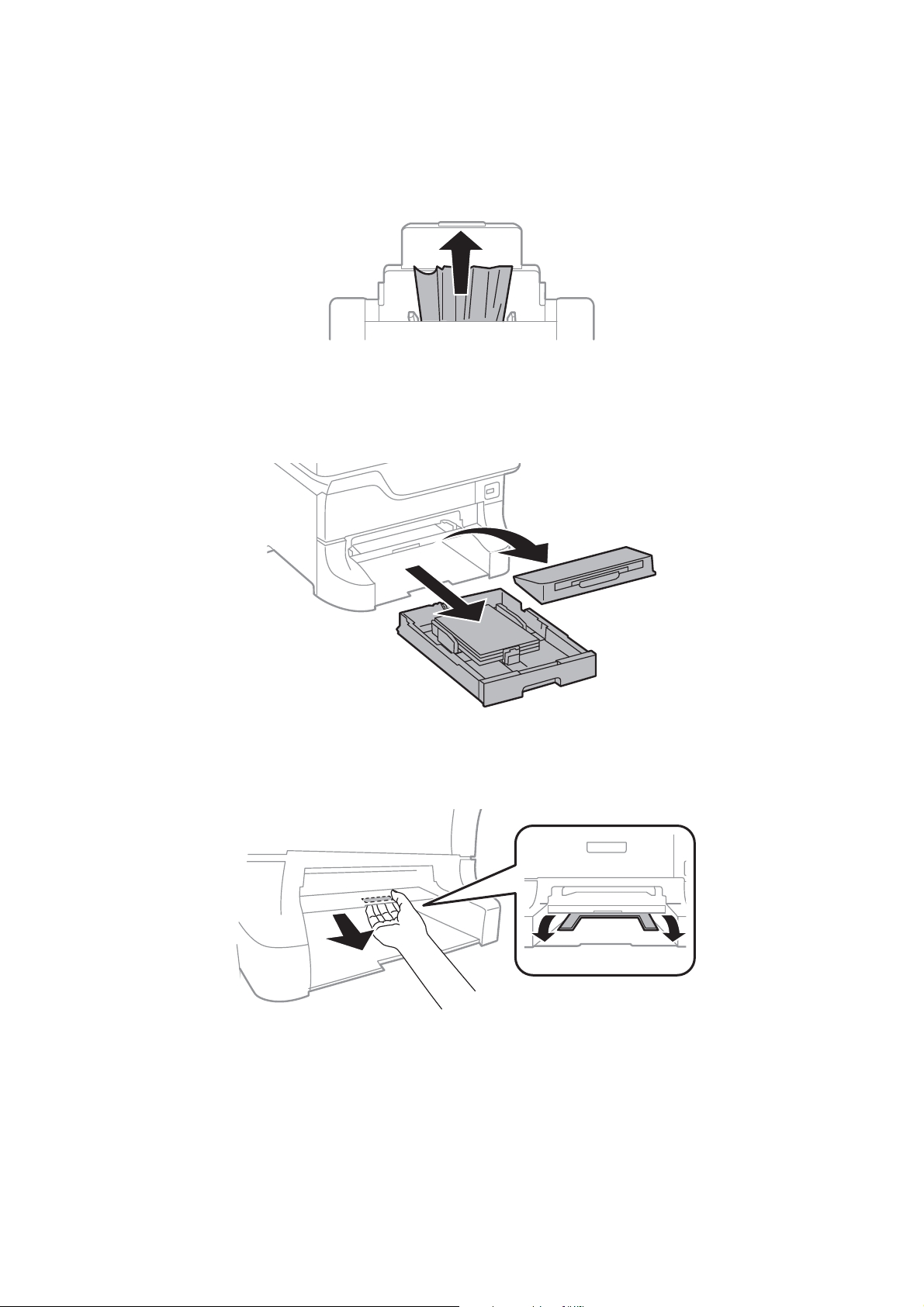

Removing Jammed Paper from the Rear

Paper Feed (B1).........................99

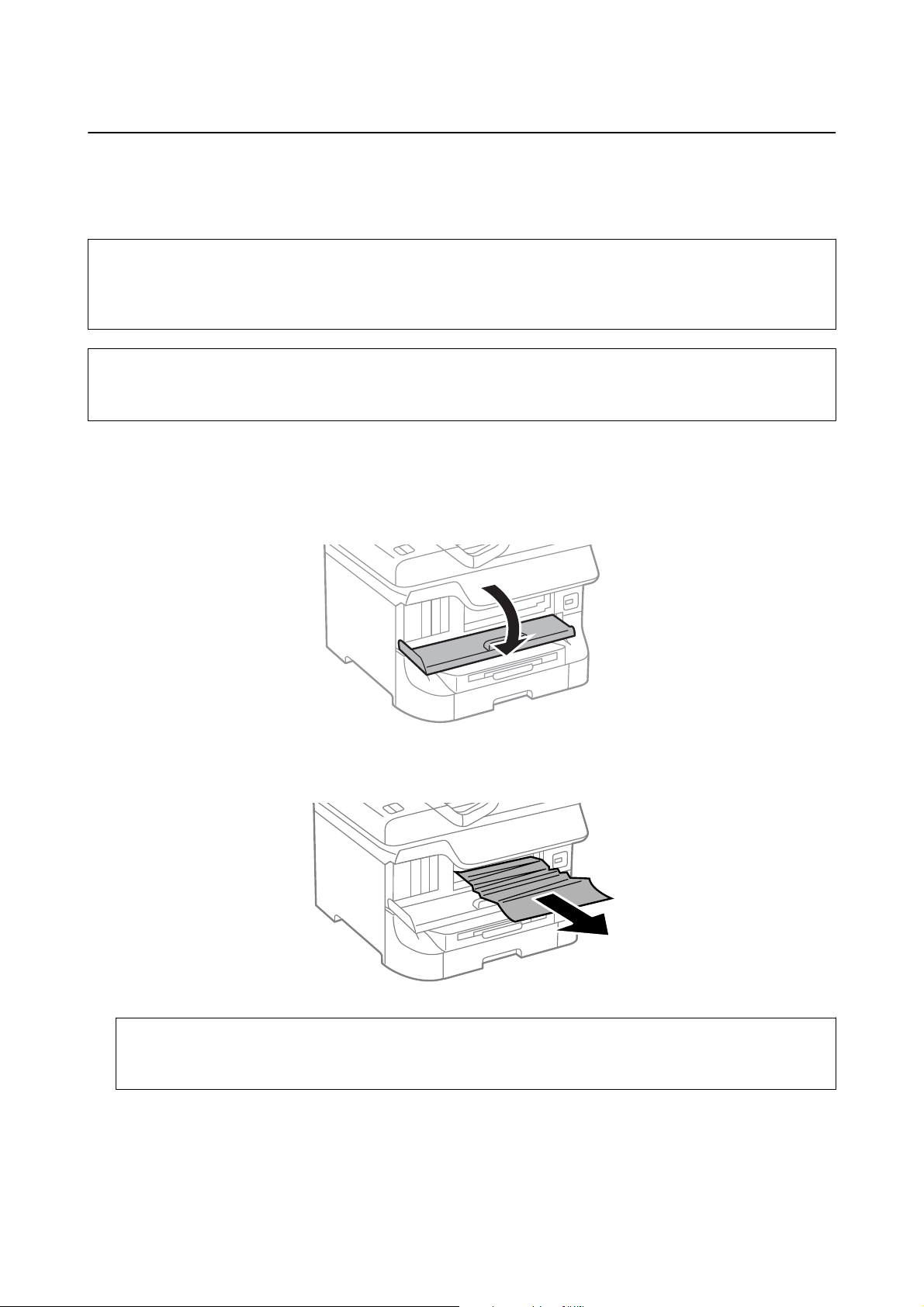

Removing Jammed Paper from the Front

Paper Feed Slot (B2)......................99

Removing Jammed Paper from the Paper

Cassette (C1/C2/C3/C4)..................100

Removing Jammed Paper from Rear Cover 1

(D1) and Rear Cover 2 (D2)...............101

Removing Jammed Paper from the Rear Cover (E) of the Optional Paper Cassette Unit. . 102

Paper Does Not Feed Correctly...............103

Power and Control Panel Problems............104

Power Does Not Turn On.................104

Power Does Not Turn O.................104

LCD Screen Gets Dark...................104

Printer Does Not Print.....................104

Printout Problems........................105

Print Quality Is Poor.................... 105

e Position, Size, or Margins of the Printout

Are Incorrect..........................106

Paper Is Smeared or Printed Characters Are Incorrect or Garbled. . . 107

e Printed Image Is Inverted..............108

e Printout Problem Could Not be Cleared. . . 108

Printing Is Too Slow.......................108

PostScript Printer Driver Problems............108

Printer Does Not Print While Using

PostScript Printer Driver................. 108

Printer Does Not Print Correctly While

Using PostScript Printer Driver.............109

Print Quality Is Poor While Using PostScript

Printer Driver......................... 109

Printing Is Too Slow While Using PostScript

Printer Driver......................... 109

Other Problems..........................109

Slight Electric Shock when Touching the

Printer...............................109

Operation Sounds Are Loud...............109

Forgot Your Password....................110

Application Is Blocked by a Firewall (for

Windows Only)........................110

Scued

...............107

User's Guide

Contents

Appendix

Technical Specications....................111

Printer Interface

Wi-Fi Specications.....................112

Ethernet Specications...................112

Security Protocol.......................112

Dimensions...........................113

Electrical Specications..................113

Environmental Specications..............114

System Requirements....................114

Font Information.........................115

Available Fonts for PostScript..............115

Available Fonts for PCL 5.................116

Available Fonts for PCL 6.................118

List of Symbol Sets......................119

Regulatory Information....................125

Standards and Approvals................. 125

Restrictions on Copying..................126

Printer Transfer and Transportation...........127

Printer Transfer Within a Short Distance. . . . . . 127

Transporting the Printer..................127

Installing the Optional Units.................128

Optional Cabinet Code...................128

Installing the Optional Cabinet.............128

Optional Paper Cassette Unit Code..........133

Installing the Optional Paper Cassette Units. . . 134

Printer Sharing...........................138

Where to Get Help........................139

Technical Support Web Site................139

Contacting Epson Support................139

Specications

....................111

...................111

User's Guide

About This Manual

Introduction to the Manuals

e latest versions of the following manuals are available from the Epson support website.

http://www.epson.eu/Support (Europe)

http://support.epson.net/ (outside Europe)

❏ Important Safety Instructions (paper manual)

Provides you with instructions to ensure the safe use of this printer. is manual may not be included depending on model and region.

❏ Start Here (paper manual)

Provides you with an introduction to the printer and services.

❏ User's Guide (PDF manual)

is manual. Provides instructions on using the printer, replacing ink cartridges, maintenance, and solving problems.

❏ Network Guide (PDF manual)

Provides information on network settings and solving problems when using the printer on a network.

❏ Administrator's Guide (PDF manual)

Provides network administrators with information on management and printer settings.

❏ Epson Connect Guide (PDF manual)

Provides information on Epson Connect services. website.

https://www.epsonconnect.com/

http://www.epsonconnect.eu (Europe only)

As well as the manuals above, check the various types of help information available from the printer itself or from the applications.

guide is available from the Epson Connect portal

is

Marks and Symbols

Caution:

Instructions that must be followed carefully to avoid bodily injury.

Important:

Instructions that must be observed to avoid damage to your equipment.

Note:

Instructions containing useful tips and restrictions on printer operation.

Related Information

User's Guide

About This Manual

Links to related sections.

Descriptions Used in this Manual

❏ Screenshots of the printer driver screens are from Windows 8 or Mac OS X v10.8.x. e content displayed on

the screens varies depending on the model and situation.

❏ Illustrations of the printer used in this manual are examples only. Although there may be slight

depending on the model, the method of operation is the same.

❏ Some of the menu items on the LCD screen vary depending on the model and settings.

dierences

Operating System References

Windows

In this manual, terms such as "Windows 8.1", "Windows 8", "Windows 7", "Windows Vista", "Windows XP", "Windows Server 2012", "Windows Server 2008 R2", "Windows Server 2008", "Windows Server 2003 R2", and "Windows Server 2003" refer to the following operating systems. Additionally, "Windows" is used to refer to all versions.

❏ Microso® Windows® 8.1 operating system

❏

Microso®

❏ Microso® Windows® 7 operating system

❏ Microso® Windows Vista® operating system

❏ Microso® Windows® XP operating system

❏ Microso® Windows® XP Professional x64 Edition operating system

Windows® 8 operating system

❏ Microso® Windows Server® 2012 operating system

❏ Microso® Windows Server® 2008 R2 operating system

❏ Microso® Windows Server® 2008 operating system

❏

Microso®

❏ Microso® Windows Server® 2003 operating system

Mac OS X

In this manual, "Mac OS X v10.9.x" refers to "OS X Mavericks" and "Mac OS X v10.8.x" refers to "OS X Mountain Lion". Additionally, "Mac OS X" is used to refer to "Mac OS X v10.9.x", "Mac OS X v10.8.x", "Mac OS X v10.7.x", "Mac OS X v10.6.x", and "Mac OS X v10.5.8".

Windows Server® 2003 R2 operating system

User's Guide

Important Instructions

Safety Instructions

Read and follow these instructions to ensure safe use of this printer. Make sure you keep this manual for future reference. Also, be sure to follow all warnings and instructions marked on the printer.

❏ Use only the power cord supplied with the printer and do not use the cord with any other equipment. Use of

other cords with this printer or the use of the supplied power cord with other equipment may result in re or electric shock.

❏ Be sure your AC power cord meets the relevant local safety standard.

❏ Never disassemble, modify, or attempt to repair the power cord, plug, printer unit, or options by yourself,

except as specically explained in the printer's manuals.

❏ Unplug the printer and refer servicing to qualied service personnel under the following conditions:

e power cord or plug is damaged; liquid has entered the printer; the printer has been dropped or the casing damaged; the printer does not operate normally or exhibits a distinct change in performance. Do not adjust controls that are not covered by the operating instructions.

❏ Place the printer near a wall outlet where the plug can be easily unplugged.

❏ Do not place or store the printer outdoors, near excessive dirt or dust, water, heat sources, or in locations

subject to shocks, vibrations, high temperature or humidity.

❏ Take care not to spill liquid on the printer and not to handle the printer with wet hands.

❏ Keep the printer at least 22 cm away from cardiac pacemakers. Radio waves from this printer may adversely

aect the operation of cardiac pacemakers.

❏ If the LCD screen is damaged, contact your dealer. If the liquid crystal solution gets on your hands, wash them

thoroughly with soap and water. If the liquid crystal solution gets into your eyes, ush them immediately with water. If discomfort or vision problems remain

❏ e printer is heavy and should not be lied or carried by less than two people. When liing the printer, two

people should assume the correct positions as shown below.

a thorough

aer

ushing,

see a doctor immediately.

User's Guide

Important Instructions

❏ Be careful when you handle used ink cartridges, as there may be some ink around the ink supply port.

❏ If ink gets on your skin, wash the area thoroughly with soap and water.

❏ If ink gets into your eyes, ush them immediately with water. If discomfort or vision problems continue aer

a thorough ushing, see a doctor immediately.

❏ If ink gets into your mouth, see a doctor right away.

❏ Do not disassemble the ink cartridge and the maintenance box; otherwise ink may get into your eyes or on your

skin.

❏ Do not shake ink cartridges too vigorously; otherwise ink may leak from the cartridge.

❏ Keep ink cartridges and maintenance box out of the reach of children.

Printer Advisories and Warnings

Read and follow these instructions to avoid damaging the printer or your property. Make sure you keep this manual for future reference.

Advisories and Warnings for Setting Up/Using the Printer

❏ Do not block or cover the vents and openings in the printer.

❏ Use only the type of power source indicated on the printer's label.

❏ Avoid using outlets on the same circuit as photocopiers or air control systems that regularly switch on and

❏ Avoid electrical outlets controlled by wall switches or automatic timers.

❏ Keep the entire computer system away from potential sources of electromagnetic interference, such as

loudspeakers or the base units of cordless telephones.

❏ e power-supply cords should be placed to avoid abrasions, cuts, fraying, crimping, and kinking. Do not place

objects on top of the power-supply cords and do not allow the power-supply cords to be stepped on or run over. Be particularly careful to keep all the power-supply cords straight at the ends and the points where they enter and leave the transformer.

❏ If you use an extension cord with the printer, make sure that the total ampere rating of the devices plugged into

the extension cord does not exceed the cord's ampere rating. Also, make sure that the total ampere rating of all devices plugged into the wall outlet does not exceed the wall outlet's ampere rating.

❏ If you plan to use the printer in Germany, the building installation must be protected by a 10 or 16 amp circuit

breaker to provide adequate short-circuit protection and over-current protection for the printer.

❏ When connecting the printer to a computer or other device with a cable, ensure the correct orientation of the

connectors. Each connector has only one correct orientation. Inserting a connector in the wrong orientation may damage both devices connected by the cable.

o.

❏ Place the printer on a at, stable surface that extends beyond the base of the printer in all directions. e

printer will not operate properly if it is tilted at an angle.

❏ When storing or transporting the printer, avoid tilting it, placing it vertically, or turning it upside down;

otherwise ink may leak.

❏ Allow space behind the printer for the cables.

❏ Leave enough space in front of the printer for the paper to be fully ejected.

❏ Avoid places subject to rapid changes in temperature and humidity. Also, keep the printer away from direct

sunlight, strong light, or heat sources.

User's Guide

Important Instructions

❏ Do not insert objects through the slots in the printer.

❏ Do not put your hand inside the printer during printing.

❏ Do not touch the white at cable inside the printer.

❏ Do not use aerosol products that contain ammable gases inside or around the printer. Doing so may cause

re.

❏ Do not move the print head by hand; otherwise, you may damage the printer.

❏ Always turn the printer o using the

until the

❏ Before transporting the printer, make sure that the print head is in the home (far right) position and the ink

cartridges are in place.

❏ If you are not going to use the printer for a long period, be sure to unplug the power cord from the electrical

outlet.

light stops ashing.

button. Do not unplug the printer or turn o the power at the outlet

Advisories and Warnings for Using the Printer with a Wireless Connection

❏ Do not use this printer inside medical facilities or near medical equipment. Radio waves from this printer may

adversely aect the operation of electrical medical equipment.

❏ Do not use this printer near automatically controlled devices such as automatic doors or re alarms. Radio

waves from this printer may adversely aect these devices, and could lead to accidents due to malfunction.

Advisories and Warnings for Using the LCD Screen

❏

LCD screen may contain a few small bright or dark spots, and because of its features it may have an uneven

e brightness. ese are normal and do not indicate that it is damaged in any way.

❏ Only use a dry,

❏ e exterior cover of the LCD screen could break if it receives a heavy impact. Contact your dealer if the panel

surface chips or cracks, and do not touch or attempt to remove the broken pieces.

cloth for cleaning. Do not use liquid or chemical cleaners.

so

Advisories and Warnings for Using the Optional Cabinet

❏ is cabinet is exclusively designed to install this printer on top as well as the optional paper cassette units. Do

not install any other products except for the

specied

printer and paper cassette unit.

❏ Do not climb on the cabinet or place heavy object on it.

❏ Make sure you use the cabinet with the two stands attached.

❏ Secure the printer or the optional paper cassette unit to the cabinet using the two attachments and screws

supplied with the cabinet.

❏ When using the printer, make sure you lock the casters at the front of the cabinet.

❏ Do not move the cabinet when the casters are locked.

❏ When moving the cabinet with the printer or the optional paper cassette unit installed, avoid moving over

uneven or rough surfaces.

User's Guide

Important Instructions

Protecting Your Personal Information

printer allows you to store names, telephone numbers, and email addresses in its memory even when the

is power is turned o.

If you give the printer to someone else or dispose of it, erase the memory by selecting Menu > System Administration > Restore Default Settings > Clear All Data and Settings on the control panel.

User's Guide

Administrator Settings

Locking the Printer Settings Using an Administrator's Password

You can set an administrator's password to lock the printer settings so that they cannot be changed by other users. You can lock the following settings.

❏ System Administration

❏ Eco Mode

You cannot change settings without entering the password. using Web Cong or EpsonNet Cong.

Important:

is

Do not forget the password. If you forget the password, contact your dealer.

1. Enter Menu from the home screen.

Select Admin Settings > Admin Password.

3. Select Register, and then enter a password.

4. Enter the password again.

Select Lock Setting, and then enable it.

Unlocking the Printer Settings

1. Enter Menu from the home screen.

password is also required when you make settings

2. Select Admin Settings.

3. Enter the administrator's password.

Select Lock Setting, and then disable it.

User's Guide

Printer Basics

Part Names and Functions

Edge guides Feeds the paper straight into the printer. Slide to the

edges of the paper.

Front paper feed slot (B2) Load one sheet of paper at a time by hand.

Paper cassette 1 (C1) Loads paper.

Paper cassette 2 to 4 (C2 to C4) Optional paper cassette units. Loads paper.

Cabinet Optional cabinet. Stores paper or other consumables.

User's Guide

Printer Basics

Edge guides Feeds the paper straight into the printer. Slide to the

edges of the paper.

Paper support Supports loaded paper.

Rear paper feed (B1) Loads paper.

Feeder guard Prevents foreign substance from entering the printer.

Usually keep this guard closed.

Output tray Holds the ejected paper.

Edge guides Feeds the paper straight into the printer. Slide to the

edges of the paper.

Paper cassette Loads paper.

User's Guide

Printer Basics

Control panel Operates the printer.

Print head Fires ink.

Front cover (A) Open when replacing ink cartridges or removing

jammed paper inside the printer.

User's Guide

Printer Basics

Rear cover 2 (D2) Pull out when removing jammed paper.

AC inlet Connects the power cord.

Rear cover 1 (D1) Open when replacing the maintenance box or

maintenance rollers, or removing jammed paper.

Rear cover (E) Covers for the optional paper cassette units. Open

when replacing the maintenance rollers or removing jammed paper.

Service USB port USB port for future use.

Do not remove the sticker.

USB port Connects a USB cable.

LAN port Connects a LAN cable.

User's Guide

Control Panel

Buttons and Lights

Printer Basics

Error Flashes or turns on when an error occurs.

Data Flashes while the printer is processing data.

- Displays menus and messages.

, u, r, d, OK Press l, u, r, and d to select menus. Press OK to conrm your selection or run the selected

Turns the printer on or o.

Unplug the power cord when the power light is o.

Displays the Paper Setup screen. You can select the paper size and paper type settings for each paper source.

Turns on when there are queued jobs.

Returns to the previous screen.

feature.

When entering characters, press

Stops the current operation.

When entering characters, press this button to change the character type.

Icons Displayed on the LCD Screen

l, u, r

, and d to select characters.

e following icons are displayed on the LCD screen depending on the printer's status.

Turns on while the printer is connected to a wired (Ethernet) network.

Turns on when the wired (Ethernet) network is disabled and an Ethernet cable is not connected.

Turns on while the printer is connected to a wireless (Wi-Fi) network. The number of bars indicates the signal strength of the connection. The more bars there are, the stronger the connection.

User's Guide

Menu Options

Specify the length of time in seconds that must elapse before ending USB communication with a computer after the printer receives a print job from a PostScript printer driver or Epson Universal P6 printer driver. If the job ending is not clearly dened from a PostScript printer driver or Epson Universal P6 printer driver, it can cause endless USB communication. When this occurs, the printer ends communication after the (zero) if you do not want to end communication.

Feeds paper from the rear paper feed on a priority basis.

Feeds paper from the paper source set as A4 size when there is no paper source set as Letter, or feeds from the paper source set as Letter size when there is no paper source set as A4.

are multiple paper sources available, paper is fed from the paper source with paper settings that match the print job.

type settings in Paper Setup and the print settings do not match.

specied

time has elapsed. Enter 0

Auto Error Solver Select an action to perform when a 2-sided printing error or a memory full

error occurs.

❏ 2-sided printing error

Enabled: If a 2-sided job is sent when there is no paper available that supports 2-sided printing, the printer displays an error message, and then automatically prints on only one side of the paper.

Disabled: The printer displays an error message and cancels printing.

❏ Memory full error

Enabled: If the printer's memory becomes full while printing, the printer displays an error message, and then prints only the part of the data that the printer could process.

Disabled: The printer displays an error message and cancels printing.

PC Connection via USB

Enables printers that are connected to the computer over a USB connection. If this feature is disabled, the computer does not recognize printers with a USB connection.

User's Guide

Printer Basics

Menu Settings and Explanations

Common Settings Sleep Timer Select the time period before the printer enters sleep mode (energy saving

mode) when no operations are performed.

The LCD screen turns black when the set time passes.

Power O Timer You can adjust the time before power management is applied. Any increase

will aect the product’s energy eciency. Please consider the environment before making any change.

LCD Contrast Adjust the brightness of the LCD screen.

Date/Time Settings Date/Time Enter the current date and time.

Wi-Fi/Network Settings

Daylight Saving Tim e

Time Dierence Enter the time dierence between your local time and

Language Select the display language.

Scroll Speed Select the scroll speed of the LCD screen.

Wi-Fi/Network Status

Wi-Fi Setup Wi-Fi Setup Wizard See the Network Guide for more details.

Displays or prints the network settings and connection status.

Push Button Setup (WPS)

PIN Code Setup (WPS)

Wi-Fi Auto Connect

Disable Wi-Fi You may be able to resolve network problems by

Wi-Fi Direct Setup See the Network Guide for more details.

Select to set summer time.

UTC (Coordinated Universal Time).

disabling the Wi-Fi settings or making the Wi-Fi settings again. See the Network Guide for more details.

Epson Connect Services

Google Cloud Print Services

Connection Check Checks the status of the network connection and prints the network

connection check report. If there are any problems with the connection, see the check report to solve the problem.

Advanced Setup See the Network Guide for more details.

You can suspend or resume the Epson Connect or Google Could Print service, or cancel using the services (restore the default settings).

See the Epson Connect portal website for more details.

https://www.epsonconnect.com/

http://www.epsonconnect.eu (Europe only)

User's Guide

Menu Settings and Explanations

Printer Basics

Universal Print Settings

Security Settings Delete All

Eco Mode The following Eco mode settings are available. When these settings are disabled, the settings made in

These print settings are applied when printing from an external device without using the printer driver, or when printing from a PostScript printer driver.

Top Oset Adjust the top or left margin of the paper.

Left Oset

Top Oset in Back Adjust the top margin or left margin for the back of the page when

performing 2-sided printing.

Left Oset in Back

Check Paper Width Checks the paper width before the printer starts printing. This prevents

printing beyond the edges of the paper when the paper size setting is not correct, but the printing time may be little longer.

Dry Time Select the drying time when performing 2-sided printing.

Skip Blank Page Skips blank pages in the print data automatically.

PDL Print Conguration

Condential

Common Settings are applied.

Jobs

See the list of menus in PDL Print Conguration.

Deletes all saved condential jobs.

Sleep Timer Select the time period before the printer enters sleep mode (energy saving

mode) when no operations are performed.

The LCD screen turns black when the set time passes.

Power O Timer Select the time period before the printer turns o automatically.

Clear Internal Memory Data

Restore Default Settings

Deletes the print settings for a PostScript printer driver and Epson Universal P6 printer driver.

Select Clear All to delete all of the data for a PostScript printer driver and Epson Universal P6 printer driver that is saved in the printer's memory.

Resets the selected settings to their defaults.

Related Information

& “PDL Print Conguration” on page 24

PDL Print Conguration

Select Menu > System Administration > Universal Print Settings > PDL Print Conguration from the home screen.

User's Guide

Menu Settings and Explanations

Printer Basics

Common Settings

PCL Menu Font Source Resident: Select to use a preinstalled font on the printer.

Paper Size Select the paper size.

Paper Type Select the paper type.

Orientation Select the printing direction.

Quality Select the print quality.

Ink Save Mode Conserves ink by reducing the print density.

Print Order Last Page on Top: Prints from the rst page of a le.

First Page on Top: Prints from the last page of a le.

Number of Copies

Binding Margin Select the binding position.

Auto Paper Ejection

2-Sided Printing Performs 2-sided printing.

Set the number of copies.

Ejects paper automatically when printing is stopped during a print job.

Download: Select to use a font you have downloaded.

Font Number Select the default font number for the default font source. The available number

varies depending on the settings you made.

Pitch Set the default font pitch if the font is scalable and of xed-pitch. You can select from

0.44 to 99.99 cpi (characters per inch), in 0.01 increments.

This item may not appear depending on the font source or font number settings.

Height Set the default font height if the font is scalable and proportional. You can select

from 4.00 to 999.75 points, in 0.25 increments.

This item may not appear depending on the font source or font number settings.

Symbol Set Select the default symbol set. If the font that you selected in the font source and the

font number setting is not available in the new symbol set setting, the font source and the font number settings are automatically replaced with the default value, IBM- US.

Form Set the number of lines for the selected paper size and orientation. This also causes a

line spacing (VMI) change, and the new VMI value is stored in the printer. This means that later changes in the page size or orientation settings cause changes in the Form value based on the stored VMI.

CR Function Select the line feed command when printing with a driver from a specic operating

system.

LF Function

Paper Source Assign

Set the assignment for the paper source select command. When 4 is selected, the commands are set as compatible with the HP LaserJet 4. When 4K is selected, the commands are set as compatible with the HP LaserJet 4000, 5000, and 8000. When

5S is selected, the commands are set as compatible with the HP LaserJet 5S.

User's Guide

Printer Basics

Menu Settings and Explanations

PS3 Menu Error Sheet Prints a sheet showing the error status when any PostScript errors occur while

printing and any errors occur while printing a PDF

Coloration Select the color mode for PostScript printing.

Image Protect Disable this feature to lower the print quality automatically if the printer's memory

becomes full.

Binary Enable this feature when printing data that contains binary images.

The application may send the binary data even if the printer driver setting is set to ASCII, but you can print the data when this feature is enabled.

Text Detection Converts the text le to a PostScript le when printing.

This feature is available when Printing Language is set to PS3.

le.

PDF Page Size

Select the paper size when printing a PDF le. If Auto is selected, the paper size is determined based on the size of the rst page that is printed.

User's Guide

Loading Paper

Paper Handling Precautions

❏ Read the instruction sheets supplied with the paper.

❏ Fan and align the edges of the paper before loading. Do not fan or curl photo paper. Doing so may damage the

printable side.

❏ If the paper is curled, atten it or curl it slightly in the opposite direction before loading. Printing on curled

paper may cause paper jams and smears on the printout.

❏ Do not use paper that is wavy, torn, cut, folded, damp, too thick, too thin, or paper that has stickers stuck to it.

Using these types of paper causes paper jams and smears on the printout.

❏ Make sure you are using long-grain paper. If you are not sure what type of paper you are using, check the paper

packaging or contact the manufacturer to conrm the paper specications.

Related Information

& “Printer Specications” on page 111

Available Paper and Capacities

Epson recommends using genuine Epson paper to ensure high-quality printouts.

Genuine Epson Paper

Note:

Genuine Epson paper is not available when printing with the Epson Universal P6 printer driver.

User's Guide

Loading Paper

Media Name Size Loading Capacity (Sheets) 2-Sided

Paper Cassette 1

Paper Cassette 2 to 4

Rear Paper Feed

Front Paper Feed Slot

Printing

Epson Bright White Ink Jet Paper

Epson Ultra Glossy Photo Paper

Epson Premium Glossy Photo Paper

Epson Premium Semigloss Photo Paper

Epson Photo Paper Glossy

Epson Matte PaperHeavyweight

A4 200 400 50 1

A4, 13 × 18 cm (5 × 7 in.), 10 × 15 cm (4 × 6 in.)

A3+, A3 – – 10 – –

A4, 13 × 18 cm (5 × 7 in.), 16:9 wide size (102 × 181 mm), 10 × 15 cm (4 × 6 in.)

A3+, A3 – – 10 – –

A4, 10 × 15 cm (4 × 6 in.)

A4, 13 × 18 cm (5 × 7 in.), 10 × 15 cm (4 × 6 in.)

A3+, A3 – – 10 – –

A4 ––20––

––20––

Auto, Manual

Epson Photo Quality Ink Jet Paper

* Only use the rear paper feed to print 2-sided print jobs manually. You can load up to 30 sheets for paper with one side

already printed.

A3+, A3 – – 50 – –

A4 ––70––

User's Guide

Loading Paper

Commercially Available Paper

Media Name Size Loading Capacity (Sheets or Envelopes) 2-Sided

Paper Cassette 1

Paper Cassette 2 to 4

Rear Paper Feed

Front Paper Feed Slot

Printing

Plain paper

Copy paper

Letterhead

Recycled paper

Color paper

Preprinted paper

A3, B4

Legal, Letter, A4, B5, A5

B6, A6 Up to the

Executive Up to the

User Dened (mm)

55 × 127 to 105 × 148,

Up to the line under the symbol inside the edge guide.

line under

the symbol inside the edge guide.

line under the

symbol inside the edge guide.

--1–Manual

–801

50 1 Auto,

80 1 Auto,

Manual

*1*2

297 × 431.8 to 329 × 1200

User Dened (mm)

105 × 148 to 148 × 210

User Dened (mm)

148 × 210 to 215 × 297

User Dened (mm)

215 × 297 to 297 × 431.8

Thick paper A3, B4, Legal,

Letter, A4, B5, A5, A6, Executive

User Dened––1–Manual

––801

––801Auto,

––501Auto,

––10–

Manual

*1*2

User's Guide

Loading Paper

Media Name Size Loading Capacity (Sheets or Envelopes) 2-Sided

Paper Cassette 1

Paper Cassette 2 to 4

Rear Paper Feed

Front Paper Feed Slot

Printing

Envelope Envelope #10,

Envelope DL, Envelope C6

Envelope C4––1––

*1 Only use the rear paper feed to print 2-sided print jobs manually.

*2 You can load up to 30 sheets for paper with one side already printed.

*3 You can load up to 5 sheets for paper with one side already printed.

––10––

Related Information

& “Part Names and Functions” on page 15

List of Paper Types

To obtain optimum printing results, select the paper type that suits the paper.

Media Name Media Type

Control Panel Printer Driver PostScript Printer

Driver

Epson Universal P6 Printer Driver

Copy paper, Plain paper

Epson Bright White Ink Jet Paper

Letterhead Letterhead Letterhead Letterhead Letterhead

Recycled paper Recycled Recycled Recycled Recycled

Colored paper Color Color Color Color

Preprinted paper Preprinted Preprinted Preprinted Preprinted

Epson Ultra Glossy Photo Paper

Epson Premium Glossy Photo Paper

Epson Premium Semigloss Photo Paper

Epson Photo Paper Glossy

plain papers plain papers Plain Plain

Ultra Glossy Epson Ultra Glossy Epson Ultra Glossy -

Prem. Glossy Epson Premium

Glossy

Prem. Semigloss Epson Premium

Semigloss

Glossy Photo Paper Glossy Photo Paper Glossy -

Epson Premium Glossy

Epson Premium Semigloss

User's Guide

Media Name Media Type

Loading Paper

Control Panel Printer Driver PostScript Printer

Driver

Epson Matte PaperHeavyweight

Epson Photo Quality Ink Jet Paper

Thick paper Thick-Paper Thick-Paper Thick Thick

Envelope Envelope Envelope Envelope Envelope

Matte Epson Matte Epson Matte -

Epson Universal P6 Printer Driver

Loading Paper in the Paper Cassette

Note:

If the optional cabinet and the paper cassette units are installed, do not pull out two or more paper cassettes at the same time.

1. Check that the printer is not operating, and then pull out the paper cassette.

User's Guide

Loading Paper

2. Slide the front edge guide to its maximum position, and then slide the side edge guides to adjust to the paper size you want to use.

3. Load paper with the printable side facing down, and then slide the front edge guide to the edge of the paper.

Important:

Do not load more than the maximum number of sheets specied for the paper. For plain paper, do not load

above the line just under the

4. Check that the paper size label matches the size of the paper loaded in the paper cassette. If it does not match, remove the holder and change the paper size indicated on the label.

5. Insert the paper cassette all the way.

6. On the control panel, set the size and type of the paper you loaded in the paper cassette.

symbol inside the edge guide.

User's Guide

7. Slide out the output tray.

Related Information

& “Paper Handling Precautions” on page 27 & “Available Paper and Capacities” on page 27

Loading Paper

Loading Paper in the Rear Paper Feed

1. Open the feeder guard and pull out the paper support.

Slide the edge guides.

User's Guide

Loading Paper

3. Load paper at the center of the rear paper feed with the printable side facing up.

Important:

❏ Do not load more than the maximum number of sheets

above the line just under the

❏ Load paper short edge rst. However, when you have set the long edge as the width of the user dened size,

load paper long edge rst.

symbol inside the edge guide.

specied

for the paper. For plain paper, do not load

4. Slide the edge guides to the edges of the paper.

5. On the control panel, set the size and type of the paper you loaded in the rear paper feed.

Slide out the output tray.

User's Guide

Loading Paper

Note:

❏ Return the remaining paper to its package. If you leave it in the printer, the paper may curl or the print quality may

decline.

❏ You can use pre-punched paper under the following conditions. Automatic 2-sided printing is not available for pre-

punched paper.

❏ Loading capacity: One sheet

❏ Available size: A3, B4, A4, B5, A5, Letter, Legal

❏ Binding holes: Do not load paper with the binding holes at the top or the bottom.

Adjust the print position of your le to avoid printing over the holes.

Related Information

& “Paper Handling Precautions” on page 27 & “Available Paper and Capacities” on page 27 & “Loading Envelopes and Precautions” on page 36

Loading Paper in the Front Paper Feed Slot

You can only load one sheet of paper in the front paper feed slot. Because the front paper feed slot also serves the output tray, you cannot load paper during printing.

Important:

You can load paper with a thickness of 0.08 to 0.11 mm in the front paper feed slot. However, even if the thickness is within this range, some papers may not be fed correctly depending on their hardness.

1. Slide out the output tray.

User's Guide

Loading Paper

2. Slide the edge guides to adjust to the paper size you want to use.

3. Insert the paper with the printable side facing down until the printer partially pulls in the paper.

Important:

❏ Load paper short edge

load paper long edge rst.

❏ Keep the paper straight to prevent it from being fed askew.

Note:

If the printer does not pull in the paper, load it again.

Related Information

& “Paper Handling Precautions” on page 27 &

“Available Paper and Capacities” on page 27

Loading Envelopes and Precautions

Envelopes can only be loaded in the rear paper feed. Load envelopes short edge rst at the center with the ap facing down, and slide the edge guides to the edges of the envelopes.

However, when you have set the long edge as the width of the user

rst.

dened

size,

User's Guide

Loading Paper

❏ Fan and align the edges of the envelopes before loading. When the stacked envelopes are pued up with air,

press them down to

❏ Do not use envelopes that are curled or folded. Using these envelopes causes paper jams and smears on the

printout.

❏ Do not use envelopes with adhesive surfaces on the aps or window envelopes.

❏ Avoid using envelopes that are too thin, as they may curl during printing.

Related Information

& “Available Paper and Capacities” on page 27 & “Loading Paper in the Rear Paper Feed” on page 33

them before loading.

atten

Setting the Paper Size and Paper Type for Each Paper Source

Aer loading paper, set the paper size and paper type for each paper source on the control panel. Once these settings have been made, when automatic paper source selection is enabled, paper is automatically fed from a paper source that matches the paper size and type settings for the print job. You do not need to select the paper source each time you print.

Press the

2. Select a paper source.

3. Select the paper size and paper type you loaded.

Related Information

& “List of Paper Types” on page 30

button.

User's Guide

Printing

Printing from a Computer

If you cannot change some of the printer driver settings, they may have been restricted by the administrator. Contact your printer administrator for assistance.

Printing Basics - Windows

Note:

❏ See the online help for explanations of the setting items. Right-click an item, and then click Help.

❏ Operations may

1. Load paper in the printer.

2. Open the le you want to print.

Select Print or Print Setup from the File menu.

4. Select your printer.

5. Select Preferences or Properties to access the printer driver window.

depending on the application. See the application's help for details.

dier

Make the following settings.

❏ Paper Source: Select the paper source in which you loaded the paper.

❏ Document Size: Select the paper size you set in the application.

User's Guide

Printing

❏ Orientation: Select the orientation you set in the application.

❏ Paper Type: Select the type of paper you loaded.

Make sure you select the correct paper type to optimize the print quality.

❏ Color: Select Grayscale when you want to print in black or shades of gray.

Note:

If you are printing high-density data on plain paper, letterhead, or preprinted paper, select Standard-Vivid as the Quality setting to make your printout vivid.

7. Click OK to close the printer driver window.

8. Click Print.

Related Information

& “Available Paper and Capacities” on page 27 & “Loading Paper in the Paper Cassette” on page 31 & “Loading Paper in the Rear Paper Feed” on page 33 & “Loading Paper in the Front Paper Feed Slot” on page 35 & “List of Paper Types” on page 30

Printing Basics - Mac OS X

Note:

Operations dier depending on the application. See the application's help for details.

1. Load paper in the printer.

2. Open the le you want to print.

User's Guide

Printing

3. Select Print from the File menu or another command to access the printer driver window.

If necessary, click Show Details or

to expand the print window.

4. Make the following settings.

❏ Printer: Select your printer.

❏ Paper Size: Select the paper size you set in the application.

❏ Orientation: Select the orientation you set in the application.

Select Print Settings from the pop-up menu.

User's Guide

Printing

6. Make the following settings.

❏ Paper Source: Select the paper source in which you loaded the paper.

❏ Media Type: Select the type of paper you loaded.

Make sure you select the correct paper type to optimize the print quality.

❏ Grayscale: Select to print in black or shades of gray.

7. Click Print.

Related Information

& “Available Paper and Capacities” on page 27 & “Loading Paper in the Paper Cassette” on page 31 &

“Loading Paper in the Rear Paper Feed” on page 33

“Loading Paper in the Front Paper Feed Slot” on page 35

“List of Paper Types” on page 30

Printing on 2-Sides

You can use either of the following methods to print on both sides of the paper.

❏ Automatic 2-sided printing

❏ Manual 2-sided printing (for Windows only)

When the printer has nished printing the rst side, ip the paper over to print on the other side.

You can also print a booklet that can be created by folding the printout. (For Windows only)

Note:

❏ If you do not use paper that is suitable for 2-sided printing, the print quality may decline and paper jams may occur.

❏ Depending on the paper and the data, ink may bleed through to the other side of the paper.

Related Information

& “Available Paper and Capacities” on page 27

User's Guide

Printing

Printing on 2-Sides - Windows

Note:

❏ Manual 2-sided printing is available when EPSON Status Monitor 3 is enabled. If EPSON Status Monitor 3 is disabled,

access the printer driver, click Extended Settings on the Maintenance tab, and then select Enable EPSON Status Monitor 3.

❏ Manual 2-sided printing may not be available when the printer is accessed over a network or is used as a shared printer.

1. Load paper in the printer.

Open the le you want to print.

3. Access the printer driver window.

4. Select Auto (Long-edge binding), Auto (Short-edge binding), Manual (Long-edge binding), or Manual (Short-edge binding) from 2-Sided Printing on the Main tab.

5. Click Settings and make the appropriate settings.

Note: To print a folded booklet, select Booklet.

6. Click Print Density, select the document type from Select Document Type, and then click OK to close the window.

e printer driver automatically sets the Adjustments options for that document type.

Note: Printing may be slow depending on the combination of options selected for Select Document Type in the Print Density Adjustment window and for Quality on the Main tab.

7. Set the other items on the Main and More Options tabs as necessary, and then click OK.

Click Print.

For manual 2-sided printing, when the rst side has nished printing, a pop-up window is displayed on the computer. Follow the on-screen instructions.

Related Information

& “Loading Paper in the Paper Cassette” on page 31 & “Loading Paper in the Rear Paper Feed” on page 33 & “Loading Paper in the Front Paper Feed Slot” on page 35 & “Printing Basics - Windows” on page 38

Printing on 2-Sides - Mac OS X

1. Load paper in the printer.

2. Open the le you want to print.

Access the printer driver window.

4. Select Two-sided Printing Settings from the pop-up menu.

User's Guide

Printing

5. Select the bindings and Document Type.

Note:

❏ Printing may be slow depending on the Document Type setting.

❏ If you are printing high-density data such as photos or graphs, select Text & Gr aphics or Tex t & P h otos as th e

Document Type setting. If scung occurs or the image bleeds through to the reverse side, adjust the print density and ink drying time by clicking the arrow mark next to Adjustments.

6. Set the other items as necessary.

Click Print.

Related Information

& “Loading Paper in the Paper Cassette” on page 31 & “Loading Paper in the Rear Paper Feed” on page 33 & “Loading Paper in the Front Paper Feed Slot” on page 35 & “Printing Basics - Mac OS X” on page 39

Printing Several Pages on One Sheet

You can print two or four pages of data on a single sheet of paper.

Printing Several Pages on One Sheet - Windows

1. Load paper in the printer.

2. Open the

3. Access the printer driver window.

4. Select 2-Up or 4-Up as the Multi-Page setting on the Main tab.

Click Page Order, make the appropriate settings, and then click OK to close the window.

6. Set the other items on the Main and More Options tabs as necessary, and then click OK.

7. Click Print.

you want to print.

le

User's Guide

Printing

Related Information

Printing Several Pages on One Sheet - Mac OS X

Load paper in the printer.

2. Open the le you want to print.

3. Access the printer driver window.

4. Select Layout from the pop-up menu.

5. Set the number of pages in Pages per Sheet, the Layout Direction (page order), and Border.

6. Set the other items as necessary.

Click Print.

Related Information

Printing to Fit the Paper Size

You can print to t the paper size you loaded in the printer.

Printing to Fit the Paper Size - Windows

1. Load paper in the printer.

2. Open the le you want to print.

User's Guide

Printing

3. Access the printer driver window.

4. Make the following settings on the More Options tab.

❏ Document Size: Select the paper size you set in the application.

❏ Output Paper: Select the paper size you loaded in the printer.

Fit to Page is selected automatically.

Note: If you want to print a reduced image at the center of the page, select Center.

5. Set the other items on the Main and More Options tabs as necessary, and then click OK.

6. Click Print.

Related Information

Printing to Fit the Paper Size - Mac OS X

1. Load paper in the printer.

2. Open the

3. Access the printer driver window.

4. Select the size of the paper you set in the application as the Paper Size setting.

5. Select Paper Handling from the pop-up menu.

6. Select Scale to t paper size.

7. Select the paper size you loaded in the printer as the Destination Paper Size setting.

Set the other items as necessary.

9. Click Print.

Related Information

you want to print.

le

User's Guide

Printing

Printing Multiple Files Together (for Windows Only)

Job Arranger Lite allows you to combine several print job. You can specify the print settings for combined les, such as layout, print order, and orientation.

Note:

To op e n a Print Project saved in Job Arranger Lite, click Job Arranger Lite on the printer driver's Maintenance tab. Next, select Open from the File menu to select the le. e extension of the saved les is "ecl".

1. Load paper in the printer.

2. Open the le you want to print.

3. Access the printer driver window.

4. Select Job Arranger Lite on the Main tab.

created by

les

dierent

applications and print them as a single

5. Set the Paper Source, Document Size, Orientation, and Paper Type.

Click OK to close the printer driver window.

Click Print.

e Job Arranger Lite window is displayed and the print job is added to the Print Project.

8. With the Job Arranger Lite window opened, open the then repeat steps 3 to 7.

Note:

If you close the Job Arranger Lite window, the unsaved Print Project is deleted. To print later, select Save from the File menu.

9. Select the Layout and Edit menus in Job Arranger Lite to edit the Print Project as necessary.

10. Select Print from the File menu.

Related Information

& “Loading Paper in the Paper Cassette” on page 31 & “Loading Paper in the Rear Paper Feed” on page 33 & “Loading Paper in the Front Paper Feed Slot” on page 35 &

“Printing Basics - Windows” on page 38

that you want to combine with the current

le

le,

and

User's Guide

Printing

Enlarged Printing and Making Posters (for Windows Only)

You can print one image on multiple sheets of paper to create a larger poster. You can print alignment marks that help you stick the sheets together.

1. Load paper in the printer.

2. Open the

3. Access the printer driver window.

4. Select 2x1 Poster, 2x2 Poster, 3x3 Poster, or 4x4 Poster from Multi-Page on the Main tab.

5. Click Settings, make the appropriate settings, and then click OK.

6. Set the other items on the Main and More Options tabs as necessary, and then click OK.

7. Click Print.

Related Information

you want to print.

le

User's Guide

Printing

Making Posters Using Overlapping Alignment Marks

Here is an example of how to make a poster when 2x2 Poster is selected, and Overlapping Alignment Marks is selected in Print Cutting Guides.

1. Prepare Sheet 1 and Sheet 2. Cut o the margins of Sheet 1 along the vertical blue line through the center of the top and bottom cross marks.

User's Guide

Printing

2. Place the edge of Sheet 1 on top of Sheet 2 and align the cross marks, then temporarily tape the two sheets together from the back.

Cut the taped sheets in two along the vertical red line through the alignment markers (this time, the line to the le of the cross marks).

User's Guide

Printing

4. Tape the sheets together from the back.

5. Repeat steps 1 to 4 to tape Sheet 3 and Sheet 4 together.

6. Cut o the margins of Sheet 1 and Sheet 2 along the horizontal blue line through the center of the le and right side cross marks.

User's Guide

Printing

7. Place the edge of Sheet 1 and Sheet 2 on top of Sheet 3 and Sheet 4 and align the cross marks, and then temporarily tape them together from the back.

User's Guide

Printing

8. Cut the taped sheets in two along the horizontal red line through the alignment markers (this time, the line above the cross marks).

9. Tape the sheets together from the back.

User's Guide

Printing

10. Cut o the remaining margins along the outer guide.

Printing on Envelopes

Printing on Envelopes - Windows

Load envelopes in the printer.

Open the le you want to print.

3. Access the printer driver window.

4. Make the following settings on the Main tab.

❏ Paper Source: Select the paper source in which you loaded the envelopes.

❏ Document Size: Select the envelope size you set in the application.

❏ Orientation: Select landscape.

❏ Paper Type: Select Envelope.

User's Guide

Printing

5. Set the other items on the Main and More Options tabs as necessary, and then click OK.

6. Click Print.

Related Information

& “Loading Envelopes and Precautions” on page 36 & “Printing Basics - Windows” on page 38

Printing on Envelopes - Mac OS X

1. Load envelopes in the printer.

2. Open the

3. Access the printer driver window.

4. Make the following settings.

❏ Paper Size: Select the envelope size you set in the application.

❏ Orientation: Select landscape.

5. Select Print Settings from the pop-up menu.

6. Make the following settings.

❏ Paper Source: Select the paper source in which you loaded the envelopes.

❏ Media Type: Select Envelope.

Click Print.

Related Information

& “Loading Envelopes and Precautions” on page 36 & “Printing Basics - Mac OS X” on page 39

you want to print.

le

Printing Using Advanced Features

is section introduces a variety of additional layout and printing features available on the printer driver.

Related Information

“Windows Printer Driver” on page 85

“Mac OS X Printer Driver” on page 87

Adding a Printing Preset

If you create your own preset of frequently used print settings on the printer driver, you can print easily by selecting the preset from the list.

User's Guide

Printing

Windows

To add your own preset, set items such as the Document Size and Paper Type on the Main or More Options tab, and then click Add/Remove Presets in Printing Presets.

Mac OS X

Access the printer driver window. To add your own preset, set items such as the Paper Size and Media Type, and then save the current settings as the preset in the Presets setting.

Printing a Reduced or Enlarged Document

You can reduce or enlarge the size of a document by a specic percentage.

Windows

Set the Document Size on the More Options tab. Select Reduce/Enlarge Document, Zoom to, and then enter a percentage.

Mac OS X

Access the printer driver window. Select Scale, and then enter a percentage.

Adjusting the Print Color

You can adjust the colors used in the print job.

PhotoEnhance produces sharper images and more vivid colors by automatically adjusting the contrast, saturation, and brightness of the original image data.

Note:

❏ ese adjustments are not applied to the original data.

❏ PhotoEnhance adjusts the color by analyzing the location of the subject. erefore, if you have changed the location of

the subject by reducing, enlarging, cropping, or rotating the image, the color may change unexpectedly. Selecting the borderless setting also changes the location of the subject resulting in changes in color. If the image is out of focus, the tone may be unnatural. If the color is changed or becomes unnatural, print in a mode other than PhotoEnhance.

Windows

Select Custom as the Color Correction setting on the More Options tab. Click Advanced, select the Color Management setting, and then make appropriate settings.

Mac OS X

Access the printer driver window. Select Color Matching from the pop-up menu, and then select EPSON Color Controls. Select Color Options from the pop-up menu, and then select one of the available options. Click the arrow next to Advanced Settings and make the appropriate settings.

Printing an Anti-Copy Pattern (for Windows Only)

You can print documents with invisible letters such as "Copy". ese letters appear when the document is photocopied so that the copies can be distinguished from the original. You can also add your own anti-copy pattern.

User's Guide

Printing

Note:

is feature is only available when the following settings are selected.

❏ Paper Type: plain papers

❏ Quality: Standard

❏ Auto 2-sided printing: Disabled

❏ Color Correction: Automatic

❏ Short Grain Paper: Disabled

Click Watermark Features on the More Options tab, and then select an anti-copy pattern. Click Settings to change details such as the size and density.

Printing a Watermark (for Windows Only)

You can print a watermark such as "Condential" on your printouts. You can also add your own watermark.

Click Watermark Features on the More Options tab, and then select a watermark. Click Settings to change details such as the color and position of the watermark.

Printing a Header and Footer (for Windows Only)

You can print information such as a user name and printing date as headers or footers.

Click Watermark Features in the More Options tab, and then select Header/Footer. Click Settings and select necessary items from the drop-down list.

Setting a Password for a Print Job (for Windows Only)

You can set a password for a print job to prevent printing until the password is entered on the printer's control panel.

Select Condential Job on the More Options tab, and then enter a password.

To print the job, enter Menu from the printer's home screen, and then select Condential Job. Select the job and enter the password.

Printing Using a PostScript Printer Driver

Printing Using a PostScript Printer Driver - Windows

1. Load paper in the printer.

2. Open the le you want to print.

Access the PostScript printer driver window.

User's Guide

Printing

4. Select the orientation you set in the application as the Orientation on the Layout tab.

5. Make the following settings on the Paper/Quality tab.

❏ Paper Source: Select the paper source in which you loaded the paper.

❏ Media: Select the type of paper you loaded.

User's Guide

Printing

6. Click Advanced, make the following settings, and then click OK.

❏ Paper Size: Select the paper size you set in the application.

❏ Color Mode: Select to print in full color or monochrome.

7. Click OK.

8. Click Print.

Printing Using a PostScript Printer Driver - Mac OS X

1. Load paper in the printer.

2. Open the le you want to print.

User's Guide

3. Access the printer driver window.

Printing

4. Make the following settings.

❏ Printer: Select your printer.

❏ Paper Size: Select the paper size you set in the application.

❏ Orientation: Select the orientation you set in the application.

5. Select Paper Feed from the pop-up menu, and then select the paper source in which you loaded the paper.

User's Guide

Printing

6. Select Printer Features from the pop-up menu, select Quality as the Feature Sets setting, and then select the type of paper you loaded as the MediaType setting.

Select Color as the Feature Sets setting, and then select the setting for Color Mode.

8. Click Print.

User's Guide

Printing

Setting Items for the PostScript Printer Driver

Click Advanced to make the following settings.

Note:

e availability of these settings varies by model.

Color Mode Select whether to print in color or in monochrome.

Press Simulation You can select a CMYK ink color to simulate when you print by reproducing the CMYK ink

color of the

Simulation Method Select the method of color conversion for the CMYK simulation.

Pure Black Mode Select whether or not to print black text data or line drawing data using only black ink.

However, other color inks may be consumed depending on the paper, even when this feature is set.

Ink Save Mode Conserves ink by reducing the print density.

oset

press.

Rotate by 180º Rotates the data 180 degrees before printing.

Printing Using the Epson Universal P6 Printer Driver (for Windows Only)

1. Load paper in the printer.

2. Open the le you want to print.

3. Access the Epson Universal P6 printer driver window.

User's Guide

Printing

4. Make the following settings.

❏ Color Options: Select to print in full color or black.

❏ Orientation: Select the orientation you set in the application.

❏ Paper Size: Select the paper size you set in the application.

❏ Paper Type: Select the type of paper you loaded.

❏ Paper Source: Select the paper source in which you loaded the paper.

5. Click OK.

6. Click Print.

Smart Devices Printing

By using the Epson iPrint application you can print photos, documents, and Web pages from a smart device such as a smartphone or tablet. To use Epson iPrint, install it on your smartphone or tablet.

Visit the following website for more details.

http://ipr.to/c

Canceling Printing

Note:

❏ In Windows, you cannot cancel a print job from the computer once it has been completely sent to the printer. In this case,

cancel the print job by using the printer's control panel.

❏ When printing several pages from Mac OS X, you cannot cancel all of the jobs by using the control panel. In this case,

cancel the print job from the computer.

❏ If you have sent a print job from Mac OS X v10.6.x or v10.5.8 through the network, you may not be able to cancel

printing from the computer. In this case, cancel the print job by using the printer's control panel. If you cannot cancel printing from the control panel, see the Network Guide.

Canceling Printing - Printer Button

Press the y button to cancel the print job in progress.

Canceling Printing - Windows

1. Access the printer driver window.

2. Select the Maintenance tab.

User's Guide

Printing

3. Click Print Queue.

4. Right-click on the job you want to cancel and then select Cancel.

Related Information

& “Windows Printer Driver” on page 85

Canceling Printing - Mac OS X

1. Click the printer icon in the Dock.

2. Select the job you want to cancel.

Cancel the job.

❏ Mac OS X v10.8.x to Mac OS X v10.9.x

Click

❏ Mac OS X v10.5.8 to v10.7.x

Click Delete.

next to the progress meter.

User's Guide

Replacing Ink Cartridges and Other Consumables

Checking the Status of the Ink Cartridges and the Maintenance Box

You can check the approximate ink levels and the approximate service life of the maintenance box from the control panel or the computer.

Checking the Status of the Ink Cartridges and the Maintenance Box

- Control Panel

1. Enter Menu from the home screen.

2. Select Ink Levels.

Note:

e indicator on the far right indicates the available space in the maintenance box.

Checking the Status of the Ink Cartridges and the Maintenance Box

- Windows

1. Access the printer driver window.

2. Click EPSON Status Monitor 3 on the Maintenance tab, and then click Details.

Note: If EPSON Status Monitor 3 is disabled, click Extended Settings on the Maintenance tab, and then select Enable EPSON Status Monitor 3.

Related Information

& “Windows Printer Driver” on page 85

Checking the Status of the Ink Cartridges and the Maintenance Box

- Mac OS X

1. Start the printer driver utility:

❏ Mac OS X v10.6.x to v10.9.x

Select System Preferences from the then select the printer. Click Options & Supplies > Utility > Open Printer Utility.

❏ Mac OS X v10.5.8

Select System Preferences from the Queue > Utility.

menu > Printers & Scanners (or Print & Scan, Print & Fax), and

menu > Print & Fax, and then select the printer. Click Open Print

User's Guide

Replacing Ink Cartridges and Other Consumables

2. Click EPSON Status Monitor.

Ink Cartridge Codes

Epson recommends the use of genuine Epson ink cartridges. Epson cannot guarantee the quality or reliability of non-genuine ink. e use of non-genuine ink may cause damage that is not covered by Epson’s warranties, and under certain circumstances, may cause erratic printer behavior. Information about non-genuine ink levels may not be displayed.

e following are the codes for genuine Epson ink cartridges.

Black Cyan Magenta Yellow

T7561

T7551

T7541

Note:

❏ Not all cartridges are available in all regions.

❏ For information on Epson's ink cartridge yields, visit the following website.

http://www.epson.eu/pageyield

T7562

T7552

T7542

T7563

T7553

T7543

T7564

T7554

T7544

Ink Cartridge Handling Precautions

Read the following instructions before replacing ink cartridges.

Handling precautions

❏ Store ink cartridges at normal room temperature and keep them away from direct sunlight.

❏ Epson recommends using the ink cartridge before the date printed on the package.

❏ For best results, use up ink cartridge within six months of opening the package.

❏ Aer bringing an ink cartridge inside from a cold storage site, allow it to warm up at room temperature for at

least three hours before using it.

❏ Do not touch the sections shown in the illustration. Doing so may prevent normal operation and printing.

❏ Install all ink cartridges; otherwise you cannot print.

❏ Do not move the print head by hand; otherwise, you may damage the printer.

❏ Do not turn o the printer during ink charging. If the ink charging is incomplete, you may not be able to print.

User's Guide

Replacing Ink Cartridges and Other Consumables

❏ Do not leave the printer with the ink cartridges removed; otherwise, ink remaining in the print head nozzles

may dry out and you may not be able to print.

❏ If you need to remove an ink cartridge temporarily, make sure you protect the ink supply area from dirt and

dust. Store the ink cartridge in the same environment as the printer. Because the ink supply port is equipped with a valve designed to contain the release of excess ink, there is no need to supply your own covers or plugs.

❏ Removed ink cartridges may have ink around the ink supply port, so be careful not to get any ink on the

surrounding area when removing the cartridges.

❏

❏ To ensure you receive premium print quality and to help protect your print head, a variable ink safety reserve

❏ Although the ink cartridges may contain recycled materials, this does not

❏ Do not disassemble or remodel the ink cartridge, otherwise you may not be able to print normally.

❏ Do not drop or knock it against hard objects; otherwise, the ink may leak.

❏ You cannot use the cartridges that came with the printer for the replacement.

❏ Quoted yields may vary depending on the images that you are printing, the paper type that you are using, the

Consumption of Ink

❏ To maintain optimum print head performance, some ink is consumed from all cartridges not only during

❏ When printing in monochrome or grayscale, color inks instead of black ink may be used depending on the

printer uses ink cartridges equipped with an IC chip that monitors information such as the amount of

is remaining ink for each cartridge. is means that even if the cartridge is removed from the printer before it is expended, you can still use the cartridge aer reinserting it back into the printer.

remains in the cartridge when your printer indicates to replace the cartridge. e yields quoted for you do not include this reserve.

printer function or

aect

performance.

frequency of your prints and environmental conditions such as temperature.

printing but also during maintenance operations such as print head cleaning.

paper type or print quality settings. is is because a mixture of color inks is used to create black.

❏ e ink in the ink cartridges supplied with your printer is partly used during initial setup. In order to produce

high quality printouts, the print head in your printer will be fully charged with ink. is one-o process consumes a quantity of ink and therefore these cartridges may print fewer pages compared to subsequent ink cartridges.

Replacing Ink Cartridges

Open the front cover.

User's Guide

Replacing Ink Cartridges and Other Consumables

2. Push the ink cartridge that you want to replace.

ink cartridge will pop out slightly.

e

3. Remove the ink cartridge from the printer.

4. Remove the new ink cartridge from its package.

Important:

Do not touch the sections shown in the illustration. Doing so may prevent normal operation and printing.

User's Guide

Replacing Ink Cartridges and Other Consumables

5. Shake the ink cartridge horizontally for 5 seconds, moving it back and forth about 10 cm 15 times.

6. Insert the cartridge into the printer until it clicks.

Note:

If Cartridge Check is displayed on the control panel, press the OK button to check if the cartridges are installed correctly.

7. Close the front cover.

Note:

Put used ink cartridges in a plastic bag and dispose of them according to your local laws and regulations.

Related Information

& “Ink Cartridge Codes” on page 65 & “Ink Cartridge Handling Precautions” on page 65

Maintenance Box Code

Epson recommends the use of a genuine Epson maintenance box.

e following is the code for the genuine Epson maintenance box.

T6712

Maintenance Box Handling Precautions

Read the following instructions before replacing the maintenance box.

❏ Do not touch the green chip on the side of the maintenance box. Doing so may prevent normal operation and

printing.

❏ Do not tilt the used maintenance box until aer it is sealed in the plastic bag; otherwise ink may leak.

❏ Keep the maintenance box out of direct sunlight.

❏ Do not replace the maintenance box during printing; otherwise, ink may leak.

❏ Do not reuse a maintenance box which has been removed and le detached for a long period. Ink inside the

box will have solidied and no more ink can be absorbed.

User's Guide

Replacing Ink Cartridges and Other Consumables

Replacing a Maintenance Box

In some print cycles a very small amount of surplus ink may be collected in the maintenance box. To prevent ink leakage from the maintenance box, the printer is designed to stop printing when the absorbing capacity of the maintenance box has reached its limit. Whether and how oen this is required will vary according to the number of pages you print, the type of material that you print and the number of cleaning cycles that the printer performs. Replace the maintenance box when you are promoted to do so. e Epson Status Monitor, your LCD, or lights on the control panel will advise you when this part needs replacing. e need for replacement of the box does not mean that your printer has ceased to operate in accordance with its specications. e Epson warranty does not cover the cost of this replacement. It is a user-serviceable part.

Remove the new maintenance box from its package.

Important:

❏ Do not touch the green chip on the side of the maintenance box. Doing so may prevent normal operation

and printing.

❏ Do not remove the lm on the top of the box; otherwise ink may leak.

Note:

A transparent bag for the used maintenance box is provided with the new maintenance box.

2. Open rear cover 1.

3. Remove the used maintenance box.

User's Guide

Replacing Ink Cartridges and Other Consumables

4. Put the used maintenance box in the transparent bag that came with the new maintenance box and seal the bag shut.

Important:

❏ Dispose the used maintenance box without removing the lm.

❏ Do not tilt the used maintenance box until aer it is sealed in the plastic bag; otherwise ink may leak.

5. Insert the new maintenance box all the way into the printer.

Close rear cover 1.

Related Information

& “Maintenance Box Code” on page 68 & “Maintenance Box Handling Precautions” on page 68

Maintenance Rollers Codes

Epson recommends the use of genuine Epson maintenance rollers.

e following are the codes.

Maintenance rollers of paper cassette 1: S990011

Maintenance rollers of paper cassette 2 to 4: S990021

Replacing Maintenance Rollers in Paper Cassette 1

ere are two places for replacing the maintenance rollers: on the back of the printer (two rollers) and on the paper cassette (one roller).

User's Guide

Replacing Ink Cartridges and Other Consumables

1. Remove the new maintenance rollers from their package.

Important:

❏e maintenance rollers for the paper cassette 1 and paper cassette 2 to 4 are

of the arrow at the center of the maintenance rollers, and make sure the maintenance rollers are the ones for paper cassette 1. If you attach the wrong rollers, the printer may not feed the paper.

❏ Be careful not to stain the surface of the maintenance rollers. If dust collects on the surface of the

maintenance rollers, clean the rollers by using a so and dry cloth.

dierent.

Check the direction

Turn o the printer by pressing the

Pull out paper cassette 1.

4. Turn the printer around, and open rear cover 1.

button, and then unplug the power cord.

User's Guide

Replacing Ink Cartridges and Other Consumables

5. Pull out rear cover 2.

6. Remove the cover inside the back of the printer.

7. Slide out the two used maintenance rollers, and remove them.

Insert two new maintenance rollers until they click into place.

User's Guide

Replacing Ink Cartridges and Other Consumables

Note:

Insert the maintenance rollers by rolling them so that you can insert them smoothly.

9. Hold up the maintenance roller for the paper cassette by rolling it up, and then remove it.

10. Install the new maintenance roller in the paper cassette.

11. Hold down the maintenance roller rmly.

12.

Insert rear cover 2, close rear cover 1, and then insert the paper cassette.

User's Guide

Replacing Ink Cartridges and Other Consumables

13. Turn on the printer, select Menu > Maintenance > Maintenance Roller Information > Reset Maintenance Roller Counter, and then select the paper cassette in which you replaced the maintenance rollers.

Related Information

& “Maintenance Rollers Codes” on page 70

Replacing Maintenance Rollers in Paper Cassette 2 to 4

ere are two places for replacing the maintenance rollers: on the back of the optional paper cassette unit (two rollers) and on the paper cassette (one roller).

1. Remove the new maintenance rollers from their package.

Important:

❏e maintenance rollers for the paper cassette 1 and paper cassette 2 to 4 are

of arrow on the center of the maintenance rollers, and make sure the maintenance rollers are the ones for paper cassette 2 to 4. If you attach the wrong rollers, the printer may not feed the paper.

❏ Be careful not to stain the surface of the maintenance rollers. If the dust collects on the surface of the

maintenance rollers, clean the rollers by using a so and dry cloth.

Turn o the printer by pressing the

3. Pull out the optional paper cassette of which you want to replace the rollers.

button, and then unplug the power cord.

dierent.

Check the direction

User's Guide

Replacing Ink Cartridges and Other Consumables

4. Turn the printer around, and open the rear cover of the optional paper cassette unit.

5. Remove the screws by a screwdriver and remove the cover on the rear of inside the printer.

User's Guide

Replacing Ink Cartridges and Other Consumables

6. Slide out two used maintenance rollers, and remove both of them.

7. Insert two new maintenance rollers until they click into place.

Note:

Insert the maintenance rollers by rolling them so that you can insert them smoothly.

Hold up the maintenance roller for the paper cassette by rolling it up, and then remove it.

User's Guide

Replacing Ink Cartridges and Other Consumables

9. Install the new maintenance roller in the paper cassette.

10. Hold down the maintenance roller rmly.

11.

Fasten the screws to attach the cover back on, and close the rear cover.

12. Insert the paper cassette.

Related Information

& “Maintenance Rollers Codes” on page 70

Temporarily Printing with Black Ink

When color ink is expended and black ink still remains, you can use the following settings to continue printing for a short time using only black ink.

❏ Type of paper: plain papers, Envelope

❏ Color: Grayscale

User's Guide

Replacing Ink Cartridges and Other Consumables

❏ EPSON Status Monitor 3: Enabled (for Windows only)

Because this feature is only available for approximately possible.

Note:

❏ If EPSON Status Monitor 3 is disabled, access the printer driver, click Extended Settings on the Maintenance tab, and

then select Enable EPSON Status Monitor 3.

❏ e available period varies depending on the usage conditions.

days, replace the expended ink cartridge as soon as

ve

Temporarily Printing with Black Ink - Windows

1. When the following window is displayed, cancel printing.

Note:

If you cannot cancel printing from the computer, cancel using the printer's control panel.

2. Access the printer driver window.

User's Guide

Replacing Ink Cartridges and Other Consumables

3. Select plain papers or Envelope as the Paper Type setting on the Main tab.

4. Select Grayscale.

Set the other items on the Main and More Options tabs as necessary, and then click OK.

6. Click Print.

7. Click Print in Black in the window displayed.

Related Information

& “Loading Paper in the Paper Cassette” on page 31 & “Loading Paper in the Rear Paper Feed” on page 33

“Loading Paper in the Front Paper Feed Slot” on page 35

“Printing Basics - Windows” on page 38

Temporarily Printing with Black Ink - Mac OS X

Note: To use this feature through a network, connect with Bonjour.

1. Click the printer icon in the Dock.

2. Cancel the job.

❏ Mac OS X v10.8.x to Mac OS X v10.9.x

Click

❏ Mac OS X v10.5.8 to v10.7.x

Click Delete.

Note:

If you cannot cancel printing from the computer, cancel using the printer's control panel.

3. Select System Preferences from the menu > Printers & Scanners (or Print & Scan, Print & Fax), and then select the printer. Click Options & Supplies > Options (or Driver).

4. Select On as the Permit temporary black printing setting.

5. Access the printer driver window.

next to the progress meter.

6. Select Print Settings from the pop-up menu.

7. Select plain papers or Envelope as the Media Type setting.

8. Select Grayscale.

9. Set the other items as necessary.

10.

Click Print.

User's Guide

Replacing Ink Cartridges and Other Consumables

Related Information

Conserving Black Ink when the Black Ink Is Low (for Windows Only)

When black ink is running low and there is enough color ink remaining, you can use a mixture of color inks to create black. You can continue printing while preparing a replacement black ink cartridge.

is feature is only available when you select the following settings in the printer driver.

❏ Paper Type: plain papers

❏ Quality: Standard

❏ EPSON Status Monitor 3: Enabled

Note:

❏ If EPSON Status Monitor 3 is disabled, access the printer driver, click Extended Settings on the Maintenance tab, and

then select Enable EPSON Status Monitor 3.

❏ Composite black looks slightly dierent from pure black. In addition, the print speed is reduced.

❏ To maintain the quality of the print head, black ink is also consumed.

Options Description

Yes Select to use a mixture of color inks to create black. This window is displayed the next time

you print a similar job.

No Select to continue using the remaining black ink. This window is displayed the next time

you print a similar job.

Disable this feature Select to continue using the remaining black ink. This window is not displayed until you

replace the black ink cartridge and it runs low again.

User's Guide

Improving Print Quality

Checking and Cleaning the Print Head

If the nozzles are clogged, the printouts become faint, there is visible banding, or unexpected colors appear. When print quality has declined, use the nozzle check feature and check if the nozzles are clogged. If the nozzles are clogged, clean the print head. You can perform a nozzle check and head cleaning from the control panel or the computer.

Important:

Do not open the front cover or turn o the printer during head cleaning. If the head cleaning is incomplete, you may not be able to print.

Note:

❏ Because print head cleaning uses some ink, clean the print head only if quality declines.

❏ When ink is low you may not be able to clean the print head. Replace the appropriate ink cartridge rst.

❏ If print quality has not improved aer repeating nozzle check and head cleaning about four times, wait for at least six

hours without printing, and then run the nozzle check again and repeat the head cleaning if necessary. If the printer operates printing while waiting, extend the waiting time. We recommend to turn o the printer. If print quality has still not improved, contact Epson support.

❏ To prevent the print head from drying out, always turn the printer o by pressing the

❏ To keep the print head operating at its best, we recommend printing a few pages on a regular basis.

button.

Checking and Cleaning the Print Head - Control Panel

1. Make sure that A4-size plain paper is loaded in the printer.

Enter Menu from the home screen.

3. Select Maintenance > Print Head Nozzle Check.

4. Follow the on-screen instructions to print the nozzle check pattern.

Note:

e test pattern may vary by model.

5. Compare the printed check pattern with the sample shown below.

❏ All lines are printed: e print head nozzles are not clogged. Select Finish.

User's Guide

Improving Print Quality

❏ ere are broken lines or missing segments: e print head nozzles may be clogged. Go to the next step.

Select Clean the print head.

7. When cleaning is nished, select Print Nozzle Check Pattern to print the nozzle check pattern again. Repeat cleaning and printing the pattern until all lines are printed completely.

Checking and Cleaning the Print Head - Windows

Make sure that A4-size plain paper is loaded in the printer.

2. Access the printer driver window.

3. Click Nozzle Check on the Maintenance tab.

4. Follow the on-screen instructions.

Related Information

& “Windows Printer Driver” on page 85

Checking and Cleaning the Print Head - Mac OS X

1. Make sure that A4-size plain paper is loaded in the printer.

2. Start the printer driver utility:

❏ Mac OS X v10.6.x to v10.9.x

Select System Preferences from the then select the printer. Click Options & Supplies > Utility > Open Printer Utility.

❏ Mac OS X v10.5.8

menu > Printers & Scanners (or Print & Scan, Print & Fax), and

Select System Preferences from the Queue > Utility.

3. Click Nozzle Check.

Follow the on-screen instructions.

menu > Print & Fax, and then select the printer. Click Open Print

Aligning the Print Head

If you notice a misalignment of vertical lines or blurred images, align the print head. You can perform print head alignment from the control panel or the computer.

User's Guide

Improving Print Quality

Aligning the Print Head - Control Panel

1. Make sure that A4-size plain paper is loaded in the printer.

2. Enter Menu from the home screen.

Select Maintenance > Print Head Alignment.

4. Select Vertical A l ignment or Horizontal Alignment, and then follow the on-screen instructions to print an alignment pattern.

❏ Vertical Alignment: Select this if your printouts look blurry or vertical ruled lines appear misaligned.

❏ Horizontal Alignment: Select this if you see horizontal banding at regular intervals.

Note:

e test pattern may vary by model.

5. Follow the on-screen instructions to align the print head.

❏ Vertical Alignment: Find and enter the number for the most solid pattern in each group.

❏ Horizontal Alignment: Find and enter the number for the least separated and overlapping pattern.

Aligning the Print Head - Windows

1. Make sure that A4-size plain paper is loaded in the printer.

2. Access the printer driver window.

Click Print Head Alignment on the Maintenance tab.

4. Follow the on-screen instructions.

User's Guide

Improving Print Quality

Related Information

& “Windows Printer Driver” on page 85

Aligning the Print Head - Mac OS X

1. Make sure that A4-size plain paper is loaded in the printer.

2. Start the printer driver utility:

❏ Mac OS X v10.6.x to v10.9.x

Select System Preferences from the then select the printer. Click Options & Supplies > Utility > Open Printer Utility.

❏ Mac OS X v10.5.8

Select System Preferences from the Queue > Utility.

3. Click Print Head Alignment.

4. Follow the on-screen instructions.

menu > Printers & Scanners (or Print & Scan, Print & Fax), and

menu > Print & Fax, and then select the printer. Click Open Print

Cleaning the Paper Path

When the printouts are smeared or scued or paper does not feed correctly, clean the roller inside.

Important:

Do not use tissue paper to clean the inside of the printer. e print head nozzles may be clogged with lint.

1. Load a sheet of paper for cleaning the printer.

❏ When the printouts are smeared or scued, load A3-size plain paper in the paper source that you want to

clean.

❏ When paper does not feed correctly from the rear paper feed, load the cleaning sheet that came with the

Epson genuine paper in the rear paper feed. If you do not have a cleaning sheet, you can use plain paper instead of the cleaning sheet.

2. Enter Menu from the home screen.

3. Select Maintenance > Paper Guide Cleaning.

4. Select the paper source, and then follow the on-screen instructions to clean the paper path.

Note:

❏ Repeat this procedure until the paper is not smeared with ink. If the printouts are still smeared or scued, clean the

other paper sources.

❏ When paper does not feed correctly, repeat these steps two or three times.

User's Guide

Applications and Network Service Information

Epson Connect Service

Using Epson Connect, you can easily print from your smartphone, tablet PC, or laptop, anytime and practically anywhere.

See the Epson Connect portal website for details.

https://www.epsonconnect.com/

http://www.epsonconnect.eu (Europe only)

Web Cong

Web Cong is an application that allows you to change the printer settings on a Web browser and it is embedded in the printer. See the Network Guide or the Administrator's Guide for details.

Note:

To use Web Cong, you need the printer's IP address. Select Menu > Network Status > Wi-Fi/Network Status from the home screen, and then check the printer's IP address.

Necessary Applications

Windows Printer Driver

e printer driver is an application that controls the printer according to the print commands from other applications. Making settings on the printer driver provides the best printing results. You can also check the status of the printer or keep it in top operating condition using the printer driver utility.

Note: You can change the language of the printer driver. Select the language you want to use from the Language setting on the Maintenance tab.

Accessing the printer driver from applications

To make settings that apply only to the application you are using, access from that application.

Select Print or Print Setup from the File menu. Select your printer, and then click Preferences or Properties.

Note:

Operations dier depending on the application. See the application's help for details.

Accessing the printer driver from the control panel

To make settings that apply to all of the applications, access from the control panel.

User's Guide

Applications and Network Service Information

❏ Windows 8.1/Windows 8/Windows Server 2012

Select Desktop > Settings > Control Panel > Vi e w de v ice s and p r i nter s in Hardware and Sound. Right-click on your printer, or press and hold it and then select Printing preferences.

❏ Windows 7/Windows Server 2008 R2

Click the start button, and select Control Panel > Vi e w d e vic e s and p ri nte r s in Hardware and Sound. Right- click on your printer and select Printing preferences.

❏ Windows Vista/Windows Server 2008

Click the start button, and select Control Panel > Printers in Hardware and Sound. Right-click on your printer and select Select printing preferences.

❏ Windows XP/Windows Server 2003 R2/Windows Server 2003

Click the start button, and select Control Panel > Printers and Other Hardware > Printers and Faxes. Right- click on your printer and select Printing preferences.

Starting the utility

Access the printer driver window. Click the Maintenance tab.

Restricting Available Settings for the Windows Printer Driver

Administrators can restrict the following printer driver settings for each user to prevent unintended changes of the settings.

❏ Anti-Copy Pattern

❏ Wa t er m a r k

❏ Header/Footer

❏ Color

❏ 2-Sided Printing

❏ Multi-Page

Note:

Log on to your computer as an administrator.

1. Open the Optional Settings tab in printer properties.

❏ Windows 8.1/Windows 8/Windows Server 2012

Select Desktop > Settings > Control Panel > Vi e w de v ice s and p r i nter s in Hardware and Sound. Right- click on your printer, or press and hold it and then select Printer properties. Click the Optional Settings tab.

❏ Windows 7/Windows Server 2008 R2

Click the start button, and select Control Panel > Vi e w d e vic e s and p ri nte r s in Hardware and Sound. Right-click on your printer, and then select Printer properties. Click the Optional Settings tab.

❏ Windows Vista/Windows Server 2008

Click the start button, and select Control Panel > Printers in Hardware and Sound. Right-click on your printer, and then select Properties. Click the Optional Settings tab.

❏ Windows XP/Windows Server 2003 R2/Windows Server 2003

Click the start button, and select Control Panel > Printers and Other Hardware > Printers and Faxes. Right-click on your printer, and then select Properties. Click the Optional Settings tab.

2. Click Driver Settings.

User's Guide

Applications and Network Service Information

3. Select the feature that you want to restrict.

See the online help for explanations of the setting items.

4. Click OK.

Making Operation Settings for the Windows Printer Driver

You can make various settings such as skipping blank pages, checking the paper width, and ne tuning the printing position.

1. Access the printer driver window.

2. Click Extended Settings on the Maintenance tab.

3. Make the appropriate settings, and then click OK.

See the online help for explanations of the setting items.

Related Information

& “Windows Printer Driver” on page 85

Mac OS X Printer Driver

Accessing the printer driver from applications

Select Print from the File menu. If necessary, click Show Details (or

Note:

Operations dier depending on the application. See the application's help for details.

) to expand the print window.

User's Guide

Starting the utility

❏ Mac OS X v10.6.x to v10.9.x

Applications and Network Service Information

Select System Preferences from the select the printer. Click Options & Supplies > Utility > Open Printer Utility.

❏ Mac OS X v10.5.8

Select System Preferences from the Queue > Utility.

menu > Printers & Scanners (or Print & Scan, Print & Fax), and then

menu > Print & Fax, and then select the printer. Click Open Print

Making Operation Settings for the Mac OS X Printer Driver

You can make various settings such as skipping blank pages and enabling/disabling high speed printing.

1. Select System Preferences from the menu > Printers & Scanners (or Print & Scan, Print & Fax), and then select the printer. Click Options & Supplies > Options (or Driver).

2. Make the appropriate settings, and then click OK.

❏

❏ Skip Blank Page: Avoids printing blank pages.

❏ Quiet Mode: Prints quietly. However, the print speed may be slower.

❏ Permit temporary black printing: Prints only with black ink temporarily.

❏ High Speed Printing: Prints when the print head moves in both directions. e print speed is faster, but the

❏ Warning Notications: Allows the printer driver to display warning notications.

❏ Establish bidirectional communication: Usually, this should be set to On. Select O when acquiring the

❏ Lower Cassette: Add the optional paper cassette units to the paper source.

Note:

e availability of these settings varies by model.

paper and envelopes: Prevents the ink from smearing when printing on thick paper. However, the

ick print speed may be slower.

quality may decline.

printer information is impossible because the printer is shared with Windows computers on a network or for any other reason.

User's Guide

Applications and Network Service Information

Related Information

& “Temporarily Printing with Black Ink” on page 77

E-Web Print (for Windows Only)

E-Web Print is an application that allows you to print Web pages with various layouts.

Note:

Windows Server operating systems are not supported.

Starting

When you install E-Web Print, it is displayed in your browser. Click Print or Clip.

EPSON Software Updater

EPSON Soware Updater is an application that checks for new or updated soware on the internet and installs it. You can also update the printer's rmware and manual.

Note:

Windows Server operating systems are not supported.

Starting on Windows

❏ Windows 8.1/Windows 8

Enter the application name in the search charm, and then select the displayed icon.

❏ Wi n d o w s 7/Wi n d ow s Vista / Wi ndows X P

Click the start button, and select All Programs (or Programs) > Epson Soware > EPSON Soware Updater.

Starting on Mac OS X

Select Go > Applications > Epson Soware > EPSON Soware Updater.

EpsonNet Cong

EpsonNet Cong is an application that allows you to set the network interface addresses and protocols. See the Network Guide for more details.

Starting on Windows

❏ Windows 8.1/Windows 8/Windows Server 2012

Enter the application name in the search charm, and then select the displayed icon.

❏ Except Windows 8.1/Windows 8/Windows Server 2012

Click the start button, and select All Programs (or Programs) > EpsonNet > EpsonNet Cong V4 > EpsonNet

Cong

Starting on Mac OS X

Select Go > Applications > Epson

Soware

> EpsonNet > EpsonNet

V4 > EpsonNet

Cong

User's Guide

Applications and Network Service Information

Uninstalling Applications

Note:

Log on to your computer as an administrator. Enter the administrator password if the computer prompts you.

Uninstalling Applications - Windows

1. Press the P button to turn o the printer.

2. Quit all running applications.

3. Open Control Panel:

❏ Windows 8.1/Windows 8/Windows Server 2012

Select Desktop > Settings > Control Panel.

❏ Except Windows 8.1/Windows 8/Windows Server 2012

Click the start button and select Control Panel.

4. Open Uninstall a program (or Add or Remove Programs):

❏ Windows 8.1/Windows 8/Windows 7/Windows Vista/Windows Server 2012/Windows Server 2008 R2/

Windows Server 2008

Select Uninstall a program in Programs.

❏ Windows XP/Windows Server 2003 R2/Windows Server 2003

Click Add or Remove Programs.

Select the application you want to uninstall.

6. Uninstall the applications:

❏ Windows 8.1/Windows 8/Windows 7/Windows Vista/Windows Server 2012/Windows Server 2008 R2/

Windows Server 2008

Click Uninstall/Change or Uninstall.

❏ Windows XP/Windows Server 2003 R2/Windows Server 2003

Click Change/Remove or Remove.

Note: If the User Account Control window is displayed, click Continue.

Follow the on-screen instructions.

Uninstalling Applications - Mac OS X

1. Download the Uninstaller using EPSON Soware Updater.

Once you have downloaded the Uninstaller, you do not need to download it again each time you uninstall the application.

2. Press the

button to turn o the printer.

User's Guide

Applications and Network Service Information

3. To uninstall the printer driver, select System Preferences from the menu > Printers & Scanners (or Print & Scan, Print & Fax), and then remove the printer from the enabled printers list.

4. Quit all running applications.

5. Select Go > Applications > Epson Soware > Uninstaller.

6. Select the application you want to uninstall, and then click Uninstall.

Important:

e Uninstaller removes all drivers for Epson inkjet printers on the computer. If you use multiple Epson inkjet printers and you only want to delete some drivers, delete all of them rst, and then install the necessary printer driver again.

Note:

If you cannot nd the application you want to uninstall in the application list, you cannot uninstall using the Uninstaller. In this situation, select Go > Applications > Epson and then drag it to the trash icon.

Soware

, select the application you want to uninstall,

Related Information

& “EPSON Soware Updater” on page 89

Installing Applications

You can install the applications described in this manual by following the instructions below.

Note:

❏ Log on to your computer as an administrator. Enter the administrator password if the computer prompts you.

❏ When reinstalling an application, you need to uninstall it rst.

1. Quit all running applications.

2. When installing the printer driver, disconnect the printer and the computer temporarily.

Note:

Do not connect the printer and the computer until you are instructed to do so.

Install the applications by following the instructions on the website below.

http://support.epson.net/setupnavi/

Note:

For Windows, you can also use the soware disc that came with the printer.

Related Information

& “Uninstalling Applications” on page 90

User's Guide

Applications and Network Service Information

Installing a PostScript Printer Driver

Installing a PostScript Printer Driver Using USB Interface - Windows

1. Turn o all virus protection applications.

2. Insert the

Note:

If your computer does not have a CD/DVD drive, download the printer driver from the Epson support website.

http://www.epson.eu/Support (Europe)

http://support.epson.net/ (outside Europe)

3. Connect the printer to the computer with a USB cable, and then turn on the printer.

Note: For Windows Vista/Windows XP, when the Found New Hardware screen appears, click Ask me again later.

4. Add a printer.

❏ Windows 8.1/Windows 8/Windows Server 2012

❏ Windows 7/Windows Server 2008 R2

❏ Windows Vista/Windows Server 2008

soware

Select Desktop > Settings > Control Panel > Vi e w de v ice s and p r i nter s in Hardware and Sound, and then click Add a Printer.

Click the start button, select Control Panel > View devices and printers in Hardware and Sound, and then click Add a Printer.

Click the start button, select Control Panel > Printers in Hardware and Sound, and then click Add a Printer.

disc that came with the printer into the computer.

❏ Windows XP/Windows Server 2003 R2/Windows Server 2003

Click the start button, select Control Panel > Printers and Other Hardware > Printers and Faxes > Add a Printer, and then click Next.

5. Add a local printer.

❏ Windows 8.1/Windows 8/Windows Server 2012

Click e printer that I want isn't listed, select Add a local printer or network printer with manual settings, and then click Next.

❏ Windows 7/Windows Vista/Windows Server 2008 R2/Windows Server 2008

Click Add a local printer.

❏ Windows XP/Windows Server 2003 R2/Windows Server 2003

Select Local printer attached to this computer, clear Automatically detect and install my Plug and Play printer, and then click Next.

6. Select Use an existing port, select USB001 (Virtual printer port for USB), and then click Next.

Click Have Disk, specify the "eppsnt.inf" le that is on the soware disc or that you have downloaded from the website, and then click OK.

8. Select your printer, and then click Next.

User's Guide

Applications and Network Service Information

9. Follow the on-screen instructions for the rest of the installation.

Installing a PostScript Printer Driver Using Network Interface - Windows

1. Select Menu > Network Status > Wi -Fi/Ne t w ork S t a tu s on the control panel, and then

2. Turn o all virus protection applications.

3. Turn on the printer.

4. Insert the

Note:

If your computer does not have a CD/DVD drive, download the printer driver from the Epson support website.

http://www.epson.eu/Support (Europe)

http://support.epson.net/ (outside Europe)

5. Add a printer.

❏ Windows 8.1/Windows 8/Windows Server 2012

❏ Windows 7/Windows Server 2008 R2

❏ Windows Vista/Windows Server 2008

soware

Select Desktop > Settings > Control Panel > Vi e w de v ice s and p r i nter s in Hardware and Sound, and then click Add a Printer.

Click the start button, select Control Panel > View devices and printers in Hardware and Sound, and then click Add a Printer.

Click the start button, select Control Panel > Printers in Hardware and Sound, and then click Add a Printer.

disc that came with the printer into the computer.

conrm

the IP address.

❏ Windows XP/Windows Server 2003 R2/Windows Server 2003

Click the start button, select Control Panel > Printers and Other Hardware > Printers and Faxes > Add a Printer, and then click Next.

6. Add a local printer.

❏ Windows 8.1/Windows 8/Windows Server 2012

Click e printer that I want isn't listed, select Add a local printer or network printer with manual settings, and then click Next.

❏ Windows 7/Windows Vista/Windows Server 2008 R2/Windows Server 2008

Click Add a local printer.

❏ Windows XP/Windows Server 2003 R2/Windows Server 2003

Select Local printer attached to this computer, clear Automatically detect and install my Plug and Play printer, and then click Next.

7. Select Create a new port, select Standard TCP/IP Port, and then click Next.

Note: For Windows XP/Windows Server 2003 R2/Windows Server 2003, when the Add Standard TCP/IP Printer Port Wi z a r d screen appears, click Next.

User's Guide

Applications and Network Service Information

8. Enter the printer's IP address, and then click Next.

Note: For Windows XP/Windows Server 2003 R2/Windows Server 2003, when the Add Standard TCP/IP Printer Port Wi z a r d screen appears, click Finish.

9. Click Have Disk, specify the "eppsnt.inf" le that is on the soware disc or that you have downloaded from the website, and then click OK.

10. Select your printer, and then click Next.

Follow the on-screen instructions for the rest of the installation.

11.

Installing a PostScript Printer Driver - Mac OS X

Download the printer driver from the Epson Support website, and then install it.

http://www.epson.eu/Support (Europe)

http://support.epson.net/ (outside Europe)

You need the IP address of the printer while installing the printer driver. > Network Status > Wi-Fi / N e twor k St atus on the control panel.

Conrm

the IP address by selecting Menu

Adding the Printer Driver (for Mac OS X Only)

Select System Preferences from the

2. Click +, and then select Add Other Printer or Scanner.

3. Select your printer, and then click Add.

Note:

❏ If your printer is not listed, check that it is correctly connected to the computer and that the printer is on.

❏ For a USB, IP, or Bonjour connection, set the optional paper cassette unit manually aer adding the printer driver.

Related Information

& “Setting the Optional Paper Cassette Unit in the Printer Driver - Mac OS X” on page 138

menu > Printers & Scanners (or Print & Scan, Print & Fax).

Installing the Epson Universal P6 Printer Driver (for Windows Only)

e Epson Universal P6 Printer Driver is a universal PCL6 compatible printer driver that comes with the following features.

❏ It supports basic print functions needed for business situations.

❏ It supports multiple Epson business printers as well as this printer.

❏ It supports most of the languages from the printer drivers for this printer.

You need the IP address of the printer while installing the printer driver. > Network Status > Wi-Fi / N e twor k St atus on the control panel.

Conrm

the IP address by selecting Menu

User's Guide

Applications and Network Service Information

1. Insert the soware disc that came with the printer into the computer.

Note:

If your computer does not have a CD/DVD drive, download the printer driver from the Epson support website.

http://www.epson.eu/Support (Europe)

http://support.epson.net/ (outside Europe)

2. Double-click the EP_P6x64.exe (for 64-bit Windows) or EP_P6x86.exe (for 32-bit Windows) le that is on the soware disc or that you have downloaded from the website.

3. Follow the on-screen instructions for the rest of the installation.

Updating Applications and Firmware

You may be able to clear certain problems and improve or add functions by updating the applications and the rmware. Make sure you use the latest version of the applications and rmware.

Make sure that the printer and the computer are connected, and the computer is connected to the internet.

2. Start EPSON Soware Updater, and update the applications or the rmware.

Important:

Do not turn o the computer or the printer while updating.

Note:

If you cannot nd the application you want to update in the list, you cannot update using the EPSON Soware Updater. Check for the latest versions of the applications from your local Epson website.

http://www.epson.com

Related Information

“EPSON Soware Updater” on page 89

User's Guide

Solving Problems

Checking the Printer Status

You can check error messages and the approximate ink levels on the LCD screen or the computer.

Checking Messages on the LCD Screen

If an error message is displayed on the LCD screen, follow the on-screen instructions or the solutions below to solve the problem.

Error Messages Solutions

Printer Error 0xXX

Turn the power o and on again. For details, see your documentation.

Printer Error 0xXX

For details, see your documentation.

Too many paper cassette units are installed.

Turn the power o and uninstall the extra units. See your documentation for details.

Cannot print because XX is out of order.

You can print from another paper source.

Maintenance rollers on XX are nearing the end of their service life.

Maintenance rollers on XX are at the end of their service life.

You need to replace the following ink cartridge(s).

Remove any paper or protective material in the printer. If the error message is still displayed, contact your dealer.

The printer may be damaged. Contact Epson or an authorised Epson service provider to request repairs. However, non-printing features are available.

You can install up to three optional paper cassette units. For other optional paper cassette units, uninstall them by following the reverse steps to installation.

Turn the power o and on again, and then reinsert the paper cassette. If the error message is still displayed, contact Epson or an authorised Epson service provider to request repairs.

The maintenance rollers need to be replaced periodically. Paper is not fed correctly from the paper cassette when it is time for replacement. Prepare new maintenance rollers.

Replace the maintenance rollers. After replacing the rollers, select Menu > Maintenance > Maintenance Roller Information > Reset Maintenance Roller Counter, and then select the paper cassette for which you replaced the maintenance rollers.

To ensure you receive premium print quality and to help protect your print head, a variable ink safety reserve remains in the cartridge when your printer indicates it is time to replace the cartridge. Replace the cartridge when a message prompts you to do so.

Memory full. Try the methods below to reduce the size of the print job.

❏ Lower the print quality and the resolution.

❏ Change the format setting.

❏ Reduce the number of images, letters or fonts used in the print job.

Invalid IP address and subnet mask.

Enter them correctly. See your documentation.

See the Network Guide.

User's Guide

Solving Problems

Error Messages Solutions

Recovery Mode The printer has started in recovery mode because the rmware update

failed. Follow the steps below to try to update the

1. Connect the computer and the printer with a USB cable. (During recovery mode, you cannot update the rmware over a network connection.)

2. Visit your local Epson website for further instructions.

rmware

again.

Related Information

& “Contacting Epson Support” on page 139 & “Installing the Optional Units” on page 128 & “Replacing Maintenance Rollers in Paper Cassette 1” on page 70 & “Replacing Maintenance Rollers in Paper Cassette 2 to 4” on page 74 & “Replacing Ink Cartridges” on page 66 & “Updating Applications and Firmware” on page 95

Checking the Printer Status - Windows

1. Access the printer driver window.

2. Click EPSON Status Monitor 3 on the Maintenance tab, and then click Details.

Note: If EPSON Status Monitor 3 is disabled, click Extended Settings on the Maintenance tab, and then select Enable EPSON Status Monitor 3.

Related Information

& “Windows Printer Driver” on page 85

Checking Printer Status - Mac OS X

1. Start the printer driver utility:

❏ Mac OS X v10.6.x to v10.9.x

Select System Preferences from the then select the printer. Click Options & Supplies > Utility > Open Printer Utility.

❏ Mac OS X v10.5.8

menu > Printers & Scanners (or Print & Scan, Print & Fax), and

Select System Preferences from the Queue > Utility.

Click EPSON Status Monitor.

menu > Print & Fax, and then select the printer. Click Open Print

User's Guide

Solving Problems

Removing Jammed Paper

Follow the on-screen instructions on the printer's control panel to locate and remove the jammed paper including any torn pieces.

Caution:

Never touch the buttons on the control panel while your hand is inside the printer. If the printer starts operating, it could cause an injury. Be careful not to touch the protruding parts to avoid injury.

Important:

Remove the jammed paper carefully. Removing the paper vigorously may cause damage to the printer.

Removing Jammed Paper from the Front Cover (A)

1. Open the front cover.

2. Remove the jammed paper.

Important:

Do not touch the parts inside the printer. Doing so may cause a malfunction.

3. Close the front cover.

Note:

If any torn pieces of paper remain, select Menu > Maintenance > Remove Paper is helps you to remove the remaining pieces of paper.

clearing the paper jam error.

aer

User's Guide

Solving Problems

Removing Jammed Paper from the Rear Paper Feed (B1)

Remove the jammed paper.

Removing Jammed Paper from the Front Paper Feed Slot (B2)

1. Remove the output tray and pull out the paper cassette.

2. Pull the lever.

e cover comes o.

User's Guide

3. Remove the jammed paper.

4. Reattach the cover.

Solving Problems

5. Insert the paper cassette, and then set the output tray.

Removing Jammed Paper from the Paper Cassette (C1/C2/C3/C4)

Note:

If the optional cabinet and the paper cassette units are installed, do not pull out two or more paper cassettes at the same time.

1. Pull out the paper cassette.

100

Epson WF-8090DW User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Copyright

Trademarks

Contents

About This Manual

Introduction to the Manuals

Marks and Symbols

Descriptions Used in this Manual

Operating System References

Important Instructions

Safety Instructions

Printer Advisories and Warnings

Advisories and Warnings for Setting Up/Using the Printer

Advisories and Warnings for Using the Printer with a Wireless Connection

Advisories and Warnings for Using the LCD Screen

Advisories and Warnings for Using the Optional Cabinet

Protecting Your Personal Information

Administrator Settings

Locking the Printer Settings Using an Administrator's Password

Unlocking the Printer Settings

Printer Basics

Part Names and Functions

Control Panel

Buttons and Lights

Icons Displayed on the LCD Screen

Menu Options

Menu

Loading Paper

Paper Handling Precautions

Available Paper and Capacities

List of Paper Types

Loading Paper in the Paper Cassette

Loading Paper in the Rear Paper Feed

Loading Paper in the Front Paper Feed Slot

Loading Envelopes and Precautions

Setting the Paper Size and Paper Type for Each Paper Source

Printing

Printing from a Computer

Printing Basics - Windows

Printing Basics - Mac OS X

Printing on 2-Sides

Printing Several Pages on One Sheet

Printing to Fit the Paper Size

Printing Multiple Files Together (for Windows Only)

Enlarged Printing and Making Posters (for Windows Only)

Printing on Envelopes

Printing Using Advanced Features

Printing Using a PostScript Printer Driver

Printing Using a PostScript Printer Driver - Windows

Printing Using a PostScript Printer Driver - Mac OS X

Setting Items for the PostScript Printer Driver

Printing Using the Epson Universal P6 Printer Driver (for Windows Only)

Smart Devices Printing

Canceling Printing

Canceling Printing - Printer Button

Canceling Printing - Windows

Canceling Printing - Mac OS X

Replacing Ink Cartridges and Other Consumables

Checking the Status of the Ink Cartridges and the Maintenance Box

Ink Cartridge Codes

Ink Cartridge Handling Precautions

Replacing Ink Cartridges

Maintenance Box Code

Maintenance Box Handling Precautions

Replacing a Maintenance Box

Maintenance Rollers Codes

Replacing Maintenance Rollers in Paper Cassette 1

Replacing Maintenance Rollers in Paper Cassette 2 to 4

Temporarily Printing with Black Ink

Temporarily Printing with Black Ink - Windows

Temporarily Printing with Black Ink - Mac OS X

Conserving Black Ink when the Black Ink Is Low (for Windows Only)

Improving Print Quality

Checking and Cleaning the Print Head

Checking and Cleaning the Print Head - Control Panel

Checking and Cleaning the Print Head - Windows

Checking and Cleaning the Print Head - Mac OS X
