Epson TM-m30II (111) Service Manual

Technical Reference Guide

Product Overview

Describes features of the product.

Setup

Describes setup and installation of the product and peripherals.

Advanced Usage

Describes advanced usage methods for the product.

Application Development Information

Describes how to control the printer and necessary information when you develop applications.

Handling

Describes how to handle the product.

Appendix

Describes general specifications and character code tables.

M00127600

Rev. A

Cautions

•No part of this document may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation.

•The contents of this document are subject to change without notice. Please contact us for the latest information.

•While every precaution has been taken in the preparation of this document, Seiko Epson Corporation assumes no responsibility for errors or omissions.

•Neither is any liability assumed for damages resulting from the use of the information contained herein.

•Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.

•Seiko Epson Corporation shall not be liable against any damages or problems arising from the use of any options or any consumable products other than those designated as Original Epson Products or Epson Approved Products by Seiko Epson Corporation.

Trademarks

EPSON is a registered trademark of Seiko Epson Corporation.

Exceed Your Vision and ESC/POS are registered trademarks or trademarks of Seiko Epson Corporation. Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries.

Wi-Fi®, WPATM, and WPA2TM are either registered trademarks or trademarks of Wi-Fi Alliance®.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Seiko Epson Corporation is under license.

IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license. Apple, Apple TV, Apple Watch, iPad, iPad Air, iPad Pro, iPhone, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries. tvOS is a trademark of Apple Inc.

AndroidTM is a trademark of Google LLC.

Google Play and the Google Play logo are trademarks of Google LLC.

All other trademarks are the property of their respective owners and used for identification purpose only.

ESC/POS® Command System

Epson ESC/POS is a proprietary POS printer command system that includes patented or patent-pending commands. ESC/POS is compatible with most Epson POS printers and displays.

ESC/POS is designed to reduce the processing load on the host computer in POS environments. It comprises a set of highly functional and efficient commands and also offers the flexibility to easily make future upgrades.

©Seiko Epson Corporation 2020. All rights reserved.

For Safety

Key to Symbols

The symbols in this manual are identified by their level of importance, as defined below. Read the following carefully before handling the product.

You must follow warnings carefully to avoid serious bodily injury.

WARNING

		Provides information that must be observed to prevent damage to the equipment or loss of data.
		• Possibility of sustaining physical injuries.
	CAUTION	• Possibility of causing physical damage.
		• Possibility of causing information loss.

Provides information that must be observed to avoid damage to your equipment or a malfunction.

Provides important information and useful tips.

Warnings

• Handle the power cable with care.

		Improper handling may lead to fire or electric shock.
	WARNING	Do not modify or attempt to repair the cable.
		Do not place any heavy object on top of the cable.

Avoid excessive bending, twisting, and pulling.

Do not place the cable near heating equipment.

Check that the plug is clean before plugging it in.

Be sure to push the plug all the way in.

•Be sure to use the specified AC adapter (AC adapter, C1).

Connection to an improper power source may cause fire or shock.

•Do not place multiple loads on the power outlet.

Overloading the outlet may lead to fire.

•Shut down your equipment immediately if it produces smoke, a strange odor, or unusual noise.

Continued use may lead to fire. Immediately unplug the equipment and contact qualified service personnel.

•Never disassemble or modify this product.

Tampering with this product may result in injury or fire.

•Do not allow foreign matter to fall into the equipment.

Penetration by foreign objects may lead to fire.

•If water or other liquid spills into this equipment, do not continue to use it.

Continued use may lead to fire. Unplug the power cord immediately and contact qualified service personnel.

•Do not use aerosol sprayers containing flammable gas inside or around this product.

Doing so may cause fire.

•Do not use this product in locations subject to high humidity or dust levels.

Excessive humidity and dust may cause equipment damage or fire.

3

Cautions

• Do not connect cables in ways other than those mentioned in this manual.

Different connections may cause equipment damage.

	CAUTION	• Be sure to set this equipment on a firm, stable, horizontal surface.
		The product may break or cause injury if it falls.
		• Do not place heavy objects on top of this product. Never stand or lean on this product.
		Equipment may fall or collapse, causing breakage and possible injury.
		• Take care not to injure your fingers on the manual cutter
		When you remove printed paper
		When you perform other operations such as loading/replacing roll paper
		• Do not open the roll paper cover without taking the necessary precautions, as this can
		result in injury from the autocutter fixed blade.
		• To ensure safety, unplug this product before leaving it unused for an extended period.
		• To avoid risk of electric shock, do not set up this product or handle cables during a
		thunderstorm.
		• Never insert or disconnect the power plug with wet hands.
		Doing so may result in severe shock.
		• Never attempt to repair this product yourself.
		Improper repair work can be dangerous.

Restriction of Use

When this product is used for applications requiring high reliability/safety, such as transportation devices related to aviation, rail, marine, automotive, etc.; disaster prevention devices; various safety devices, etc.; or functional/precision devices, etc., you should use this product only after giving consideration to including failsafes and redundancies into your design to maintain safety and total system reliability. Because this product was not intended for use in applications requiring extremely high reliability/safety, such as aerospace equipment, main communication equipment, nuclear power control equipment, or medical equipment related to direct medical care, etc., please make your own judgment on this product's suitability after a full evaluation.

Note about interference

•This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

•If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna for the radio/TV.

-Increase the separation between the equipment and the radio/TV.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult your dealer or an experienced radio/TV technician for help.

•Never disassemble or modify this product.

•Seiko Epson Corporation shall not be liable for interference to radio/TV resulting from changes or modifications to this product not expressly approved by Seiko Epson Corporation.

4

Open Source Software License

This product uses open source software in addition to Epson proprietary software.

For information of the open source software used in this product, see the following URL. http://xxx.xxx.xxx.xxx/licenses.html

For “xxx.xxx.xxx.xxx” in the above URL, input your printer’s IP address.

5

About this Manual

Aim of the Manual

This manual was created to provide information on development, design, and installation of POS systems and development and design of printer applications for developers.

Manual Content

The manual is made up of the following sections:

Chapter 1	Product Overview
Chapter 2	Setup
Chapter 3	Advanced Usage
Chapter 4	Application Development Information
Chapter 5	Handling
Appendix	Product Specifications
	Specifications of Interface and Connector
	Character Code Tables
	Compatibility with USB Type-A

6

Contents
■ For Safety..................................................................................................................................	3
Key to Symbols..................................................................................................................................................................	3
Warnings .............................................................................................................................................................................	3
Cautions...............................................................................................................................................................................	4
■ Restriction of Use ....................................................................................................................	4
■ Note about interference ........................................................................................................	4
■ Open Source Software License.............................................................................................	5
■ About this Manual ..................................................................................................................	6
Aim of the Manual ...........................................................................................................................................................	6
Manual Content................................................................................................................................................................	6
■ Contents....................................................................................................................................	7
Product Overview ..........................................................................................	11
■ Features .................................................................................................................................	11
■ Product Configurations ......................................................................................................	13
Models................................................................................................................................................................................	13
NFC Tag ..............................................................................................................................................................................	13
Accessories .......................................................................................................................................................................	14
■ Part Names and Functions .................................................................................................	15
Panel LED ..........................................................................................................................................................................	16
Connectors .......................................................................................................................................................................	17
Online and Offline..........................................................................................................................................................	18
■ Status and Errors ..................................................................................................................	19
Status Display ..................................................................................................................................................................	19
Error Status .......................................................................................................................................................................	20
■ NV Memory (Non-Volatile Memory).................................................................................	22
NV Graphics Memory....................................................................................................................................................	22
User NV Memory ............................................................................................................................................................	22
Memory Switches (customized values)..................................................................................................................	22
R/E (Receipt Enhancement)........................................................................................................................................	22
Maintenance Counter...................................................................................................................................................	23
■ Simple Setup for Wireless LAN ..........................................................................................	24
■ Useful Functions for Smart Devices..................................................................................	25
NFC Tag ..............................................................................................................................................................................	25
QR Code.............................................................................................................................................................................	25
■ Printing Using Multiple Interfaces....................................................................................	26

7

Setup ...............................................................................................................	27
■ Flow of Setup ........................................................................................................................	27
■ Installing the Printer............................................................................................................	28
Changing to the Front Eject Position......................................................................................................................	29
■ Changing the Paper Width .................................................................................................	30
■ Connecting the Optional Wireless LAN Unit...................................................................	32
■ Connecting the Optional Customer Display...................................................................	33
■ Connecting the Optional External Buzzer.......................................................................	34
Attachment Position .....................................................................................................................................................	34
■ Connecting the Cash Drawer .............................................................................................	35
Required specifications of cash drawers................................................................................................................	35
Connecting the drawer kick cable ...........................................................................................................................	36
■ Connecting to the Power Source ......................................................................................	37
Connecting the AC cable.............................................................................................................................................	37
■ Connecting the Printer to the Host Devices....................................................................	39
USB Interface ...................................................................................................................................................................	39
Ethernet Interface ..........................................................................................................................................................	39
Wireless LAN Interface..................................................................................................................................................	39
Bluetooth Interface .......................................................................................................................................................	42
■ Attaching the Power Switch Cover ...................................................................................	45
■ Enabling the Roll Paper Near-End Detection..................................................................	46
Advanced Usage ............................................................................................	47
■ Software Settings.................................................................................................................	47
Functions...........................................................................................................................................................................	48
■ Network Settings .................................................................................................................	56
Setup methods ...............................................................................................................................................................	56
Flow of Setup...................................................................................................................................................................	56
Setup using EpsonNet Config ...................................................................................................................................	57
Setup using EpsonNet Config (Web version).......................................................................................................	58
Setup using arp/ping commands ............................................................................................................................	59
MAC Address Confirmation........................................................................................................................................	60
■ Setting/Check Modes ..........................................................................................................	61
Self-test Mode .................................................................................................................................................................	63
NV Graphics Information Print Mode......................................................................................................................	63
Receipt Enhancement Information Print Mode ..................................................................................................	64
Software Setting Mode ................................................................................................................................................	64
Restore Default Values Mode.....................................................................................................................................	66
Interface Setup Mode...................................................................................................................................................	67
Peripheral Device Information Print Mode ...........................................................................................................	69
Hexadecimal Dumping Mode ...................................................................................................................................	69

8

■ Printing a Status Sheet........................................................................................................	71
■ Resetting the Interface Settings .......................................................................................	73
Application Development Information.......................................................	74
■ Controlling the Printer ........................................................................................................	74
ePOS-Print XML...............................................................................................................................................................	74
ESC/POS.............................................................................................................................................................................	74
■ Controlling the Cash Drawer..............................................................................................	75
■ Controlling the Optional External Buzzer .......................................................................	76
■ Software.................................................................................................................................	77
Development Kit ............................................................................................................................................................	77
Drivers ................................................................................................................................................................................	78
Utilities ...............................................................................................................................................................................	79
Others.................................................................................................................................................................................	79
Download .........................................................................................................................................................................	80
■ Application Development and Distribution for iOS......................................................	81
■ Notes on Printing Barcodes and Two-Dimensional Symbols ......................................	81
Handling .........................................................................................................	82
■ Installing Roll Paper.............................................................................................................	82
For the top eject position............................................................................................................................................	82
For the front eject position.........................................................................................................................................	84
■ Removing Jammed Paper ..................................................................................................	86
■ Roll Paper Cover does not Open .......................................................................................	87
■ Cleaning the Printer.............................................................................................................	88
Cleaning the Printer Case............................................................................................................................................	88
Cleaning the Thermal Head/Platen Roller.............................................................................................................	88
■ Preparing for Transport.......................................................................................................	89

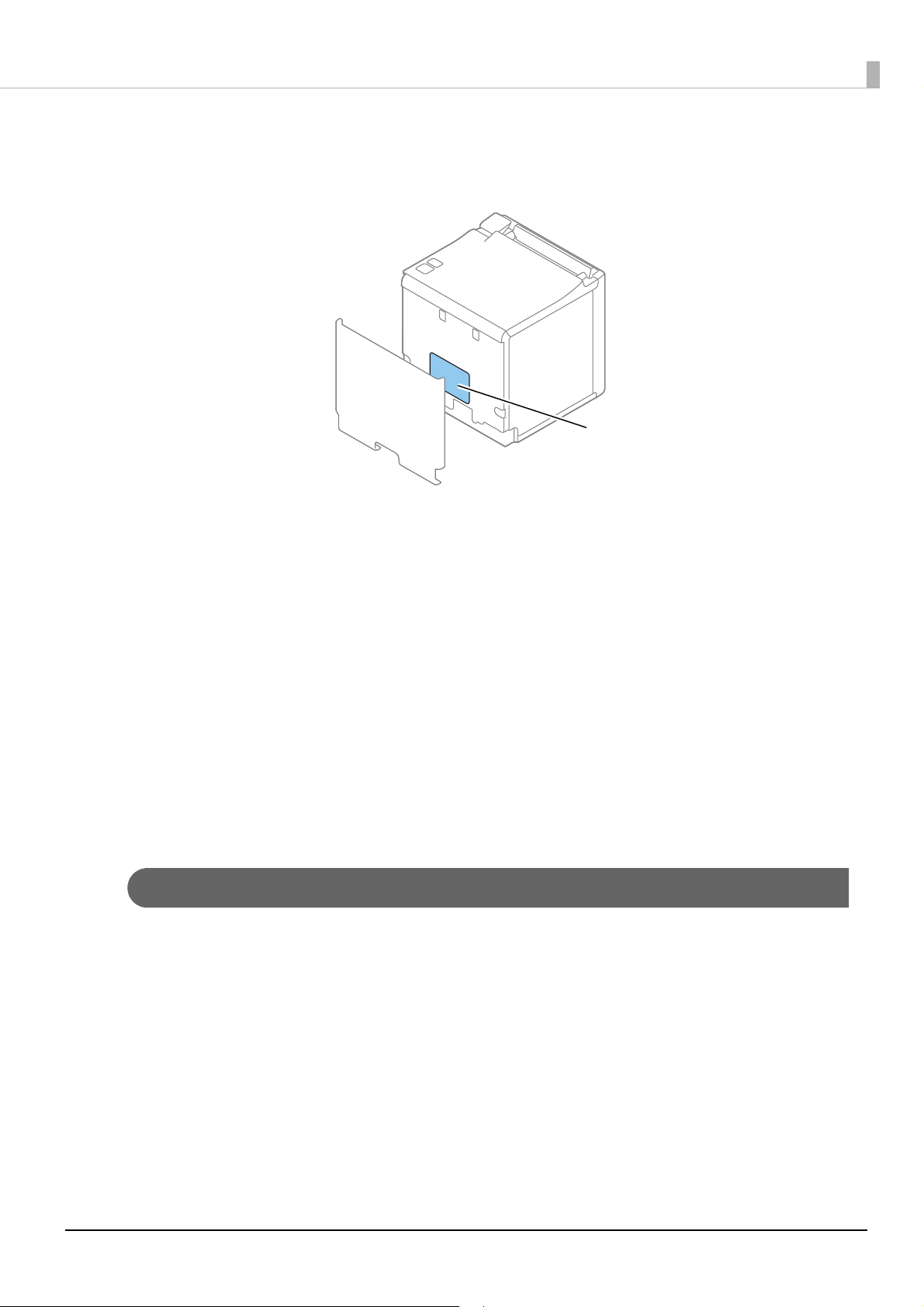

■ Removing/Attaching the Rear and Bottom Covers .......................................................	90
Removing the Covers....................................................................................................................................................	90
Attaching the Covers ....................................................................................................................................................	92
Appendix.........................................................................................................	94
■ Product Specifications ........................................................................................................	94
Printing Specifications .................................................................................................................................................	96
Character Specifications ..............................................................................................................................................	97
Paper Specifications......................................................................................................................................................	99
Printable Area...............................................................................................................................................................	100

9

Printing and Cutting Positions ...............................................................................................................................	101
Electrical Characteristics...........................................................................................................................................	101
Environmental Conditions.......................................................................................................................................	102
External Dimensions ..................................................................................................................................................	103
■ Specifications of Interface and Connector....................................................................	105
USB Interface ................................................................................................................................................................	105
Network Interface .......................................................................................................................................................	106
Bluetooth Interface ....................................................................................................................................................	109
NFC Tag ...........................................................................................................................................................................	112
■ Character Code Tables.......................................................................................................	113
■ Compatibility with USB Type-A .......................................................................................	114

10

Chapter 1 Product Overview

Product Overview

This chapter describes features of the product.

Features

Printing

•High speed receipt printing is possible (250 mm/s maximum).

•By using the "Batch rotate print (Upside Down)" function, you can print pages upside down to make it easier to read the pages when they are ejected from the front side of the printer.

•Supports a variety of language (code pages)

Handling

•Compact and lightweight

Top eject position: 127 x 127 x 135 mm (5.0 × 5.0 × 5.3") Front eject position: 127 x 133 x 129 mm (5.0 × 5.2 × 5.1") Approx. 1.3 kg {2.87 lb}

•Easy drop-in paper loading.

•You can connect to the printer from an interface, other than the mainly connected interface, and run print operation, when mainly connected interface is not printing.

•Ethernet, Bluetooth, and Wi-Fi connection status can be easily checked by viewing respective LED lights.

•A mechanism that holds paper while feeding paper backward enables reduction of top margin of each label during continuous printing.

Software

•NFC tag built into the printer unit for printing to a touched printer.

•Printing triggered by bar code scan by smart device camera.

•A utility for iOS/Android TM (Epson TM Utility for iOS/Android) for making printer settings is provided.

•Printing of various types of bar codes, GS1-DataBar, and two-dimensional symbols (PDF417, QR code, MaxiCode, Composite Symbology, Aztec Code, DataMatrix) is supported.

•A maintenance counter function is supported.

11

Chapter 1 Product Overview

Environment

• Paper saving function is available.

Others

•Paper eject position are selectable from top and front.

•Optional Wireless LAN cable set, customer display, and external buzzer are available.

•Optional wall hanging bracket is available to attach the printer to a wall.

12

Chapter 1 Product Overview

Product Configurations

Models

•Standard model

•Wi-Fi® model

•Bluetooth® model

* Available models may differ depending on the area.

NFC Tag

You can select the printer you want to use by simply placing an NFC device over the NFC tag (mark) on the printer.

• There is no data rewriting function.

• Use Epson ePOS SDK to build this function into your application.

13

Chapter 1 Product Overview

Accessories

Included

•58-mm width roll paper guides

•80-mm width roll paper (for operation check)

•Power switch cover

•AC adapter

•AC cable

•Manuals

Options

•Wireless LAN cable set (Model: OT-WL06)

•Customer display (Model: DM-D30)

•Optional external buzzer (Model: OT-BZ20)

•Wall Hanging Bracket Set (Model: OT-WH30)

•Back cover (Model: OT-CC30)

14

Chapter 1 Product Overview

Part Names and Functions

	1	6
	2	5
		4
	3

7

1	Roll paper cover	Open this cover when loading or replacing roll paper.
2	Panel LED	For details on LED, see "Panel LED" on page 16.
3	NFC Tag	A mark is printed here to indicate the position of the NFC tag. To establish communication
		with an NFC device, bring the device close to this mark.

For the functions using the NFC tag, refer to "Useful Functions for Smart Devices" on page 25.

4	Cover open lever	Operate this lever to open the roll paper cover.
5	Feed button	Pressing this button once feeds roll paper for one line. Hold down this button to continue
		feeding roll paper.
6	Power switch	Turns the printer on or off.
7	Status sheet button	Use this button to print a status sheet on interfaces or initialize the settings on interfaces.

When turning off the printer without using the power switch, it is recommended to send a poweroff command to the printer. If you use the power-off sequence, the latest maintenance counter values are saved. (Maintenance counter values are usually saved every two minutes.)

For information about ESC/POS commands, see the ESC/POS Command Reference.

15

Chapter 1 Product Overview

Panel LED

Power LED

•Lights when the power supply is on.

•Off when the power supply is off.

•Flashes during the network to start up, when waiting for power off, or updating firmware.

Do not turn on by using the power switch while waiting for the power to turn off (when the Power LED is flashing). Otherwise, it may not startup correctly.

Error LED

•Lights or flashes when an error occurs. (For information about the flashing patterns, see "Status and Errors" on page 19.)

•Lights after the power is turned on or after a reset (offline). Automatically goes out after a while to indicate that the printer is ready.

•Off when the printer is in standard mode (online).

Paper LED

•Lights when the roll paper is out.

•Flashes to urge user to operate the Feed button.

This LED also lights if you have enabled the "Roll-paper near-end detection" function and the nearend status is detected.

For more details, see "Software Settings" on page 47.

This function can be used only with a 80-mm width roll paper and only when the printer has been set up to eject printed paper from the front side. For more details about the restrictions, see "Enabling the Roll Paper Near-End Detection" on page 46.

Wi-Fi LED

•Lights while the printer is connected to Wi-Fi.

•Off while the printer is not connected to Wi-Fi or while the printer is connected to a wired LAN.

•Flashes while communication is temporarily disabled because an IP address has not been acquired or for other reason.

Ethernet LED

•Lights while the printer is connected to Ethernet.

•Off while the printer is not connected to Ethernet or while the printer is connected to Wi-Fi.

•Flashes while communication is temporarily disabled because an IP address has not been acquired or for other reason.

Bluetooth LED

•Lights while the printer is connected via Bluetooth.

•Off while the printer is not connected via Bluetooth.

•Flashes while the printer is waiting to be paired with another device.

16

Chapter 1 Product Overview

Connectors

All connectors are located on the lower rear of the printer.

1

USB connector

Connects an optional Wireless LAN unit, customer display, or a handheld scanner.

(Type-A)

CAUTION:

It may be hard to disconnect some types of USB cable. Do not forcibly pull the cable, or the

USB connector and USB cable may be damaged. Contact qualified service personnel if you

encounter the trouble.

2

Power supply

Connect the AC adapter.

connector

See "Connecting to the Power Source" on page 37.

3

USB connector

Connects the USB cable for connecting to a computer.

(Type-B)

See "Connecting the Printer to the Host Devices" on page 39.

4

Ethernet connector

Connects the 10BASE-T/100BASE-TX ethernet cable.

5

Drawer kick

Connects the cash drawer or the optional external buzzer.

connector

See "Connecting the Cash Drawer" on page 35, and "Connecting the Optional External

Buzzer" on page 34.

17

Chapter 1 Product Overview

Online and Offline

Online

The printer is online and ready for normal printing unless there is a reason to go offline.

Offline

The printer automatically goes offline under the following conditions:

•While the printer power is turning on/off

•During the setting and check modes operating (except the hexadecimal dumping mode)

•While roll paper is fed using the Feed button

•When the printer stops printing due to a paper end (when the paper out detector detected the paper out)

•During an operation standby state

•When an error has occurred (See "Status and Errors" on page 19.)

•While the roll paper cover is open

18

Chapter 1 Product Overview

Status and Errors

The status of the printer is indicated by lit and flashing LEDs.

You cannot print when an error has occurred.

You cannot identify the error by the flashing patterns of the LEDs. Develop the application so that users can identify the error description and check the solutions.

Status Display

				O: OFF N: ON		F: Flashing -: Ignore the LED light
Power	Error	Paper	Wi-Fi	Ethernet	Bluetooth
LED	LED	LED	LED	LED	LED	Printer Status
N	O	O	-	-	-	Online
N	N	N	N	N	N	While initializing after turning on the
						power
N	O	-	O	O	O	During a self-test
N	O	-	-	-	-	While feeding paper using the Feed
						button
N	N	-	-	-	-	Roll paper cover open while not
						printing
N	O	F	O	O	O	Waiting for the self-test to continue
N	O	F	-	-	-	Waiting for a Macro execution to run
N	N	F	-	-	-	Waiting for the roll paper cover to be
						closed to print a status sheet.
N	N	N	-	-	-	No roll paper
N	O	N	-	-	-	Remaining amount of roll paper is
						low*1
N	N	-	-	-	-	Automatically Recoverable Errors
						Recoverable Errors
N	F	-	O	O	O	Unrecoverable Errors
						CAUTION:
						Turn off the power immediately when
						an unrecoverable error occurs.
						If the same error occurs again even after
						turning the power back on, contact
						qualified service personnel.
N	F *2	-	-	-	-	A USB hub is connected.
F	O	O	O	O	O	Updating firmware

19

Chapter 1 Product Overview

Power	Error	Paper	Wi-Fi	Ethernet	Bluetooth
LED	LED	LED	LED	LED	LED	Printer Status
F	O	F	O	O	O	While forced updating firmware mode is
						on
F *3	N	O	O	O	O	During turn-off process
F *4	O	O	O	O	O	During power off
						NOTE:
						The printer enters this status while
						processing the power off command. It is
						recommended to use this method
						when you need to save information on
						the printer’s operating status if the
						power is cut without using the power
						switch.
