D-Link DMC-300SC, DMC-515SC, DMC-810SC, DMC-1910R, DMC-1910T User Manual

iD-Link Media Converter Series

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization
of such revisions or changes.

Preface

Revision Date Description

1.00 December 04, 2015 • Initial release

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2015 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation,
Inc.

Trademarks

Manual Revisions

iiD-Link Media Converter Series

Table of Contents

Preface ................................................................................. i

Trademarks ...................................................................................... i

Manual Revisions ........................................................................... i

Package Contents .............................................................. 1

Introduction ...................................................................... 2

Features ........................................................................................... 3

Hardware Overview ...........................................................4

Front Panel View ...........................................................................4

Rear Panel View .................................................................5

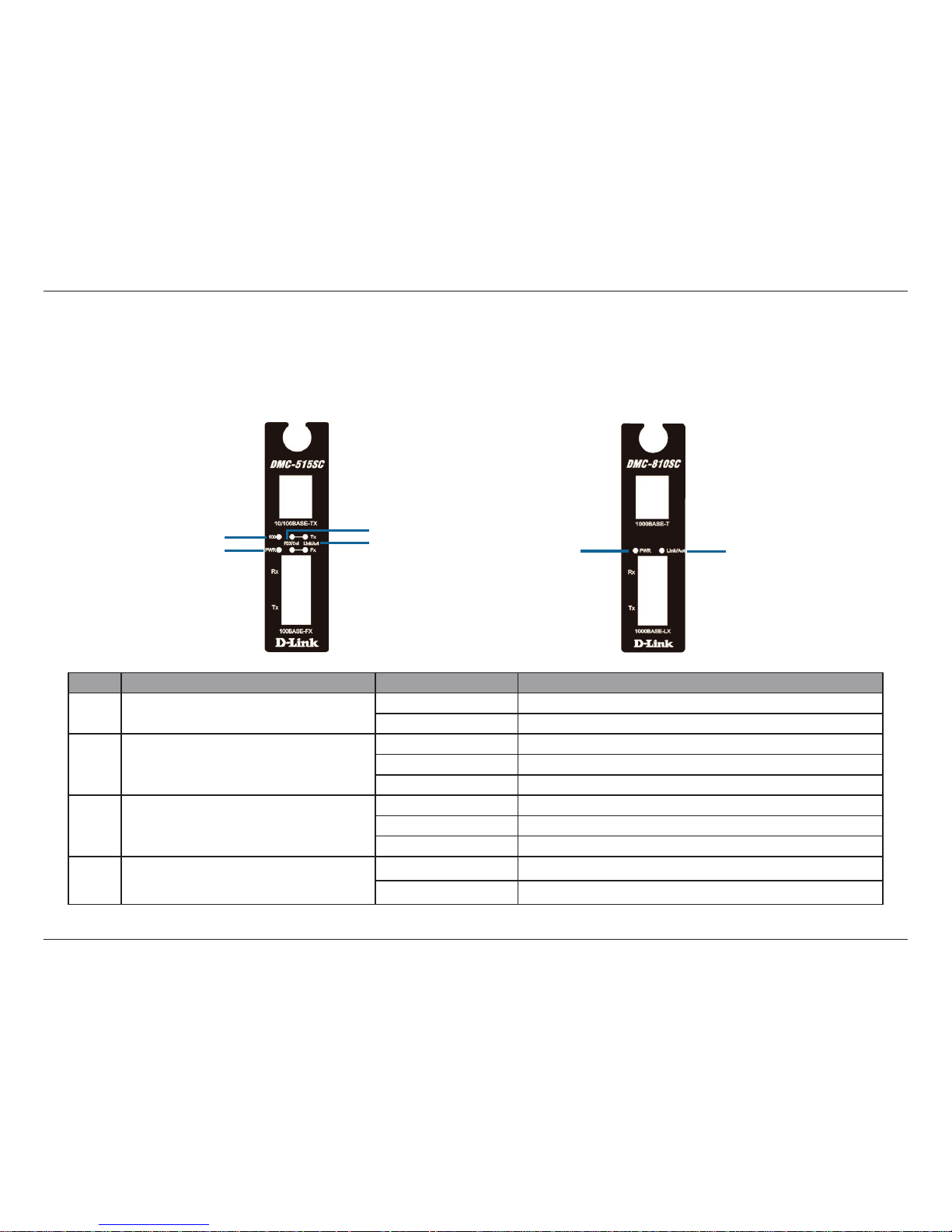

LED Indicators ................................................................... 6

Installation ......................................................................... 7

Before Installing the Media Converter .................................. 7

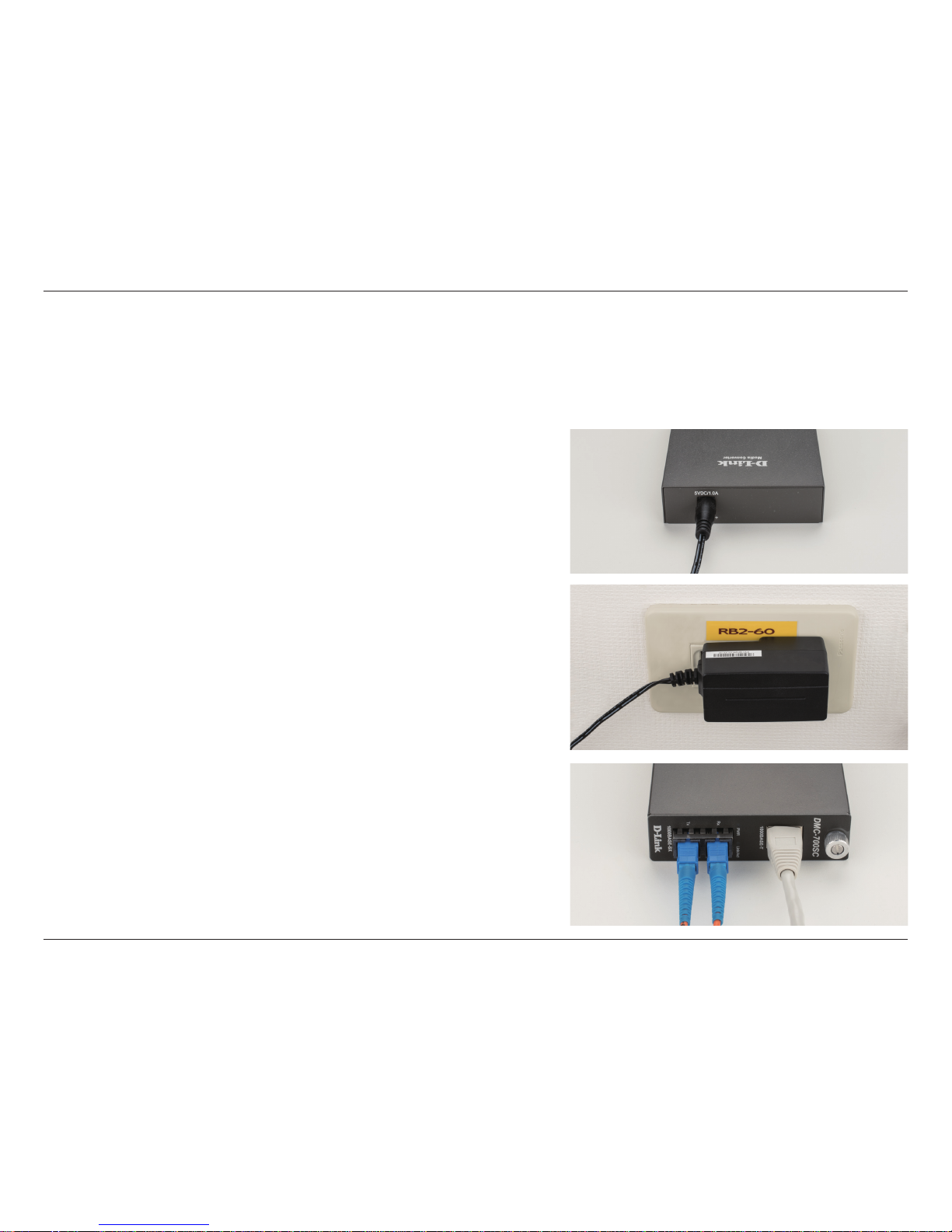

Standalone Installation .............................................................. 8

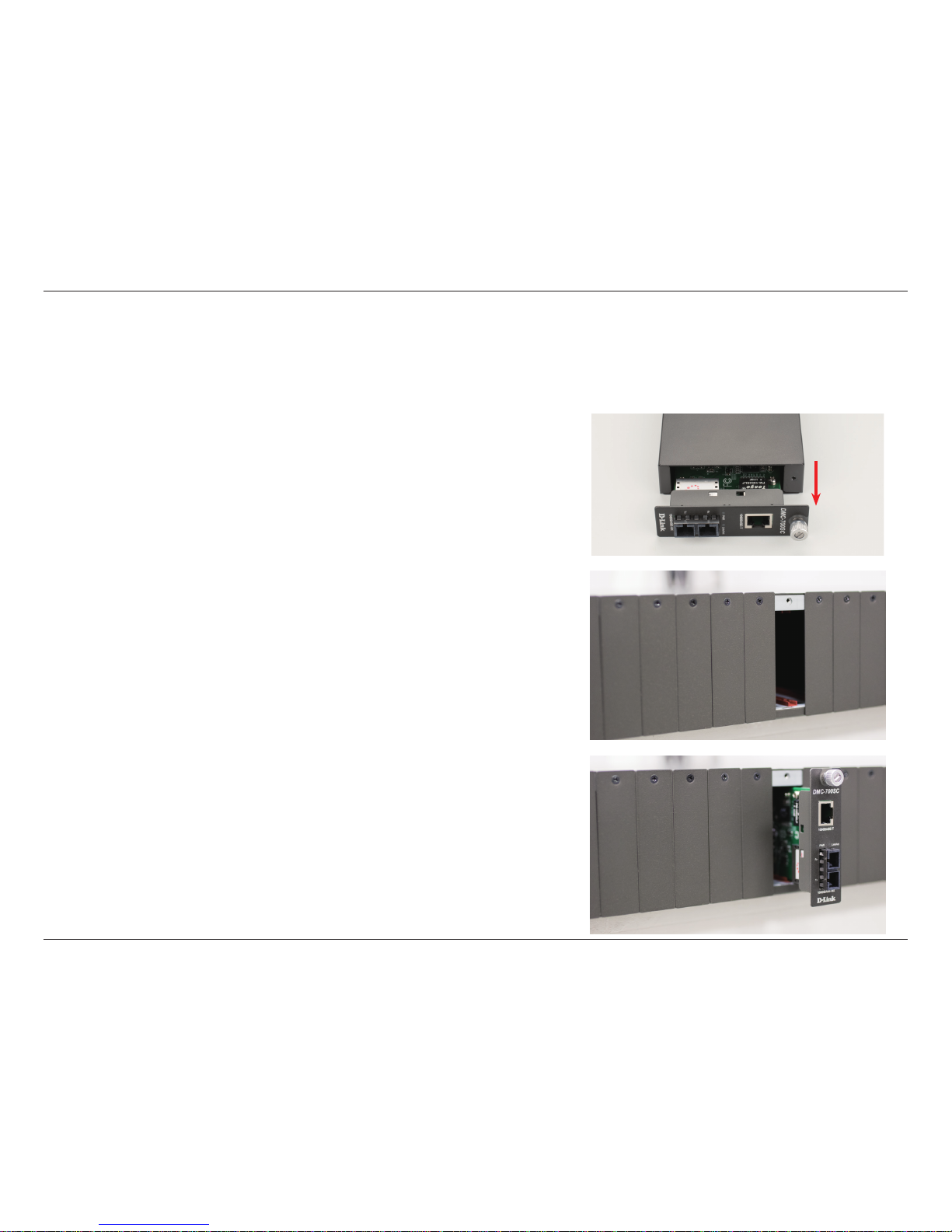

Rack Installation ........................................................................... 9

Management .................................................................... 10

Monitoring the Media Converter ..........................................10

Link Passthrough Functionality .....................................10

Link Loss Carry Forward (LLCF) ..............................................10

Link Loss Return (LLR) ...............................................................10

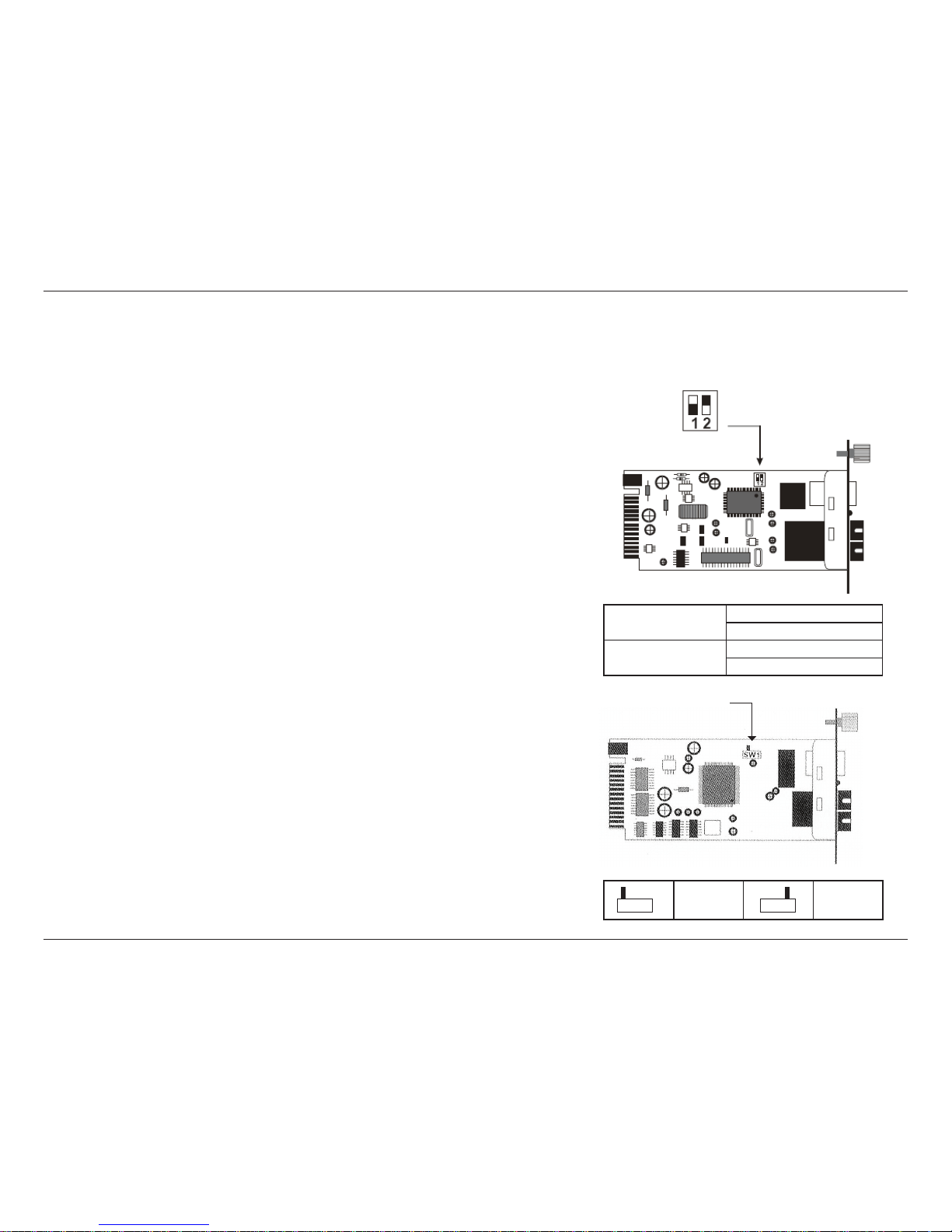

DIP Switches .................................................................... 11

Technical Specications .................................................. 12

Regulatory Statements ...................................................16

Table of Contents

1D-Link Media Converter Series

Section 1 - Product Overview

If any of the above items are missing, please contact your local reseller.

D-Link Media Converter

5 V /1 A Power Adapter

User Manual

Package Contents

2D-Link Media Converter Series

Section 1 - Product Overview

Introduction

Thank you and congratulations on the purchase of your new D-Link Media Converter Series device. These standalone plug-and-play converters oer
increased exibility when networking media technologies. The Media Converter Series is divided into two types of models. The DMC-300SC, 515SC,
and 530SC convert a copper Fast Ethernet connection to a ber optic Fast Ethernet connection. The DMC-810SC, 700SC, and 1910 series provide
Gigabit Ethernet to Gigabit ber optic conversion, ideal for expanding more demanding, high-speed networks. The Media Converter Series oers
network administrators a variety of solutions to expand networks over a greater distance while maintaining compatibility with existing network
equipment.

3D-Link Media Converter Series

Section 1 - Product Overview

Features

The Media Converter Series is designed to ease installation, increases networking exibility, and oers high performance. Plug-and-play functionality
means these media converters are also low maintenance, requiring no additional management after installation. Use the D-Link Media Converter Series
to expand your network as the scale and volume of network trac increases.

• Compliant with IEEE 802.3/u for 10/100BASE-TX/FX and IEEE 802.3ab/z for 1000BASE- T/SX/LX

• One-channel media conversion between 10/100BASE-TX to 100BASE-FX (DMC-300SC/515SC/530SC), and 1000BASE-T to
1000BASE-SX/LX (DMC-700SC/810SC/1910R,T)

• A variety of models helps you nd the perfect media converter to expand your network over longer distances according to
your needs

• Can be used as either a standalone converter or can be installed in the specially designed D-Link DMC-1000 chassis

• Hot-swappable when installed in the DMC-1000 chassis

• Provides intelligent troubleshooting functions such as Link Loss Return (LLR) and Link Loss Carry Forward (LLCF)

• Front panel LEDs for easily monitoring the device's status

• Auto-MDI/MDIX

• Full wire-speed forwarding rate

4D-Link Media Converter Series

Section 1 - Product Overview

Hardware Overview

Front Panel View

1000 Mbps Media Converter Series10/100 Mbps Media Converter Series

2 31

1 Tx and Rx SC ber optic port
2 Indicator LEDs
3 10/100BASE-T Ethernet port

2 31

1

LC ber optic port (1910R/T)

SC ber optic port (700SC/810SC)
2 Indicator LEDs
3 1000BASE-T Ethernet port

5D-Link Media Converter Series

Section 1 - Product Overview

Rear Panel View

10/100 Mbps and Gigabit Media Converter Series

1

1 Power Connector Input for the supplied 5 V/1 A power adapter
