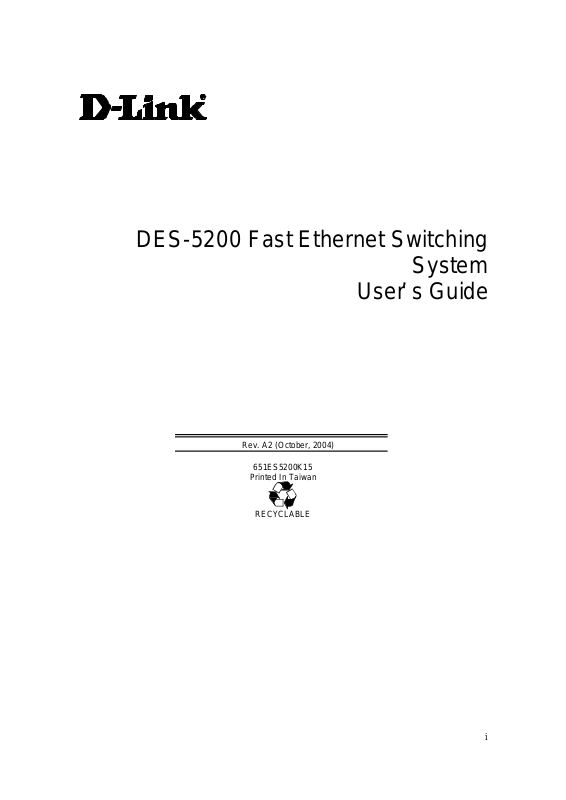

D-link DES-5224TX User Manual

DES-5200 Fast Ethernet Switching

System

User’s Guide

Rev. A2 (October, 2004)

651ES5200K15

Printed In Taiwan

RECYCLABLE

i

Copyright © 1999 by D-Link Systems, Inc. All rights reserved.

Limited Warranty

Hardware:

D-Link warrants each of its hardware products to be free from defects in workmanship and materials under normal use and service
for a period commencing on the date of purchase from D-Link or its Authorized Reseller and extending for the length of time
stipulated by the Authorized Reseller or D-Link Branch Office nearest to the place of purchase.

This Warranty applies on the condition that the product Registration Card is filled out and returned to a D-Link office within ninety
(90) days of purchase. A list of D-Link offices is provided at the back of this manual, together with a copy of the Registration Card.

If the product proves defective within the applicable warranty period, D-Link will provide repair or replacement of the product.
D-Link shall have the sole discretion whether to repair or replace, and replacement product may be new or reconditioned.
Replacement product shall be of equivalent or better specifications, relative to the defective product, but need not be identical. Any
product or part repaired by D-Link pursuant to this warranty shall have a warranty period of not less than 90 days, from date of
such repair, irrespective of any earlier expiration of original warranty period. When D-Link provides replacement, then the defective
product becomes the property of D-Link.

Warranty service may be obtained by contacting a D-Link office within the applicable warranty period, and requesting a Return
Material Authorization (RMA) number. If a Registration Card for the product in question has not been returned to D-Link, then a
proof of purchase (such as a copy of the dated purchase invoice) must be provided. If Purchaser's circumstances require special
handling of warranty correction, then at the time of requesting RMA number, Purchaser may also propose special procedure as may
be suitable to the case.

After an RMA number is issued, the defective product must be packaged securely in the original or other suitable shipping package
to ensure that it will not be damaged in transit, and the RMA number must be prominently marked on the outside of the package.
The package must be mailed or otherwise shipped to D-Link with all costs of mailing/shipping/insurance prepaid. D-Link shall never
be responsible for any software, firmware, information, or memory data of Purchaser contained in, stored on, or integrated with any
product returned to D-Link pursuant to this warranty.

Any package returned to D-Link without an RMA number will be rejected and shipped back to Purchaser at Purchaser's expense,
and D-Link reserves the right in such a case to levy a reasonable handling charge in addition mailing or shipping costs.

Software:

Warranty service for software products may be obtained by contacting a D-Link office within the applicable warranty period. A list
of D-Link offices is provided at the back of this manual, together with a copy of the Registration Card. If a Registration Card for the
product in question has not been returned to a D-Link office, then a proof of purchase (such as a copy of the dated purchase invoice)
must be provided when requesting warranty service. The term "purchase" in this software warranty refers to the purchase
transaction and resulting license to use such software.

D-Link warrants that its software products will perform in substantial conformance with the applicable product documentation
provided by D-Link with such software product, for a period of ninety (90) days from the date of purchase from D-Link or its
Authorized Reseller. D-Link warrants the magnetic media, on which D-Link provides its software product, against failure during the
same warranty period. This warranty applies to purchased software, and to replacement software provided by D-Link pursuant to
this warranty, but shall not apply to any update or replacement which may be provided for download via the Internet, or to any
update which may otherwise be provided free of charge.

D-Link's sole obligation under this software warranty shall be to replace any defective software product with product which
substantially conforms to D-Link's applicable product documentation. Purchaser assumes responsibility for the selection of
appropriate application and system/platform software and associated reference materials. D-Link makes no warranty that its
software products will work in combination with any hardware, or any application or system/platform software product provided by
any third party, excepting only such products as are expressly represented, in D-Link's applicable product documentation as being
compatible. D-Link's obligation under this warranty shall be a reasonable effort to provide compatibility, but D-Link shall have no
obligation to provide compatibility when there is fault in the third-party hardware or software. D-Link makes no warranty that
operation of its software products will be uninterrupted or absolutely error-free, and no warranty that all defects in the software
product, within or without the scope of D-Link's applicable product documentation, will be corrected.

D-Link Offices for Registration and Warranty Service

The product's Registration Card, provided at the back of this manual, must be sent to a D-Link office. To obtain an RMA number for
warranty service as to a hardware product, or to obtain warranty service as to a software product, contact the D-Link office nearest
you. An addresses/
telephone/fax list of D-Link offices is provided in the back of this manual.

D-Link Offices to Contact for Warranty Service:
To mail your Registration Card, or to obtain an RMA number or warranty service, see the following address:

In North, Central, and South America:

D-Link Systems Inc.
53 Discovery Drive, Irvine CA 92618
Tel. [phone] Fax [phone]

In Europe and Israel:

ii

D-Link Europe
Denmark House, Staples Corner, The Broadway, London NW9 7BW, U.K.
Tel. [phone] Fax [phone]

In the Middle East (except Israel), Asia, Oceania and Africa:

D-Link Corporation
No. 233-2, 2nd F. Pao Chiao Road, Hsin Tien Taipei, Taiwan
TEL. [phone]

Trademarks

Copyright 1998 D-Link Corporation.
D-Link © is a registered trademark of D-Link Corporation/D-Link Systems, Inc.
All rights reserved, contents may be revised without prior notice.
FlexSWITCHTM is a trademark of D-Link Systems, Inc.
Ethernet is a trademark of Xerox Corporation.
Microsoft Windows is a trademark of Microsoft Corporation.
VT100 is a trademark of Digital Equipment Corporation.
All other trademarks belong to their respective proprietors.

Copyright Statement

No part of this publication may be reproduced in any form or by any means or used to make any derivative such as translation,
transformation, or adaptation without permission from D-Link Corporation/D-Link Systems Inc., as stipulated by the United States Copyright
Act of 1976.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
this user’s guide, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.

CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be

required to take adequate measures.

iii

Wichtige Sicherheitshinweise

Bitte lesen Sie sich diese Hinweise sorgfältig durch.
Heben Sie diese Anleitung für den spätern Gebrauch auf.
Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Vervenden Sie keine Flüssig- oder Aerosolreiniger. Am besten dient ein
angefeuchtetes Tuch zur Reinigung.
Um eine Beschädigung des Gerätes zu vermeiden sollten Sie nur Zubehörteile verwenden, die vom Hersteller zugelassen sind.
Das Gerät is vor Feuchtigkeit zu schützen.
Bei der Aufstellung des Gerätes ist auf sichern Stand zu achten. Ein Kippen oder Fallen könnte Verletzungen hervorrufen. Verwenden Sie
nur sichere Standorte und beachten Sie die Aufstellhinweise des Herstellers.
Die Belüftungsöffnungen dienen zur Luftzirkulation die das Gerät vor Überhitzung schützt. Sorgen Sie dafür, daß diese Öffnungen nicht
abgedeckt werden.
Beachten Sie beim Anschluß an das Stromnetz die Anschlußwerte.
Die Netzanschlußsteckdose muß aus Gründen der elektrischen Sicherheit einen Schutzleiterkontakt haben.
Verlegen Sie die Netzanschlußleitung so, daß niemand darüber fallen kann. Es sollete auch nichts auf der Leitung abgestellt werden.
Alle Hinweise und Warnungen die sich am Geräten befinden sind zu beachten.
Wird das Gerät über einen längeren Zeitraum nicht benutzt, sollten Sie es vom Stromnetz trennen. Somit wird im Falle einer
Überspannung eine Beschädigung vermieden.
Durch die Lüftungsöffnungen dürfen niemals Gegenstände oder Flüssigkeiten in das Gerät gelangen. Dies könnte einen Brand bzw.
Elektrischen Schlag auslösen.
Öffnen Sie niemals das Gerät. Das Gerät darf aus Gründen der elektrischen Sicherheit nur von authorisiertem Servicepersonal geöffnet
werden.
Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu trennen und von einerqualifizierten Servicestelle zu überprüfen:
Netzkabel oder Netzstecker sint beschädigt.
Flüssigkeit ist in das Gerät eingedrungen.
Das Gerät war Feuchtigkeit ausgesetzt.
Wenn das Gerät nicht der Bedienungsanleitung ensprechend funktioniert oder Sie mit Hilfe dieser Anleitung keine Verbesserung erzielen.
Das Gerät ist gefallen und/oder das Gehäuse ist beschädigt.
Wenn das Gerät deutliche Anzeichen eines Defektes aufweist.
Bei Reparaturen dürfen nur Orginalersatzteile bzw. den Orginalteilen entsprechende Teile verwendet werden. Der Einsatz von
ungeeigneten Ersatzteilen kann eine weitere Beschädigung hervorrufen.
Wenden Sie sich mit allen Fragen die Service und Repartur betreffen an Ihren Servicepartner. Somit stellen Sie die Betriebssicherheit des
Gerätes sicher.

iv

Table of Contents

Table of Contents ................................................................................................................ v

About This Guide................................................................................................................ 1

Audience............................................................................................................................................................1

Organization.......................................................................................................................................................1

1........................................................................................................................................... 2

Introduction......................................................................................................................... 2

Features..............................................................................................................................................................2

Front Panel.........................................................................................................................................................4

Power Plug.....................................................................................................................................................5

Rear Panel..........................................................................................................................................................8

Management Methods.......................................................................................................................................9

Local Console Management.........................................................................................................................9

Telnet Management.......................................................................................................................................9

D-View/ SNMP Management.......................................................................................................................9

Web Management..........................................................................................................................................9

Software Update................................................................................................................................................9

2......................................................................................................................................... 10

Installing the DES-5200.................................................................................................... 10

Unpacking the DES-5200...............................................................................................................................10

Installation Options.........................................................................................................................................11

Installing Optional Modules...........................................................................................................................16

Power On.........................................................................................................................................................19

3......................................................................................................................................... 20

Connecting the DES-5200 to the Network........................................................................20

Cable Specifications........................................................................................................................................20

Copper Cable...............................................................................................................................................20

Fiber Optic Cable........................................................................................................................................23

Ports..................................................................................................................................................................24

MDI-X Ports................................................................................................................................................24

Fiber Optic Ports.........................................................................................................................................24

RS-232 Port.................................................................................................................................................24

DES-5200 to DES-5200 Connection.............................................................................................................25

Connecting the DES-5200 to other Switches and Hubs................................................................................25

4......................................................................................................................................... 26

LEDs ................................................................................................................................. 26

CPU Module....................................................................................................................................................27

12-Port 10/100-TX Module............................................................................................................................29

2-Port 10/100-TX Module..............................................................................................................................31

8-Port FX Module...........................................................................................................................................33

2-Port 100BASE-FX Module.........................................................................................................................34

1-Port 1000BASE-SX Module.......................................................................................................................36

5......................................................................................................................................... 37

Console Based Management............................................................................................. 37

Console Management......................................................................................................................................38

Telnet Management.........................................................................................................................................39

Configuring Through the Ethernet Port.....................................................................................................39

Log In...............................................................................................................................................................40

Help Message ..................................................................................................................................................41

Panel Conventions...........................................................................................................................................42

Console Program.............................................................................................................................................43

System Configuration..................................................................................................................................43

v

User Account Management ........................................................................................................................43

Switch Port Configuration..........................................................................................................................43

Spanning Tree Configuration.....................................................................................................................44

SNMP Management Configuration............................................................................................................44

VLAN Port Management............................................................................................................................44

Trunking Port Management........................................................................................................................44

Port Statistics...............................................................................................................................................44

Port Monitoring...........................................................................................................................................44

Broadcast Storm Protection........................................................................................................................44

System Configuration Menu...........................................................................................................................45

System Information.....................................................................................................................................45

System Reset................................................................................................................................................45

Factory Reset to Default Config Values....................................................................................................45

Switch Control.............................................................................................................................................45

Software Update..........................................................................................................................................46

Ping...............................................................................................................................................................46

System Information Menu..........................................................................................................................46

System Reset................................................................................................................................................48

Factory Reset...............................................................................................................................................50

Switch Control.............................................................................................................................................51

Rate Control.................................................................................................................................................51

Software Update Menu...............................................................................................................................52

Software Update Configuration..................................................................................................................52

Download Mode..........................................................................................................................................52

TFTP Server IP Address.............................................................................................................................52

File Name.....................................................................................................................................................52

Ping...............................................................................................................................................................58

User Account Management ............................................................................................................................60

User Account Change Menu.......................................................................................................................60

Create New User.........................................................................................................................................61

Delete Users.................................................................................................................................................63

Change Password.........................................................................................................................................65

Switch Port Configuration..............................................................................................................................67

Switch Port Configuration Menu................................................................................................................68

Spanning Tree Configuration.........................................................................................................................71

STA Operation Levels................................................................................................................................71

Spanning Tree Configuration Menu...........................................................................................................71

SNMP Management Configuration................................................................................................................74

SNMP Management Configuration Menu.................................................................................................75

VLAN Port Management................................................................................................................................78

VLAN Port Management Menu.................................................................................................................79

Create New VLAN......................................................................................................................................80

Delete VLAN Menu....................................................................................................................................82

Modify VLAN Menu...................................................................................................................................83

Trunking Port Management Menu.................................................................................................................84

Create New Trunking Port..........................................................................................................................85

Delete Trunking Port...................................................................................................................................87

Port Statistics...................................................................................................................................................89

Port Monitoring...............................................................................................................................................92

Broadcast Storm Protection............................................................................................................................94

6......................................................................................................................................... 96

Web Management ............................................................................................................. 96

Using Web Management.................................................................................................................................96

Commands .......................................................................................................................................................96

Logging In........................................................................................................................................................97

vi

System Configuration......................................................................................................................................99

System Configuration..................................................................................................................................99

User Account Management ........................................................................................................................99

Switch Port Configuration..........................................................................................................................99

Spanning Tree Configuration.....................................................................................................................99

SNMP Management Configuration............................................................................................................99

SNMP Manager Setting..............................................................................................................................99

SNMP Trap Manager Setting.....................................................................................................................99

VLAN Port Management..........................................................................................................................100

Trunking Port Management......................................................................................................................100

Port Statistics.............................................................................................................................................100

Port Monitoring.........................................................................................................................................100

Broadcast Storm Protection......................................................................................................................100

System Information...................................................................................................................................101

System Reset..............................................................................................................................................101

Factory Reset to Default Config Values..................................................................................................101

Switch Control...........................................................................................................................................101

Software Update........................................................................................................................................101

Ping.............................................................................................................................................................101

System Information Menu............................................................................................................................102

System Reset..............................................................................................................................................104

Factory Reset.............................................................................................................................................105

Switch Control...........................................................................................................................................107

Rate Control...............................................................................................................................................107

Software Update Menu.................................................................................................................................109

Ping.............................................................................................................................................................113

User Account Management ..........................................................................................................................114

Switch Port Configuration............................................................................................................................116

Spanning Tree Configuration.......................................................................................................................119

STA Operation Levels..............................................................................................................................119

Spanning Tree Configuration Menu.........................................................................................................119

SNMP Management Configuration..............................................................................................................123

SNMP Management Configuration Menu...............................................................................................124

SNMP Trap Manager Setting...................................................................................................................125

VLAN Port Management..............................................................................................................................128

VLAN Port Management..........................................................................................................................129

Trunking Port Management Menu...............................................................................................................131

Port Statistics.................................................................................................................................................132

Port Monitoring.............................................................................................................................................135

Broadcast Storm Protection..........................................................................................................................137

7....................................................................................................................................... 139

Troubleshooting.............................................................................................................. 139

Appendix A..................................................................................................................... 144

DES-5200 Technical Specifications ............................................................................... 144

Switch Specifications................................................................................................................................144

Port Specifications.....................................................................................................................................145

Index................................................................................................................................ 149

Registration Card ............................................................................................................ 152

vii

Fast Ethernet Switching System User’s Guide

This section defines the scope of this guide and gives a summary of the contents
of each chapter. It describes the features of the D-Link DES-5200 Fast Ethernet
Switching System. Information about the DES-5200 and other D-Link products is
available on our web site at www.dlink.com.

Audience

This user guide is intended for the networking or computer technician who is
installing the DES-5200 on a network. Refer to other sources for information
about networking in general.

All the information you need to install, configure and troubleshoot the DES-5200
is contained in this user guide.

Organization

About This Guide

Chapter 1, Introduction, gives a physical and functional overview of the Des-5200.
The DES-5200 features, LEDs, and management methods are covered.

Chapter 2, Installing the DES-5200, covers installation and powering on.
Chapter 3, Connecting the DES-5200 to the Network, covers connecting the DES-

5200 to the network, maximum cable length, cable specifications and connections
between multiple DES-5200 switches.

Chapter 4, LEDs, covers reading and interpreting the LED panel.
Chapter 5, Console Based Management, covers managing the DES-5200 over

Local Console.
Chapter 6, Web Management, covers managing the DES-5200 over the web.
Chapter 7, Troubleshooting, covers troubleshooting the DES-5200.
Appendix A, DES-5200 Technical Specifications, covers the technical

specifications of the DES-5200.

About This Guide

1

Fast Ethernet Switching System User’s Guide

This chapter gives a physical and functional overview of the DES-5200. The
DES-5200 is an intelligent, managed, modular switch, designed for use on
medium sized networks as part of the backbone or for use with other switches and
hubs on a larger network.

The chapter is divided into the following sections. Each section briefly describes
the features of the DES-5200. Most of the topics discussed will be explained in
greater detail later in the manual. This manual refers to all models as the DES-

5200.
The topics covered are:

• Summary of Features

• Modules of the DES-5200

• Explanation of Front and Rear Panels

• Management Methods

• Updating Firmware

1

Introduction

Features

There are three models available:

• The DES-5224TX comes with two 12-Port 10/100-TX modules.

• The DES-5220TF comes with one 12-Port 10/100-TX module and

• The DES-5216FX comes with two 8-Port 100BASE-FX modules.

All DES-5200’s have two half size slots that support the following optional
modules:

• 2-Port 10/100-TX module

• 2-Port 100BASE-FX module

• 1-Port 1000BASE-SX module supporting Gigabit Ethernet

Both half size slots are available.
The DES-5200 has the following features:

• All TX ports auto-negotiate 10/100 Mbps.

• Supports up to twenty-eight 10/100-TX ports.

• Supports up to twenty 100BASE-FX ports.

one 8-Port 100BASE-FX module.

Introduction

• Supports two 1000BASE-SX ports.

2

Fast Ethernet Switching System User’s Guide

• The DES-5200 can be managed through four methods: Console

Management, Telnet Management, SNMP Management and Web
Management.

• Supports Store-and-Forward switching.

• Supports Full and Half Duplex for both 10 Mbps and 100 Mbps.

• Supports Spanning Tree Protocol to eliminate network loops.

• Eight thousand active MAC address table entries per device with

self-learning and table aging.

• The DES-5200 supports SNMP for RFC 1213, RFC 1757, and

RFC 1493.

• VLAN support for 31 broadcast domains.

• Port Trunking support for bandwidth aggregation between two

DES-5200 switches.

• The 1000BASE-SX port supports flow control compliant with

IEEE 802.3x standard.

• Modular chassis that support RJ-45, fiber optic and gigabit

expansion modules

• Support four RMON statistics through SNMP software.

Introduction

3

Fast Ethernet Switching System User’s Guide

Front Panel

The DES-5200 is designed for management at a glance. The front of the DES­5200 has LEDs that give you essential information at a glance.

The DES-5200 is a modular unit. The chassis has a CPU slot and four slots for
media modules. All the modules have LEDs. See Chapter 4, LEDs, for
information on interpreting the LEDs. All models come with the CPU module in
the top slot. The slots are in the following order: CPU module is in the top slot, as
shown in figures. Slots one and two are full sized. Slots three and four are half­sized. All slots support modules and can be used simultaneously.

All ports can be used for network connections. The RS-232 port is used for
Console Management.

All LEDs are located on the front panel of the DES-5200. Their purpose is to
enable you to monitor the operation and performance of the DES-5200.

Refer to Table 1: DES-5200 Series Model List, Table 2: DES-5200 Full Size
Modules and Table 3: DES-5200 Optional Modules for information about part
numbers and ordering modules. Contact D-Link, Inc. sales to purchase modules.

Models

There are three models available:

• The DES-5224TX has two 12-Port 10/100-TX modules.

• The DES-5220TF has one 12-Port 10/100-TX module and one 8-

Port 100BASE-FX module.

• The DES-5216FX has two 8-Port 100BASE-FX modules.

Table 1: DES-5200 Series Model List

Model Name Part Number Description
DES-5224TX DES5224TX.A2 Two 12-Port 10/100-TX modules
DES-5220TF DES5220TF.A2 One 12-Port 10/100-TX module and

one 8-Port 100BASE-FX module

DES-5216FX DES5216FX.A2 Two 8-Port 100BASE-FX modules

Introduction

4

Fast Ethernet Switching System User’s Guide

Full Size Modules

Table 2: DES-5200 Full Size Modules

Module Name Part Number Description
12 TX Module 0DES5200T.A2 12-Port 10/100-TX module
8 FX Module 0DES5200F.A2 8-Port 100BASE-FX

CPU Module 0DES5200I.A2 CPU Module
Back Plane* 1ES5200B..A1 (PCBA) Back Plane

* Note: Back Plane refers to the internal back plane of all models of the DES­5200 series. It is not visible or accessible without opening the case. All
modifications and repairs to the back plane must be done by D-Link Systems, Inc.
or authorized repair facilities. Do not open the case. Opening the case can cause
injury and/or damage. If there is a problem with the modules or the back plane,
contact D-Link System, Inc. Technical Support for assistance.

module

Optional Modules

The optional modules are half size modules. The half size modules work in slots 3
and 4 of the chassis. The following optional modules are available:

• The DES-5005T is a 2-Port TX module.

• The DES-5005 is a 2-Port FX module.

• The DES-5008 is a 1-Port gigabit module.

Table 3: DES-5200 Optional Modules

Module Part Number Description
DES-5005T DES5005T..A1 2-Port 10/100-TX module
DES-5005 DDES5005..A2 2-Port 100BASE-FX module
DES-5008 DDES5008..A2 1-Port 1000BASE-SX gigabit module

Power Plug

The three pronged power plug is located at the front of the DES-5200. The switch
will work with AC in the range 100-240 VAC, 50-60 Hz. The power requirements
are indicated on the rear panel of the DES-5200.

Introduction

5

Fast Ethernet Switching System User’s Guide

DES-5224TX

The DES-5224TX, displayed in Figure 1, is shown with 2 12-Port 10/100-TX
modules. The DES-5224TX is shown with two optional modules, one 2-Port
100BASE-FX in slot 3 and one 2-Port 10/100BASE-TX in slot 4.

100
10

100
10

5x 6x

8x

7x

11x

11x

9x 10x 12x

AC LINE

100-240 VAC

50-60Hz

2.5A MAX.

Link

Tx/Rx

1x 4x2x 3x 5x 6x 7x 8x 9x 10x 12x

Link

Tx/Rx

1x 4x2x 3x

Figure 1: DES-5224TX

DES-5220TF

The DES-5220TF, displayed in Figure 2, comes with one 12-Port 10/100-TX
module and one 8-Port 100BASE-FX module. The DES-5220TF is shown with
two optional modules, one 2-Port 100BASE-FX module in slot 3 and one
1000BASE-SX module in slot 4.

Figure 2: 5220TF

Introduction

6

Fast Ethernet Switching System User’s Guide

DES-5216FX.A1

The DES-5216FX, displayed in Figure 3, has two 16-Port 100BASE-SX modules.
The DES-5216FX is shown with two optional modules, one 2-Port 100BASE-FX
module is shown in slot 3 and one 1-Port 1000BASE-SX module is shown in slot

4.

Figure 3: DES-5216FX

Introduction

7

Fast Ethernet Switching System User’s Guide

Rear Panel

The ventilation fan is located at the rear of the DES-5200, displayed in Figure 4.
There are heat vents located on the sides. The fans and the vents help to cool the

DES-5200. Always leave two inches of space around the DES-5200 to that air can
circulate and cool the DES-5200.

Fan

Figure 4: DES-5200 Rear Panel

Introduction

8

Fast Ethernet Switching System User’s Guide

Management Methods

The DES-5200 supports four management methods:

• Local Console Management

• Telnet Management

• Web Management

• D-View/ SNMP Management

Local Console Management

Local Console Management is done through the RS-232 Console port. Managing
the DES-5200 in this mode requires a direct connection between a PC and the
DES-5200.

Telnet Management

Telnet is done over the network. Once the DES-5200 is on the network, you can
use Telnet to log in and change the configuration.

D-View/ SNMP Management

The DES-5200 supports SNMP through D-View, D-Link’s proprietary SNMP
application and through other vendor’s SNMP applications. Please refer to the
appropriate documentation for instructions on installing and using D-View and
other SNMP applications.

Web Management

Web Management is done over the Internet. Once an Internet Protocol (IP)
address has been assigned to the DES-5200 it can be accessed over the web.

Software Update

Software can be updated quickly and easily. See the section Software Update
Menu, Chapter 5, for instructions on updating software.

Introduction

9

Fast Ethernet Switching System User’s Guide

Installing the DES-5200

This chapter covers the following:

• Unpacking the DES-5200

• Installation Options

• Installing Optional Modules

• Powering on the DES-5200

Unpacking the DES-5200

Open the box and carefully unpack the DES-5200. You should have all the items
on the following checklist:

• DES-5200 Fast Ethernet Switching System

• RS-232 DCE serial cable

• Two mounting brackets and eight screws

• Four rubber pads with adhesive backing

• One 1.82 m (6 foot) power cord

• DES-5200 User’s Guide CD ROM, part number 651ES5200K15

• Registration Card

2

If any items are missing, contact the retailer where you purchased the DES-5200
for assistance.

Be sure to register the DES-5200 immediately. Failure to register the DES-5200
may void the warranty.

Installing the DES-5200

10

Fast Ethernet Switching System User’s Guide

Installation Options

There are two options for installing the DES-5200: desktop/ shelf installation or
rack installation.

Follow these guidelines for desktop/ shelf installation or rack installation:

• The surface must support 8 kg (18 lbs.)

• The power source must be within 1.82 m (6 feet)

• The power cord and cables should never be stretched.

• Leave at least 5.08 cm (2 in.) around the DES-5200 for ventilation

The following tools and materials may be necessary to install the DES-5200:

• Screwdriver to install the brackets as needed.

• Wire cutters to cut cable as needed for network connections.

• Crimpers to crimp cable as needed.

• RJ-45 connectors as needed.

• SC fiber optic cable connectors as needed.

Refer to Chapter 3, Cable Specifications for cable types and specifications.

Installing the DES-5200

11

Fast Ethernet Switching System User’s Guide

Desktop/ Shelf Installation

The dimensions of the DES-5200 are 17.36 inches (441 mm) x 10.39 inches (264
mm) x 4.64 inches (118 mm). These measurements include the 8 mm rubber feet
provided with the DES-5200.

Follow these steps to install the DES-5200 on a desktop or shelf:

1. Place the four rubber feet at the corners of the DES-5200. See

Figure 5.

2. Place the DES-5200 on a desktop/ shelf. See Figure 6.

Figure 5: Install Feet on Bottom

Installing the DES-5200

12

Fast Ethernet Switching System User’s Guide

Figure 6: Attach Feet

Installing the DES-5200

13

Fast Ethernet Switching System User’s Guide

Rack Installation

The DES-5200 can be mounted in an EIA standard size, 19 inch rack. The
dimensions of the DES-5200 are 4.4 inches (112 mm) x 10.39 inches (264 mm) x

17.32 inches (440 mm). The DES-5200 can be placed in a wiring closet along
with other equipment.

Follow these steps to install the DES-5200 on a rack:

1. Attach a mounting bracket to each side of the DES-5200 with the

screws provided. See Figure 7.

Slide the DES-5200 into the rack and use the screws provided to secure the DES­5200 to the rack. See Figure 8.

Connect the power cord and verify that the DES-5200 is receiving adequate
power.

Figure 7: Attach Mounting Brackets

Installing the DES-5200

14

Fast Ethernet Switching System User’s Guide

Figure 8: Insert into Rack

Installing the DES-5200

15

Fast Ethernet Switching System User’s Guide

Installing Optional Modules

The process for installing all modules is the same. You cannot change the position
of the CPU module. It must remain in the CPU slot. The DES-5200 will not work
unless the CPU module is installed in the CPU slot.

You can purchase optional modules separately in order to meet the needs of your
network. The procedure for installing all optional modules is the same for full size
and half size modules.

Follow these steps to install modules:

1. Power the DES-5200 off before installing or removing modules.

None of the modules are hot swappable. Removing or installing
modules while the DES-5200 is powered on can damage the DES­5200 and the modules.

2. Grasp the thumbscrews on the side of the module or blank bracket

and turn counterclockwise to unscrew them. Remove the old
module or the blank bracket, as shown in Figure 9 and set aside.
Do not discard the module or blank bracket. Put the old module or
blank bracket back in if you remove the new module.

3. Install the new module by inserting it into the guides, see Figure 10

and sliding it in until it stops. Press in firmly until you feel the
module snap into place. The module should be level and flush with
the rest of the DES-5200 Never force, twist or bend the module.
The module slides in smoothly.

4. Gently push the thumbscrews in and turn clockwise to tighten. Do

not over tighten the thumbscrews.

5. Power the DES-5200 on after the new module is installed. The

DES-5200 will auto detect the module and it will appear on the
menu.

6. The 100BASE-FX and 1000-BASE-SX ports have dust covers

over the transceivers. Remove the dust covers before plugging in
the cable.

7. Check the LEDs to verify that there is a link at the port.

See the Troubleshooting section if the optional module is not working properly.

Installing the DES-5200

16

Fast Ethernet Switching System User’s Guide

Figure 9: Remove Blank Bracket

Installing the DES-5200

17

Fast Ethernet Switching System User’s Guide

Figure 10: Insert Optional Module

Installing the DES-5200

18

Fast Ethernet Switching System User’s Guide

Power On

The power supply will adjust to the local power source automatically. The DES­5200 may be plugged in without having any or with all LAN segment cables
connected.

The power plug is located in front of the DES-5200. Plug the cable into the wall
socket and plug the other end into the DES-5200. The power LED will light and
all ports will auto negotiate the proper speed and duplex mode.

Reboot the DES-5200 if there is a problem. Contact D-Link Systems, Inc. for
technical support. Check the configuration of the DES-5200 after a power failure
but do not reset unless it is necessary.

The DES-5200 can be used with power sources in the range 100 to 240 VAC., 50
to 60 Hz.

Installing the DES-5200

19

Fast Ethernet Switching System User’s Guide

Connecting the DES-5200 to the

This chapter covers the following:

• Cable Specifications

• Ports

• Connecting the DES-5200 to another DES-5200

• Connecting the DES-5200 to other switches and hubs

This section deals with making cables and connecting the DES-5200 to other
devices. It is extremely important that cables have the correct pin arrangement
and that the proper cables be used when connecting to servers, switches, hubs,
workstations and other devices.

3

Network

Cable Specifications

Use the following guidelines when handling cables:

• Do not stretch or bend cables.

• Do not put copper cables near sources of electromagnetic

interference. Fiber optic cables are immune to most
electromagnetic interference.

• Do not create trip hazards by laying cables in aisles and walkways.

• Secure cables to the floor when routing in aisles or walkways.

Do not use telephone cable. Telephone cable does not support Ethernet or Fast
Ethernet.

Copper Cable

In order for Ethernet or Fast Ethernet to work the wires must be arranged
correctly inside the RJ-45 connector. The most common problem on Ethernet or
Fast Ethernet networks is the cable. If you migrate from Ethernet to Fast Ethernet,
make sure the cables are pinned out properly.

There are two types of cables: straight through and crossover. Category 3, 4, and
5 UTP/STP cable has eight wires inside the sheath. The wires form four pairs.
Straight through cable has the same pin out, inside the RJ-45 connector, at both
ends. Crossover cable has a different pin arrangement at each end. Fast Ethernet
does not tolerate incorrect pin arrangements. You must use the correct pin
arrangement in order for the DES-5200 to work properly. See Figure 11, for an
example of straight through and crossover cable.

Connecting the DES-5200 to the Network

20

Fast Ethernet Switching System User’s Guide

The type of cable you use depends on the speed of your network. A network
running at 10 Mbps can use lower grade cable than a network running at 100
Mbps. Table 4: Cable Specifications for Copper Connection, shows the cable
requirements for Ethernet and Fast Ethernet networks.

Table 4: Cable Specifications for Copper Connection

Ethernet Type Cable Requirements Maximum Length
10BASE-T Category 3, 4, and 5 UTP or STP 100 M (328 ft.)
100BASE-TX Category 3, 4, and 5 UTP or STP 100 M (328 ft.)

Connecting the DES-5200 to the Network

21

Fast Ethernet Switching System User’s Guide

Figure 11: Cable Diagram

Connecting the DES-5200 to the Network

22

Fast Ethernet Switching System User’s Guide

Fiber Optic Cable

Data can travel much farther over fiber optic cable than over Category 3, 4, or 5
cable. Cable length can be up to two kilometers (1.25 miles) in full duplex and
412 meters (1350 feet) in half duplex transmitting at 100 Mbps.

Fiber optic cables connected to the fiber expansion module for 100 Mbps must
meet the following specifications to carry 1300 nm wavelength for the specified
distance:

• Multi-mode cable ISO/IEC 793-2 type B1 and ITU-T G.652

standards

• Cable must have SC connectors

Fiber optic cables attached to the gigabit expansion module must meet the
following specifications to carry 850 nm wavelength for the specified distance:

• Multi-mode cable ISO/IEC 793-2 type B1 and ITU-T G.652

standards

• Cable must have SC connectors

Gigabit traffic can travel the following distances using the specified cable:

• 62.5 um cable 220 meters (720 feet)

• 50 um cables 500 meters (1639 feet)

Connecting the DES-5200 to the Network

23
