DCS-6620G User’s Manual
Package Contents
Package Contents
D-Link SECURICAM DCS-6620G 802.11g PTZ Internet Camera Remote Control12V AC Power AdapterA/V Cables2 Antennas Category 5 Ethernet Cable Camera Stand Quick Installation Guide Installation software and manual on CD
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a different voltage than the one included with the DCS-6620G will cause damage and void the warranty for this product.
Minimum System Requirements
Internet Explorer 6.0 or above  CPU: Pentium 4, 2.0GHz plus processor  Memory Size: 128MB or above 32MB AGP Video Card
D-Link Systems, Inc.
3
DCS-6620G User’s Manual
Introduction
The D-Link SECURICAM Network DCS-6620G 802.11g PTZ (Pan, Tilt, and Zoom) Internet Camera is a full featured surveillance system that connects to an Ethernet, Fast Ethernet wireless or broadband Internet connection to provide remote high­quality 2-Way Full Duplex audio, and 10x optical and 10x digital zoom1 for greater clarity and detail from your recordings. The DCS-6620G is the latest product added to the D-Link SECURICAM Network line. The DCS-6620G 802.11g PTZ Internet Camera differs from a conventional PC Camera because it is a stand-alone system with a built-in CPU and Web server, capable of solving demanding security and home/office monitoring needs. The 802.11g PTZ Internet Camera can be accessed remotely, and controlled, from any PC or notebook computer over the Internet from anywhere in the world. Simple installation procedures, along with the built-in Web-based interface offers easy integration to your network environments.
Features and Benefits
The SECURICAM Network DCS-6620G 802.11g PTZ Internet Camera is a stand-alone system requiring no special hardware or software such as PC frame grabber cards. For remote viewing, all that is required is a computer with Internet Explorer Web browser (version 6.x or above). Just plug in the camera and monitor the site from your 802.11g PTZ Internet Camera with a valid IP Address.
Introduction
Motorized Pan and Tilt Operation
The DCS-6620G has a pan and tilt function that can expand your viewing area to cover a wide 270o angle side-to-side and a 90o angle up and down. This can be controlled with a PC from any location or locally using the included infrared remote control.
CCD Sensor
The DCS-6620G comes standard with a high quality CCD sensor that is superior to a CMOS type sensor. The variable focus glass lens will facilitate the use of the DCS-6620G providing crystal clear and sharp images. You can view up to 30 frames2 per second of live motion video with 380 TV lines of resolution.
Broad Range of Applications
With today’s high-speed Internet services, the 802.11g PTZ Internet Camera can provide the ideal solution for live video images and audio over the Intranet and Internet for remote monitoring. The DCS-6620G allows remote access from your Internet Explorer Web browser for live image viewing with audio, and allows the administrator to manage and control the
802.11g PTZ Internet Camera anytime and anywhere in the world. Apply the Internet Camera to monitor various objects and places such as homes, offices, banks, hospitals, child-care centers, amusement parks and other varieties of industrial and public monitoring. The 802.11g PTZ Internet Camera can also be used for intruder detection with its motion-detection mode, capture still images and video images for archiving, and many more applications such as sending images to an FTP server or configuring for E-mail alerts. The DCS-6620G features 2-way
Full-Duplex audio with a built-in microphone that lets you remotely monitor and record audio with your video. With the addition of optional speakers (not included), you can have 2-way
Full-Duplex audio communication with the people you are viewing. The DCS-6620G also features 10x optical and digital zoom for closer viewing.
1
10x digital zoom enlarges an image by magnifying the pixels in a selected portion of the image by 10 times.
2
Actual frame rate will vary due to network traffic, compression rate, frame rate, and lighting.
D-Link Systems, Inc.
4
DCS-6620G User’s Manual
Supports a Variety of Protocols
In addition, the DCS-6620G supports a variety of platforms including FTP, SMTP, NTP, and HTTP. The camera also supports UPnP and DDNS. DDNS allows the camera to use an easier to remember naming format rather than an IP address. UPnP will allow users of Windows® XP to install the camera with the click of a mouse.
A/V Output
The SECURICAM Network DCS-6620G comes with an A/V output allowing you to connect to your TV activities.
for local viewing. The DCS-6620G can also be connected
Web Configuration
Using the Internet Explorer Web browser, administrators can configure and manage the
802.11g PTZ Internet Camera directly from its own Web page via the Intranet or the Internet. Up to 20 user names and passwords are permitted, with privilege settings controlled by the administrator.
Features & Benefits
directly to your VCR to record
Powerful Surveillance and Remote Monitoring Utility
The powerful IP surveillance software application assigns an administrator with a pre-defined user ID and password who can modify the 802.11g PTZ Internet Camera settings from the remote site via the Intranet or the Internet. Administrators are allowed to monitor the image, record the image to a hard drive, and take snapshots.
Connection to External Devices
Supporting auxiliary Input/Output connectors, you can connect the 802.11g PTZ Internet Camera to a variety of external devices such as IR-sensors, switches and alarm relays. Combined with programmable alarming equipments, you can develop a variety of security applications that are triggered on alarm-based events. The 802.11g PTZ Internet Camera provides an industry standard in/out external connector for connectivity.
Internal/External Microphone
The SECURICAM Network DCS-6620G allows you to monitor video as well as audio through the web browser. You have the option of using the DCS-6620G’s integrated microphone or your own external microphone using the connection located at the rear of the unit.
Note: Use of audio or video equipment for recording the image or voice of a person without their knowledge and consent is prohibited in certain states or jurisdictions. Nothing herein represents a warranty or representation that the D-Link product provided herein is suitable for the end-user’s intended use under the applicable laws of his or her state. D-Link disclaims any liability whatsoever for any end-user use of the D-Link product, which fails to comply with applicable state, local, or federal laws.
D-Link Systems, Inc.
5
DCS-6620G User’s Manual
Connections
Connections
Antennas
Microphone Connector
Ethernet 10/100 RJ45 socket
Power Cord socket
External I/O Port
A/V Out Connector
Antenna
Two antennas are included with the DCS-6620G, which are screwed onto the antenna connectors on the back panel. These antennas will provide a connection with a wireless network.
Ethernet 10/100 RJ-45 socket
The DCS-6620G back panel features an RJ-45 connector for connections to 10Base-T Ethernet cabling or 100Base-TX Fast Ethernet cabling. This network port supports the NWay protocol, allowing the 802.11g PTZ Internet Camera to automatically detect or negotiate the transmission speed of the network.
The Ethernet cable included with the DCS-6620G 802.11g PTZ Internet Camera is a Category 5 “straight through” cable. This is the recommended cable type when the camera is connected to a 100Mbps Fast Ethernet network router, hub or switch.
Power Cord socket
The DC power input connector is located on the DCS-6620G 802.11g PTZ Internet Camera’s back panel and is labeled 12V with a single socket to supply power to the 802.11g PTZ Internet Camera.
Microphone
The DCS-6620G 802.11g PTZ Internet Camera has an internal microphone. However, you have the option of using an external microphone by plugging it into the microphone connector.
A/V Out
Plug the included A/V cable into the A/V out connector to use the DCS-6620G with a television or VCR.
D-Link Systems, Inc.
6
DCS-6620G User’s Manual
External I/O Port
The DCS-6620G provides a terminal block with two pairs of connectors situated on the back panel. One pair is for input and the other is for output. The External I/O Port provides the physical interface to send, and receive, digital signals to a variety of external alarm devices.
Please refer to the appendix in this manual for detailed information (page 133).
Bottom Panel
Connections
Socket for stand
Attachment socket for the Camera Stand
Located on the bottom panel of the DCS-6620G, the socket is used to connect the camera stand to the 802.11g PTZ Internet Camera by attaching the screw head on the camera stand to the
802.11g PTZ Internet Camera.
D-Link Systems, Inc.
7
DCS-6620G User’s Manual
Infrared Remote Control
Included with the DCS-6620G is an infrared remote control. You have the option of controlling the camera via the Pan/Tilt/Zoom Controls using the IP surveillance software, Internet Explorer, or via the infrared remote. To use the remote, make sure that IR Control is enabled on the
Camera Control page in the Configuration Menu under Advanced. Please refer to the section titled “Using the DCS-6620G with an Internet Browser” in this manual for more information.
Zoom In
Auto-Pan
Connections
Arrows
Home
Zoom Out
Auto-Patrol
Arrows:
Home:
Zoom In:
Zoom Out:
Auto-Patrol:
Auto-Pan:
Center:
Stop
Stop:
Center
Use the Up, Down, Left and Right arrows to tilt/navigate the camera lens.
Returns the camera lens to the set home position.
Zooms in to display a specific area.
Zooms out to display a larger area.
Enables the Auto-Patrol function.
Pans the camera one full cycle.
Centers the camera lens.
Stops the movement of the camera during pan.
D-Link Systems, Inc.
8
DCS-6620G User’s Manual
Hardware Installation
1 Connect the Ethernet Cable
Connect one end of the Ethernet cable to the network cable connector located on the back panel of the DCS-6620G, and attach the other end to a router, switch, or network.
If you connect this camera directly to a PC, you will need a cross-over Ethernet cable. If you plug the camera into a hub or router, you will be able to use the
cable included with your camera.
It is required that an Ethernet cable is used during initial setup. Once your wireless configuration
camera to connect to your wireless network.
2 Attach the External Power Supply
Attach the external power supply to the DC power input connector located on the backpanel and connect it to an AC power outlet.
Both the LED will remain lit. The green configured
red
your camera.
gateway on the
is set, you may disconnect the Ethernet cable and reboot your
of the DCS-6620G (labeled 12V),
and
green
LEDs will flash alternately
LED will not come on until you have
and only the red
Hardware Installation
3 Attach the Antennas
Attach the two antennas to the connectors located on the back panel of the DCS-6620G.
Power source is confirmed when the LED Power Indicator on the 802.11g PTZ Internet Camera is illuminated.
Power LED
LED stands for Light-Emitting Diode.
The Power LED is positioned in the center of the Internet Camera base. As soon as the power adapter is connected to the Internet camera, the power and the activity LED will flash red and
green several times. The DCS-6620G is conducting a self-test. Upon passing the self-test, the
red LED will be solid and the green LED will start to blink to indicate a good connection to an
Ethernet port. light may cycle on and off and your computer This is normal until you have configured your Internet Camera. The absence of a blinking green LED indicates no connection has been made.
Attaching the Internet Camera to the Camera Stand
The Internet Camera comes with a camera stand with a swivel ball screw head that can be attached to the Internet Camera bottom socket cavity. Attach the camera stand to the Internet Camera and station it for your application. There is a hole located in the base of the camera stand allowing the Internet Camera to be mounted to the ceiling, or any wall securely.
If you are directly connected to the camera via a crossover cable, the
may show an intermittent loss of connectivity.
D-Link Systems, Inc.
9
DCS-6620G User’s Manual
Installation Wizard
After you have successfully completed the hardware installation of the DCS-6620G 802.11g PTZ Internet Camera, it is necessary to install software to configure and operate the camera. The first step is to install the Installation Wizard program from the CD. Installation Wizard will allow you to configure the 802.11g PTZ Internet Camera to your network.
After the Installation Wizard software program is completed, you will have an operating and controllable 802.11g PTZ Internet Camera. From your Internet Explorer Web browser you will be able to access the video and sound from the 802.11g PTZ Internet Camera. The camera has a built-in Web server. This Web server will allow the camera to access the Internet without being attached to a computer and permits users to view the video and audio remotely.
However, it is necessary to install the IP surveillance software from the enclosed CD to create a truly powerful surveillance system. The following section will show in detail the launching of the Installation Wizard and installation of the IP surveillance software.
Installation Wizard
Launching the Installation Wizard program
Insert the CD that is included with the DCS-6620G 802.11g PTZ Internet Camera into your computer’s CD-ROM. The DCS-6620G installation menu will start up automatically from the CD. If the CD does not start up automatically, (this function may be disabled in the Windows operating system), access the CD from Windows My Computer and click on the autorun.exe program to access the installation menu shown below:

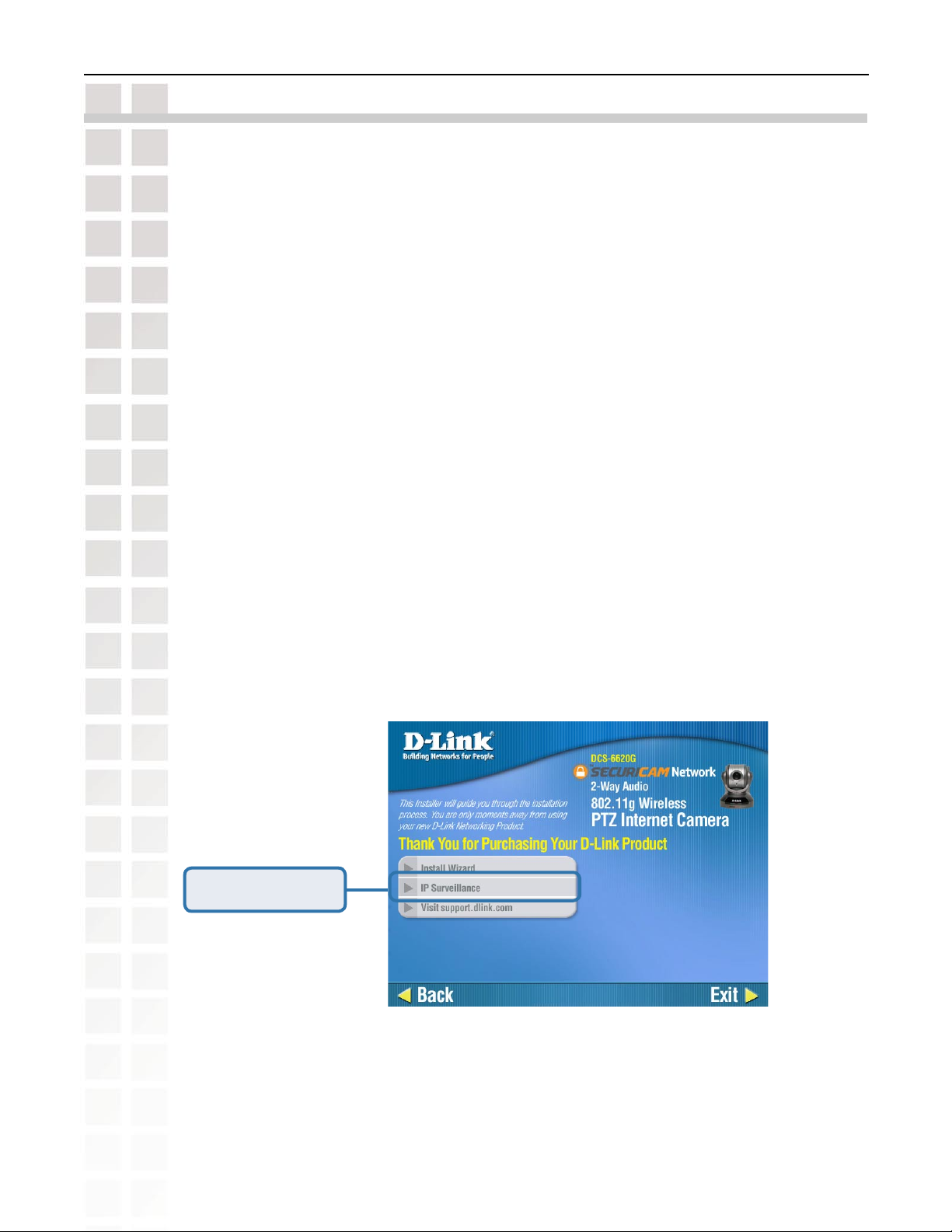

Click Install Software
D-Link Systems, Inc.
10
DCS-6620G User’s Manual
Installation Wizard
Click Install Wizard
Please wait while the InstallShield Wizard prepares to install.
Click Next
D-Link Systems, Inc.
11
DCS-6620G User’s Manual

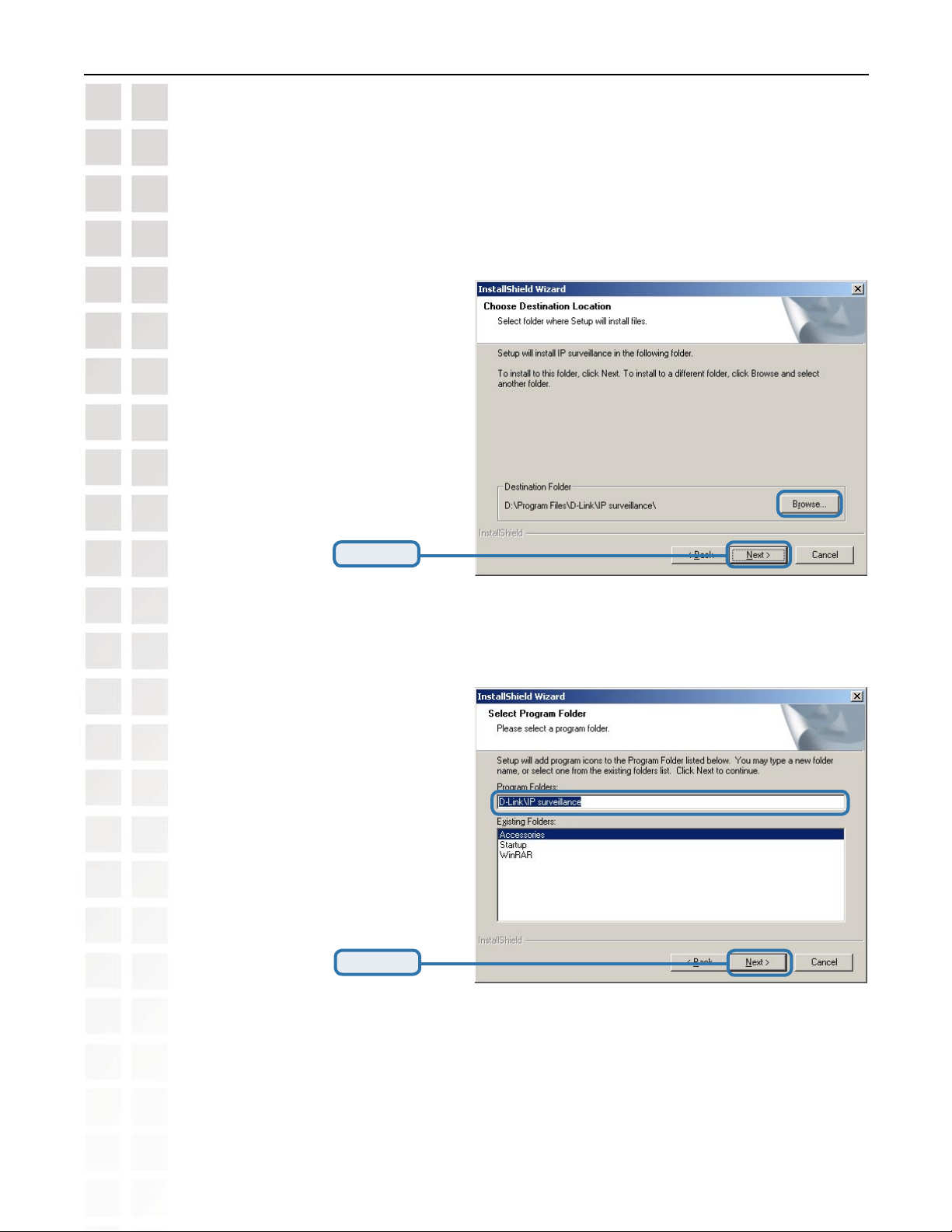

The InstallShield will install in the following folder. To install into a different folder, click Browse and select another folder.
Select the Program folder that Setup will add program icons to. You may type a new folder name, or select one from the existing folders list.
Installation Wizard
Click Next
Click Next
Please wait while the Installation Wizard is installed.
D-Link Systems, Inc.
12
DCS-6620G User’s Manual
Installation is now complete.
To access the Installation Wizard screen, click on the Installation Wizard Icon on your desktop.
Installation Wizard
Click Finish.
The opening Installation Wizard screen will appear and show a MAC address of
the DCS-6620G and an IP Address (which may or may not be correct depending on what you have your DCS-6620G connected to). If you have a DHCP* server on your network, there will be a valid IP Address displayed here, indicated by a “Yes” under the assigned column.
*A DHCP server is a device that supplies IP Addresses to its clients that are on the same network.
IMPORTANT:
A hardware reset of the 802.11g PTZ Internet Camera may be required if the Installation Wizard cannot find the camera. To accomplish this reset, lightly insert a paper clip (or a similar sized tool) into the reset hole on the side of the camera (see page 132 for the location of the reset hole). The LED on the front of the camera will begin blinking alternately. When it stops the blinking cycle continue to hold in the reset button for about 10 seconds.
D-Link Systems, Inc.
13
DCS-6620G User’s Manual
The Installation Wizard will now show a MAC address for the DCS-6620G and an IP address. This IP address may not be correct at this step in the installation until you see “Yes” under the assigned column. The camera is now automatically configured with an IP address consistent to the network it is connected to.
Installation Wizard
Select the MAC address.
Click on the Link to Selected
Devices button.
For more infor mation re g arding the functions of this screen, see the following section titled “Installation Wizard Screen” (page 15).
After you click on the Link to Selected Devices button, Installation Wizard will automatically open your Internet browser to the IP Address of the DCS-6620G it is: http://192.168.0.120. Your DCS-6620G may have a different IP Address.
If a window appears asking to install a Verisign certificate for authentication Click Yes MPEG-4 video stream to be recognized by Internet Explorer.
. This allows the proprietary
, in this example
D-Link Systems, Inc.
14
DCS-6620G User’s Manual
Installation Wizard Screen
After you click “Yes” to the certificate for authentication, you should see an image from your DCS-6620G 802.11g PTZ Internet Camera.
You have now completed the Setup Wizard and are ready to use your camera! You can also continue to the section titled “Installing IP surveillance Software” (page 22) to install the IP surveillance software before you begin to use the DCS-6620G.
Verisign
Installation Wizard Screen
The following options are available on the Installation Wizard screen by clicking on the corresponding tab:
Search:
Click to search for any available cameras to connect to the network.
Remove:
Uncheck
Links to
Selected
Devices:
D-Link Systems, Inc.
Add:
All:
Click to manually add a camera to the networ k. A window will appear, prompting you to enter the camera’s IP address or domain name. A second window will appear, prompting you to enter the port number.
Click to remove the se lected camera(s) from the network.
Click to uncheck all selected cameras.
Click to view all selected devices on your Internet browser.
15
DCS-6620G User’s Manual
Setup
On the initial Setup Screen you can configure System and Date/Time settings for each camera. Click Next to configure Network settings for the camera.
Installation Wizard Screen
System
Settings:
Date/Time
Settings:
Network
Settings:
Wireless
Network
Settings:
Enter a Camera Name and create an Admin password for the camera.
Enter the Date and Time for each camera. These settings can also be configured on the Tools > System screen (page 57) when configuring the camera via a Web browser.
Here users can configure the Network Settings for the camera. Enter the IP address, Subnet mask, Default router IP, Primary DNS, and Secondary DNS. Automatically, the option to reset IP address at boot is selected. If you would like to save your IP address settings, make sure to uncheck this box.
Here us ers ca n conf i gur e the Wireless Network Settings for the camera. Enter the SSID and select the Wireless mode, Channel, Tx Rate, and Preamble. Check the Data Encryption box to enable data encryption and configure the settings. These settings are explained and can also be configured on the Advanced > Network screen (page 38) when configuring the camera via a Web Browser.
D-Link Systems, Inc.
16
DCS-6620G User’s Manual
Click Next and then Apply to save the configured settings. Users can click Previous to modify changes or mistakes.
Upgrade
The upgrade window allows users to upload a saved firmware file. If the firmware is older than that currently on the camera, a screen will appear indicating so and prompting the user to confirm
the upload.
Installation Wizard Screen
Package
Information:
Locate the
Firmware to
Upgrade:
Selected
Package:
This displays information about the firmware and plugin currently installed on the camera.
Allows you to browse to the location of the firmware to be uploaded to the camera.
This displays the file name of the firmware selected for upload.
Reset to Default
Click the Reset to Default tab to reset the camera’s settings to factory defaults.
About
Click About to display the current version and date of the Installation Wizard.
Exit
Click the Exit tab to exit the Installation Wizard screen.
D-Link Systems, Inc.
17
DCS-6620G User’s Manual
Enabling UPnP for Windows® XP
UPnPTM is short for Universal Plug and Play, which is a networking architecture that provides compatibility among networking equipment, software, and peripherals. The DCS-6620G is a UPnP enabled 802.11g PTZ Internet Camera. If your operating system is UPnP enabled, the device will be easier to configure. If you do not want to use the UPnP functionality, it can be disabled by unselecting “Enabled” on the DDNS/UPnP settings page under “Advanced” in the configuration menu. Use the following steps to enable UPnP (Universal Plug and Play) settings only if you are running Windows XP. If you are running Windows 2000, UPnP is not available.
Go to Start > Settings.
Enabling UPnPTM for Windows® XP
TM
Click Control Panel
Click
Add or Remove Programs
D-Link Systems, Inc.
18
DCS-6620G User’s Manual
The following screen will appear:
Enabling UPnPTM for Windows® XP
Click Add/Remove Windows
Components
Select Networking Services
Click Details
Select Universal Plug
and Play
Click Ok
D-Link Systems, Inc.
19
DCS-6620G User’s Manual
Enabling UPnPTM for Windows® XP
Click Next
Please wait while Setup configures the components.
D-Link Systems, Inc.
Click Finish
20
DCS-6620G User’s Manual
To view your DCS-6620G 802.11g PTZ Internet Camera in an Internet browser, go to your Desktop and click My Network Places.
Enabling UPnPTM for Windows® XP
Click My Network Places
Click DCS-6620G-146
The last three digits (146), represent the fourth octet of your 802.11g PTZ Internet Camera’s IP address (in this example,
198.168.0.146).
After you click on the DCS-6620G-146 icon, your Internet browser will automatically be opened to the IP Address of the DCS-6620G, in this example it is: http://192.168.0.120. Your DCS-6620G may have a different IP Address
.
D-Link Systems, Inc.
21
DCS-6620G User’s Manual
Installing IP Surveillance Software
The IP surveillance Software on the CD included with the DCS-6620G 802.11g PTZ Internet Camera converts the DCS-6620G into a powerful, yet flexible, surveillance system for home or business, with the following features:
Real-time Monitoring
Video and Audio Recording to hard disk
High quality video
High compression ratio
Maximum of 16 cameras with different monitor layouts
Smart playback
Triggered event browsing
Fast database searching
Configurable automated alarms
Account password protection
Scheduled recording for each camera
AVI file export
Motion detection for each camera
Installing IP surveillance Software
To install the IP surveillance software, click on Install IP surveillance Software on the CD included with the 802.11g PTZ Internet Camera. The Welcome screen appears:
Click Next
D-Link Systems, Inc.
22
DCS-6620G User’s Manual
Installing IP surveillance Software
Click Yes
Please read the Software Licensing Agreement and click yes if you wish to accept the agreement. Click “No” to exit the installation.
Enter your name and company information and then click “Next”.
D-Link Systems, Inc.
Click Next
23
DCS-6620G User’s Manual
Sele c t th e de s tination directory.
Installing IP surveillance Software
Click Next
Select the program folder the software will be installed into.
D-Link Systems, Inc.
Click Next
24
DCS-6620G User’s Manual
Installing IP surveillance Software
Click Next
The installation is complete.
D-Link Systems, Inc.
Click Finish
25
DCS-6620G User’s Manual
Testing the DCS-6620G
Open your Internet browser and type in the IP address of the DCS-6620G. In this example the address is DCS-6620G may have a different IP address based on what you found with the Installation Wizard program).
Testing the DCS-6620G
: http://192.168.0.120 (your
The window in the center of your browser is the camera image window. You should now see a video image and hear the audio over your computer speakers from the DCS-6620G. If you are having problems please consult the FAQ section of this manual (page 128).
D-Link Systems, Inc.
26
DCS-6620G User’s Manual
Security
At this point it is highly recommended that you click on the Configuration button on the Home screen, and then the Tools tab to bring you to the Admin screen. Enter a password for security purposes.
Security
To ensure the highest security and prevent unauthorized use of the 802.11g PTZ Internet Camera, the Administrator has the exclusive privilege to access the System Administration settings to allow users entry and authorize privileges for all users. The 802.11g PTZ Internet Camera supports multi-level password protection/access to the 802.11g PTZ Internet Camera that can be restricted to defined users who have a User Name and User Password, which is assigned by the Administrator.
The Administrator can release a public user name and password so that when remote users access the 802.11g PTZ Internet Camera they will have the right to view the image transmitted by the 802.11g PTZ Internet Camera.
When the 802.11g PTZ Internet Camera is used for the first time, it is highly recommended that the Administrator set the Administrator Password to constrain user access to the
802.11g PTZ Internet Camera since the Default settings are Null String (no password). Once the Password is defined, only the Administrator has access to the management of the 802.11g PTZ Internet Camera. This procedure should be done as soon as possible since the security features of the 802.11g PTZ Internet Camera will not be enabled until the Administrator Password is defined.
D-Link Systems, Inc.
27
DCS-6620G User’s Manual
Using and Configuring the DCS-6620G with a Router
D-Link’s DCS-6620G is a versatile and cost effective 802.11g PTZ Internet Camera offering both video and audio monitoring. It can also serve as a powerful surveillance system in security applications. The DCS-6620G can be used with any wired or wireless router. This section explains how to view the camera from either the Internet or from inside your internal network.
Materials Needed:
1 DCS-6620G 802.11g PTZ Internet Camera
1 Ethernet Cable
A Wired or Wireless router such as the D-Link DI-624 Wireless Router
Ethernet based PC for system configuration
SETTING UP THE DCS-6620G FOR USE BEHIND A ROUTER
Installing a DCS-6620G 802.11g PTZ Internet Camera on your network is an easy 4–step procedure:
Using and Configuring the DCS-6620G with a Router
Assign a local IP Address to your 802.11g PTZ Internet CameraView the 802.11g PTZ Internet Camera Using Your Internet Explorer Web browser Access the Router with Your Web browserOpen Virtual Server Ports for Your Router (Enable Remote Viewing)
This section is designed to walk you through the setup process for installing your camera behind a router and enable remote video viewing. For the basic setup of the DCS-6620G, follow the steps outlined in the Quick Installation Guide.
After you have completed the setup of the DCS-6620G outlined in the Quick Installation Guide you will have an operating camera that has an assigned IP Address. Because you are using a router to share the Internet with one or more PCs, the IP Address assigned to the 802.11g PTZ Internet Camera will be a local IP Address. This allows viewing within your Local Area Network (LAN) until the router is configured to allow remote viewing of the camera over the Internet.
Assign a Local IP Address for Your Camera
Run the Installation Wizard program from the CD included with the DCS-6620G. Follow the steps in the Quick Installation Guide to configure the DCS-6620G. The camera will be assigned a local IP Address that allows it to be recognized by the router.
D-Link Systems, Inc.
28
DCS-6620G User’s Manual
Using and Configuring the DCS-6620G with a Router
This is the IP Address assigned to your camera. Write it down for later use.
192.168.0.120 is only an example. You will probably have a different IP Address.
View the 802.11g PTZ Internet Camera using your Internet Explorer Web browser
Run your Internet Explorer Web browser. In the address bar, type in the IP Address that was assigned to the 802.11g PTZ Internet Camera by the Installation Wizard program. The
DCS-6620G
able to view this screen from any PC running Internet Explorer on your LAN.

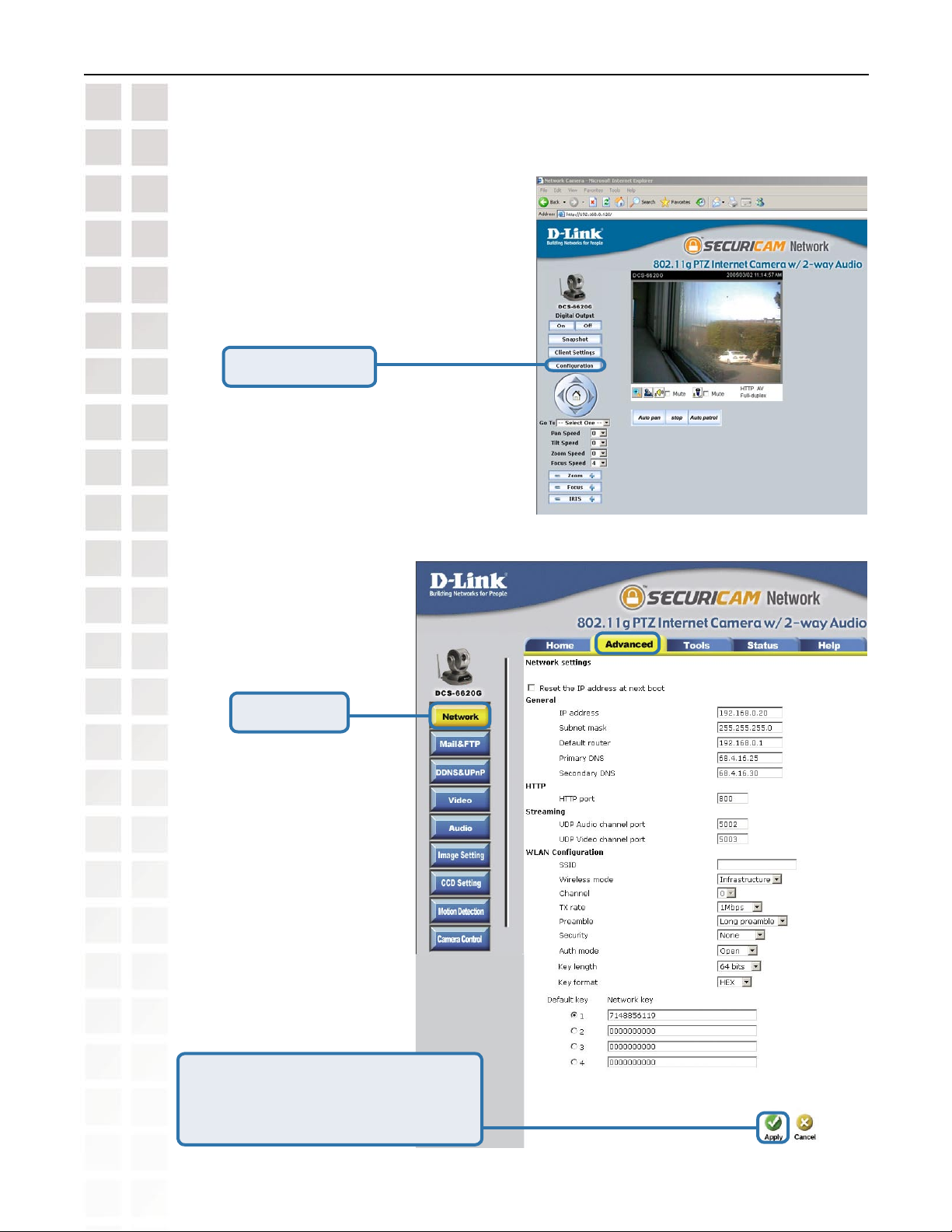

Click on the Configuration button on the left side of the display. Scroll to the bottom of the Network Configuration page to display the ports used by HTTP and Streaming audio and video.
Home Page appears with a window displaying live video from the camera. You are
Click on the Configuration button.
Viewing the Video on the browser to test the connection
D-Link Systems, Inc.
29
DCS-6620G User’s Manual
These are the port settings for your camera. If necessary, these ports can be changed if they are already in use by other devices (e.g. in a multiple camera environment).
Using and Configuring the DCS-6620G with a Router
Router Set-Up and Installation
The following steps generally apply to any router that you have on your network. The D-Link DI-624 is used as an example to clarify the configuration process. Configure the initial settings of the DI-624 by following the steps outlined in the DI-624 Quick Installation Guide.
Access Your Router on Your Web Browser
If you have cable or DSL service, you will most likely have a dynamically assigned WAN IP Address. ‘Dynamic’ means that your router’s WAN IP address can change from time to time depending on your ISP. A dynamic WAN IP Address identifies your router on the public network and allows it to access the Internet. To find out what your router’s WAN IP Address is, go to the Status screen on your router and locate the WAN information for your router. As shown on the next page the WAN IP Address will be listed. This will be the address that you will need to type in your web browser to view your camera over the Internet. Be sure to uncheck the Reset IP address at next boot button at the top of the screen after modifying the IP address. Failure to do so will reset the IP address when you restart your computer.
D-Link Systems, Inc.
30
DCS-6620G User’s Manual
Your WAN IP Address will be listed here.
Using and Configuring the DCS-6620G with a Router
Determine Your Router’s IP Address (WAN)
Note: Because a dynamic WAN IP can change from time to time depending on your ISP, you may want to obtain a Static IP address from your ISP. A Static IP address is a fixed IP address that will not change over time and will be more convenient for you to use to access your camera from a remote location.
Open Virtual Server Ports to Enable Remote Image Viewing
The firewall security features built into the DI-624 router prevent users from accessing the video from the DCS-6620G over the Internet. The router connects to the Internet over a series of numbered ports. The ports normally used by the DCS-6620G are blocked from access over the Internet. Therefore, these ports need to be made accessible over the Internet. This is accomplished using the Virtual Server function on the DI-624 router. The Virtual Server ports used by the camera must be opened through the router for remote access to your camera. Virtual Server is accessed by clicking on the Advanced tab of the router screen.
D-Link Systems, Inc.
31
DCS-6620G User’s Manual
Follow these steps to configure your router’s Virtual Server settings
Click Enabled.
Enter a unique name for each entry.
Select Both under Protocol Type (TCP and UDP)
Enter your camera’s local IP Address (e.g., 192.168.0.120 in the example in step
on page 29) in the Private IP field.
If you are using the default camera port settings, enter 80 in to the Public and
Private Port section, click Apply.
Scheduling should be set to Always so that the camera images can be accessed
at any time.
Repeat the above steps adding ports 5002 and 5003 to both the Public and Private Port sections. A check mark appearing before the entry name will indicate that the ports are enabled.
Using and Configuring the DCS-6620G with a Router
Important: Some ISPs block access to port 80. Be sure to check with your ISP so that you can open the appropriate ports accordingly. Some ISPs block traffic on commonly used ports to conserve bandwidth. If your ISP does not pass traffic on port 80, you will need to change the port the camera uses from 80 to something else, such as 800. Not all routers are the same, so refer to your user manual for specific instructions on how to open ports.
Enter valid ports in the
Virtual Server
your router
Please make sure to check the box on this line to enable settings
section of
D-Link Systems, Inc.
32
DCS-6620G User’s Manual
Viewing Your Camera
After all settings have been entered correctly, a PC user inside or outside your network will have access to the camera through the Internet Explorer Web browser. To access the camera from the Internet, type the IP Address of the router given to you by your ISP, followed by a colon, and the port number that you gave your camera (e.g., http://205.163.122.96:83). It is not necessary to enter the colon and port number if you are using the default Web server port 80. To access from a computer on your local (home) network, simply enter the local IP Address of the Camera followed by a colon and the port number (e.g., http://192.168.0.120:83).
http://205.163.122.96:83
Using and Configuring the DCS-6620G with a Router
D-Link Systems, Inc.
Viewing the DCS-6620G Remotely
33
DCS-6620G User’s Manual
Using the DCS-6620G with an Internet Browser
If you are following this manual in the order it is presented, you should now have an operating DCS-6620G 802.11g PTZ Internet Camera configured with the Installer program. You also have installed the IP surveillance software from the CD. This section of the manual will deal with using the 802.11g PTZ Internet Camera in two parts:
Using the DCS-6620G with an Internet browser and accessing the screens to
Using the IP surveillance software with the DCS-6620G.
Open your Internet Explorer Web browser and enter the IP address for your 802.11g PTZ Internet Camera. In the example, this address is 192.168.0.120. Your address may differ.
Using the DCS-6620G with an Internet Browser
control and monitor the camera.
D-Link Systems, Inc.
34
DCS-6620G User’s Manual
Home Page Screen
The image from the DCS-6620G should be visible from the Home page on your computer monitor. To the right of the image are controls that allow you to pan and tilt the camera. Pan and tilt can also be controlled within the image. Clicking on any part of the image will cause the camera to reposition itself so that the point will be the center of the image.

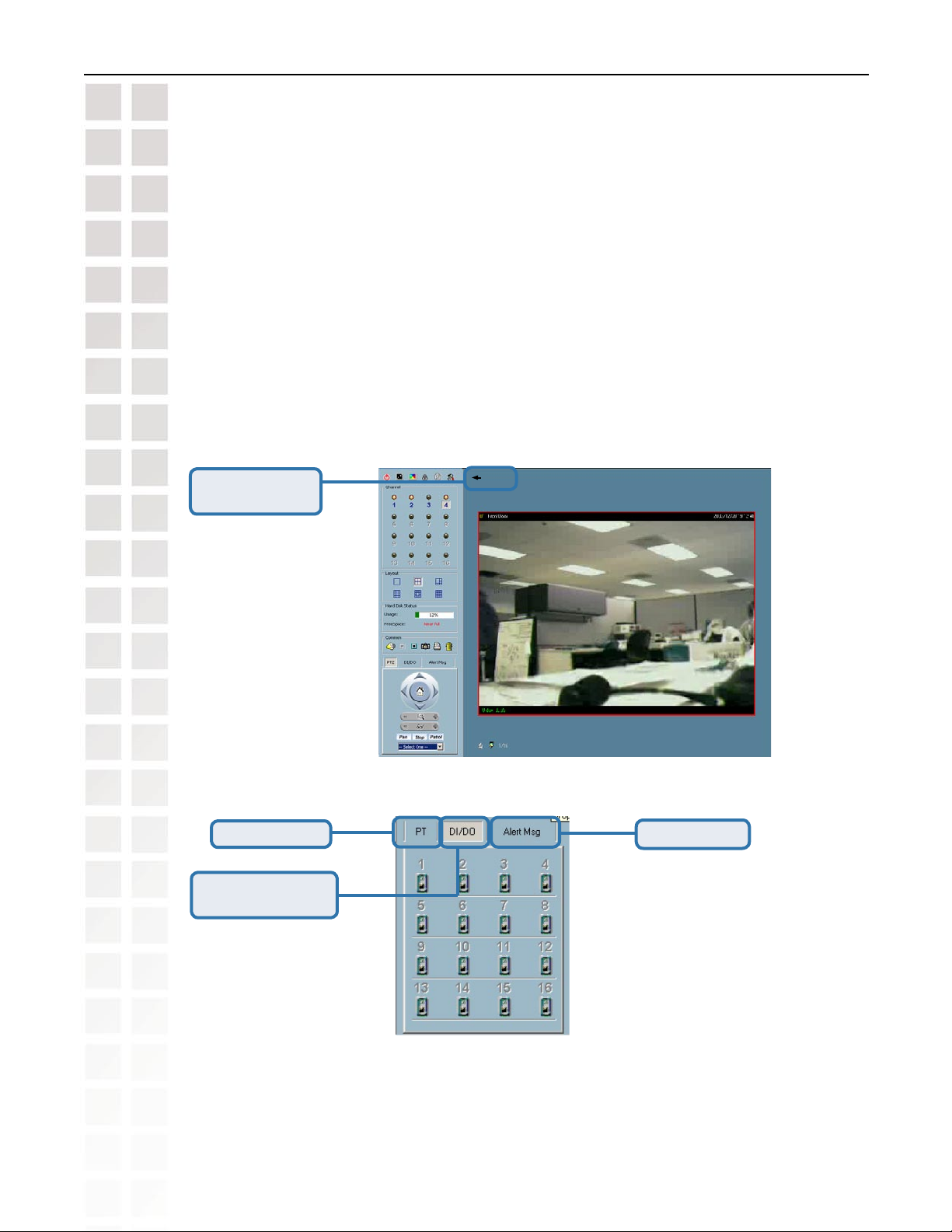

Digi tal On/D igit a l Off con trol s th e I/O por t functions.
Using the DCS-6620G with an Internet Browser
Take a Snapshot of the image.
Return to home position.
Tilt/navigate camera using arrows.
Pull down menu:
Pan/Tilt Speed:
Zoom/Focus Speed:
Zoom:
Focus:
Iris:
Auto Pan:
Stop:
Auto Patrol:
Microphone volume
Speaker volume
Digital Zoom
Talk Button
Select a preset position to move the camera to. Select the speed at which the camera will pan or tilt. Select the speed at which the camera will zoom or focus. “-” zooms out, and “+” zooms in. “-” controls focus near, and “+” controls focus far. “-” sets the aperture smaller, and “+” sets the aperture bigger. Pans the camera one full cycle. Stops movement of the camera during pan or tilt. Enables the Auto Patrol feature, please see page 54.
D-Link Systems, Inc.
35
DCS-6620G User’s Manual
Home Page Screen (continued)
The image from the DCS-6620G should be visible from the Home page on your computer monitor.
There are two buttons on the left side of the Home page:
Client Settings and Configuration.
Using the DCS-6620G with an Internet Browser

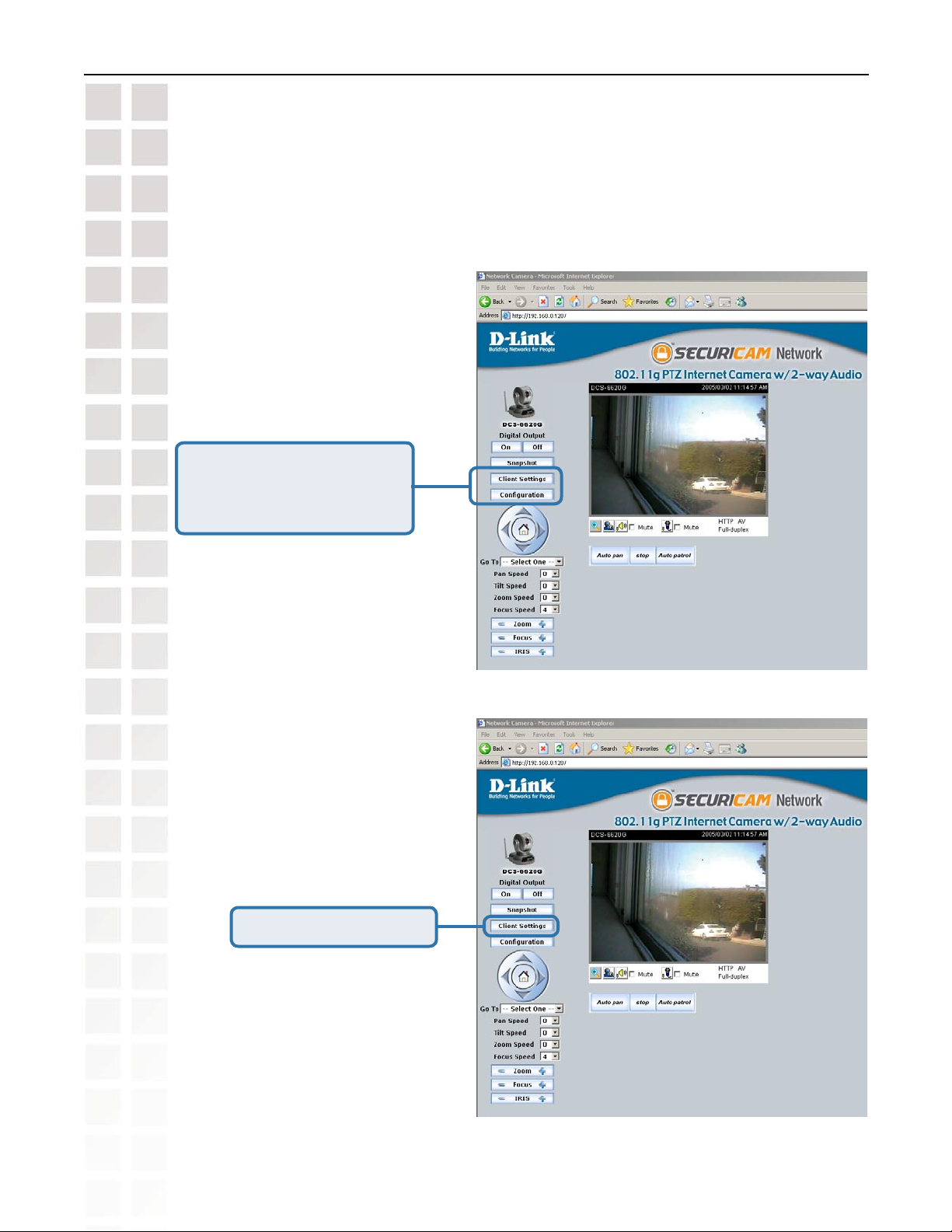

Click on the Client Settings button to change settings related to the connection.
Click Client Settings
D-Link Systems, Inc.
36
DCS-6620G User’s Manual

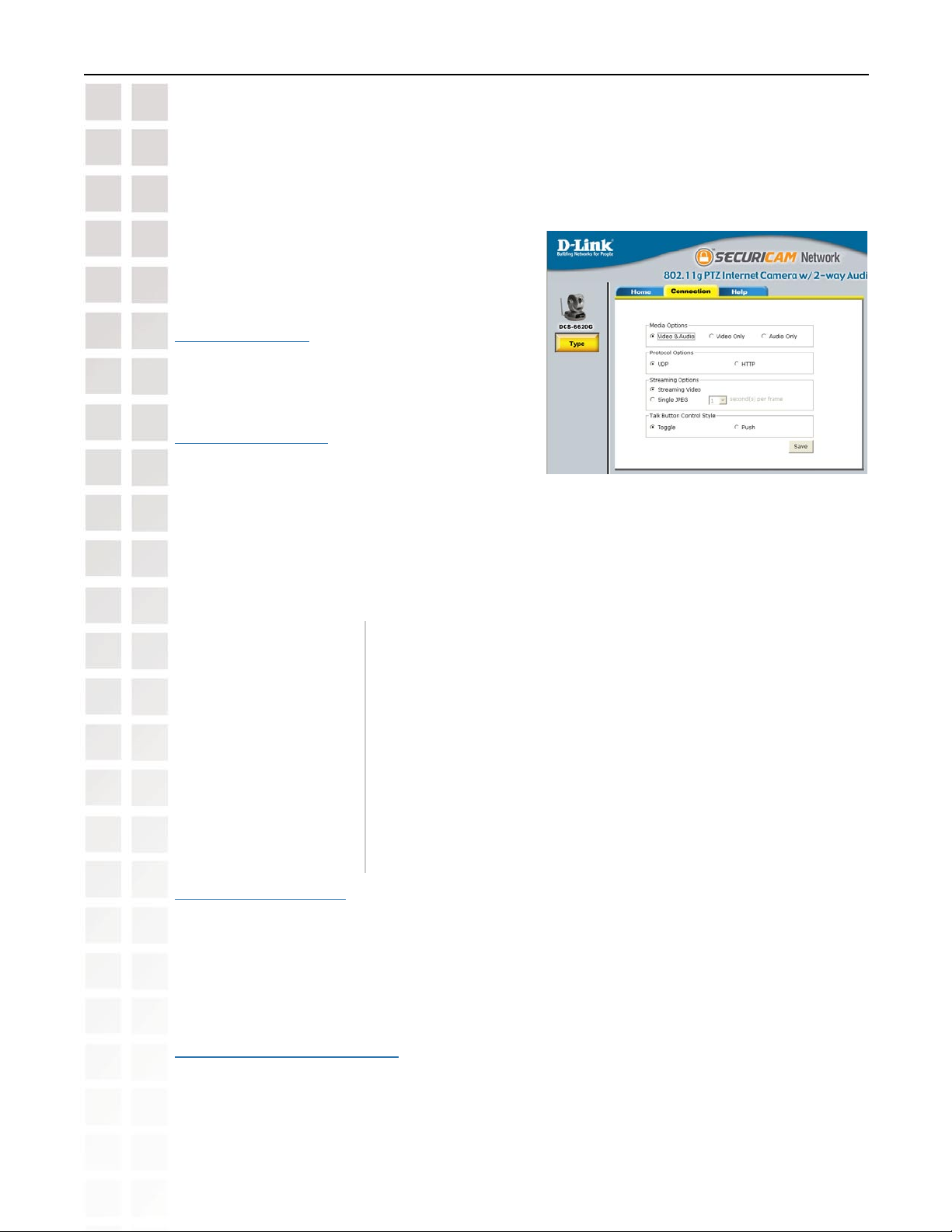

Home > Client Settings
The following options are available from the Connections settings screen:
Media Options
Allows the User to determine whether to recieve
Video & Audio, Video Only, or Audio Only.
Protocol Options
The UDP Protocol should be chosen for most users. Generally the client computer will automatically try these protocols in the following order, UDP -> HTTP. After the client connects to the DCS-6620G successfully, the working protocol will be displayed in “Protocol Option”. The chosen protocol will be recorded in the user’s PC and used for the next connection. If the network environment is changed or users want to let the web browser automatically detect the protocol, select UDP manually and click Save to change the setting and return Home to reconnect with the new setting.
UDP Protocol:
HTTP Protocol:
Using the DCS-6620G with an Internet Browser
Offers the highest image and video quality.However, packet losses will diminish image quality when bandwidth becomes restricted.
If the network is protected by a firewall and it opens HTTP port (80) only, HTTP protocol must be selected. In this mode, audio is disabled and only video can be viewed. UDP connections will not be available to remote users if all four ports have not been forwarded (as shown on page 32). Only the HTTP port must be forwarded for remote users to make an HTTP connection (video only).
Streaming Options
Selecting Streaming Video will keep the video connection alive and enable you to see streaming smooth video.
Selecting Single JPEG will allow you to see the video in JPEG format. This is done on the client side, where JPEG images get periodically updated from the server according to the “Frame rate” settings.
Talk Button Control Style
Allows the User to determine whether to “click once and talk” or “push to talk”.
Click the Home tab to return to the DCS-6620G Home page.
D-Link Systems, Inc.
37
DCS-6620G User’s Manual
Home > Configuration
Click on the Configuration button on the Home page:
Click Configuration
There are 5 tabs across the top of the Configuration screen. From each tab, different elements of the DCS-6620G can be configured. The Advanced tab is the default screen in Configuration and Network is the default screen under Advanced.
Using the DCS-6620G with an Internet Browser
Configuration > Advanced > Network
Click Network
Any changes made to these settings will require the system to restart . Make sure every field is correct before clicking on Apply.
D-Link Systems, Inc.
38
DCS-6620G User’s Manual
Configuration > Advanced > Network (continued)
Reset IP Address at next boot
Once the DCS-6620G is configured, this box should be unchecked at all times. If the box has been checked and the connection is lost, run Installation Wizard to find the camera’s IP address.
General Settings
Using the DCS-6620G with an Internet Browser
IP address:
Subnet mask:
Default router:
Primary DNS:
Secondary DNS:
HTTP Settings
HTTP Port:
Streaming Settings
Necessary for network identification.
Used to determine if the destination is in the same subnet. The default value is “255.255.255.0.”
The router used to forward frames to destinations in a different subnet. Invalid router settings may cause the failure of transmissions to a different subnet.
Primary domain name server that translates names to IP addresses.
Secondary domain name server to backup the primary one.
Can be set to other than the default port 80. When the administrator changes the HTTP port of the DCS-6620G (which has an IP address of 192.168.0.120) from 80 to 8080, users must type http://192.168.0.100:8080 in the Web browser bar.
UDP Video channel port:
UDP Audio channel port:
D-Link Systems, Inc.
Can be set to other than the default port 5002 to correspond with the port opened by the firewall
Can be set to other than the default port 5003 to correspond with the port opened by the firewall.
39
DCS-6620G User’s Manual
Configuration > Advanced > Network (continued)
WLAN Configuration Settings (continued)
Using the DCS-6620G with an Internet Browser
SSID:
Wireless mode:
Channel:
TX rate:
Preamble:
(Service Set Identifier) is a name that identifies your wireless network. Access Points and wireless clients attempting to connect to a specific WLAN (Wireless Local Area Network) must use the same SSID. The default setting is default.
Click on the pull-down menu; select from thefollowing options: Infrastructure – connecting the WLAN using an Access Point such as the DWL-1000AP+. (The default setting.) Ad-Hoc – wireless mode used when connecting directly to a computer equipped with a wireless adapter in a peer-to-peer environment (use this setting if you do not have an Access Point).
The default wireless channel setting is channel 6. Select the channel that is the same as the other wireless devices on your network.
Select the transmission rate on the network. Auto is the default setting.
Select Long or Short Preamble. The Preamble defines the length of the CRC block (Cyclic Redundancy Check is a common technique for detecting data transmission errors) for communication between the Access Point and the roaming wireless Network adapters. Long Preamble is the default setting. Note: High network traffic areas should use the shorter preamble type.
D-Link Systems, Inc.
Security:
Auth Mode:
Key length:
Key format:
Choose one of the following modes:
None – No encryption is selected. WEP – The user can select 64-bit or 128-bit encrytpion in HEX
or ASCII mode. WPA-PSK – Selecting this mode will require an input of the preshared key between the camera and the wireless device it is connected to.
Choose one of the following authorization modes: Auto – Will automatically adjust to the Authentication mode of the wireless client. Shared Authentication – Allows communication only with other devices with identical WEP settings. Open Authentication – Communicates the key across the network.
Select the key length of 64-bits (10 characters in HEX or 5 in ASCII), 128-bits (26 characters in HEX or 13 in ASCII).
Select either HEX or ASCII.
40
DCS-6620G User’s Manual
Configuration > Advanced > Network (continued)
Using the DCS-6620G with an Internet Browser
Default key:
Click Apply to make changes effective
This will preset 4 separate keys that you can choose at a later time.
Configuration > Advanced > Mail & FTP
Click the Mail & FTP button from the Configuration screen to access video settings that control sending images via e-mail or FTP.
Click Mail & FTP
D-Link Systems, Inc.
41
DCS-6620G User’s Manual
Configuration > Advanced > Mail & FTP (continued)
SMTP
Using the DCS-6620G with an Internet Browser
SMTP (mail) server 1:
SMTP account name 1:
SMTP password 1:
Recipient e-mail address 1:
SMTP(mail) server 2:
SMTP account name 2:
SMTP password 2:
Recipient e-mail address 2:
Return e-mail address:
FTP Settings
The domain name or IP address of external mail server.
The user name used to log into your e-mail account (e.g. jdoe or jdoe@yourisp.com depending on your ISP).
The password used to log into your e-mail account. (The password will appear as dots instead of entered characters.)
The e-mail address of recipients for snapshots or a system log file. Multiple recipients must be separated by a semicolon “;”
The domain name or IP address of a secondary mail server used only if the primary mail server is unreachable.
The user name for the second SMTP server.
The password used to log into the second e-mail account. (The password will appear as dots instead of entered characters.)
The e-mail address of recipients for the secondary server.
The return e-mail address to use if the snapshot or system log e-mail fails to send. (This address should be within the SMTP server’s domain for authentication purposes.)
Local FTP server port:
D-Link Systems, Inc.
1st FTP server:
1st FTP server port:
1st FTP user name:
1st FTP password:
Can be other than default port 21. If you find that you want to change the port to a port number other than 21, you will need to specify the port when connecting to the FTP server. For example FTP://68.5.1.81:60 (if you are to use port 60 for your FTP server port)
The domain name or IP address of the external FTP server. The following user settings must be correctly configured for remote access.
The port to access the external FTP server.
Granted user name on the external FTP server.
Granted password on the external FTP server.
42
DCS-6620G User’s Manual
Configuration > Advanced > Mail & FTP (continued)
Using the DCS-6620G with an Internet Browser
1st FTP remote folder:
Primary FTP Passive
Mode:
2nd FTP server:
2nd FTP server port:
2nd FTP user name:
2nd FTP password:
Granted folder on the external FTP server. The string must conform to the external FTP server. Some FTP servers cannot accept a preceding slash symbol before the path if there is no virtual path mapping. Refer to the instructions of the external FTP server for details. The folder privilege must be open for upload.
If the DCS-6620G is located inside a network that is protected by a firewall, a data connection for FTP may be prohibited. Passive mode FTP can bypass this rule and allow the uploading of snapshots. If the passive mode is selected, the DCS-6620G can automatically attempt to upload in active mode if the external FTP server does not support passive mode.
The domain name or IP address of the external FTP server. Note that the 2nd FTP server will only be used if the 1st FTP is unavailable. If image upload to the 1st FTP is successful, no attempts will be made to connect to the 2nd FTP server.
The port to access the backup FTP server.
Granted user name on the backup FTP server.
Granted password on the backup FTP server.
2nd FTP remote folder:
Secondary FTP Passive
Click Apply to make changes effective
Invalid settings may cause the DCS-6620G to not respond. Change the configuration settings only if necessary. Consult with your network administrator or your Internet Service Provider (ISP) if you do not have the necessary information. If you cannot connect to the camera,
refer to page 132 for camera reset and restore factory settings procedures.
D-Link Systems, Inc.
Granted folder on the backup FTP server.
Passive mode setting for the backup FTP server.
Mode:
43
DCS-6620G User’s Manual
Configuration > Advanced > DDNS & UPnP

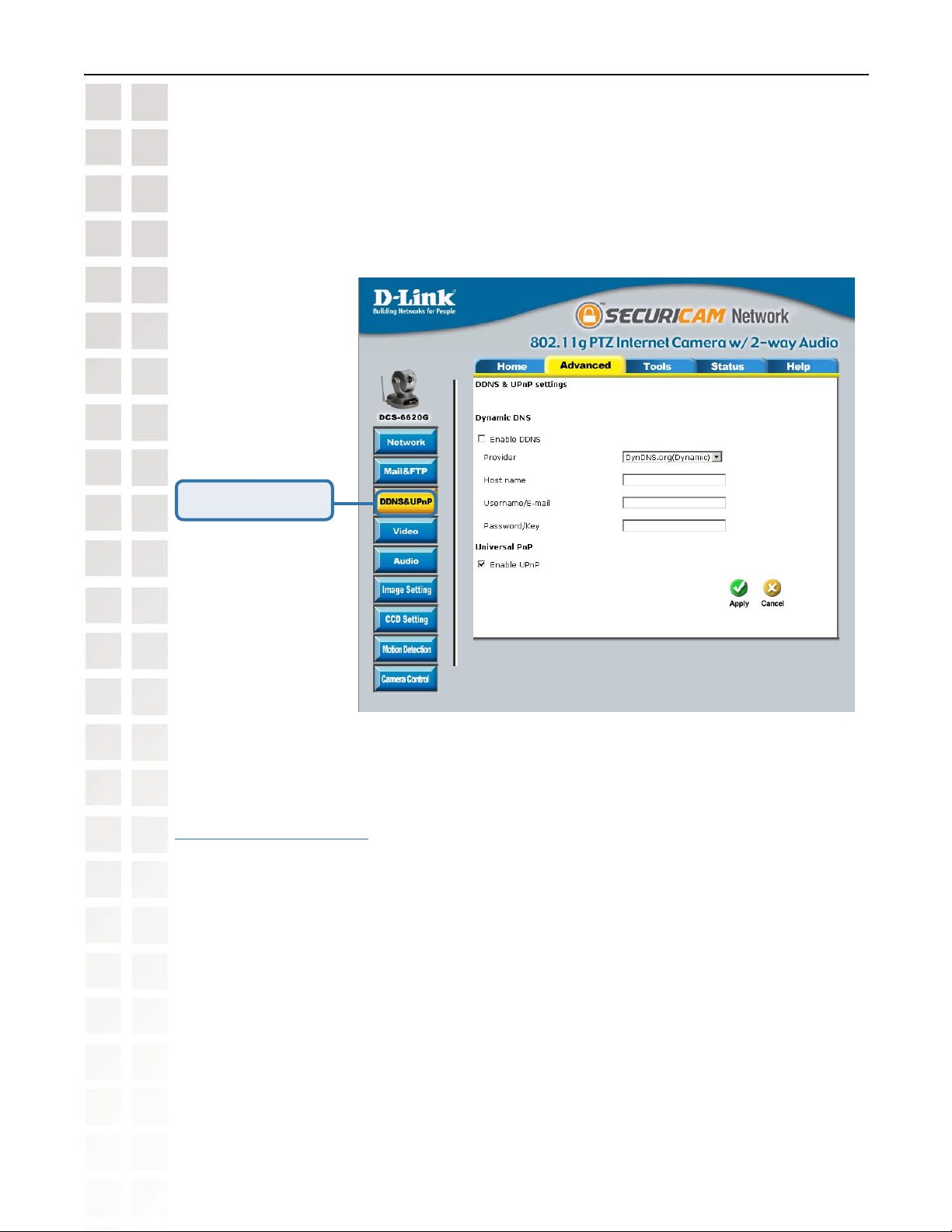

Click the DDNS & UPnP button from the Configuration screen to access DDNS & UPnP settings.
Click DDNS & UPnP
Using the DCS-6620G with an Internet Browser
Dynamic DNS (DDNS)
Dynamic DNS (Domain Name Service) is a method of keeping a domain name linked to a changing (dynamic) IP address. With most Cable and DSL connections, you are assigned a dynamic IP address and that address is used only for the duration of that specific connection. With the DCS-6620G, you can setup your DDNS service and the DCS-6620G will automatically update your DDNS server every time it receives a different IP address. Depending on the service, this update may take a few hours.
D-Link Systems, Inc.
44
DCS-6620G User’s Manual
Configuration > Advanced > DDNS & UPnP (continued)
Using the DCS-6620G with an Internet Browser
Enable DDNS:
Provider:
Host name:
Username/E-mail:
Password/Key:
Click to enable the DDNS function.
Select your Dynamic DNS provider from the pull down menu.
Enter the host name of the DDNS server.
Enter your username or e-mail used to connect to the DDNS server.
Enter your password or key used to connect to the DDNS server.
UPnP
UPnP is short for Universal Plug and Play, which is a networking architecture that provides compatibility among networking equipment, software, and peripherals. The DCS-6620G is a UPnP enabled 802.11g PTZ Internet Camera. If your operating system is UPnP enabled, the device will be easier to configure. If you do not want to use the UPnP functionality, it can be disabled by unselecting “Enable UPnP”.
Click Apply to make changes effective
D-Link Systems, Inc.
45
DCS-6620G User’s Manual
Configuration > Advanced > Video

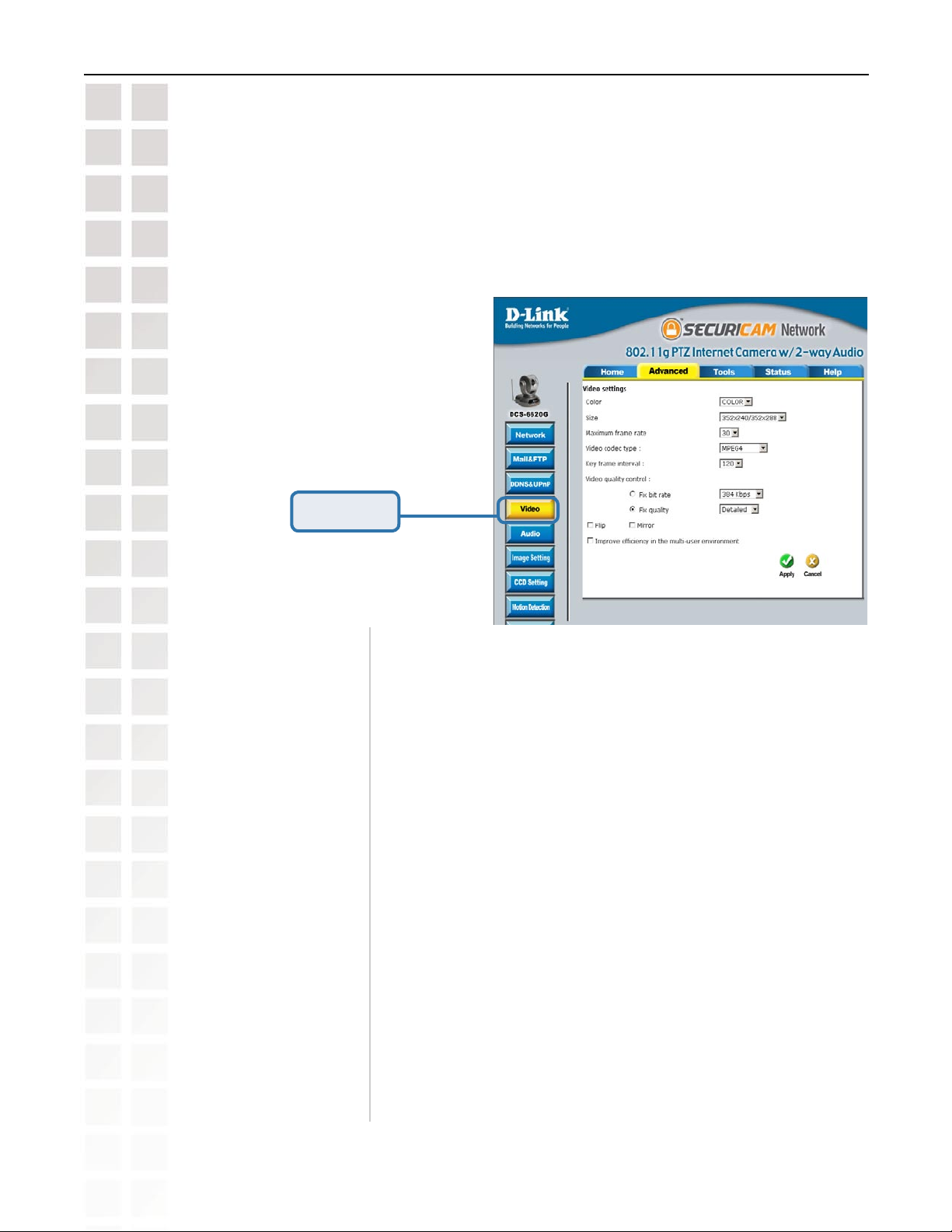

Click the Video button from the Configuration screen to access video settings that affect how the video image appears.
Using the DCS-6620G with an Internet Browser
Click Video
Color:
Size:
Maximum frame rate:
Video codec type:
Select either for color or monochrome video display
Three options exist for the sizes of the video display. You can select between 176x120/176x144, 352x240/352x288, or 704x480/ 401x576. The first value represents the PAL format of video and the second value represents the NTSC format. In 704x480/401x576 mode, the frame rate will be reduced to 10fps and increased to 30fps automatically when it is switched back to a lower image size.
This limits the maximal refresh frame rate, which can be combined with the “Video quality control” to optimize the bandwidth utilization and video quality. If the User wants to fix the bandwidth utilization regardless of the video quality, choose “Fix bit rate” and select the desired bandwidth.
It can be either MJPEG or MPEG4. In MJPEG mode, the video frames are independent. In MPEG4 mode, there are I frames and P frames. To decode a P frame need the information of previous frame. MPEG4 consumes much less network bandwidth than MJPEG.
D-Link Systems, Inc.
46
DCS-6620G User’s Manual
Configuration > Advanced > Video (continued)
Using the DCS-6620G with an Internet Browser
Key frame interval:
Video quality control:
Flip:
Mirror:
A large “Key frame interval” value can reduce the bit rate, but if there is a packet loss during transmission, it will cause image corruption. “Fix bit rate” and “Key frame interval” are only available in MPEG4” mode. The video quality may be poor due to the sending of maximal frame rate within the limited bandwidth, which is when images are moving rapidly. Consequently, to ensure detailed video quality (quantization rate) regardless of the network, it will utilize more bandwidth to send the maximal frames when images change drastically.
To fix the bandwidth utilization regardless of the video quality, choose Fix bit rate and select the desired bandwidth. The video quality may be reduced in order to send maximum frames with limited bandwidth, especially when images change drastically. For higher video detail regardless of the bandwidth selection, select Fix quality and select a video quality level. This setting will utilize more bandwidth to send the maximum frames when images change drastically.
Vertically rotate the video.
Horizontally rotate the video. Check options both if the Network Camera is installed upside down.
Click Apply to make changes effective
D-Link Systems, Inc.
Improve efficiancy
in the multi-user
environment:
Check this option to improve efficiency in the multi-user environment when running in the low bandwidth environment.
47
DCS-6620G User’s Manual
Configuration > Advanced > Audio
Click the Audio/Video button from the Configuration screen to access video settings that affect how the video image appears.
Using the DCS-6620G with an Internet Browser
Click Audio
Transmission Mode:
Full Duplex
(Talk and listen
Simultaneously):
Half Duplex
(Talk or listen, not at the
same time):
There are five options to select. For all the modes, only one client can talk to the server at the same time.
In this mode, the User can talk to the server while listening sound from the server simultaneously.
In this mode, the User can talk to the server or listen from the server, but not at the same time.
Simplex- Talk only:
Simplex- Listen only:
D-Link Systems, Inc.
Disable:
In this mode, the User can only talk to the server.
In this mode, the User can only listen from the server.
In this mode, the audio is disabled in both directions.
48
DCS-6620G User’s Manual
Configuration > Advanced > Audio (continued)
Using the DCS-6620G with an Internet Browser
Send audio from the
active client to all the
other clients:
Improve audio quality
in low bandwidth
environment:
Audio source:
Acoustic echo
cancellation:
Bit rate:
In half duplex transmission mode, select the option to talk to the server and broadcast your voice to all the other clients.
If the Network Camera works in versatile or low network bandwidth environment, the User can check this option to improving audio quality by sacrificing some real-time synchronization.
Select source from external or built-in microphone.
If the Network Camera works in versatile or low network bandwidth environment, the User can check this option to improving audio quality by sacrificing some real-time synchronization.
There are three kinds of bit-rate for audio. 32Kbps and 24Kbps are suitable for both music and speech like audio while 8Kbps are suitable for only speech like audio.
Recommendations for setting video for the best performance:
“Best performance” means the image refresh rate should be the fastest possible and the video quality should be the best possible at the lowest network bandwidth possible. Three factors, Maximum frame rate, Fix bit rate, and Fix quality in the Video Configuration page, are related to performance.
Recording settings for real-time motion images
To achieve a real-time visual effect, the network bandwidth should be large enough to transmit 20 image frames per second (fps) or more. If you are on a broadband network over 1Mbps, you can set Fix bit Rate to 1000Kbps or 1200Kbps, or set Fix quality to achieve the maximum frames. The maximum frame rate is 25 in 50Hz system and 30 in 60Hz system. If your network bandwidth is more than 384Kbps, you can adjust Fix bit rate according to your bandwidth and set the maximum frame rate of 25 to 30.
If the images vary dramatically in your environment, you may slow down the maximum frame rate to 20 to decrease the transmitted data for better video quality. Since the human eye could not easily differentiate between 20 and 25 or 30 frames per second, the slower frame rate will not be noticed. If your network bandwidth is below 384 Kbps, you should adjust the bit rate according to your bandwidth and experiment to allow for the best frame rate that can be achieved. The faster frame rate in a slow network will blur the images. You may also try to choose 352x240/352x288 in size option for better images or 704x480/704x576 for larger image size. Because the network has burst constraints and everyone’s environment is not the same, any poor connection will impair normal performance.
D-Link Systems, Inc.
49
DCS-6620G User’s Manual
Recommendations for setting video for the best performance (continued):
Recording settings to compromise between real-time and clear images
If you have a broadband network, set Fix quality to Good image quality, or higher, instead of setting the Bit rate. Otherwise, fix the bit rate according to your actual network speed and set the frame rate to 30. If the image quality is low, select a lower frame rate above 15. If the image quality is still not improved, select a lower bit rate.
Configuration > Advanced > Image Setting
Using the DCS-6620G with an Internet Browser
Click the Image Setting button from the Configuration screen to access additional settings that affect how the video image appears.
D-Link Systems, Inc.
Click Image Setting
50
DCS-6620G User’s Manual
Configuration > Advanced > Image Setting (continued)
Click the video button from the Configuration screen to access video settings that affect how the video image appears.
From this screen you can fine tune the video image.
Image Brightness, Contrast, Saturation and Hue are all adjusted in the same manner. For each video compensation you can set from among eleven levels ranged from -5 to +5.
You may press to fine-tune the image and see what effect the setting will have on the image. When the image is acceptable, press to store the image settings, or to recall the original settings. If settings are changed without saving, they will be used until the next system start-up.
Using the DCS-6620G with an Internet Browser

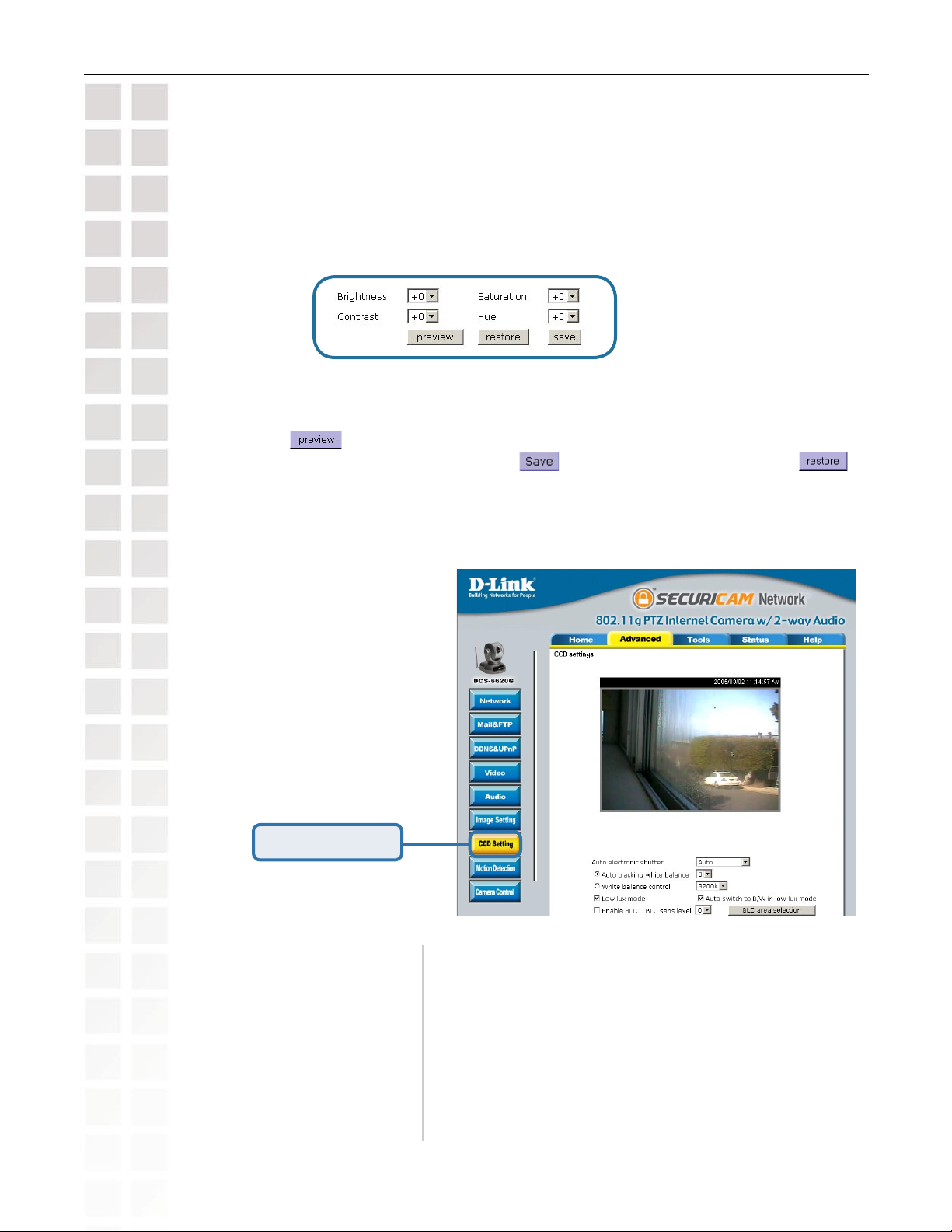

Configuration > Advanced > CCD Setting
Click CCD Setting
Auto electronic shutter:
Once the shutter is selected as “Auto”, the IRIS of the CCD will become fixed. Select this setting if you select Low lux mode.
Auto tracking white balance:
D-Link Systems, Inc.
Low lux mode:
Checking this box will assist in seeing objects in poor illuminative environments.
Apply when the DCS-6620G is aiming outdoors. Adjusting the 9 levels of white levels can help the camera to capture video with correct colors.
51
DCS-6620G User’s Manual
Configuration > Advanced > CCD Setting (continued)
Using the DCS-6620G with an Internet Browser
White balance control:
Low lux mode:
Auto switch to B/W in low lux
mode:
Enable BLC:
BLC sens level:
BLC area selection:
Apply when indoors to adjust video colors. The administrator can set different color temperatures (3200K~9600K) to get correct colors.
Checking this box will assist in seeing objects in poor illuminative environments.
Checking this box along with “Low lux mode”, will convert the video to black and white automatically, if the camera is aiming at a dark environment.
This option is for back light compensation.
This option allows objects to be seen more clearly. The BLC sens level is about sensitivity of BLC detection
Clicking this option will bring up a new window that will allow you to select the areas to enable BLC.

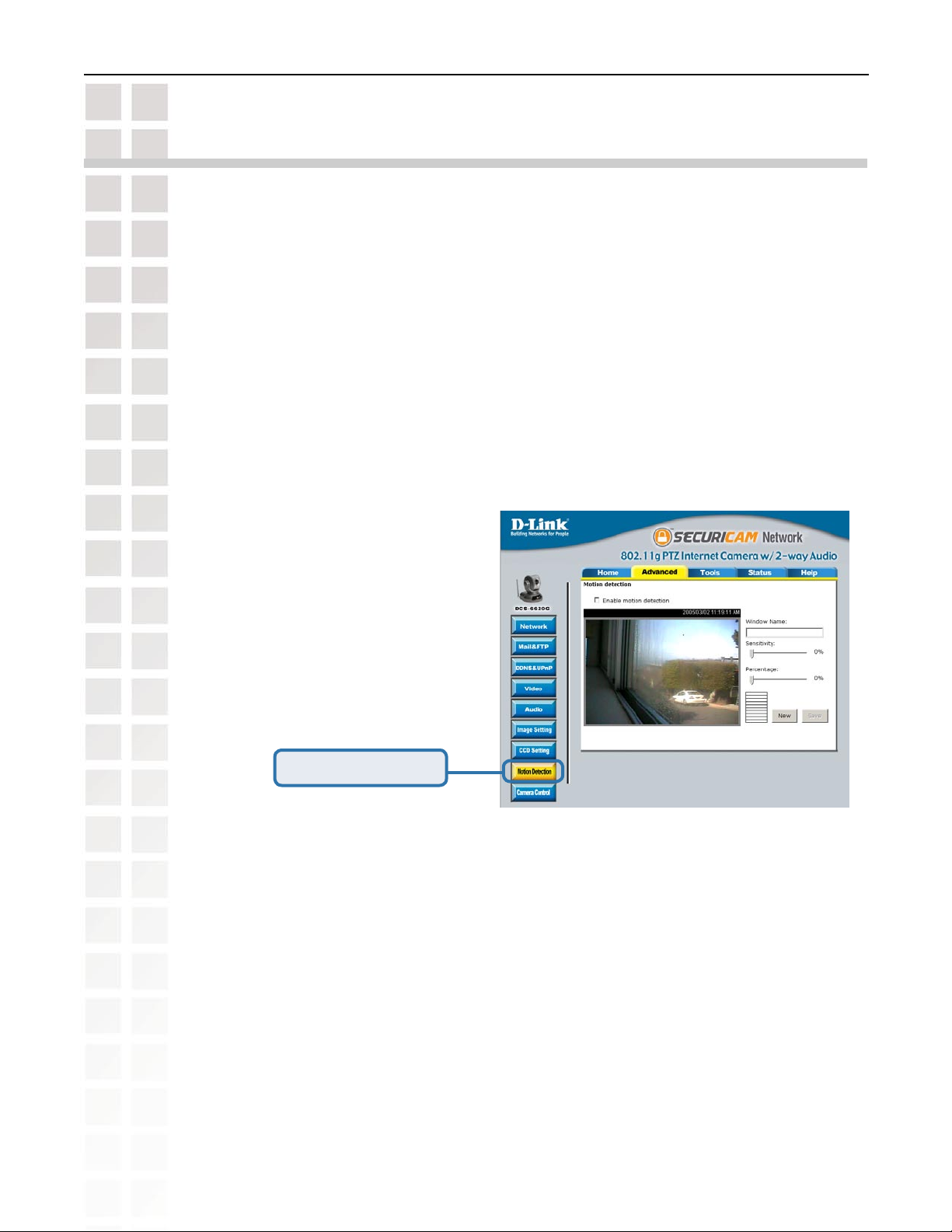

Configuration > Advanced > Motion Detection
Click the Motion Detection button from the Configuration screen to access settings that effect how the DCS-6620G PTZ Internet Camera can serve as a security device by recording only when motion is detected.
D-Link Systems, Inc.
Click Motion Detection
52
DCS-6620G User’s Manual
Configuration > Advanced > Motion Detection (continued)
Using the DCS-6620G with an Internet Browser
Enable motion detection:
Window Name:
Sensitivity:
Percentage:
Note: Setting a higher sensitivity and a lower percentage will make any motion more easily
detected.
New:
Check this option to turn on the motion detection.
The text entered here will show at the top of the motion window.
Sets the measurable difference between two sequential images that would indicate motion.
Sets the amount of motion in the window being monitored that is required to initiate a motion detected alert. If this is set to 100%, this means that motion is detected within the whole window to trigger a snapshot.
Click to add a new window. A maximum of three motion windows can be opened simultaneously. Use your mouse to drag the window frame to resize or the title bar to move. Clicking on the ‘x’ at the upper right corner of the window will close the window.
Save:
To display motion detection, a graphic bar will rise or fall depending on the image variation.
A green bar means the image variation is under the monitoring level, and no motion detection alert is triggered. A red bar means the image variation is over the monitoring level and a motion detected alert is triggered. When the bar goes red, the window that the motion is detected in will also be outlined in red (note: remember that you can have up to 3 windows selected for motion detection). You can return to the DCS-6620G Home Page and the monitored window will not be visible, but the red frame will show on the home page when motion is detected.
Saves the related settings of that window.
D-Link Systems, Inc.
53
DCS-6620G User’s Manual

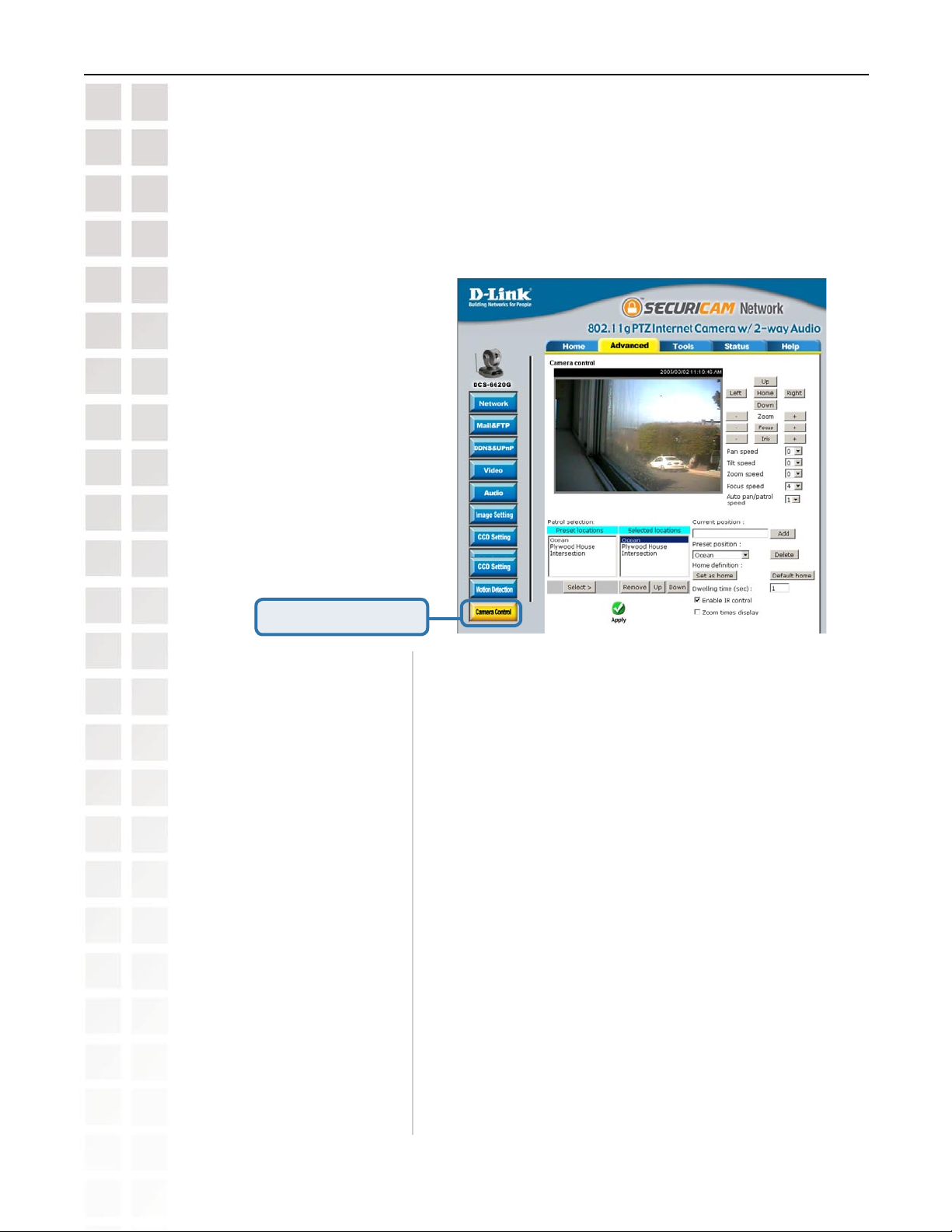

Configuration > Advanced > Camera Control
Click the Camera Control button from the Configuration screen to access settings that affect how the DCS-6620G 802.11g PTZ Internet Camera can pan and move to preset locations.
Using the DCS-6620G with an Internet Browser
Click Camera Control
Left, Up, Right, Down, & Home:
Zoom:
Focus:
Iris:
Pan Speed:
Tilt Speed:
Zoom Speed:
Auto Pan/Patrol Speed:
“Home” aims the camera to the center, where as the other buttons aim the camera accordingly.
“-” controls the zoom widely function, “Zoom” automatically returns the lens to normal view, “+” controls the zoom telescopically function.
“-” controls the focus near function, “Focus” automatically controls the focus normal function, and “+” controls the focus far function.
“-” sets the aperture smaller, “Iris” automatically sets the aperture to normal, and “+” sets the aperture bigger.
Select the speed at which the camera will pan for a full cycle from the pull down menu. Select a value between -5 and +5,
-5 being the slowest setting.
Select the speed at which the camera will tilt for a full cycle from the pull down menu. Select a value between -5 and +5,
-5 being the slowest setting. Select the speed at which the camera will zoom for a full
cycle from the pull down menu. Select a value between -5 and +5, -5 being the slowest setting.
Select the speed at which the camera will pan during auto patrol. Select a value between 1 and 5, 1 being the slowest setting.
D-Link Systems, Inc.
54
DCS-6620G User’s Manual
Configuration > Advanced > Camera Control (continued)
Using the DCS-6620G with an Internet Browser
Current Position:
Preset Position:
Dwelling Time:
Enable IR Control:
Zoom times display:
Patrol Selection:
Enter a name for the position at which you would like to preset the DCS-6620G. Click Add to add the new preset position to the Preset Locations list.
Using the pull down menu, you can delete a preset position by selecting it and clicking Delete.
Set the value of time that the camera will remain on each preset position before moving to the next. The dwelling time can be set between 1 and 255 seconds.
Click this to allow the DCS-6620G to be controlled by the included remote.
Checking this box allows the Administrator to display the zoom magnitude on the transmitted video.
To use the Auto Patrol feature, select the desired preset positions from the Preset Locations list and add them to the
Selected Locations list by clicking Select. You can then select
the order in which the camera will patrol through the preset locations by selecting a location and clicking UP or DN. Click Remove to remove a location from the list.
Click Apply to make changes effective
Save:
The button is valid for “Pan speed”, “Tilt speed”, “Tilt speed”, “Auto pan/patrol speed”, “Enable IR control”, “Dwelling time” and “Patrol selection”. In other words, after changing these settings, and
the “Save” button is not clicked, the new setting of the camera will not take effect.
D-Link Systems, Inc.
55
DCS-6620G User’s Manual
Configuration > Tools > Admin
Click on the Tools tab to access 4 utility screens for controlling and administering the DCS-6620G
. The default screen in Tools is the Admin screen.
Using the DCS-6620G with an Internet Browser
The DCS-6620G is manufactured without any passwords by default. This allows the ability to access the DCS-6620G (including the Configuration) by anyone as long as the IP address is known. It is recommended that you enter a password to restrict others from accessing your camera.
Type a password in the New Password field to enable protection, and then confirm the password in Confirm Password field.
This password is used to identify the administrator. You can add accounts with User name and User Password for other users in the Add user section.
You can provide up to twenty accounts for other users / visitors. Each account identifies the access right. This allows multiple visitors to share the same account of different levels. The options Permission for I/O Control (Digital In/Digital Out) and Permission for PT Control are provided for each account. Some users may need to be prohibited from controlling your attached security devices.
D-Link Systems, Inc.
56
DCS-6620G User’s Manual
Configuration > Tools > Admin (continued)
Using the DCS-6620G with an Internet Browser
Guest account:
This option allows a user to connect to a camera with view -only privileges. User name is “demo”. No password is required. This is useful for demonstrations and keeps guests separate from users with accounts.
Configuration > Tools > System

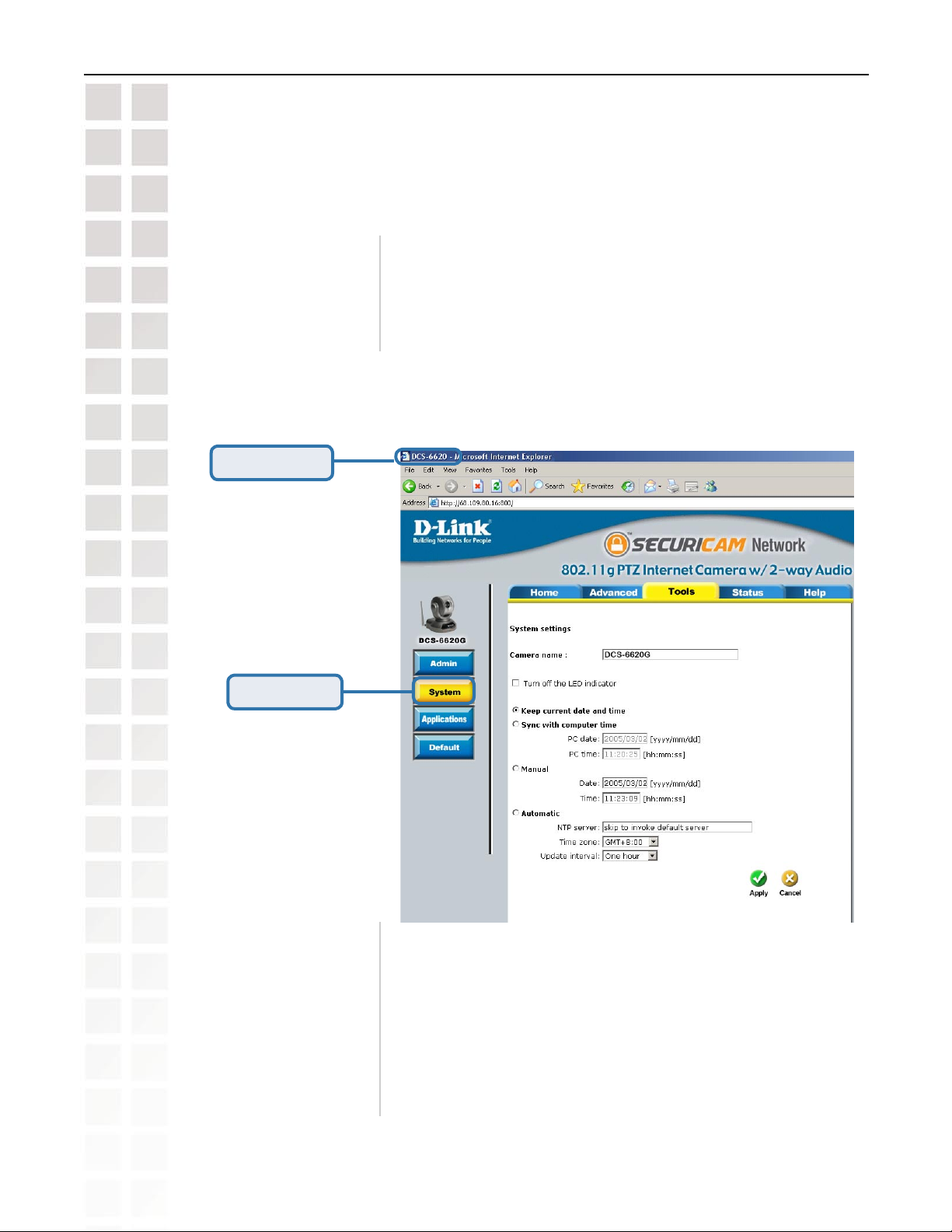

Click on the System button to access the System settings from the Tools menu.
Camera Name
Click System
D-Link Systems, Inc.
Camera name:
Turn off the LED
indicator:
The text will display as the title of the window within the Windows operating system. This name will also appear on the log-in screen (once a password has been set).
Check this option to shut off the LED at the base of the camera. This will prevent anyone from observing the operation of the 802.11g PTZ Internet Camera.
57
DCS-6620G User’s Manual
Configuration > Tools > System (continued)
Using the DCS-6620G with an Internet Browser
Keep current date and
time:
Sync with computer time:
Manual:
Automatic:
NTP server:
Time zone:
Click to save the current date and time of DCS-6620G. An internal real-time clock maintains the date and time even when the power is off.
Synchronize the date and time of DCS-6620G with the local computer. The date and time of the PC is displayed and updated in the DCS-6620G.
Adjust the date and time according to what is entered by the administrator. Notice the format in the related field while typing.
Synchronize with the NTP server over the Internet whenever the DCS-6620G starts up. It will fail if the assigned timeserver cannot be reached.
Assign the IP address or domain name of the timeserver. Leaving the text box blank will let DCS-6620G connect to default time servers.
Used to adjust the hour of timeservers for local settings.
Click Apply to make changes effective
D-Link Systems, Inc.
58
DCS-6620G User’s Manual
Configuration > Tools > Applications
Click on the Applications button to access the Applications settings from the Tools menu.
Using the DCS-6620G with an Internet Browser
D-Link Systems, Inc.
59
DCS-6620G User’s Manual
Configuration > Tools > Applications (continued)
Weekly schedule
Using the DCS-6620G with an Internet Browser
Sunday through Saturday:
Snapshots begin at:
Snapshots stop at:
All of the time except for
the above schedule:
Event operation
Delay second(s) before
detecting next event:
Take snapshots at second(s)
Trigger condition:
after event:
Select the weekdays that should perform the following operations:
Set the time to start operations. Setting the begin time the same as the stop time will force the operations to run continuously.
Sets the time to stop the operations.
If you do not wish to set a schedule, this box must be checked.
Sets the time delay before restarting to check the trigger condition when the current condition is triggered.
After a snapshot is taken because of a trigger, another snapshot will be taken after the configured time in seconds.
There are 4 conditions related to the digital input and three windows for motion detection. There can be multiple selections. Select the appropriate digital input condition according to the characteristics of the external device. “High”, “low” indicate external voltage input for level trigger, while “rising”, “falling” is for edge triggers. There are three windows shown for the names you defined for motion detection. “Undefined” will show instead of the window title if motion detection is not setup yet. An active, named motion window must be checked for motion detection to be possible.
D-Link Systems, Inc.
Reset output:
Check and save this option to reset the external device at the digital output back to the original state.
60
DCS-6620G User’s Manual
Configuration > Tools > Applications (continued)
Using the DCS-6620G with an Internet Browser
Trigger action:
Sequential Operation
Snapshot every second(s):
Send snapshots by e-mail:
There are four options for two actions regarding either trigger condition. They can have multiple selections. While choosing the trigger output alarm, the digital output will short both pins to connect the circuit of the attached external device; otherwise both pins will be open. While choosing to upload snapshots, the method can be either e-mail or FTP. The snapshot names will be “videopre. jpg”, videotrg.jpg”, and “videopos.jpg” respectively for the snapshots before event, right upon event, and after event. The date and time suffix may be added according to the option. Confirm the external mail or FTP server settings in network configuration.
The DCS-6620G will send snapshots at the specified interval to the external server according to the chosen method. Remember this operation is dependent to the weekly schedule.
Any upload action specified in the options above will use the method chosen here. The captured snapshot named “video.jpg” will be attached in the e-mail with subject “Periodic snapshots.”
D-Link Systems, Inc.
Send snapshots by FTP:
FTP put snapshots with
date and time suffix:
The captured snapshots will upload to the external FTP server with the file name depending on the next option. It can be used to refresh the captured image stored in the external web server to build creative homepages.
If the suffix is added, the captured date and time can be easily differentiated from the snapshot file name in either sequential or event operation. For instance, “video@20020102030405.jpg” means the JPEG image was captured at 4 minutes and 5 seconds after 3 o’clock, January 2nd, A.D. 2002. If the suffix is omitted, the file named “video.jpg” on the external FTP server will be refreshed at the specified interval.
61
DCS-6620G User’s Manual
Configuration > Tools > Default
Click Apply to make changes effective
Click on the Default button to access the factory setting restoration and camera calibration options from the Tools menu.
Using the DCS-6620G with an Internet Browser
Click Default
Click Apply on the screen to restore factory default settings. This means any changes made will be lost and the system will be reset to the initial status when shipped from the factory. After confirmation, the system will restart and require the Installation Wizard software program to locate the IP address of the DCS-6620G.
Click Apply under Calibrate to restore them camera’s factory lens position. This means that the camera will be recalibrated to the default center to position to recover from any external forces that may have affected it.
D-Link Systems, Inc.
62
DCS-6620G User’s Manual
Configuration > Status > Device Info
Click on the Status tab to access Device Info and a Log of DCS-6620G system activity. The Device Info is the default screen when you click on the Status tab.
Using the DCS-6620G with an Internet Browser
Click Device Info
The Device Info screen lists the following important settings that are currently set for the
DCS-6620G
Firmware Version number
Mac Address
IP Address
Subnet Mask
Default router address
Primary DNS Address
Secondary DNS Address
Configuration > Status > Log
Click on the Log button to access a system log of system activity from the Status menu. The content of the log file reveals useful information about the current configuration and connection logged after the DCS-6620G boots up.
Click Log
D-Link Systems, Inc.
63
DCS-6620G User’s Manual
Configuration > Help
Click on the Help tab to access descriptions of the particular function you need help with. The help screen is organized in the order of the tabs and then each menu item under that tab.
Using the DCS-6620G with an Internet Browser
D-Link Systems, Inc.
64
DCS-6620G User’s Manual
Record Snapshots to your FTP server with Motion Detection
Administrators can combine options on the application page to perform many useful security tasks. There are two trigger sources available: from an external sensor or with built-in motion detection. There are also two kinds of actions that can respond to these events that include uploading snapshots over the internet and driving attached devices. To upload the snapshots, users can choose either e-mail or FTP according to user’s needs. Both e-mail and FTP use the network settings on the network page. This section describes how to enable motion detection
and record snapshots to an FTP server.
If no external sensor is available, administrators can utilize the built-in motion detection to monitor any abnormal movement and then record the snapshots to an FTP or SMTP server.
Click the Motion Detection button under the Advanced tab from the Configuration screen to access settings that affect how the DCS-6620G 802.11g PTZ Internet Camera can serve as a security device by recording only when motion is detected.
Record Snapshots to your FTP server with Motion Detection
In this window, follow the steps below to ensure that motion detection is correctly enabled:
Check “Enable motion detection.”Click on “New” to have a new window to monitor video. Enter in a window name.Adjust the “Sensitivity” and “Percentage” levels according to the local
environment. The highest sensitivity and lowest percentage provides the most sensitive setting. Percentage refers to the area that is covered by motion before detection is intialized. Click on save to enable the activity display.
D-Link Systems, Inc.
Click Motion Detection
65
DCS-6620G User’s Manual
Next, click the Mail & FTP button under the Advanced tab to set the FTP server settings for the DCS-6620G.
Click Mail & FTP
Record Snapshots to your FTP server with Motion Detection
1
123.123.123.1
John Smith
4
6
Snapshot
2
3
5
In this window, enter the settings for the FTP server you wish to record to. Optionally, you can enter settings for a secondary backup FTP server.
Local FTP server port:
1
The Default port is 21. To connect to an FTP server, it is recommended that you do not change the port number unless your camera is behind a router. If your camera is behind a router, you can assign any port number to this field, but you must enable port forwarding on the router. Please refer to your router manual for more information on port forwarding.
2
1st FTP server:
If you are going to upload snapshots to an FTP server, you will need to fill in the Domain name or IP address of your external FTP server such as ftp://dlink.com or ftp://123.123.123.1. (The server name and IP address will vary depending on the user.) The following user settings must be correctly configured for remote access.
D-Link Systems, Inc.
66
DCS-6620G User’s Manual
Record Snapshots to your FTP server with Motion Detection
3
1st FTP user name:
4
1st FTP password:
5
1st FTP remote folder:
6
Primary FTP passive
mode:
2nd FTP server:
2nd FTP user name:
Specify the user name to access the external FTP server (ex. John Smith).
Specify the password to access the external FTP server (ex. 12345).
Specify the destination folder in the external FTP server (ex. snapshot).
Passive mode will allow access to an external FTP server if your camera is behind a router protected by a firewall.
Specify the Domain name or IP address of your second external FTP server. This field is optional if you have already filled in the information for the first FTP server.
Specify the user name to access your backup FTP server.
2nd FTP password:
2nd FTP remote folder:
Secondary FTP passive
mode:
For detailed information about each setting, please refer to Configuration > Advanced > Network in the section titled “Using the DCS-6620G With an Internet Browser” (page 34). Click the apply button when finished.
Specify the user password to your backup FTP server.
Specify the destination folder on your external backup FTP server.
Passive mode will allow access to a second external FTP server if your camera is behind a router protected by a firewall.
D-Link Systems, Inc.
67
DCS-6620G User’s Manual
Next, click the Applications button under the Tools tab to set the application settings for the DCS-6620G.
Record Snapshots to your FTP server with Motion Detection
Click Applications
In this window, follow the steps below to set the application settings for snapshots to be recorded to an FTP site:
Select the weekdays you would like to record and enter the “Snapshots begin” time and “Snapshots end” time for the weekly schedule, or select “All the time except for the above schedule” if you want to enable full time snapshot recording.
Check “Event operation.” Set the delay “before detecting next event” to avoid continuous false alarms
following the original event. Set the delay to “take snapshots after event” to capture the direction of the moving object.
Check the window name (in this case Lab).Check “Upload snapshots while motion detected.”Click “Send snapshots by FTP” and check “FTP put snapshots with date and time
suffix” Click the “Apply” button to save the settings.
Click the apply button when finished. You are now able to record snapshots to your FTP server when motion detection is triggered.
D-Link Systems, Inc.
68
DCS-6620G User’s Manual
Using IP surveillance Software
Installing the IP surveillance Software
Before you begin installing this application software, the hardware system requirements must be checked first. The minimum system requirements recommended for this application are as follows:
Browser: Internet Explorer 5.x or above CPU: Intel Pentium 4 2.4GHz or above SDRAM: 128MB SDRAM Hard Disk: 40GB Display Chip: nVidia, TNT, TNT2, GeForce series with 64MB Display memory ATI Radeon series with 128MB Display memory
Put the installation disk into your CD-ROM, and it will run automatically. If it does not, open “My Computer” and double click on the CD-ROM icon. Next the installation menu will appear.
Click “Install Software”. The following window will appear.
Using IP surveillance Software
Click IP surveillance
D-Link Systems, Inc.
69
DCS-6620G User’s Manual
Installing the IP surveillance Software (continued)
Using IP surveillance Software
Click Next
The “License Agreement” window below will appear. Please read the following license agreement carefully. Click “Yes” to accept this agreement and proceed with the installation.
Click Yes
D-Link Systems, Inc.
70
DCS-6620G User’s Manual
Installing the IP surveillance Software (continued)
Next, the “User information” window below will appear. This window will prompt you to enter the user name and company name. Enter your user name and company name and then click
“Next” to continue.
Using IP surveillance Software
Click Next
You must setup the administrator’s password in order to proceed. Input and confirm your password in the window shown in below. Click “Next” to continue.
Click Next
D-Link Systems, Inc.
71
DCS-6620G User’s Manual
Installing the IP surveillance Software (continued)
Select the installation directory for this application software and click “Next”, which is shown in the figure below. You can change the installation directory by clicking “Browse…”
Using IP surveillance Software
Click Next
Select a program folder to install the application software and then click “Next”, which is shown in the figure below.
Click Next
D-Link Systems, Inc.
72
DCS-6620G User’s Manual
Installing the IP surveillance Software (continued)
After checking all the setup information in the window shown below, click “Next” to start the installation of the application software.
Using IP surveillance Software
Click Next
Click “Finish”, in the window shown below, to finish installation. The program is now installed on your computer.
Click Finish
D-Link Systems, Inc.
73
DCS-6620G User’s Manual
Launcher
Launcher is a controller program that allows users to invoke Monitor or Playback quickly.

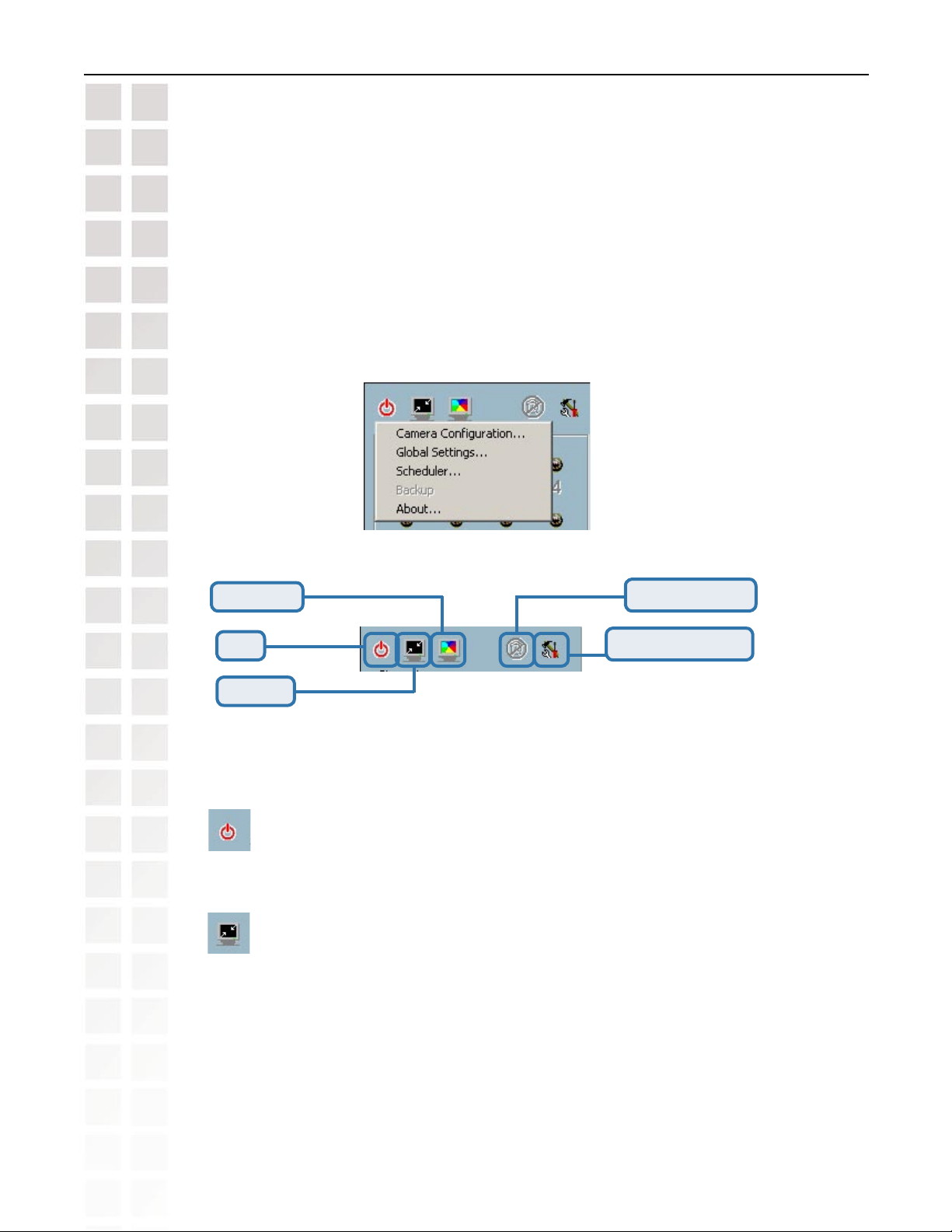

System Tray Icon
The Launcher icon reflects current state of IP surveillance. The icon in the system tray signifies that the IP surveillance Software is currently active on the system.
Security for Launcher
When Launcher starts, there is no need to undergo a username/password check. But when users want to click on the icon of Launcher on system tray, Launcher will popup a username/ password dialog the first time for menu popup or when Launcher is locked. If a user fails to pass the authentication check, no menu will show up. If a user fails 3 consecutive tries he/she will be locked out for a period of 60 seconds.
Using IP surveillance Software
After passing authentication, users will be able to use all the functions. If users want to leave the computer, it is possible to lock the Launcher for security reason. When Launcher is locked,
the user will need to pass authentication again to see the popup menu.
Below is the login window:
D-Link Systems, Inc.
74
DCS-6620G User’s Manual
Launcher (continued)
When Launcher is locked, the unlock window will appear, prompting for the user password in order to unlock.
Using IP surveillance Software
The input area of the dialog will be grayed (disabled) for 60 seconds after 3 consecutive failures.
User Interface
Below is the user interface for Launcher:
The main user interface for Launcher is an icon on system tray, and the popup menu appears when the user clicks on the icon. The menu items are listed below:
Lock Launcher
When this item is selected, Launcher will enter lock mode. In lock mode, whenever
users want to invoke the menu, a dialog asking for ID and password will appear. The interface for this dialog is covered in the previous section.
D-Link Systems, Inc.
75
DCS-6620G User’s Manual
Launcher (continued)
Tools

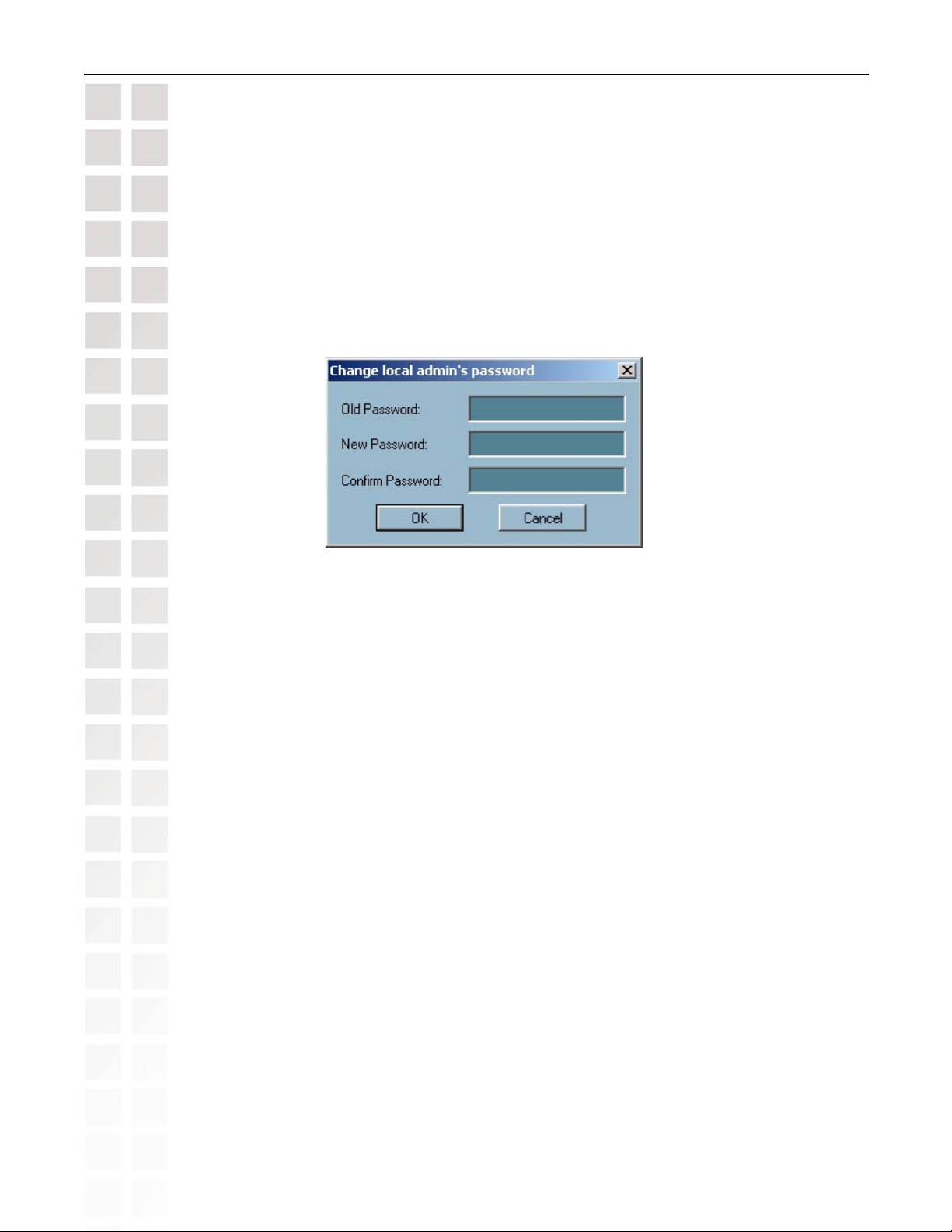

Contains many utilities. Currently only change password is implemented. The change
password dialog looks like this:
Using IP surveillance Software
Autorun at Startup
Users can select whether or not to autorun Launcher when Window boots up.
Monitor
Starts up the Monitor program. If the Monitor program is already running, clicking this
button will re-open the Monitor window.
Playback Starts up the Playback program. If the Playback program is already running, clicking
this button will re-open the Playback window.
Logout
Logs out user from IP surveillance. After logging out, if the user wants to return to the
menu, and clicks the Launcher icon, the authentication box will appear prompting for username and password again.
Exit Exits Launcher. If users choose this option, Launcher will show a message box prompting
to confirm if users really want to exit, and warn users that exiting Launcher will also close Monitor and Playback.
D-Link Systems, Inc.
76
DCS-6620G User’s Manual
Monitor Program
Features of the Monitor Tool
Traditional Surveillance Features:
Using IP surveillance Software
Real-time monitoring
Pan and Tilt control
Recording
Special Features:
The digital surveillance system supports not only the features listed above, but also the following features, which make the system more powerful and convenient.
Simultaneous real-time monitoring and recording audio and video
High quality video up to full screen display
High compression ratio
Maximum of 16 cameras with different monitor layouts
Smart playback
Triggered event browsing with 9 preview video windows
Fast database searching
Auto alarm in multiple modes
D-Link Systems, Inc.
Account-password protection
Multiple recording modes: Event-driven, Scheduled, and manual recording for each camera.
Intelligent database index modes: indexing by sharp time tag, time interval, and motion detected events.
Just-in-time snapshot
AVI export
Motion detection with 3 alert windows for each camera
77
DCS-6620G User’s Manual
Monitor Program (continued)
Application Layout and Functionalities
This section demonstrates a global view of the monitor tool, shown below. The components of the monitor tool will be introduced in detail in the following sections.
Using IP surveillance Software
Misc. Functions
Channel Area
Layout Area
Hard Disk Status
Common Controls
PTZ DI/DO and Alert Message
There are several parts in the monitor tool:
Misc. functions:
These include application exit, minimization, full screen monitoring, lock, stop alert, and configuration menu for camera configurations, global settings, scheduler settings and the user information of this application software. The tips about these operations are provided on-line when you move the mouse cursor over them.
Video Area
Display Frame
D-Link Systems, Inc.
Channel area
This area displays the status of each video channel. The information indicates the status of connection, recording, selection, and alert-event trigger.
Video area
In this area, you can see the video of the selected channel in the display frame. The number of the display frames in the video area depends on the layout chosen by the user. You can also use convenient controls to alter the video
display.
78
DCS-6620G User’s Manual
Monitor Program (continued)
Using IP surveillance Software
Layout area
You can change the monitoring layout in this area. There are six kinds of layouts: 1, 4, 6, 9, 13, or 16 video display frames in the video area.
Hard disk status
In this area, you can get the status of the hard disk in which the video database resides in. The status reminds you to arrange the available storage size of the
recorded video database.
Common control area
This area includes volume control, manual recording, video printing, snapshot, and trash can to remove video from display frames.
PTZ control
This tool allows you to pan, tilt, optical and digital zoom, auto patrol, and move the camera to a preset position.
DI/DO control
This tool receives the digital input signal and sends digital output signal to the remote Video Server/ 802.11g PTZ Internet Camera series product associated
with the dedicated video channel.
Logging In
You need to login the first time when you start the Launcher. The authentication window is shown below. If you do not have an account, the monitor tool will not execute. You must log in as admin (administrator) to use this application. Enter the password for the administrator.
D-Link Systems, Inc.
Alert Message
This tool will display the latest alert messages received by the remote 802.11g PTZ Internet Camera series product associated with the selected video channel.
79
DCS-6620G User’s Manual
Monitor Program (continued)
The Admin Privilege
In the monitor tool system, the admin privilege has the right to access the DCS-6620G 802.11g PTZ Internet Camera through this application software and change the local settings as well. But the admin privilege is not the same as the admin privilege as the 802.11g PTZ Internet Camera. You can change the settings of each selected 802.11g PTZ Internet Camera in the remote site only if you have the admin privilege of the 802.11g PTZ Internet Camera.
If you have the admin privilege, you have the right to do the following items:
Using IP surveillance Software
Again, if you need to change the settings of the DCS-6620G, you must have the password of the admin user.
Run the configuration tool
Change the recording schedule
Change the local settings
Camera Configurations
When you log in for the first time, you should configure this application software to connect the DCS-6620G in “Configuration Menu > Camera Configurations”, shown in the figure below.
You will need the admin (administrator) privilege in order to run the configuration.
Once you click “Configuration Menu > Camera Configurations” for setting each camera, all recording processes will be stopped with a warning window popped up in advance to keep
you informed.
D-Link Systems, Inc.
80
DCS-6620G User’s Manual
Monitor Program (continued)
The Layout of the Configuration
This section discusses the local settings for the connection and the functional configuration of each camera. If you are interested in the remote settings for each camera, you can refer to
the user’s manual that accompanied the hardware.
NOTE: For the location of the selected camera, you should check that the location string does not include prohibited characters such as “”\ / : * ? “ < > |”. Otherwise, the location string will cause this application program to malfunction. You can change the location string
in “Video->Text on Video” of the remote setting webpage.
Using IP surveillance Software
Local Settings
Remote Settings Webpage
Camera Selections
The Layout of the Configuration
In the local settings, shown below, three main functionalities are provided:
Insert new camera to the list
History of all cameras in the list
D-Link Systems, Inc.
Delete camera from the list
81
DCS-6620G User’s Manual
Monitor Program (continued)

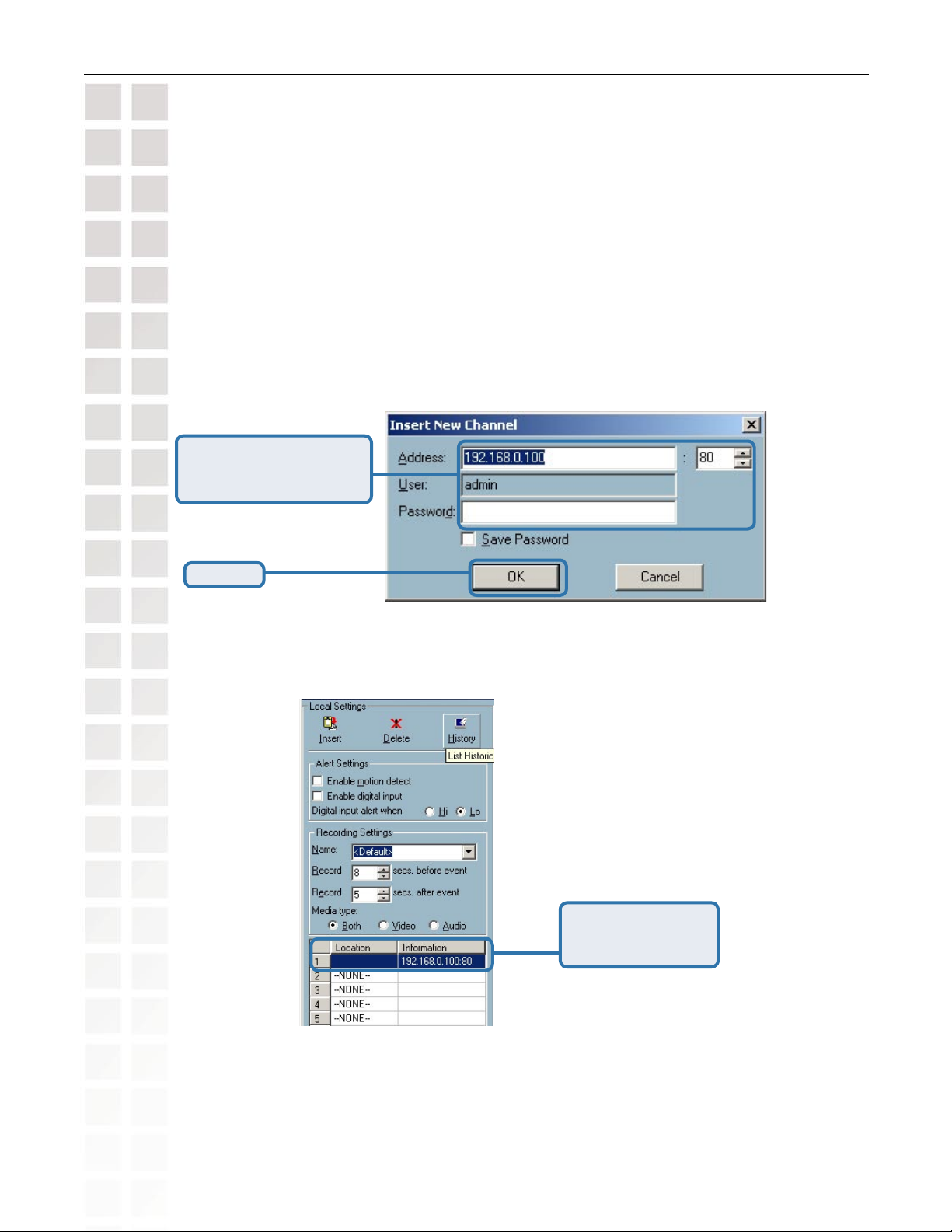

Insert – To insert a remote 802.11g PTZ Internet Camera to the camera list. Click the “Insert”
button, an “Insert New Channel” dialog will popup, as shown below. Specify the IP address, port, and admin password of the 802.11g PTZ Internet Camera, click the “Ok” button to close the dialog. Then the system will try to connect to the selected camera. If the connection
succeeds, the camera will be inserted to the camera selection list.
Specify the IP address, port, and admin password of the camera.
Using IP surveillance Software
Click Ok
Once added, you will see the IP address of the camera and also the port that is opened on the camera (port 80 in this example), so that the images can be viewed from the browser window.
The selected camera has been added to the selection list.
D-Link Systems, Inc.
82
DCS-6620G User’s Manual
Monitor Program (continued)

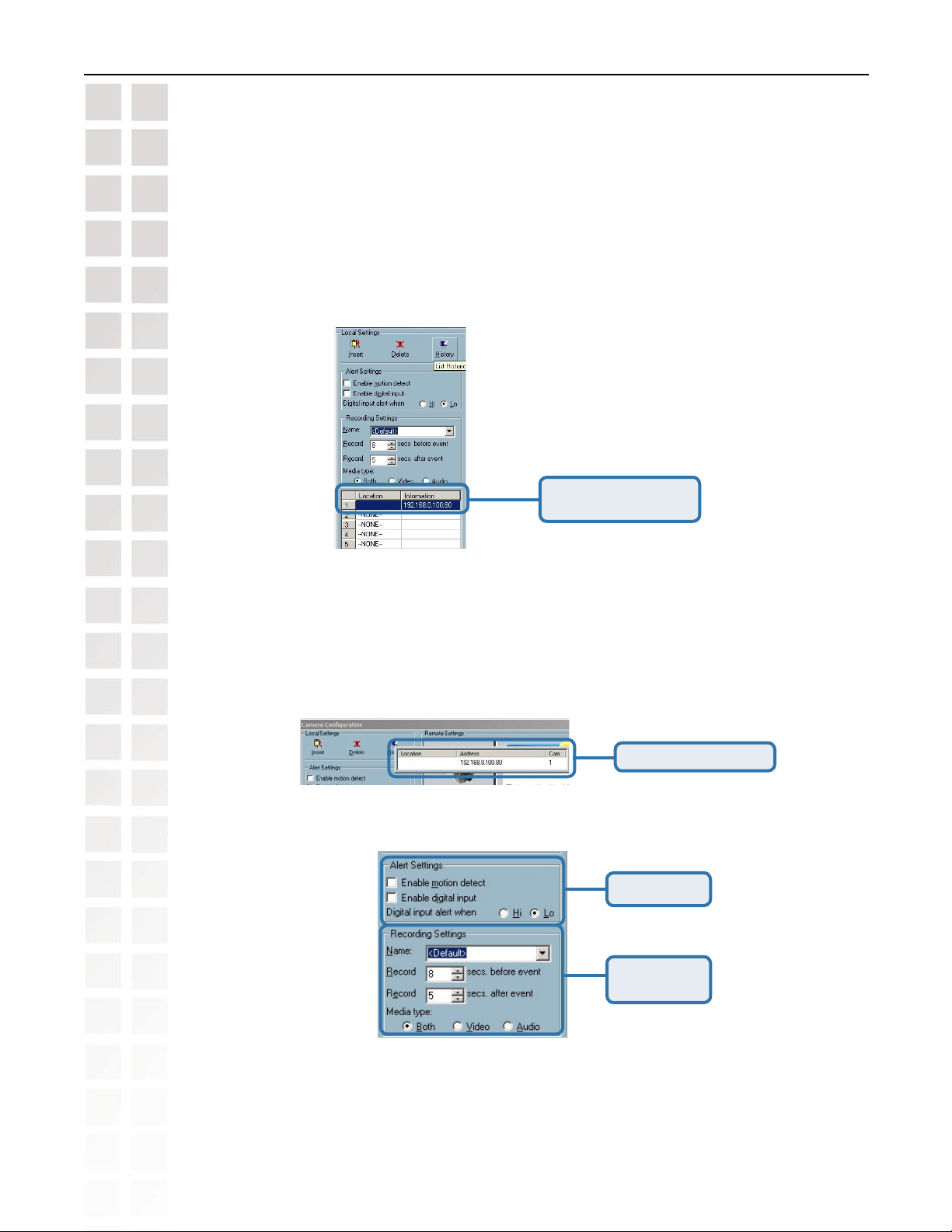

Delete – Removes the selected 802.11g PTZ Internet Camera from the camera list. Highlight
the camera that you want to delete from the list and click on the “Delete” button.
Using IP surveillance Software
The selected camera will be deleted.
History – Clicking the “History” button will popup a historical camera list, which lists the latest 16 cameras you inserted into the camera list. 16 is the default number; you can change the number of the latest installed cameras you want to keep in the registry. Clicking on one camera in the history list will insert the camera into the camera list. The historical camera list is shown
below.
Historical camera list
Alert and Recording Settings
Alert Settings
Recording Settings
D-Link Systems, Inc.
83
DCS-6620G User’s Manual
Monitor Program (continued)
Alert Settings:
Specific alert actions can be performed by setting the options in this window.
Using IP surveillance Software
Recording Settings:
Enable motion detect This will trigger an alert sound that has been specified in the section titled “Global Settings \ Alert Sound.” Check this option for this video channel to
enable audio alert.
Enable digital input
This function is similar with “Enable Motion Detect” mentioned above. Once this option has been checked, a digital input device will be able to trigger an
alert sound and recording.
Digital input alert
This application software provides options for you to define the triggering criteria for the digital input of the DCS-6620G. The alert of the digital input can
be defined as high-level triggered or low-level triggered.
Record # secs. before event
Once the automatic video recording has been activated, you can apply this setting to regulate the time for recording the triggered event. Recording will
start from the limited time before the alert event has been invoked.
D-Link Systems, Inc.
Record # secs. after event
Recording will last for the limited time after the alert event has been invoked.
Media Type
You can specify which media type you want to record, Video, Audio, or both.
84
DCS-6620G User’s Manual
Monitor Program (continued)
Changing the Camera Order in the List
You can apply “drag and drop” in the grid area of the camera list to change the sequence of the connected Internet Cameras, which is shown below. This will enable you to rearrange the camera order of your choice. Once the camera is moved to a specified location, the proceeding cameras will then move 1 position up or 1 position down depending on which direction the selected camera was moved.
Step 1: Step 2:
Using IP surveillance Software
Press the left mouse button at the gray index field.
Once you click the “Save” button in the left-bottom corner of this window, the changes for all camera configurations will be saved and will validate immediately in the IP surveillance.
NOTE: If you change the remote settings of the Internet cameras in the right webpage of this window, you need to apply the “SAVE” button in each corresponding page in order to save the settings to the cameras. There are different “SAVE” buttons for changing the settings of the local IP surveillance system and the remote Video Server/802.11g PTZ Internet Camera
series product respectively.
Move the mouse to your new selected location and release the mouse button. Then Video 1 will be moved (to the 12th row in this example).
D-Link Systems, Inc.
85
DCS-6620G User’s Manual
Monitor Program (continued)

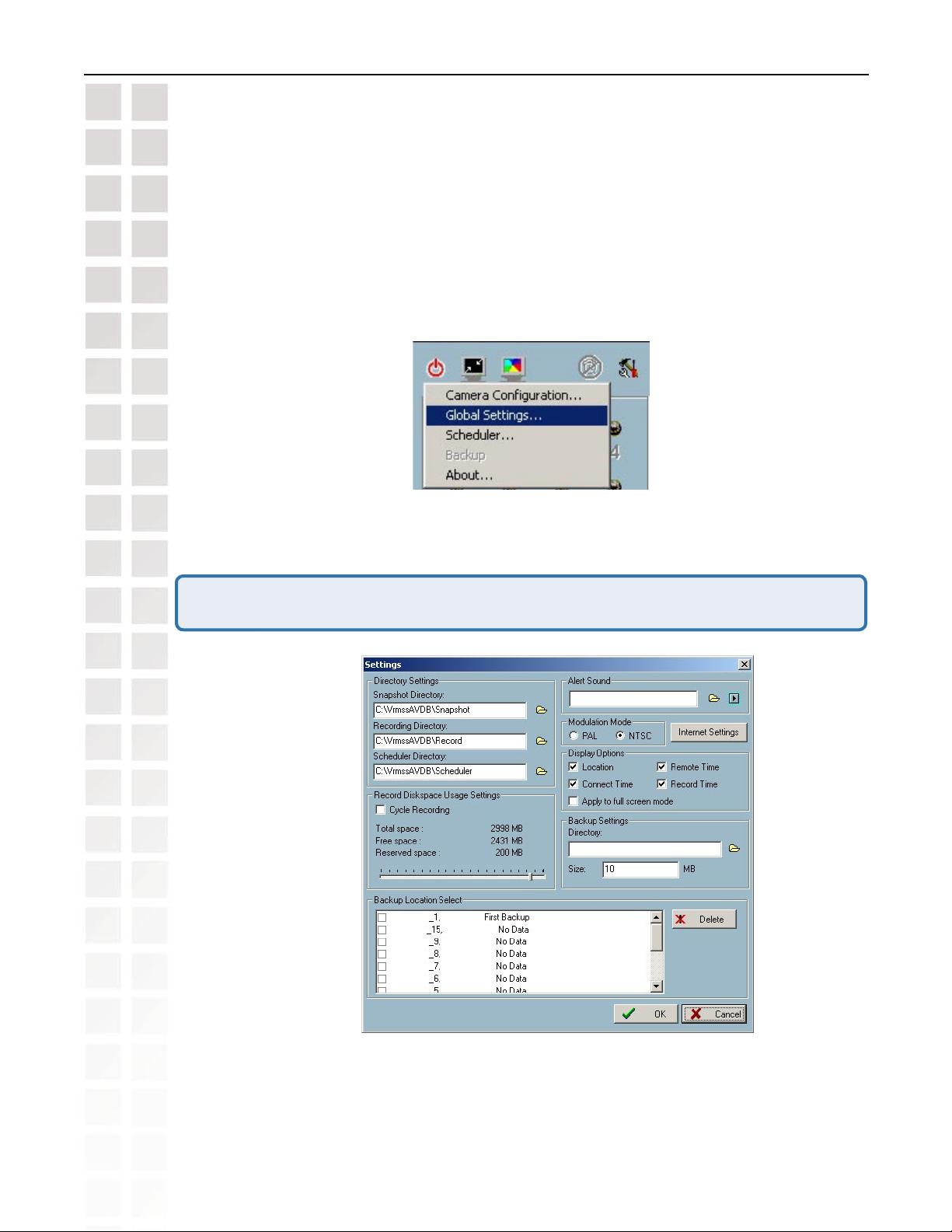

Global Settings
After completing the connection for each remote 802.11g PTZ Internet Camera, we need to configure some global settings for all the cameras. These include the video database directory, the usage of the Hard disk, and options for video display.
You can activate the global settings window from “Configuration Menu > Global Settings...” shown above.
Using IP surveillance Software
All recording processes will be stopped when activating the global settings window, indicated by a warning window popped up in advance to keep you informed.
D-Link Systems, Inc.
86
DCS-6620G User’s Manual
Monitor Program (continued)
Directory Settings:
Using IP surveillance Software
Record Diskspace Usage Settings:
Snapshot directory
The directory for storing the snapshot in *.bmp format from video channels of the monitor tool and the playback tool, which is shown on page 86.
Recording directory
The directory for storing the recorded video data from remote video channels.
Scheduler directory
The directory for storing the default and user-customized plots for the recording schedule of each channel.
Cycle Recording
When you turn this setting on, the video database system of this application software will overwrite the oldest data if the usage of the database has reached your limitation. That means it will record video data in a loop. If this setting is unchecked, a warning message will pop up when it is approaching the storage space limit. All recording will stop when the limit of the hard disk usage is
reached.
D-Link Systems, Inc.
Reserved space
Indicate the size of the hard disk that will be reserved for other Windows applications (at least 15%). The remainder of the hard disk space will be available for recording. The more space you have reserved, the less there will be available for your camera(s) to record to. As you move the bar to the right, more space will be available for your camera(s) and conversely, less space will be available for your other applications. If the recording data exceeds this limitation, the new video data will replace the oldest data (on a First In First
Out (FIFO) basis) when “Cycle Recording” has been checked.
Alert Sound
You can load a custom *.wav file for the sound of alert triggering. You can also select from the sound file in Windows.
87
DCS-6620G User’s Manual
Monitor Program (continued)
Using IP surveillance Software

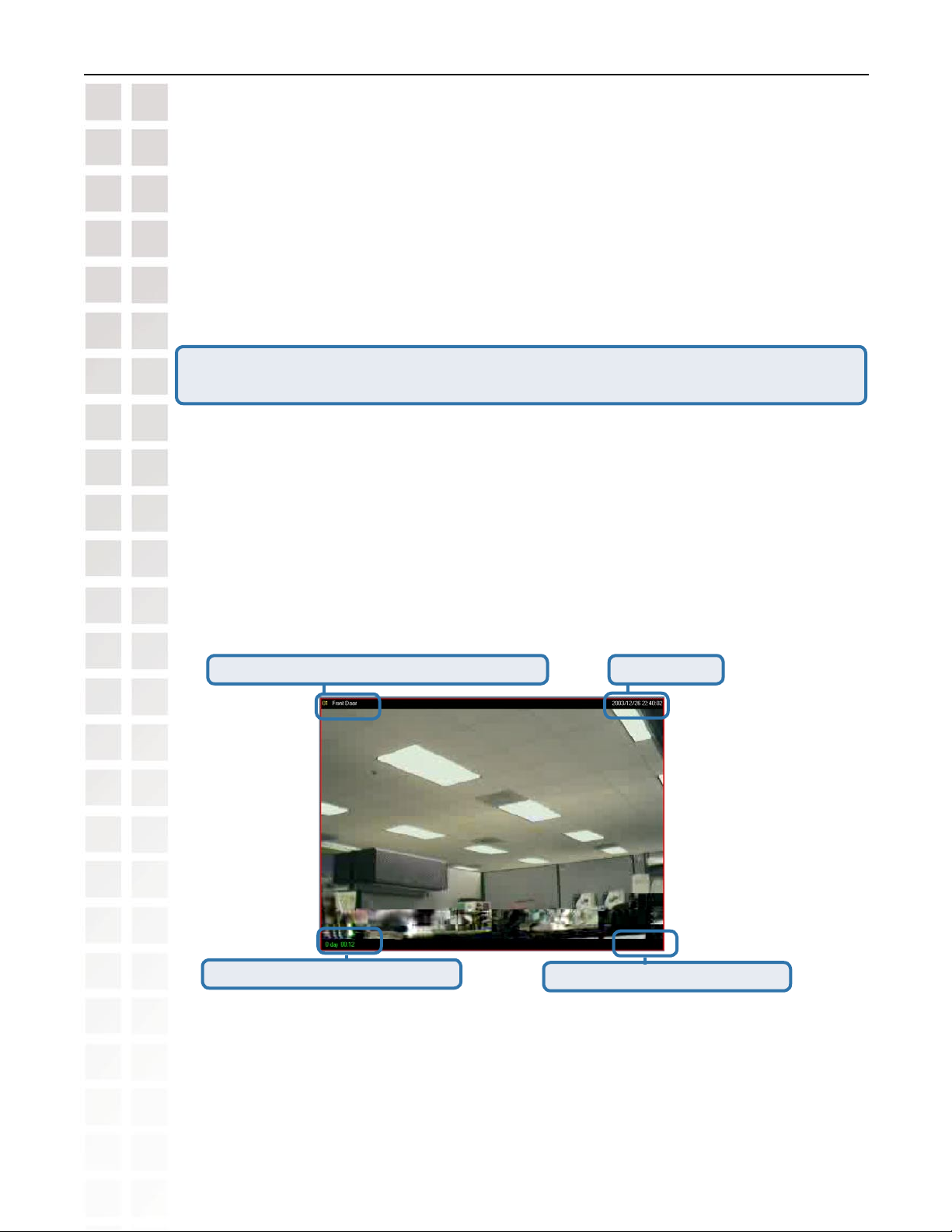

NOTE: You need to select the input signal format according to the camera type or CCD module type that is connected to the DCS-6620G.
Display Options:
In the video displaying frame of each channel, there are two status bars. The upper bar contains “Camera location” and “time of the remote site.” The lower bar contains “Connection time” and “Recording time.” All of them, shown in the figure below, can be enabled or disabled here individually for the status indication. Apply to full screen mode can also be turned on here. Once it has been checked, the status bar in each channel showing date, location, connection, and recording time will be shown in both display frame mode and full screen mode.
Location (channel number + camera name)
Modulation Mode
You must select the input signal format (NTSC or PAL) for displaying the original resolution of video stream from DCS-6620G. If you are not sure which format to select, then leave the input signal format at it’s default (NTSC).
Remote Time
Connection Time (Day:Hour:Min)
D-Link Systems, Inc.
0 day 00:01
Recording Time (Day:Hour:Min)
88
DCS-6620G User’s Manual
Monitor Program (continued)
Backup Settings:
Using Backup Settings in the global settings window, you can backup recorded data from selected cameras to a specified location.
Using IP surveillance Software
After you have set your backup settings in the global settings window, you can backup recorded data by clicking “Backup” in the Configuration Menu, as seen below:
Directory
This is the directory where backup data will be saved. You can select the location by clicking on the folder icon.
Size
You can set the size limit of the data that will be backed up. The default size limit is 10MB. The maximum value for this setting depends on the amount of Free Space available on your hard drive. This value can be found under the
“Record Disk space Usage Settings” section of the global settings window.
Backup Location Select
Select the locations to backup by clicking the checkbox next to the location/ camera name. To delete a location, select the location and click the “Delete” button to the right of the Backup Location Select window.
D-Link Systems, Inc.
89
DCS-6620G User’s Manual
Monitor Program (continued)
Using the Monitor Program
This section depicts, in detail, how to manipulate the monitor tool.
Connection of the DCS-6620G
Channel:
Once you have the privilege to connect to the DCS-6620G, the cameras will automatically appear in the video area in the order they are connected. Once you have set up the camera in the video channel, the color of the channel number will turn blue, indicating that the camera has been added to IP surveillance. If you do not set up the camera for the video channel, the color of the channel number will be gray.
There is a unique light signal associated with each channel number. It indicates the status of the dedicated video channel, which is depicted as follows:
Using IP surveillance Software
Off The video channel is not connected with any DCS-6620G yet.
Green
The green light means the DCS-6620G associated with this channel number is connected, and the video is monitored in the video area.
Red
The red light indicates the video from this channel is recording into the video database. In this mode, you don’t have to drag and drop the channel to the video area. This means that this application software supports real-time recording
with and without real-time monitoring for the dedicated video channel.
Blink With the motion detection mechanism set in the DCS-6620G, the light of the corresponding channel will blink once the motion event is triggered.
D-Link Systems, Inc.
90
DCS-6620G User’s Manual
Monitor Program (continued)
Using IP surveillance Software
Selected Channel
Recording
Connected and monitoring
5
9
13
Not configured channel
Configured but not connected (no video)
Trashcan
If you do not want to monitor one video, you can drag and drop the video (in the video area) to the trashcan in the common control area of the monitor program. The following section will demonstrate the procedures for “drag and drop” step-by-step.
Show the video of a specified channel
This section depicts the method of how to show the video of a specific channel in a display window.
Step 1: Move the mouse cursor to the display window shown below.
Mouse cursor
Location hint
D-Link Systems, Inc.
Display window
Video 1
91
DCS-6620G User’s Manual
Monitor Program (continued)

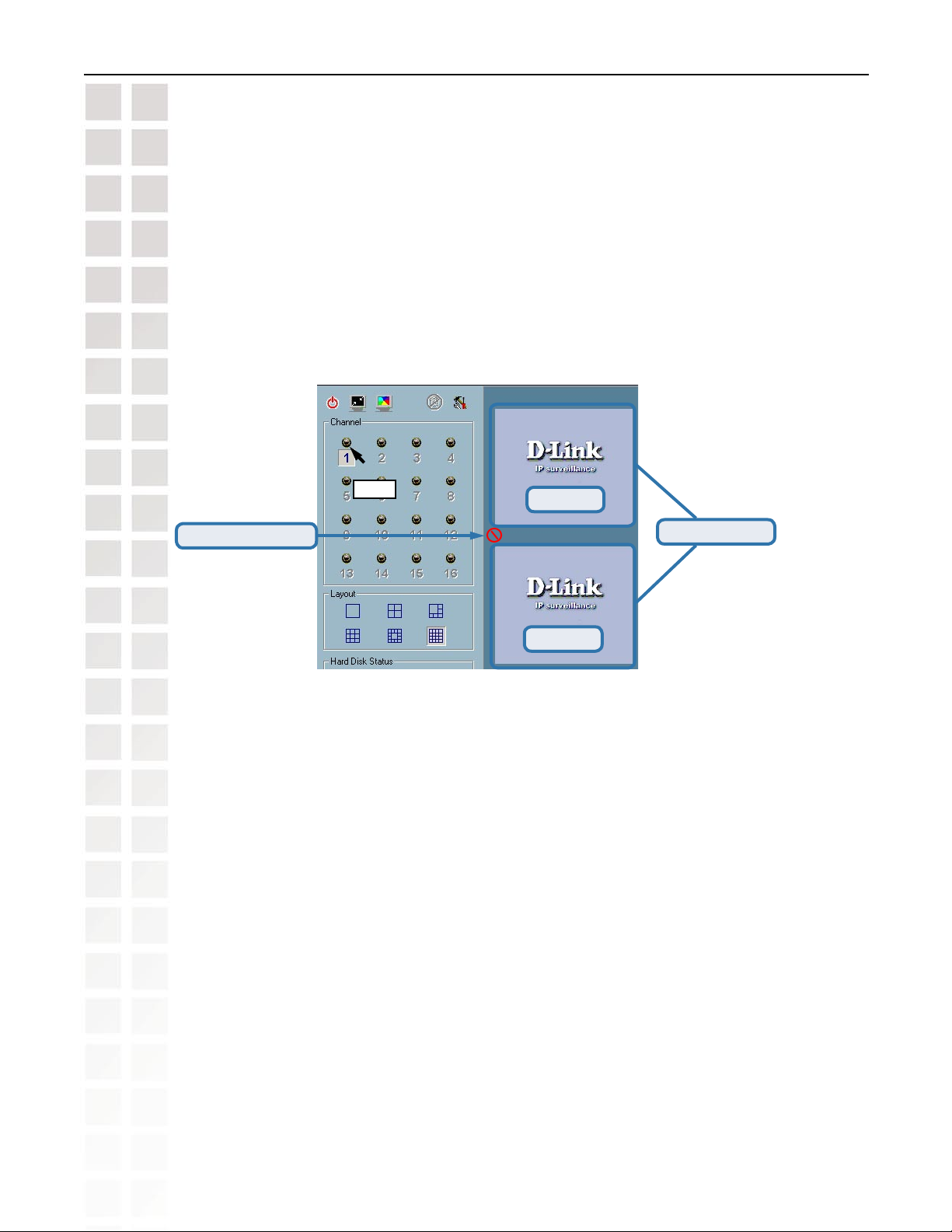

Step 2: Press and hold the left mouse button, and then move the cursor to a display window in
the video area, which is shown below. Note that the cursor will change according to the area in order to indicate whether the area is droppable or not.
Using IP surveillance Software
Video 1
Not droppable area
Window
Droppable area
Window B
Step 3: Release the left mouse button while on top of a display window. In each display layout,
only one window can be assigned to a camera. Also, each camera must have its own separate window when displayed. Once the video is in a display window, it can be dragged and dropped to other windows. If you drag one camera’s video to a window that already has its own camera’s video, the two cameras will trade display windows. Dragging and Dropping is a very convenient way to manipulate the video channels in the IP surveillance Software.
D-Link Systems, Inc.
92
DCS-6620G User’s Manual
Monitor Program (continued)
Using IP surveillance Software
Video shown
Empty video box
Removing video from a display window
Step 1: Move the mouse cursor to the display window that contains the video channel you
wish to remove.
Step 2: Note that the cursor will change to the hand-shape when it has been moved onto the
displaying frame. After that, press the left mouse button and hold it.
Step 3: Move the cursor, while still holding the left mouse button, to the trashcan in the common
area of the monitor program.
Step 4: When the cursor shape changes to an arrow-shape over the trashcan, release the left
mouse button. The video in the corresponding display window will disappear. All operations above are shown in the figure on the following page.
D-Link Systems, Inc.
93
DCS-6620G User’s Manual
Monitor Program (continued)
Press and hold the left mouse button here.
Using IP surveillance Software
Move the mouse cursor here, and then release the left mouse button.
The Layout
There are six different layouts available, as shown below, for the display windows in the monitor program. You can select one of them by clicking on a layout icon. In each layout, you can drag and drop the “channel number” to any display window in the video area. Following the procedures described in the section titled “Show the video of a specified channel”, you can add the video channels to display windows within the selected layout one by one. You can also exchange the video between different display windows by dragging and dropping.
4 camera layout
1 camera layout
6 camera layout
16 camera layout
9 camera layout
D-Link Systems, Inc.
13 camera layout
94
DCS-6620G User’s Manual
Monitor Program (continued)
Double click a display window to switch to a single channel layout.
Using IP surveillance Software
When you choose the one-camera layout or four-camera layout, the “Page up” and “Page down” buttons will be shown in the left-bottom corner of the video area. You can use these
two buttons to switch the pages, as shown in the figure below.
Use to switch between cameras.
D-Link Systems, Inc.
95
DCS-6620G User’s Manual
Monitor Program (continued)
To view an individual camera from the multi-camera layout, double-click on the desired display window. You will see that the size of the display window is the same as the one-channel layout. Clicking the “Back” button in the upper-left corner of the video area will switch to the previous selected multi-camera layout.
The position that each video channel is in for every layout will be saved for the next time the layout is selected.
Back to previous layout.
Using IP surveillance Software
Back
Input/Output Control Tools
Pan/Tilt control
Digital Input/Digital Output
D-Link Systems, Inc.
Alert Message
96
DCS-6620G User’s Manual
Monitor Program (continued)
IP surveillance includes pan/tilt control, DI/DO (Digital Input / Digital Output) control, and an alert message receiver. Each of these are described in detail below.

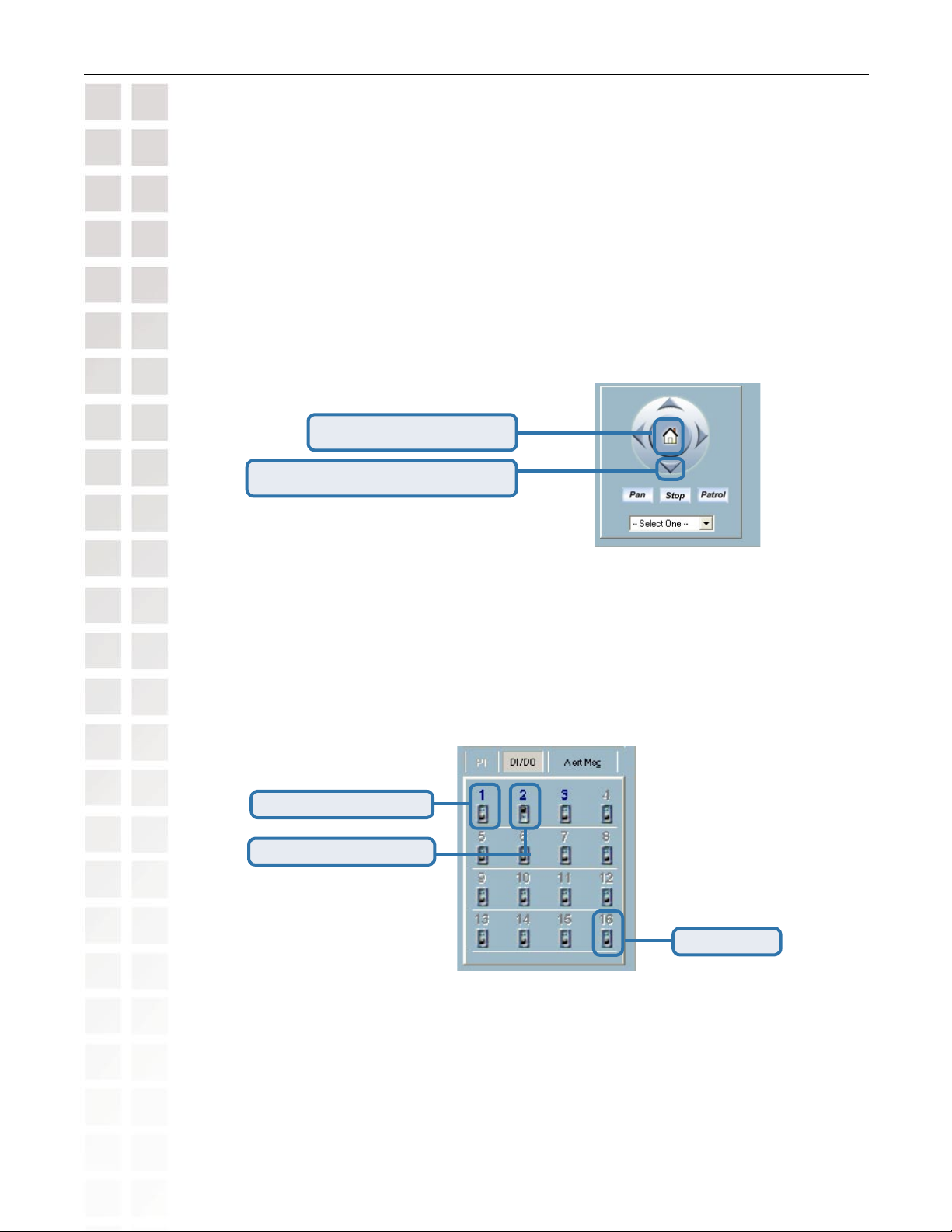

PTZ Control
Refer to the following figure to use the pan and tilt controls.
Tilt/navigate camera using arrows.
Using IP surveillance Software
Return to home position.
Pan – Pans the camera one full cycle. Stop – Stops movement of the camera during pan. Patrol – Enables the Auto Patrol feature. Pull down menu – Select a preset position to move the camera to.
DI/DO Control
Clicking on the “DI/DO” button shown below, you can switch to the DI/DO controls. The color of the channel number indicates the status of the camera’s DI (Digital Input). You can click the “Switch button” to change the HI/LOW state of the DO (Digital Output). With these features,
you can monitor the remote sensor input from DI and also trigger the camera by DO switch.
Set digital output to LOW
Set digital output to HIGH
No connection
When the color of a DI/DO number is gray, that means the video has not yet been connected to a camera.
D-Link Systems, Inc.
97
DCS-6620G User’s Manual
Monitor Program (continued)
Alert Message
Using IP surveillance Software
If you have checked the box for “Enable Motion Detect” or “Enable Digital Input” on “Camera Configurations > Alert Settings“ screen, the alert message will show in the window shown above. Once the alert, caused by motion detection or a digital input level changer, is triggered, the alert message will be shown in this window. If there are more events than this window can display, a scroll bar will appear.
The message format is described as follows:
“time”=>”alert type” #”channel number”(“win1”,”win2”,”win3”)
For example, the message “PM 02:41:00=>MO #1(0,1,1)” means that this is a motion detection alert occurring at 02:41:00 PM in Motion Window 2 and Motion Window 3, for camera #1. If the message “PM 02:41:56=>DI #1” is listed, that means there is an alert triggered by the DI,
for camera #1, at 02:41:56 PM .
D-Link Systems, Inc.
98
DCS-6620G User’s Manual
Monitor Program (continued)

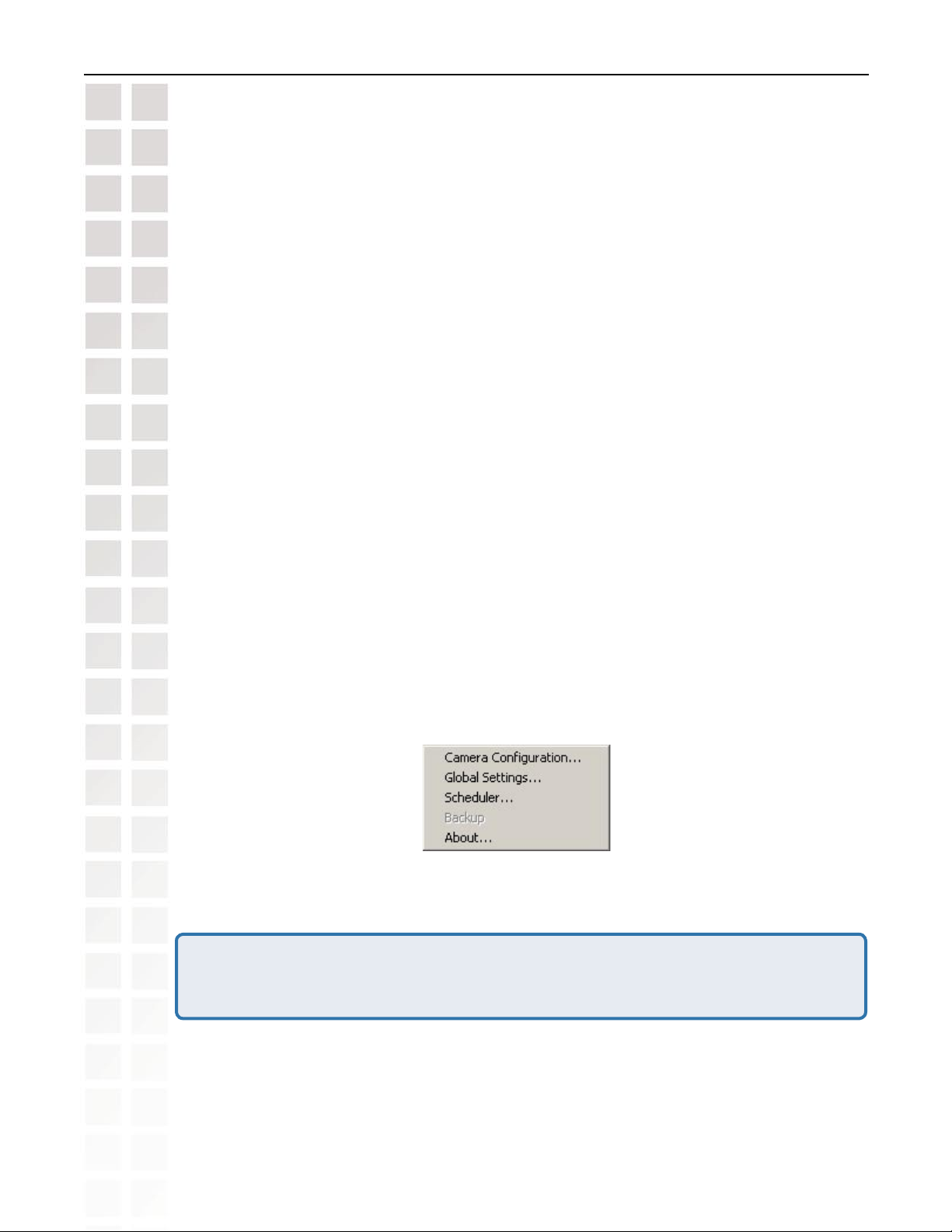

About
By choosing “About”, located in the configuration menu shown below, a dialog box will appear and display the information about the installed version of IP surveillance. The information includes the software name, version, user name, and company.
Using IP surveillance Software
Miscellaneous Functions
Full Screen
Quit
Minimize
This section will describe some other miscellaneous functions of the icons shown above. These functions are:
Quit
By clicking this button, IP surveillance will be closed with the latest settings saved.
Minimize
Minimize the Monitor application.
Stop Alert Sound
Configuration Menu
D-Link Systems, Inc.
99
DCS-6620G User’s Manual
Monitor Program (continued)
Using IP surveillance Software
Full Screen
With this function, you can enlarge the selected video channel to a full-screen display. Press the “ESC” key on the keyboard or double-click the mouse on the screen to return to a regular display.
Stop Alert Sound
If an alert is triggered, the alert sound will start to play. After being informed of the situation, you can press this button to stop the alert sound. It will also switch the I\O Control to the Alert Message Receiver, so that the alert messages can
be reviewed.
Configuration Menu The menu includes Camera Configuration, Global Settings, Scheduler, and
About options.
Common Control Functions
Stop Record
Volume
Record
This section will describe the common control functions, shown above, which are depicted by the small icons. These functions only apply to the currently selected channel. These functions are:
Volume Control Click on this button to adjust your volume settings.
Print
Trash can
Snapshot
D-Link Systems, Inc.
100
Loading...
