Version 1.00 | 11/26/2013
User Manual
HD Wireless Mini Dome Network Camera
DCS-6005L
Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or
organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and
change. Please refer to the www.mydlink.com website for the most current information.
Manual Revisions
Revision Date Description
1.0 October 25, 2013
DCS-6005L Revision A1 with firmware version 1.00
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other
countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2013 D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation.
D-Link DCS-6005L User Manual
2
Table of Contents
Package Contents ................................................................. 4
Introduction ............................................................................5
System Requirements ......................................................... 5
Features ....................................................................................6
Hardware Overview ............................................................. 7
Front ...................................................................................... 7
Installation ......................................................................................8
Wireless Installation Considerations (DCS-6005L
Only) .......................................................................................... 8
Camera Installation Wizard ............................................... 9
Windows Users ...................................................................... 9
Mac Users...............................................................................10
Hardware Installation ........................................................11
Mounting the Camera .......................................................12
Adjusting the Viewing Angle ..........................................13
mydlink ...........................................................................................14
Conguration ...............................................................................15
Audio and Video ..............................................................31
Preset ...................................................................................33
Motion Detection ...........................................................35
Time and Date ..................................................................37
Event Setup .......................................................................38
SD Card ...............................................................................46
ICR ........................................................................................47
HTTPS ..................................................................................48
Access List ..........................................................................49
Maintenance .........................................................................50
Device Management .....................................................50
System ................................................................................52
Firmware Upgrade ..........................................................53
Status ......................................................................................54
Device Info ........................................................................54
Logs .....................................................................................55

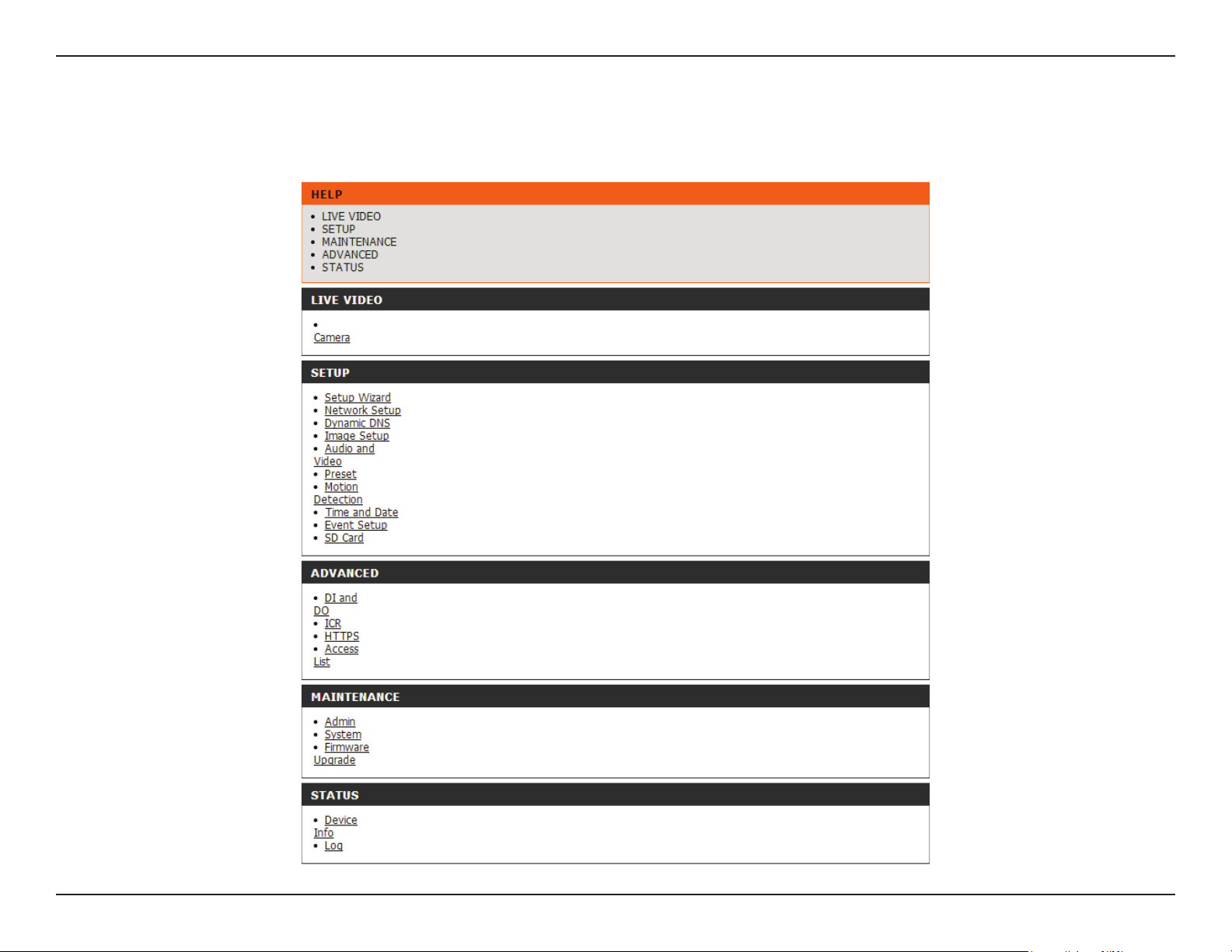

Help......................................................................................56
Using the Conguration Interface ................................15
Live Video ..............................................................................16
Setup .......................................................................................17
Setup Wizard ....................................................................17
Network Setup .................................................................23
Wireless Setup .................................................................27
Dynamic DNS ...................................................................28
Image Setup .....................................................................29
D-Link DCS-6005L User Manual
Technical Specications ...........................................................57
3
Section 1: Product Overview
DCS-6005L HD Wireless Mini Dome Network Camera
CAT5 Ethernet Cable
Power Adapter
Camera Accessories (Audio extension cable, female Ethernet connector, and mounting alignment guide)
Product Overview
Package Contents
CD-ROM with User Manual and Software
Quick Installation Guide
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage than the one included with your product will cause damage and void the warranty for this
product.
D-Link DCS-6005L User Manual
4
Section 1: Product Overview
Introduction
Congratulations on your purchase of the DCS-6005L HD Wireless Mini Dome Network Camera. The DCS-6005L is a versatile
and unique solution for your small office or home. Unlike a standard webcam, the DCS-6005L is a complete system with a
built-in CPU and web server that transmits high quality video images for security and surveillance. The DCS-6005L can be
accessed remotely, and controlled from any PC/Notebook over your local network or through the Internet via a web
browser.
System Requirements
• Computer with Microsoft Windows® 8/7/Vista/XP, or Mac with OS X 10.6 or higher
• PC with 1.3GHz or above; at least 128MB RAM
• Internet Explorer 7, Firefox 12, Safari 4, or Chrome 20 or higher version with Java installed and enabled
• Existing 10/100 Ethernet-based network or 802.11n wireless network
• A MicroSD memory card (optional) is required for recording to onboard storage. SDHC Class 6 or above is recommended.
• Broadband Internet connection
D-Link DCS-6005L User Manual
5
Section 1: Product Overview
Features
Simple to Use
The DCS-6005L is a stand-alone system with a built-in CPU, requiring no special hardware or software. The DCS-6005L supports both ActiveX
mode for Internet Explorer and Java mode for other browsers such as Chrome®, Firefox®, and Safari®.
Supports a Variety of Platforms
Supporting TCP/IP networking, HTTP, and other Internet related protocols. The DCS-6005L can also be integrated easily into other network
applications because of its standards-based features.
802.11n Wireless or Ethernet/Fast Ethernet Support
The DCS-6005L offers Power over Ethernet/Fast Ethernet connectivity or wireless 802.11n connectivity, making the DCS-6005L easy to integrate
into your existing network environment. The DCS-6005L works with 10Mbps Ethernet networks or 100Mbps Fast Ethernet networks for
traditional wired environments, and works wirelessly with 802.11n routers and access points for added flexibility. The Site Survey feature also
allows you to view and connect to any available wireless networks.
Web Con
Using a standard Web browser, administrators can configure and manage the Network Camera directly from its own Web page via Intranet
or Internet. This means you can access your DCS-6005L anytime, anywhere in the world.
Broad Range of Applications
With today’s high-speed Internet services, the Network Camera can provide the ideal solution for delivering live video images over the Intranet and
Internet for remote monitoring. The Network Camera allows remote access using a Web browser for live image viewing, and allows the administrator
to manage and control the Network Camera anytime, anywhere in the world. Many applications exist, including industrial and public monitoring
of homes, oces, banks, hospitals, child-care centers, and amusement parks.
Remote Monitoring Utility
The D-ViewCam application adds enhanced features and functionality for the Network Camera and allows administrators to congure and access
the Network Camera from a remote site via Intranet or Internet. Other features include image monitoring, recording images to a hard drive, viewing
up to 32 cameras on one screen, and taking snapshots.
IR LED for Day and Night Functionality
The built-in infrared LEDs enables night time viewing of up to 16 feet (5 meters).
guration
D-Link DCS-6005L User Manual
6
Section 1: Product Overview
Hardware Overview
Front
DCS-6005L
1
2
3
4
5
1 IR LED
2 microSD Card Slot Used to add storage for recording
3 Status LED
4 WPS LED
5 WPS Button
6 Camera Sensor HD-capable CMOS sensor
Used to illuminate the camera's eld of view at night
Indicates the camera's current status
Indicates the current status of WPS
Used to initialize WPS mode on the camera
6
D-Link DCS-6005L User Manual
7
Section 2: Installation
Installation
Wireless Installation Considerations (DCS-6005L Only)
This D-Link device can connect to your wireless network from anywhere within the operating range of your wireless network. However, the number,
thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary
depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range
is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between your adapter and other network devices (such as your Network Camera) - each wall or
ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet
(1 meter) thick. At a 2-degree angle, it looks over 42 feet (14 meters) thick. Position your devices so that the signal will travel straight through
a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may weaken the wireless signal. Try to position your access points,
wireless routers, and other networking devices where the signal passes through drywall or open doorways. Materials and objects such as
glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product at least 3-6 feet or 1-2 meters away from electrical devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones or other radio frequency sources (such as microwave ovens), your wireless connection may degrade
dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits
a signal even if the phone in not in use.
D-Link DCS-6005L User Manual
8
Section 2: Installation
Camera Installation Wizard
Windows Users
Insert the installation CD-ROM into your computer’s optical drive to start the Autorun program.
Simply click Set up your Cloud Camera to go through the Setup Wizard, which will guide you step-by-step through the
installation process from connecting your hardware to conguring your camera and registering it with your mydlink account.
Note: If the Autorun program does not open, go to My Computer, browse to your CD drive, and double-click
on the autorun.exe le.
D-Link DCS-6005L User Manual
9
Section 2: Installation
Mac Users
Insert the installation CD-ROM into your computer’s CD drive. On the desktop, open your CD drive and
double-click on the Setup_Wizard le.
Within 20-30 seconds, the Setup Wizard will open, which will guide you step-by-step through the installation process from
connecting your hardware to conguring your camera and registering it with your mydlink account.
Note: mydlink Web portal requires JavaTM to function correctly.
For more guidelines, please refer to mydlink FAQ pages at https://www.mydlink.com/faq/mydlink
D-Link DCS-6005L User Manual
10
Section 2: Installation
Hardware Installation
Please refer to the steps below to assist you with hardware installation process for the camera.
Remove the Camera Housing
The camera housing needs to be separated from the camera base to expose
the screw used to adjust the viewing angle. Remove the camera housing from
the camera base by squeezing the housing release buttons on either side of the
camera. Once the housing is released, lift it up and o the camera base to expose
the Ethernet and power receptor.
Connect the Ethernet Cable
Connect the included Ethernet cable to the network cable connector located
on the panel at the rear of the DCS-6005L and attach it to the network.
Attach the External Power Supply
Attach the external power supply to the DC Power receptor located on the
rear panel of the DCS-6005L and connect it to your wall outlet or power strip.
Reattach the Camera Housing
Reattach the camera housing by lining up the housing so that the access port
on the housing matches the access port on the camera base. Firmly push down
until the camera housing snaps back onto the camera base.
D-Link DCS-6005L User Manual
11
Section 2: Installation
Mounting the Camera
Please refer to the steps below to assist you with mounting the camera.
We suggest that you congure the camera before mounting.
1. The camera needs to be separated from the mounting base to expose the holes in the
mounting base. Remove the camera head from the mounting base by firmly holding the
camera with the D-Link logo facing you and then sliding the mounting base towards you.
2. Place the mounting base alignment sticker where you want to position the camera.
Depending on the material of the wall or ceiling, use proper tools to drill two holes where
you placed the alignment sticker. If the wall is made out of concrete, drill the holes rst, then
insert the plastic anchors to support the screws.
3. Place the mounting base over the holes that are in the wall. Make sure to align the mounting
base holes with the holes in the wall. Use the supplied screws to attach the mounting base to
the surface of the wall.
Do not overtighten screws as this may crack the mount.
4. With the D-Link logo facing you, reattach the camera to the mounting plate by sliding the
camera towards you until it locks into position.
1
2
453
4
5. Adjust the angle of the camera as desired, then tighten the collar on the camera stem to lock
it in place.
D-Link DCS-6005L User Manual
12
Section 2: Installation
Please refer to the steps below to assist you with adjusting the viewing angle of the camera.
We suggest that you congure the camera before mounting.
1. The camera housing needs to be separated from the camera base to expose the screw used to
adjust the viewing angle. Remove the camera housing from the camera base by squeezing the
housing release buttons on either side of the camera.
Adjusting the Viewing Angle
1
2. Lift the camera housing up o the camera base once the housing has been released.
3. Use a philips head screwdriver to loosen the retaining screw used to secure the viewing angle of
the camera lens.
4. Manually adjust the viewing angle back and forth to your desired location.
5. Use a philips head screwdriver to tighten the retaining screw used to secure the viewing angle of
the camera lens.
Do not overtighten screw as this may crack the mount.
6. Reattach the camera housing by lining up the housing so that the access port on the housing
matches the access port on the camera base. Firmly push down until the camera housing snaps
back onto the camera base.
2
3
4
5
6
7. Refer to "Mounting the Camera" on page 12 to learn how to correctly mount the camera to its
permenant location.
D-Link DCS-6005L User Manual
13
Section 3: mydlink
mydlink
After registering your DCS-6005L camera with a mydlink account in the Camera Installation Wizard. You will be able to
remotely access your camera from the www.mydlink.com website. After signing in to your mydlink account, you will see a
screen similar to the following:
For more details on using your camera with mydlink, go to the Support section of the mydlink website and check the User
Manual section for your product to nd the latest instruction guide for your camera's mydlink features.
D-Link DCS-6005L User Manual
14
Section 4: Conguration
Conguration
Using the Conguration Interface
After completing the Camera Installation Wizard, you are ready to use your camera. The camera’s built-in Web configuration utility is designed to
allow you to easily access and configure your DCS-6005L. At the end of the wizard, enter the IP address of your camera into a web browser, such
as Mozilla Firefox. To log in, use the User name admin
the default password is blank. After entering your password, click OK.
and the password you created in the Installation Wizard. If you did not create a password,
D-Link DCS-6005L User Manual
15
Section 4: Conguration
Live Video
This section shows your camera’s live video. You may select any of the available icons listed below to operate the camera. You may also select your
language using the drop-down menu on the left side of the screen.
You can zoom in and out on the live video image using your mouse. Right-click to zoom out or left-click to zoom in on the image.
SD Status:
Motion Trigger
Indicator
Recording
Indicator
Control Pad
Auto Pan Starts the automatic panning function. The ROI will pan from
Stop Stops automatic panning.
Preset Path Starts the camera's motion along the predened path.
ePTZ Speed:
This option displays the status of the SD card. If no SD card has been
inserted, this screen will display the message "Card Invalid."
This indicator will change color when a trigger event occurs.
Note: The motion detection feature for your camera must be
enabled.
When a recording is in progress, this indicator will change
color.
This control pad can be used to electronically pan, tilt, and
zoom (ePTZ) within the camera's predened view area, if one
has been dened.
back and forth within the FOV
You may select a value between 0 and 5. 0 is the slowest and 5 is the
fastest.
Video Prole 1
Video Prole 2
Taking a Snapshot
Global View:
Language:
Go To:
(Preset List)
D-Link DCS-6005L User Manual
This window indicates the total eld of view (FOV) of the camera. The red
box indicates the visible region of interest (ROI).
You may select the interface language using this menu.
If any presets have been dened, selecting a preset from this list will
display it.
16
Section 4: Conguration
Setup
Setup Wizard
To congure your Network Camera, click Internet Connection Setup
Wizard. Alternatively, you may click Manual Internet Connection
Setup to manually congure your Network Camera and skip to
"Network Setup" on page 23.
To quickly congure your Network Camera’s motion detection settings,
click Motion Detection Setup Wizard. If you want to enter your
settings without running the wizard, click Manual Motion Detection
Setup and skip to"Motion Detection" on page 35.
D-Link DCS-6005L User Manual
17
Section 4: Conguration
Internet Connection Setup Wizard
This wizard will guide you through a step-by-step process to congure
your new D-Link Camera and connect the camera to the Internet. Click
Next to continue.
Note: Select DHCP if you are unsure of which settings to choose.
Click Next to continue.
D-Link DCS-6005L User Manual
18
Section 4: Conguration
Select Static IP if your Internet Service Provider has provided you with
connection settings, or if you wish to set a static address within your
home network. Enter the correct conguration information and click
Next to continue.
If you are using PPPoE, select Enable PPPoE and enter your user name
and password, otherwise click Next to continue.
If you have a Dynamic DNS account and would like the camera to
update your IP address automatically, select Enable DDNS and enter
your host information. Click Next to continue.
Enter a name for your camera and click Next to continue.
D-Link DCS-6005L User Manual
19
Section 4: Conguration
Congure the correct time to ensure that all events will be triggered as
scheduled. Click Next to continue.
If you have selected DHCP, you will see a summary of your settings,
including the camera's IP address. Please write down all of this
information as you will need it in order to access your camera.
Click Apply to save your settings.
D-Link DCS-6005L User Manual
20
Section 4: Conguration
Motion Detection Setup Wizard
This wizard will guide you through a step-by-step process to
congure your camera's motion detection functions.
Click Next to continue.
Step 1
This step will allow you to enable or disable motion detection, specify
the detection sensitivity, and adjust the camera’s ability to detect
movement.
You may specify whether the camera should capture a snapshot or a
video clip when motion is detected.
Please see the Motion Detection section on "Motion Detection" on
page 35 for information about how to congure motion detection.
Click Next to continue.
Step 2
This step allows you to enable motion detection based on a customized
schedule. Specify the day and hours. You may also choose to always
record whenever motion is detected.
Click Next to continue.
D-Link DCS-6005L User Manual
21
Section 4: Conguration
Step 3
This step allows you to specify how you will receive event notications
from your camera. You may choose not to receive notications, or to
receive notications via e-mail or FTP.
Please enter the relevant information for your e-mail or FTP account.
Click Next to continue.
Step 4
You have completed the Motion Detection Wizard.
Please verify your settings and click Apply to save them.
Please wait a few moments while the camera saves your settings and
restarts.
D-Link DCS-6005L User Manual
22
Section 4: Conguration
Network Setup
Use this section to congure the network connections for your camera. All relevant information must be entered accurately. After making any
changes, click the Save Settings button to save your changes.
DHCP:
Static IP Address:
IP Address:
Subnet Mask:
Default Router:
Select this connection if you have a DHCP server
running on your network and would like your
camera to obtain an IP address automatically.
If you choose DHCP, you do not need to ll out the
IP address settings.
You may obtain a static or xed IP address and
other network information from your network
administrator for your camera. A static IP address
may simplify access to your camera in the future.
Enter the xed IP address in this eld.
This number is used to determine if the destination
is in the same subnet. The default value is
255.255.255.0.
The gateway used to forward frames to
destinations in a dierent subnet. Invalid gateway
settings may cause the failure of transmissions to
a dierent subnet.
Primary DNS:
Secondary DNS:
D-Link DCS-6005L User Manual
The primary domain name server translates names
to IP addresses.
The secondary DNS acts as a backup to the primary
DNS.
23
Section 4: Conguration
Enable UPnP
Presentation:
Enable UPnP
Port Forwarding:
Enable PPPoE:
User Name /
Password:
HTTP Port:
Access Name for
Stream 1~3:
HTTPS Port:
Enabling this setting allows your camera to be
congured as a UPnP device on your network.
Enabling this setting allows the camera to add port
forwarding entries into the router automatically
on a UPnP capable network.
Enable this setting if your network uses PPPoE.
Enter the username and password for your PPPoE
account. Re-enter your password in the Conrm
Password eld. You may obtain this information
from your ISP.
The default port number is 80.
The default name is video#.mjpg, where # is the
number of the stream.
You may use a PC with a secure browser to connect
to the HTTPS port of the camera. The default port
number is 443.
RTSP Port:
Enable CoS:
D-Link DCS-6005L User Manual
The port number that you use for RTSP streaming
to mobile devices, such as mobile phones or PDAs.
The default port number is 554. You may specify
the address of a particular stream. For instance,
live1.sdp can be accessed at rtsp://x.x.x.x/video1.
sdp where the x.x.x.x represents the ip address of
your camera.
Enabling the Class of Service setting implements a
best-eort policy without making any bandwidth
reservations.
24
Section 4: Conguration
Enable QoS:
Enable IPV6:
Enabling QoS allows you to specify a trac priority
policy to ensure a consistent Quality of Service
during busy periods. If the Network Camera is
connected to a router that itself implements QoS,
the router's settings will override the QoS settings
of the camera.
Enable the IPV6 setting to use the IPV6 protocol.
Enabling the option allows you to manually set up
the address, specify an optional IP address, specify
an optional router and an optional primary DNS.
D-Link DCS-6005L User Manual
25
Section 4: Conguration
Enable Multicast
for stream
The DCS-6005L allows you to multicast each of
the available streams via group address and
specify the TTL value for each stream. Enter the
port and TTL settings you wish to use if you do
not want to use the defaults.
D-Link DCS-6005L User Manual
26
Section 4: Conguration
Wireless Setup
(DCS-6005L Only)
This section allows you to set up and congure the wireless settings on your camera. After making any changes, click the Save Settings button to
save your changes.
Site Survey:
SSID:
Wireless Mode:
Channel:
Authentication:
Click the Rescan button to scan for available wireless
networks. After scanning, you can use the dropdown box to select an available wireless network.
The related information (SSID, Wireless Mode, Channel,
Authentication, Encryption) will be automatically
lled in for you.
Enter the SSID of the wireless access point you wish
to use.
Use the drop-down box to select the mode of the
wireless network you wish to connect to. Infrastructure
is normally used to connect to an access point or
router. Ad-Hoc is usually used to connect directly to
another computer.
If you are using Ad Hoc mode, select the channel of
the wireless network you wish to connect to, or select
Auto.
Select the authentication you use on your wireless
network - Open, Shared, WPA-PSK, or WPA2-PSK.
Encryption:
D-Link DCS-6005L User Manual
If you use WPA-PSK or WPA2-PSK authentication, you
will need to specify whether your wireless network
uses TKIP or AES encryption. If you use Open or Shared
authentication, WEP encryption should be the setting.
Key:
If you use WEP, WPA-PSK, or WPA2-PSK authentication,
enter the Key (also known as password) used for your
wireless network.
27
Section 4: Conguration
Dynamic DNS
DDNS (Dynamic Domain Name Server) will hold a DNS host name and synchronize the public IP address of the modem when it has been modied.
A user name and password are required when using the DDNS service. After making any changes, click the Save Settings button to save your
changes.
Enable DDNS:
Server Address:
Host Name:
User Name:
Password:
Timeout:
Status:
Select this checkbox to enable the DDNS function.
Select your Dynamic DNS provider from the pull
down menu or enter the server address manually.
Enter the host name of the DDNS server.
Enter the user name or e-mail used to connect to
your DDNS account.
Enter the password used to connect to your DDNS
server account.
Enter the DNS timeout values you wish to use.
Indicates the connection status, which is
automatically determined by the system.
D-Link DCS-6005L User Manual
28
Section 4: Conguration
Image Setup
In this section, you may congure the video image settings for your camera. A preview of the image will be shown in Live Video.
Enable Privacy
Mask:
Anti Flicker:
Mirror:
Flip:
The Privacy Mask setting allows you to specify up
to 3 rectangular areas on the camera's image to be
blocked/excluded from recordings and snapshots.
You may click and drag the mouse cursor over the
camera image to draw a mask area. Right clicking
on the camera image brings up the following menu
options:
Disable All: Disables all mask areas
Enable All: Enables all mask areas
Reset All: Clears all mask areas.
If the video ickers, try enabling this setting.
This will mirror the image horizontally.
This will ip the image vertically. When turning Flip
on, you may want to consider turning Mirror on as
well.
Power Line:
White Balance:
D-Link DCS-6005L User Manual
Select the frequency used by your power lines to
avoid interference or distortion.
Use the drop-down box to change white balance
settings to help balance colors for dierent
environments. You can choose from Auto, Outdoor,
Indoor, Flourescent and Push Hold.
29
Section 4: Conguration
Exposure Mode:
Denoise:
Brightness:
Contrast:
Saturation:
Changes the exposure mode. Use the drop-down
box to set the camera for Auto, Indoor, Outdoor,
Night Environments, or to Moving to capture
moving objects. The Low Noise option will focus on
creating a high-quality picture without noise. You
can also create 3 dierent custom exposure modes.
The Max Gain setting will allow you to control the
maximum amount of gain to apply to brighten the
picture.
This setting controls the amount of noise reduction
that will be applied to the picture.
Adjust this setting to compensate for backlit
subjects.
Adjust this setting to alter the color intensity/
strength.
This setting controls the amount of coloration, from
grayscale to fully saturated.
Sharpness:
Reset Default:
D-Link DCS-6005L User Manual
Specify a value from 0 to 8 to specify how much
sharpening to apply to the image.
Click this button to reset the image to factory default
settings.
30
Section 4: Conguration
Audio and Video
You may congure up to 2 video proles with dierent settings for your camera. Hence, you may set up dierent proles for your computer and
mobile display. In addition, you may also congure the two-way audio settings for your camera. After making any changes, click the Save Settings
button to save your changes.
Mode:
Frame size / View
window area:
Maximum frame
rate:
Set the video codec to be used to JPEG, MPEG-4,
or H.264.
Frame size determines the total capture resolution,
and View window area determines the Live Video
viewing window size. If the Frame size is larger than
the Live Video size, you can use the ePTZ controls
to look around.
16:9 1280 x 800, 1280 x 720, 800 x 450,
640 x 360, 480 x 270, 320 x 176
4:3 1024 x 768, 800 x 600, 640 x 480,
480 x 360, 320 x 240
Note: If your View window area is the same as your
Frame size, you will not be able to use the ePTZ
function.
A higher frame rate provides smoother motion for
videos, and requires more bandwidth. Lower frame
rates will result in stuttering motion, and requires
less bandwidth.
D-Link DCS-6005L User Manual
31
Section 4: Conguration
Video Quality:
Constant bit
rate:
Fixed quality:
Encoding:
Audio in o:
This limits the maximum frame rate, which can
be combined with the "Fixed quality" option to
optimize the bandwidth utilization and video
quality. If xed bandwidth utilization is desired
regardless of the video quality, choose "Constant
bit rate" and select the desired bandwidth.
The bps will aect the quality of the video recorded
by the camera. Higher bit rates result in higher
video quality.
Select the image quality level for the camera to
try to maintain. High quality levels will result in
increased bit rates.
Select the audio encoding to use with the video
stream.
Selecting this checkbox will mute incoming audio
(Mic).
Audio in gain
level:
Audio out o:
Audio out
volume level:
D-Link DCS-6005L User Manual
This setting controls the amount of gain applied to
incoming audio to increase its volume.
Selecting this checkbox will mute outgoing audio.
This setting controls the amount of gain applied to
outgoing audio to increase its volume.
32
Section 4: Conguration
Preset
This screen allows you to set preset points for the ePTZ function of the camera, which allows you to look around the camera's viewable area by
using a zoomed view. Presets allow you to quickly go to and view a specic part of the area your camera is covering, and you can create preset
sequences, which will automatically change the camera's view between the dierent presets according to a dened order and timing you can set.
Note: If your View window area is the same as your Frame size, you will not be able to use the ePTZ function.
Video Prole:
ePTZ Speed:
Arrow Buttons
and Home
Button:
Input Preset
Name:
Preset List:
This selects which video prole to use.
You may select a value between 0 and 64. 0 is the
slowest and 64 is the fastest.
Use these buttons to move to a specic part of the
viewing area, which you can then set as a preset.
Click the Home button to return to the center of
the viewing area.
Enter the name of the preset you want to create,
then click the Add button to make a new preset.
If an existing preset has been selected from the
Preset List, you can change its name by typing in a
new name, then clicking the Rename button.
Click this drop-down box to see a list of all the
presets that have been created. You can select
one, then click the GoTo button to change the
displayed camera view to the preset. Clicking the
Remove button will delete the currently selected
preset.
D-Link DCS-6005L User Manual
33
Section 4: Conguration
Preset Sequence:
Preset List:
This section allows you to create a preset sequence,
which automatically moves the camera's view
between a set of preset views.
To add a preset to the sequence, select it from the
drop-down box at the bottom of this window, set
the Dwell time to determine how long the camera
view will stay at that preset, then click the Add
button. The preset name will appear in the list,
followed by the dwell time to view that preset for.
You can rearrange your presets in the sequence by
selecting a preset in the sequence, then clicking
the arrow buttons to move it higher or lower in the
current sequence.
Clicking the trash can button will remove the
currently selected preset from the sequence.
If you want to change the dwell time for a preset,
select it from the list, enter a new dwell time, then
click the Update button.
D-Link DCS-6005L User Manual
34
Section 4: Conguration
Motion Detection
Enabling Video Motion will allow your camera to use the motion detection feature. You may draw a nite motion area that will be used for
monitoring. After making any changes, click the Save Settings button to save your changes.
Enable Video
Motion:
Sensitivity:
Percentage:
Select this box to enable the motion detection
feature of your camera.
Species the measurable dierence between two
sequential images that would indicate motion.
Please enter a value between 0 and 100.
Species the amount of motion in the window
being monitored that is required to initiate an alert.
If this is set to 100%, motion is detected within the
whole window will trigger a snapshot.
D-Link DCS-6005L User Manual
35
Section 4: Conguration
Sound Detection
Enabling Sound Detection will allow your camera to use the built-in microphone to trigger events with audio. If this option is selected, the trigger
by option under SD recording, Video Clip, or Snapshot should also be selected.
Enable Sound
Detection:
Time:
Detection Level:
Select this box to enable the sound detection
feature of your camera.
Specify the day and hours you would like sound
detection monitoring to be active. You may also
choose to always record whenever sound is
detected.
Specify the volume level that a sound must exceed
in order to trigger the sound detection feature. The
higher the number the more sensitive the camera
will be to sound.
Click Save Settings to save your changes.
D-Link DCS-6005L User Manual
36
Section 4: Conguration
Time and Date
This section allows you to automatically or manually congure, update, and maintain the internal system clock for your camera. After making any
changes, click the Save Settings button to save your changes.
Time Zone:
Enable Daylight
Saving:
Synchronize
with NTP Server:
NTP Server:
Set the Date and
Time Manually:
Copy Your
Computer's Time
Settings:
Select your time zone from the drop-down menu.
Select this to enable Daylight Saving Time.
Enable this feature to obtain time automatically
from an NTP server.
Network Time Protocol (NTP) synchronizes the
DCS-6005L with an Internet time server. Choose
the one that is closest to your location.
This option allows you to set the time and date
manually.
This will synchronize the time information from
your PC.
D-Link DCS-6005L User Manual
37
Section 4: Conguration
ex.
Motion detection,
Periodically, Digital input,
System reboot
Event Condition
ex.
Snapshot, Video Clips
ex.
Email, FTP
Media
(what to send)
Server
(where to send)
Action
Event Setup
In a typical application, when motion is detected, the DCS-6005L sends images to a FTP server or via e-mail as notifications. As shown in the
illustration below, an event can be triggered by many sources, such as motion detection or external digital input devices. When an event is
triggered, a speci
site.
ed action will be performed. You can congure the Network Camera to send snapshots or videos to your e-mail address or FTP
To start plotting an event, it is suggested to congure server and media columns rst so that the Network Camera will know what action shall be
performed when a trigger is activated.
D-Link DCS-6005L User Manual
38
Section 4: Conguration
The Event Setup page includes 4 dierent sections.
• Server
• Media
• Event
• Recording
1. To add a new item - "event, server or media," click Add. A screen will
appear and allow you to update the elds accordingly.
2. To delete the selected item from the pull-down menu of event, server
or media, click Delete.
3. Click on the item name in the drop-down menu for modifying.
D-Link DCS-6005L User Manual
39
Section 4: Conguration
Add Server
You can congure up to 5 servers to save snapshots and/or video to.
After making any changes, click the Save Settings button to save your
changes.
Server Name:
E-mail:
FTP:
Network
Storage:
SD Card:
Enter the unique name of your server.
Enter the conguration for the target e-mail server
account.
Enter the conguration for the target FTP server
account.
Specify a network storage device. Only one network
storage device is supported.
Use the camera's onboard SD card storage.
D-Link DCS-6005L User Manual
40
Section 4: Conguration
Add Media
There are three types of media, Snapshot, Video Clip, and System Log. After making any changes, click the Save Settings button to save your
changes.
Media Name:
Snapshot:
Source:
Send pre-event
image(s) [0~3]:
Send post-event
image(s) [0~7]:
File Name Prex:
Add date and
time sux to le
name:
Enter a unique name for media type you want to
create.
Select this option to set the media type to snapshots.
Set the video prole to use as the media source.
Refer to Audio and Video on "Audio and Video" on
page 31 for more information on video proles.
Set the number of pre-event images to take. Preevent images are images taken before the main
event snapshot is taken.
Set the number of post-event images to take. Postevent images are images taken after the main
event snapshot is taken. You can set up to 7 postevent images to be taken.
The prex name will be added on the le name.
Check it to add timing information as le name
sux.
D-Link DCS-6005L User Manual
41
Section 4: Conguration
Video Clip:
Source:
Pre-event
recording:
Maximum
duration:
Maximum le
size:
File Name Prex:
System log:
Select this option to set the media type to video
clips.
Set the video prole to use as the media source.
Refer to "Audio and Video" on page 51 for more
information on video proles.
This sets how many seconds to record before the
main event video clip starts. You can record up to 3
seconds of pre-event video.
Set the maximum length of video to record for
your video clips.
Set the maximum le size to record for your video
clips.
This is the prex that will be added to the lename
of saved video clips.
Select this option to set the media type to system
logs. This will save the event to the camera system
log, but will not record any snapshots or video.
D-Link DCS-6005L User Manual
42
Section 4: Conguration
Add Event
Create and schedule up to 2 events with their own settings here. After making any changes, click the Save Settings button to save your changes.
Event name:
Enable this
event:
Priority:
Delay:
Trigger:
Video Motion
Detection:
Periodic:
System Boot:
Enter a name for the event.
Select this box to activate this event.
Set the priority for this event. The event with higher
priority will be executed rst.
Select the delay time before checking the next
event. It is being used for both events of motion
detection and digital input trigger.
Specify the input type that triggers the event.
Motion is detected during live video monitoring.
Select the windows that need to be monitored.
The event is triggered in specied intervals. The
trigger interval unit is in minutes.
Triggers an event when the system boots up.
Time:
D-Link DCS-6005L User Manual
Select Always or enter the time interval.
43
Section 4: Conguration
Add Recording
Here you can congure and schedule the recording settings. After making any changes, click the Save Settings button to save your changes.
Recording entry
name:
Enable this
recording:
Priority:
Source:
Recording
schedule:
Destination:
The unique name of the entry.
Select this to enable the recording function.
Set the priority for this entry. The entry with a
higher priority value will be executed rst.
The source of the stream.
Scheduling the recording entry.
Select the folder where the recording le will be
stored.
D-Link DCS-6005L User Manual
44
Section 4: Conguration
Total cycling
recording size:
Size of each le
for recording:
Time of each le
for recording:
Please input a HDD volume between 1MB and 2TB
for recording space. The recording data will replace
the oldest record when the total recording size
exceeds this value. For example, if each recording
le is 6MB, and the total cyclical recording size is
600MB, then the camera will record 100 les in the
specied location (folder) and will then delete the
oldest le and create new le for cyclical recording.
Please note that if there is not enough free HDD
space, the recording will stop. Before you set up
this option please make sure your HDD has enough
space, and also do not save other les in the same
folder as recording les.
If this is selected, les will be separated based on
the le size you specify.
If this is selected, les will be separated based on
the maximum length you specify.
File Name Prex:
D-Link DCS-6005L User Manual
The prex name will be added on the le name of
the recording le(s).
45
Section 4: Conguration
SD Card
Here you may browse and manage the recorded les which are stored on the SD card.
If your SD card is not available or not formatted correctly, you camera
will display the screen to the right. If you insert a new SD card, you
may need to reboot the camera in order for it to recognize the newly
inserted media.
Format SD Card:
View Recorded
Picture:
Playback
Recorded Video:
Refresh:
Click this icon to automatically format the SD card
and create "picture" & "video" folders.
If the picture les are stored on the SD card, click
on the Picture link and choose the picture le you
would like to view.
If video les are stored on the SD card, click on the
Video link and choose the video le you would like
to view.
Reloads the le and folder information from the SD
card.
D-Link DCS-6005L User Manual
46
Section 4: Conguration
ICR
Here you can congure the ICR settings. An IR(Infrared) (Cut-Removable(ICR) lter can be disengaged for increased sensitivity in low-light
environments.
Automatic:
Day Mode:
Night Mode:
Schedule Mode:
The Day/Night mode is set automatically. Generally,
the camera uses Day mode and switches to Night
mode when needed.
Day mode enables the IR Cut Filter.
Night mode disables the IR Cut Filter.
Set up the Day/Night mode using a schedule. The
camera will enter Day mode at the starting time
and return to Night mode at the ending time.
D-Link DCS-6005L User Manual
47
Section 4: Conguration
HTTPS
This page allows you to install and activate an HTTPS certicate for secure access to your camera. After making any changes, click the Save Settings
button to save your changes.
Enable
HTTPS Secure
Connection:
Create
Certicate
Method:
Certicate
Information:
Remove:
Note: The certicate cannot be removed while the HTTPS is still
enabled. To remove the certicate, you must rst uncheck Enable
HTTPS secure connection.
Enable the HTTPS service.
Choose the way the certicate should be created.
Three options are available:
• Create a self-signed certicate automatically
• Create a self-signed certicate manually
• Create a certicate request and install
Displays the status of the certicate. You can click
on CSR Property or Certicate Property to view
the HTTPS credentials being used.
Click Remove to delete the certicate used.
D-Link DCS-6005L User Manual
48
Section 4: Conguration
Access List
Here you can set access permissions for users to view your DCS-6005L.
Allow list:
Start IP address:
End IP address:
Delete allow list:
Deny list:
The list of IP addresses that have access rights to
the camera.
The starting IP Address of the devices (such as
a computer) that have permission to access
the video of the camera. Click Add to save the
changes made.
Note: A total of seven lists can be congured for
both columns.
The ending IP Address of the devices (such as a
computer) that have permission to access the
video of the camera.
Remove the customized setting from the Allow
List.
The list of IP addresses that have no access rights
to the camera.
Delete deny list:
D-Link DCS-6005L User Manual
Remove the customized setting from the Delete
List.
For example:
When the range of the Allowed List is set from
1.1.1.0 to 192.255.255.255 and the range of the
Denied List is set from 1.1.1.0 to 170.255.255.255.
Only users with IPs located between 171.0.0.0 and
192.255.255.255 can access the Network Camera.
Alowed
List
Denied
List
49
Section 4: Conguration
Maintenance
Device Management
You may modify the name and administrator’s password of your camera, as well as add and manage the user accounts for accessing the camera.
You may also use this section to create a unique name and congure the OSD settings for your camera.
Admin Password
Setting:
Add User
Account:
User Name:
Password:
User List:
IP Camera Name:
Enable OSD:
Set a new password for the administrator’s account.
Add new user account.
The user name for the new account.
The password for the new account.
All the existing user accounts will be displayed
here. You may delete accounts included in the list,
but you may want to reserve at least one as a guest
account.
Create a unique name for your camera that will
be added to the le name prex when creating a
snapshot or a video clip.
Select this option to enable the On-Screen Display
feature for your camera.
Label:
Show Time:
D-Link DCS-6005L User Manual
Enter a label for the camera, which will be shown
on the OSD when it is enabled.
Select this option to enable the time-stamp display
on the video screen.
50
Section 4: Conguration
You may specify whether or not to illuminate the
LED:
status LED on the camera.
D-Link DCS-6005L User Manual
51
Section 4: Conguration
System
In this section, you may backup, restore and reset the camera conguration, or reboot the camera.
Save To Local
Hard Drive:
Local From Local
Hard Drive:
Restore to
Factory Default:
Reboot Device:
Schedule
Reboot:
Click on the Save Conguration button to save the
current conguration to your hard drive.
To load a saved conguration, click on the Browse
button to select a conguration le from your hard
drive. Then, click the Load Conguration button to
load the new conguration.
Click this button to reset all settings to their factory
defaults. If you select to reset your settings, you will
need to set up your camera again.
Clicking the Reboot button will reboot your device.
Select this option to schedule a time for the device
to reboot.
After making any changes, click the Save button to
save your changes.
D-Link DCS-6005L User Manual
52
Section 4: Conguration
Firmware Upgrade
The camera's current rmware version will be displayed on this screen. You may visit the D-Link Support Website to check for the latest available
rmware version.
To upgrade the firmware on your DCS-6005L, please download and save the latest firmware version from the D-Link Support Page to your local
hard drive. Locate the file on your local hard drive by clicking the Choose File button. Select the file and click the Upload button to start
upgrading the
rmware.
Current
Firmware
Version:
Current Product
Name:
Current Product
Date:
Choose File:
Upload:
Displays the detected rmware version.
Displays the date the rmware was released.
Displays the camera model name.
Locate the le (upgraded rmware) on your hard
drive.
Uploads the new rmware to your camera.
D-Link DCS-6005L User Manual
53
Section 4: Conguration
Status
Device Info
This page displays detailed information about your device and its network connection.
D-Link DCS-6005L User Manual
54
Section 4: Conguration
Logs
This page displays the log information of your camera. You may download the information by clicking Download. You may also click Clear to delete
the saved log information.
D-Link DCS-6005L User Manual
55
Section 4: Conguration
This page provides helpful information regarding camera operation.
Help
D-Link DCS-6005L User Manual
56
Appendix A: Technical Specications
Technical Specications
Camera Camera Hardware
Prole
Image Features
Video Compression
Video Resolution
Audio Support
External Device
Interface
Network Network Protocols
1/4” 1 megapixel progressive CMOS sensor
Minimum illumination: 0 lux (with IR LED on)
Built-in microphone and audio out
10x digital zoom
Fixed length: 2.8 mm
Aperture: F1.8
Congurable image size, quality, frame rate, and bit rate
Time stamp and text overlays
Congurable privacy masks zone
Simultaneous H.264/MPEG-4/MJPEG format compression
H.264/MPEG-4 multicast streaming
16:9 -1280x800, 1280x720, 800x450,640x360, 480x270,
320x176 up to 30 fps recording
G.711: 64kbps AAC: 64kbps
10/100 BASE-TX Fast Ethernet port
802.11n wireless (DCS-6005L only)
IPv6
IPv4
TCP/IP
UDP
ICMP
DHCP client
NTP client (D-Link)
DNS client
DDNS client (D-Link)
SMTP client
FTP client
1
Angle of view:
(H) 75.2°
(V) 48.2°
(D) 89.3°
Congurable brightness, saturation, contrast, and sharpness
Congurable motion detection windows
JPEG for still images
4:3 -1024x768, 800x600, 640x480, 480x360, 320x240 up to 30
fps recording
MicroSD/SDHC card slot
HTTP / HTTPS
Samba client
PPPoE
UPnP port forwarding
RTP / RTSP/ RTCP
IP ltering
QoS
CoS
Multicast
IGMP
ONVIF compliant
1
2
Security
D-Link DCS-6005L User Manual
Administrator and user group protection
Password authentication
HTTP and RTSP authentication
57
Appendix A: Technical Specications
System
Management
General Weight
System
Requirements for
Web Interface
Event Management
Remote
Management
Mobile Support
D-ViewCam™ System
Requirements
D-ViewCam™
Software Functions
External Power
Adaptor
Power Consumption
Browser: Internet Explorer, Firefox, Chrome
Motion/Sound detection
Event notication and uploading of snapshots/video clips via
e-mail or FTP
Take snapshots/video clips and save to local hard drive via
web browser
mydlink Lite/mydlink+ mobile app for iPhone, iPad, and
Android mobile devices
Operating System: Microsoft Windows 8/7/Vista/XP
Web Browser: Internet Explorer 7 or higher
Remote management/control of up to 32 cameras
Viewing of up to 32 cameras on one screen
Input: 100 to 240 V AC, 50/60 Hz Output: 5 V DC, 1.2 A
Supports multiple SMTP and FTP servers
Multiple event notications
Multiple recording methods for easy backup
Conguration interface accessible via web browser
Protocol: Standard TCP/IP
Supports all management functions in web interface
Scheduled motion triggered, or manual recording options
DCS-6005L: 135g (Without Stand)
DCS-6005L: 2.8 watts max.
Temperature
Humidity
Certications
Dimensions
D-Link DCS-6005L User Manual
Operating: 0 to 40 °C (32 to 104 °F) Storage: -20 to 70 °C (-4 to 158 °F)
Operating: 20% to 80% non-condensing Storage: 5% to 95% non-condensing
CE
CE LVD
FCC Class B
C-Tick
58
Appendix A: Technical Specications
Order
Information
Optional
Accessories
1
Frame rates when streaming video may vary depending on network conditions and method used.
2
A SDHC Class 6 card or above is recommended. Supports card capacities up to 32GB.
Part Number Description
DCS-6005L HD Wireless Mini Dome Network Camera
Black Exterior Casing
White Exterior Casing
D-Link DCS-6005L User Manual
59
Loading...
