Section 1 - Product Overview
Product Overview
Thank you for purchasing the DCS-5222L/DCS-5211L Network Camera. The DCS-5222L/DCS-5211L is a versatile solution for your small oce or home. The DCS-5222L/DCS-5211L is a complete system with a built-in CPU and web server that transmits high quality video images for security and surveillance. DCS-5222L/DCS-5211L can be accessed remotely, and controlled from any PC/Notebook over your local network or across the Internet via a web browser. The DCS-5222L/DCS-5211L is simple to install and intuitive web-based interface oer easy integration with your Ethernet/Fast Ethernet or 802.11g/n wireless network (Only the DCS-5222L oers wireless connectivity) . The DCS-5222L/DCS-5211L comes with remote monitoring and motion detection features for a complete and cost-eective home security solution.
• Remotely monitor your home or oce over the Internet
• Web-based Recording to a PC’s local hard drive – no software required
• Mydlink-enabled technology simplies setup by automatically conguring network settings
• Motion detection to trigger recording and send e-mail alerts
• DDNS support for web access using an easy-to-remember domain name
• Administrator/User password protection
• UPnP support for easy network setup and conguration
• 1 lux CMOS sensor for low-light environments
• 3GPP mobile surveillance
• Simultaneous MJPEG and MPEG-4 streams allows optimization of both image quality and bandwidth eciency
• 802.11g/n wireless connectivity (DCS-5222L)
• WPS support for easy wireless network setup (DCS-5222L)
1D-Link DCS-5222L/DCS-5211L User Manual
Section 1 - Product Overview
Features
Simple to Use: The DCS-5222L/DCS-5211L is a stand-alone system with a built-in CPU, requiring no special hardware or
software such as PC frame grabber cards. Setup is simple, with mydlink-enabled technology which helps automatically congure your camera’s network settings, eliminating the need to set complicated settings on your router.
Supports a Variety of Platforms: The DCS-5222L/DCS-5211L supports TCP/IP networking, HTTP, and other Internet
related protocols. It can also be integrated easily into other Internet/Intranet applications because of its standards-based features.
Remote Snapshot Images and Recording: Using the snapshot and recording features on the DCS-5222L/DCS-5211L,
it is possible to save snapshots and record video and audio directly from the web browser to a local hard drive, without installing any software, making it convenient to capture any moment from a remote location.
Record Directly to a NAS: The DCS-5222L/DCS-5211L allows you to record directly to a local network area storage device
without the use of a dedicated PC for storing recorded video.
Low Light Recording: The DCS-5222L’s infrared light illumination allows the capture of video in rooms with minimal
lighting, making it ideal for use in low-light environments.
Web Conguration: Using a standard Web browser, administrators can congure and manage the Network Camera directly
from its own Web page via Intranet or Internet.
Broad Range of Applications: With today’s high-speed Internet services, the DCS-5222L/DCS-5211L Network Cameras
can provide an ideal solution for live video over the Intranet and for remote monitoring. The DCS-5222L/DCS-5211L allow remote access from a Web browser for live image viewing and management of the network cameras anytime, from anywhere in the world. The network cameras have a wide range of applications, including industrial and public monitoring of homes, oces, banks, hospitals, child-care centers, and amusement parks.
802.11n Wireless Connectivity: The DCS-5222L oers both 802.11n wireless and Ethernet/Fast Ethernet connectivity,
making the DCS-5222L easy to integrate into your existing network environment. The DCS-5222L/DCS-5211L works with a Ethernet based network for traditional wired environments. The DCS-5222L also works with 802.11g/n/b routers or access points for added exibility.
2D-Link DCS-5222L/DCS-5211L User Manual
Section 1 - Product Overview
Package Contents
DCS-5222L or DCS-5211L Network
Camera; and a Remote Control Unit
Power Adapter
CAT5 Ethernet Cable
Quick Installation Guide
CD-ROM
Screw, wall and ceiling mount kit
If any of the above items are missing from your package, please contact your retailer.
Note: Using a power supply with a different voltage rating than the one included with the DCS-5222L/DCS-5221L will cause damage and void the warranty for this product.
3D-Link DCS-5222L/DCS-5211L User Manual
Section 1 - Product Overview
System Requirements
Network Requirements
CD Setup Wizard
Requirements
Web-based Conguration
Utility Requirements
• Wired (10/100/1000 Fast Ethernet) network
• Wireless 802.11g/n/b network (DCS-5222L only)
• An Internet connection
• A router connected to your broadband modem
Computer with the following:
• A PC with a wired connection to your router
• Windows® 7, Vista® (32/64-bit), or XP installed
• Internet Explorer 6 or higher with ActiveX controls enabled
Computer with the following:
• Windows® based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 7.0 or higher
• Firefox 3.0 or higher
• Safari 3.0 or higher
myDlink Website
Requirements
Windows® Users: Make sure you have the latest version
of Java installed. Visit www.java.com to download the latest version.
• Subscription with an Internet Service Provide (ISP) with 256 Kbps minimum for remote video viewing
• Computer with: Microsoft Internet Explorer 6 or higher with ActiveX Support
4D-Link DCS-5222L/DCS-5211L User Manual
Section 1 - Product Overview
Hardware Overview DCS-5222L
Light Sensor
Camera Lens
Microphone
Front
Day/Night Vision LED’s
PIR Motion Sensor
Wireless Antenna
Remote Control Receiver
5D-Link DCS-5222L/DCS-5211L User Manual
Section 1 - Product Overview
Hardware Overview DCS-5222L
Back
Wireless Antenna
Audio Out
Connect headphones/speakers to provide audio out .
I/O Connector
Connect an I/O cable to the DCS­5222L.
WPS Button
Micro SD
Insert Micro SD card here.
Reset Button
Press and hold to reset to factory standard.
Ethernet port
Connects to a PC or network through an Ethernet connection.
Power jack
Connects to the power adapter.
6D-Link DCS-5222L/DCS-5211L User Manual
Section 1 - Product Overview
Hardware Overview DCS-5211L
Light Sensor
Camera Lens
Microphone
Front
Day/Night Vision LED’s
PIR Motion Sensor
Remote Control Receiver
7D-Link DCS-5222L/DCS-5211L User Manual
Section 1 - Product Overview
Audio Out
Connect headphones/speakers to provide audio out .
I/O Connector
Connect an I/O cable to the DCS­5211L.
Hardware Overview DCS-5211L
Back
Ethernet port
Connects to a PC or network through an Ethernet connection.
Micro SD
Insert Micro SD card here.
Reset Button
Press and hold to reset to factory standard.
Power jack
Connects to the power adapter.
8D-Link DCS-5222L/DCS-5211L User Manual
Section 1 - Product Overview
Wireless Installation Considerations
The DCS-5222L Network Camera can be connected to your network wirelessly from anywhere within its operating range. However, keep in mind that there are factors that aect the signal strength and range of your connection. The number of objects the signal must pass through, together with the number of radio frequencies in the area, will have an eect on the range of your signal. Remember these tips to maximize the wireless range of your network:
• Keep the number of obstacles, such as walls or ceilings, that the signal must pass through to a minimum. Each wall or ceiling that the signal must pass through will have an adverse eect on the range of your network.
• Please be aware of the direct and non direct lines between devices. A wall that is at an angle will have a greater surface area for the signal to pass through than a wall not at an angle to the devices.
• Building materials can make a dierence. Try to position access points, routers and computers in such a way that the signal passes through open doors or drywalls. Materials such as glass, metal, steel, walls (with insulation ), water (such as sh tanks), brick and concrete will degrade your wireless signal.
• Keep the network camera at least 3 - 6 feet (1-2 meters) away from other devices which generate radio frequencies.
• If you are using a 2.4GHz cordless phone or other radio frequency source such as a microwave oven close to your wireless devices, your wireless signal may degrade or fail. It is advisable to keep the base station of your cordless phone as far away as possible from the camera, the base station may transmit a signal even if the phone is not in use.
9D-Link DCS-5222L/DCS-5211L User Manual
Section 2 - mydlink Portal
mydlink Portal
After registering your DCS-5222L camera with a mydlink account in the Camera Setup Wizard. You will be able to remotely access your camera from the www.mydlink.com website. After signing in to your mydlink account, you will see a screen similar to the following:
10D-Link DCS-5222L/DCS-5211L User Manual
Section 2 - mydlink Portal
Camera Status
Here, you can see the online status of each of your cameras. Your online status may be one of the following:
A green tick mark indicates that your camera is online and ready to use.
A yellow exclamation point indicates that your camera is online, but the camera password has changed. You will need to enter your new camera password to access your camera again.
A red x indicates that your camera is oine and currently cannot be accessed remotely.
If your camera is oine, try the following:
• Check to make sure that the Internet connection to your camera is working properly.
• Try restarting your Internet router.
• Check your camera’s cable connections and make sure they are secure.
• Check to make sure that the power LED on your camera is lit solid red.
If you still cannot access your camera, reset your camera and run the Camera Setup Wizard again from the CD­ROM included in your package.
11D-Link DCS-5222L/DCS-5211L User Manual
Section 2 - mydlink Portal
Live Video
In the main part of the screen, the Live Video tab will be selected by default. If the camera is available, a Live Video feed will be displayed. Video will be shown at VGA resolution (640x480) if viewing your camera from a PC on the same local network, or at QVGA resolution (320x240) if viewing your camera from a PC on a remote network.
Note: If your router does not support UPnP, there will be a 60 second time limit when viewing your camera remotely.
Maximum only allow 3 views for video feed at a time.
12D-Link DCS-5222L/DCS-5211L User Manual
Section 2 - mydlink Portal
Camera Settings
The Camera Settings tab allows you to access your camera’s conguration interface. To open your camera’s conguration interface, click Camera web page and enter the password exactly as listed on the Camera Settings page.
13D-Link DCS-5222L/DCS-5211L User Manual
Section 2 - mydlink Portal
Camera Info
The Camera Info tab shows you various information about your camera.
Device Name: The Device Name is a unique name that you can give to your device to help you identify it. Clicking on the Device Name will open a window for you to log in to your camera’s conguration interface. This will then open the Maintenance > Admin page where you can change your Device Name.
Camera Password: This shows you the current password for your camera’s conguration interface. Clicking on the Show Password checkbox will either show or hide the password. Clicking on the Password will open a window for you to log in to your camera’s conguration interface. This will then open the Maintenance > Admin page where you can change your Password.
mydlink No.: This shows you the mydlink number of your device.
Model Name: This shows you the model name of your device.
MAC Address: This shows you the MAC address of your device.
Support: This section provides you with links to various support websites and downloads related to your product.
14D-Link DCS-5222L/DCS-5211L User Manual
Section 3 - Installation
Installation
Starting the Camera Setup Wizard
Insert the Installation CD-ROM into your computer’s CD-ROM drive to start the autorun program.
The CD-ROM will open the Camera Setup Wizard. Simply click Start to go through the Setup Wizard, which will help you through the entire installation process from connecting your hardware to conguring your camera.
15D-Link DCS-5222L/DCS-5211L User Manual
Section 3 - Installation
Hardware Installation
Wall and Ceiling Installation
The device can be mounted on a wall or a partition. To install,
A) select the position that you want the camera to sit on the ceiling or oor. The plate should have the three ball catches facing downwards.
B) Using the provided screws; screw the mount to the wall or ceiling, with the correct tools, where the device is to be placed.
C) Holding the IP camera rmly, place the IP camera in the mount and swivel until secured.
16D-Link DCS-5222L/DCS-5211L User Manual
Section 3 - Installation
Inserting a Micro SD Card
Insert your Micro SD card into the Micro SD card slot on the DCS-5222L/DCS-5211L.
17D-Link DCS-5222L/DCS-5211L User Manual
Section 3 - Installation
Attaching a cable to the I/O Terminal.
The 4-pin I/O connector is located at the rear panel and provides an interface for photo­coupled switch output and photo-coupled input. An example of what can be done with a digital input and digital output is the connecting of a motion sensor to the port, signalling the camera to take a snapshot and trigger an alarm connected to the port.*
(*Further details and a technical specication can be found on page 51)
18D-Link DCS-5222L/DCS-5211L User Manual
Section 3 - Installation
Connect the Ethernet Cable
Connect one end of the blue Ethernet cables included in your package to the Ethernet port on the back of the DCS-5222L/DCS­5211L camera. Connect the other end of the cable to an available LAN port on your router or broadband modem.
Connecting to a router
Connect the Power Adapter
Attach the power adapter to the power jack located on the back of the DCS-5222L/DCS-5211L and connect the power adapter to a power outlet. After connecting the power adapter, you should see the status LED on the front of the camera become red.
The status LED will light red when it receives power, will light green after the camera connects to the network, and will ash green when the camera is being accessed.
19D-Link DCS-5222L/DCS-5211L User Manual
Section 3 - Installation
Setting up a Wireless Connection with WPS
If your wireless access point or router supports push-button wireless protected setup (WPS), it is possible to quickly congure the wireless network and DCS-5222L camera without using the camera’s web interface.
After plugging the power adapter to your camera and the front status LED lights up, hold down the WPS button next to the Micro SD card slot for 3 seconds.
Now press the WPS button on your router or access point within 1 minute to activate WPS and allow your devices to automatically congure a wireless connections.
Note: On some network routers/access points, WPS may need to be activated via the device setup or web-interface. Consult your product’s user manual for further assistance.
Conguration via WPS
20D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
Using the Configuration Menu
After completing the Camera Setup Wizard, you are ready to use your camera. The camera’s built-in Web conguration utility is designed to allow you to easily access and congure your DCS-5222L/DCS-5211L. At the end of the wizard, click Go To
Camera, or enter the IP address of your camera into a web browser, such as Internet Explorer®. To log in, use the User name admin and the password you created in the Setup Wizard. If you did not create a password, the default password is blank. After entering your password, click OK.
Note: If you are directly connecting your PC to the camera, or if you or using the camera on a closed network, the default IP is 192.168.0.20.
21D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
Web-based Configuration Utility
Use the following sections to set up and congure your network camera:
• LIVE VIDEO
• SETUP
• MAINTENANCE
• STATUS
• HELP
22D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
Live Video
Camera

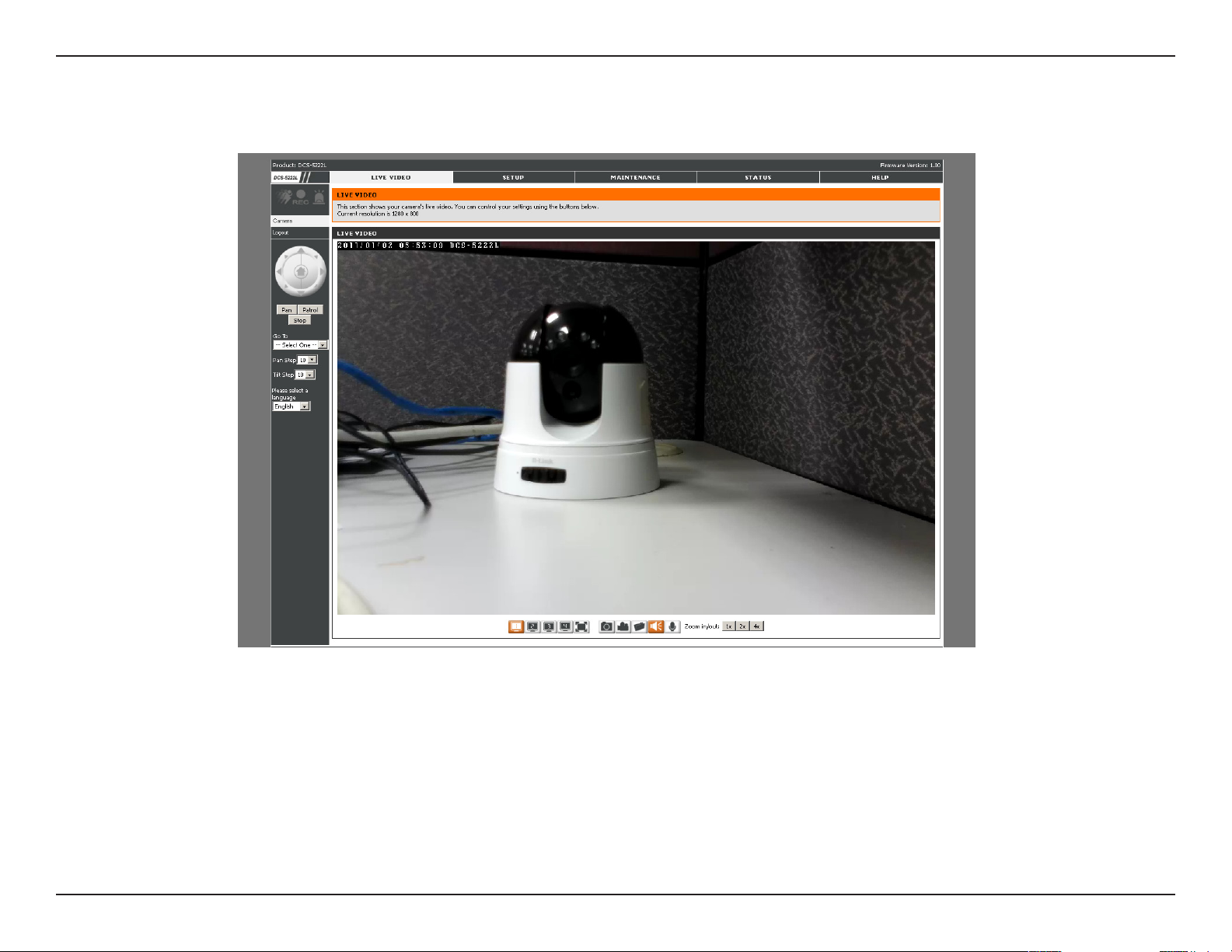

This section shows your camera’s live video and event indicators. You may select the available thumbnails for your options of predefined Video Profile, Full Screen mode, and action items of taking Snapshot, Recording, Set Storage Folder, Listen, Talk, Digital Output, and IR LED. You may also select your language setting using the drop-down menu.
You can remotely rotate, pan and tilt the camera pointing direction. In addition, you can also zoom in and out of the live video image using the controller. The pan/tilt speed can be adjusted on this page, and the “Go To” position can be congured at the Setup > Preset Position page.
Start/Stop Audio:
Start/Stop Talking:
Start/Stop Digital Output:
P/T/Z Action Pad:
Go To:
Pan/Tilt Speed:
Pan:
Stop:
Patrol:
This button toggles the built-in microphone on and o, allowing you to hear audio from the area surrounding your camera. Audio is on by default.
This will toggle audio to a speaker (not included) connected to the camera's Audio Out port. This can be used to communicate with others near the camera.
This button will toggle the digital output on or o.
Use the Pan / Tilt / Zoom Action Pad to control the camera’s pan or tilt. The large tree icon controls the zoom in function. The small tree icon on the right side controls the zoom out function. The Home button can move the camera to the preset home position.
Select from the preset drop-down list to quickly move the camera to the desired preset position. (Please refer to “camera control” setup for the preset list function).
This setting can change the camera’s Pan/Tilt speed.
Press this button and the camera will pan from left-most position to the right-most position and then return to its original position.
This will stop pan and patrol.
Click this button to quickly move the camera to the desired patrol setup according to preset positions. (Please refer to “camera control” setup for the preset list function).
The bottom of this page contains several icons which can be used to control the camera’s main functions.
23D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
Setup
Wizard
The setup wizard guides you through the initial setup of your IP camera. You can use the Internet Connection Setup Wizard for initial network setup, and you can use the Motion Detection Setup Wizard to set up motion detection. Simply follow the instructions given in each step of the wizard to quickly set up your camera.
Alternatively, you can manually set up your Internet connection by clicking Manual Internet Connection Setup, and you can manually set up motion detection options by clicking on Manual Motion Detection Setup. You can also see these settings by clicking on the menu on the left panel (Network Setup / Wireless Setup / Motion Detection / Snapshot).
24D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
Network Setup
This section allows you to congure your LAN and Internet conguration.
Automatic IP Address Select: This option is used if you are running a DHCP server on your network and would like an IP address assigned to your camera automatically by the DHCP server. If the DHCP server does not exist the IP camera will run with an auto address of 169.254.xxx.xxx, you may need to manually congure this setting should no DHCP server exist.
Static IP Address: This option is used to congure your IP Camera with an IP address which matches your network settings.
HTTP Port: This option allocates the HTTP port of the camera, allowing you to connect via a standard web browser, in this example picture (right) the port is set to 1111. The address used in a web browser could be (depending on the IP settings used in your network)192.168.0.20:1111.
RTSP Port: This option allocates the RTSP port of the camera, the RSTP port allows connections using QuickTime or other streaming mobile devices.
UPnP Enable: UPnP (Universal Plug & Play) can be used to allow discovery of a camera as a UPnP device in the network, without additional conguration.
UPnP Port Forward: If the router being used supports UPnP, your camera and router can communicate allowing the router to discover which ports are used by each camera.
Bonjour: Enabling Bonjour will allow discovery of cameras by Apple computers.
Note: If you need to use a static IP address and you do not know the network information, contact your Internet Service Provider (ISP) for assistance.
25D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
Note: You MUST also set up your router/gateway for Port Forwarding/Mapping; this will enable remote viewing of your camera via the Internet. Please refer to your router’s instruction manual on how to open up ports. For additional help on configuring your camera to work with your router, please refer to Appendix A: Installing the DCS-5222L/DCS-5211L on a Router Without UPnP. For installing multiple cameras, ONE port per camera must be opened on your router, the Web server (HTTP) port. Also, some browsers may restrict some ports, such as 1 or 22, for security purposes. If you have problems accessing your camera through HTTP, try using a port higher than 1024.
After making any changes, click the Save Settings button to save your changes, or click the Don’t Save Settings button to discard your changes.
26D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
Wireless
To set up your IP camera’s wireless network interface settings, enable Wireless Settings in this window rst. Then continue the further conguration next.
Site survey: Click the Rescan button to scan for available wireless networks. After scanning, you can use the drop down box to select an available wireless network. The related information (SSID, Wireless Mode, Channel, Authentication, Encryption) will be automatically lled in for you.
SSID: The SSID of the wireless access point you wish to use.
Wireless Mode: Use the drop down box to select the mode of the wireless network you wish to connect to. Infrastructure is normally used to connect to an access point or router. Ad-Hoc is usually used to connect directly to another computer.
Channel: If you are using Ad Hoc mode, select the channel of the wireless network you wish to connect to, or select Auto.
Authentication: Select the authentication you use on your wireless network - Open, Shared (WEP), WPA-PSK, or WPA-PSK2.
Encryption: If you use WPA-PSK or WPA-PSK2 authentication, you will need to specify whether your wireless network uses TKIP or AES encryption. If you use Open or Shared authentication, this setting will be automatically set for you.
Key: If you use WEP, WPA-PSK, or WPA-PSK2 authentication, enter the Key (also known as password) used for your wireless
network.
After making any changes, click the Save Settings button to save your changes, or click the Don’t Save Settings button to discard your changes.
27D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
Dynamic DNS
If you have a DSL or Cable service provider that changes your modem IP address periodically, Dynamic DNS (Domain Name Service), a method of keeping a domain name linked to a dynamic IP address, is useful. With most Cable and DSL connections, you are assigned a dynamic IP address and that address is used only for the duration of that specic connection. With the DCS-5222L/DCS-5211L, you can set up your DDNS service and the DCS-5222L/DCS-5211L will automatically update your DDNS server every time it receives a dierent IP address. Depending on the service, this update may take a few hours.
Enable DDNS: Check this checkbox to enable the DDNS function of the camera.
Server Address: Use the drop down box on the right to select a DDNS service.
Host Name: Type in the Host Name of the DDNS service.
User Name: Enter your User Name for the DDNS service.
Password: Enter the password for the DDNS service.
Conrm Password: Retype the password for the DDNS service.
Timeout: This sets the number of hours between DDNS updates.
Status: Provides a status of enabled or disabled
After making any changes, click the Save Settings button to save your changes, or click the Don’t Save Settings button to discard your changes.
28D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
Image Setup
The options in Image Setup allow you to adjust the settings for your IP camera sensor and image.
Brightness: This adjusts the brightness of the camera image. This is set to 50 by default.
Saturation: This adjusts the color saturation. Saturation controls the strength of color in the
image. This is set to 50 by default.
Contrast: This adjusts the contrast of the camera image, making a dull image sharper or a bright image smoother. This is set to 50 by default.
Hue: The Hue controls the dierent degree of color stimulation in the camera image. This is set to 50 by default.
Frequency: This option adjusts the camera sensor’s setting to avoid the image ickering under certain light sources, such as orescent lights. This is set to Auto by default.
White balance: You can change the white balance of the camera image by selecting a setting from the drop down box. This is set to auto by default.
B/W: Ticking this checkbox will change the camera image into black and white.
Flip: This will ip the image vertically.
Mirror: This will ip the image horizontally in such a way that your left side will be on the left side of the screen and vice versa.
Slow shutter: This can be used to allow manual control of the shutter speed. Select slower shutter speeds when environment is dimly lit, faster
speeds are required when in brighter lighting.
Note: Mirror and Flip can be used if you choose to mount the DCS-5222L/DCS-5211L upside down on the ceiling.
29D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
Audio and Video
You may congure four video proles with dierent settings for your camera. You may also set up dierent proles for your computer and mobile display. In addition, you may congure the audio (speakers and microphone) settings for your camera. There are three sensor output selections (VGA, XGA, and SXGA). Do not select SXGA if you want to turn on the motion detection feature.
Encode Type: This sets the video codec used for the video stream. You can choose H.264, MPEG4 or MJPEG(JPEG). Internet Explorer browsers can view both H.264, MPEG4 or MJPEG(JPEG) video streams, and non-IE browsers can only view MJPEG video streams.
Resolution: This sets the display resolution of the video stream. If the Resolution is dierent than the Sensor Output size, the video will be shrunken or enlarged to the Resolution size you set here.
FPS: This sets the target number of frames per second (FPS) for the video stream. Higher frame rates will provide smoother video, lower frame rates will use less network bandwidth.
bps: This sets the target bit-rate of the video stream. Higher bit-rates will provide better quality video but could result in slower network transfers. When the Encode Type is set to MJPEG, you will be unable to change the bps setting. Available bps settings may also change depending on what the Encode Type, Sensor Output, Resolution, and FPS settings are set to.
RTSP URL: This setting allows you to set a sux for your camera’s RTSP URL, allowing the camera’s video to be viewed with this video prole’s settings. For example, if “mpeg4” is used as the RTSP URL setting and the camera’s IP is
192.160.0.20, the camera’s video can be viewed with these settings using 192.160.0.20/mpeg4.
Note: Video Profile 3 is always set to MJPEG as the Encode Type to ensure that at least one of the Video Profiles are viewable by non-IE browsers. Video Profile 4 is for mobile devices only, and always uses MPEG-4 as the Encode Type.
30D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
Day/Night Mode: Four options are available via the drop down menu. Auto lets the camera select use of or non-use of IR LED’s in a low light area. Manual IR mode allows the user to manually select Day/Night mode. Always Day and Always Night force the camera into either Day or Night mode.
Note that the live video will turn to black and white mode when IR LEDs turned on.
Speaker: Checking this box will allow you to talk using the PC’s microphone. The drop down menu allows volume control.
Microphone: Checking this box will enable listening to audio captured by the camera’s microphone. The drop down menu allows volume control.
Note: Higher frame size, frame rate and bit rates will give you better video quality, but they will also require more network bandwidth. For best viewing results on a mobile phone, we suggest setting the frame rate to 5 fps and the bit rate to 20 Kbps.
After making any changes, click the Save Settings button to save your changes, or click the Don’t Save Settings button to discard your changes.
31D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
Motion Detection
This option allows you to set up Motion Detection on your IP camera. In order to use motion detection first check the Enable Video Motion checkbox. Next, click on the video window and draw motion detection zones by clicking and dragging the mouse cursor. Red areas indicate areas that will be monitored for motion. The camera also has a PIR sensor which is used to detect motion using a special infrared sensor. PIR is good at detecting motion from live subjects such as people and animals.
Enable PIR:
Enable Video Motion:
Sensitivity:
Draw Motion Area:
Erase Motion Area:
The red grid on the right indicates an area that has been selected for motion detection.
When motion is detected, the LIVE VIDEO page will display a blinking orange motion video icon like the one below.
Tick this box to enable the PIR sensor.
Tick this box to enable video motion detection.
This setting adjusts how sensitive the camera will be to motion, where 100% will be the most sensitive setting and 0% will be the least sensitive setting.
This will allow you to draw motion detection zones when clicking and dragging, or erase motion detection zones when clicking and dragging depending on which option you have selected.
Clicking this button will clear all motion detection zones.
After making any changes, click the Save Settings button to save your changes, or click the Don’t Save Settings button to discard your changes.
Note: If the camera is set to SXGA mode in Audio and Video, Motion Detection is disabled.
No Motion Motion
The motion notication will continue to blink as long as motion is detected. If no additional motion is detected, it will return to its original state after eight seconds.
32D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
Time and Date
This option allows you to congure, update, and maintain the correct time on the internal system clock. From this section you can set the time zone that you are in and set the NTP (Network Time Protocol) Server. Daylight Saving can also be congured to automatically adjust the time when needed.
Time Zone: Select your time zone from the drop down menu.
Enable Daylight Saving: If your region uses a Daylight Saving adjustment, check this
checkbox.
Auto Daylight Saving: This option will adjust Daylight Saving Time automatically.
Set date and time manually: Selecting this will let you set the Daylight Saving Time
adjustment manually:
• Daylight Saving Offset: This will set the Daylight Saving adjustment that will be used.
• Daylight Saving Date: This will set the beginning and ending dates of the Daylight
Saving period.
You can also have the camera’s clock set automatically, or manually.
Synchronize with NTP Server: Checking this checkbox will allow the camera to synchronize its clock with an NTP server.
NTP Server: Use the drop down box to the right to select an NTP server to use, or you can type one in.
Set date and time manually: Check this checkbox to set the time and date manually. You can then use the drop down boxes to select the
current Year, Month, Day, Hour, Minute, and Second. You can also click the Copy Your Computer’s Time Settings button to
automatically ll in the drop down boxes with the current time and date from your computer.
After making any changes, click the Save Settings button to save your changes, or click the Don’t Save Settings button to discard your changes.
33D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
Camera Control
Click the Preset Position button from the left side of the Setup screen to access settings that aect how the DCS-5222L Internet Camera can pan and move to preset locations.
Pan Step
Tilt Step:
Present Position:
Preset Position:
Select the speed at which the camera will pan for a full cycle from the drop-down list. Select a value between 0 and 10, 0 being the slowest setting.
Select the speed at which the camera will tilt for a full cycle from the pull down menu. Select a value between 0 and 10, 0 being the slowest setting.
Enter a name for the position at which you would like to preset the DCS-5222L. Click add to add the new preset position to the Preset Locations list .
Using the drop-down list, you can choose and delete a preset position by selecting it and clicking Delete.
34D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
Set as Home:
Patrol Selection:
Use the Set As Home button to set the current position as the home position. The Home position is the rst position the camera goes to after the camera boots. You can also recall the default home position, use the Default Home button.
To use the Auto Patrol feature, select the desired preset positions from the Preset Locations list and add them to the Selected Locations list by clicking Select. You can then select the order in which the camera will patrol through the preset locations by selecting a location and clicking Up or Down. Click Remove to remove a location from the list.
35D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
SD Recording
This option allows you to congure recording settings and scheduling. You can record video to a Samba network drive on your local network.
Enable recording: Check this checkbox to enable the recording feature. After enabling recording, you will need to select a scheduling method.
SD Card: Select this option if you have inserted an available SD card into the camera.
Trigger byMotion: Trigger byMotion begins SD recording after a motion is detected.
Schedule SD recording in a specied time.
Recording Type: It is possible to set the recording codec, set pre-event recording, and post­event recording here when Trigger by is activated. You can also select recording as Snapshot or Video.
Recording Length: Use this to set the time length of each recording video.
Keep Free Space: This sets the capacity of your local SD Card to prevent the system from becoming unstable.
Cyclic: When this option is selected, it will cause the oldest folder to be deleted when the system requires storage space for new les.
36D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
Video Clip
Video Clip is the ability to store or send video clips to a remote E-mail or FTP server based on motion detection, external sensor input triggered.
Trigger by Motion: This begins video clipping after a motion is detected. It is possible to schedule video clipping at a specied time, continuously or after digital input is detected. Use the drop down menu to congure appropriate mode.
Video Clip Type: The video clip type can be set to video clip codec, Pre-event recording and Maximum duration here.
Pre-event recording: It is possible to specify how many seconds of video will be recorded, before the video clip is taken.
Maximum duration: This species how many seconds of video clipping is taken.
Target it is possible to select the target as FTP or E-mail for the video clipping.
37D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
Snapshot
Here, you can set the camera to take snapshots when motion is detected. Snapshots can be sent to an e-mail address and/or to an FTP server.
Trigger by: The motion drop down menu selection begins snapshot after a motion is detected. Schedule Snapshot schedules the snapshot at a specied time. Always Continuous Snapshot provides continuous snapshots. Digital Input begins taking snapshots after a digital input is detected.
Snapshot Type: It is possible to set snapshot codec from Prole 3(JPEG), Single snapshot or 6 snapshot here.
6 snapshot: Select this option to take continuous 6 pictures for each snapshot.
Target: It is possible to select the target as FTP or E-mail for the snapshot.
38D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
Digital Output
You can enable the digital output port as well as congure the trigger event.
Motion Detection: When a motion detection is triggered.
D/I Signal: A trigger from the Digital Input port.
39D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
SD Management
Clicking “Format SD Card” will delete all data from the SD card, and create folder for video.
Format SD Card: To format the SD card. Delete all data from the SD card.
Name: The name of le or catalog.
Num of les: The amount of les in catalog.
Size: The le’s size.
Refresh: Click it reload data to webpage.
Top Level: Click it go back to previous level.
Delete: Click this button to select all the les below.
OK: Click this button to delete the selected les above.
40D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
Maintenance

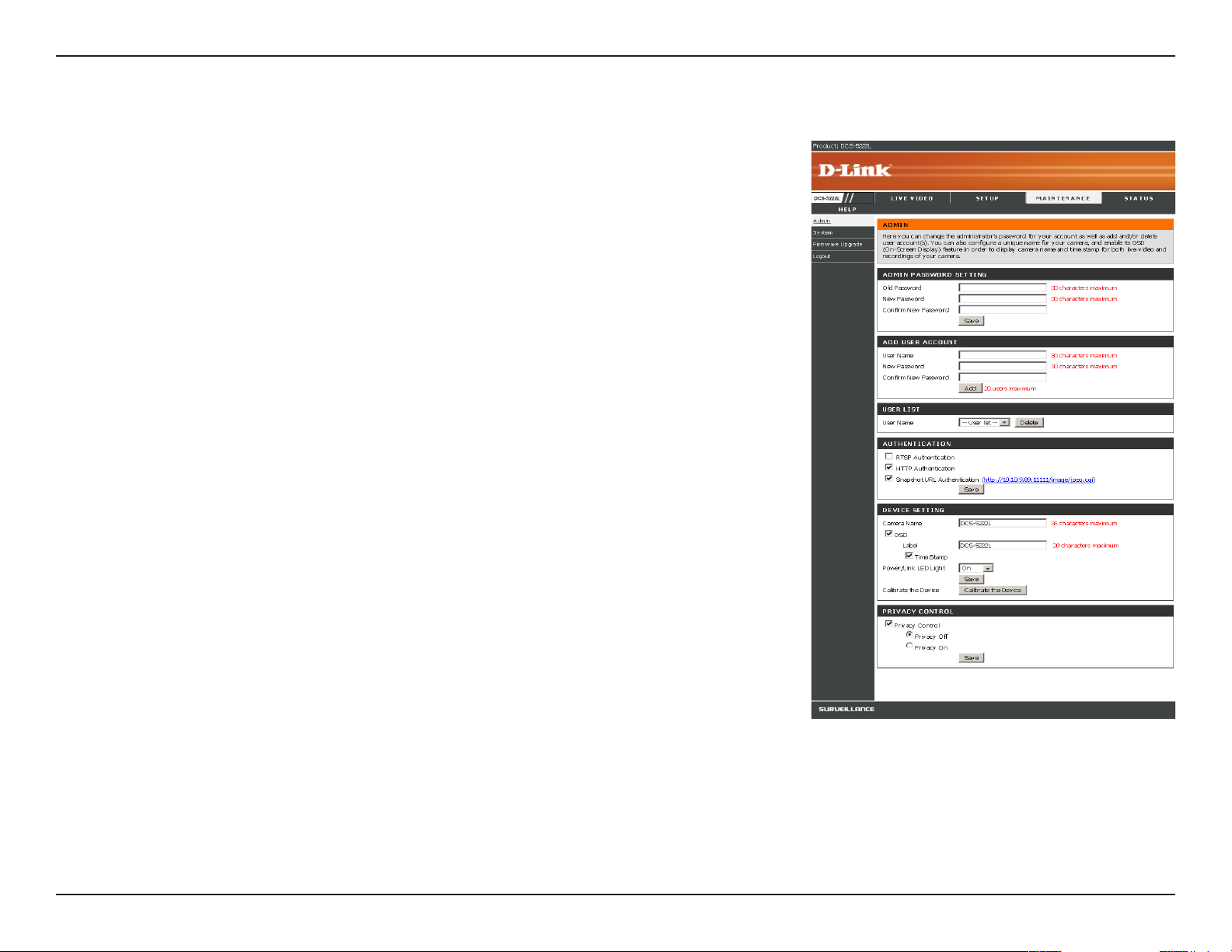

Admin
Here you can change the Admin password, add and manage Users, and adjust some camera settings.
Admin Password Setting: This section lets you change the admin password used to log in to the camera and adjust settings. After installing the camera for the rst time, it is highly recommended that you change the admin password for security purposes.
New Password: Enter the new admin password.
Retype Password: Enter the new admin password again for verication. After entering the new password again, click on the Save button to save your changes.
Add User Account: Admin can create user accounts to allow others to log in to your camera to
view the live camera feed.
User Name: Enter the User Name you wish to use for the new user account.
New Password: Enter the password for the new user account.
Retype Password: Re-enter the password for the new user account for verication. After entering the password again, click Add to add the new user account.
User List: Here, you can view the current list of users by using the drop down box. You can also delete a user by selecting them with the drop down box, and then clicking the Delete button.
Device Setting: Here, you can change various other settings for your camera.
Camera Name: Enter the name of your camera.
Enable OSD: This will enable the information bar On Screen Display (OSD) to appear when viewing
video.
Label: This is the text label that will appear on the OSD.
Show time: If checked, the current time will be displayed on the OSD.
LED light: This will turn the camera’s front LED indicator on or o.
Calibrate the Device: Clicking this button will calibrate the camera so that the P/T/Z apparatus functions correctly. The camera is automatically
calibrated whenever it is powered on and initialized or reset. Should the camera’s pan, tilt, and zoom functions begin to behave incorrectly, or if the device has been jarred or handled improperly, you may need to recalibrate the camera manually by pressing this button.
Privacy Mode: Select on/o or schedule the privacy mode for your camera to ensure the privacy. When the privacy mode is turned on, the camera hides the lens by rolling it back into the unit.
After making any changes to this section, click the Save button to save your changes.
41D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
System
This screen allows you to save and restore the camera’s current conguration. You can also reset all settings to factory default or reboot the device.
Save To Local Hard Drive: Click on the Save Conguration button to save the current conguration to a hard drive.
Load From Local Hard Drive: To load a saved conguration, click on the Browse button to select a conguration le from your hard drive. Then, click the Load Conguration button to load the new conguration.
Restore To Factory Defaults: Click this button to reset all settings to their factory defaults. If you choose to reset your settings, you will need to set up your camera again.
Reboot Device: Clicking the Reboot button will reboot your device.
42D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
Firmware Upgrade
Your c ur rent firmwa re ve rs ion and date will be dis pl ayed on this page. Here, you can also upgrade your firmware with a new version.
Firmware upgrades are made available at support.dlink.com.
To upgrade your firmware, go to support.dlink.com.tw and download the latest rmware to your computer’s hard drive. Click on Browse, select the rmware le, then click the Upload button. While the rmware is being upgraded, do not turn o your computer or camera, and do not disconnect your network connection from your computer or camera. Upgrading the rmware will not change any of your system settings, but it is recommended that you save your system conguration before doing a rmware upgrade.
Note: It is recommended that you use a wired connection for your computer and camera when upgrading the firmware.
43D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
Status
Device Info
This screen shows you various information about your camera and its current settings.
44D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
Log
The log shows you a list of events that have happened recently. You can download the log by clicking the Download button, or you can empty the log by clicking the Clear button.
45D-Link DCS-5222L/DCS-5211L User Manual
Section 4 - Configuration
Help
The Help screen provides you with support information about the DCS-5222L/DCS-5211L for your reference.
1. Why can’t I access the web-based conguration utility?
When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website on the Internet or have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must be on the same IP subnet to connect to the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
• Internet Explorer 6.0 or higher
• Firefox 1.5 or higher
• Netscape 8 or higher
• Mozilla 1.7.12 (5.0) or higher
• Opera 8.5 or higher
• Safari 1.2 or higher (with Java 1.3.1 or higher)
• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a dierent cable or connect to a dierent port on the device if possible. If the computer is turned o, the link light may not be on.
• Disable any Internet security software running on the computer. Software rewalls such as Zone Alarm, Black Ice, Sygate, Norton Personal Firewall, and Windows® rewall may block access to the conguration pages. Check the help les included with your rewall software for more information on disabling or conguring it.
46D-Link DCS-5222L/DCS-5211L User Manual
Section 5 - Troubleshooting
• Congure your Internet settings:
• Go to Start > Control Panel. In Windows® XP or Windows Vista™, make sure you are in Classic View. Double-click the Internet Options Icon. From the Security tab, click the button to restore the settings to their defaults.
• Click the Connection tab and set the dial-up option to
Never Dial a Connection
. Click the LAN Settings
button. Make sure nothing is checked. Click OK.
• Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.
• Close your web browser (if open) and open it.
• Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This should open the login page for your the web management.
• If you still cannot access the conguration, unplug the power to the router for 10 seconds and plug back in. Wait about 30 seconds and try accessing the conguration. If you have multiple computers, try connecting using a dierent computer.
2. What can I do if I forget my password?
If you forget your password, you will need to perform a hard reset of your camera. This process will change all your settings back to the factory defaults.
To reset your camera, please use an unfolded paperclip to press and hold the RESET button for at least 6 seconds while your camera is plugged in.
47D-Link DCS-5222L/DCS-5211L User Manual
Section 5 - Troubleshooting
Troubleshooting
1. What can I do if I forget my password?
If you forget your password, you will need to perform a hard reset of your camera. This process will change all your settings back to the factory defaults.
To reset your camera, please use an unfolded paperclip to press and hold the RESET button for at least 6 seconds while your camera is plugged in.
Please note that this will also remove the camera from your mydlink account, so you will need to add it back to your account later.
2. In addition to using mydlink.com, is there another way to access my camera remotely over the Internet?
Yes, you can access your camera over the Internet through the following URL after successfully installing your camera through the Camera Setup Wizard:
http://[mydlink No.].dev.mydlink.com
For example, if your camera’s mydlink No. was 12345678, you would be able to access your camera remotely by opening your web browser and going to http://12345678.dev.mydlink.com
This URL will open your camera’s web interface, where you can sign in and congure your camera’s settings.
48D-Link DCS-5222L/DCS-5211L User Manual
Section 5 - Troubleshooting
Technical Specifications - Remote Control Unit
Feature
Remote Controller : 3x3 key matrix
Code system: NEC
IR transmitter frequency: 38KHz
Outline drawing below:
Pan/ tilt direction key
Pressing pan/tilt direction key will move camera to the direction for a few steps.
Home key
Pressing Home key will move camera to the home position, i.e., the center position calibrated last time or the position set by user.
Calibrate key
Pressing Calibrate key will do calibration of both pan and tilt position by moving from end to end where a position sensor is located and go to the corrected home position.
Privacy key
Pressing privacy key will tilt to privacy position where camera is hidden in cover (privacy mode). Pressing again privacy key in privacy mode will tilt back to the previous position.
49D-Link DCS-5222L/DCS-5211L User Manual
Section 5 - Troubleshooting
Matrix Index Key Name Key Code Function
(1,2) ...................................................................................................................................... Up 44 Tilt move up
(2,1) ..................................................................................................................................... Left 4C Pan move to the left
(2,2) ................................................................................................................................ Home 06 Return to home position
(2,3) ................................................................................................................................. Right 40 Pan move to the right
(3,1) .......................................................................................................................... Calibrate 07 Calibrate home position
(3,2) ................................................................................................................................ Down 48 Tilt move down
(3,3) .............................................................................................................................. Privacy 0E Tilt to privacy position.
50D-Link DCS-5222L/DCS-5211L User Manual
Section 5 - Troubleshooting
DO-
DO+
AC/ DC
Technical Specifications - I/O Terminal Application
Typically used in association with programming scripts for developing applications for motion detection, event triggering, alarm notication via e-mail, and a variety of external control functions. The 4-pin I/O Terminal Block is located on the rear panel and provides the interface of a photo­coupled switch output and a photo-coupled input.
Connector Pin Assignment
Sign FUNCTION SPECIFICATION
DO- Photo-Relay OUTPUT (Normal Open) Close circuit current max. 70 mA AC, or 100 mA DC.
On-Resistance max. 30 Ohm. Open circuit blocking voltage max. 240VAC or 340VDC DO+ Photo-Relay OUTPUT(Common)
DI- Photo-Relay INPUT (-) Active High voltage 2.5~25VDC
DI+ Photo-Relay INPUT (+)
Inactive Dropout voltage 0~1.5 VDC Internal on-current has limit at 7mA to protect the photo-relay.
Monitoring and Controlling
By entering http requests in your browser’s URL eld, you can:
• Monitor the status of digital input.
• Drive the output switch on or o.
Load
Interface Schematic
Output device (load) is driven by external AC or DC power supply.
Input device (active control device) has independent power supply.
51D-Link DCS-5222L/DCS-5211L User Manual
Appendix A - Technical Specifications
Technical Specifications
System Requirements
• Operating System: Windows XP/Vista/7
• Browser:Internet Explore Version 7 above, Firefox 3.5 or above, Safari 4.0 or above, Chrome 8.0 above
Wireless Connectivity (DCS-5222L only)
• 802.11g/n Wireless with WEP/WPA/WPA2 Security
• WPS Support
Networking Protocol
IPv4, ARP, TCP, UDP, ICMP
DHCP Client
NTP Client(D-Link)
DNS Client
DDNS Client(D-Link)
SMTP Client
FTP Client
HTTP Server
UPNP Port Forwarding
• LLTD
PPPoE
RTP (Real Time Protocol)
RTCP (Real Time Control Protocol)
RTSP (Real Time Streaming Protocol)
3GPP(Video only)
LAN
• 10/100BASE-TX port
• IEEE 802.3 compliant
• IEEE 802.3u compliant
• Supports Full-Duplex operation
• MDI/MDIX auto-negotiation
• 802.3x Flow Control support for Full-Duplex mode
Sensor
• 1/4 inch WXGA (1280x800)
Lens
• Focal length: • 4.57mm, F1.9
Microphone
• Signal/noise ratio: 40dB +/- 3dB, Omni-directional
Reset Button
• Reset to factory default
Video Codec
• H.264/MPEG4/MJPEG triple format compression simultaneously
• JPEG for still image
Video Features
• Adjustable image size and quality
• Time stamp and text overlay
• Flip and Mirror
• Fully congurable motion detection window
Video Resolution
• 1280x800, 640x400, 320x192
Audio Codec
• PCM/ADPCM
52D-Link DCS-5222L/DCS-5211L User Manual
Appendix A - Technical Specifications
Light Sensitivity
• 1 lux@F1.9
Digital Zoom
• Up to 4X
3A Control
• AGC (Auto Gain Control)
• AWB ( Auto White Balance)
• AES (Auto Electronic Shutter)
Power
• Input: 100-240VAC, 50/60Hz
• Output: 12VDC, 1.25A
• Powered by an external power adapter
• Maximum power consumption
DCS-5222L: 10.5W @motor on ; 8.2W @motor o DCS-5211L : 9W @motor on ; 6.1W @motor o
Dimensions (WxDxH)
• 114.0mm x 114.0mm x 125.0mm (without bracket and stand)
Humidity
• 20-80% RH non-condensing
Emission (EMI), Safety & Other Certications
• FCC Class B
• IC
• C-Tick
• CE
Weight
• 540g (without bracket and stand)
Operation Temperature
• 0˚ to 40˚C (32˚ to 104˚F)
Storage Temperature
• -20˚ to 70˚C (-4˚ to 158˚F)
53D-Link DCS-5222L/DCS-5211L User Manual
Loading...
