DCH-S150
User Manual
mydlink™ Home Wi-Fi Motion Sensor
Version 1.01| 09/22/2014
iD-Link DCH-S150 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries. App
StoreSM is a service mark of Apple Inc. Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc. Internet Explorer®, Windows®
and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2014 by D-Link Corporation, Inc. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed
written permission from D-Link Corporation, Inc.
Power Usage
This device is an Energy Related Product (ErP) that automatically switches to a power-saving Network Standby mode within 1 minute of no packets
being transmitted. If it is not needed during certain periods of time, it can be unplugged to save energy.
Network Standby: 1.34 watts
Revision Date Description
1.01 September 22, 2014 • Add power usage information
Preface
iiD-Link DCH-S150 User Manual
Table of Contents
Preface .................................................................................i
Manual Revisions ........................................................................... i
Trademarks ...................................................................................... i
Power Usage .................................................................................... i
Product Overview .............................................................. 1
Package Contents ......................................................................... 1
System Requirements .................................................................2
Introduction ...................................................................................3
Features .................................................................................... 3
Hardware Overview ..................................................................... 4
Front/Top ................................................................................. 4
Side and Bottom ...................................................................5
Wireless Installation Factors .....................................................6
Setting Up Your DCH-S150 ................................................7
WPS ..................................................................................................10
Manual Setup ...............................................................................11
mydlink™ Home ............................................................... 16
My Devices ....................................................................................16
Schedule ........................................................................................17
Information ...................................................................................19
My Actions ....................................................................................20
My Places .......................................................................................22
Connecting to a Wireless Router .................................... 24
WPS Button ...................................................................................24
Troubleshooting .............................................................. 25
Technical Specications ..................................................26
Table of Contents
1D-Link DCH-S150 User Manual
Section 1 - Product Overview
Product Overview
Package Contents
If any of the above items are missing from your package, please contact your reseller.
Quick Installation Guide
Quick Install Card
DCH-S150 mydlink™ Home Wi-Fi Motion Sensor
2D-Link DCH-S150 User Manual
Section 1 - Product Overview
System Requirements
General Requirements
• Wireless router with Internet Service
• An available power outlet
Mobile Requirements
• Smartphone or tablet with iOS 6.0 or above, or Android 4.0
or above
mydlink Requirements
• For mydlink and mydlink app requirements
refer to: http://www.mydlink.com
3D-Link DCH-S150 User Manual
Section 1 - Product Overview
Introduction
Features
Use Motion Detection to Automatically Turn on Your Appliances
The DCH-S150 mydlink™ Home Wi-Fi Motion Sensor is a portable plug-in PIR motion detection device that lets you automate
appliances such as desk lamps attached to Smart Plugs in your home network. Tiny yet powerful, the DCH-S150 introduces
you to the world of home automation in a device that ts in the palm of your hand.
Compact, Convenient Design
The DCH-S150 ‘s compact design is ideal for use at home or a small oce, as it saves space and is ready to use by simply plugging
it in. The device’s small form means it can easily be plugged into a power outlet without blocking other outlets while its case
design saves you the hassle of dealing with a power cord. Its sleek, unobtrusive appearance means it blends easily into the
background.
mydlink™ Home
Manage your motion sensor and connected appliances by using the mydlink™ Home app available for iPhone®, iPad®, and
iPod touch® and Android™ devices. Its intuitive user interface and simple instructions lets you easily manage your automated
devices from wherever you are.
Simple Setup
Through its easy-to-use mydlink™ Home app, you can quickly and easily connect the DCH-S150 to an existing network. The
setup wizard will even guide you through the setup process, so you can get your home automation devices up and running
in no time.
4D-Link DCH-S150 User Manual
Section 1 - Product Overview
Hardware Overview
Front/Top
1 Motion Sensor This sensor will detect motion and trigger actions to other devices.
1
5D-Link DCH-S150 User Manual
Section 1 - Product Overview
Hardware Overview
Side and Bottom

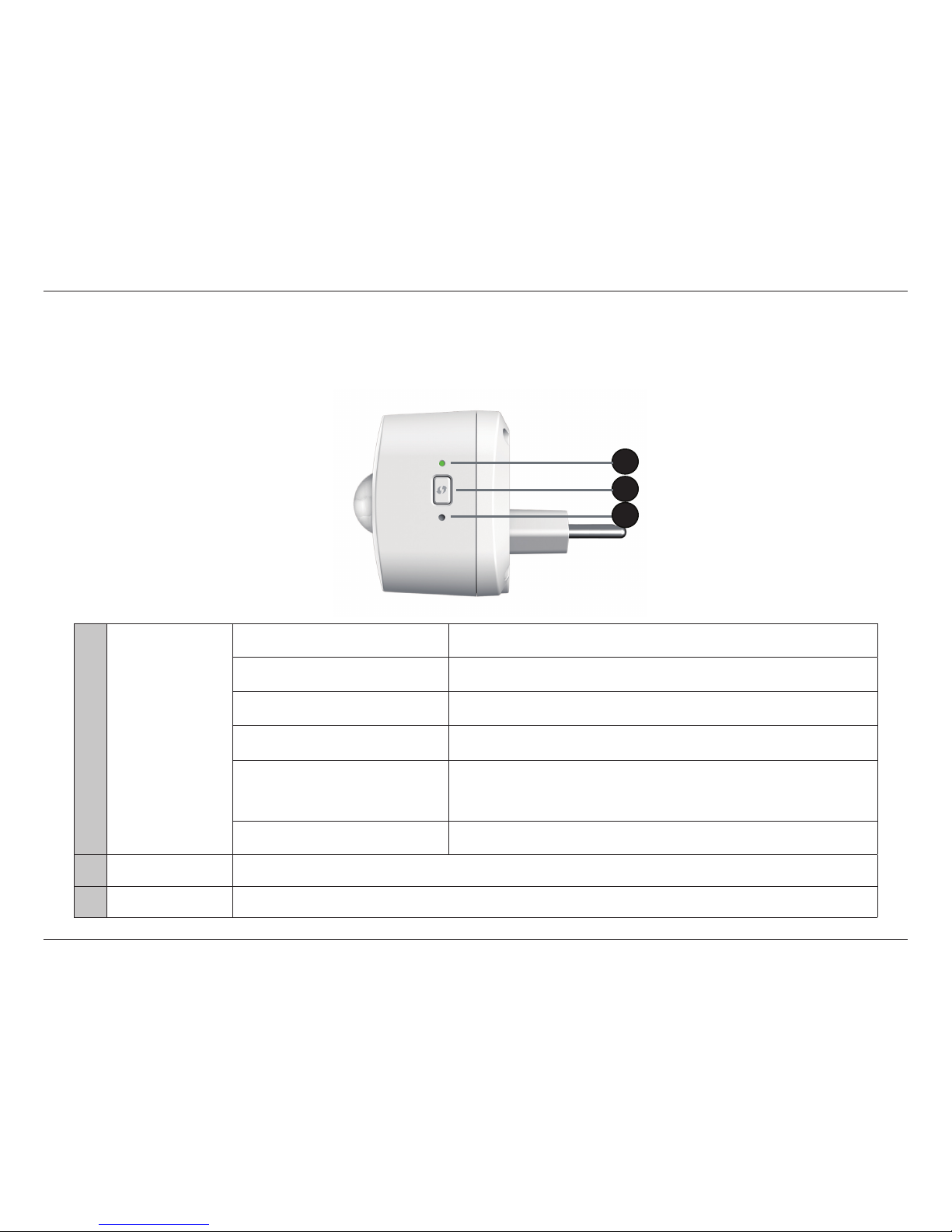

1 LED
Solid Green The device is connected to the network
Blinking Green (slow) WPS is working
Blinking Green (fast) PIR is detecting motion
Blinking Orange The device is not connected to the network
Solid Red
• The device is powering on
• The rmware is being upgraded
• The device is defective
Light O The device is powered o
2 WPS Button Pressing the WPS button for 1 second allows you to connect with Wi-Fi clients using Wi-Fi Protected Setup
3 Reset Button Pressing the reset button for 10 seconds will reset the DCH-S150 to the factory default settings
2
1
3
6D-Link DCH-S150 User Manual
Section 2 - Installation
Wireless Installation Factors
The mydlink™ Home Wi-Fi Motion Sensor lets you automate appliances using your existing wireless network. Keep in mind,
however, that the number, thickness, and location of walls, ceilings, or other objects that the wireless signals must pass through,
may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in
your home or business. The key to maximizing wireless range is to follow these basic guidelines:
1.
Keep the number of walls and ceilings between the extender and other network devices to a minimum - each wall or ceiling can
reduce your adapter’s range by up to 98 feet (30 meters). Position your devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. At a 45-degree angle, a wall that is 0.5 meters thick (1.5 feet)
appears to be almost 1 meter (3 feet) thick. At a 2-degree angle it can appear over 14 meters (45 feet) thick! Position
devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try to position access
points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects such as
glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete can degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security systems),
your wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base is as far away
from your wireless devices as possible. The base transmits a signal even if the phone in not in use.
