DigiTech qc3247 User Manual
User’s Manual
(Win & Mac)
1
Introduction
our choice of our product - it is a high-tech while easy
n many fields such as visual inspection on electronic
end you reading this manual FIRST to get the best out of
omputer System Requirements:
Windows 98SE/ME/2000/XP/VISTA & Mac OS X 10.5 or above
: 32M
e
Technical Specifications
ixels (interpolated to 2M)
Thank you for y
to use Digital Microscope. With this unit you may see a unique &
“bigger” world.
It is applicable i
components, and materials in a full range of uses, beauty shop and
education.
We recomm
this unit.
C
P4 1.8 or above
RAM: 256M
Video Memory
USB port: 2.0
CD-ROM Driv
Image sensor 1.3 Mega P
Still capture resolution 1600x1200, 1280x960, 800x600, 640x480, 352x288, 320x240,
160x120
Video capture resolution 1600x1200, 1280x960, 800x600, 640x480, 352x288, 320x240,
160x120
Color 24 bit RGB
Flicker Frequency z 50Hz/60H
Frame Rate der 600 Lus Brightness Max 30f/s un
Magnification Ratio 20X to 400X
Shutter Speed 1 sec. to 1/1000 sec.
Video format AVI
Photo format JPEG or BMP
White balance Auto
Exposure Auto
Light source 8 LED (switchable by software)
2
e .0 PC interfac USB2
Power source 5V DC from USB port
Operation system P/Vista, Mac OS X 10.5 or above Windows2000/X
OSD language sh, Korean, French, Russian English, German, Spani
Bundle software MicroCapture with measurement & calibration function
Size 125mm (L) x 33mm (R)
Install the software
Insert the driver CD into CD-ROM Drive and this will automatically
display the following interface:
1. Install the driver by clicking Microscope Driver
ppear on the screen. Please click on
A Install Shield Wizard will walk you through the whole process. Click
the “Next” button to continue.
In this process a message box will a
“Continue Anyway”. (Some versions of drivers may not be tested by
Windows Lab testing. However it is safe for both your software and
hardware)
2. Install the MicroCapture software
Click install MicroCapture software and then reboot the system when
asked.
3. You can also browse the User’s manual in PDF format and the CD
contents by choosing the corresponding menus.
Connecting the Microscope to Computer
1. When using a Windows XP operating system, the following “Found
New Hardware Wizard” screen will appear upon connecting the unit
to your PC via the USB port.
Select the “Install the software automatically (Recommended)”
option and click the “Next” button.
3
2. Click the “Continue Anyway” button on the message box that appears.
4
3. Click the “Finish” button to exit the wizard. Now you may begin to
use the Digital Microscope.
5
Quick Look at the Digital Microscope
1) Use the FOCUS WHEEL to focus the microscope on the subject.
2) The SNAPSHOT BUTTON enables user capture snapshots by
hardware; please refer to photo capture by software later.

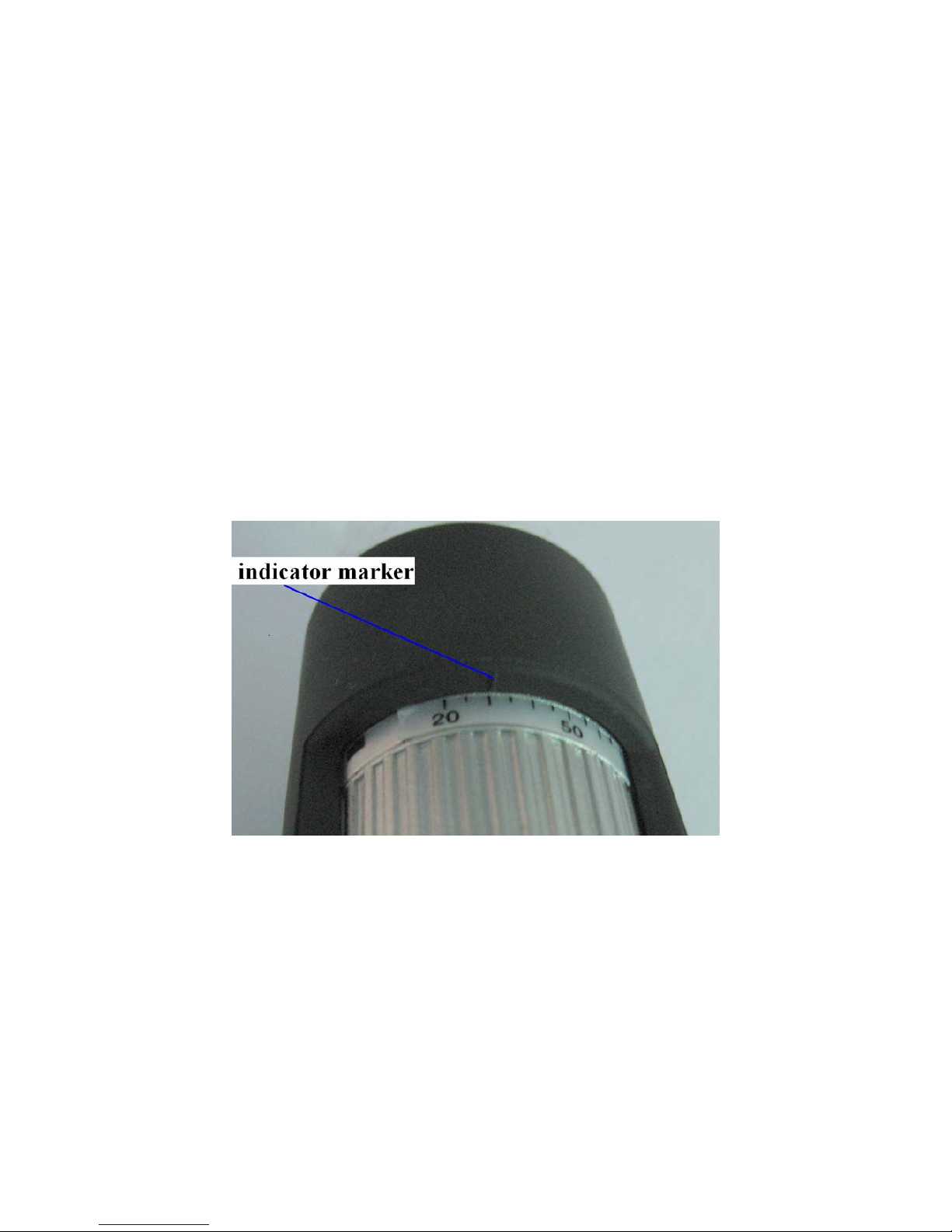

3) Calibration ruler provides the magnification ratio at which a focus got.
6

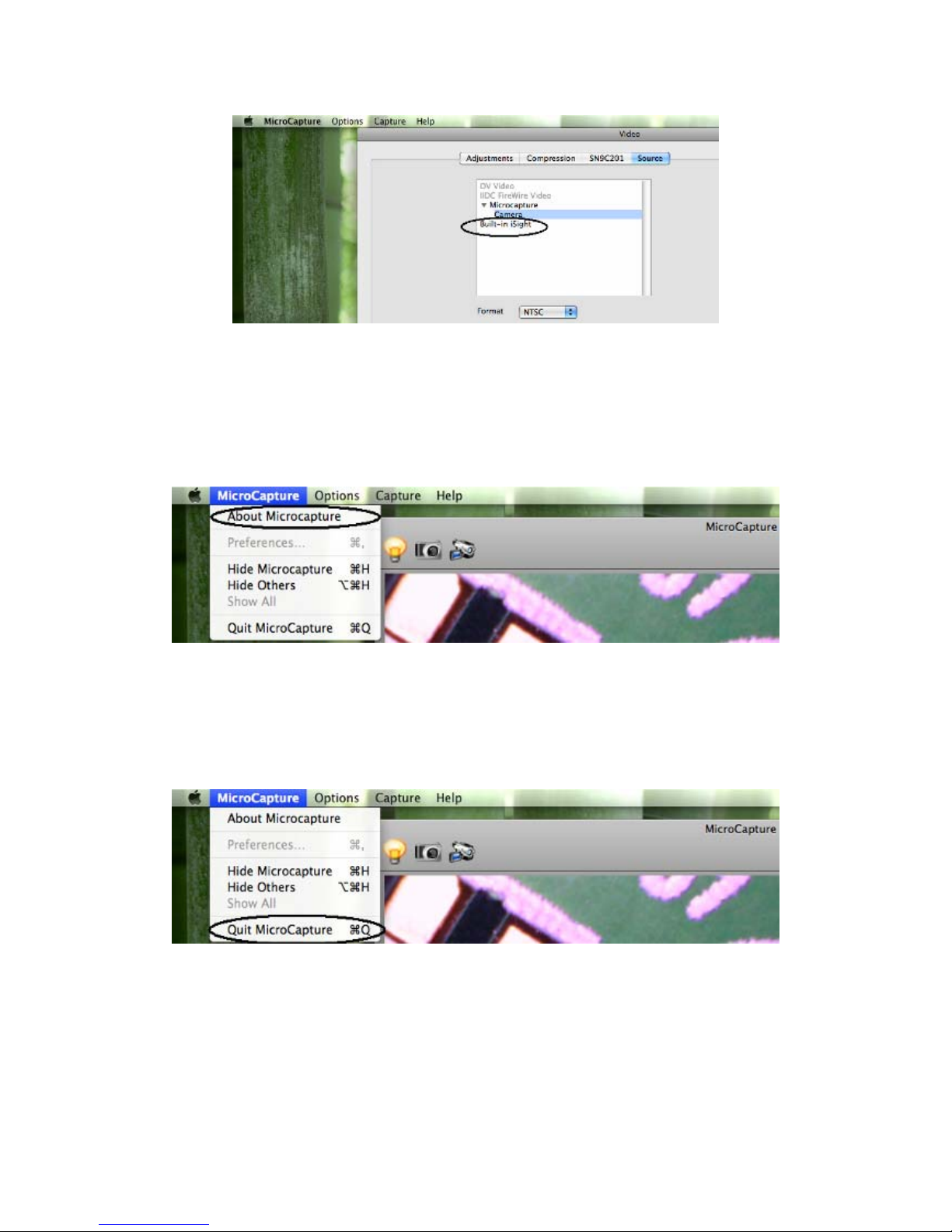

Start Microscope
Connect your Microscope directly to your PC USB port, start the
software by clicking the icon
generated on the desktop after
installation and then you will see the following box popped up.
1. Once the Microscope is disconnected from your PC USB port,
box showed on Step 1 will pop up as “No Device detected, please
connect your Microscope directly to your PC USB port.”

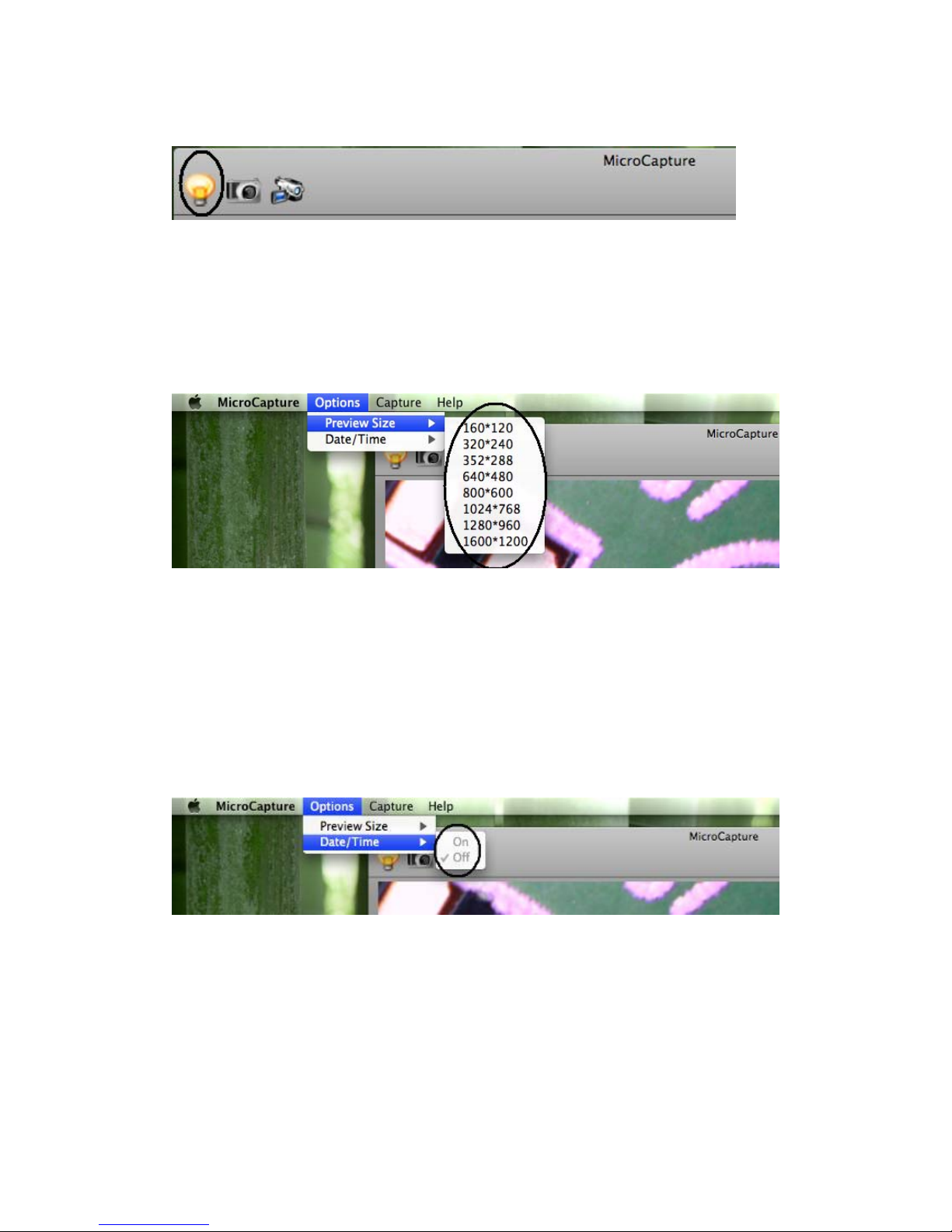

Change preview size
7
You can change the preview size by the following operation:
Note: The size of the photo taken is equivalent to the preview size
selected in the Options menu/Preview Size.
Rotate the output image angle
You can rotate the output image clockwise and counter-clockwise.
8
Date/Time
You can display or turn off Date/Time by the following operation:
Language
You can choose On Screen Display language by the following
operation:
9
