DigiTech RP6 User Manual

Processor/Foot

Controller and Preamp

Owner's Manual

RP-6 Owner’s Manual

DECLARATION OF CONFORMITY

Manufacturer’s Name:Harman Music Group Incorporated

Manufacturer’s Address:

8760 S. Sandy Parkway





Sandy, Utah 84070, USA

declares that the product:



Product Name:

RP-6

Product Options:

All (requies a Class II power adapter that conforms to the requirements of



EN60065, EN60747, or equivalent).

conform to the following Product Specifications:

Safety: EN 60065 (1993)

IEC 65 (1987) with Amendments 1, 2 & 3

EMC: EN 55013 (1990)

EN 55020 (1991)

Supplementary Information:

The product herewith complies with the requirements of the Low Voltage Directive

73/23/EEC and EMC Directive 89/336/EEC as amended by Directive 93/68/EEC.

.

Harman Music Group Incorporated

Vice President of Engineering 8760 S. Sandy Parkway

Sandy, Utah 84070, USA

Effective October 1, 1996

European Contact: Your Local DigiTech Sales and Service Office or International Sales Office

3 Overlook Drive #4

Amherst, New Hampshire 03031, USA Tel (603) 672-4244

Fax (603) 672-4246

Section 7 - Appendix

RP-6 Owner’s Manual

Table Of Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

1

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3

Lithium Battery Warning . . . . . . . . . . . . . . . . . . . . . . . .

4



Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4



SECTION 1 - STARTUP

Supplying power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6



Line Conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6



Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . .

6



Pedalboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7



Parameter Matrix. . . . . . . . . . . . . . . . . . . . . . . . . . .

7



Display Window . . . . . . . . . . . . . . . . . . . . . . . . . . .

7



Value, Store, and Edit Keys. . . . . . . . . . . . . . . . . . .

8



Parameter Selection Keys . . . . . . . . . . . . . . . . . . . .

8



Main Output Level. . . . . . . . . . . . . . . . . . . . . . . . . .

8



Presence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8



CC Pedal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8



Rear Panel Connections . . . . . . . . . . . . . . . . . . . . . . . .

8



Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8



Right Main Output. . . . . . . . . . . . . . . . . . . . . . . . . .

8



Left Main Output . . . . . . . . . . . . . . . . . . . . . . . . . . .

8



Headphone Output . . . . . . . . . . . . . . . . . . . . . . . . .

8



AC Line Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9

SECTION 2 - BASIC OPERATIONS About RP-6’s Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Program Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Bank Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Edit Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Store Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Bypass Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Tuner Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Table of Contents

RP-6 Owner’s Manual

2SECTION3-EFFECTSANDPARAMETERS About the Parameter Matrix. . . . . . . . . . . . . . . . . . . . . . 13

Compression. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

CC Pedal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Distortion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Silencer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Master Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Equalization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Speaker Cab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Wahs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Mod/Pitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Choruses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Flangers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Phasers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Tremolos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Auto Panners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Pitch Shifters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Whammy™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Dual Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Reverb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

SECTION 4- APPENDIX

Reinitializing the RP-6 . . . . . . . . . . . . . . . . . . . . . . . . . .

25



Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

26



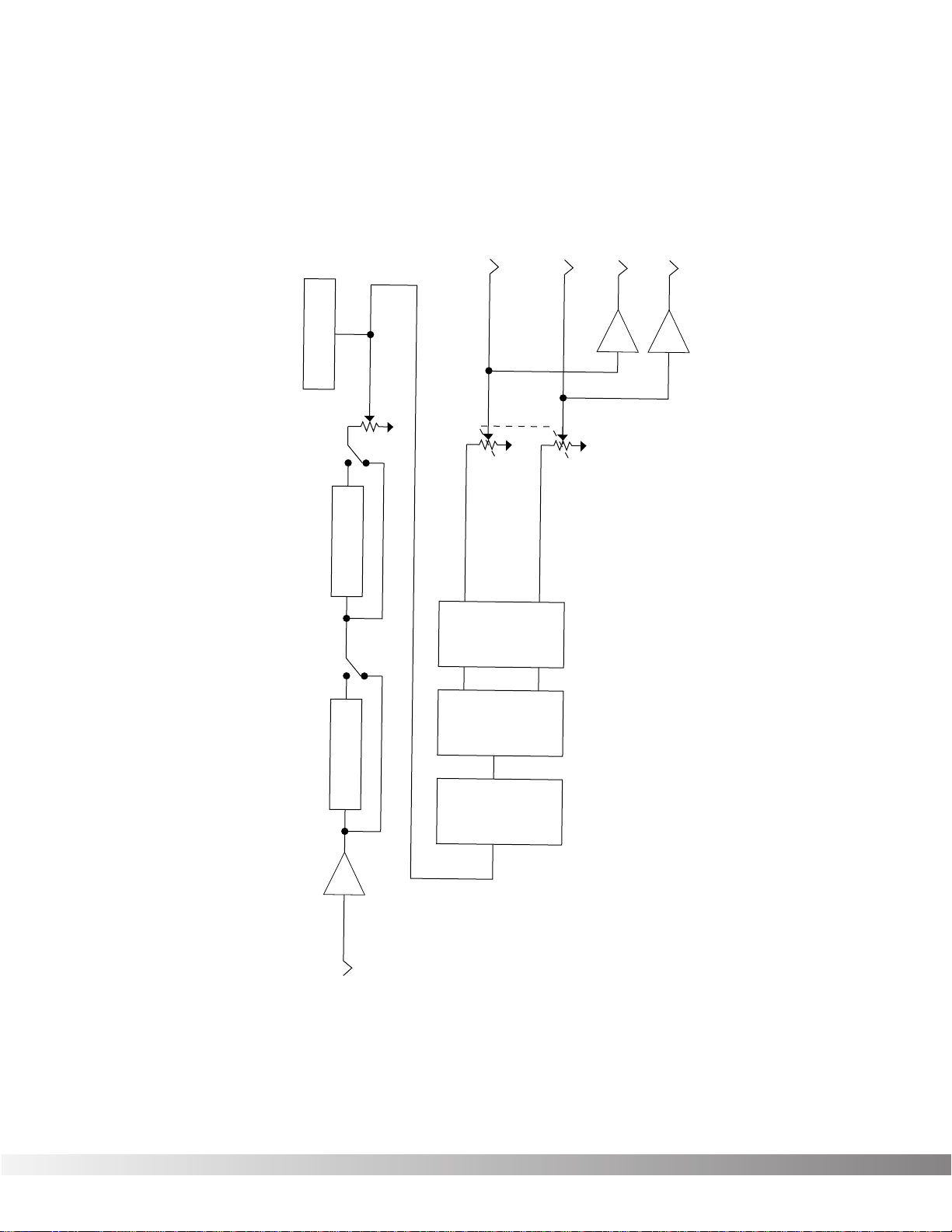

Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

27



Program List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

28

Table of Contents

RP-6 Owner’s Manual

INTRODUCTION

Congratulations, and thank you for your purchase of the DigiTech RP-



6 Guitar Signal Processor / Preamp. The RP-6 offers you the same



fresh approach to guitar sound creation as the now famous RP-10.



DigiTech’s revolutionary S-DISC™ processor makes it all happen.3Its



compact size occupies less floor space, while maintaining the power



of analog distortion, with the precision and clarity of the S-DISC™ digi-



tal multi-effects. Special features of the RP-6 include:



• Full bandwidth effects (20-20kHz)



• Stereo signal processing



• Quick Module and Parameter access



• CC pedal which allows for real time control of certain Parameters



• Programmable cabinet emulation for running direct to a mixing



console (great for both studio and live applications)



• Front panel Presence control and headphone output



All of your effects needs can be filled by a single unit. This owner’s



manual is your key to understanding the powerful world of the RP-6.



Read it carefully. After you’ve had time to familiarize yourself with the



unit, try experimenting with unusual effects settings. You may achieve



some interesting results.

SAFETY PRECAUTIONS

Do not open the unit. Do not attempt to service the unit yourself.



Refer all servicing to qualified personnel. Opening the chassis for any



reason will void the manufacturer’s warranty. Do not get the unit wet.



If liquid is spilled on the unit, shut it off immediately and take it to a



dealer for service. Disconnect the equipment during storms to prevent



damage.



U.K. ONLY - A moulded mains plug that has been cut off from the



cord is unsafe. Discard the mains plug at a suitable disposal facility.



NEVER UNDER ANY CIRCUMSTANCES SHOULD YOU INSERT A



DAMAGED OR CUT MAINS PLUG INTO A 13 AMP POWER SOCKET.



Do not use the mains plug without the fuse cover in place.



Replacement fuse covers can be obtained from your local retailer.



Replacement fuses are 13 amps and MUST be ASTA approved to



BS1362.

LITHIUM BATTERY WARNING

CAUTION! This product contains a lithium battery. There is danger of



explosion if battery is incorrectly replaced. Replace only with an



Eveready CR 2032 or equivalent. Make sure the battery is installed



with the correct polarity. Discard used batteries according to manu-



facturer’s instructions.



ADVARSEL! Lithiumbatteri - Eksplosjonsfare. Ved utskifting benyttes



kun batteri som anbefalt av apparatfabrikanten. Brukt batteri



returneres apparatleverandøren.



ADVARSEL! Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering.



Udskiftning må kun ske med batteri av samme fabrikat og type. Levér



det brugte batteri tilbage til leverandøren.

Introduction and Safety

4

WARRANTY

RP-6 Owner’s Manual

VAROITUS! Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.

VARNING! Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion.

1.The warranty registration card must be mailed within ten days after purchase date to validate this warranty.

2.DigiTech warrants this product, when used solely within the U.S., to be free from defects in materials and workmanship under normal use and service.

3.DigiTech liability under this warranty is limited to repairing or replacing defective materials that show evidence of defect, provided the product is returned to DigiTech WITH RETURN AUTHORIZATION, where all parts and labor will be covered up to a period of one year. A Return Authorization number may be obtained from DigiTech by telephone. The company shall not be liable for any consequential damage as a result of the product’s use in any circuit or assembly.

4.Proof-of-purchase is considered to be the burden of the consumer.

5.DigiTech reserves the right to make changes in design or make additions to or improvements upon this product without incurring any obligation to install the same on products previously manufactured.

6.The foregoing is in lieu of all other warranties, expressed or implied, and DigiTech neither assumes nor authorizes any person to assume any obligation or liability in connection with the sale of this product. In no event shall DigiTech or its dealers be liable for special or consequential damages or from any delay in the performance of this warranty due to causes beyond their control.

DigiTech™, S-DISC™, Whammy™ and Silencer™ are registered trademarks of DOD Electronics Corporation.

The information contained in this manual is subject to change at any time without notification. Some information contained in this manual may also be inaccurate due to undocumented changes in the product or operating system since this version of the manual was completed. The information contained in this version of the owner’s manual supersedes all previous versions.

Warranty

RP-6 Owner’s Manual

SECTION 1 - STARTUP

SUPPLYING POWER

FRONT PANEL CONTROLS

5

Line Conditioning - The RP-6, like any piece of computer hardware, is sensitive to voltage drops, spikes, and surges. Interference such as lightning or power “brownouts” can seriously, and in extreme cases, permanently damage the circuitry inside the unit. Here are some ways to avoid this type of damage:

Spike/Surge Suppressors - This is an inexpensive solution to all but the most severe of AC line conditions. Surge protected power strips usually cost only slightly more than unprotected strips, making them a worthy investment for protection of all your valuable gear.

AC Line Conditioners - This is the best way to go for total protection from improper line voltages, albeit the more expensive way. Line conditioners constantly monitor for excessively high or low voltages and adjust accordingly, thus delivering consistent power levels.

The front panel controls and functions of the RP-6 are as follows (refer to diagram):

Section 1 - Startup

6



RP-6 Owner’s Manual

1)

Pedalboard - The RP-6’s pedalboard consists of six footswitches.



The two Mode footswitches to the right of the Parameter Matrix



allow you to change from Program mode to Bank mode by press-



ing the UP & DOWN footswitches simultaneously. When changing

modes, the appropriate LED will light to indicate whether you are in Program mode or Bank Mode. In Program Mode, the <UP> and <DOWN> footswitches allow you to move through Programs, while the four main switches, labeled 1 - 4, act as toggle On/Off switches for Distortion, Modulation, Delay, and Reverb. In Bank mode, the <UP> and <DOWN> footswitches allow you to move through Banks, while the 1-4 footswitches are used to select Programs. If footswitches 1 and 2 are pressed simultaneously, Tuner Mode will be activated. If footswitches 3 and 4 are pressed simultaneously, Bypass Mode will be activated.

2) Parameter Matrix - The Parameter Matrix consists of a group of horizontal Effect LEDs and a second group of vertical Parameter LEDs. The Effect LEDs are: Compressor, Distortion, Silencer, Equalization, Speaker Cab, Wah Wah, Mod/Pitch, Dual Delay, and Reverb. This matrix shows you exactly what Effects and Parameters are in use.

3) Display Window - The display window shows all current operating and programming information and is comprised of two parts: the seven segment LED displays and the Signal, Clip, and Store indicator LEDs. The first numeric LED in the display window indicates whether you are in a User (U) or Factory Bank (F). The second indicates the Bank number currently in use, and the third indicates which Program number is currently in use. These numbers change as you scroll through the available Programs. The functions of the Signal, Clip, and Store indicator LEDs are as follows:

• Signal - Indicates whether a signal is entering the RP-6.

• Clip - Indicates analog clipping in the RP-6. Digital clipping can be detected when the third vertical LED from the top of the Parameter Matrix flashes. Distortion may be heard in the output signal if either analog or digital clipping occurs. If analog clipping occurs, check the Distortion On/Off levels. The levels may need to be lowered to eliminate the problem. To reduce digital clipping, the Master Volume and/or Effects levels should be checked and adjusted accordingly. As always, let your ears be the judge.

• Store - Lights when a Parameter has been changed in a Program. When <STORE> is pressed once, the first seven segment LED in the Display window will flash. Once you have selected the Bank and Program location where you want to store your effects, press the <STORE> key again (see page 11, under Edit Mode for further information on storing a Program).

Section 1 - Startup

RP-6 Owner’s Manual



4)

Value, Store and Edit Keys - The Value <UP> and <DOWN> keys







allow you to scroll through the RP-6’s Programs, or change







Parameter values in Edit mode. The <STORE> key allows you to







store an edited Program in memory for later use. The <EDIT>7key







allows you to edit the User and Factory Programs.



5)

Parameter Select Keys -The <LEFT> and <RIGHT> Parameter







keys allow you to navigate the horizontal Effect LEDs of the







Parameter matrix. The <UP> and <DOWN> Parameter keys allow







you to navigate the vertical Parameter LEDs of the Parameter







matrix. These keys are only active in Edit mode.



6)

Output Level - Controls the overall output level of the RP-6. Also







controls the overall level of the headphones.







7)

Presence - Enhances the high frequency content of the overall







sound. This will affect all presets.







8)

Continuous Control Pedal - This volume-type pedal allows real-







time control over Parameters in the RP-6.





REAR PANEL CONNECTIONS



The RP-6 rear panel connectors and functions are as follows:



1

2

3

4

5

























INPUT

HEADPHONES

LEFT/MONO

RIGHT

POWER











OUTPUT

OUTPUT

9VAC 1.33A

1)Input - This is the RP-6’s audio input. Plug your guitar in here.

2)Headphone Output - 1/4” stereo plug for headphones. The headphone level is controlled by the main output level knob.

3)Left/Mono Main Output - This is the RP-6’s left main audio output. This output must be used if a mono effect is desired.

4)Right Main Output - This is the RP-6’s right main audio output. Use both left and right main outputs to take advantage of stereo effects.

5)AC Line Input - This is the AC adapter receptacle.

Section 1 - Startup
