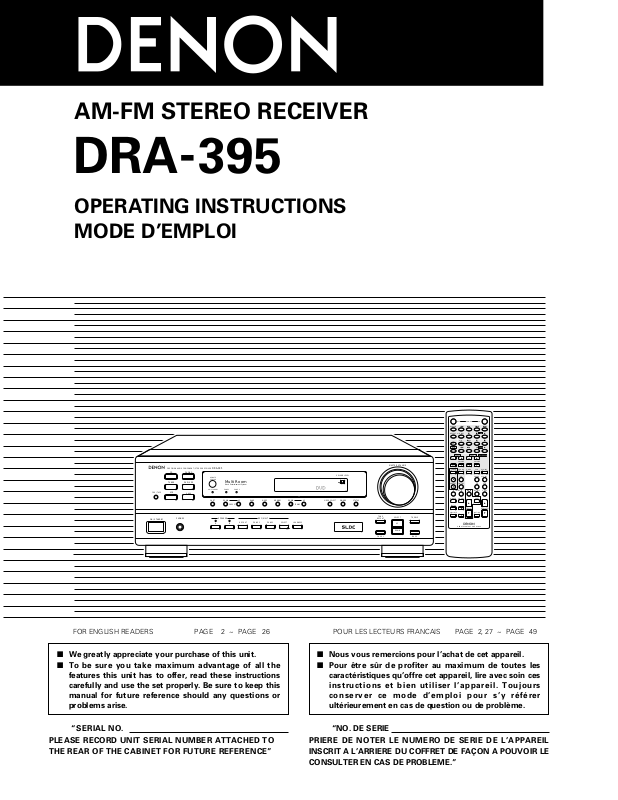

Denon DRA-395 User Manual

AM-FM STEREO RECEIVER

DRA-395

OPERATING INSTRUCTIONS
MODE D’EMPLOI

VOLUME LEVEL

B

DRA-395

PRECISION AUDIO COMPONENT / STEREO RECEIVER

PHONES

ON / STANDBY

SPEAKER

AB

TONE

DEFEAT

TREBLESELECT

UP

TUNING

MODEBAND MEMORY

VIDEO SELECT

DIMMER STATUS

SHIFT

DOWN UP

PRESET

DOWN

MASTER VOLUME

UP

DOWN

PHONO

DVD / VDP

VCR

CD

TUNER

V.AUX

ON / STANDBY

REMOTE

SENSOR

ZONE 2REC OUT ZONE 3 SELECT LOUDNESS

BASSCH VOL

CDR / TAPE

Music Entertainment System

M

ulti Room

ZONE 2 ZONE 3

REC / MULTI

POWEROFF ON

RANDOM

DISC SKIP ＋

REPEAT

RECA / B

MAIN

VOLUME VOLUME

DVD / VDP

VCRV. AUXPHONOTUNER

CD

CDR / TAPE

PHONO

DVD / VDP

CD VCR

PRESET

SPEAKERABCDR / TAPE

V. AUXTUNER

DIMMER CH VOL

STATUS

VIDEO SELECT

SHIFT

MUTING

MASTER VOL

PRESET

REMOTE CONTROL UNIT RC-894

B

12

234

3

9876

1076

ZONE 2 ZONE 3

CD

TAPE

MULTI ROOM

•ª•

ª

•

ª

•

ª

•ª•

ª

ON

OFF

ON

OFFONOFF

“SERIAL NO.

PLEASE RECORD UNIT SERIAL NUMBER ATTACHED TO
THE REAR OF THE CABINET FOR FUTURE REFERENCE”

2 We greatly appreciate your purchase of this unit.
2 To be sure you take maximum advantage of all the

features this unit has to offer, read these instructions
carefully and use the set properly. Be sure to keep this
manual for future reference should any questions or
problems arise.

“NO. DE SERIE

PRIERE DE NOTER LE NUMERO DE SERIE DE L’APPAREIL
INSCRIT A L’ARRIERE DU COFFRET DE FAÇON A POUVOIR LE
CONSULTER EN CAS DE PROBLEME.”

2 Nous vous remercions pour l’achat de cet appareil.
2 Pour être sûr de profiter au maximum de toutes les

caractéristiques qu’offre cet appareil, lire avec soin ces
instructions et bien utiliser l’appareil. Toujours
conserver ce mode d’emploi pour s’y référer
ultérieurement en cas de question ou de problème.

FOR ENGLISH READERS PAGE 02 ~ PAGE 26 POUR LES LECTEURS FRANCAIS PAGE 2, 27 ~ PAGE 49

2

2

SAFETY PRECAUTIONS

This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.

This Class B digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les
exigences du Règlement sur le matériel brouilleur du Canada.

2

NOTE ON USE / OBSERVATIONS RELATIVES A L’UTILISATION

• Avoid high temperatures.
Allow for sufficient heat dispersion when
installed on a rack.

• Eviter des températures élevées
Tenir compte d’une dispersion de chaleur
suffisante lors de l’installation sur une étagère.

• Keep the set free from moisture, water, and
dust.

• Protéger l’appareil contre l’humidité, l’eau et la
poussière.

• Do not let foreign objects in the set.

• Ne pas laisser des objets étrangers dans
l’appareil.

• Do not let insecticides, benzene, and thinner
come in contact with the set.

• Ne pas mettre en contact des insecticides, du
benzène et un diluant avec l’appareil.

• Never disassemble or modify the set in any
way.

• Ne jamais démonter ou modifier l’appareil
d’une manière ou d’une autre.

• Unplug the power cord when not using the set
for long periods of time.

• Débrancher le cordon d’alimentation lorsque
l’appareil n’est pas utilisé pendant de longues
périodes.

* (For sets with ventilation holes)

• Do not obstruct the ventilation holes.

• Ne pas obstruer les trous d’aération.

• Handle the power cord carefully.
Hold the plug when unplugging the cord.

• Manipuler le cordon d’alimentation avec
précaution.
Tenir la prise lors du débranchement du
cordon.

CAUTION:

REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to alert
the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR
MOISTURE.

ENGLISH FRANCAIS

CAUTION

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION

POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTERODUIRE LA
LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE
CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’ AU
FOND.

RISK OF ELECTRIC SHOCK

CAUTION

DO NOT OPEN

3

SAFETY INSTRUCTIONS

1. Read Instructions – All the safety and operating
instructions should be read before the appliance is
operated.

2. Retain Instructions – The safety and operating instructions
should be retained for future reference.

3. Heed Warnings – All warnings on the appliance and in the
operating instructions should be adhered to.

4. Follow Instructions – All operating and use instructions
should be followed.

5. Water and Moisture – The appliance should not be used
near water – for example, near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet basement, or near a
swimming pool, and the like.

6. Carts and Stands – The appliance should be used only with
a cart or stand that is recommended by the manufacturer.

6A. An appliance and cart

combination should be
moved with care.
Quick stops, excessive
force, and uneven
surfaces may cause
the appliance and cart
combination to overturn.

7. Wall or Ceiling Mounting – The appliance should be
mounted to a wall or ceiling only as recommended by the
manufacturer.

8. Ventilation – The appliance should be situated so that its
location or position does not interfere with its proper
ventilation. For example, the appliance should not be
situated on a bed, sofa, rug, or similar surface that may
block the ventilation openings; or, placed in a built-in
installation, such as a bookcase or cabinet that may
impede the flow of air through the ventilation openings.

9. Heat – The appliance should be situated away from heat
sources such as radiators, heat registers, stoves, or other
appliances (including amplifiers) that produce heat.

10. Power Sources – The appliance should be connected to a
power supply only of the type described in the operating
instructions or as marked on the appliance.

11. Grounding or Polarization – Precautions should be taken so
that the grounding or polarization means of an appliance is
not defeated.

12. Power-Cord Protection – Power-supply cords should be
routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the
appliance.

14. Cleaning – The appliance should be cleaned only as
recommended by the manufacturer.

15. Power Lines – An outdoor antenna should be located away
from power lines.

16. Outdoor Antenna Grounding – If an outside antenna is
connected to the receiver, be sure the antenna system is
grounded so as to provide some protection against voltage
surges and built-up static charges. Article 810 of the
National Electrical Code, ANSI/NFPA 70, provides
information with regard to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to
an antenna-discharge unit, size of grounding conductors,
location of antenna-discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode.
See Figure A.

17. Nonuse Periods – The power cord of the appliance should
be unplugged from the outlet when left unused for a long
period of time.

18. Object and Liquid Entry – Care should be taken so that
objects do not fall and liquids are not spilled into the
enclosure through openings.

19. Damage Requiring Service – The appliance should be
serviced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged;

or

B. Objects have fallen, or liquid has been spilled into the

appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or

exhibits a marked change in performance; or
E. The appliance has been dropped, or the enclosure

damaged.

20. Servicing – The user should not attempt to service the
appliance beyond that described in the operating
instructions. All other servicing should be referred to
qualified service personnel.

FIGURE A

EXAMPLE OF ANTENNA GROUNDING

AS PER NATIONAL
ELECTRICAL CODE

ANTENNA
LEAD IN
WIRE

GROUND
CLAMP

ELECTRIC
SERVICE
EQUIPMENT

ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)

GROUNDING CONDUCTORS
(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)

NEC - NATIONAL ELECTRICAL CODE

4

ENGLISH

TABLE OF CONTENTS

2 ACCESSORIES

Check that the following parts are included in addition to the main unit:

z

Before Using ................................................................................4

x

Cautions on Installation ................................................................5

c

Cautions on Handling ...................................................................5

v

Features .......................................................................................5

b

Connections ...........................................................................6~10

n

Part Names and Functions .........................................................10

m

Remote Control Unit ............................................................11, 12

,

Operations ...........................................................................13~20

.

Listening to the Radio ..........................................................21~23

⁄0

Initialization of the Microprocessor ............................................24

⁄1

Last function memory ................................................................24

⁄2

Troubleshooting..........................................................................25

⁄3

Specifications .............................................................................26

2

INTRODUCTION

Thank you for choosing the DENON AM-FM Stereo receiver. This remarkable component has been engineered to provide outstanding high
fidelity reproduction of your favorite music sources.
As this product is provided with an immense array of features, we recommend that before you begin hookup and operation that you review the
contents of this manual before proceeding.

1

BEFORE USING

Pay attention to the following before using this unit:

• Moving the set
To prevent short circuits or damaged wires in the connection

cords, always unplug the power cord and disconnect the
connection cords between all other audio components when
moving the set.

• Before turning the power operation switch on
Check once again that all connections are proper and that there are

not problems with the connection cords. Always set the power
operation switch to the standby position before connecting and
disconnecting connection cords.

• Store this instructions in a safe place.
After reading, store this instructions along with the warranty in a

safe place.

• Note that the illustrations in this instructions may differ from

the actual set for explanation purposes.

q

Operating instructions

..............................................................1

w

Warranty

...................................................................................1

e

Service station list

.....................................................................1

r

Remote control unit (RC-894)

...................................................1

t

Batteries (R03/AAA).................................................................2

y

AM loop antenna......................................................................1

u

FM indoor antenna...................................................................1

i

FM antenna adapter.................................................................1

(RC-894)

r t yui

B

5

ENGLISH

2

CAUTIONS ON INSTALLATION

3

CAUTIONS ON HANDLING

Noise or disturbance of the picture may be generated if this unit or
any other electronic equipment using microprocessors is used near a
tuner or TV.
If this happens, take the following steps:

• Install this unit as far as possible from the tuner or TV.

• Set the antenna wires from the tuner or TV away from this unit’s
power cord and input/output connection cords.

• Noise or disturbance tends to occur particularly when using indoor
antennas or 300 Ω/ohms feeder wires. We recommend using

outdoor antennas and 75 Ω/ohms coaxial cables.

For heat dispersal, leave at least 0.3 ft (10 cm) of space between
the top, back and sides of this unit and the wall or other compo­nents.

• Switching the input function when input jacks are not
connected

A clicking noise may be produced if the input function is switched
when nothing is connected to the input jacks. If this happens,
either turn down the VOLUME control or connect components to
the input jacks.

• Muting of PRE OUT jacks
The PRE OUT jacks include a muting circuit. Because of this, the

output signals are greatly reduced for several seconds after the
power operation switch is turned on.
If the volume is turned up during this time, the output will be very
high after the muting circuit stops functioning. Always wait until
the muting circuit turns off before adjusting the volume.

• Whenever the power operation switch is in the STANDBY

state, the apparatus is still connected on some AC line
voltages.
Please be sure to unplug the cord when you leave home for,
say, a vacation.

B

0.3 ft (10 cm) or more

0.3 ft (10 cm) or more

Wall

4

FEATURES

1. Multi Room Music Entertainment System

Multi Source Function:

This unit’s Multi Source function lets you select different audio
or video sources for viewing or listening Different sources can
thus be enjoyed in the main room and the subroom
simultaneously. Playback of single audio/video source that
differs from the Main Room is permitted in the two rooms, sub
room (ZONE 2) and sub room (ZONE 3). The signals output to
ZONE 2 and ZONE 3 can each be switched on and off
independently. Independent volume control is also permitted.
This novel feature gives you considerable flexibility when
setting up and enjoying your system with this unit. The output
level, adjustable by the remote commander, is as much as 1V,
enough to operate the optional power amplifier placed in a
subroom.

2. Powerful, Versatile Amplifier

High-Quality Power Amplifier:

High-speed, high-power transistors employed in a rational
circuit configuration reflect DENON’S advanced amplifier
technology and ensure a very hefty, clean power output.

3. Signal Level Divided Construction (SLDC)

The circuits handling low-level and high-level signals have been
divided into separate blocks to ensure that influences from these
signals on each other are held to an absolute minimum. This
chassis design in this unit is called the Signal Level Divided
Construction (SLDC). Signals for output are cleaner than before,
allowing them to be reproduced with even greater fidelity and
clarity.

4. Remote Control Functions

The Remote Control (RC-894) commands not only the receiver
but can also operate the main functions of a DENON CD player
and a cassette deck.
External remote control equipment, such as DENON's RC-616
and RC-617, can be connected to this unit. By connecting such
equipment and using the RC-894 remote control from a sub
room (ZONE 2 or 3) allows the sub room output to be switched
on and off, the selection of sub room source, volume
adjustment, and the recalling of preset radio stations from the
sub room.

6

ENGLISH

MULTI
ROOM

DVD/
VDP

DVD/ VDP

SIGNAL
GND

ZONE
2

ZONE
3

CDR/
TAPE

CDR/
TAPE

VCR

VCR

V. AUX V. AUX

ZONE 3

ZONE 2

VCR

VCR

MONITOR

IN

IN

OUT

OUTIN

OUT

OUT

PRE OUT

OUT

ANTENNA
TERMINALS

CD

R

L

R

L

MULTI ROOM

VIDEO

AUDIO

ROOM TO ROOM (REMOTE CONTROL)

SPEAKER SYSTEMS

AC OUTLETS

SPEAKER IMPEDANCE

A OR B / 4 16

A + B / 8 16

AC 120V 60Hz

SWITCHED

TOTAL 120W(1A.) MAX.

R L R L

AB

FM
COAX.
75

SUB
WOOFER

AM

LOOP
ANT.

PHONO

L

R

L

R

LINE IN

LINE OUT

LINE OUT

INPUT

R

INPUTOUTPUT

LRL

L

R

L

R

L

R

L

R

L

R

R

OUTPUT

L

R

L

+

+

+

R

L

INPUT INPUT

OUTPUT

+

OUTPUT

AUX OUT

DIGITAL AUDIODIGITAL AUDIO

5

CONNECTIONS

• Do not plug in the power cord until all connections have been
completed.

• Be sure to connect the left and right channels properly (left
with left, right with right).

• Insert the plugs securely. Incomplete connections will result in
the generation of noise.

• Use the AC OUTLETS for audio equipment only. Do not use

them for hair driers, etc.

• Note that binding pin plug cords together with power cords or
placing them near a power transformer will result in generating
hum or other noise.

• If hum or other noise is produced when the ground wire is
connected, disconnect it.

• Noise or humming may be generated if a connected
component is used independently without turning the power of
this unit on. If this happens, turn on the power of the this unit.

Connecting the audio components

Turntable (MM cartridge)

Ground
wire

Tape deck

CD player

NOTE:

This unit cannot be used
with MC cartridges
directly. Use a separate
head amplifier or step­up transformer.

Connecting a CD player

Connect the CD player’s analog output jacks (ANALOG
OUTPUT) to this unit’s CD jacks using pin plug cords.

AC 120 V, 60 Hz

AC OUTLETS

• SWITCHED (total capacity – 120 W (1 A.)
The power to this outlet is turned on and off in conjunction with the POWER operation switch on the
main unit, and when the power is switched between on and standby from the remote control unit.
No power is supplied from these outlets when this unit’s power is at standby. Never connect
equipment whose total capacity is above 120 W (1 A.)

NOTE:

Use the AC OUTLETS for audio equipment only. Do not use them for hair driers, etc.

Connecting the AC OUTLETS

Connecting a tape deck

Connections for recording:

Connect the tape deck’s recording input jacks
(LINE IN or REC) to this unit’s tape recording
(OUT) jacks using pin plug cords.

Connections for playback:

Connect the tape deck’s playback output jacks
(LINE OUT or PB) to this unit’s tape playback
(IN) jacks using pin plug cords.

AC CORD

RC-617 (Sold Separately)

Infrared sensor

Power amplifier

RC-616 (Sold Separately)

Infrared retransmitter

Sub room (ZONE 2)

Sub room (ZONE 3)

Power amplifier

RC-617 (Sold Separately)

Infrared sensor

7

ENGLISH

MULTI
ROOM

DVD/
VDP

DVD/ VDP

SIGNAL
GND

ZONE
2

ZONE
3

CDR/
TAPE

CDR/
TAPE

VCR

VCR

V. AUX V. AUX

ZONE 3

ZONE 2

VCR

VCR

MONITOR

IN

IN

OUT

OUTIN

OUT

OUT

PRE OUT

OUT

ANTENNA
TERMINALS

CD

R

L

R

L

MULTI ROOM

VIDEO

AUDIO

ROOM TO ROOM (REMOTE CONTROL)

SPEAKER SYSTEMS

AC OUTLETS

SPEAKER IMPEDANCE

A OR B / 4 16
A + B / 8 16

AC 120V 60Hz

SWITCHED

TOTAL 120W(1A.) MAX.

R L R L

AB

FM
COAX.
75

SUB
WOOFER

AM

LOOP
ANT.

PHONO

AUDIO OUT

VIDEO OUT

AUDIO IN

AUDIO OUT

VIDEO OUT

VIDEO IN

VIDEO OUT

VIDEO IN

AUDIO OUT

IN

VIDEO

R OUT

VIDEO

OUT

L

AUDIO

L

R

R OUT

VIDEO

OUT

L

AUDIO

R

L

R

L

R

L

L

R

R OUT IN

AUDIO

VIDEO

OUT IN

LRL

R

L

R

L

VIDEO IN

VIDEO IN

L

R

B

Connecting the video equipments

• To connect the video signal, connect using a 75 Ω/ohms video signal cable cord. Using an improper cable can result in a drop in sound quality.

• When making connections, also refer to the operating instructions of the other components.

Connecting a TV/DBS tuner

TV/DBS

• Connect the TV’s or DBS tuner’s video output jack
(VIDEO OUTPUT) to the (yellow) V.AUX IN jack
using a 75 Ω/ohms video coaxial pin plug cord.

• Connect the TV’s or DBS tuner’s audio output jacks
(AUDIO OUTPUT) to the V.AUX IN jacks using
pin plug cords.

AUDIO

VIDEO

TV or DBS tuner

DVD player or LD player (VDP)

Video deck

Monitor TV

MONITOR OUT

• Connect the TV’s video input jack (VIDEO
INPUT) to the MONITOR OUT jack
using a 75 Ω/ohms video coaxial pin plug
cord.

VIDEO

Connecting a DVD player or a video disc player VDP

• Connect the DVD player’s (video disc player’s) video output jack (VIDEO OUTPUT) to

the (yellow) DVD/VDP IN jack using a 75 Ω/ohms video coaxial pin plug cord.

• Connect the DVD player’s (video disc player’s) analog audio output jacks (ANALOG
AUDIO OUTPUT) to the DVD/VDP IN jacks using pin plug cords.

AUDIO

VIDEO

Connecting a video decks

Video input/output connections:

• Connect the video deck’s video output jack (VIDEO OUT) to the
(yellow) VCR IN jack, and the video deck’s video input jack

(VIDEO IN) to the (yellow) VCR OUT jack using 75 Ω/ohms
video coaxial pin plug cords.

Connecting the audio output jacks

• Connect the video deck audio output jacks (AUDIO OUT) to the
VCR IN jacks, and the video deck’s audio input jacks (AUDIO

IN) to the VCR OUT jacks using pin plug cords.

AUDIO

AUDIO

VIDEO

VIDEO

Monitor TV

Sub room (ZONE 3) Sub room (ZONE 2)

Monitor TV

8

ENGLISH

MULTI
ROOM

DVD/
VDP

DVD/ VDP

SIGNAL
GND

ZONE
2

ZONE
3

CDR/
TAPE

CDR/
TAPE

VCR

VCR

V. AUX V. AUX

ZONE 3

ZONE 2

VCR

VCR

MONITOR

IN

IN

OUT

OUTIN

OUT

OUT

PRE OUT

OUT

ANTENNA
TERMINALS

CD

R

L

R

L

MULTI ROOM

VIDEO

AUDIO

ROOM TO ROOM (REMOTE CONTROL)

FM
COAX.
75

SUB
WOOFER

AM

LOOP
ANT.

PHONO

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to
Article 820-40 of the NEC which provides guidelines for proper
grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close to the point
of cable entry as practical.

NOTES:

• Do not connect two FM antennas simultaneously.

• Even if an external AM antenna is used, do not disconnect AM loop
antenna.

• Make sure AM loop antenna lead terminals do not touch metal parts of
the panel.

Connecting the antenna terminals

DIRECTION OF
BROADCASTING
STATION

FM ANTENNA

75 Ω/ohms
COAXIAL
CABLE

FM INDOOR ANTENNA

(An Accessory)

AM LOOP
ANTENNA
(An Accessory)

AM OUTDOOR
ANTENNA

Connection of AM antennas

1.

Push the lever.

2. Insert the
conductor.

3. Return the lever.

1

4

2

3

AM loop antenna assembly

Connect to the AM
antenna terminals.

Bend in the reverse
direction.

Remove the vinyl
tie and take out the
connection line.

a. With the antenna

on top any stable
surface

b. With the antenna

attach to a wall.

Installation hole
Mount on wall, etc.

Mount

GROUND

1

4

m

m

9

m

m

1

4

m

m

1

9

m

m

5

m

m

5

m

m

5C-2V3C-2V

75 Ω/ohms COAXIAL CABLE

Open the Cover

ANTENNA ADAPTER

REMOVE

CLAMP

CLAMP

CLAMP

SHUT

PULL

PULL

FM antenna adapter assembly

300 Ω/ohms

300 Ω/ohms
TERMINAL

FM ANTENNA

ADAPTER

(An Accessory)

FEEDER
CABLE

9

ENGLISH

MULTI
ROOM

DVD/
VDP

DVD/ VDP

SIGNAL
GND

ZONE
2

ZONE
3

CDR/
TAPE

CDR/
TAPE

VCR

VCR

V. AUX V. AUX

ZONE 3

ZONE 2

VCR

VCR

MONITOR

IN

IN

OUT

OUTIN

OUT

OUT

PRE OUT

OUT

ANTENNA
TERMINALS

CD

R

L

R

L

MULTI ROOM

VIDEO

AUDIO

ROOM TO ROOM (REMOTE CONTROL)

SPEAKER SYSTEMS

AC OUTLETS

SPEAKER IMPEDANCE

A OR B / 4 16
A + B / 8 16

AC 120V 60Hz

SWITCHED

TOTAL 120W(1A.) MAX.

R L R L

AB

FM
COAX.
75

SUB
WOOFER

AM

LOOP
ANT.

PHONO

(L) (R)(L) (R)

Speaker system connections

• Connect the speaker terminals with the speakers making sure that
like polarities are matched (<with <, >with >). Mismatching of
polarities will result in weak central sound, unclear orientation of
the various instruments, and the sense of direction of the stereo
being impaired.

• When making connections, take care that none of the individual
conductors of the speaker cord come in contact with adjacent
terminals, with other speaker cord conductors, or with the rear
panel.

Speaker Impedance

• When speaker systems A and B are use separately, speakers with

an impedance of 4 to 16 Ω/ohms can be connected for use as
speakers.

• Be careful when using two pairs of speakers (A + B) at the same

time, since use of speakers with an impedance of 8 to 16 Ω/ohms.

• The protector circuit may be activated if the set is played for long
periods of time at high volumes when speakers with an
impedance lower than the specified impedance are connected.

Connecting the speaker terminals

1. Loosen by turning
counterclockwise.

2. Insert the cord. 3. Tighten by turning
clockwise.

Connecting banana plugs

banana plug

Turn clockwise to tighten, then insert the banana plug.

• Precautions when connecting speakers

If a speaker is placed near a TV or video
monitor, the colors on the screen may be
disturbed by the speaker’s magnetism. If
this should happen, move the speaker
away to a position where it does not have
this effect.

NOTE:
NEVER touch the speaker terminals when the power is on.
Doing so could result in electric shocks.

System B

SPEAKER SYSTEMS

System A

SPEAKER SYSTEMS

Connection jack for subwoofer with built-in
amplifier (super woofer), etc.

10

ENGLISH

Protector circuit

•

This unit is equipped with a high-speed protection circuit. This circuit protects the internal circuitry from damage due to
large currents flowing if the speaker jacks are not completely connected or if an output is generated by a short circuit.
In such a case, the protection circuit will operate to cut off the output to the speakers. Should this happen, turn the
power off and check the speaker connections. Then turn the power on again. After muting for several seconds, the
receiver should be operating normally.
If the protection circuit is activated again even though there are no problems with the wiring or the ventilation around
the unit, switch off the power and contact a DENON service center.

Note on speaker impedance

•

The protector circuit may be activated if the set is played for long periods of time at high volumes when speakers with
an impedance lower than the specified impedance (for example speakers with an impedance of lower than 4 Ω/ohms)
are connected. If the protector circuit is activated, the speaker output is cut off. Turn off the set’s power, wait for the set
to cool down, improve the ventilation around the set, then turn the power back on.

6

PART NAMES AND FUNCTIONS

Front Panel

• For details on the functions of these parts, refer to the pages given in parentheses ( ).

VOLUME LEVEL

B

DRA-395

PRECISION AUDIO COMPONENT / STEREO RECEIVER

PHONES

ON / STANDBY

SPEAKER

AB

TONE

DEFEAT

TREBLESELECT

UP

TUNING

MODEBAND MEMORY

VIDEO SELECT

DIMMER STATUS

SHIFT

DOWN UP

PRESET

DOWN

MASTER VOLUME

UP

DOWN

PHONO

DVD / VDP

VCR

CD

TUNER

V.AUX

ON / STANDBY

REMOTE
SENSOR

ZONE 2REC OUT ZONE 3 SELECT LOUDNESS

BASSCH VOL

CDR / TAPE

Music Entertainment System

M

ulti Room

ZONE 2 ZONE 3

REC / MULTI

q w re

!4!5

!6!7!9 !8@0

yiuo!0t

!1!38 !2@1

q

Power operation switch ....................................................(13, 21)

w

Headphone jacks (PHONES) ...................................................(19)

e

SPEAKER A/B buttons ................................................(13, 19, 24)

r

REC/MULTI buttons..........................................................(17, 18)

t

LOUDNESS button..................................................................(15)

y

VIDEO SELECT button............................................................(19)

u

TONE DEFEAT button.............................................................(15)

i

CH VOL button........................................................................(15)

o

SELECT UP/DOWN buttons....................................................(15)

!0

BASS button............................................................................(15)

!1

TREBLE button.......................................................................(15)

!2
