DeLonghi PAC AL2 ECO Service Manual
0151430023
DE'LONGHI "INT" PAC AL2 ECO
2065/1997/0
DLS
DE’LONGHI ’INT’ PAC AL2 ECO 0151430023
SERVICE

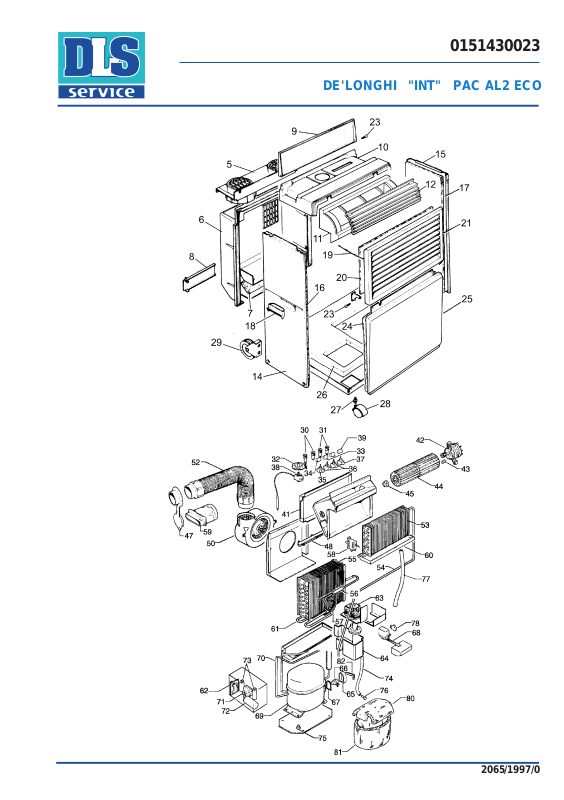

Pos Codice Italiano English Francais Deutsch Espanol
05 536500 SUPPORTO SUPPORT SUPPORT HALTER SOPORTE
06 536502 CHIUSURA CLOSURE FERMETURE VERSCHLUSS CIERRE
07 533986 ISOLANTE INSULATOR ISOLANT ISOLIERSTOFF AISLANTE
08 535816 SPORTELLO DOOR PORTE KLAPPE PUERTA
09 533657 COPERCHIO COVER COUVERCLE DECKEL TAPA
10 592496 CRUSCOTTO CONTROL PANEL Tableau de Commande BEDIENUNGSBLENDE Marco Panel Mandos
11 593181 FRONTALE FRONT PANEL PANNEAU AVANT VORDERWAND PARTE DELANTERA
12 536710 GRIGLIA GRID GRILLE GITTER PARRILLA
13 591362 MANOPOLA KNOB BOUTON KNOPF MANDO
14 709140 FIANCO SX SIDE LEFT COTE GAUCHE SEITE LINKS LADO IZQUIERDO
15 709139 FIANCO DX SIDE RIGHT COTE DROITE SEITE RECHTS LADO DERECHA
16 533946 ISOLANTE INSULATOR ISOLANT ISOLIERSTOFF AISLANTE
17 533945 ISOLANTE INSULATOR ISOLANT ISOLIERSTOFF AISLANTE
18 535286 MANIGLIA HANDLE POIGNEE GRIFF MANILLA
19 551883 CATENELLA CHAIN CHAINE KETTCHEN CADENA
20 533943 FILTRO FILTER FILTRE FILTER FILTRO
21 535290 GRIGLIA GRID GRILLE GITTER PARRILLA
23 534019 CLIP CLIP CLIP BEFESTIGUNGSSTIFT CLIP
24 533942 ISOLANTE INSULATOR ISOLANT ISOLIERSTOFF AISLANTE
25 707364 COPERCHIO COVER COUVERCLE DECKEL TAPA
26 535605 ISOLANTE INSULATOR ISOLANT ISOLIERSTOFF AISLANTE
27 602214 PERNO PIN PIVOT STIFT PERNO
28 551834 RUOTA CASTOR ROULETTE RAD RUEDA
29 734049 RUOTA POST. DX REAR CASTOR RIGHT ROULETTE POST. DROITE RUECKLAUFROLLE RECHTS RUEDA POS. DERECHA
29 735050 RUOTA POST. SX REAR CASTOR LEFT ROULETTE POST. GAUCHE RUECKLAUFROLLE LINKS RUEDA POS. IZQUIERDA
30 512463 SPIA VERDE GREEN WARNING LIGHT TEMOIN LUMINEUX VERTE KONTROLLEUCHTE GRUEN PILOTO VERDE
31 512095 SPIA ROSSA RED WARNING LIGHT TEMOIN LUMINEUX ROUGE KONTROLLEUCHTE ROT PILOTO ROJO
32 592495 MANOPOLA KNOB BOUTON KNOPF MANDO
33 536526 TASTO PUSH BUTTON POUSSOIR TASTE TECLA
34 534878 TASTO PUSH BUTTON POUSSOIR TASTE TECLA
35 512049 INTERRUTTORE SWITCH INTERRUPTEUR SCHALTER INTERRUPTOR
36 511409 DEVIATORE CHANGE OVER SWITCH COMMUTATEUR WECHSELSCHALTER DESVIADOR
37 534051 TASTO PUSH BUTTON POUSSOIR TASTE TECLA
38 521256 TERMOSTATO THERMOSTAT THERMOSTAT THERMOSTAT TERMOSTATO
39 535293 COPRITASTO PUSH BUTTON COVER COUVRE POUSSOIR TASTENABDECKUNG CUBRETECLA
41 536501 CHIUSURA CLOSURE FERMETURE VERSCHLUSS CIERRE
42 512488 MOTORE FIME MOTOR FIME MOTEUR FIME MOTOR FIME MOTOR FIME
43 611825 MOLLA SPRING RESSORT FEDER MUELLE
44 552104 VENTOLA PUNCKER FAN PUNCKER HELICE PUNCKER FLUEGELRAD PUNCKER VENTILADOR PUNCKER
45 534677 GOMM. VENTOLA ALLUMINIO ALUMINIUM FAN RUBBER UM PUFFER VENT.WALZE IN ALU. GUARN. VENTIL. DE ALUMINIO
47 533337 FLANGIA FLANGE BRIDE FLANSCH BRIDA
48 734036 SPRUZZATORE SPRAYER GICLEUR EINSPRITZDUESE PULVERIZADOR
50 512027 VENTILATORE EBM VENTILATOR EBM VENTILATEUR EBM VENTILATOR EBM VENTILADOR EBM
52 551965 TUBO SCARICO DRAIN HOSE TUYAU D’EVACUATION ABLAUFSCHLAUCH TUBO DE DESAGE
53 552718 EVAPORATORE EVAPORATOR EVAPORATEUR VERDAMPFER EVAPORADOR
54 552320 TUBO TUBE TUBE ROHR TUBO
55 552452 CONDENSATORE CONDENSER CONDENSEUR VERFLUESSIGER CONDENSADOR
56 552163 FILTRO FILTER FILTRE FILTER FILTRO
57 621558 CAPILLARE CAPILLARY CAPILLAIRE KAPILLARROHR CAPILAR
58 521214 PRESSOSTATO SAGINOMYA PRESS. SWITCH SAGINOMYA PRESSOSTAT SAGINOMYA DRUCKWAECHTER SAGINOMYA PRESOSTATO SAGINOMYA
59 536405 RIDUZIONE REDUCTION REDUCTION VERMINDERUNG REDUCCION
60 533705 BACINELLA TRAY BAC SCHALE CUBETA
61 621948 TUBO TUBE TUBE ROHR TUBO
62 521767 RITARDATORE DELAYING DEVICE RETARDATEUR VERZOEGERER RETARDADOR
63 733481 POMPA PLASET PUMP PLASET POMPE PLASET PUMPE PLASET BOMBA PLASET
64 534427 BACINELLA TRAY BAC SCHALE CUBETA
65 534130 COPERCHIO SICOM COVER SICOM COUVERCLE SICOM DECKEL SICOM TAPA SICOM
66 521589 KLIXON SICOM KLIXON SICOM KLIXON SICOM KLIXON SICOM KLIXON SICOM
67 534131 GUARNIZIONE SICOM GASKET SICOM JOINT SICOM DICHTUNG SICOM GUARNICION SICOM
68 734989 GALLEGGIANTE FLOAT FLOTTEUR SCHWIMMER FLOTADOR
69 512913 COMPRESSORE SICOM COMPRESSOR SICOM COMPRESSEUR SICOM VERDICHTER SICOM COMPRESOR SICOM
70 622140 TUBO TUBE TUBE ROHR TUBO
71 512487 IMPEDENZA FIME IMPEDANCE FIME IMPEDANCE FIME WIDERSTAND FIME IMPEDANCIA FIME
72 512058 CONDENSAT. 15 uF CAPACITOR 15 uF CONDENSAT. 15 uF KONDENSAT. 15 uF CONDENSAD. 15 uF
73 511471 CONDENSAT. 2uF CAPACITOR 2uF CONDENSAT. 2uF KONDENSAT. 2uF CONDENSAD. 2uF
73 512486 CONDENSAT. 6,3uF CAPACITOR 6,3uF CONDENSATEUR 6,3uF KONDENSATOR 6,3uF CONDENSAD.6,3uF
74 533954 TUBO TUBE TUBE ROHR TUBO
75 534132 GOMMINO SICOM RUBBER PAD SICOM PARE CHOCS SICOM PUFFER SICOM GUARNICION SICOM
76 532654 TAPPO STOPPER BOUCHON STOEPSEL TAPON
77 531953 TUBO TUBE TUBE ROHR TUBO
78 511551 MICROINTERRUTTORE MICROSWITCH MICRORUPTEUR MIKROSCHALTER MICROINTERRUPTOR
80 535606 ISOLANTE INSULATOR ISOLANT ISOLIERSTOFF AISLANTE
81 535272 ISOLANTE INSULATOR ISOLANT ISOLIERSTOFF AISLANTE
82 611720 MOLLA SICOM SPRING SICOM RESSORT SICOM FEDER SICOM MUELLE SICOM
DE’LONGHI "INT" PAC AL2 ECO COD.0151430023 2065/1997/0
- Pag. 1/1 -
