Datasheet SY100S355 Datasheet (MICREL)

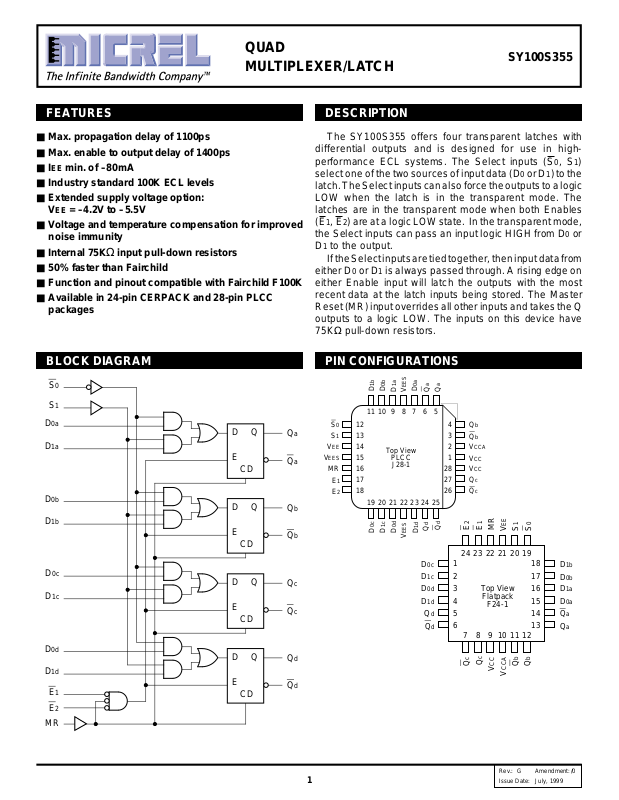

Page 1
QUAD
R
MULTIPLEXER/LATCH
SY100S355
FEATURES
Max. propagation delay of 1100ps
Max. enable to output delay of 1400ps
IEE min. of –80mA
Industry standard 100K ECL levels
VEE = –4.2V to –5.5V
Voltage and temperature compensation for improved
noise immunity
Internal 75K input pull-down resistors
50% faster than Fairchild
Function and pinout compatible with Fairchild F100K
Available in 24-pin CERPACK and 28-pin PLCC
packages
BLOCK DIAGRAM
S
0
S
1
D
D
D
D
D
D
D
D
E E
MR
0a
1a
0b
1b
0c
1c
0d
1d
1 2
D
Q
E
CD
D
Q
E
CD
D
Q
E
CD
D
Q
E
CD
Q
a
Q
a
Q
b
Q
b
Q
c
Q
c
Q
d
Q
d
DESCRIPTION
The SY100S355 offers four transparent latches with differential outputs and is designed for use in high­performance ECL systems. The Select inputs (S0, S1) select one of the two sources of input data (D0 or D1) to the latch. The Select inputs can also force the outputs to a logic LOW when the latch is in the transparent mode. The latches are in the transparent mode when both Enables (E1, E2) are at a logic LOW state. In the transparent mode, the Select inputs can pass an input logic HIGH from D0 or D1 to the output.
If the Select inputs are tied together, then input data from either D0 or D1 is always passed through. A rising edge on either Enable input will latch the outputs with the most recent data at the latch inputs being stored. The Master Reset (MR) input overrides all other inputs and takes the Q outputs to a logic LOW. The inputs on this device have 75K pull-down resistors.
PIN CONFIGURATIONS
D1b
S0 S
VEE
VEES
MR
D0b
12
1
13 14
Top View
15 16 17
E1 E2
1911201021922823724
D1c
D0c
D1a
PLCC J28-1
D0d
VEES
VEES
D0a
Qa
Qa
5
6
Qb
4 3
Qb VCCA
2 1
VCC VCC
28 27
Qc
2618
25
Qd
Qd
D1d
D
0c
D
1c
D
0d
D
1d
Q
d
Q
d
c
Q
E2E1M
1 2 3
Top View
Flatpack
4 5 6
F24-1
7248239221021112012
c
c
Q
CC
Q
V
EE
V
CCA
V
S1S
19
b
Q
0
b
Q
18 17 16 15 14 13
D
1b
D
0b
D
1a
D
0a
Q
a
Q
a
Rev.: G Amendment: /0
1
Issue Date: July, 1999
Page 2
Micrel
SY100S355
PIN NAMES
TRUTH TABLE
Pin Function
E1 – E2 Enable Inputs (Active LOW) S0, S1 Select Inputs MR Master Reset Dna – Dnd Data Inputs Qa – Qd Data Outputs Qa — Qd Complementary Data Outputs VEES VEE Substrate
CCA VCCO for ECL Outputs
V
MR E1 E2 S1 S0 D1X D0X QX QX
H X X XXXX HL
L L L HHHX LH
LLLHHLX HL
LLLLLXH LH
LLLLLXL HL
LLLLHXX HL
LLLHLHX LH
LLLHLXH LH
LLLHLLL HL
L H X X X X X Latched
L X H X X X X Latched
NOTE:
1. H = High Voltage Level
L = Low Voltage Level X = Don't Care
DC ELECTRICAL CHARACTERISTICS
VEE = –4.2V to –5.5V unless otherwise specified; VCC = VCCA = GND
(1)
Inputs Outputs
Symbol Parameter Min. Typ. Max. Unit Condition
IH Input HIGH Current µAVIN = VIH (Max.)
I
S0, S1 ——220 E1, E2 ——350 Dna, Dnd ——340 MR 430
EE Power Supply Current –80 –57 –40 mA Inputs Open
I
2
Page 3
Micrel
SY100S355
AC ELECTRICAL CHARACTERISTICS
CERPACK
VEE = –4.2V to –5.5V unless otherwise specified; VCC = VCCA = GND
T
A = 0°CTA = +25°CTA = +85°C
Symbol Parameter Min. Max. Min. Max. Min. Max. Unit Condition
t
PLH Propagation Delay 300 1200 300 1200 300 1200 ps PHL Dna – Dnd to Output
t
(Transparent Mode)
t
PLH Propagation Delay 300 1500 300 1500 300 1500 ps
tPHL S0, S1 to Output
(Transparent Mode)
PLH Propagation Delay 300 1500 300 1500 300 1500 ps
t tPHL E1, E2 to Output
PLH Propagation Delay 300 1200 300 1200 300 1200 ps
t tPHL MR to Output
tTLH Transition Time 300 900 300 900 300 900 ps tTHL 20% to 80%, 80% to 20%
S Set-up Time ps
t
Dna – Dnd 700 700 700 — S0, S1 1200 1200 1200 — MR (Release Time) 1000 1000 1000
H Hold Time ps
t
Dna – Dnd 400 400 400 — S0, S1 400 400 400
tPW (L) Pulse Width LOW, E1, E2 1000 1000 1000 ps
PW (H) Pulse Width HIGH, MR 1000 1000 1000 ps
t
PLCC
VEE = –4.2V to –5.5V unless otherwise specified; VCC = VCCA = GND
TA = 0°CTA = +25°CTA = +85°C
Symbol Parameter Min. Max. Min. Max. Min. Max. Unit Condition
PLH Propagation Delay 300 1100 300 1100 300 1100 ps
t tPHL Dna – Dnd to Output
(Transparent Mode)
PLH Propagation Delay 300 1400 300 1400 300 1400 ps
t tPHL S0, S1 to Output
(Transparent Mode)
PLH Propagation Delay 300 1400 300 1400 300 1400 ps
t tPHL E1, E2 to Output
PLH Propagation Delay 300 1100 300 1100 300 1100 ps
t tPHL MR to Output
t
TLH Transition Time 300 900 300 900 300 900 ps
tTHL 20% to 80%, 80% to 20%
S Set-up Time ps
t
Dna – Dnd 700 700 700 — S0, S1 1200 1200 1200 — MR (Release Time) 1000 1000 1000
H Hold Time ps
t
Dna – Dnd 300 300 300 — S0, S1 300 300 300
tPW (L) Pulse Width LOW, E1, E2 1000 1000 1000 ps
PW (H) Pulse Width HIGH, MR 1000 1000 1000 ps
t
3
Page 4
Micrel
TIMING DIAGRAMS
SY100S355
Dna – Dnd
S0, S1
ENABLE
OUTPUT
TRANSPARENT
tPHL, tPLH
tpw
LATCHED
tPHL, tPLH tPHL, tPLH
TRANSPARENT
tTHL, tTLH
Enable Timing
0.7 ± 0.1 ns
80%
50%
20%
0.95V
1.69V0.95V
1.69V
DATA
ENABLE
RESET/SET
OUTPUT
RESET TIMING
tPHL, tPLH
TRANSPARENT
tpw
tR RELEASE TIME
tPHL, tPLH tPHL, tPLH
Reset Timing
LATCHED
TRANSPARENT
4
Page 5
Micrel
A
TIMING DIAGRAMS
SY100S355
–0.95V
S0, S1
tS tH
DAT
tS tH
E1, E2
Data Set-up and Hold Times
NOTES:
1. VEE = –4.2V to –5.5V unless otherwise specified; VCC = VCCA = GND
2. ts is the minimum time before the transition of the clock that information must be present at the data input.
3. tH is the minimum time after the transition of the clock that information must remain unchanged at the data input.
50%
1.69V
0.95V
50%
1.69
0.95V
50%
–1.69V
PRODUCT ORDERING CODE
Ordering Package Operating
Code Type Range
SY100S355FC F24-1 Commercial SY100S355JC J28-1 Commercial SY100S355JCTR J28-1 Commercial
5
Page 6
Micrel
24 LEAD CERPACK (F24-1)
SY100S355
Rev. 03
6
Page 7
Micrel
28 LEAD PLCC (J28-1)
SY100S355
Rev. 03
MICREL-SYNERGY 3250 SCOTT BOULEVARD SANTA CLARA CA 95054 USA
TEL + 1 (408) 980-9191 FAX + 1 (408) 914-7878 WEB http://www.micrel.com
This information is believed to be accurate and reliable, however no responsibility is assumed by Micrel for its use nor for any infringement of patents or
other rights of third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent right of Micrel Inc.
© 2000 Micrel Incorporated
7
