Page 1

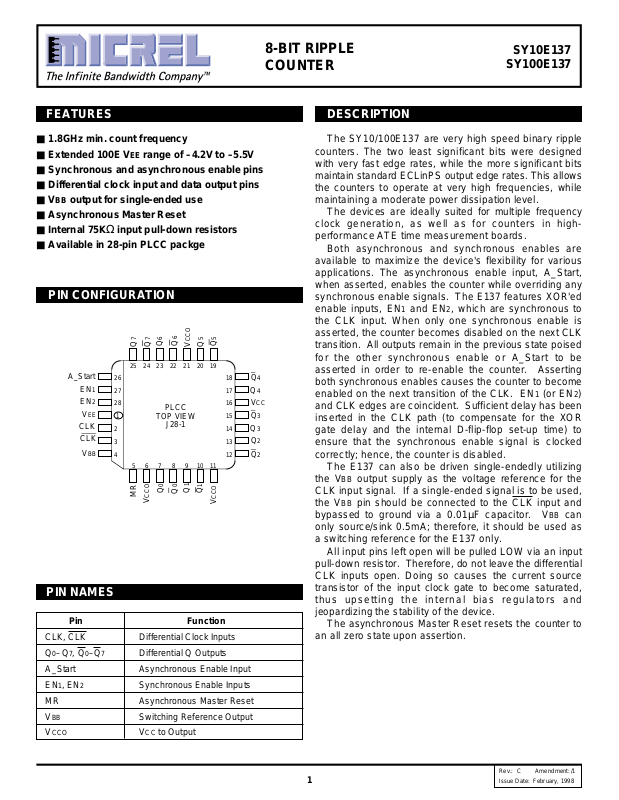

8-BIT RIPPLE

COUNTER

SY10E137

SY100E137

FEATURES

■ 1.8GHz min. count frequency

■ Extended 100E V

EE range of –4.2V to –5.5V

■ Synchronous and asynchronous enable pins

■ Differential clock input and data output pins

■ VBB output for single-ended use

■ Asynchronous Master Reset

■ Internal 75KΩ input pull-down resistors

■ Available in 28-pin PLCC packge

PIN CONFIGURATION

A_Start

EN EN

CLK

25 24 23 22 21 20 19

1 2 3 4

567891011

PLCC

TOP VIEW

J28-1

CCO

Q Q

13 12

CCO

PIN NAMES

Pin Function

CLK, CLK Differential Clock Inputs Q0–Q7, Q0–Q7 Differential Q Outputs A_Start Asynchronous Enable Input EN1, EN2 Synchronous Enable Inputs MR Asynchronous Master Reset VBB Switching Reference Output

CCO VCC to Output

4 4

2 2

DESCRIPTION

The SY10/100E137 are very high speed binary ripple counters. The two least significant bits were designed with very fast edge rates, while the more significant bits maintain standard ECLinPS output edge rates. This allows the counters to operate at very high frequencies, while maintaining a moderate power dissipation level.

The devices are ideally suited for multiple frequency clock generation, as well as for counters in highperformance ATE time measurement boards.

Both asynchronous and synchronous enables are available to maximize the device's flexibility for various applications. The asynchronous enable input, A_Start, when asserted, enables the counter while overriding any synchronous enable signals. The E137 features XOR'ed enable inputs, EN the CLK input. When only one synchronous enable is asserted, the counter becomes disabled on the next CLK transition. All outputs remain in the previous state poised for the other synchronous enable or A_Start to be asserted in order to re-enable the counter. Asserting both synchronous enables causes the counter to become enabled on the next transition of the CLK. EN1 (or EN2) and CLK edges are coincident. Sufficient delay has been inserted in the CLK path (to compensate for the XOR gate delay and the internal D-flip-flop set-up time) to ensure that the synchronous enable signal is clocked correctly; hence, the counter is disabled.

The E137 can also be driven single-endedly utilizing the VBB output supply as the voltage reference for the CLK input signal. If a single-ended signal is to be used, the VBB pin should be connected to the CLK input and bypassed to ground via a 0.01µF capacitor. VBB can only source/sink 0.5mA; therefore, it should be used as a switching reference for the E137 only.

All input pins left open will be pulled LOW via an input pull-down resistor. Therefore, do not leave the differential CLK inputs open. Doing so causes the current source transistor of the input clock gate to become saturated, thus upsetting the internal bias regulators and jeopardizing the stability of the device.

The asynchronous Master Reset resets the counter to an all zero state upon assertion.

1 and EN2, which are synchronous to

Rev.: C Amendment: /1

Issue Date: February, 1998

Page 2

Micrel

BLOCK DIAGRAM

A_Start

EN1 EN2

CLK CLK

VBB

CLK CLK

SY10E137

SY100E137

CLK CLK

Q0Q

Q Q

CLK CLK

Q1Q

Q Q

CLK CLK

Q6Q

Q Q

CLK CLK

Q7Q

Q Q

SEQUENTIAL TRUTH TABLE

(1)

Function EN1 EN2 A_Start MR CLK Q7 Q6 Q5 Q4 Q3 Q2 Q1 Q0

Reset X X X H X LLLLLLLL Count LLLLZLLLLLLLH

LLLLZLLLLLLHL LLLLZLLLLLLHH

Stop H L L L Z LLLLLLHH

HLLLZLLLLLLHH

Async. Start H L H L Z LLLLLHLL

HLHLZLLLLLHLH

LLHLZLLLLLHHL

Count LLLLZLLLLLHHH

LLLLZLLLLHLLL LLLLZLLLLHLLH

Stop L H L L Z LLLLHLLH

LHLLZLLLLHLLH

Sync. Start H H L L Z LLLLHLHL

HHLLZLLLLHLHH HHLLZLLLLHHLL

Stop H L L L Z LLLLHHLL

HLLLZLLLLHHLL

Count LLLLZLLLLHHLH

LLLLZLLLLHHHL LLLLZLLLLHHHH

Reset X X X H X LLLLLLLL

NOTE:

1. Z = LOW-to-HIGH transition

Page 3

Micrel

SY100E137

DC ELECTRICAL CHARACTERISTICS

VEE = VEE (Min.) to VEE (Max.); VCC = VCCO = GND

TA = 0°CTA = +25°CTA = +85°C

Symbol Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Unit Condition

BB Output Reference V —

Voltage 10E –1.38 —–1.27 –1.35 —–1.25 –1.31 —–1.19

100E –1.38 —–1.26 –1.38 —–1.26 –1.38 —–1.26 IIH Input HIGH Current ——150 ——150 ——150 µA — I

EE Power Supply mA —

Current 10E — 121 145 — 121 145 — 121 145

100E — 121 145 — 121 145 — 139 167

AC ELECTRICAL CHARACTERISTICS

VEE = VEE (Min.) to VEE (Max.); VCC = VCCO = GND

TA = 0°CTA = +25°CTA = +85°C

Symbol Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Unit Condition

fCOUNT Max. Count Frequency 1800 2200 — 1800 2200 — 1800 2200 — MHz — t

PLH Propagation Delay to Output ps —

tPHL CLK to Q0 1300 1700 2150 1300 1700 2150 1350 1750 2200

CLK to Q1 1600 2025 2500 1600 2050 2500 1650 2100 2550 CLK to Q2 1950 2425 2925 1950 2450 2925 2025 2500 3000 CLK to Q3 2275 2750 3350 2275 2775 3350 2350 2850 3425 CLK to Q4 2625 3125 3750 2625 3150 3750 2700 3225 3625 CLK to Q5 2950 3450 4150 2950 3475 4150 3050 3550 4250 CLK to Q6 3250 3775 4450 3250 3800 4450 3375 3925 4600 CLK to Q7 3575 4075 4800 3575 4125 4800 3700 4250 4950 A_Start to Q0 950 1325 1700 950 1325 1700 950 1325 1700

MR to Q0 700 1000 1300 700 1000 1300 700 1000 1300 tS Set-up Time (EN1, EN2)0–150 — 0 –150 — 0 –150 — ps — tH Hold Time (EN1, EN2) 300 150 — 300 150 — 300 150 — ps —

RR Reset Recovery Time 400 200 — 400 200 — 400 200 — ps —

MR, A_Start

PW Minimum Pulse Width 400 ——400 ——400 ——ps —

CLK, MR, A_Start VPP Minimum Input Swing (CLK) 0.25 — 1.0 0.25 — 1.0 0.25 — 1.0 V 1 VCMR Com. Mode Range (CLK) –0.4 —–2.0 –0.4 —–2.0 –0.4 —–2.0 V — t

r Rise/Fall Time, 20% to 80% ps —

tf Q0, Q1 150 — 400 150 — 400 150 — 400

Q2–Q7 275 — 600 275 — 600 275 — 600

NOTE:

1. Minimum input swing for which AC parameters are guaranteed. Full DC ECL output swings will be generated with only 50mV input swings.

SY10E137

PRODUCT ORDERING CODE

Ordering Package Operating

Code Type Range

SY10E137JC J28-1 Commercial SY10E137JCTR J28-1 Commercial SY100E137JC J28-1 Commercial SY100E137JCTR J28-1 Commercial

Page 4

Micrel

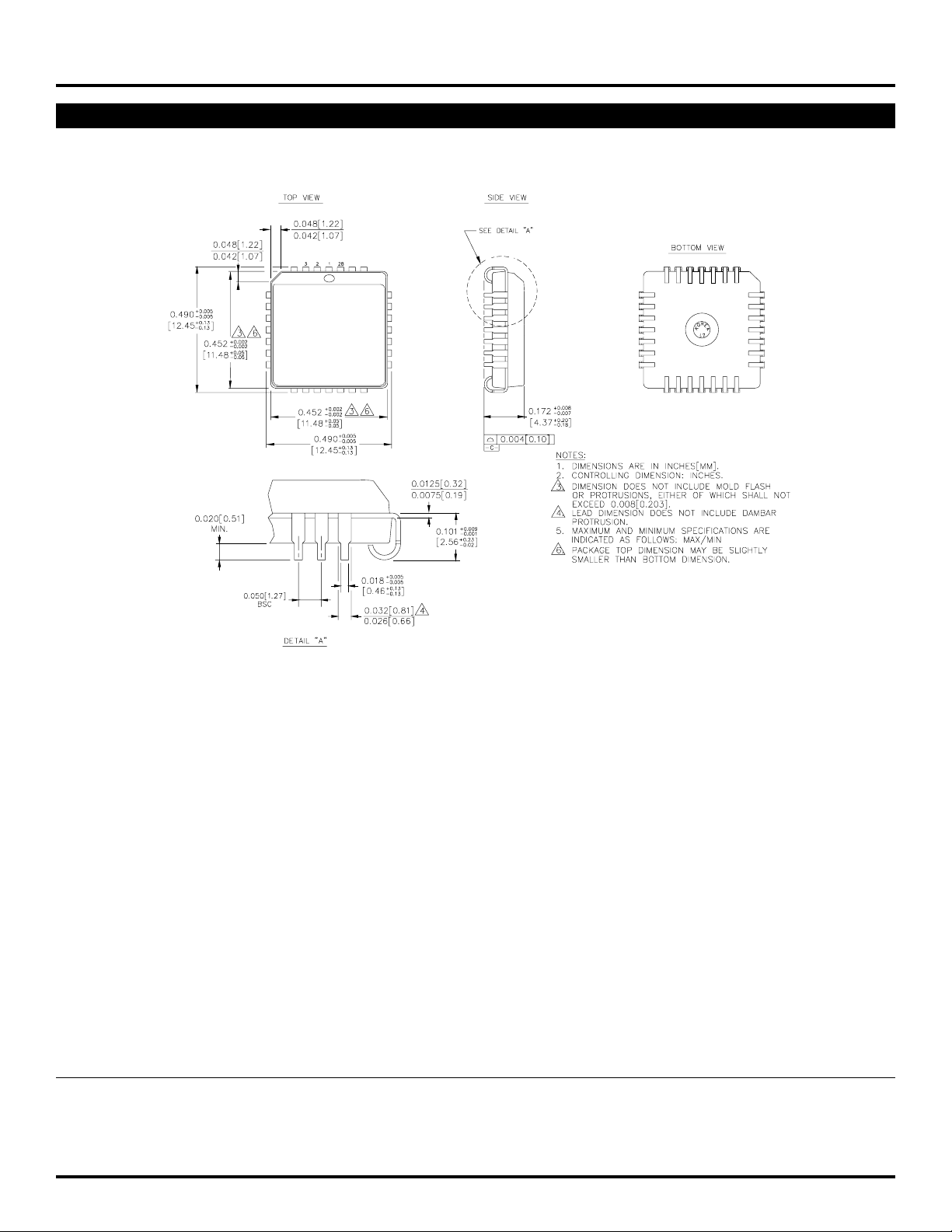

28 LEAD PLCC (J28-1)

SY10E137

SY100E137

Rev. 03
