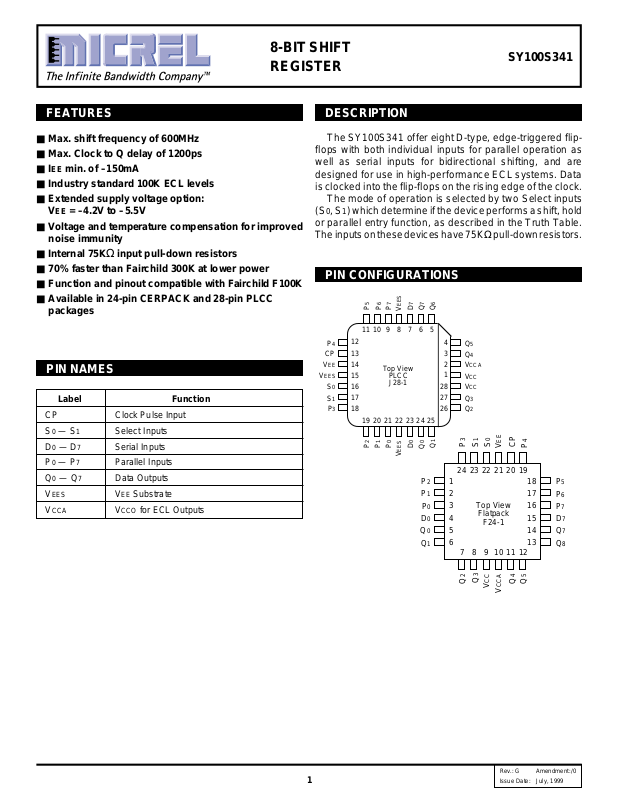

Page 1
8-BIT SHIFT
REGISTER
SY100S341
FEATURES
■ Max. shift frequency of 600MHz
■ Max. Clock to Q delay of 1200ps
■ IEE min. of –150mA
■ Industry standard 100K ECL levels
■ Extended supply voltage option:
VEE = –4.2V to –5.5V
■ Voltage and temperature compensation for improved
noise immunity
■ Internal 75KΩ input pull-down resistors
■ 70% faster than Fairchild 300K at lower power
■ Function and pinout compatible with Fairchild F100K
■ Available in 24-pin CERPACK and 28-pin PLCC
packages
PIN NAMES
Label Function
CP Clock Pulse Input
S0 — S1 Select Inputs
D0 — D7 Serial Inputs
P0 — P7 Parallel Inputs
Q0 — Q7 Data Outputs
VEES VEE Substrate
V
CCA VCCO for ECL Outputs
DESCRIPTION
The SY100S341 offer eight D-type, edge-triggered flipflops with both individual inputs for parallel operation as
well as serial inputs for bidirectional shifting, and are
designed for use in high-performance ECL systems. Data
is clocked into the flip-flops on the rising edge of the clock.
The mode of operation is selected by two Select inputs
(S0, S1) which determine if the device performs a shift, hold
or parallel entry function, as described in the Truth Table.
The inputs on these devices have 75KΩ pull-down resistors.
PIN CONFIGURATIONS
P4
CP
VEE
VEES
S0
S
12
13
14
15
16
17
1
18
P5P6P7
1911201021922823724
P1D0P2
VEES
Top View
PLCC
J28-1
P0
VEES
D7
Q7
Q6
5
6
4
Q5
3
Q4
2
VCCA
1
VCC
28
VCC
27
Q3
26
25
Q1
Q0
2P3
Q
P3S1S
0
EE
V
CP
4
P
19
1
P
2
P
1
2
3
P
0
D
0
Q
0
Q
1
Top View
Flatpack
4
F24-1
5
6
18
17
16
15
14
13
P
5
P
6
P
7
D
7
Q
7
Q
8
7248239221021112012
3
2
Q
Q
1
4
CC
V
5
Q
Q
CCA
V
Rev.: G Amendment: /0
Issue Date: July, 1999
Page 2
Micrel
BLOCK DIAGRAM
D
SY100S341
7
P
P
DCQ
7
Q
DC
6
Q
Q
Q
DC
Q
7
6
1
P
1
PARALLEL
LOAD
P
0
SHIFT
LEFT
DECODE
S0S
1
SHIFT
RIGHT
D
0
HOLD
Q
DC
CP
Q
0
2
Page 3
Micrel
TRUTH TABLE
Inputs Outputs
Function D7 D0 S1 S0 CP Q7 Q6 Q5 Q4 Q3 Q2 Q1 Q0
Load Register X X L L u P7 P6 P5 P4 P3 P2 P1 P0
Shift Left X L L H u Q6 Q5 Q4 Q3 Q2 Q1 Q0 L
Shift Left X H L H u Q6 Q5 Q4 Q3 Q2 Q1 Q0 H
Shift Right L X H L u L Q
7 Q6 Q5 Q4 Q3 Q2 Q1
Shift Right H X H L u H Q7 Q6 Q5 Q4 Q3 Q2 Q1
Hold X X H H X No Change
Hold XXXXH
Hold XXXXL
NOTE:
1. H = HIGH Voltage Level
L = LOW Voltage Level
X = Don't Care
u = LOW-to-HIGH Transition
DC ELECTRICAL CHARACTERISTICS
VEE = –4.2V to –5.5V unless otherwise specified; VCC = VCCA = GND
SY100S341
Symbol Parameter Min. Typ. Max. Unit Condition
IIH Input HIGH Current, All Inputs ——200 µAVIN = VIH (Max.)
EE Power Supply Current –150 –102 –71 mA Inputs Open
I
AC ELECTRICAL CHARACTERISTICS
CERPACK
VEE = –4.2V to –5.5V unless otherwise specified; VCC = VCCA = GND
TA = 0°CTA = +25°CTA = +85°C
Symbol Parameter Min. Max. Min. Max. Min. Max. Unit Condition
fshift Shift Frequency 600 — 600 — 600 — MHz
PLH Propagation Delay 450 1200 450 1200 450 1200 ps
t
tPHL CP to Output
TLH Transition Time 300 900 300 900 300 900 ps
t
tTHL 20% to 80%, 80% to 20%
S Set-up Time ps
t
Dn, Pn 300 — 300 — 300 —
Sn 600 — 600 — 600 —
H Hold Time ps
t
Dn, Pn 300 — 300 — 300 —
Sn 0 — 0 — 0 —
t
pw (H) Pulse Width HIGH, CP — 600 — 600 — 600 ps
3
Page 4
Micrel
K
SY100S341
AC ELECTRICAL CHARACTERISTICS
PLCC
VEE = –4.2V to –5.5V unless otherwise specified; VCC = VCCA = GND
TA = 0°CTA = +25°CTA = +85°C
Symbol Parameter Min. Max. Min. Max. Min. Max. Unit Condition
fshift Shift Frequency 600 — 600 — 600 — MHz
PLH Propagation Delay 450 1200 450 1200 450 1200 ps
t
tPHL CP to Output
TLH Transition Time 300 900 300 900 300 900 ps
t
tTHL 20% to 80%, 80% to 20%
S Set-up Time ps
t
Dn, Pn 300 — 300 — 300 —
Sn 600 — 600 — 600 —
t
H Hold Time ps
Dn, Pn 300 — 300 — 300 —
Sn 0 — 0 — 0 —
pw (H) Pulse Width HIGH, CP — 600 — 600 — 600 ps
t
TIMING DIAGRAMS
CLOC
PARALLEL
OUTPUT
t
PLH
t
TLH
1/fshift
t
PHL
t
THL
Propagation Delay and Transition Times
tpw (H)
0.7 ± 0.1 ns0.7 ± 0.1 ns
–0.95V
80%
50%
20%
–1.69V
–0.95V
–1.69V
4
Page 5
Micrel
K
TIMING DIAGRAMS
SY100S341
–0.95V
Pn, Sn, D
NOTES:
1. VEE = –4.2V to –5.5V unless otherwise specified; VCC = VCCA = GND.
2. tS is the minimum time before the transition of the clock that information must be present at the data input.
3. tH is the minimum time after the transition of the clock that information must remain unchanged at the data input.
CLOC
n
t
H
t
S
50%
Set-up and Hold Times
50%
–1.69V
–0.95V
–1.69V
PRODUCT ORDERING CODE
Ordering Package Operating
Code Type Range
SY100S341FC F24-1 Commercial
SY100S341JC J28-1 Commercial
SY100S341JCTR J28-1 Commercial
5
Page 6
Micrel

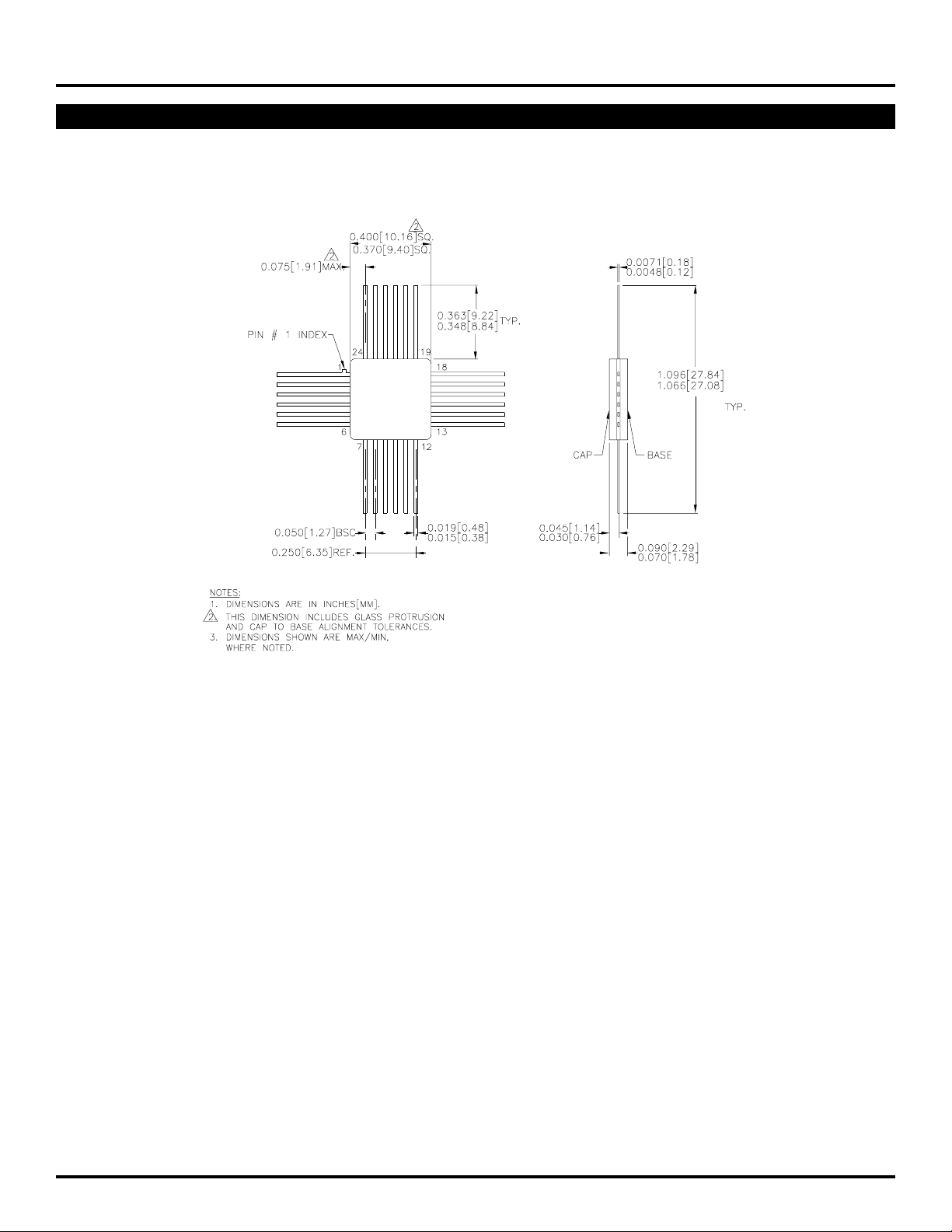

24 LEAD CERPACK (F24-1)
SY100S341
Rev. 03
6
Page 7
Micrel

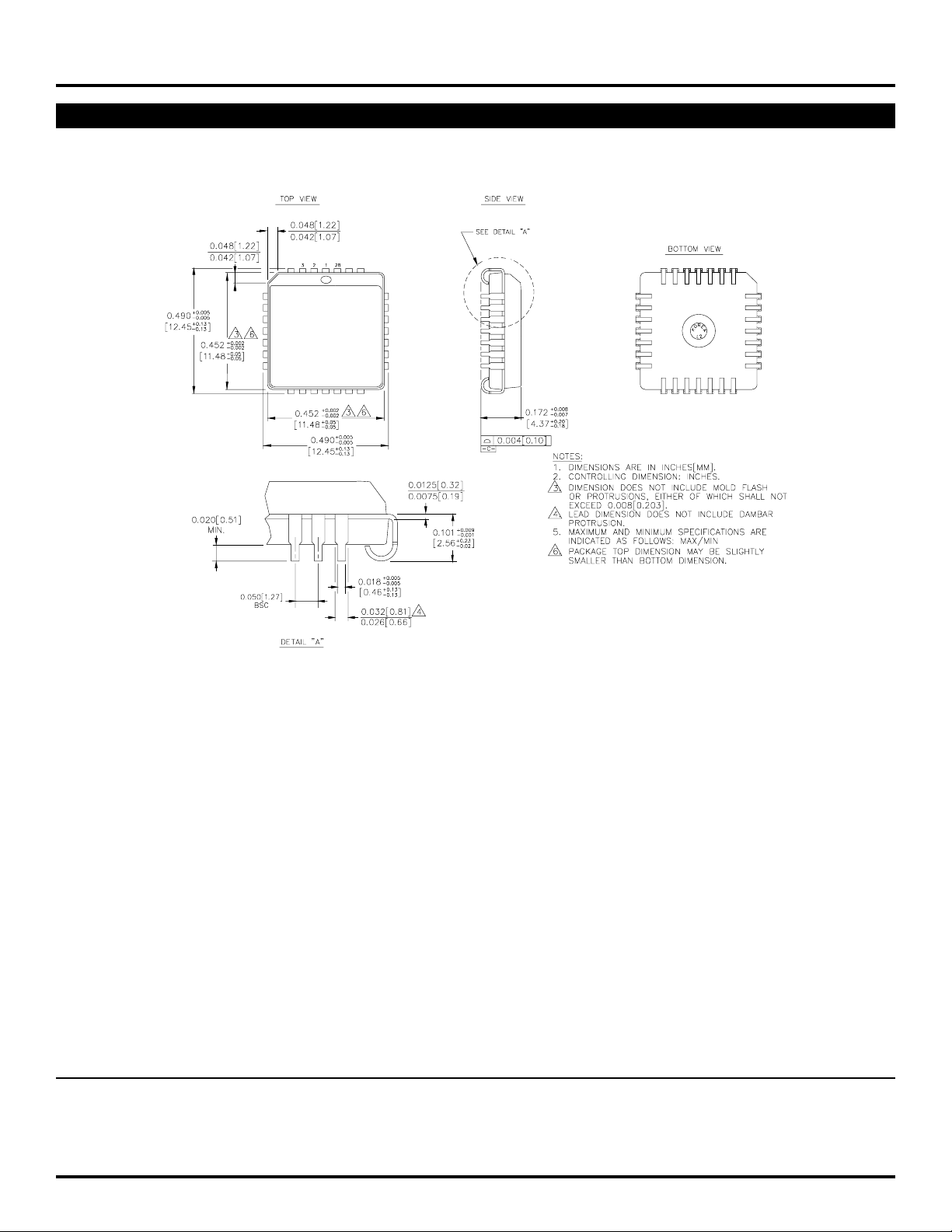

28 LEAD PLCC (J28-1)
SY100S341
Rev. 03
MICREL-SYNERGY 3250 SCOTT BOULEVARD SANTA CLARA CA 95054 USA
TEL + 1 (408) 980-9191 FAX + 1 (408) 914-7878 WEB http://www.micrel.com
This information is believed to be accurate and reliable, however no responsibility is assumed by Micrel for its use nor for any infringement of patents or
other rights of third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent right of Micrel Inc.
© 2000 Micrel Incorporated
7
