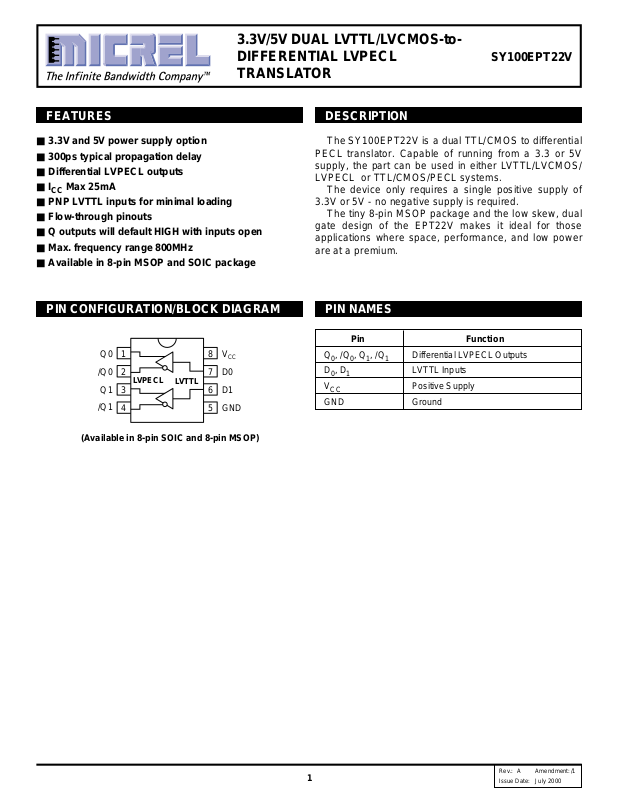

Page 1
3.3V/5V DUAL LVTTL/LVCMOS-toDIFFERENTIAL LVPECL
TRANSLATOR
SY100EPT22V
FEATURES
■ 3.3V and 5V power supply option
■ 300ps typical propagation delay
■ Differential LVPECL outputs
■ ICC Max 25mA
■ PNP LVTTL inputs for minimal loading
■ Flow-through pinouts
■ Q outputs will default HIGH with inputs open
■ Max. frequency range 800MHz
■ Available in 8-pin MSOP and SOIC package
PIN CONFIGURATION/BLOCK DIAGRAM
/Q0
Q1
/Q1
1Q0
2
LVPECL
3
4
LVTTL
8V
CC
D0
7
6
D1
GND
5
DESCRIPTION
The SY100EPT22V is a dual TTL/CMOS to differential
PECL translator. Capable of running from a 3.3 or 5V
supply, the part can be used in either LVTTL/LVCMOS/
LVPECL or TTL/CMOS/PECL systems.
The device only requires a single positive supply of
3.3V or 5V - no negative supply is required.
The tiny 8-pin MSOP package and the low skew, dual
gate design of the EPT22V makes it ideal for those
applications where space, performance, and low power
are at a premium.
PIN NAMES
Pin Function
Q0, /Q0, Q1, /Q
D0, D
1
V
CC
GND Ground
Differential LVPECL Outputs
1
LVTTL Inputs
Positive Supply
(Available in 8-pin SOIC and 8-pin MSOP)
1
Rev.: A Amendment: /1
Issue Date: July 2000
Page 2
Micrel
SY100EPT22V
ABSOLUTE MAXIMUM RATINGS
(1)
Symbol Paramter Value Unit
V
CC
V
I
I
I
I
O
Power Supply Voltage –0.5 to +7.0 V
TTL Input Voltage –0.5 to V
CC
V
TTL Input Current –30 to +5.0 mA
PECL Output Current mA
— Continuous 50
— Surge 100
T
store
T
A
NOTE:
1. Permanent device damage may occur if ABSOLUTE MAXIMUM RATINGS
are exceeded. This is a stress rating only and functional operation is not
implied at conditions other than those detailed in the operational sections
of this data sheet. Exposure to ABSOLUTE MAXIMUM RATlNG conditions
for extended periods may affect device reliability.
DC ELECTRICAL CHARACTERISTICS
Storage Temperature –65 to +150 °C
Operating Temperature –40 to +85 °C
(1)
VCC = +3.3V ±5% or +5.0V ±5%
TRUTH TABLE
DQ/Q
HH L
LL H
Open H L
T
= –40°CTA = 0°CTA = +25°CTA = +85°C
A
Symbol Parameter Min. Max. Min. Max. Min. Max. Min. Max. Unit Condition
I
CC
NOTE:
1. Parametric values specified at: 3 volt Power Supply Range 100EPT22V Series: +3.0V to +3.8V.
TTL DC ELECTRICAL CHARACTERISTICS
Power Supply Current — 25 — 25 — 25 — 25 mA —
5 volt Power Supply Range 100EPT22V Series: +4.2V to +5.5V.
(1)
VCC = +3.3V ±5% or +5.0V ±5%
TA = –40°CTA = 0°CTA = +25°CTA = +85°C
Symbol Parameter Min. Max. Min. Max. Min. Max. Min. Max. Unit Condition
V
IH
V
IL
I
IH
I
IL
V
IK
NOTE:
1. Parametric values specified at: 3 volt Power Supply Range 100EPT22V Series: +3.0V to +3.8V.
Input HIGH Voltage 2.0 — 2.0 — 2.0 — 2.0 — V —
Input LOW Voltage — 0.8 — 0.8 — 0.8 — 0.8 V —
Input HIGH Current — 20 — 20 — 20 — 20 µAV
— 100 — 100 — 100 — 100 VIN = V
= 2.7V
IN
Input LOW Current — –0.2 — –0.2 — –0.2 — –0.2 mA VIN = 0.5V
Input Clamp Voltage — –1.2 — –1.2 — –1.2 — –1.2 V IIN = –18mA
5 volt Power Supply Range 100EPT22V Series: +4.2V to +5.5V.
CC
2
Page 3
Micrel
SY100EPT22V
PECL DC ELECTRICAL CHARACTERISTICS
(1)
VCC = +3.3V ±5% or +5.0V ±5%
TA = –40°CT
Symbol Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Unit
V
OH
V
OL
NOTES:
1. Parametric values specified at: 3 volt Power Supply Range 100EPT22V Series: +3.0V to +3.8V.
2. These values are for VCC = 3.3V. Level Specifications will vary 1:1 with VCC.
Output HIGH Voltage
Output LOW Voltage
AC ELECTRICAL CHARACTERISTICS
(2)
100EPT 2220 — 2420 2275 — 2420 2275 — 2420 2275 — 2420
(2)
100EPT 1470 — 1750 1490 — 1680 1490 — 1680 1490 — 1680
5 volt Power Supply Range 100EPT22V Series: +4.2V to +5.5V.
(1)
= 0°CT
A
= +25°CT
A
= +85°C
A
VCC = +3.3V ±5% or +5.0V ±5%
TA = –40°CTA = 0°CTA = +25°CTA = +85°C
Symbol Parameter Min. Max. Min. Max. Min. Max. Min. Max. Unit Condition
t
PLH
t
PHL
t
skpp
t
skew
t
r
t
f
f
MAX
NOTES:
1. Parametric values specified at: 3 volt Power Supply Range 100EPT22V Series: +3.0V to +3.8V.
2. Guaranteed, but not tested.
3. Same transition @common VCC levels.
Propagation Delay to Output D, 100 600 100 600 100 600 100 600 ps 50Ω to VCC – 2.0V
ENECL/ENTTL
Part-to-Part Skew
Within-Device Skew
(2)
(2,3)
— 500 — 500 — 500 — 500 ps 50Ω to VCC – 2.0V
— 100 — 100 — 100 — 100 ps 50Ω to VCC – 2.0V
Output Rise/Fall Time 200 500 200 500 200 500 200 500 ps 50Ω to VCC – 2.0V
20% to 80%
Maximum Toggle Frequency — 800 — 800 — 800 — 800 MHz 50Ω to VCC – 2.0V
5 volt Power Supply Range 100EPT22V Series: +4.2V to +5.5V.
mV
mV
PRODUCT ORDERING CODE
3.3V 5V
Ordering Package Operating VCC Range
Code Type Range (V)
SY100EPT22VZC Z8-1 Commercial +3.3V ±5%
SY100EPT22VZCTR Z8-1 Commercial +3.3V ±5%
SY100EPT22VKC K8-1 Commercial +3.3V ±5%
SY100EPT22VKCTR K8-1 Commercial +3.3V ±5%
SY100EPT22VZC Z8-1 Commercial +5.0V ±5%
SY100EPT22VZCTR Z8-1 Commercial +5.0V ±5%
SY100EPT22VKC K8-1 Commercial +5.0V ±5%
SY100EPT22VKCTR K8-1 Commercial +5.0V ±5%
3
Ordering Package Operating VCC Range
Code Type Range (V)
Page 4
Micrel

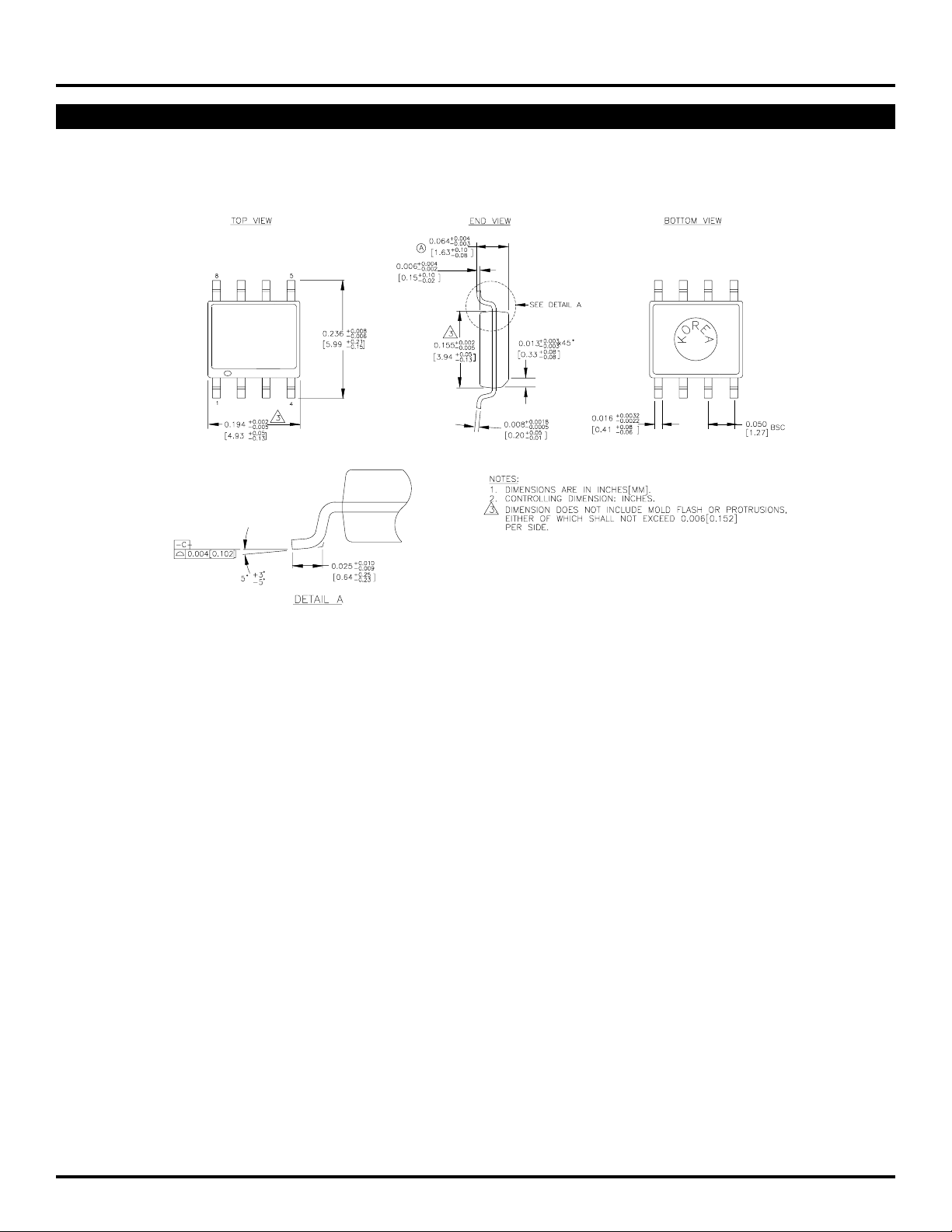

8 LEAD PLASTIC SOIC (Z8-1)
SY100EPT22V
Rev. 03
4
Page 5
Micrel

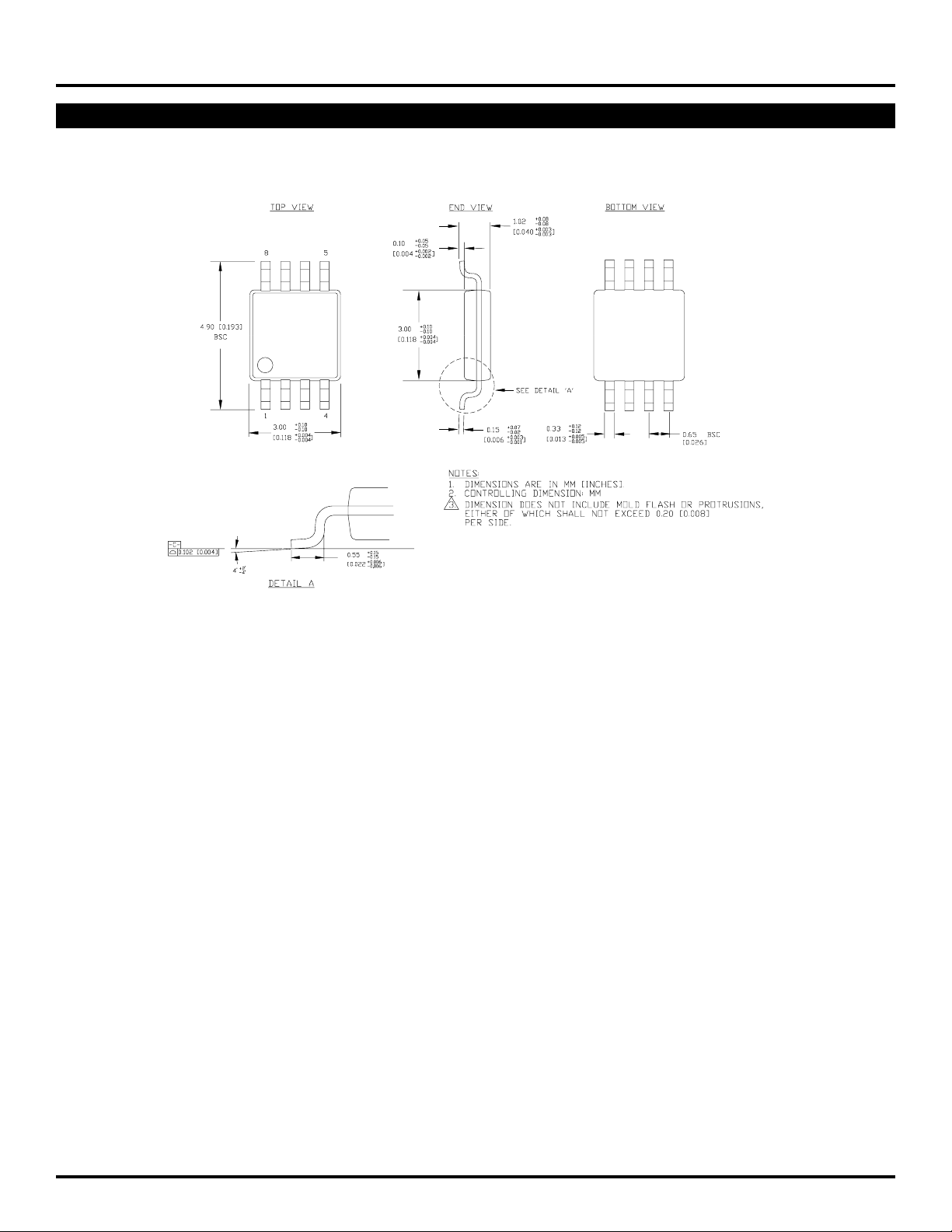

8 LEAD MSOP (K8-1)
SY100EPT22V
Rev. 01
5
Page 6
Micrel
SY100EPT22V
6
Page 7
Micrel
SY100EPT22V
7
Page 8
Micrel
SY100EPT22V
MICREL-SYNERGY 3250 SCOTT BOULEVARD SANTA CLARA CA 95054 USA
TEL + 1 (408) 980-9191 FAX + 1 (408) 914-7878 WEB http://www.micrel.com
This information is believed to be accurate and reliable, however no responsibility is assumed by Micrel for its use nor for any infringement of patents or
other rights of third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent right of Micrel Inc.
© 2000 Micrel Incorporated
