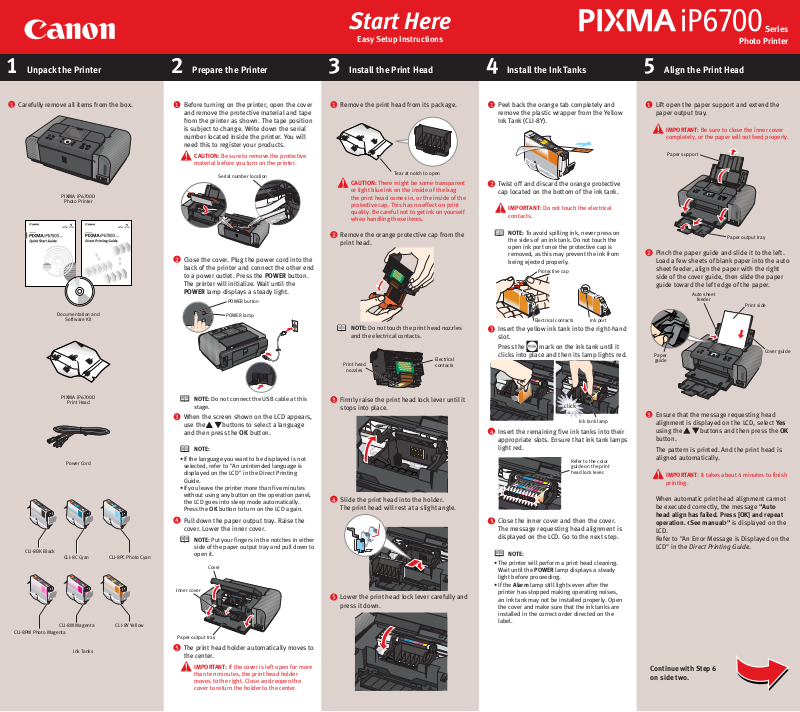

Start Here

Series

1 Unpack the Printer

1

Carefully remove all items from the box.

PIXMA iP6700D

Photo Printer

2 Prepare the Printer

1

Before turning on the printer, open the cover

and remove the protective material and tape
from the printer as shown.The tape position
is subject to change. Write down the serial
number located inside the printer. You will
need this to register your products.

CAUTION: Be sure to remove the protective
material before you turn on the printer.

Serial number location

Easy Setup Instructions

3 Install the Print Head

1

Remove the print head from its package.

Tear at notch to open

CAUTION: There might be some transparent
or light blue ink on the inside of the bag
the print head comes in, or the inside of the
protective cap. This has no effect on print
quality. Be careful not to get ink on yourself
when handling these items.

4 Install the Ink Tanks

1

Peel back the orange tab completely and

remove the plastic wrapper from the Yellow
Ink Tank (CLI-8Y).

2

Twist off and discard the orange protective

cap located on the bottom of the ink tank.

IMPORTANT: Do not touch the electrical
contacts.

Photo Printer

5 Align the Print Head

1

Lift open the paper support and extend the

paper output tray.

IMPORTANT: Be sure to close the inner cover
completely, or the paper will not feed properly.

Paper support

Documentation and

CLI-8BK Black

CLI-8M Magenta

CLI-8PM Photo Magenta

Software Kit

PIXMA iP6700D

Print Head

Power Cord

CLI-8C Cyan

CLI-8PC Photo Cyan

CLI-8Y Yellow

2

Close the cover. Plug the power cord into the

back of the printer and connect the other end
to a power outlet. Press the POWER button.
The printer will initialize. Wait until the
POWER lamp displays a steady light.

POWER button

POWER lamp

NOTE: Do not connect the USB cable at this
stage.

3

When the screen shown on the LCD appears,

use the

buttons to select a language

and then press the OK button.

NOTE:

• If the language you want to be displayed is not
selected, refer to "An unintended language is
displayed on the LCD" in the Direct Printing
Guide.

• If you leave the printer more than five minutes
without using any button on the operation panel,
the LCD goes into sleep mode automatically.
Press the OK button to turn on the LCD again.

4

Pull down the paper output tray. Raise the

cover. Lower the inner cover.

NOTE: Put your fingers in the notches in either
side of the paper output tray and pull down to
open it.

Cover

Inner cover

Paper output tray

2

Remove the orange protective cap from the

print head.

NOTE: Do not touch the print head nozzles
and the electrical contacts.

Print head

nozzles

3

Firmly raise the print head lock lever until it

Electrical

contacts

stops into place.

4

Slide the print head into the holder.

The print head will rest at a slight angle.

5

Lower the print head lock lever carefully and

press it down.

NOTE: To avoid spilling ink, never press on
the sides of an ink tank. Do not touch the
open ink port once the protective cap is
removed, as this may prevent the ink from
being ejected properly.

Protective cap

Electrical contacts

3

Insert the yellow ink tank into the right-hand

Ink port

slot.

Press the

mark on the ink tank until it

clicks into place and then its lamp lights red.

click

Ink tank lamp

4

Insert the remaining five ink tanks into their

appropriate slots. Ensure that ink tank lamps
light red.

Refer to the color
guide on the print
head lock lever.

5

Close the inner cover and then the cover.

The message requesting head alignment is
displayed on the LCD. Go to the next step.

NOTE:

• The printer will perform a print head cleaning.

Wait until the POWER lamp displays a steady
light before proceeding.

• If the Alarm lamp still lights even after the

printer has stopped making operating noises,
an ink tank may not be installed properly. Open
the cover and make sure that the ink tanks are
installed in the correct order directed on the
label.

Paper output tray

2

Pinch the paper guide and slide it to the left.

Load a few sheets of blank paper into the auto
sheet feeder, align the paper with the right
side of the cover guide, then slide the paper
guide toward the left edge of the paper.

Auto sheet

feeder

Print side

Paper
guide

3

Ensure that the message requesting head

Cover guide

alignment is displayed on the LCD, select Yes
using the

buttons and then press the OK

button.

The pattern is printed. And the print head is

aligned automatically.

IMPORTANT: It takes about 4 minutes to finish
printing.

When automatic print head alignment cannot

be executed correctly, the message "Auto

head align has failed. Press [OK] and repeat
operation. <See manual>" is displayed on the

LCD.
Refer to "An Error Message is Displayed on the
LCD" in the Direct Printing Guide.

Ink Tanks

5

The print head holder automatically moves to

the center.

IMPORTANT: If the cover is left open for more
than ten minutes, the print head holder
moves to the right. Close and reopen the
cover to return the holder to the center.

Continue with Step 6
on side two.

6 Windows

®

Printer Driver Installation 6 Macintosh® Printer Driver Installation 7 Cassette Loading

Windows

NOTE: The screens below refer to Windows XP

Service Pack 2 installation. Screens may differ
depending on the operating system you are
using.

1

TURN THE PRINTER OFF.

You hear the operation sound until the printer
is turned off. It may take about 30 seconds.

2

Turn the computer on and start Windows.

NOTE:

• For Windows XP or Windows 2000, log on
to Windows as a member of Administrators
group before continuing.

• Before installing the driver, disable all anti­virus programs and automatically loading
programs.

IMPORTANT: If you see the Found New

Hardware Wizard, click Cancel. Next, remove

the USB cable connected to your computer.
Then proceed from step 3 to install the printer
driver.

3

Insert the Setup CD-ROM. The setup program

should run automatically.

4

When the main menu appears, click Easy

Install and follow the on-screen instructions.

6

Read the License Agreement and click Yes.
Follow the on-screen instructions to install
the software. If the message asking for
your confirmation to restart your computer
appears, click OK. The system is restarted
automatically.

7

When the Printer Connection screen appears,

connect the USB cable to the computer and
the other end to the printer.

8

TURN THE PRINTER ON.

IMPORTANT: If you cannot proceed to the

next procedure after two minutes, refer to
"Troubleshooting" instructions in the Quick
Start Guide.

If the message asking for your confirmation
to restart your computer appears, click OK.
The system is restarted automatically.

9

Follow the on-screen instructions to

install the remaining software. When the

Installation Results screen appears, click
Next.

Macintosh

NOTE:

• Use Mac

• The screens below refer to Mac OS X v.10.4.x
installation. Screens may differ depending on
the operating system you are using.

• Before installing the driver, disable all anti-virus
programs and automatically loading programs.

• Do not remove or insert the USB cable during
installation, as this may result in the computer
or printer not operating normally.

1

Connect the printer to the computer with the

®

OS X v.10.2.8 to 10.4.x.

USB cable.

2

Turn on the computer and start Mac OS X.

3

Insert the Setup CD-ROM.

NOTE:

• If the CD-ROM folder does not open
automatically, double-click the on the
desktop.

• Log on as an Administrator before continuing.

4

Double-click the Setup icon.

When the main menu appears, click Easy

6

Install and follow the on-screen instructions.

NOTE: Select Easy Install in order to install

the application software, electronic manuals
and printer driver. Select Custom Install in
order to choose the options you would like to
install.

7

When the Easy Install screen appears, click

Install.

NOTE: If you point to an application in the list,

the explanation for the printer driver or an
application is displayed.

8

Read the License Agreement, then click Yes.

Follow the on-screen instructions to install
the software.

9

Follow the on-screen instructions to register

your product.

10 

When the Installation completed successfully

screen appears, click

Restart.

You can load paper in both the auto sheet feeder
and cassette.

1

Pull out the cassette from the bottom of the

printer.

Cassette

Cover

2

Remove the cover of the cassette.

3

For A5 or larger sized paper, pull the tab

towards you to unlock before extend the
cassette.

Tab

A5 or larger
(nonstandard-size paper: 203 mm/8 inches or
more in length)

NOTE:

• Select Easy Install in order to install the

application software, electronic manuals and
printer driver. Select Custom Install in order to
choose the options you would like to install.

• To install PhotoRecord or Adobe® RGB (1998),

click Custom Install and follow the instruction
on the screen.

• Adobe RGB (1998) cannot be installed in
Windows Me and Windows 98.

5

When the list of applications to install appears,

verify the contents, click Install, then follow
the instructions on the screen.
Move the cursor over items to display
explanations of each application below.

10 

Follow the on-screen instructions to register

your product.
If the message asking for your confirmation
to restart your computer appears, click OK.
The system is restarted automatically.

When the Installation completed successfully

screen appears, click Exit.

5

When the Authenticate screen appears, enter

your administrator name and password. Click
OK.
If you do not know your administrator name
or password, click

on the lower-left corner
of the screen, then follow the on-screen
instructions.

After restarting the computer, select

Applications from the Go menu. Double-click
the Utilities folder, and then double-click the
Printer Setup Utility (Print Center when you
use Mac OS X v.10.2.8) icon. Check that your
printer name is displayed on the Printer List.
If your printer name is not displayed on the
Printer List, click Add to add the printer.
For details, refer to the Printer Setup Utility
Help or Mac Help.

5" x 7" or smaller
(nonstandard-size paper: less than 203 mm/
8 inches in length)

4

Load the paper into the cassette with the print

side facing DOWN.

NOTE: Loading paper in the cassette provides
additional paper handling flexibility. For
additional information visit the electronic
User’s Guide.

If Restart is displayed, ensure the Restart

the system now (recommended) check box is
selected, then click Restart.
