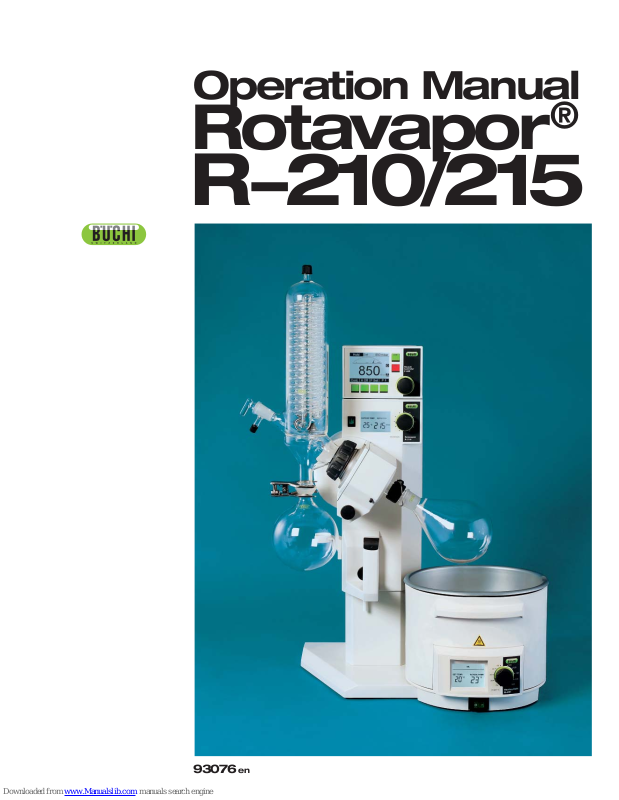

R-210/215
Rotavapor
®
Operation Manual
Table of contents
3 R-210/215 Operation Manual, Version B
Table of contents
1 About this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1 Reference documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2 Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.3 Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 User qualifi cation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 Proper use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Improper use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.4 Warning notices used in this manual . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.5 Product safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.5.1 Instrument-related hazards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.5.2 Other hazards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.5.3 Safety measures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.5.4 Safety elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.6 General safety rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.1 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.1.1 Basic instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.1.2 Standard accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.1.3 Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3.1.4 Upgrade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.2 Materials used. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.3 Technical data overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3.4 Solvent table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Read this manual carefully before installing and running your system and note the safety precautions
in chapter 2 in particular. Store the manual in the immediate vicinity of the instrument, so that it can be
consulted at any time.
No technical modifi cations may be made to the instrument without the prior written agreement of
Buchi. Unauthorized modifi cations may affect the system safety or result in accidents.
This manual is copyright. Information from it may not be reproduced, distributed, or used for competitive purposes, nor made available to third parties. The manufacture of any component with the aid of
this manual without prior written agreement is also prohibited.
If you need another language version of this manual, you can download it at
www.buchi.com.
Table of contents
4 R-210/215 Operation Manual, Version B
4 Description of function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.1 Functional principle of a Rotavapor . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.1.1 Functional principle considering the V assembly as example . . . . . . . . . . . . . 25
4.1.2 Controls of Rotavapor R-210/215 . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.1.3 Rear connections of the Rotavapor . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4.2 Motorized quick-action jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4.3 Heating bath . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.4 Combi Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.5 Vapor temperature sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4.6 Protective shield (optional). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4.7 Valve unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
4.8 Woulff bottle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
4.9 Combination of Rotavapor and vacuum controller. . . . . . . . . . . . . . . . . . . 30
4.10 Infrared interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5 Putting into operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
5.1 Installation site. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
5.2 Electrical connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
5.3 Commissioning the heating bath . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
5.3.1 Heating Bath B-495 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
5.3.2 Heating medium. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
5.4 Glass assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
5.5 Installing the condenser and the seal . . . . . . . . . . . . . . . . . . . . . . . . . 35
5.6 Installing the refl ux insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
5.7 Mounting the support rod (optional accessory) . . . . . . . . . . . . . . . . . . . . 36
5.8 Tube connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
5.8.1 Connection scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
5.8.2 Cooling water tubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
5.8.3 Vacuum tubes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
5.8.4 Tube connections to the valve unit. . . . . . . . . . . . . . . . . . . . . . . . . . . 39
5.9 Installing the vacuum controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
5.10 Cable connections to the Rotavapor . . . . . . . . . . . . . . . . . . . . . . . . . 40
5.11 Installing the vapor temperature sensor . . . . . . . . . . . . . . . . . . . . . . . . 41
5.12 Functional test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
6.1 Settings at the heating bath . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
6.1.1 Setting the heating bath temperature . . . . . . . . . . . . . . . . . . . . . . . . . 42
6.1.2 Switching the B-491 from water bath mode to oil bath mode . . . . . . . . . . . . . 42
6.1.3 Switching the B-491 from oil bath mode to water bath mode . . . . . . . . . . . . . 43
6.1.4 Selecting the set temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
6.1.5 Changing / switching off the set temperature . . . . . . . . . . . . . . . . . . . . . 43
6.2 Immersion angle of the evaporating fl ask into the heating bath . . . . . . . . . . . . 44
6.3 Lowering and raising the evaporating fl ask into and out of the heating bath . . . . . . 45
6.4 Selecting the distillation conditions . . . . . . . . . . . . . . . . . . . . . . . . . . 45
6.5 Distilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
6.6 Optimizing the distillation conditions. . . . . . . . . . . . . . . . . . . . . . . . . . 47
6.7 When the distillation “dies out” . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Table of contents
5 R-210/215 Operation Manual, Version B
7 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
7.1 Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
7.2 Tube connections and joints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
7.3 Sealing system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
7.3.1 Cleaning the seals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
7.3.2 Replacing the seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
7.4 Heating bath . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
7.5 Glass components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
8.1 Malfunctions and their remedy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
8.2 Customer service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
9 Shutdown, storage, transport and disposal . . . . . . . . . . . . . . . . . . . . . . . . 55
9.1 Storage and transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
9.2 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
9.3 Health and safety clearance form . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
10 Spare parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
10.1 Glass assembly A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
10.2 Glass assembly V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
10.3 Glass assembly C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
10.4 Glass assembly S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
10.5 Glass assembly CR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
10.6 Glass assembly E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
10.7 Glass assembly BY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
10.8 Sealing system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
10.9 Various glass parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
10.10 Miscellaneous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
11 Declarations and requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
11.1 FCC requirements (for USA and Canada) . . . . . . . . . . . . . . . . . . . . . . . 76
11.2 Declaration of conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
1 About this manual
6 R-210/215 Operation Manual, Version B
1 About this manual
This manual describes the Rotavapor and provides all information required for its safe operation and to
maintain it in good working order.
It is addressed in particular to laboratory personnel and operators.
NOTE
The symbols pertaining to safety (WARNINGS and ATTENTIONS) are explained in chapter 2.
1.1 Reference documents
For information on the Vacuum Controller V-850/855 and the Vacuum Pump V-700/710, please refer
to the corresponding manuals available in English, German, French, Spanish and Italian:
Vacuum Controller, Operating Manual numbers 93081–93085
Vacuum Pump, Operating Manual numbers 93090–93094
1.2 Trademarks
The following product names and any registered and unregistered trademarks mentioned in this
manual are used for identifi cation purposes only and remain the exclusive property of their respective
owners:
Rotavapor® is a registered trademark of Büchi Labortechnik AG
Tefl o n® is a registered trademark of DuPont or its affi liates
Kalrez® is a registered trademark of DuPont
1.3 Abbreviations
NBR: Butadiene-acrylonitrile rubber
P+G: PLASTIC + Glass is a unique protective layer for glass components. It offers improved mechan-
ical rupture resistance and increases protection against broken glass. It also makes sure that the
sample is not lost in the receiving fl ask, if the fl ask is damaged.
PBT: Polybutylene Terephthalate
Rpm: Rotations per minute
•
•
•
•
•
2 Safety
7 R-210/215 Operation Manual, Version B
2 Safety
This chapter points out the safety concept of the instrument and contains general rules of behavior
and warnings from hazards concerning the use of the product.
The safety of users and personnel can only be ensured if these safety instructions and the safetyrelated warnings in the individual chapters are strictly observed and followed. Therefore, the manual
must always be available to all persons performing the tasks described herein.
2.1 User qualifi cation
The instrument may only be used by laboratory personnel and other persons who on account of
training or professional experience have an overview of the dangers which can develop when
operating the instrument.
Personnel without this training or persons who are currently being trained require careful instruction.
The present Operation Manual serves as the basis for this.
2.2 Proper use
The instrument has been designed and built for laboratories. It serves for activities associated with
evaporation of solvents.
It is used for:
Distilling solvents
Vaporizing of solvents
Recrystallization
Synthesis and cleaning of chemicals
Soxhlet extractions
Drying powders by means of the drying fl ask
The instrument can only be operated properly together with a heating bath.
2.3 Improper use
Applications not mentioned above are improper. Also, applications, which do not comply with the
technical data, are considered improper. The operator bears the sole risk for any damages caused by
such improper use.
The following uses are expressly forbidden:
Use of the instrument in rooms which require ex-protected instruments.
Use as a calibrating instrument for other instruments.
Determination of samples, which can explode or infl ame (example: explosives, etc.) due to shock,
friction, heat or spark formation.
Use in overpressure situations.
Use of unappropriate water or oil baths, especially the use of heating sources with temperatures
above 180 °C (e.g. a Bunsen burner, etc.).
Processing of hard, brittle materials (e.g. stones, soil samples, etc.), which can lead to the destruction of the evaporating fl ask.
Use with a sample weight of more than 3 kg within the evaporating fl ask.
•
•
•
•
•
•
•
•
•
•
•
•
•
2 Safety
8 R-210/215 Operation Manual, Version B
2.4 Warning notices used in this manual
WARNING
Generally, the triangular warning symbol indicates the possibility of personal injury or even loss of life
if the instructions are not followed.
WARNING
Hot surface.
WARNING
Electrical hazard.
WARNING
Biohazard.
ATTENTION
With the general “Read this” symbol, ATTENTIONs indicate the possibility of equipment damage,
malfunctions or incorrect process results, if instructions are not followed.
NOTE
Useful tips for the easy operation of the instrument.
2.5 Product safety
The Rotavapor is designed and built in accordance with current state-of-the-art technology. Nevertheless, risks to users, property, and the environment can arise when the instrument is used carelessly or
improperly.
The manufacturer has determined residual dangers emanating from the instrument
if the instrument is operated by insuffi ciently trained personnel.
if the instrument is not operated according to its proper use.
Appropriate warnings in this manual serve to make the user alert to these residual dangers.
2.5.1 Instrument-related hazards
Pay attention to the following safety notices:
WARNING
Potentially hot surfaces during operation, especially at the water or oil bath (up to 180 °C).
Always be aware of the risk of being burned.
When using an oil bath, make sure that no water gets into the bath otherwise there is a serious
risk of being splashed by hot oil.
WARNING
Potential implosion risk if used with damaged glassware.
Risk of electrostatic discharge when the rotary evaporator is fi lled with solvents, e.g. via the feeding
tube, or when drying powders are used.
Beware of damaged or cracked glass parts.
Beware of the fi re hazard.
•
•
•
•
•
•
2 Safety
9 R-210/215 Operation Manual, Version B
WARNING
Potential explosion risk if solvent vapors accumulate within the instrument housing.
Always use the instrument in a well ventilated area.
Beware of damaged or cracked glass parts.
Beware of the fi re hazard.
2.5.2 Other hazards
WARNING
Certain solvents in or in the vicinity of the Rotavapor can form peroxides and/or are highly infl ammable.
Always be aware of the explosion risk when working with hazardous substances or with
substances of unknown composition.
Always provide a good ventilation within or in the vicinity of the system.
2.5.3 Safety measures
Always wear personal protective equipment such as protective eye goggles, protective clothing and
gloves when working with the instrument.
2.5.4 Safety elements
Electronics
The heating bath is equipped with a mechanical and an electronic over-temperature protection.
The mechanical over-temperature protection consists of a bimetal thermostat that, in case of overtemperature (over 260 °C), directly interrupts the power supply. It has to be set back manually after
the bath has cooled down (see also chapter 8).
The electronic over-temperature protection controls the temperature limit (actual bath temperature
may not exceed the given temperature by 2 °C for more than 2 minutes), the heating rate (actual
temperature may not rise by more than 5 °C during 5 seconds) and the function of the temperature
sensor.
The heating bath is equipped with safety fuses.
Electronic control of the heating bath temperature - to prevent the product from overheating
Parts in direct contact with the instrument
Safety catch for adjusting the immersion depth of the evaporating fl ask into the heating bath.
Combi Clips for fi xing the evaporating fl ask and for safe removal of fi xed ground-glass joints.
Ball joint clip for safe fi xing of the receiving fl ask.
Rods and holders for fi xing the glass assemblies.
Electronic over-current protection at the drive unit and lift motor.
Safety spring preventing the vapor duct from dropping out.
Automatic raising of the fl ask from the heating bath in case of a power failure.
Glass
Use of high quality, inert 3.3 borosilicate glass.
Use of tube clips GL-14 for preventing glass breakage.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
2 Safety
10 R-210/215 Operation Manual, Version B
Optional
P+G is a unique protective layer for glass components. It offers improved mechanical damage
resistance and increases protection against broken glass. It also makes sure that the solvent in the
receiving fl ask is not spilling, if the fl ask is damaged.
The protective shield (optional accessory) protects operators from broken glass, solvent splashes
and hot heating medium in case of accidents or an implosion.
With the support rod the condenser can additionally be clamped.
2.6 General safety rules
Responsibility of the operator
The head of laboratory is responsible for training his personnel.
The operator shall inform the manufacturer without delay of any safety-related incidents which might
occur during operation of the instrument. Legal regulations, such as local, state and federal laws
applying to the instrument must be strictly followed.
Duty of maintenance and care
The operator is responsible for ensuring that the instrument is operated in proper condition only, and
that maintenance, service, and repair jobs are performed with care and on schedule, and by authorized personnel only.
Spare parts to be used
Use only genuine consumables and genuine spare parts for maintenance to assure good system
performance and reliability. Any modifi cations to the spare parts used are only allowed with the prior
written permission of the manufacturer.
Modifi cations
Modifi cations to the instrument are only permitted after prior consultation with and with the written
approval of the manufacturer. Modifi cations and upgrades shall only be carried out by an authorized
Buchi technical engineer. The manufacturer will decline any claim resulting from unauthorized modifi cations.
•
•
•
3 Technical data
11 R-210/215 Operation Manual, Version B
3 Technical data
This chapter introduces the reader to the instrument specifi cations. It contains the scope of delivery,
technical data, requirements and performance data.
3.1 Scope of delivery
Check the scope of delivery according to the order number.
NOTE
For detailed information on the listed products, see www.buchi.com or contact your local dealer.
3.1.1 Basic instrument
Order number:
23
0
xxxxxx
Rotavapor R-210
3 Technical data
12 R-210/215 Operation Manual, Version B
Order number:
23
1
xxxxxx
Rotavapor R-215
The vapor temperature sensor is comprised in
the scope of delivery of the condensers V, S,
and E.
Order number:
23
2
xxxxxx
Rotavapor R-210 without heating bath
Order number:
23
3
xxxxxx
Rotavapor R-215 without heating bath
3.1.2 Standard accessories
Order number:
23x
1
xxxxx
Rotavapor R-210/215 230 V 50/60 Hz
Order number:
23x
2
xxxxx
Rotavapor R-210/215 100–120 V 50/60 Hz
3 Technical data
13 R-210/215 Operation Manual, Version B
Order number:
23xx
1
xxxx
Vapor duct SJ 29/32
Order number:
23
xx2xxxx
Vapor duct SJ 24/40
Order number:
23
xx3xxxx
Vapor duct SJ 29/42
Order number:
23
xxxAxxx
Glass assembly A
Diagonal condenser
Can be used where height is limited
For standard distillations
Evaporating fl ask feed via stop-cock
•
•
•
•
Order number:
23
xxxVxxx
Glass assembly V
Vertical condenser
Needs little space
For standard distillations
Evaporating fl ask feed via stop-cock
Connection for vapor temperature sensor
Auto distillation possible with Auto-distillation
probe and Vacuum Controller V-855
•
•
•
•
•
•
3 Technical data
14 R-210/215 Operation Manual, Version B
Order number:
23
xxxCxxx
Glass assembly C
Dry ice condenser
For distillation of solvents with low boiling
points
Evaporating fl ask feed via stop-cock
No cooling water necessary
Maximum condensation due to low temperatures
•
•
•
•
•
Order number:
23
xxxSxxx
Glass assembly S
Vertical condenser with shut-off valve
For distillations also with refl ux
Evaporating fl ask feed via stop-cock
Connection for vapor temperature sensor
Auto distillation possible with Auto-distillation
probe and Vacuum Controller V-855
•
•
•
•
•
3 Technical data
15 R-210/215 Operation Manual, Version B
Order number:
23
xxxExxx
Glass assembly E
Descending condenser with expansion vessel
Ideal for distillations exhibiting foaming or
bumping
Evaporating fl ask feed via stop-cock
Connection for vapor temperature sensor
•
•
•
•
Order number:
23
xxxRxxx
Glass assembly CR
Dry ice condensation
For the distillation of solvents with low boiling
points also with refl ux
Evaporating fl ask feed via stop-cock
No cooling water necessary
Maximum condensation due to low temperature
•
•
•
•
•
3 Technical data
16 R-210/215 Operation Manual, Version B
Order number:
23
xxxYxxx
Glass assembly BY
Vertical condenser with additional double
jacket for cooling
Additional joint on the top of the condenser
for fl exible expansion
For particularly effi cient condensation
Evaporating fl ask feed via stop-cock
Connection for vapor temperature sensor
•
•
•
•
•
Order number:
23
xxxx1xx
P+G coating
If required, all glass parts can be plastic coated
NOTE
The broken fl ask shown on the picture on the
left demonstrates the function of the P+G
coating in case of glass breakage.
3 Technical data
17 R-210/215 Operation Manual, Version B
Order number:
23
xxxxx1x
Vacuum Controller V-850, 100–230 V 50/60 Hz
Order number:
23
xxxxx2x
Vacuum Controller V-855, 100–230 V 50/60 Hz
The Auto-distillation probe is comprised in the
scope of delivery of the condensers V and S.
Order number:
23
xxxxxx
1
Woulff bottle
3 Technical data
18 R-210/215 Operation Manual, Version B
Order number:
23
xxxxxx
2
Valve unit
Table 3-1: Standard accessories
Product Order number
Cooling water tube silicone 9/6 mm 04133
2 power cords –
Type CH plug type 12 or PNE, 2.5 m 10010
Type Schuko 10016
Type GB 17835
Type AUS 17836
Type USA 10020
4 cable binders –
Operation Manual:
English 93076
German 93077
French 93078
Italian 93079
Spanish 93080
3 Technical data
19 R-210/215 Operation Manual, Version B
3.1.3 Optional accessories
Table 3-2: Optional accessories
Product Order number
Vacuum Pump V-700
(100 V- 230 V 50/60 Hz)
71000
Vacuum Pump V-700 (100 V- 230 V
50/60 Hz) with secondary condenser and
500 ml receiving fl ask
71001
Water jet pump (plastic) 02913
Water jet pump unit B-767 with 2
magnetic valves 24 V for pump and
cooling water (with a Kalrez backstroke
valve)
31357
Water jet pump unit B-764 with magnetic
valve 24 V (and a Kalrez backstroke valve)
(shown as example on picture on the left)
31358
Woulff bottle complete including holder 47170
Woulff bottle glass part, P+G coated 47233
Holder for Woulff bottle 47164
Valve unit complete, including holder 47160
Manometer with needle valve complete
(for manual vacuum control) including
support for R-210/215, V-700/710 and
V-850/855
47291
3 Technical data
20 R-210/215 Operation Manual, Version B
Table 3-2: Optional accessories (cont.)
Product Order number
Distillation Chiller B-741 230 V 46770
Distillation Chiller B-741 120 V 46772
Vacuum Controller V-850 47299
Vacuum Controller V-855 47298
Remote control for V-850 / 855 47230
Auto-distillation probe for V-855 (only for
glass assembly V + S)
47235
3 Technical data
21 R-210/215 Operation Manual, Version B
Table 3-2: Optional accessories (cont.)
Product Order number
Heating bath B-491 with digital display
for 20 °C to 180 °C
Heating bath complete 230 V 50/60 Hz 48200
Heating bath B-491 complete 100–120 V
50/60 Hz
48201
Heating bath B-491 for R-200/5 complete
230 V 50/60 Hz
48212
Heating bath B-491 for R-200/5 complete
(100–120 V 50/60 Hz)
48213
Heating bath platform for R-200/5 47972
Heating Bath B-495 for fl ask sizes up to
5 l with digital display for 20 °C to 95 °C,
bath replenishment and level adjustment
Heating bath complete 230 V 50/60 Hz 48240
Heating Bath B-495 complete 100–120 V
50/60 Hz
48241
Protective shield complete for B-491 48052
3 Technical data
22 R-210/215 Operation Manual, Version B
3.1.4 Upgrade
Table 3-3: Upgrade R-210 to R-215 - optional
Product Order number
Upgrade R-210 to R-215, display for
rotation speed and vapor temperature
(without probe)
Note:
Only to be installed by a Buchi service
engineer.
48376
1 sensor for measuring the vapor
temperature (only with R-215 and with
glass assembly V + S + E)
40340
3.2 Materials used
Table 3-4: Materials used
Component Material designation
Housing Rotavapor Aluminium
Guides lift Hardened steel / stainless steel
Casting components PBT partially glass reinforced
Housing bath PBT partially glass reinforced
Bath Stainless steel
Protective ring PBT partially glass reinforced
Protective shield Polycarbonate
Center rotation drive Stainless steel
Condenser fl ange Aluminium
Seal NBR, Tefl on
3 Technical data
23 R-210/215 Operation Manual, Version B
3.3 Technical data overview
Table 3-5: Technical data
R-210 Rotavapor
without display
R-215 Rotavapor with
display
B-491 Heating bath B-495 Heating bath
Glass assemblies A, V, C, S, E, CR, BY
Dimensions ( W x H x D) 550 x 575 x 415 mm 285 x 240 x 300 mm 310 x 230 x 320 mm
Weight 16 – 18 kg (depending on the glass
assembly)
4 kg 5 kg
Connection voltage 100 – 240 V ± 10% 100 – 120 V or 220 – 240 V ± 10%
Mains connection 3-pole (P, N, E) via power cord 3-pole (P, N, E) via power cord
Frequency 50 / 60 Hz 50 / 60 Hz
Power consumption max. 60 W max. 1700 W
Installation category II II
Degree of protection IP21 IP21
Pollution degree 2 2
Rotation speed range 20 – 280 rpm
Flask size 50 – 4000 ml up to 4000 ml up to 5000 ml
Max. fl ask content 3 kg
Temperature control
range
20 °C – 180 °C 20 °C – 95 °C
Display Scale 1–10 Rotation speed /
vapor temperature
Set /
actual temperature
Temperature accuracy ± 2 °C
Environmental conditions
Temperature
Altitude
Humidity
for indoor use only
10 – 40 °C
up to 2000 m
maximum relative humidity 80% for temperatures up to 31 °C, and then linearly
decreasing to 50% at 40 °C
Bath content 4 l 5 l
Vacuum tightness of
system
5 mbar per 3 minutes at a pressure of
< 10 mbar
Temperature resistance
P+G
ca. -70 °C – 60 °C
Temperature resistance
P+G low temperature
-80 °C – 50 °C
Temperature resistance
protective shield
< 160 °C
3 Technical data
24 R-210/215 Operation Manual, Version B
3.4 Solvent table
Table 3-6: Solvent table
Solvent Formula Molar mass
in g / mol
Evaporation energy
in J / g
Boiling point
at 1013 mbar
Density in
g / cm3
Vacuum in mbar for
boiling point at 40 °C
Acetone CH3H6O 58.1 553 56 0.790 556
n-amylalcohol, n-pentanol C
5H12
O 88.1 595 37 0.814 11
Benzene C
6H6
78.1 548 80 0.877 236
n-butanol, tert. butanol C
4H10
O 74.1 620 118 0.810 25
(2-methyl-2-propanol) C
4H10
O 74.1 590 82 0.789 130
Chlorobenzene C
6H5
Cl 112.6 377 132 1.106 36
Chloroform CHCl
3
119.4 264 62 1.483 474
Cyclohexane C
6H12
84.0 389 81 0.779 235
Diethylether C
4H10
O 74.0 389 35 0.714 atmospheric
1,2-dichloroethane C
2H4Cl2
99.0 335 84 1.235 210
1,2-dichloroethylene (cis) C
2H2Cl2
97.0 322 60 1.284 479
1,2-dichloroethylene (trans) C
2H2Cl2
97.0 314 48 1.257 751
Diisopropyl ether C
6H14
O 102.0 318 68 0.724 375
Dioxane C
4H8O2
88.1 406 101 1.034 107
DMF (dimethyl-formamide) C
3H7
NO 73.1 153 0.949 11
Acetic acid C
2H4O2
60.0 695 118 1.049 44
Ethanol C
2H6
O 46.0 879 79 0.789 175
Ethylacetate C
4H8O2
88.1 394 77 0.900 240
Heptane C
7H16
100.2 373 98 0.684 120
Hexane C
6H14
86.2 368 69 0.660 335
Isopropylalcohol C
3H8
O 60.1 699 82 0.786 137
Isoamylalcohol 3-methyl-1-butanol C
5H12
O 88.1 595 129 0.809 14
Methylethylketone C
4H8
O 72.1 473 80 0.805 243
Methanol CH
4
O 32.0 1227 65 0.791 337
Methylene chloride, dichloromethane CH
2CI2
84.9 373 40 1.327 atmospheric
Pentane C
5H12
72.1 381 36 06.26 atmospheric
n-propylalcohol C
3H8
O 60.1 787 97 0.804 67
Pentachloroethane C
2
HCl
5
202.3 201 162 1.680 13
1,1,2,2-tetra-chloroethane C
2H2Cl4
167.9 247 146 1.595 35
Tetrachlorocarbon CCl
4
153.8 226 77 1.594 271
1,1,1-trichloroethane C
2H3Cl3
133.4 251 74 1.339 300
Tetra-chloro-ethylene C
2Cl4
165.8 234 121 1.623 53
THF (tetrahydrofurane) C
4H8
O 72.1 67 0.889 357
Toluene C
7H8
92.2 427 111 0.867 77
Trichloroethylene C
2
HCl
3
131.3 264 87 1.464 183
Water H
2
O 18.0 2261 100 1.000 72
Xylene (mixture) C
8H10
106.2 389 25
o-xylene C
8H10
106.2 144 0.880
m-xylene C
8H10
106.2 139 0.864
p-xylene C
8H10
106.2 138 0.861
Loading...
