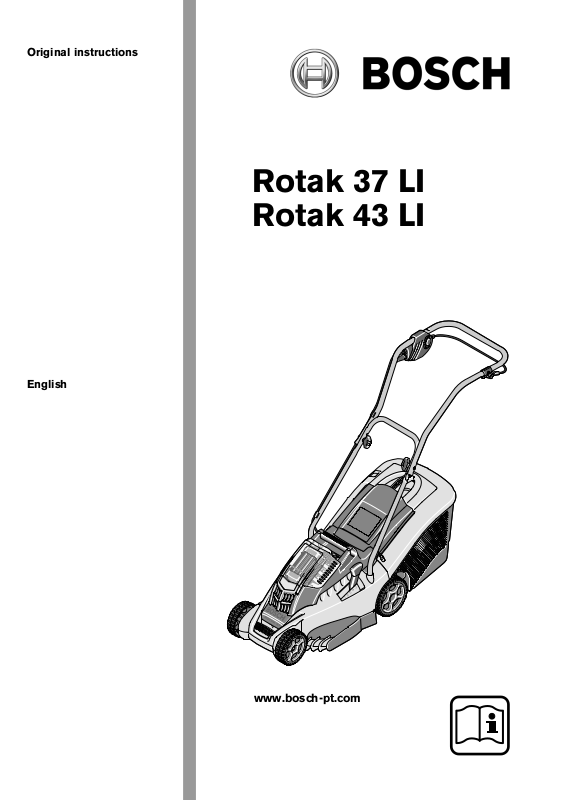

BOSCH Rotak 37 LI, Rotak 43 LI User Manual

Original instructions

English

Rotak 37 LI
Rotak 43 LI

www.bosch-pt.com

STOP

3

2

1

L

96

WA

dB

IPX4

TYP 3 600 XXX XXX

230V ~ 50/60Hz
XXXX rpm
200X

21

ME 77

579
XXXX W
XX.XX kg
XXX XXXXXX

Robert Bosch GmbH
D-70745 Leinfelden
Made In UK

5

6

7

8

9

F016 L70 445 • 08.06

4

10

11

12

16
17

18

19

20

13

14 15 8

A

➌

B

➊

6

II

22

I

6

➊

➋

➌

8

F016 L70 445 • 08.06

23

7

➋

➍

24

➎

C

CLICK!

D

➋

➊

CLICK!

CLICK!

➊

CLICK!

E

5

Rotak 37 LI

4

F

Rotak 43 LI

12

25

F016 L70 445 • 08.06

G

I

H

1

➊

2

➋

11

26

F016 L70 445 • 08.06

28 29

30

27

Safety Notes

Warning! Read these instructions carefully, be
familiar with the controls and the proper use of
the lawnmower. Please keep the instructions
safe for later use.

Explanation of symbols on the lawnmower

General hazard safety alert.

Read instruction manual.

Beware of thrown or flying objects to by­standers.

Keep bystanders a safe distance away from
the machine.

Sharp blade(s). Beware of severing toes or
fingers.

Switch off and remove isolator key before
adjusting, cleaning and before leaving the
lawnmower unattended for any period.

Not applicable.

Wait until all machine components have
completely stopped before touching them.

STOP

The blades continue to rotate after the ma­chine is switched off, a rotating blade can
cause injury.

Do not mow in the rain or leave the lawn­mower outdoors whilst it is raining.

Beware electric shock hazard.

Keep supply flexible cord away from cutting
means.

Only use the battery charger indoors.

Battery charger contains a safety trans­former.

■ Never allow children or people unfamiliar with
these instructions to use the lawnmower. Local
regulations may restrict the age of the operator.

■ This appliance is not intended for used by per­sons( including children) with reduced physical,
sensory or mental capabilities, or lack of experi­ence and knowledge, unless they have been
given supervision or instruction concerning use of
the appliance by a person responsible for their
safety.

F016 L70 445 • 08.06

English - 1

Children should be supervised to ensure that they
do not play with the appliance.

■ Never mow while people, especially children or
pets, are nearby.

■ The operator or user is responsible for accidents
or hazards occurring to other people or their prop­erty.

■ Do not operate the lawnmower when barefoot or
wearing open sandals, always wear substantial
footwear and long trousers.

■ Thoroughly inspect the area where the lawn­mower is to be used and remove all stones,
sticks, wires, bones and other foreign objects.

■ Before using, always visually inspect to see that
the blades, blade bolts and cutter assembly are
not worn or damaged. Replace worn or damaged
blades and bolts in sets to preserve balance.

■ Mow only in daylight or in good artificial light.

■ Avoid operating the lawnmower in wet grass,

where feasible.

■ Walk, never run.

■ Never operate the appliance with defective

guards or shields, or without safety devices, for
example deflectors and/or grass catchers in
place.

■ Mowing on banks can be dangerous:

– Do not mow excessively steep slopes.
– Always be sure of your footing on slopes or wet

grass.

– Mow across the face of slopes – never up and

down.

– Exercise extreme caution when changing direc-

tion on slopes.

■ Use extreme caution when stepping back or pull­ing the lawnmower towards you.

■ Never mow by pulling the mower towards you.

■ Stop the blades if the lawnmower has to be tilted

for transportation when crossing surfaces other
than grass and when transporting the lawnmower
to and from the area to be mowed.

■ Do not tilt the machine when starting or switching
on the motor, except if the machine has to be
tilted for starting in long grass. In this case, do not
tilt it more than absolutely necessary and tilt only
the part which is away from the operator. Always
ensure that both hands are in the operating posi­tion before returning the machine to the ground.

■ Switch on the lawnmower according to instruc­tions and with feet well away from the blades.

■ Do not put hands or feet near or under rotating
parts. Keep clear of discharge opening at all
times.

■ Never pick up or carry the lawnmower while the
motor is running.

Remove the isolator key:

– whenever you leave the machine
– before clearing a blockage
– before checking, cleaning or working on the lawn-

mower

– after striking a foreign object. Inspect the lawn-

mower for damage and make repairs as neces­sary

– if the lawnmower starts to vibrate abnormally

(check immediately).

■ Keep all nuts, bolts and screws tight to be sure
that the lawnmower is in safe working condition.

■ Check the grass catcher frequently for wear or
deterioration.

■ Replace worn or damaged parts for safety.

■ Ensure replacement cutting means of the right

type are used. Ensure replacement parts fitted
are Bosch approved.

■ Ensure the switch is in the off position before
inserting battery pack. Inserting the battery

pack into machines that have the switch on in­vites accidents.

■ Protect the battery charger from rain and
moisture. The penetration of water in a battery

charger increases the risk of electric shock.

■ Recharge only with the charger specified by
the manufacturer. A charger that is suitable for

one type of battery pack may create a risk of fire
when used with another battery pack.

■ Do not charge other batteries. The battery
charger is suitable only for charging Bosch lithium
ion batteries within the listed voltage range. Oth­erwise there is danger, fire and explosion.

■ Keep the battery charger clean. Contamination
may cause the danger of electric shock.

■ Check the battery charger, cable and plug
each time before using. Do not use the battery
charger when defects are detected. Do not
open the battery charger yourself and have it
repaired only by qualified personnel using
original spare parts. Damaged battery chargers,

cables and plugs increase the risk of electric
shock.

■ Do not operate the battery charger on easily
inflammable surfaces (e. g. paper, textiles,
etc.) or in combustible environments. There is

danger of fire due to the heating of the battery
charger during charging.

■ Use Product only with specifically designated
battery packs. Use of any other battery packs

may create a risk of injury and fire.

■ When battery pack is not in use, keep it away
from other metal objects like paper clips,
coins, keys, nails, screws, or other small
metal objects that can make a connection
from one terminal to another. Shorting the bat-

tery terminals together may cause burns or a fire.

■ Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con­tact accidentally occurs, flush with water. If
liquid contacts eyes, additionally seek medi­cal help. Liquid ejected from the battery may

cause irritation or burns.

■ Do not open the battery yourself. There is dan-
ger of a short circuit.

■ Protect the battery against heat, e.g., includ­ing against continuous sun irradiation and
fire. There is a danger of explosion.

■ Do not short-circuit the battery. There is a dan-
ger of explosion.

■ In case of damage and improper use of the
battery, vapours may be emitted. In case of

complaints, provide for fresh air and consult a
physician. The vapours can irritate the respiratory
system.

■ Protect the battery against moisture and water.

■ Store the battery only within a temperature range

from 0 °C to 45 °C. As an example, do not leave
the battery in your car in the summer.

■ Clean the venting slots of the battery occassion­ally using a soft, clean and dry brush.

F016 L70 445 • 08.06

English - 2

Product Specification

Lawnmower

Part number (typ) (typ)
Blade width [cm] 37 43
Height of cut [mm] 35–70 35–70
Grassbox capacity [l] 40 50
Weight (max.) [kg] 13.9 14.7
Serial Number See serial No 21 (rating plate) on machine.

Battery type

Part number (typ)
Battery. Nominal Voltage [V] 36 36
Charging time (empty battery) [min] 60 60

Charger

Part number (typ)
Nominal Voltage [V] 36 36
Charging current [A] 4.0 4.0
Allowable charging temperature range [°C] 0–45 0–45
Weight according to EPTA-Procedure

01/2003 [kg] 1.0 1.0
Protection class

Intended Use

This product is intended for domestic lawn mowing.

Rotak 37 LI Rotak 43 LI

3 600 H81 ... 3 600 H81 ...

Li-Ion Li-Ion

2 607 336 107 2 607 336 107

AL 3640 CV Professional AL 3640 CV Professional

2 607 225 ... 2 607 225 ...

/ II / II

– Isolator key
– Battery (s)*

When parts are missing or damaged, please contact your
dealer.

*Product specific

Introduction

This manual gives instructions on the correct as­sembly and safe use of your machine. It is important
that you read these instructions carefully.

When fully assembled the machine weighs approxi­mately between 13.9 and 14.7 kg. If necessary, ob­tain assistance to remove from packaging.

Take care when carrying the mower to the lawn, as
the blades are sharp.

Delivered Items

Carefully remove the machine from its packaging
and check that you have all the following items:

– Lawnmower with handle assembly
– 1 Handle bottom
– 2 Bolts
– 2 Wing nuts
– 2 Screws
– 2 Grassbox parts (Rotak 37 LI)
– 3 Grassbox parts (Rotak 43 LI)
– 2 Cable clips
– Operating instructions
– Charger

Operating Controls

1 Switch lever
2 Safety button
3 Handle top
4 Grassbox
5 Deflector guard
6 Handle bottom
7 Battery cover
8 Rechargeable battery

9 Ventilation slots
10 Wheels
11 Grass comb
12 Height of cut lever
13 Button for battery charged state indication
14 Battery charged state indicator
15 Indicator for the temperature monitoring
16 Charging compartment
17 Battery charger
18 Red charge control LED
19 Green charge control LED
20 Mains plug**
21 Serial Number

F016 L70 445 • 08.06

English - 3

22 Wing nut
23 Battery cover latch
24 Isolator Key

**Country specific

Not all of the accessories illustrated or described are
included as standard delivery.

For Your Safety

Warning! Switch off, remove the isolator key
and the battery before adjusting, cleaning or if
cable is cut, damaged or entangled.

The blades continue to rotate for a few sec­onds after the machine is switched off.

Caution – do not touch rotating blades.

Charging the Battery
Observe correct mains voltage: The voltage of the

power source must agree with the voltage specified
on the nameplate of the unit. Equipment marked with
230 V can also be connected to 220 V or 240 V.

Use only the charging unit supplied. Only this
charging unit is matched to the lithium-ion battery
used in the product.

The battery is equipped with temperature monitoring
that allows charging only in the temperature range
between 0 °C and 45 °C. In this manner, a high bat­tery service life is achieved.

The battery is delivered with a partial charge. Before
using the product for the first time, fully charge the
battery. Independent of the charged state, the lith­ium ion battery can be charged at anytime without
shortening its service life (no memory effect). Inter­rupting the charging procedure will not cause dam­age to the battery.

The lithium-ion battery is protected against deep dis­charging when used in the power tool. When the bat­tery is discharged the power tool is switched off by a
protective circuit and the tool no longer operates.

Do not continue to press the on/off switch after
an automatic switch off of the power tool. The

battery can be damaged.

Charging Procedure

The charging procedure starts as soon as the mains
plug is plugged into the socket and the battery 8 is
inserted into the charging compartment 16.

Due to the intelligent charging method, the charging
condition of the battery is automatically detected and
the battery is charged with the optimum charging cur­rent, depending on battery temperature and voltage.

This gives longer life to the battery and always
leaves it fully charged when kept in the charger for
storage.

Meaning of the Indication Elements

Control of the charging procedure is indicated via the
charge control LEDs 18 and 19:

Rapid-charging Procedure

The rapid-charging procedure is indi­cated by flashing of the green
charge control LED 19.

During the charging procedure, the 3 green battery
LEDs light up one after the other and briefly go out.
The battery is fully charged when the 3 green LEDs
light up continuously. Approx. 5 minutes after the
battery has been fully charged, the 3 green LEDs go
out again.

The rapid-charging procedure is possible only

☞

when the temperature of the battery is be­tween 0 °C and 45 °C.

Battery Charged

Continuous lighting of the green

charge control LED 19 signals that
the battery is fully charged.

Additionally, a signal tone sounds for approx. 2 sec­onds, which acoustically indicates that the battery is
fully charged.

Afterwards the battery can be removed for immedi­ate use.

With no battery inserted, continuous lighting of the
green charge control LED 19 indicates that the
mains plug is plugged into the socket and that the
battery charger is ready for operation.

Battery Temperature below 0 °C and above 45 °C

Continuous lighting of the red

LED 18 indicates that the battery
temperature is not within the rapid-

45 °C. As soon as the allowable temperature range
is reached, the battery charger automatically
switches to rapid charging.

When the battery is not within the allowable temper­ature range, the red battery LED lights up when in­serting the battery into the battery charger.

No Charging Procedure Possible due to Defec­tive Battery

The charging procedure can not be started and the
battery cannot be charged. (see for advice Fault
Finding)

charging temperature range of 0 °C –

If a different malfunction of the charg­ing procedure is present, this will be
indicated through flashing of the red
charge control LED 18.

F016 L70 445 • 08.06

English - 4

Charging Advice

■ With continuous or several repetitive charging cy­cles without interruption, the charger can warm
up. This is not meaningful and does not indicate a
technical defect of the unit.

■ A significantly reduced working period after
charging indicates that the battery must be re­placed.

Battery Cooling (Active Air Cooling)

The fan control integrated in the battery charger con­trols the temperature of the inserted battery. When
the battery temperature is above 30 °C, a fan cools
down the battery to the optimal charging tempera­ture. The switched-on fan produces a fan noise.

The battery temperature is within the optimal charg­ing temperature range when the fan is not running,
or the fan may possibly be defective. In this case, the
charging time of the battery extends.

Assembly

Do not connect the battery and/or the iso­lator key before product is completely as­sembled.

Handle assembly

A

➊ Insert the handle bottom 6 into the holes provided

and

➋ secure with the screws.

Note: The handle top 3 is height adjustable. Fix han­dles in desired position I or II.

➌ Attach the handle top 3 with the bolts and wing

nuts 22 to the handle bottom 6.
Note: Ensure that the cable clips supplied are used

to fix the cable to the handle.

Fitting/Removing Battery

Fitting

B

➊ Lift the battery cover latch 23.
➋ Lift up battery cover 7.
➌ Fit battery 8, when correctly fitted a „click“ will be

heard.

➍ Fit the isolator key 24 as shown.
➎ If the mower is not going to be used immediately

fit isolator key 24 as shown in the storage position.
Close battery cover 7.

Removing Battery

Lift the battery cover latch 23 and lift up battery
cover 7.

Remove isolator key 24, refit in storage position.
Lift the battery cover latch 23.
Remove the battery 8.

Snap together the grassbox

Rotak 37 LI:

C

Snap the grassbox top on the grassbox bottom by
pushing all the “snap fits” together around the edges
starting at rear and working towards the front.

Rotak 43 LI:

D

➊ Snap the grassbox bottom halves together by

pushing all the “snap fits” together around the edges
starting at rear and working towards the front.

➋ Snap together both top and bottom half of the

grassbox.
Ensure the cables are not trapped when folding/un-

folding top handles. Do not drop the handles.

Grassbox

E

Fitting

Lift the deflector guard 5 and hold up, fit the grass­box 4.

Removing/Emptying

Lift the deflector guard 5 and hold up. Remove
grassbox 4.

For non grass collection the mower can be used
without the grassbox 4 in position, with the deflector
guard 5 in the down position.

Adjusting the Cutting Height

Stop, release switch lever and wait until
the motor stops before adjusting height.

The blades continue to rotate after the ma­chine is switched off, a rotating blade can cause
injury.

Caution – do not touch rotating blades.

For the first cutting of the season, a high cutting ad­justment should be selected.

The lawnmower can be set to 7 cutting heights

F

between 35 mm and 70 mm. For this purpose, press
the height of cut lever 12 inwards then lift or push
down the mower until required height is selected.

The lawnmower may be used to cut down to 20 mm
by removing the blanking plate 25 as shown.

Using the height of cut between

20 – 30 mm will further shorten the battery

duration.

F016 L70 445 • 08.06

English - 5

Starting and Stopping

G

The blade continues to rotate for a few
seconds after the machine is switched off.

Allow the motor/blade to stop rotating be­fore switching “on” again.
Do not rapidly switch off and on.

To aid starting tilt mower to side.

☞

Fit the isolator key 24.
Starting:

➊ Press and hold the safety button 2.
➋ Squeeze the switch lever 1 towards the

handle.
Release the safety button 2.

Note: There is a short delay in the motor starting
after engaging the switch lever.

Stopping:

Release the switch lever 1.
If the mower is not going to be used immediately fit

isolator key 24 as shown in the storage position.
The mower is fitted with a blade brake. This safety

feature stops the blade from rotating in a few sec­onds.

Mowing

When mowing do not allow the motor to la-

bour particularly in heavy conditions. When

the motor labours the speed of the motor
drops and you will hear a change in the motor sound,
when this occurs stop mowing, release the switch le­ver and raise the height of cut. Failure to do so will
reduce area of cut and could damage the product or
battery.

Protect the battery from heat, for example, also the
continuous exposure to sun radiation and fire.

Product will not function if temperature
is below 0 °C or above 45 °C!

The grass combs 11 allow a very close cut to the

H

wall or edge. Beware of running combs into objects
while cutting close to walls/edges.

Do not leave the battery in the mower in direct sun­light.

Charge-control Indicator (see main figure)

The battery 8 is equipped with a charge-control indi­cator 14 which indicates its charge condition. The
charge-control indicator consists of 3 green LEDs.

Press the button 13 to actuate the charge-control in­dicator 14. The charge condition can also be
checked when the battery is removed. After approx.
5 seconds, the charge-control indicator goes out au­tomatically.

LED Battery Capacity

Continuous lighting of
3 green LEDs ≥ 2/

Continuous lighting of
2 green LEDs ≥ 1/

Continuous lighting of
1 green LED ≤ 1/

Flashing of 1 green LED Reserve

When no LED lights up after actuating the button 13,
the battery is defective and must be replaced.

For safety reasons, the charge condition of the bat­tery can only be checked when the product is at a
standstill.

During the charging procedure, the 3 green battery
LEDs light up one after the other and briefly go out.
The battery is fully charged when the 3 green LEDs
light up continuously. Approx. 5 minutes after the
battery has been fully charged, the 3 green LEDs go
out again.

Temperature Control Indicator (see main figure)

The red LED 15 signals that the battery or the elec­tronics of the product are not within the optimum
temperature range. The product will not operate at
full capacity.

Temperature Control of the Battery

The red LED 15 flashes when the battery is not
within the optimum temperature range (–10 to
+60 °C) and button 13 or the On/Off switch 1 is
pressed.

The battery switches off at a temperature above
70 °C until the optimum temperature range is
reached again.

Temperature Control of the product Electronics

The red LED 15 lights up continuously when the
temperature of the product electronics are above
75 °C and the On/Off switch 1 is pressed.

At a temperature above 90 °C, the electronics switch
off the product until the temperature is within the al­lowable operating temperature range again.

Area of Cut (Battery Duration)

The area of cut (battery duration) depends on lawn
conditions, grass density, mositure content, grass
length and height of cut.

Switching the product on and off frequently during
cutting will also reduce the area of cut (battery dura­tion).

3

3

3

F016 L70 445 • 08.06

English - 6

To improve the area of cut (battery duration) it is rec­ommended to cut more frequently, raise the cutting
height and walk at a normal pace.

The Example below shows impact of conditions
against run time, for one battery.

Cutting Conditions:

Very light,

dry grass

6cm
4cm

up to 300 m

up to 350 m2up to 175 m2up to 125 m

To increase the run time an additional battery can be
purchased from an authorised customer service
agent for Bosch garden products.

Light, dry grass Medium,

15cm

8cm
4cm

Area of cut (Rotak 37 LI)

2

up to 150 m2up to 100 m

Area of cut (Rotak 43 LI)

dense grass

4cm

2

2

Maintenance

Switch off, remove isolator key, battery

and grassbox before adjusting or clean-

ing.

Note: To ensure long and reliable service, carry out
the following maintenance regularly.

Regularly check for obvious defects such as loose,
dislodged or damaged blade, loose fixings, and
worn or damaged components.

Check that covers and guards are undamaged and
correctly fitted. Carry out necessary maintenance or
repairs before using.

If the mower should happen to fail despite the care
taken in manufacture and testing, repair should be
carried out by an authorised customer service agent
for Bosch garden products.

For all correspondence and spare parts orders, al­ways include the 10-digit part number (TYP) from
the nameplate of the machine!

Blade Maintenance

Hold the blade 30 using gardening gloves (not pro­vided) use a spanner (not provided) to remove the
blade bolt 29, blade washer 28 and blade. Fit the
blade, blade washer and the blade bolt. Ensure that
the blade is the correct way up (so that this sym­bol can be seen located as in figure I) and tighten the
bolt firmly.

In the event of a blade becoming difficult to remove
or fit, insert a screwdriver into hole 26 to lock the
drive. Ensure the screwdriver is removed before at­tempting to turn the machine on.

Do not lubricate blade or blade bolt during
refitting.

Battery Maintenance

Switch off, remove isolator key, battery
and grassbox before adjusting or clean­ing.

Use the following procedures to enable optimum us­age of the battery:

– Protect the battery against moisture and water.
– Store the battery only within a temperature range

from 0 °C to 45 °C. As an example, do not leave
the battery in a vehicle or in the mower in direct
sunlight.

– Clean the venting slots of the battery occassion-

ally using a soft, clean and dry brush.

A considerably shortened operating time after
charging is an indication that the battery is ex­hausted and must be replaced.

After Mowing/Storage

Clean the exterior of the machine thoroughly using a
soft brush and cloth. Do not use water, solvents or
polishes. Remove all grass and debris, especially
from the ventilation slots 9.

Turn the machine on its side and clean the blade
area. If grass cuttings are compacted in the blade
area, remove with a wooden or plastic implement.

Store the machine in a dry place. Do not place other
objects on top of the machine.

To aid storage loosen the wing nuts 22 and fold the
handles.

Ensure cables are not trapped when folding/

☞

unfolding top handles, do not drop the han­dles.

Switch off, remove isolator key, battery

and grassbox before adjusting or cleaning.

Turn the machine on its right side and inspect the
blade; if blunt or damaged, replace.

Use the following procedure to remove and replace
the blade.

F016 L70 445 • 08.06

English - 7

Accessories

Blade

Rotak 37 LI....................................... F016 800 277

Rotak 43 LI....................................... F016 800 278

Fault Finding

The following table gives checks and actions that you can perform if your machine does not operate correctly.
If these do not identify/remedy the problem, contact your service agent.

Warning: Switch off and remove the isolator key before investigating fault.

Symptom Possible Cause Remedy

Machine fails to operate Underside of machine badly clogged

Battery not fully charged
Battery not fitted correctly
Fuse faulty/ blown in isolator key
Mower in long grass
Motor protector has activated
Battery too hot/cold
Isolator key has not been inserted cor­rectly/ fully
There is a short delay in the motor start­ing after engaging the switch lever

Machine starts and stops
immediately

Machine functions
intermittently

Machine leaves
ragged finish
or
motor labours

Area of cut (battery dura­tion) not large enough

Cutting blade not rotating
while machine switched on

Excessive vibration/ noise Blade nut/bolt loose

No Charging Procedure
Possible due to Defective
Battery

The charge control
LEDs 19 and 18 respec­tively, do not light up after
inserting the mains plug
into the socket

Battery not fully charged
Isolator not fully in
Battery not fitted correctly
Battery too hot/cold

Machines internal wiring damaged
Motor protector has activated

Height of cut too low

Cutting blade blunt

Underside of machine badly clogged

Blade fitted upside down

Height of cut too low
Grass too high
Grass wet or damp
Grass is dense

An additional battery can be purchased
from an authorised customer service
agent for Bosch garden products

Cutting blade obstructed
Blade nut/ bolt loose

Cutting blade damaged
The contacts of the battery are contami-

nated

The battery is defective, due to a discon­nection in the battery (individual cells)

The charger plug is not inserted (prop­erly)
Socket, cable or charger are defective

Clean machine (see “After Mowing/ Stor­age”)
Charging the Battery
Fit battery correctly
Contact Service Agent
Increase height of cut and tilt mower
Allow to cool and increase height of cut
Allow to cool/warm
Fit correctly

Hold switch lever for 1 - 3 seconds to
start motor

Charging the Battery
Fit correctly
Fit correctly
Allow to cool/warm and increase height
of cut

Contact Service Agent
Allow to cool and increase height of cut

Increase height of cut (see “Height of Cut
Adjustment”)
Replace blade
(see “Blade Maintenance”)
Clean machine (see “After Mowing/ Stor­age”)
Refit blade correctly (see “Blade Mainte­nance”)

Increase height of cut
Increase height of cut
Wait until grass is dry
Raise height of cut and walk slower, and
cut more frequently
Contact Service Agent

Clear obstruction
Tighten blade nut/ bolt

Tighten blade nut/ bolt
Replace blade

Corrective measure: Clean the contacts
(e. g. by inserting and removing the bat­tery several times) or replace the battery,
as required
Replace the battery

Insert the plug (fully) into the socket

Check the mains voltage and if neces­sary, have the battery charger checked
by an authorized customer service sta­tion for Bosch power tools

F016 L70 445 • 08.06

English - 8

Transport

The battery is tested in accordance with the
UN Handbook ST/SG/AC.10/11/Rev.3 Part III, Sub­section 38.3. It has effective protection against inter­nal overpressure and short circuiting as well as
measures for prevention against forced rupture and
dangerous reverse current.
The lithium equivalent contents contained in the bat­tery is below the spelling relevant values. Therefore,
the battery is not subject to the national and interna­tional regulations governing dangerous goods, nei­ther as individual components nor when inserted
into a machine. However, the Dangerous Goods
Regulations can be relevant when transporting sev­eral batteries. In this case, it can be necessary to ob­serve special conditions (e. g. for packaging). For
more details, please refer to the instruction sheet un­der the following Internet address: http://purchas­ing.bosch.com/en/start/Allgemeines/Download/in­dex.htm.

Disposal

Power tools, accessories and packaging should be
sorted for environmental-friendly recycling.

Only for EC countries:

Do not dispose of power tools into
household waste!
According to the European Directive
2002/96/EC on waste electrical and
electronic equipment and its incorpo-

are no longer suitable for use must be separately
collected and sent for recovery in an environmen­tally-friendly manner.

Battery packs/batteries:

teries must be collected, recycled or disposed of in
an environmentally-friendly way.

Only for EC countries:

Defective or dead batteries must be recycled ac­cording to the directive 91/157/EEC.

Batteries no longer suitable for use can be directly
returned at:

Great Britain

Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park

F016 L70 445 • 08.06

ration into national law, products that

Li-Ion

Please observe the instructions in
the Section “

Do not dispose of battery packs/
batteries into household waste,
water or fire. Battery packs/bat-

Transport

”.

English - 9

North Orbital Road
Denham-Uxbridge
Middlesex UB 9 5HJ

✆ Service................................ +44 (0) 18 95 / 83 87 82

✆ Advice line......................... +44 (0) 18 95 / 83 87 91

Fax ................................................ +44 (0)18 95 / 83 87 89

After-Sales Service and
Customer Assistance

Our after-sales service responds to your questions
concerning maintenance and repair of your product
as well as spare parts. Exploded views and informa­tion on spare parts can also be found under:

www.bosch-pt.com

Our customer consultants answer your questions
concerning best buy, application and adjustment of
products and accessories.

Great Britain

Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ

Tel. Service: [phone]
Fax: [phone]
E-Mail: [e-mail]

Ireland

Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24

Tel. Service: [phone]
Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty.Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center

Inside Australia:
Phone: [phone]
Fax: + 61 (01300) 307 045
Inside New Zealand:
Phone: [phone]
Fax: [phone]
Outside AU and NZ:
Phone: [phone]
www.bosch.com.au

Declaration of Conformity

Rotak 37 LI:

Measured values determined according to 2000/14/
EC (1.60 m height, 1 m distance away) and
EN ISO 5349.

Typically the A-weighted noise levels of the product
are: Sound pressure level 81 dB (A); Guaranteed
sound power level lower than 94 dB(A). Uncertainty
K = 3 dB.

The typical hand/arm vibration is below 2.5 m/s2.
We declare under our sole responsibility that the

product described under „Technical data“ is in con­formity with the following standards or standardiza­tion documents: EN 50338 (battery powered prod­uct) and EN 60335 (battery charger) according to
the provisions of the directives 2006/95/EC, 2004/
108/EC, 98/37/EC (until 28 Dec 2009), 2006/42/EC
(from 29 Dec 2009), 2000/14/EC.
2000/14/EC: Measured sound power level
92 dB(A).
Conformity assessment procedure according to An­nex VI.

Notified body: SRL Sudbury, England
Notified body identification number: 1088

Technical file at: Bosch Lawn and Garden Ltd.,
PT-LG/EAE, Stowmarket, Suffolk IP14 1EY, Eng­land

07

Leinfelden, 29.05.2008

Dr. Egbert Schneider Dr. Eckerhard Strötgen
Senior Vice President Head of Product
Engineering Certification

Robert Bosch GmbH, Power Tools Division

Rotak 43 LI:

Measured values determined according to 2000/14/
EC (1.60 m height, 1 m distance away) and
EN ISO 5349.

Typically the A-weighted noise levels of the product
are: Sound pressure level 84 dB (A); Guaranteed
sound power level lower than 96 dB(A). Uncertainty
K = 3 dB.

2

The typical hand/arm vibration is below 2.5 m/s

.

We declare under our sole responsibility that the
product described under „Technical data“ is in con­formity with the following standards or standardiza­tion documents: EN 50338 (battery powered prod­uct) and EN 60335 (battery charger) according to
the provisions of the directives 2006/95/EC, 2004/
108/EC, 98/37/EC (until 28 Dec 2009), 2006/42/EC
(from 29 Dec 2009), 2000/14/EC.
2000/14/EC: Measured sound power level
95 dB(A).
Conformity assessment procedure according to An­nex VI.

Notified body: SRL Sudbury, England
Notified body identification number: 1088

Technical file at: Bosch Lawn and Garden Ltd.,
PT-LG/EAE, Stowmarket, Suffolk IP14 1EY, Eng­land

07

Leinfelden, 29.05.2008

Dr. Egbert Schneider Dr. Eckerhard Strötgen
Senior Vice President Head of Product
Engineering Certification

Robert Bosch GmbH, Power Tools Division

Subject to change without notice

F016 L70 445 • 08.06

English - 10

Robert Bosch GmbH

Power Tools Division
70745 Leinfelden-Echterdingen

www.bosch-pt.com

F016 L70 445

(08.06) O / 16 XXX
