Bosch NET8068SUC, NET8668SUC, NET8668UC, NET8068UC, NETP068SUC Installation Instructions

Cooktop

Installation Manual

NET8068SUC, NET8068UC, NET8668SUC, NET8668UC, NETP068SUC, NETP668SUC, NEM5066UC, NEM5666UC

Table of Contents
9 Safety Definitions .....................................................	2
IMPORTANT SAFETY INSTRUCTIONS ........................	3
Appliance Handling Safety .................................................	3
Safety Codes and Standards .............................................	3
Electric Safety .......................................................................	3
Related Equipment Safety ..................................................	3
Proposition 65 Warning: .....................................................	3
Before you begin ...........................................................	4
Tools and parts needed ......................................................	4
Parts included .......................................................................	4
Cabinet Requirements .........................................................	4
Countertop Requirements ..................................................	4

Prepare Installation Space ...........................................	5
Cutout dimensions for 30" cooktops ...............................	5
Cutout dimensions for 36" cooktops ...............................	5
Installation Procedure ..................................................	6
Secure the cooktop to countertop ....................................	6
Electrical Installation ....................................................	7
Electrical requirements .......................................................	7
Connect Electrical Supply ..................................................	7
Check the Installation ..........................................................	7
Technical Service ..........................................................	8

9Safety Definitions

9WARNING

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

9CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.

NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

2

9 IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT - SAVE THESE INSTRUCTIONS FOR THE LOCAL ELECTRICAL INSPECTOR'S USE.

LEAVE THESE INSTRUCTIONS WITH THE APPLIANCE AFTER INSTALLATION IS COMPLETE.

WARNING

If the information in this manual is not followed exactly, fire or shock may result causing property damage or personal injury.

WARNING

Do not repair, replace or remove any part of the appliance unless specifically recommended in the manuals. Improper installation, service or maintenance can cause injury or property damage. Refer to this manual for guidance. All other servicing should be done by an authorized servicer.

Appliance Handling Safety

Hidden surfaces may have sharp edges. Use caution when reaching behind or under appliance.

Safety Codes and Standards

This appliance complies with the latest version of one or more of the following standards:

UL 858 - Household Electric Ranges

CAN/CSA-C22.2 No. 60335-1-11 - Safety of Household and Similar Electrical Appliances - General

CAN/CSA-E60335-2-6:13 - Safety of Household and Similar Electric Appliances - and particular requirements for stationary cooking ranges, hobs, ovens and similar appliances.

It is the responsibility of the owner and the installer to determine if additional requirements and/or standards apply to specific installations.

Electric Safety

WARNING

Before you turn on power supply, make sure all controls are in the OFF position.

If required by the National Electrical Code (or Canadian Electrical Code), this appliance must be installed on a separate branch circuit.

The circuit breaker must be in accordance with the National Electrical Code (or Canadian Electrical Code).

Be sure your appliance is properly installed and grounded by a qualified technician. Installation, electrical connections and grounding must comply with all applicable codes.

Before installing, turn power OFF at the service panel. Lock service panel to prevent power from being turned ON accidentally.

Installer – show the owner the location of the circuit breaker or fuse. Mark it for easy reference.

Related Equipment Safety

The appliance should only be used if installed by a qualified technician in accordance with these installation instructions. The manufacturer is not responsible for any damage resulting from incorrect installation.

Remove all tape and packaging before using the appliance. Destroy the packaging after unpacking the appliance. Never allow children to play with packaging material.

Never modify or alter the construction of the appliance.

To eliminate the risk of burns or fire by reaching over heated surface units, cabinet storage space located above the surface units should be avoided. If cabinet storage is to be provided, the risk can be reduced by installing a hood that projects horizontally a minimum of 5 inches (127 mm) beyond the bottom of the cabinet.

Verify that cabinets above the cooktop are a maximum of 13" (330 mm) deep.

Do not install refrigerators, dishwasher, non-fan-assisted ovens or washing machines which fit underneath the cooktop.

Note: We strongly recommend the installation of a ventilation system with this appliance.

Proposition 65 Warning:

This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

67$7( 2) &$/,)251,$ 352326,7,21 :$51,1*

:$51,1*

&DQFHU DQG 5HSURGXFWLYH +DUP ZZZ3 :DUQLQJV FD JRY

3

Before you begin

Tools and parts needed

Phillips Head Screwdriver

Pencil

Drill with ¼" (6 mm) bit

Jigsaw

Tape Measure

Note: Additional materials may be necessary for installation in solid surface countertops. Contact the countertop manufacturer.

Parts included

Cabinet Requirements

The distance from the top of the cooktop to the bottom of cabinets above must be a minimum of A=30" (762 mm). This distance can be reduced to A=24" (610 mm) when the bottom of the wood or metal cabinet is protected by not less than ¼" (6.35 mm) flame-retardant millboard covered with not less than no. 28 gauge sheet metal, 0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm) aluminum or 0.020" (0.5 mm) copper.

Verify that the cabinets above the cooktop are a maximum of B=13" (330 mm) deep.

%

$

Countertop Requirements

9WARNING

To reduce the risk of ignition of surrounding combustible materials, install at least 2" (51 mm) from both sidewalls and the rear wall.

The countertop must be level and horizontal. The stability of the countertop must be maintained after the cut-out has been made.

Solid surface countertops often require special installations. For example, heat-reflective tape and rounded corners may be necessary. Contact the countertop manufacturer for instructions specific to your countertop.

4

Prepare Installation Space

Create the cut-out in the countertop according to the installation diagram. The angle of the cut surface to the countertop must be 90°.

The lateral cut-out edges must be flat in order to ensure that the retaining springs are positioned properly on the appliance. With multi-layered countertops, secure strips laterally in the cut-out if necessary.

After creating cut-out, remove shavings. Seal cut surfaces in a heatand water-resistant manner.

Observe minimum distance between device underside and cabinet surfaces of 3/8" (10 mm).

Cutout dimensions for 30" cooktops

Models: NET8068SUC, NET8068UC, NETP068SUC,
NEM5066UC
	PLQ
PLQ	PLQ
¡
[
	PLQ
	PLQ
		PP

Cutout dimensions for 36" cooktops

Models: NET8668SUC, NET8668UC, NETP668SUC,
NEM5666UC
PLQ
PLQ	PLQ
¡
[
PLQ
	PLQ
		PP

5

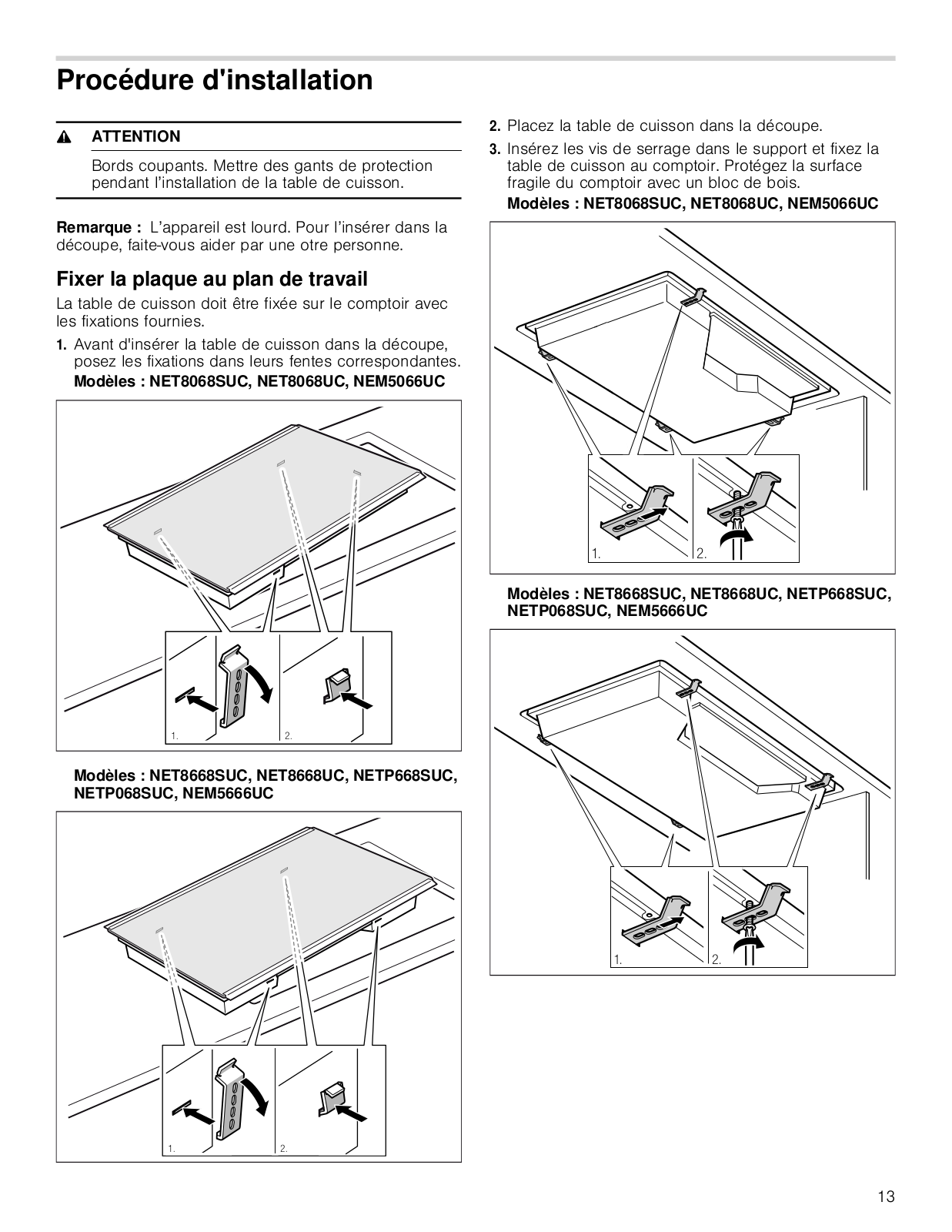

Installation Procedure

9CAUTION

Sharp edges. Use protective gloves when installing the cooktop.

Note: The appliance is heavy. It is advisable to install it with a second person.

Secure the cooktop to countertop

The cooktop should be secured to the countertop using the clamps provided.

1.Prior to inserting cooktop into cutout, attach clamps to the corresponding slots.

Models: NET8068SUC, NET8068UC, NEM5066UC

Models: NET8668SUC, NET8668UC, NETP668SUC,
NETP068SUC, NEM5666UC
6

2.Place cooktop into cutout.

3.Insert clamping screws into the bracket and secure cooktop to countertop. Use a wood block to protect fragile countertop materials.

Models: NET8068SUC, NET8068UC, NEM5066UC

Models: NET8668SUC, NET8668UC, NETP668SUC,
NETP068SUC, NEM5666UC

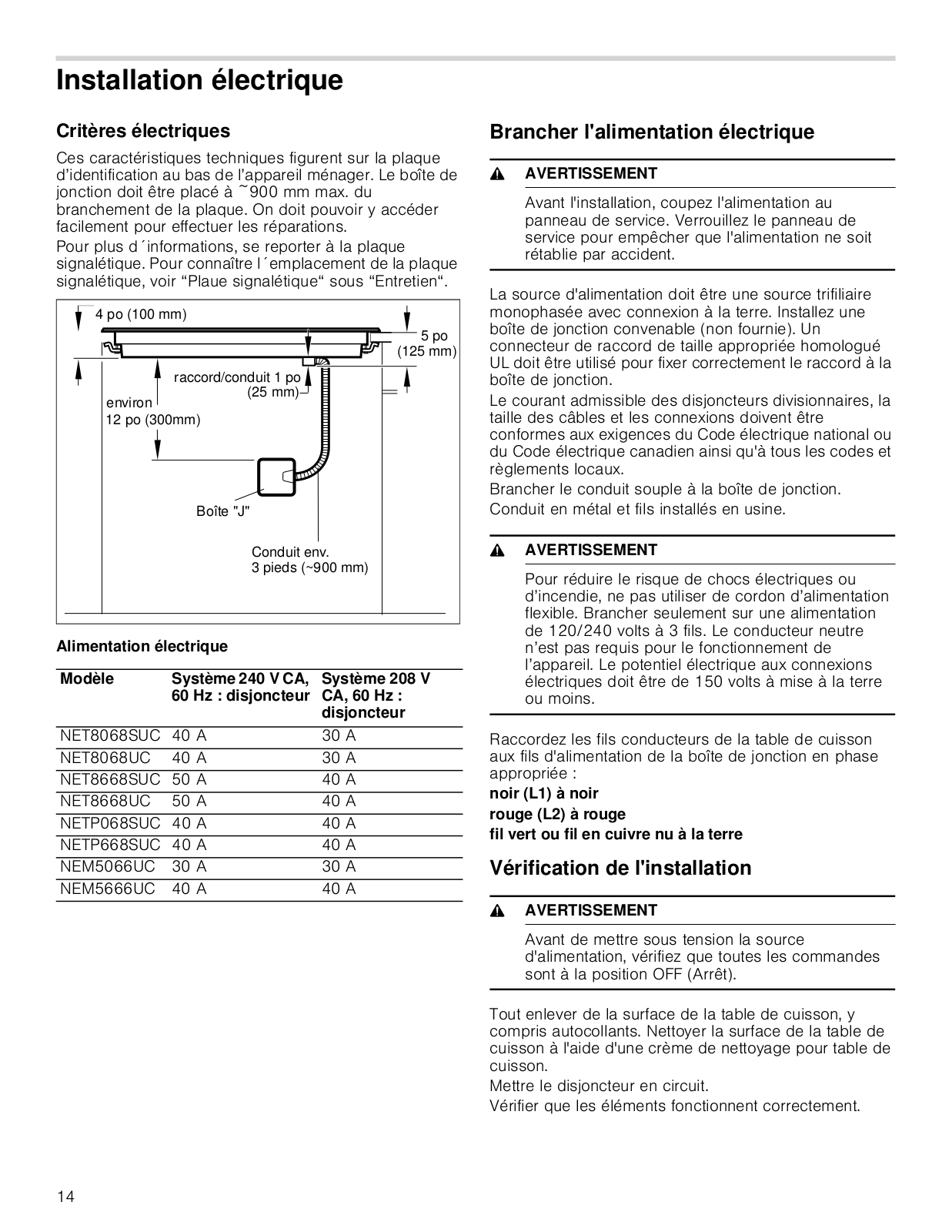

Electrical Installation

Electrical requirements

You can find the identification plate with the electrical specifications on the underside of the appliance. The junction box must be located within 3 feet of the cooktop connection. It should be easily accessible for service purposes.

Refer to data plate for more information. See “Data Plate” under “Service” for data plate location.

PP

PP

)LWWLQJ &RQGXLW

PP

DSSUR[

PP

- ER[

&RQGXLW DSSUR[

IHHW a PP

Power supply

Model	240 V AC, 60 Hz	208 V AC, 60 Hz
	system: circuit	system: circuit
	breaker	breaker
NET8068SUC	40 Amp	30 Amp
NET8068UC	40 Amp	30 Amp
NET8668SUC	50 Amp	40 Amp
NET8668UC	50 Amp	40 Amp
NETP068SUC	40 Amp	40 Amp
NETP668SUC	40 Amp	40 Amp
NEM5066UC	30 Amp	30 Amp
NEM5666UC	40 Amp	40 Amp

Connect Electrical Supply

9WARNING

Before installing, turn off at the service panel. Lock service panel to prevent power from being turned on accidentally.

The electrical power supply system should be a 1-phase, 3-wire system with ground connection. Install suitable junction box (not furnished). An appropriately-sized, ULlisted conduit connector must be used to correctly attach the conduit to the junction box.

The branch-circuit breakers ampacity, the wire sizes and the connections must conform to the requirements of the National Electrical Code or Canadian Electrical Code and all local codes and ordinances.

Attach flexible conduit to the junction box. Metal conduit and leads are factory installed.

9WARNING

To reduce the risk of electrical shock and fire, do not use a flexible power-supply cord with this appliance. Connect only to a 3 wire, 120/240-volt power supply; the neutral conductor is not required for the operation of the appliance. The potential at the power supply electrical connections shall be 150-volts-to-ground or less.

Connect the cooktop lead wires to the junction box supply wires in proper phase:

black (L1) to black red (L2) to red

green or blank copper wire to ground

Check the Installation

9WARNING

Before you turn on power supply, make sure all controls are in the OFF position.

Remove everything from the cooktop surface including stickers. Clean cooktop surface with cooktop cleaning cream.

Switch on the circuit breaker.

Verify that elements function properly.

7

Technical Service

Contact our Technical Service Department if your appliance needs repair. Our central Customer Service Center (see below) will also be happy to supply you with details on a center close to you.

When you contact our customer service, have the product (E) number and the manufacturing (FD) number for your appliance available.

You can find the identification plate with these numbers on the underside of the appliance.

ZZZ ERVFK KRPH FRP

0DLQ 6WUHHW 6XLWH ,UYLQH &$

8
