BMW C 600 Sport 2011 Owner's Manual
Rider's Manual (US Model)
C 600 Sport
BMW Motorrad
The Ultimate
Riding Machine
Motorcycle/Retailer Data
Motorcycle data
Model
Vehicle identification number
Color number
First registration
Registration number
Retailer Data
Contact in Service
Ms./Mr.
Phone number
Retailer's address/phone number (company stamp)
Welcome to BMW
We congratulate you on your
choice of a Maxi-Scooter from
BMW and welcome you to the
community of BMW riders.
Please read this Rider's Manual
carefully before starting to use
your new Maxi-Scooter. It contains important information on
operation that enables you to
make the best possible use of all
your Scooter's technical features.
In addition, it contains information on maintenance and care to
help you maintain your vehicle's
reliability and safety, as well as its
value.
If you have any questions concerning the Maxi-Scooter communication system, your authorized BMW Motorrad retailer is
always happy to provide you with
advice and assistance.
We hope that you enjoy your
BMW Maxi-Scooter and wish you
a safe and pleasant journey.
BMW Motorrad.
01 41 8 532 197
*01418532197*
Table of Contents
You can also consult the index at
the end of this Rider's Manual if
you want to find a particular topic
or item of information.
1 General instructions .... 5
Overview . . . . .. . . . .. . . . . . . . . . . 6
Abbreviations and
symbols . . . . .. . . . . . . . . . . . . . . . . 6
Equipment . . . . . . . . . . . . . . . . . . . 7
Technical data .. . . . . . . . . . . . . . 7
Notice concerning current sta-
tus . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2 Overviews . .. .. .. .. . . . . . . . 9
General view, left side . . . . . . . 11
General view, right side . . . . . 13
Multifunction switch, left . . . . 14
Multifunction switch,
right . . . . . . . . . . . . . . . . . . . . . . . . . 15
Cockpit . . . . . . . . . . . . . . . . . . . . . . 16
Underneath seat . . . . . . . . . . . . 17
3 Status indicators ....... 19
Multifunction display . . . . . . . . 20
Warning and indicator
lamps . . . . . . . . . . . . . . . . . . . . . . . 21
Service display . . . . . . . . . . . . . . 22
Distance covered since the
fuel reached the reserve
level . . . . . . . . . . . . . . . . . . . . . . . . . 23
Ambient temperature. . . . . . . . 23
Tire inflation pressures . . . . . . 23
Oil level indicator . . . . . . . . . . . . 24
Warning indicators . . . . . . . . . . 24
4 Operation . . . . . . . . . . . . . . . . 37
Steering and ignition
lock . . . . . . . . . . . . . . . . . . . . . . . . . 38
Time and date .. . . . . . . . . . . . . 39

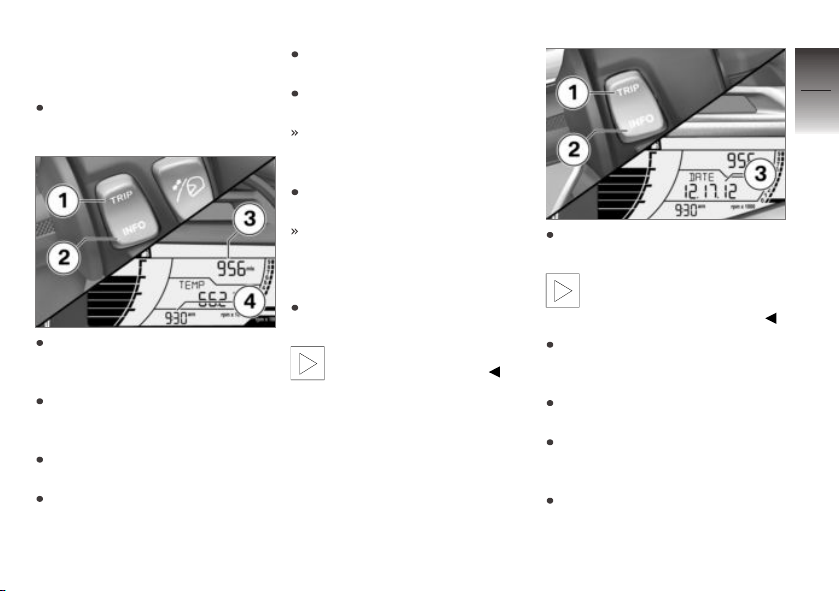

Display . . . . . . . . . . . . . . . . . . . . . . 40
Lights . . . . . . . . . . . . . . . . . . . . . . . 41
Turn indicators . . . . . . . . . . . . . . 42
Hazard warning flashers . . . . . 42
Emergency-off switch (kill
switch) . . . . . . . . . . . . . . . . . . . . . . 43
Heated handlebar grips . . . . . 43
Seat heating . . . . . . . . . . . . . . . . 44
Brakes . . . . . . . . . . . . . . . . . . . . . . 45
Mirrors . . . . . . . . . . . . . . . . . . . . . . 46
Windshield . . . . . . . . . . . . . . . . . . 46
Storage compartments . . . . . . 46
Spring preload . . . . . . . . . . . . . . 47
Tires . . . . . . . . . . . . . . . . . . . . . . . . 48
Headlight . . . . . . . . . . . . . . . . . . . . 49
Seat . . . . . . . . . . . . . . . . . . . . . . . . . 49
5 Riding .. .. .. .. .. . . . . . . . . . . 51
Safety instructions .. . . . . . . . . 52
Checklist . . . . . . . . . . . . . . . . . . . . 53
Starting. . . . . . . . . . . . . . . . . . . . . . 54
Riding . . . . . . . . . . . . . . . . . . . . . . . 55
Breaking in . . . . . . . . . . . . . . . . . . 55
Brakes . . . . . . . . . . . . . . . . . . . . . . 56
Scooter Parking . . . . . . . . . . . . . 57

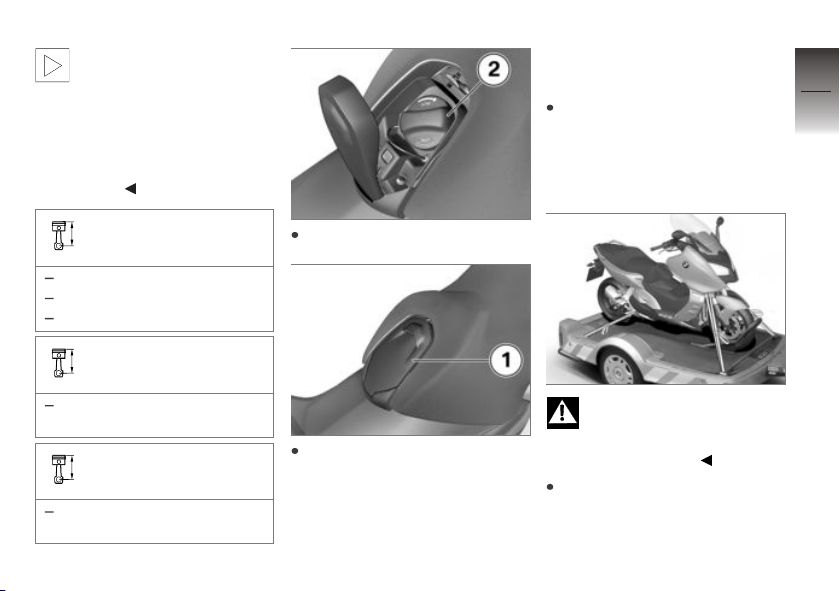

Refueling . . . . . . . . . . . . . . . . . . . . 58
Securing vehicle for trans-
port . . . . . . . . . . . . . . . . . . . . . . . . . 59
6 Technology in
detail .. . . . . . . . . . . . . . . . . . . . 61
Brake system with BMW
Motorrad ABS . . . . . . . . . . . . . . . 62
Tire Pressure Control TPC/
RDC . . . . . . . . . . . . . . . . . . . . . . . . . 64
7 Accessories . .. .. .. . . . . . . 67
General instructions . . . . . . . . . 68
Onboard sockets . . . . . . . . . . . . 68

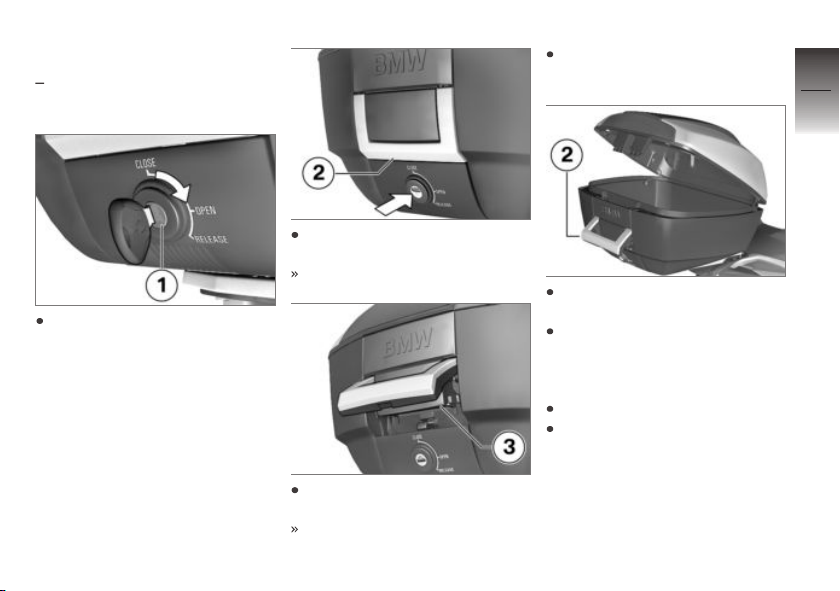

Topcase. . . . . . . . . . . . . . . . . . . . . 69
Scooter lock. . . . . . . . . . . . . . . . . 71
8 Maintenance . . . . . . . . . . . . 73
General instructions . . . . . . . . . 74
Standard tool kit. . . . . . . . . . . . . 74

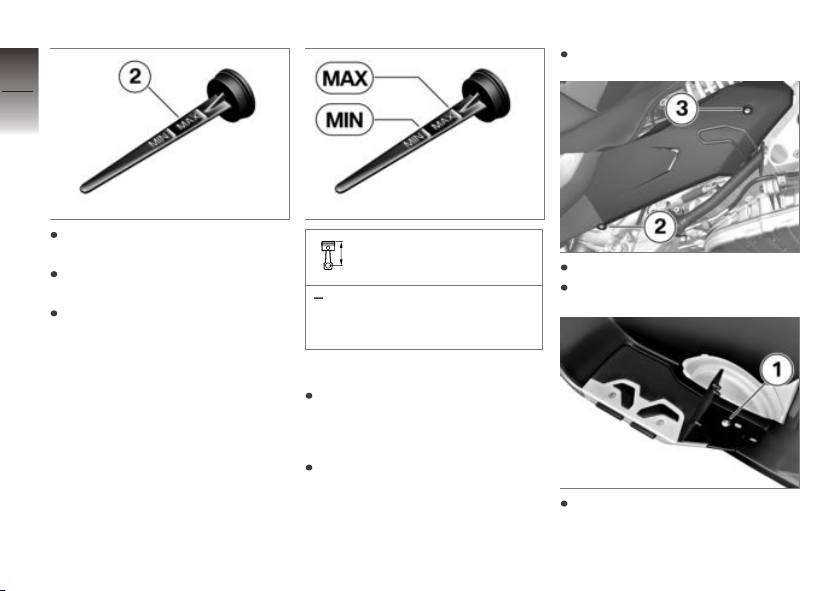

Engine oil . . . . . . . . . . . . . . . . . . . 74

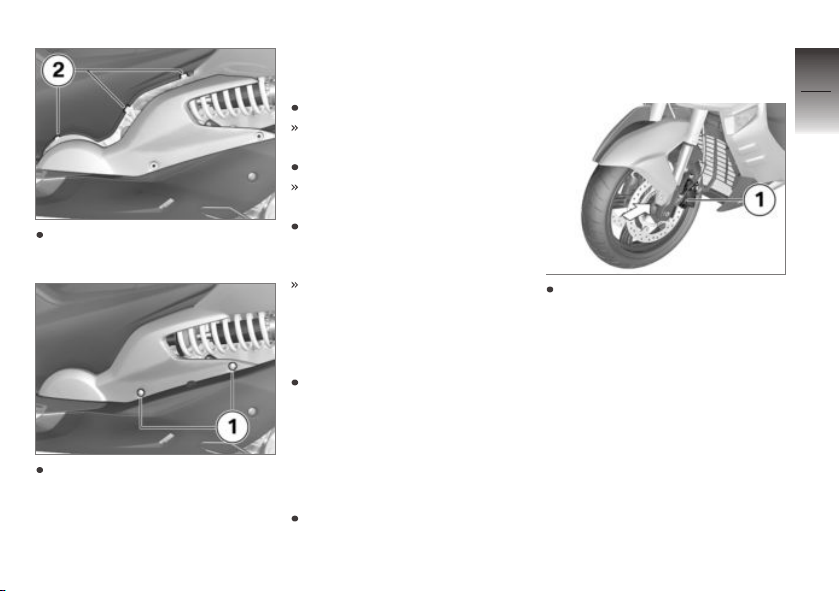

Brake system . . . . . . . . . . . . . . . 77
Coolant. . . . . . . . . . . . . . . . . . . . . . 81
Rims and tires . . . . . . . . . . . . . . . 83

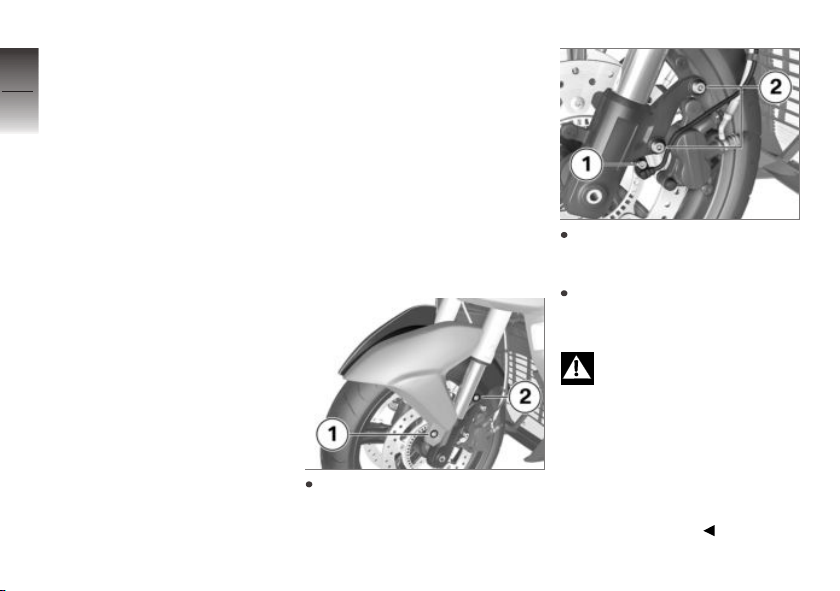

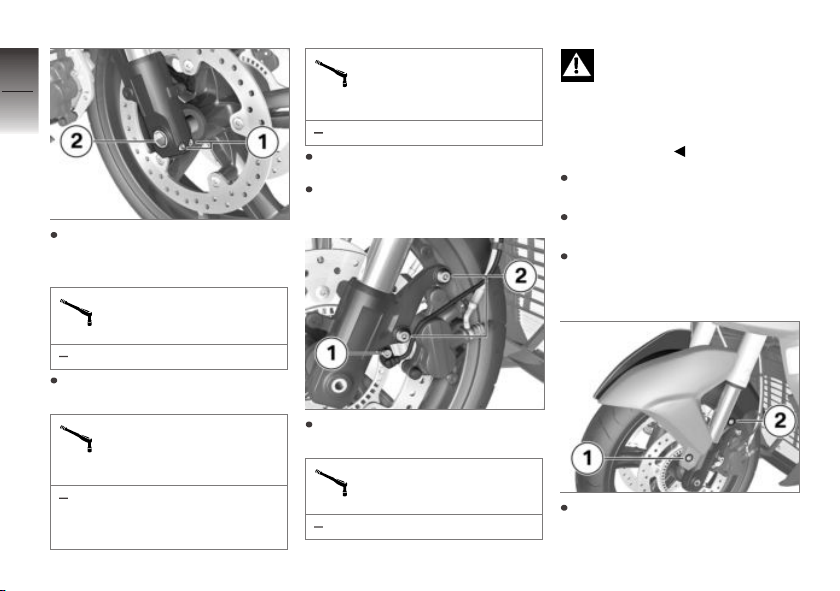

Wheels . . . . . . . . . . . . . . . . . . . . . . 83
BMW Motorrad front wheel
stand . . . . . . . . . . . . . . . . . . . . . . . . 89
Fuses . . . . . . . . . . . . . . . . . . . . . . . 90
Lamps. . . . . . . . . . . . . . . . . . . . . . . 91
Jump-starting . . . . . . . . . . . . . . . 97
Battery . . . . . . . . . . . . . . . . . . . . . . 98
Fairings and Panels . . . . . . . 100
9 Care .................... 103
Care products . . . . . . . . . . . . . 104
Washing your vehicle . . . . . . 104
Cleaning sensitive vehicle
parts . . . . . . . . . . . . . . . . . . . . . . 104
Paint care . . . . . . . . . . . . . . . . . 105
Protective wax coating . . . . 106
Scooter Storage . . . . . . . . . . . 106
Scooter Returning to
use . . . . . . . . . . . . . . . . . . . . . . . . 106
10 Technical data . . . . . . 107
Troubleshooting chart . . . . . 108
Threaded fasteners . . . . . . . 109
Engine . . . . . . . . . . . . . . . . . . . . 110
Fuel . . . . . . . . . . . . . . . . . . . . . . . 111
Engine oil . . . . . . . . . . . . . . . . . 111
Clutch . . . . . . . . . . . . . . . . . . . . . 112
Transmission . . . . . . . . . . . . . . 112
Rear-wheel drive . . . . . . . . . . 112
Running gear . . . . . . . . . . . . . . 113
Brakes . . . . . . . . . . . . . . . . . . . . 113
Wheels and tires . . . . . . . . . . 114
Electrical system . . . . . . . . . . 115
Frame . . . . . . . . . . . . . . . . . . . . . 117
Dimensions .. . . . . . . . . . . . . . 117
Weights . . . . . . . . . . . . . . . . . . . 118
Riding specifications . . . . . . 118
11 Service . . . . . . . . . . . . . . . 119
Reporting safety
defects . . . . . . . . . . . . . . . . . . . . 120
BMW Motorrad Service . . . 121
BMW Motorrad Mobility
Services . . . . . . . . . . . . . . . . . . . 121
Maintenance work . . . . . . . . . 121
Confirmation of mainte-
nance work . . . . . . . . . . . . . . . . 123
Confirmation of service . . . . 128
12 Index . .. .. .. .. .. .. .. .. 130
General instructions
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Abbreviations and symbols . . . . . . . . . . 6
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Technical data . . . . . . . . . . . . . . . . . . . . . . . 7
Notice concerning current status . . . . 7
1
5
z
General instructions
Overview
1
Chapter 2 of this Rider's Manual will provide you with an initial
6
overview of your Maxi-Scooter.
All maintenance and repair work
carried out on your vehicle will
be documented in Chapter 11.
Proof of the maintenance work
performed is a prerequisite for
generous treatment of claims.
When the time comes to sell
your Scooter, please remember
to hand over this Rider's Manual;
it is an important part of your vehicle.
Abbreviations and
z
General instructions
symbols
Indicates warnings that
must be complied with for
reasons of your safety and the
safety of others, and to protect
your motorcycle against damage.
Special information on op-
erating and inspecting your
motorcycle as well as maintenance and adjustment procedures.
Indicates the end of an
item of information.
Instruction.
Result of an activity.
Reference to a page with
more detailed information.
Indicates the end of accessory or equipmentdependent information.
Tightening torque.
Technical data.
OE Optional equipment
BMW Motorrad optional
extras are already completely installed during
motorcycle production.
OA Optional accessory
BMW optional accessories can be purchased
and installed at your authorized BMW Motorrad
retailer.
ABS Anti-Lock Brake System.
TPC/
Tire Pressure Control
RDC
(TPC).
Electronic immobilizer.
EWS
DWA
Anti-theft alarm.
Equipment
When you ordered your MaxiScooter, you chose various items
of custom equipment. This Rider's Manual describes optional
equipment (OE) offered by BMW
and selected optional accessories
(OA). This explains why the manual may also contain descriptions
of equipment which you have not
ordered. Please note, too, that
your vehicle might not be exactly
as illustrated in this manual on
account of country-specific differences.
If your Scooter is equipped with
options or accessories not described in this Rider's Manual,
then this equipment is described
in separate operating instructions.
Technical data
All dimensions, weights and outputs in the Rider's Manual refer
to the Deutsches Institut für Normung e. V. (DIN) and comply with
its tolerance regulations. Versions for individual countries may
differ.
Notice concerning current status
The high safety and quality
standards of BMW Scooters
are maintained by constant
development work on designs,
equipment and accessories.
Because of this, your vehicle
may differ from the information
supplied in the Rider's Manual. In
addition, BMW Motorrad cannot
guarantee the total absence
of errors. We hope you will
appreciate that no claims can be
entertained on the basis of the
data, illustrations or descriptions
in this manual.
1
7
z
General instructions
1
8
z
General instructions
Overviews
General view, left side . . . . . . . . . . . . . . . 11
General view, right side . . . . . . . . . . . . . 13
Multifunction switch, left . . . . . . . . . . . . 14
Multifunction switch, right . . . . . . . . . . . 15
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Underneath seat . . . . . . . . . . . . . . . . . . . 17
2
9
z
Overviews
2
10
z
Overviews
General view, left side
1 Brake-fluid reservoir for
rear brake ( 81)
2 Fuel fill location (under
cover) ( 58)
3 Adjusting spring preload
( 47)
4 Engine oil fill location and
oil dipstick (under step
plate) ( 74)
2
11
z
Overviews
2
12
z
Overviews
General view, right side
1 Brake-fluid reservoir for
front brake ( 80)
2 Battery (under fairing side
panel) ( 98)
Fuses (under fairing side
panel) ( 90)
3 Vehicle Identification Num-
ber (on right frame tube)
4 Coolant level indicator
(through cutout in fairing
side panel) ( 81)
5 Coolant expansion tank
(under step plate support)
( 82)
6 with seat heating
Operating passenger seat
heater ( 44)
OE
2
13
z
Overviews
Multifunction switch,
2
left
14

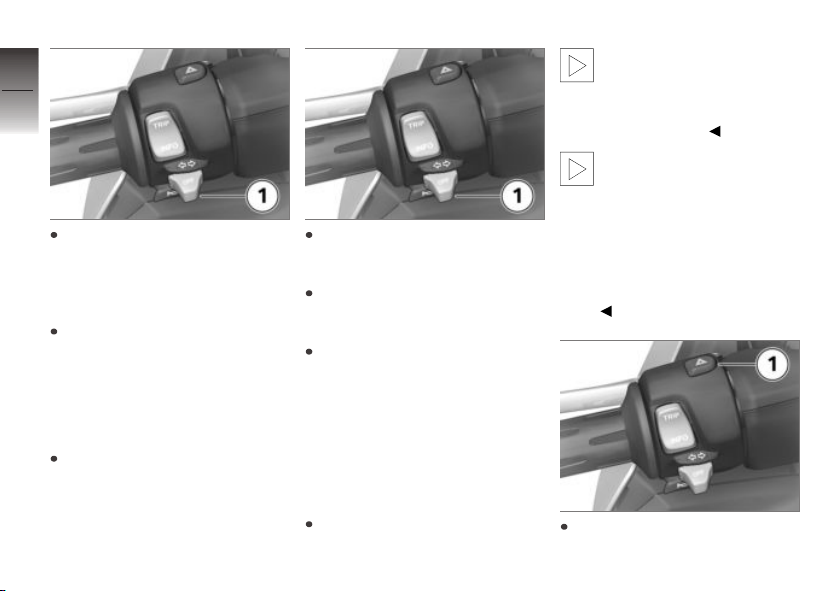

1 Operation of high-beam
headlight and headlight
flasher ( 41)
2 Using hazard warning
flashers ( 42)
3 Turn indicators ( 42)
4 Horn
5 INFO, operation of onboard
z
Overviews
computer ( 40)
6 TRIP, operation of odome-
ter ( 40)
Multifunction switch, right
1 with heated handlebar
2 with seat heating
3 Emergency-off switch (kill
4 Starter button ( 54)
OE
grips
Heated hand grip ( 43)
Operation of seat heating
( 44)
switch) ( 43)
OE
2
15
z
Overviews
Cockpit
2
1 Speedometer
2 Multifunction display
16
z
Overviews
( 20)
3 Windshield adjustment
( 46)
4 Storage compartment
( 46)
Type plate (in storage
compartment)
5 Tank cover release (inte-
grated in steering and ignition lock) ( 58)
6 Seat release (integrated in
steering and ignition lock)
( 49)
7 Storage compartment
( 46)
Outlet (in the storage compartment) ( 68)
Underneath seat
1 Rider's Manual (US Model)

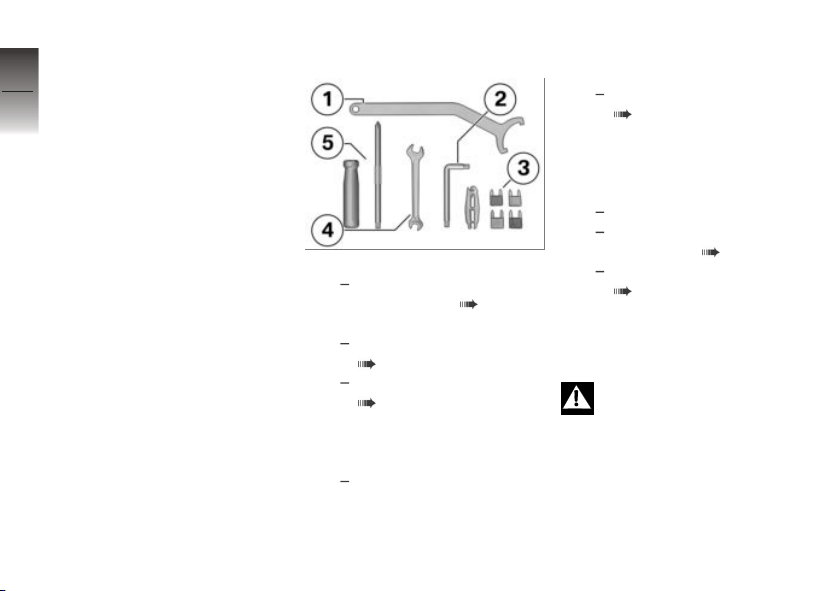

2 Onboard tool kit ( 74)
3 Payload table
4 Tire inflation pressure table
5 Release of rear storage
compartment (BMW Flexcase) ( 47)
2
17
z
Overviews
2
18
z
Overviews
Status indicators
Multifunction display . . . . . . . . . . . . . . . . 20
Warning and indicator lamps . . . . . . . . 21
Service display . . . . . . . . . . . . . . . . . . . . . . 22
Distance covered since the fuel
reached the reserve level . . . . . . . . . . . 23
Ambient temperature . . . . . . . . . . . . . . . 23
Tire inflation pressures . . . . . . . . . . . . . . 23
Oil level indicator. . . . . . . . . . . . . . . . . . . . 24
Warning indicators . . . . . . . . . . . . . . . . . . 24
3
19
z
Status indicators
Multifunction display
3
1 Fuel fill level indicator
2 with seat heating
20
z
Status indicators
Display of set seat heating
level ( 44)
3 Text field for warnings
( 24)
4 Warning symbols ( 24)
5 Odometer ( 40)
Service display ( 22)
Display of mileage driven
since reaching reserve
quantity ( 23)
6 Cargo area opened
( 47)
7 Tachometer
8 Onboard computer dis-
plays ( 40)
9 Clock ( 39)
10 with heated handlebar
OE
grips
Display of set heated handlebar grip level ( 43)
OE
Warning and indicator lamps
1 Indicator lamp for left turn
indicator
2 General warning light
( 24)
3 Anti-theft alarm indicator
light (see anti-theft alarm
operating instructions)
4 Indicator lamp for right turn
indicator
5 ABS warning lamp ( 30)
6 Fuel-reserve warning lamp
( 29)
7 Warning light for engine
electronics ( 29)
8 Headlight high beam indi-
cator lamp
3
21
z
Status indicators
Service display
3
22
If the time remaining until the
next service will elapse within
one month, the service date 1
appears briefly following the preride check. In this example the
z
Status indicators
display means "July, 2013."
display. The "Service" message
is displayed continuously.
If the service display
appears more than a month
before the service date, the
stored date must be adjusted
in the instrument cluster. This
situation can occur if the battery
was disconnected.
If the vehicle covers high annual
mileages then shorter service intervals may be required. When
the odometer reading for the recalculated early service falls to
within 621 miles (1000 km), the
remaining miles (kilometers) 2
are counted down in 62-mile
(100-km) increments and briefly
displayed following the pre-ride
check.
When a service date
elapses without service, the
universal warning lamp lights up
in yellow, appearing together with
the date and mileage (kilometer)
Distance covered since the fuel reached the reserve level
After reaching the fuel reserve
quantity, the kilometers covered
since this point in time are indicated 1 with the 2 symbol. This
odometer is reset and no longer
appears as soon as the tank is
refueled to a level higher than the
reserve level.
Ambient temperature
When ambient temper-
atures drop below 37°F
(3°C) the temperature display
responds by flashing a warning
indicating possible ice formation
on the road surface. The display
automatically switches from any
other mode to the temperature
reading when the temperature
drops below this threshold for
the first time.
Tire inflation pressures
with Tire Pressure Control
(TPC/RDC)
OE
The displayed tire inflation pressures refer to a tire temperature
of 68 °F (20 °C). The figure on
the left side 1 indicates the front
tire's inflation pressure, while the
figure on the right 2 shows the
inflation pressure in the rear tire.
Immediately after switching on
the ignition, "--:--" is displayed, as the transfer of the inflation pressure values does not
begin until a speed of 19 mph
(30 km/h) is exceeded for the first
time.
3
23
z
Status indicators
If the general warning
3
24
z
Status indicators
light 4 flashes red and if
the symbol 3 is also displayed,
then a warning indicator is
concerned. The upper arrow
next to the tire symbol indicates
a problem at the front wheel,
and the lower arrow indicates a
problem at the rear wheel.
Additional information on the
BMW Motorrad Tire Pressure
Monitor is provided starting on
page ( 64).
Oil level indicator
The oil level indicator 1 provides
information on the oil level in the
engine. It can only be displayed
when the vehicle is stopped.
The conditions for the oil level
indicator are as follows:
Engine at operating temperature.
Engine idling for at least ten
seconds.
Side-stand retracted.
Scooter is positioned vertically.
The possible displays at position 2 mean:
OK: Oil level correct.
CHECK: Check oil level during
next refueling stop.
---: No measurement possible
(above-mentioned conditions not
met).
If the oil level is too low,
the corresponding warning
symbol is displayed.
Warning indicators
Display
Warnings are displayed with the
corresponding warning lamps.
Warnings for which no separate
warning lamp is provided are signaled by the universal warning
lamp 1 and are accompanied by
a warning notice such as 2 or the
warning symbol 3 in the multifunction display. The universal
warning lamp lights up in either
red or yellow depending on the
urgency of the warning.
If several warnings are active, all
corresponding warning lamps and
warning symbol are displayed;
warnings appear alternately.
The following page contains a list
of potential warnings.
3
25
z
Status indicators
Overview of warning indicators
3
Warning light Displays Meaning
26
Lights up yellow
Lights up Fuel down to reserve ( 29)
EWS! is indicated
Electronic immobilizer is active ( 29)
appears on the display
Lights up yellow appears on the dis-
z
Status indicators
Flashes
Lights up
Lights up yellow
play
OIL CHECK is
indicated
+ LAMP! is displayed
Engine in emergency-operation mode
( 29)
Engine oil level too low ( 29)
ABS self-diagnosis not completed
( 30)
ABS error ( 30)
Tail light defective ( 30)
Warning light Displays Meaning
Lights up yellow
Lights up yellow
Lights up yellow appears on the dis-
Flashes red appears on the dis-
Flashes red appears on the dis-
+ LAMP! is displayed
+ LAMP! is displayed
play
appears on the display
play
The critical tire
inflation pressure
flashes
play
The critical tire
inflation pressure
flashes
Headlight bulb defective ( 30)
Taillight and headlight bulb defective
( 31)
Rear storage compartment opened
( 31)
Ice warning ( 31)
Front tire inflation pressure is outside
approved range ( 31)
Rear tire inflation pressure is outside approved range ( 32)
3
27
z
Status indicators
Warning light Displays Meaning
3
28
z
Status indicators
Flashes red appears on the dis-
Lights up yellow appears on the dis-
Lights up yellow
play
tire inflation pressures flash
"--" or "--:-- "
is indicated
play
"--" or "--:-- "
is indicated
RDC! is indicated
DWA! is indicated
Lights up yellow
DWA! is indicated
Tire inflation pressure of both tires is
outside approved range ( 33)
Transmission error ( 33)
Sensor defective or system error
( 34)
Battery of tire-inflation pressure sensor
weak ( 34)
Anti-theft alarm battery low charge
( 35)
Anti-theft alarm battery discharged
( 35)
Loading...
