BMW Activehybrid 5 2013 Owner's Manual

Download
Page 1
Contents
Owner's Manual for Vehicle
A-Z
The Ultimate Driving
Machine
THE BMW ACTIVE HYBRID 5.
THE BMW ACTIVE HYBRID 5.
OWNER'S MANUAL.
OWNER'S MANUAL.
Page 2
Page 3
ActiveHybrid 5
Owner's Manual for Vehicle
Thank you for choosing a BMW.
The more familiar you are with your vehicle, the better control you will have on the road. We therefore strongly suggest:
Read this Owner's Manual before starting off in your new BMW. Also use the Integrated Owner's Manual in your vehicle. It con‐ tains important information on vehicle operation that will help you make full use of the technical features available in your BMW. The manual also contains information designed to enhance operating reliability and road safety, and to contribute to maintaining the value of your BMW.
Any updates made after the editorial deadline for the printed or integrated Owner's Manual are located in the appendix of the printed quick reference for the vehicle.
Supplementary information can be found in the additional bro‐ chures in the onboard literature.
We wish you a safe and enjoyable drive.
BMW AG
Page 4
© 2012 Bayerische Motoren Werke Aktiengesellschaft Munich, Germany Reprinting, including excerpts, only with the written consent of BMW AG, Munich. US English II/13, 03 13 490 Printed on environmentally friendly paper, bleached without chlorine, suitable for recycling.
Page 5
Contents
The fastest way to find information on a partic‐ ular topic or item is by using the index, refer to page 214.
6 Notes
At a glance
14 Cockpit 18 iDrive 24 Voice activation system 27 Integrated Owner's Manual in the vehicle 29 BMW ActiveHybrid
Controls
34 Opening and closing 51 Adjusting 62 Transporting children safely 66 Driving 79 Displays 94 Lamps 99 Safety 117 Driving stability control systems 122 Driving comfort 138 Climate control 146 Interior equipment 152 Storage compartments
Mobility
172 Refueling 174 Fuel 175 Wheels and tires 182 Engine compartment 184 Engine oil 187 Coolant 188 Maintenance 190 Replacing components 198 Breakdown assistance 204 Care
Reference
210 Technical data 214 Everything from A to Z
Driving tips
158 Things to remember when driving 163 Loading 166 Saving fuel
Page 6
Notes
Notes
The hybrid system of your BMW
Your BMW is a hybrid vehicle. In addition to the combustion engine, your vehicle features a high-voltage system that consists of an electric motor and a high-voltage battery among other things.
This combination permits a particularly efficient fuel utilization.
Using this Owner's Manual
The fastest way to find information on a partic‐ ular topic is by using the index.
An initial overview of the vehicle is provided in the first chapter.
Updates made after the editorial deadline
Any updates made after the editorial deadline for the Owner's Manuals are located in the appen‐ dix of the printed quick reference for the vehicle.
User's manual for Navigation, Entertainment, Communication
The topics of Navigation, Entertainment, Com‐ munication and the short commands of the voice activation system are described in a sep‐ arate user's manual, which is also included with the onboard literature.
Additional sources of information
Should you have any questions, your service center will be glad to advise you at any time.
Information on BMW, e.g., on technology, is available on the Internet: bmwusa.com.
Symbols
Indicates precautions that must be followed precisely in order to avoid the possibility of per‐ sonal injury and serious damage to the vehicle.
◄ Marks the end of a specific item of informa‐ tion.
"..." Identifies Control Display texts used to se‐ lect individual functions.
›...‹ Verbal instructions to use with the voice ac‐ tivation system.
››...‹‹ Identifies the answers generated by the voice activation system.
Refers to measures that can be taken to help protect the environment.
Symbols on vehicle components
Indicates that you should consult the rele‐ vant section of this Owner's Manual for infor‐ mation on a particular part or assembly.
Indicate, on certain parts or assemblies, that in‐ correct use of high-voltage equipment or high­voltage components results in the risk of fatal injury from electric shock.
Vehicle equipment
This Owner's Manual describes all models and all standard, country-specific and optional equipment that is offered in the model series. Therefore, in this Owner's Manual, equipment is
6
Page 7
Notes
also described and illustrated that is not availa‐ ble in your vehicle, e.g. because of the selected optional equipment or the country-specific var‐ iants.
This also applies for safety-related functions and systems.
For options and equipment not described in this Owner's Manual, please refer to the Supple‐ mentary Owner's Manuals.
On right-hand drive vehicles, some controls are arranged differently than shown in the illustra‐ tions.
Status of the Owner's Manual
The manufacturer of your vehicle pursues a pol‐ icy of constant development that is conceived to ensure that our vehicles continue to embody the highest quality and safety standards. In rare cases, therefore, the features described in this Owner's Manual may differ from those in your vehicle.
Updates made after the editorial deadline
Any updates made after the editorial deadline for the Owner's Manuals are located in the appen‐ dix of the printed quick reference for the vehicle.
For your own safety
Maintenance and repairs
Advanced technology, e.g., the use of modern materials and high-performance electronics, re‐ quires suitable maintenance and repair meth‐ ods.
Therefore, have this work performed only by a BMW center or a workshop that works accord‐ ing to BMW repair procedures with appropri‐ ately trained personnel.
If this work is not carried out properly, there is the danger of subsequent damage and related safety hazards.
Parts and Accessories
For your own safety, use genuine parts and ac‐ cessories approved by BMW. When you pur‐ chase accessories tested and approved by BMW and Genuine BMW Parts, you simultane‐ ously acquire the assurance that they have been thoroughly tested by BMW to ensure optimum performance when installed on your vehicle. BMW warrants these parts to be free from de‐ fects in material and workmanship. BMW will not accept any liability for damage resulting from in‐ stallation of parts and accessories not approved by BMW. BMW cannot test every product made by other manufacturers to verify if it can be used on a BMW safely and without risk to either the vehicle, its operation, or its occupants. Genuine BMW Parts, BMW Accessories and other prod‐ ucts approved by BMW, together with profes‐ sional advice on using these items, are available from all BMW centers. Installation and operation of non-BMW approved accessories such as alarms, radios, amplifiers, radar detectors, wheels, suspension components, brake dust shields, telephones, including operation of any mobile phone from within the vehicle without using an externally mounted antenna, or trans‐ ceiver equipment, for instance, CBs, walkie­talkies, ham radios or similar accessories, may cause extensive damage to the vehicle, com‐ promise its safety, interfere with the vehicle's electrical system or affect the validity of the BMW Limited Warranty. See your BMW center for additional information. Maintenance, re‐ placement, or repair of the emission control de‐ vices and systems may be performed by any au‐ tomotive repair establishment or individual using any certified automotive part.
California Proposition 65 Warning
California laws require us to state the following warning:
Engine exhaust and a wide variety of automobile components and parts, including components found in the interior furnishings in a vehicle, con‐ tain or emit chemicals known to the State of Cal‐ ifornia to cause cancer and birth defects and re‐
7
Page 8
Notes
productive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Battery posts, terminals and related accessories contain lead and lead compounds. Wash your hands after handling. Used engine oil contains chemicals that have caused cancer in laboratory animals. Always protect your skin by washing thoroughly with soap and water.
Service and warranty
We recommend that you read this publication thoroughly. Your vehicle is covered by the fol‐ lowing warranties:
▷ New Vehicle Limited Warranty.
▷ Rust Perforation Limited Warranty.
▷ Federal Emissions System Defect Warranty.
▷ Federal Emissions Performance Warranty.
▷ California Emission Control System Limited
Warranty.
Detailed information about these warranties is listed in the Service and Warranty Information Booklet for US models or in the Warranty and Service Guide Booklet for Canadian models.
Your vehicle has been specifically adapted and designed to meet the particular operating con‐ ditions and homologation requirements in your country and continental region in order to deliver the full driving pleasure while the vehicle is op‐ erated under those conditions. If you wish to op‐ erate your vehicle in another country or region, you may be required to adapt your vehicle to meet different prevailing operating conditions and homologation requirements. You should also be aware of any applicable warranty limita‐ tions or exclusions for such country or region. In such case, please contact Customer Relations for further information.
Maintenance
Maintain the vehicle regularly to sustain the road safety, operational reliability and the New Vehi‐ cle Limited Warranty.
Specifications for required maintenance meas‐ ures:
▷ BMW Maintenance system
▷ Service and Warranty Information Booklet
for US models
▷ Warranty and Service Guide Booklet for
Canadian models
If the vehicle is not maintained according to these specifications, this could result in serious damage to the vehicle. Such damage is not cov‐ ered by the BMW New Vehicle Limited War‐ ranty.
Data memory
Many electronic components on your vehicle are equipped with data memories that tempo‐ rarily or permanently store technical information about the condition of the vehicle, events and faults. This technical information generally documents the state of a component, a module, a system or the environment:
▷ Operating states of system components, fill
levels for instance.
▷ Status messages for the vehicle and from its
individual components, e.g., wheel rotation speed/ vehicle speed, deceleration, trans‐ verse acceleration.
▷ Malfunctions and faults in important system
components, e.g., lights and brakes.
▷ Responses by the vehicle to special situa‐
tions, e.g., deployment of an airbag, engage‐ ment of stability control systems.
▷ Ambient conditions, such as temperature.
This data is purely technical in nature and is used to detect and correct faults and to optimize ve‐ hicle functions. Motion profiles over routes trav‐ eled cannot be created from this data. When
8
Page 9
Notes
service offerings are used, e.g., repair services, service processes, warranty claims, quality as‐ surance, this technical information can be read out from the event and fault memories by the service personnel, including the manufacturer, using special diagnostic tools. You can obtain further information there if it is needed. After a fault is corrected, the information in the fault memory is deleted or overwritten on a continu‐ ous basis.
When the vehicle is in use, situations are con‐ ceivable in which it might be possible to asso‐ ciate this technical data with individuals if it is combined with other information, e.g., an acci‐ dent report, damage to the vehicle, eye witness accounts — possibly with the assistance of an expert.
Additional functions that are contractually agreed with the customer, such as vehicle lo‐ cating in an emergency, enable certain vehicle data to be transmitted from the vehicle.
Event Data Recorder EDR
This vehicle is equipped with an event data re‐ corder EDR. The main purpose of an EDR is to record, in certain crash or near crash-like situa‐ tions, such as an air bag deployment or hitting a road obstacle, data that will assist in under‐ standing how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:
▷ How various systems in your vehicle were
operating.
▷ Whether or not the driver and passenger
safety belts were fastened.
▷ How far, if at all, the driver was depressing
the accelerator and/or brake pedal.
▷ How fast the vehicle was traveling.
These data can help provide a better under‐ standing of the circumstances in which crashes and injuries occur.
EDR data are recorded by your vehicle only if a nontrivial crash situation occurs; no data are re‐ corded by the EDR under normal driving condi‐ tions and no personal data, e.g., name, gender, age, and crash location, are recorded.
However, other parties, such as law enforce‐ ment, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.
To read data recorded by an EDR, special equip‐ ment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manu‐ facturer, other parties, such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.
Reporting safety defects
For US customers
The following only applies to vehicles owned and operated in the US.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the Na‐ tional Highway Traffic Safety Administration NHTSA, in addition to notifying BMW of North America, LLC, P.O. Box 1227, Westwood, New Jersey 07675-1227, Telephone 1-800-831-1117.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
However, NHTSA cannot become involved in individual problems between you, your dealer, or BMW of North America, LLC.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safe‐
9
Page 10
Notes
rcar.gov; or write to: Administrator, NHTSA, 400 Seventh Street, SW., Washington, DC 20590. You can also obtain other information about mo‐ tor vehicle safety from http://www.safercar.gov
For Canadian customers
Canadian customers who wish to report a safety-related defect to Transport Canada, De‐ fect Investigations and Recalls, may telephone the toll-free hotline 1-800-333-0510. You can also obtain other information about motor vehi‐ cle safety from http://www.tc.gc.ca/roadsafety.
10
Page 11
Notes
11
Page 12
Page 13

At a glance

These overviews of buttons, switches and displays are intended to familiarize you with your vehicle. You will also become quickly acquainted
with the available control concepts and options.
Page 14
At a glance Cockpit

Cockpit

Vehicle equipment

All standard, country-specific and optional equipment that is offered in the model series is described in this chapter. Therefore, equipment

All around the steering wheel

is also described that is not available in a vehicle, e. g., because of the selected optional equip‐ ment or country variant. This also applies for safety-related functions and systems.
1 Seating comfort functions
Seat, mirror, steering wheel mem‐ ory  58
Active seat  53
2 Roller sunblinds  48
3 Rear window safety switch  48
4 Power windows  47
5 Exterior mirror operation  59
6 Driver assistance systems
14
Active Blind Spot Detec‐ tion  113
Collision warning  107
Lane departure warning  112
Night Vision with pedestrian de‐ tection  109
Head-up Display  136
7 Lamps
Page 15
Cockpit At a glance
Front fog lamps  97
Parking lamps  94
Low beams  94
Automatic headlamp con‐ trol  95
Daytime running lights  95
Adaptive Light Control  96
High-beam Assistant  96
Instrument lighting  98
8 Steering column stalk, left
Turn signal  72
High beams, head‐ lamp flasher  72
High-beam Assistant  96
Cruise control on/off, interrupt‐ ing  122
Cruise control rocker switch  123
11 Instrument cluster  79
12 Steering wheel buttons, right
Entertainment source
Volume
Voice activation  24
Phone, see user's manual for Nav‐ igation, Entertainment and Com‐ munication.
Thumbwheel for selection lists  88
13 Steering column stalk, right
Windshield wipers  73
Rain sensor  74
Roadside parking lamps  95
Computer  89
9 Shift paddles  78
10 Steering wheel buttons, left
Store speed  122
Resume speed  123
Clean the windshields and head‐ lamps  73
14 Starting/stopping the engine,
switching drive readiness modes and the ignition on/off  66
15 Horn
16 Steering wheel heating  61
17 Steering wheel adjustment  61
18 Open the trunk lid  41
19 Unlocking the hood
15
Page 16
At a glance Cockpit

All around the center console

1 Headliner  17
2 Control Display  18
3 Glove compartment  152
4 Ventilation  141
5 Hazard warning system  198
Central locking system  41
6 Radio/CD/Multimedia, see user's manual for
Navigation, Entertainment and Communi‐ cation.
7 Automatic climate control  138
8 Controller with buttons  18
9 Parking brake  70
Auto Hold  71
10 PDC Park Distance Control  124
Top View  129
Backup camera  126
Parking assistant  132
Side View  130
11 Driving Dynamics Control  119
DSC Dynamic Stability Con‐ trol  117
12 Transmission selector lever
16
Page 17

All around the headliner

Cockpit At a glance
1 Emergency Request  198
2 Glass sunroof, powered  49
3 Indicator lamp, front passenger
airbag  101
4 Reading lamps  98
5 Interior lamps  98
17
Page 18
At a glance iDrive

iDrive

Vehicle equipment

All standard, country-specific and optional equipment that is offered in the model series is described in this chapter. Therefore, equipment is also described that is not available in a vehicle, e. g., because of the selected optional equip‐ ment or country variant. This also applies for safety-related functions and systems.

The concept

The iDrive combines the functions of a multitude of switches. Thus, these functions can be oper‐ ated from a central location.
Using the iDrive during a trip
To avoid becoming distracted and posing an unnecessary hazard to your vehicle's occu‐ pants and to other road users, never attempt to use the controls or enter information unless traf‐ fic and road conditions allow this.◀

Controls at a glance

Controls

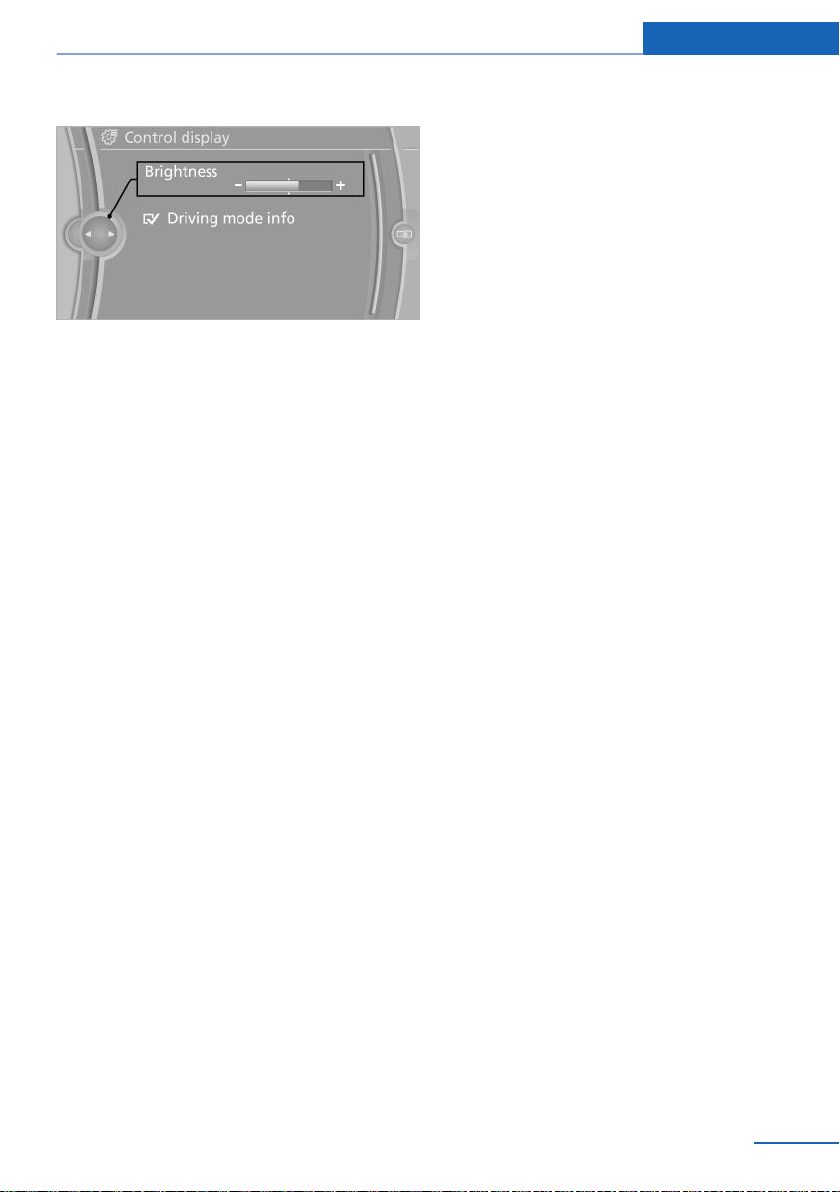

Control Display
Hints
▷ To clean the Control Display, follow the care
instructions.
▷ Do not place objects close to the Control
Display; otherwise, the Control Display can be damaged.
Switching off
1.
2. "Switch off control display"
Press the button.
Switching on
Press the controller again to switch the screen back on.
1 Control Display
2 Controller with buttons
The buttons can be used to open the menus directly. The controller can be used to select menu items and create the settings.
18
Controller
Select menu items and create settings.
Turn.
1.
Page 19
iDrive At a glance
2. Press.
3. Move in four directions.
Buttons on controller
Press the button Function
MENU Open the main menu.

Operating concept

Opening the main menu
Press the button.
The main menu is displayed.
All iDrive functions can be called up via the main menu.
Selecting menu items
Menu items shown in white can be selected.
Turn the controller until the desired menu
1.
item is highlighted.
RADIO Opens the Radio menu.
MEDIA Opens the CD/Multimedia
menu.
NAV Opens the Navigation
menu.
TEL Opens the Telephone
menu.
BACK Displays the previous
panel.
OPTION Opens the Options menu.
2. Press the controller.
Menu items in the Owner's Manual
In the Owner's Manual, menu items that can be selected are set in quotation marks, e.g., "Settings".
Changing between panels
After a menu item is selected, e.g., "Radio", a new panel is displayed. Panels can overlap.
▷ Move the controller to the left.
19
Page 20
At a glance iDrive
The current panel is closed and the previous panel is displayed.
The previous panel is opened again by pressing the BACK button. In this case, the current panel is not closed.
▷ Move the controller to the right.
A new panel is opened on top of the previous display.
White arrows pointing to the left or right indicate that additional panels can be opened.
View of an opened menu
When a menu is opened, it generally opens with the panel that was last selected in that menu. To display the first panel of a menu:
▷ Move the controller to the left repeatedly
until the first panel is displayed.
▷ Press the menu button on the controller
twice.
Opening the Options menu
Press the button.
The "Options" menu is displayed.
Additional options: move the controller to the right repeatedly until the "Options" menu is dis‐ played.
Options menu
The "Options" menu consists of various areas:
▷ Screen settings, e.g., "Split screen".
This area remains unchanged.
▷ Control options for the selected main menu,
e.g., for "Radio".
▷ If applicable, further operating options for
the selected menu, e.g., "Store station".
Changing settings
Select a field.
1.
2. Turn the controller until the desired setting
is displayed.
3. Press the controller.
Activating/deactivating the functions
Several menu items are preceded by a check‐ box. It indicates whether the function is acti‐ vated or deactivated. Selecting the menu item activates or deactivates the function.
The function is activated.
The function is deactivated.
20
Page 21
iDrive At a glance

Example: setting the clock

Setting the clock
1.
2. Turn the controller until "Settings" is high‐
3. If necessary, move the controller to the left
4. Turn the controller until "Time/Date" is high‐
Press the button. The main menu is
displayed.
lighted, and then press the controller.
to display "Time/Date".
lighted, and then press the controller.
6. Turn the controller to set the hours and
press the controller.
7. Turn the controller to set the minutes and
press the controller.

Status information

Status field
The following information is displayed in the sta‐ tus field at the top right:
▷ Time.
▷ Current entertainment source.
▷ Sound output, on/off.
▷ Wireless network reception strength.
▷ Telephone status.
▷ Traffic bulletin reception.
Status field symbols
The symbols are grouped as follows.
Radio symbols
Symbol Meaning
5. Turn the controller until "Time:" is high‐
lighted, and then press the controller.
HD Radio™ is switched on.
Satellite radio is switched on.
Telephone symbols
Symbol Meaning
Incoming or outgoing call.
Missed call.
Wireless network reception strength
Symbol flashes: searching for net‐ work.
Wireless network is not available.
Bluetooth is switched on.
Roaming is active.
21
Page 22
At a glance iDrive
Symbol Meaning
Text message was received.
Check the SIM card.
SIM card is blocked.
SIM card is missing.
Enter the PIN.
Entertainment symbols
Symbol Meaning
CD/DVD player.
Music collection.
Gracenote® database.
AUX-IN port.
Rear AUX-IN port on the left.
Rear AUX-IN port on the right.
Additional symbols
Switching the split screen on and off
1.
2. "Split screen"
Press the button.
Selecting the display
1.
2. "Split screen"
3. Move the controller until the split screen is
4. Press the controller or select "Split screen
5. Select the desired menu item.
Press the button.
selected.
content".
Symbol Meaning
Spoken instructions are switched off.
Request of the current vehicle posi‐
tion.

Split screen

General information
Additional information can be displayed on the right side of the split screen, e.g., information from the computer.
In the divided screen view, the so-called split screen, this information remains visible even when you change to another menu.
22

Programmable memory buttons

General information
The iDrive functions can be stored on the pro‐ grammable memory buttons and called up di‐ rectly, e.g., radio stations, navigation destina‐ tions, phone numbers and entry points into the menu.
The settings are stored for the remote control currently in use.
Saving a function
Highlight the function via the iDrive.
1.
2.
Press the desired button for more
than 2 seconds.
Page 23
iDrive At a glance
Running a function
Press the button.
The function will run immediately. This means, for example, that the number is dialed when a phone number is selected.
Displaying the button assignment
Use a finger to touch the buttons. Do not wear gloves or use objects.
The key assignment is displayed at the top edge of the screen.
▷ To display short information: touch the but‐
ton.
▷ To display detailed information: touch the
button for an extended period.
Deleting the button assignments
Press buttons 1 and 8 simultaneously for
1.
approx. five seconds.
2. "OK"

Entering letters and numbers

General information
Turn the controller: select letters or num‐
1.
bers.
2. Select additional letters or numbers if
needed.
3. "OK": confirm the entry.
Depending on the menu, you can switch be‐ tween entering upper and lower case, letters and numbers:
Symbol Function
Press the controller: delete the letter
or number.
Press the controller for an extended
period: delete all letters or numbers.
Switching between cases, letters and numbers
Depending on the menu, you can switch be‐ tween entering upper and lower case, letters and numbers:
Symbol Function
Enter the letters.
Enter the numbers.
or Move the controller up.
Without navigation system
Select the symbol.
Entry comparison
Entry of names and addresses: the selection is narrowed down every time a letter is entered and letters may be added automatically.
The entries are continuously compared to the data stored in the vehicle.
▷ Only those letters are offered during the en‐
try for which data is available.
▷ Destination search: town/city names can be
entered using the spelling of language avail‐ able on the Control Display.
23
Page 24
At a glance Voice activation system

Voice activation system

Vehicle equipment

All standard, country-specific and optional equipment that is offered in the model series is described in this chapter. Therefore, equipment is also described that is not available in a vehicle, e. g., because of the selected optional equip‐ ment or country variant. This also applies for safety-related functions and systems.

The concept

▷ Most functions that are displayed on the
Control Display can be operated by spoken commands via the voice activation system. The system prompts you to make your en‐ tries.
▷ Functions that can only be used when the
vehicle is stationary cannot be operated us‐ ing the voice activation system.
▷ The system uses a special microphone on
the driver's side.
▷ ›...‹ Verbal instructions in the Owner's
Manual to use with the voice activation sys‐ tem.

Requirements

Via the Control Display, set a language that is also supported by the voice activation system so that the spoken commands can be identified.
Set the language, refer to page 92.

Using voice activation

Activating the voice activation system
1. Press the button on the steering
wheel.
2. Wait for the signal.
3. Say the command.
The command is displayed in the instrument cluster.
This symbol in the instrument cluster indi‐
cates that the voice activation system is active.
If no other commands are available, operate the function in this case via iDrive.
Terminating the voice activation system
Briefly press the button on the steering wheel or ›Cancel‹.

Possible commands

Most menu items on the Control Display can be voiced as commands.
The available commands depend on which menu is currently displayed on the Control Dis‐ play.
Short commands exist for many functions.
Some list entries, e.g., Phone book entries, can also be selected via the voice activation system. Speak these list entries exactly as they are dis‐ played in the respective list.
Having possible commands read aloud
You can have the available commands read out loud for you: ›Voice commands‹
For example, if the "Settings" menu is displayed, the commands for the settings are read out loud.
Executing functions using short commands
Functions on the main menu can be performed directly by means of short commands, nearly ir‐ respective of which menu item is currently se‐ lected, e.g., ›Vehicle status‹.
24
Page 25
Voice activation system At a glance
List of short commands of the voice activation system, see Navigation, Entertainment, Com‐ munication Owner's Manual.
Help dialog for the voice activation system
Calling up help dialog: ›Help‹
Additional commands for the help dialog:
▷ ›Help with examples‹: information about the
current operating options and the most im‐ portant commands for them are announced.
▷ ›Help with voice activation‹: information
about the principle of operation for the voice activation system is announced.

Example: playing back a CD

Via the main menu
The commands of the menu items are spoken just as they are selected via the controller.
Switch on the Entertainment sound output
1.
if necessary.
2.
3. ›Multimedia‹
4. ›C D‹
5. ›C D drive‹
6. ›Track ...‹, e.g., CD track 4.
Press the button on the steering
wheel.
The medium last played is played back.

Setting the voice dialog

You can set whether the system should use the standard dialog or a shorter version.
In the shorter variant of the voice dialog, the an‐ nouncements from the system are issued in an abbreviated form.
On the Control Display:
1. "Settings"
2. "Language/Units"
3. "Speech m.:"
4. Select the setting.

Adjusting the volume

Turn the volume button while giving an instruc‐ tion until the desired volume is set.
▷ The volume remains constant even if the
volume of other audio sources is changed.
▷ The volume is stored for the remote control
currently in use.
Via short command
Playback of the CD can also be started via a short command.
Switch on the Entertainment sound output
1.
if necessary.
2.
3. ›C D drive track ...‹, e.g., CD track 4.
Press the button on the steering
wheel.

Notes on Emergency Requests

Do not use the voice activation system to initiate an Emergency Request. In stressful situations, the voice and vocal pitch can change. This can unnecessarily delay the establishment of a te‐ lephone connection.
Instead, use the SOS button, refer to page 198, in the vicinity of the interior mirror.
25
Page 26
At a glance Voice activation system

Environmental conditions

▷ Say the commands, numbers, and letters
smoothly and with normal volume, empha‐ sis, and speed.
▷ Always say commands in the language of
the voice activation system.
▷ Keep the doors, windows, and glass sunroof
closed to prevent noise interference.
▷ Avoid making other noise in the vehicle
while speaking.
26
Page 27
Integrated Owner's Manual in the vehicle At a glance

Integrated Owner's Manual in the vehicle

Vehicle equipment

All standard, country-specific and optional equipment that is offered in the model series is described in this chapter. Therefore, equipment is also described that is not available in a vehicle, e. g., because of the selected optional equip‐ ment or country variant. This also applies for safety-related functions and systems.

Integrated Owner's Manual in the vehicle

The Integrated Owner's Manual can be dis‐ played on the Control Display. The equipment and functions that are in the vehicle are descri‐ bed therein.
Components of the integrated Owner's Manual
The integrated Owner's Manual consists of three parts, which offer various levels of infor‐ mation or access possibilities.
Quick Reference Guide
Located in the Quick Reference is important in‐ formation for the operation of the vehicle, the operation of basic vehicle functions or for what to do in the event of a flat tire. This information can also be displayed during driving.
Search by pictures
Information and descriptions based on illustra‐ tions can be searched via search by pictures. This is helpful, for example, if the description of an outfitting package that cannot be named is needed.
Select components
1.
2. Turn the controller: open "Vehicle Info".
3. Press the controller.
4. Selecting desired range:
Press the button.
▷ "Quick reference"
▷ "Search by pictures"
▷ "Owner's Manual"
Leafing through the Owner's Manual
Page by page with link access
Turn the controller until the next or previous page is displayed.
Page by page without link access
Leaf through the pages directly while skipping the links.
Highlight the symbol once. Now simply press the controller to leaf from page to page.
Leaf back.
Leaf forward.
Owner's Manual
Information and descriptions can be searched by direct entry of a search term via the index.
Context help - Owner's Manual to the temporarily selected function
The relevant information can be opened directly.
27
Page 28
At a glance Integrated Owner's Manual in the vehicle
Opening via the iDrive
To move directly from the application on the Control Display to the options menu:
1.
2. "Display Owner's Manual"
Press the button or move the controller to the right repeatedly until the "Options" menu is displayed.
Opening when a Check Control message is displayed
Directly from the Check Control message on the Control Display:
"Display Owner's Manual"
Changing between a function and the Owner's Manual
To change from a function, e.g., radio, to the Owner's Manual on the Control Display and to switch between the two displays:
1. Press the button or move the controller
to the right repeatedly until the "Options" menu is displayed.
2. "Display Owner's Manual"
3. Select the desired page in the Owner's
Manual.
Programmable memory buttons
General information
The Owner's Manual can be stored on the pro‐ grammable memory buttons and called up di‐ rectly.
Storing
1. "Owner's Manual" Select via the iDrive.
2.
Press the desired button for more
than 2 seconds.
Executing
Press the button.
The Owner's Manual is displayed im‐
mediately.
4.
5.
To switch back and forth repeatedly between the function displayed last and the page of the Owner's Manual displayed last, repeat steps 4 and 5. This opens a new panel every time.
Press the button again to return to the
function displayed last.
Press the button to return to the page
of the Owner's Manual displayed last.
28
Page 29

BMW ActiveHybrid

BMW ActiveHybrid At a glance

Vehicle equipment

All standard, country-specific and optional equipment that is offered in the model series is described in this chapter. Therefore, equipment is also described that is not available in a vehicle, e. g., because of the selected optional equip‐ ment or country variant. This also applies for safety-related functions and systems.

Hybrid system

At a glance
1 Combustion engine
2 Electric motor
3 Control-system electronics, electric motor
4 High-voltage cables (orange)
5 High-voltage battery
6 Auxiliary battery, combustion engine
7 Starter battery, combustion engine
In addition to this, the electric motor acts like an alternator: during braking and coasting, it con‐ verts the vehicle's kinetic energy into electricity. The current is stored in the high-voltage battery and is used to drive the electric motor.
The hybrid system combines the following func‐ tions:
▷ Assists during acceleration: ASSIST and
eBOOST.
▷ Electric driving: eDRIVE.
▷ Automatic stopping of the combustion en‐
gine during coasting: coasting.
▷ Energy regeneration: conversion and stor‐
age of kinetic energy into electrical energy, and storage of the electrical energy: CHARGE.
▷ Auto Start Stop Function: automatic stop‐
ping and starting of the combustion engine.
▷ Electric operation of the automatic climate
control.
Functions
Acceleration boost: ASSIST and eBOOST
Driving off and accelerating require a lot of en‐ ergy. To reduce fuel consumption during high acceleration and to optimize acceleration, the electric motor supports the combustion engine. For this purpose, the electric motor is supplied by the high-voltage battery.
The concept
The hybrid system makes it possible to optimize fuel consumption and driving characteristics.
An electric motor assists the combustion en‐ gine. In certain driving situations, the vehicle can also be driven using only electric power, thereby reducing fuel consumption.
Electric driving: eDRIVE
Under certain conditions, refer to page 69, the vehicle is powered only by the electric motor.
Coasting
The engine is automatically switched off. This driving condition is referred to as coasting, refer to page 69.
29
Page 30
At a glance BMW ActiveHybrid
Driving with the combustion engine: DRIVE
The combustion engine provides the drive power to move the vehicle. If necessary, the high-voltage battery is charged at the same time.
The hybrid system always starts the combus‐ tion engine automatically.
Energy recovery: CHARGE
The high-voltage battery of the hybrid system is charged through energy recovery.
The electric motor acts as a generator and con‐ verts the kinetic energy of the vehicle into elec‐ tric current.
Charging can take place in various situations:
▷ When the vehicle is coasting if the acceler‐
ator is not pressed.
▷ During vehicle braking.
When exerting gentle pressure on the brakes, the vehicle is only braked by the electric motor. When the brake pedal is depressed further, the brake system is activated additionally. This is why only part of the brake energy is used to charge the high-voltage battery when exerting firm pressure on the brake.
Foresighted driving and the early reduction of speed are important to make full use of the hy‐ brid characteristics of your vehicle.
Auto Start/Stop function
The Auto Start/Stop function, refer to page 68, switches the combustion engine off when coasting, braking and while the vehicle is stopped. Convenience functions such as the automatic climate control are supplied by the high-voltage battery and can remain switched on.
combustion engine switched off. In this way, the interior of the vehicle can be cooled for example during a break in the journey by residual cooling or even before the trip by auxiliary air condition‐ ing.
▷ Residual cooling, refer to page 143.
▷ Auxiliary air conditioning, refer to
page 144
Adapting to the course of the road
When destination guidance is active, the hybrid system uses the navigation data. This makes it possible to switch off the combustion engine upon reaching the destination zone even before reaching the destination.
Pay attention to the notes in Adapting to the course of the road, refer to page 86.
Display
The displays of the hybrid system, refer to page 84, provide information about the cur‐ rent state of hybrid operation and show the sys‐ tem activity in a chart.
Energy-saving driving
To save energy while driving, read the following information:
▷ Saving fuel, refer to page 166
▷ Using the hybrid system efficiently, refer to
page 158
▷ ECO PRO mode, refer to page 167.
Safety information
Read the information on Safety of the hybrid system, refer to page 202.
Auxiliary functions of the automatic climate control
The hybrid system makes it possible to operate the automatic climate control even with the
30
Page 31
BMW ActiveHybrid At a glance
31
Page 32
Page 33

Controls

This chapter is intended to provide you with
information that will give you complete control of
your vehicle. All features and accessories that are
useful for driving and your safety, comfort and
convenience are described here.
Page 34
Controls Opening and closing

Opening and closing

Vehicle equipment

All standard, country-specific and optional equipment that is offered in the model series is described in this chapter. Therefore, equipment is also described that is not available in a vehicle, e. g., because of the selected optional equip‐ ment or country variant. This also applies for safety-related functions and systems.

Remote control/key

Buttons on the remote control
1 Unlocking
2 Locking
3 Trunk lid
4 Panic mode, auxiliary air conditioning
Programming the button assignment for the remote control
The button assignment on the remote control can be set variously depending on how the ve‐ hicle is equipped and according to the country­specific variant.
Programming options and the actual button as‐ signment may vary depending on how the vehi‐ cle is equipped and according to the country­specific variant.
You can program which functions are enabled when button control is pressed.
"Settings"
1.
2. "Doors/key"
3. Call the desired button.
4. Call the desired function.
The selected function is stored for the button and the remote control currently in use.
or button on the remote
Integrated key
General information
The vehicle is supplied with two remote controls with keys.
Every remote control contains a replaceable battery.
The settings called up and implemented when the vehicle is unlocked depend on which remote control is used to unlock the vehicle, Personal Profile, refer to page 35.
In addition, information about service require‐ ments is stored in the remote control, Service data in the remote control, refer to page 188.
34
Press the button on the back of the remote con‐ trol, arrow 1, and pull out the key, arrow 2.
The integrated key fits the following locks:
▷ Driver's door.
▷ Storage compartment in the front center
armrest.
Page 35
Opening and closing Controls
The storage compartment contains a switch for separately securing the trunk lid, refer to page 43.
Replacing the battery
1. Take the integrated key out of the remote
control.
2. Push in the catch with the key, arrow 1.
3. Remove the cover of the battery compart‐
ment; see arrow 2.
4. Insert a battery of the same type with the
positive side facing upwards.
5. Press the cover closed.
Take the used battery to a recycling cen‐ ter or to your service center.
New remote controls
You can obtain new remote controls from your service center.
▷ Interference of radio transmission by mobile
devices in close proximity to the remote control.
▷ Interference of radio transmission by
charger while charging items such as mobile devices in the vehicle.
A Check Control message is displayed if an at‐ tempt is made to switch on the ignition or start the engine or activate engine readiness.
Starting the engine or activating engine readiness with emergency detection of the remote control
Automatic transmission: if a corresponding Check Control message appears, hold the re‐ mote control, as shown, against the marked area on the steering column and press the Start/Stop button within 10 seconds while pressing the brake.
Loss of the remote controls
Lost remote controls can be blocked by your service center.
Emergency detection of remote control
It is also possible to switch on the ignition or ac‐ tivate engine readiness in situations such as the following:
▷ Interference of radio transmission to remote
control by external sources.
▷ Discharged battery in the remote control.

Personal Profile

The concept
You can set several of your vehicle's functions to suit your personal needs and preferences.
▷ The settings are automatically saved in the
profile currently activated.
▷ The remote control used is detected when
the vehicle is unlocked and the stored profile is called up.
▷ Your personal settings will be recognized
and called up again even if the vehicle has
35
Page 36
Controls Opening and closing
been used in the meantime by someone else with another remote control.
The individual settings are stored for three Per‐ sonal Profiles and one guest profile.
Transmitting the settings
Your personal settings can be taken with you to another vehicle equipped with the Personal Pro‐ file function. For more information, contact your service center.
Transmission takes place via:
▷ The USB interface in the center armrest
onto a USB device.
Profile management
Opening the profiles
A different profile can be called up than the one associated with the remote control currently in use.
"Settings"
1.
2. "Profiles"
3. Open "Options".
4. "Rename current profile"
Resetting profiles
The settings of the active profile are reset to their default values.
Switch on the ignition.
1.
2. "Settings"
3. "Profiles"
The current profile is selected.
4. Open "Options".
5. "Reset current profile"
Importing profiles
Existing settings and contacts are overwritten with the imported profile.
"Settings"
1.
2. "Profiles"
3. "Import profile"
3. Select a profile.
The profile that is opened is assigned to the re‐ mote control currently in use.
Renaming profiles
"Settings"
1.
2. "Profiles"
The current profile is selected.
36
4. USB interface, refer to page 150: "USB
device"
Page 37
Opening and closing Controls
Exporting profiles
Most settings of the active profile and the saved contacts can be exported.
This can be helpful for securing and retrieving personal settings, before delivering the vehicle to a workshop for example.
1. "Settings"
2. "Profiles"
3. "Export profile"
4. USB interface, refer to page 150: "USB
device"
Using the guest profile
The guest profile can be used to make individual settings without affecting the three Personal Profiles.
This can be useful for drivers who are using the vehicle temporarily and do not have their own profile.
"Settings"
1.
2. "Profiles"
3. The current profile is selected.
4. Open "Guest".
5. Adjust the settings.
Note: the guest profile cannot be renamed.
Display profile list during start
The profile list can be displayed during each start for selecting the desired profile.
"Settings"
1.
2. "Profiles"
3. Open "Options".
4. "Display user list at startup"
Personal Profile settings
The following functions and settings can be stored in a profile.
More information on the settings can be found under:
▷ Collision warning: warning time, last setting
on/off.
▷ Exterior mirror position.
▷ CD/Multimedia: audio source listened to
last.
▷ Unlocking/locking of the vehicle: settings.
▷ Driving Dynamics Control: sport program.
▷ Driver's seat position: automatic retrieval af‐
ter unlocking.
▷ Programmable memory buttons: assign‐
ment.
▷ Head-up Display: selection, brightness, po‐
sition and rotation of the display.
▷ Headlamp courtesy delay feature: time set‐
ting.
▷ Tone: tone settings.
▷ Automatic climate control: settings.
▷ Steering wheel position.
▷ Navigation: map views, route criteria, voice
output on/off.
▷ Night Vision with pedestrian detection: se‐
lection of functions and type of display.
▷ Park Distance Control PDC: adjusting the
signal tone volume.
▷ Radio: stored stations, station listened to
last, special settings.
▷ Backup camera: selection of functions and
type of display.
▷ Side View: selection of the display type.
▷ Language on the Control Display.
▷ Lane departure warning: last setting, on/off.
▷ Active Blind Spot Detection: last setting, on/
off.
▷ Daytime running lights: current setting.
▷ Triple turn signal activation.
▷ Locking the vehicle: after a brief period or
after starting to drive.
37
Page 38
Controls Opening and closing

Central locking system

The concept
The central locking system becomes active when the driver's door is closed.
The system simultaneously engages and re‐ leases the locks on the following:
▷ Doors.
▷ Trunk lid.
▷ Fuel filler flap.
Operating from the outside
▷ Via the remote control.
▷ Via the driver's door lock.
▷ Via the door handles.
▷ Via the button in the trunk lid.
The following takes place simultaneously when locking/unlocking the vehicle via the remote control:
▷ Depending on how the vehicle is equipped,
the theft protection is activated/deactivated. Theft protection prevents the doors from being unlocked using the lock buttons or the door opener.
▷ The welcome lamps, interior lamps and
courtesy lamps are switched on and off.
▷ The alarm system, refer to page 46, is
armed or disarmed.
Operating from the inside
Via the button for the central locking system.
If the vehicle has been locked from inside, the fuel filler flap remains unlocked.
If an accident of a certain severity occurs, the central locking system unlocks automatically.
The hazard warning system and interior lamps come on.

Opening and closing: from the outside

Using the remote control
General information
Take the remote control with you
People or animals left unattended in a parked vehicle can lock the doors from the in‐ side. Always take the remote control with you when leaving the vehicle so that the vehicle can then be opened from the outside.◀
Unlocking
Press the button on the remote control.
The vehicle is unlocked.
Welcome lamps, interior lamp and courtesy lamps are switched on.
You can set how the vehicle is to be unlocked.
The setting is stored for the remote control cur‐ rently in use.
"Settings"
1.
2. "Doors/key"
3. Select a symbol.
4. Select the desired function:
▷ "Driver's door only"
Only the driver's door and the fuel filler flap are unlocked. Pressing again un‐ locks the entire vehicle.
▷ "All doors"
The entire vehicle is unlocked.
38
Page 39
Opening and closing Controls
Depending on how the vehicle is equipped or the country-specific variant, you can set whether the doors are also unlocked with the but‐ ton on the remote control.
Convenient opening
The remote control can be used to simultane‐ ously open the windows and the glass sunroof.
Press and hold the button on the re‐ mote control.
The windows and the glass sunroof open.
Releasing the button stops the motion.
Locking
Press the button on the remote control.
Locking from the outside
Do not lock the vehicle from the outside if there are people in it, as the vehicle cannot be unlocked from inside without special knowl‐ edge.◀
Switching on interior lamps and courtesy lamps
Press the button on the remote control
with the vehicle locked.
Panic mode
You can trigger the alarm system if you find yourself in a dangerous situation.
Press the button on the remote control for at least 3 seconds.
To switch off the alarm: press any button.
Opening the trunk lid
Press the button on the remote control for approx. 1 second.
The trunk lid opens, regardless of whether it was previously locked or unlocked.
During opening, the trunk lid pivots back and up. Ensure that adequate clearance is available be‐ fore opening.
In some vehicle equipment variants, the trunk lid can only be opened using the remote control if the vehicle has been unlocked.
Do not place the remote control in the cargo area
Take the remote control with you and do not leave it in the cargo area; otherwise, the remote control is locked inside the vehicle when the trunk lid is closed.◀
The trunk lid is locked again as soon as it is pushed closed.
Confirmation signals from the vehicle
"Settings"
1.
2. "Doors/key"
3. Deactivate or activate the desired confirma‐
tion signals.
▷ "Acoustic sig. lock/unlock"
▷ "Flash when lock/unlock"
Retrieving the seat, mirror, and steering wheel settings
The driver's seat, exterior mirror, and steering wheel positions selected last are stored for the currently used remote control.
When the vehicle is unlocked, these positions are automatically retrieved if this function was activated.
Pinch hazard when moving back the seat
If this function is used, first make sure that the footwell behind the driver's seat is empty. Otherwise, people can be injured or objects damaged when the seat is moved back.◀
The adjustment procedure is interrupted:
▷ When a seat position switch is pressed.
▷ When a button of the seat, mirror, and steer‐
ing wheel memory is pressed briefly.
39
Page 40
Controls Opening and closing
Activating the setting
1. "Settings"
2. "Doors/key"
3. "Last seat position auto."
Malfunction
If the vehicle can no longer be locked or un‐ locked with the remote control, the battery may be discharged or there may be interference from external sources such as mobile phones, metal objects, overhead power lines, transmission towers, etc.
If this occurs, unlock or lock the vehicle at the door lock using the integrated key.
For US owners only
The transmitter and receiver units comply with part 15 of the FCC/Federal Communication Commission regulations. Operation is governed by the following:
FCC ID:
▷ LX8766S.
▷ LX8766E.
▷ LX8CAS.
▷ LX8CAS2.
▷ MYTCAS4.
Compliance statement:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
▷ This device may not cause harmful interfer‐
ence, and
▷ this device must accept any interference re‐
ceived, including interference that may cause undesired operation.
Any unauthorized modifications or changes to these devices could void the user's authority to operate this equipment.
Using the door lock
General information
Locking from the outside
Do not lock the vehicle from the outside if there are people in it, as the vehicle cannot be unlocked from inside without special knowl‐ edge.◀
Remove the key before pulling the door
handle
Before pulling the outside door handle, remove the key to avoid damaging the paintwork and the key.◀
In some country-specific versions, the alarm system is triggered if the vehicle is unlocked via the door lock.
In order to terminate this alarm, unlock vehicle with the remote control, or switch on the igni‐ tion, if necessary, by emergency detection of the remote control.
In some vehicle equipment versions, only the driver's door can be unlocked or locked via the door lock.
Locking the doors and trunk lid at once
To lock all doors and the trunk lid at once:
With the doors closed, lock the vehicle using
1.
the button for the central locking system in the interior.
2. Unlock and open the driver's or front pas‐
senger door.
3. Lock the vehicle.
40
Page 41
Opening and closing Controls
▷ Lock the driver's door using the
integrated key in the door lock, or
▷ Press down the lock button of the front
passenger door and close the door from the outside.
The fuel filler flap can only be locked using the remote control.
Manual operation
If an electrical malfunction occurs, lock or unlock the vehicle using the integrated key via the door lock on the driver's door.

Opening and closing: from the inside

Locking and unlocking
Automatic locking
The setting is stored for the remote control cur‐ rently in use.
1. "Settings"
2. "Doors/key"
3. Select the desired function:
▷ "Lock if no door opened"
The vehicle locks automatically after a short period of time if a door is not opened.
▷ "Lock after start driving"
The vehicle locks automatically after you drive away.

Doors

Automatic Soft Closing
To close the doors, push lightly.
It is closed automatically.
Danger of pinching
Make sure that the closing path of the
doors is clear; otherwise, injuries may result.◀
Pressing the buttons locks and unlocks the doors and the trunk lid when the front doors are closed, but they are not secured against theft.
The fuel filler flap remains unlocked.
Unlocking and opening
▷ Either unlock the doors together using the
button for the central locking system and then pull the door handle above the armrest or
▷ Pull the door opener twice individually on
each door: the first time unlocks the door, the second time opens it.

Trunk lid

Opening
During opening, the trunk lid pivots back and up.
Ensure that adequate clearance is available be‐ fore opening.
41
Page 42
Controls Opening and closing
Opening from the outside
▷ Press the button on the trunk lid.
▷ Press the button on the remote
control for approx. 1 second.
▷ With Comfort Access the trunk lid opens
with no-touch activation, refer to page 45.
Opening from the inside
Push the button in the driver's footwell.
If the vehicle is stationary, the trunk lid opens if it is not locked.
Closing
control is locked inside the vehicle when the trunk lid is closed.◀
Locking the vehicle
Press the button on the inside of the trunk lid.
When the driver's door is closed, the vehicle is completely locked.
Automatic tailgate operation
Opening
The trunk lid opens fully.
Recessed grips in the interior trim of the trunk lid make it easier to pull down the lid.
Keep the closing path clear
Make sure that the closing path of the
trunk lid is clear; otherwise, injuries may result.◀
Do not place the remote control in the cargo area
Take the remote control with you and do not leave it in the cargo area; otherwise, the remote
42
▷ Press the button on the exterior of the trunk
lid.
▷ Press the button on the remote
control for approx. 1 second.
▷ Push the button in the driver's foot‐
well.
Pressing the button again stops the motion.
The opening procedure is likewise interrupted:
▷ When starting the engine.
▷ When the vehicle starts moving.
Page 43
▷ By pressing the button in the driver's foot‐
well.
▷ By pressing the button on the inside of the
trunk lid.
Closing
Without Comfort Access:
▷ Press the button on the inside of the trunk
lid.
The trunk lid closes automatically.
Pressing again stops the motion.
With Comfort Access:
Opening and closing Controls
▷ Press the button on the exterior of the trunk
lid.
Pressing again stops the motion.
The closing operation is interrupted:
▷ When starting the engine.
▷ The vehicle starts off with jerks.
Keep the closing path clear
Make sure that the closing path of the
trunk lid is clear; otherwise, injuries may result.◀
Do not place the remote control in the cargo area
Take the remote control with you and do not leave it in the cargo area; otherwise, the remote control is locked inside the vehicle when the trunk lid is closed.◀
▷ Press the button, arrow 1, on the inside of
the trunk lid.
The trunk lid closes automatically.
Pressing again stops the motion.
▷ Press the button, arrow 2.
The trunk lid closes automatically and the vehicle is locked.
Manual operation
In the event of an electrical fault, manually op‐ erate the unlocked trunk lid slowly and smoothly.
To close it completely, push the trunk lid down lightly.
It is closed automatically.
Keep the closing path clear
Make sure that the closing path is clear;
otherwise, injuries may result.◀
Locking separately
The trunk lid can be locked separately using the switch in the front center armrest.
43
Page 44
Controls Opening and closing
▷ Trunk lid secured, arrow 1.
▷ Trunk lid not secured, ar‐
row 2.
Slide the switch into the arrow 1 position. This secures the trunk lid and disconnects it from the central locking system.
When the center armrest is locked, the trunk lid cannot be opened.
This is beneficial when the vehicle is parked us‐ ing valet service. The infrared remote control can be handed out without the key.
Emergency unlocking
Pull the handle inside the cargo area.
The trunk lid unlocks.
▷ Unlocking of the trunk lid separately.
▷ Open trunk lid with no-touch activation.
▷ Start the engine.
Functional requirements
▷ There are no external sources of interfer‐
ence nearby.
▷ To lock the vehicle, the remote control must
be located outside of the vehicle.
▷ The next unlocking and locking cycle is not
possible until after approx. 2 seconds.
▷ The engine can only be started if the remote
control is inside the vehicle.
Comparison with ordinary remote control
The functions can be controlled by pressing the buttons of the remote control or Comfort Ac‐ cess.
Unlocking

Comfort Access

The concept
The vehicle can be accessed without activating the remote control.
All you need to do is to have the remote control with you, e.g., in your jacket pocket.
The vehicle automatically detects the remote control when it is nearby or in the passenger compartment.
Comfort Access supports the following func‐ tions:
▷ Unlocking/locking of the vehicle.
▷ Convenient closing.
44
Fully grasp a door handle, arrow 1. This corre‐ sponds to pressing the button on the remote control.
Page 45
Opening and closing Controls
Locking
Press the area on the door handle, arrow 2, with your finger for approx. 1 second.
This corresponds to pressing the button on the remote control.
To save battery power, ensure that the ignition and all electronic systems and/or power con‐ sumers are switched off before locking the ve‐ hicle.
Convenient closing
Press the area on the door handle, arrow 2, with the finger and hold it down.
In addition to locking, the windows and the glass sunroof are closed.
Monitor the closing process
Monitor the closing process to ensure that
no one becomes trapped.◀
Unlocking the trunk lid separately
Press the button on the exterior of the trunk lid, refer to page 41.
This corresponds to pressing the on the remote control.
Do not place the remote control in the cargo area
Take the remote control with you and do not leave it in the cargo area; otherwise, the remote control is locked inside the vehicle when the trunk lid is closed.◀
button
Open trunk lid with no-touch activation
With Comfort Access, the trunk lid can be opened with no-touch activation using the re‐ mote control you are carrying.
A sensor detects a directed foot motion in the center of the area at the rear of the car and the trunk lid opens.
During opening, the trunk lid pivots back and up. Ensure that adequate clearance is available be‐ fore opening.
Do not touch vehicle
With the foot motion, make sure there is steady stance and do not touch the vehicle; oth‐ erwise, there is a danger of injury, e. g. from hot exhaust system parts.◀
Position in the center behind the vehicle.
1.
2. Move foot in the direction of travel under‐
neath the bumper and immediately back.
The trunk lid opens, regardless of whether it was previously locked or unlocked.
Preventing inadvertent opening
In situations where the trunk lid should is not to be opened with no-touch activation, en‐ sure that the remote control is located beyond the range of the sensor, at least 5 ft/1.50 m from the rear of the car.
Otherwise, the trunk lid may be opened inad‐ vertently, for example by an unintentional or misinterpreted movement of the foot.◀
Malfunction
Comfort Access may not function properly if it experiences interference from external sources
45
Page 46
Controls Opening and closing
such as mobile phones, metal objects, overhead power lines, transmission towers, etc.
In this case, open or close the vehicle using the buttons on the remote control or use the integrated key in the door lock.
If there is a malfunction, open the trunk lid with the remote control button or with the button on the trunk lid.

Alarm system

The concept
The vehicle alarm system responds to:
▷ Opening of a door, the hood or the trunk lid.
▷ Movements in the vehicle.
▷ Changes in the vehicle tilt, e.g., during at‐
tempts to steal a wheel or when towing the car.
▷ Interruptions in battery voltage.
The alarm system briefly indicates tampering:
▷ By sounding an acoustic alarm.
▷ By switching on the hazard warning system.
▷ By flashing the high beams.
Arming and disarming the alarm system
Trunk lid and armed alarm system
The trunk lid can be opened even when the alarm system is armed.
Press the button on the remote control for approx. 1 second.
With Comfort Access the trunk lid opens with no-touch activation, refer to page 45.
After the trunk lid is closed, it is locked and monitored again if the doors are locked. The hazard warning system flashes once.
In some vehicle equipment variants, the trunk lid can only be opened using the remote control if the vehicle was unlocked first.
Panic mode
You can trigger the alarm system if you find yourself in a dangerous situation.
Press the button on the remote control for at least 3 seconds.
To switch off the alarm: press any button.
Switching off the alarm
▷ Unlock the vehicle using the remote control.
▷ With Comfort Access: If you are carrying the
remote control with you, pull on the driver side or front passenger side door handle.
General information
When you lock or unlock the vehicle, either with the remote control, Comfort Access or at the door lock the alarm system is armed or disarmed at the same time.
Door lock and armed alarm system
Unlocking via the door lock will trigger the alarm on some country-specific versions.
In order to terminate this alarm, unlock vehicle with the remote control or switch on the ignition, if necessary, by emergency detection of the re‐ mote control.
46
Indicator lamp on the interior rear view mirror
▷ The indicator lamp flashes briefly every
2 seconds:
The system is armed.
Page 47
Opening and closing Controls
▷ The indicator lamp flashes after locking:
The doors, hood or trunk lid is not closed properly, but the rest of the vehicle is se‐ cured.
After 10 seconds, the indicator lamp flashes continuously. Interior motion sensor and tilt alarm sensor are not active.
▷ The indicator lamp goes out after unlocking:
The vehicle has not been tampered with.
▷ The indicator lamp flashes after unlocking
until the engine ignition is switched on, but no longer than approx. 5 minutes:
An alarm has been triggered.
Tilt alarm sensor
The tilt of the vehicle is monitored.
The alarm system responds in situations such as attempts to steal a wheel or when the car is towed.
Interior motion sensor
The windows and glass sunroof must be closed for the system to function properly.
Avoiding unintentional alarms
The tilt alarm sensor and interior motion sensor can be switched off together, such as in the fol‐ lowing situations:
▷ In automatic car washes.
▷ In duplex garages.
▷ During transport on car-carrying trains, at
sea or on a trailer.
▷ When animals are to remain in the vehicle.
The tilt alarm sensor and interior motion sensor are switched off until the vehicle is locked again.

Power windows

General information
Take the remote control with you
Take the remote control with you when leaving the vehicle so that children, for example, cannot operate the power windows and injure themselves.◀
Opening
▷
▷
Pressing again stops the motion.
Convenient opening, refer to page 39, via the remote control.
Press the switch to the resistance
point.
The window opens while the switch is held.
Press the switch beyond the resist‐
ance point.
The window opens automatically.
Switching off the tilt alarm sensor and interior motion sensor
Press the remote control button again within 10 seconds as soon as the vehicle
is locked.
The indicator lamp lights up for approx. 2 sec‐ onds and then continues to flash.
Closing
Keep the closing path clear
Monitor the closing process and make sure that the closing path of the window is clear; otherwise, injuries may result.◀
▷
Pull the switch to the resistance point.
47
Page 48
Controls Opening and closing
The window closes while the switch is held.
▷
Pressing the switch stops the motion.
Convenient operation, refer to page 39, via the remote control.
Convenient closing, refer to page 45, with Com‐ fort Access.
Pull the switch beyond the resistance
point.
The window closes automatically.
Pinch protection system
If the closing force exceeds a specific value as a window closes, the closing action is interrupted.
The window reopens slightly.
Danger of pinching even with pinch pro‐ tection
Even with the pinch protection system, check that the window's closing path is clear; other‐ wise, the closing action may not stop in certain situations, e.g., if thin objects are present.◀
No window accessories
Do not install any accessories in the range of movement of the windows; otherwise, the pinch protection system will be impaired.◀
Closing without the pinch protection system
Keep the closing path clear
Monitor the closing process and make sure that the closing path of the window is clear; otherwise, injuries may result.◀
For example, if there is an external danger or if ice on the windows prevents a window from closing normally, proceed as follows:
Pull the switch past the resistance point and
1.
hold it there.
Pinch protection is limited and the window reopens slightly if the closing force exceeds a certain value.
2. Pull the switch past the resistance point
again within approx. 4 seconds and hold it there.
The window closes without pinch protec‐ tion.
Safety switch
The safety switch in the driver's door can be used to prevent children, for example, from opening and closing the rear windows using the switches in the rear.
Switching on and off
Press the button.
The LED lights up if the safety function
is switched on.
Safety switch for rear operation
Press the safety switch when transporting children in the rear; otherwise, injury may result if the windows are closed without supervision.◀

Roller sunblinds

General information
If you are no longer able to move the roller sun‐ blind for the rear window after having activated it a number of times in a row, the system is blocked for a limited time to prevent overheat‐ ing. Let the system cool.
The roller sunblind for the rear window cannot be moved at low interior temperatures.
48
Page 49
Opening and closing Controls
Driver's door controls
Roller blind for rear window
Press the button.
Roller sunblinds for the rear side windows
Pull out the roller sunblind at the loop and hook it onto the bracket.
Do not open the window while the roller sunblind is raised.
Do not open the window while the roller sunblind is raised; otherwise, there is a risk of damage at high speeds that may result in personal injury.◀
Take the remote control with you
Take the remote control with you when leaving the vehicle so that children, for example, cannot operate the roof and injure themselves.◀
Tilting the glass sunroof
Push switch upward briefly.
▷ The closed roof is tilted and
the sliding visor opens slightly.
▷ The opened roof closes until
it is in its tilted position. The sliding visor stays completely open.

Glass sunroof, powered

General information
The glass sunroof and the sliding visor can be operated together or separately, using the same switch.
The glass sunroof is operational when the igni‐ tion is switched on.
Keep the closing path clear
Monitor the closing process and make sure that the closing path of the glass sunroof is clear; otherwise, injuries may result.◀
Opening/closing the sliding visor
▷ Press the switch in the de‐
sired direction to the resist‐ ance point and hold it there.
The sliding visor moves while the switch is being held.
▷ Press the switch in the desired direction
past the resistance point.
The sliding visor moves automatically. Pressing the switch again stops the motion.
Opening/closing the glass sunroof
When the sliding visor is open, proceed as de‐ scribed under Sliding visor.
49
Page 50
Controls Opening and closing
Opening/closing the glass sunroof and sliding visor together
Briefly press the switch twice in succession in the desired direc‐ tion past the resistance point.
The glass sunroof and sliding vi‐ sor move together. Pressing the
switch again stops the motion.
Convenient operation, refer to page 39, via the remote control.
Convenient closing, refer to page 45, with Com‐ fort Access.
Pinch protection system
If the closing force when closing the glass sun‐ roof exceeds a certain value, the closing move‐ ment is stopped, beginning at approximately the middle of the opening in the roof, or from the tilted position during closing.
The glass sunroof opens again slightly.
Danger of pinching even with pinch pro‐ tection
Despite the pinch protection system, check that the roof's closing path is clear; otherwise, the closing action may not be interrupted in certain extreme situations, such as when thin objects are present.◀
Closing from the raised position without pinch protection
If there is an external danger, push the switch forward past the resistance point and hold it.
The roof closes without pinch protection.
Initializing after a power failure
After a power failure during the opening or clos‐ ing process, the roof can only be operated to a limited extent.
Initializing the system
The system can be initialized when the vehicle is stationary and the engine is running.
During the initialization, the roof closes without pinch protection.
Keep the closing path clear
Monitor the closing process and make sure that the closing path of the glass sunroof is clear; otherwise, injuries may result.◀
Press the switch up and hold it until the initialization is complete:
▷ Initialization begins within
15 seconds and is completed when the sunroof and sliding visor are completely closed.
▷ The roof closes without pinch protection.
Closing from the open position without pinch protection
For example, if there is an external danger, pro‐ ceed as follows:
Press the switch forward beyond the resist‐
1.
ance point and hold.
Pinch protection is limited and the roof re‐ opens slightly if the closing force exceeds a certain value.
2. Press the switch forward again beyond the
resistance point and hold until the roof closes without pinch protection.
50
Page 51

Adjusting

Adjusting Controls

Vehicle equipment

All standard, country-specific and optional equipment that is offered in the model series is described in this chapter. Therefore, equipment is also described that is not available in a vehicle, e. g., because of the selected optional equip‐ ment or country variant. This also applies for safety-related functions and systems.

Sitting safely

The ideal seating position can make a vital con‐ tribution to relaxed, fatigue-free driving.
The seating position plays an important role in an accident in combination with:
▷ Safety belts, refer to page 55.
▷ Head restraints, refer to page 56.
▷ Airbags, refer to page 99.

Seats

General information
Do not adjust the seat while driving
Do not adjust the driver's seat while driv‐ ing, or the seat could respond with unexpected movement and the ensuing loss of vehicle con‐ trol could lead to an accident.◀
Semi-electrically adjustable seats
At a glance
1 Thigh support
2 Tilt
3 Forward/backward
4 Lumbar support
5 Height
6 Backrest
Tilt
Do not incline the backrest too far to the
rear
Also on the front passenger side, do not incline the backrest on the front passenger side too far to the rear during driving, or there is a risk of slipping under the safety belt in the event of an accident. This would eliminate the protection normally provided by the belt.◀
Pull the lever and move the seat to the desired tilt. After releasing the lever, apply your weight to the seat or lift it off to make sure the seat en‐ gages properly.
51
Page 52
Controls Adjusting
Forward/backward
Pull the lever and slide the seat in the desired direction.
After releasing the lever, move the seat forward or back slightly to make sure it engages prop‐ erly.
Height
Move the button in the required direction.
Backrest
Electrically adjustable seats
At a glance
1 Lumbar support
2 Backrest width
3 Shoulder support
4 Backrest
5 Forward/back, height, tilt
6 Thigh support
Note
The seat setting for the driver's seat is stored for the remote control currently in use. When the vehicle is unlocked via the remote control, the position is automatically retrieved if the Func‐ tion, refer to page 39, for this is activated.
Adjustments in detail
Forward/back.
1.
Move the button in the required direction.
52
Page 53
Adjusting Controls
2. Height.
3. Seat tilt.
4. Backrest tilt.
Lumbar support
The curvature of the seat backrest can be ad‐ justed in such a way that it supports the lumbar region of the spine. The lower back and the spine are supported for upright posture.
▷ Press the front/rear section of
the switch.
The curvature is increased/ decreased.
▷ Press the upper/lower sec‐
tion of the switch.
The curvature is shifted up/ down.
Shoulder support
5. Thigh support.
Also supports the back in the shoulder area:
▷ Results in a relaxed seating position.
▷ Reduces strain on the shoulder muscles.
Active seat
Active adjustment of the seat cushion's con‐ tours reduces muscular tension and fatigue to help prevent lower back pain.
53
Page 54
Controls Adjusting
Press the button. The LED lights up.
Front seat heating
Switching on
Press the button once for each temper‐ ature level.
The maximum temperature is reached when three LEDs are lit.
If the drive is continued within approx. 15 mi‐ nutes, the seat heating is activated automati‐ cally with the temperature selected last.
When ECO PRO, refer to page 167, is activated, the heater output is reduced.
Switching off
Press the button longer.
The LEDs go out.
Temperature distribution
The heating action in the seat cushion and back‐ rest can be distributed in different ways.
"Climate"
1.
2. "Seat heating distribution"
3. Select the required seat.
4. Turn the controller to set the temperature
distribution.
Rear seat heating
Switching on
Press the button once for each temper‐ ature level.
The maximum temperature is reached when three LEDs are lit.
If the drive is continued within approx. 15 mi‐ nutes, the seat heating is activated automati‐ cally with the temperature selected last.
When ECO PRO, refer to page 167, is activated, the heater output is reduced.
Switching off
Press the button longer.
The LEDs go out.
54
Active seat ventilation, front
The seat cushion and backrest surfaces are cooled by means of integrated fans.
Page 55
Adjusting Controls
The ventilation cools the seat, e. g., if the vehicle interior is overheated or for continuous cooling at high temperatures.
Switching on
Press the button once for each ventila‐ tion level.
The highest level is active when three LEDs are lit.
If when the seat ventilation is turned on the Max‐ imum Cooling function is activated, the seat ventilation automatically switches to the highest level. When the Maximum Cooling function is switched off, the unit switches back to the pre‐ viously set level.
After a short time, the system automatically moves down one level in order to prevent ex‐ cessive cooling.
Switching off
Press the button longer.
The LEDs go out.

Safety belts

Although airbags enhance safety by providing added protection, they are not a substitute for safety belts.
▷ The shoulder strap's anchorage point will be
correct for adult seat occupants of every build if the seat is correctly adjusted.
▷ The two outer safety belt buckles,
integrated into the rear seat, are for passen‐ gers sitting on the left and right.
▷ The center rear seat belt buckle is solely in‐
tended for the center passenger.
One person per safety belt
Never allow more than one person to wear a single safety belt. Never allow infants or small children to ride on a passenger's lap.◀
Putting on the belt
Lay the belt, without twisting, snugly across the lap and shoulders, as close to the body as possible. Make sure that the belt lies low around the hips in the lap area and does not press on the abdomen. Otherwise, the belt can slip over the hips in the lap area in a frontal im‐ pact and injure the abdomen.
The safety belt must not lie across the neck, rub on sharp edges, be routed over solid or breaka‐ ble objects, or be pinched.◀
Reduction of restraining effect
Avoid wearing clothing that prevents the belt from fitting properly, and pull the shoulder belt periodically to readjust the tension across your lap; otherwise, the retention effect of the safety belt may be reduced.◀
Seats with safety belt
The vehicle has five seats, each of which is equipped with a safety belt.
Notes
Always make sure that safety belts are being worn by all occupants before driving away.
55
Page 56
Controls Adjusting
Buckling the belt
Make sure you hear the latch plate engage in the belt buckle.
Unbuckling the belt
Hold the belt firmly.
1.
2. Press the red button in the belt buckle.
3. Guide the belt back into its reel.
Safety belt reminder for driver's seat and front passenger seat
The indicator lamp flashes or lights up and a signal sounds. Make sure that the
safety belts are positioned correctly. The safety belt reminder is active at speeds above approx. 5 mph/8 km/h. It can also be ac‐ tivated if objects are placed on the front pas‐ senger seat.
Damage to safety belts
In the case of strain caused by accidents or damage:
Have the safety belts, including the safety belt tensioners, replaced and have the belt anchors checked.
Checking and replacing safety belts
Have the work performed only by your service center; otherwise, it cannot be ensured that this safety feature will function properly.◀

Front head restraints

Correctly adjusted head restraint
A correctly adjusted head restraint reduces the risk of injury to cervical vertebrae in the event of an accident.
Adjusting the head restraint
Correctly adjust the head restraints of all occupied seats; otherwise, there is an increased risk of injury in an accident.◀
Height
Adjust the head restraint so that its center is ap‐ proximately at ear level.
Distance
Adjust the distance so that the head restraint is as close as possible to the back of the head.
Active head restraint
In the event of a rear-end collision with a certain severity, the active head restraint automatically reduces the distance from the head.
Reduced protective function
▷ Do not use seat or head restraint cov‐
ers.
▷ Do not hang objects, e.g., clothes hangers,
on the head restraints.
▷ Only attach accessories approved by BMW
to the seat or head restraint.
Otherwise, the protective function of the active head restraint will be impaired and the personal safety of the occupants will be endangered.◀
56
Page 57
Adjusting Controls
Adjusting the height: manual head restraints
▷ To raise: pull.
▷ To lower: press the button, arrow 1, and
push the head restraint down.
Adjusting the height: electrical head restraints
Adjusting electrically.
Distance to back of head: manual head restraints
Distance to back of head: electrical head restraints
The head restraint is automatically repositioned when the shoulder support is adjusted.
Adjusting the side extensions
Fold forward for increased lateral support in the resting position.
Removing
The head restraints cannot be removed.

Rear head restraints

Correctly adjusted head restraint
A correctly adjusted head restraint reduces the risk of injury to cervical vertebrae in the event of an accident.
Adjusting the head restraint
Correctly adjust the head restraints of all occupied seats; otherwise, there is an increased risk of injury in an accident.◀
▷ Forward: by pulling
▷ Back: press the button and push the head
restraint toward the rear.
Height
Adjust the head restraint so that its center is ap‐ proximately at ear level.
Distance
Adjust the distance so that the head restraint is as close as possible to the back of the head.
57
Page 58
Controls Adjusting
Adjusting the height
▷ To raise: pull.
▷ To lower: press the button, arrow 1, and
push the head restraint down.
Folding forward
Press the button, arrow 1, and fold the head re‐ straint forward.
Removing
Only remove the head restraint if no one will be sitting in the seat in question.
2. Press the button, arrow 1, and pull the head
restraint out completely.
Before transporting passengers
Reinstall the head restraint before trans‐ porting anyone in the seat; otherwise, the pro‐ tective function of the head restraint is unavail‐ able.◀

Seat, mirror, and steering wheel memory

General information
Front
Two different driver's seat, exterior mirror, and steering wheel positions can be stored and re‐ trieved for each remote control. The adjustment of the lumbar support is not stored.
Storing
Switch on the ignition.
1.
2. Set the desired position.
Pull the head restraint upward as far as pos‐
1.
sible.
58
3.
4. Press the desired button 1 or 2. The LED
If the M button is pressed accidentally:
Press the button. The LED in the
button lights up.
goes out.
Press the button again.
The LED goes out.
Page 59
Adjusting Controls
Calling up settings
Do not retrieve the memory while driving
Do not retrieve the memory setting while driving, as an unexpected movement of the seat or steering wheel could result in an accident.◀
Comfort function
1. Open the driver's door.
2. Switch off the ignition.
3. Briefly press the desired button 1 or 2.
The corresponding seat position is performed automatically.
The procedure stops when a switch for adjust‐ ing the seat or one of the buttons is pressed.
Safety mode
Close the driver's door or switch on the ig‐
1.
nition.
2. Press and hold the desired button 1 or 2 until
the adjustment procedure is completed.
Calling up of a seat position deactivated
After a brief period, the calling up of stored seat positions is deactivated to save battery power.
To reactivate calling up of a seat position:
▷ Open or close the door or trunk lid.
▷ Press a button on the remote control.
▷ Press the Start/Stop button.

Mirrors

Exterior mirrors
At a glance
1 Adjusting
2 Left/right, Automatic Curb Monitor
3 Fold in and out
General information
The mirror on the passenger side is more curved than the driver's side mirror.
Estimating distances correctly
Objects reflected in the mirror are closer than they appear. Do not estimate the distance to the traffic behind you based on what you see in the mirror, as this will increase your risk of an accident.◀
Depending on how the vehicle is equipped, the mirror setting is stored for the remote control in use. When the vehicle is unlocked via the remote control, the position is automatically retrieved if the setting for this function is active.
Selecting a mirror
To change over to the other mirror:
Slide the mirror changeover switch.
Adjusting electrically
The setting corresponds to the direction in which the button is pressed.
59
Page 60
Controls Adjusting
Saving positions
Seat, mirror, and steering wheel memory, refer to page 58.
Adjusting manually
If an electrical malfunction occurs, for example, press the edges of the mirror glass.
Automatic Curb Monitor
When the reverse gear is engaged, the mirror glass tilts downward slightly on the front pas‐ senger side. This improves your view of the curb and other low-lying obstacles when parking, for example.
Activating
1. Slide the mirror changeover switch
to the driver's side mirror position.
2. Engage transmission position R.
Deactivating
Slide the mirror changeover switch to the pas‐ senger's side mirror position.
Fold in and out
Press the button.
Possible up to approx. 15 mph/20 km/h.
For example, this is advantageous
▷ In car washes.
▷ In narrow streets.
▷ For folding back mirrors that were folded
away manually.
Mirrors that were folded in are folded out auto‐ matically at a speed of approx. 25 mph/40 km/h.
Fold in the mirror in a car wash
Before entering an automatic car wash, fold in the exterior mirrors by hand or with the button; otherwise, they could be damaged, de‐ pending on the width of the vehicle.◀
Automatic heating
Both exterior mirrors are automatically heated whenever the engine is running.
Automatic dimming feature
Both exterior mirrors are automatically dimmed. Photocells are used for control in the Interior rear view mirror, refer to page 60.
Interior rearview mirror
Reducing the blinding effect
From behind when driving at night: turn the knob.
Interior rearview mirror, automatic dimming feature
The concept
Photocells are used for control:
▷ In the mirror glass.
▷ On the back of the mirror.
60
Page 61
Adjusting Controls
Functional requirement
For proper operation:
▷ Keep the photocells clean.
▷ Do not cover the area between the inside
rearview mirror and the windshield.

Steering wheel

General information
Do not adjust while driving
Do not adjust the steering wheel while driving; otherwise, an unexpected movement could result in an accident.◀
Manual steering wheel adjustment
Power steering wheel adjustment
The steering wheel can be adjusted in four di‐ rections.
Storing the position
Seat, mirror, and steering wheel memory, refer to page 58.
Steering wheel heating
Fold the lever down.
1.
2. Move the steering wheel to the preferred
height and angle to suit your seating posi‐ tion.
3. Fold the lever back.
Switching on/off
Press the button.
▷ On: the LED lights up.
▷ Off: the LED goes out.
61
Page 62
Controls Transporting children safely

Transporting children safely

Vehicle equipment

All standard, country-specific and optional equipment that is offered in the model series is described in this chapter. Therefore, equipment is also described that is not available in a vehicle, e. g., because of the selected optional equip‐ ment or country variant. This also applies for safety-related functions and systems.

The right place for children

Note
Children in the vehicle
Do not leave children unattended in the vehicle; otherwise, they could endanger them‐ selves and other persons, e.g., by opening the doors.◀
Children should always be in the rear
Accident research shows that the safest place for children is in the back seat.
Transporting children in the rear
Only transport children younger than 13 years of age or shorter than 5 ft/150 cm in the rear in child restraint fixing systems provided in accordance with the age, weight and size of the child; otherwise, there is an increased risk of in‐ jury in an accident.
Children 13 years of age or older must wear a safety belt as soon as a suitable child restraint fixing system can no longer be used, due to their age, weight and size.◀
Children on the front passenger seat
Should it ever be necessary to use a child re‐ straint fixing system in the front passenger seat, make sure that the front, knee and side airbags on the front passenger side are deactivated. Au‐
tomatic deactivation of front passenger airbags, refer to page 101.
Note
Deactivated front passenger airbags
If a child restraint fixing system is used in the front passenger seat, the front passenger airbags must be deactivated; otherwise, there is an increased risk of injury to the child when the airbags are triggered, even with a child restraint fixing system.◀

Installing child restraint fixing systems

Before mounting
If the rear seat backrests are adjustable or can be folded down:
Lock the rear seat backrests in position
Before mounting child restraint fixing sys‐ tems, place the seat backrest as far as possible at an angle at which the child seat is resting firmly against the backrest and all backrests can be locked securely in place. Otherwise, the child seat will not be as stable as it should be, and there is increased danger of injury due to unex‐ pected movement of the seat backrest.◀
Notes
Manufacturer's information for child re‐
straint fixing systems
To select, mount and use child restraint fixing systems, observe the information provided by the system manufacturer; otherwise, the pro‐ tective effect can be impaired.◀
62
Page 63
Transporting children safely Controls
On the front passenger seat
Deactivating airbags
After installing a child restraint fixing system in the front passenger seat, make sure that the front, knee and side airbags on the front pas‐ senger side are deactivated.
Deactivate the front passenger airbags auto‐ matically, refer to page 101
Deactivating the front passenger airbags
If a child restraint fixing system is used in the front passenger seat, the front passenger airbags must be deactivated; otherwise, there is an increased risk of injury to the child when the airbags are triggered, even with a child restraint fixing system.◀
Seat position and height
Before installing a child restraint fixing system, move the front passenger seat as far back as possible and bring it up to medium height to ob‐ tain the best possible position for the belt and to offer optimal protection in the event of an acci‐ dent.
Do not change the seat position and height after this.
Child seat security
The rear safety belts and the front passenger safety belt can be locked against pulling out for mounting the child restraint fixing systems.
Locking the safety belt
1. Pull out the belt webbing completely.
2. Secure the child restraint fixing system with
the belt.
3. Allow the belt webbing to be pulled in and
pull it taut against the child restraint fixing system. The safety belt is locked.
Unlocking the safety belt
1. Unbuckle the belt buckle.
2. Remove the child restraint fixing system.
3. Allow the belt webbing to be pulled in com‐
pletely.

LATCH child restraint fixing system

LATCH: Lower Anchors and Tether for Children.
Note
Manufacturer's information for LATCH child restraint fixing systems
To mount and use the LATCH child restraint fix‐ ing systems, observe the operating and safety information from the system manufacturer; oth‐ erwise, the level of protection may be reduced.◀
Mounts for the lower LATCH anchors
The lower anchors may be used to attach the CRS to the vehicle seat up to a combined child and CRS weight of 65 lb when the child is restr­ained by the internal harnesses.
Correctly engage the lower LATCH an‐ chors
Make sure that the lower LATCH anchors have properly engaged and that the child restraint fix‐ ing system is resting snugly against the back‐ rest; otherwise, the degree of protection offered may be reduced.◀
63
Page 64
Controls Transporting children safely
Before mounting the LATCH child restraint fix‐ ing system, pull the belt away from the child re‐ straint fixing system.
Position
Mounts for the lower LATCH anchors are lo‐ cated in the gap between the seat and backrest.
Mounting ISOFIX child restraint fixing systems
Mount the child restraint fixing system; refer
1.
to the user's manual of the system.
2. Ensure that both LATCH anchors are prop‐
erly connected.
Child restraint fixing systems with a tether strap
Mounting points
LATCH mounting eyes
Only use the mounting eyes for the upper LATCH retaining strap to secure child restraint fixing systems; otherwise, the mounting eyes could be damaged.◀
Retaining strap guide
Retaining strap
Make sure the upper retaining strap does not run over sharp edges and is not twisted as it passes to the top anchor. Otherwise, the strap will not properly secure the child restraint fixing system in the event of an accident.◀
1 Direction of travel
2 Head restraint.
3 Hook for upper retaining strap
4 Mounting point/eye
5 Rear window shelf
6 Seat backrest
7 Upper retaining strap
Depending on the vehicle equipment, there are two outer or three mounting points for child re‐ straint fixing systems with a tether strap.
64
Attaching the upper retaining strap to the mounting point
Remove the mounting point cover.
1.
2. Raise the head restraint. Do not change the
middle head restraint.
3. Guide the upper retaining strap between the
supports of the head restraint.
Guide it over the head restraint of the middle seat.
Page 65
Transporting children safely Controls
4. Attach the hook of the retaining strap to the
mounting eye.
5. Tighten the retaining strap by pulling it
down.
6. Lower and lock head restraints as needed.

Locking the doors and windows

Rear doors
Push the locking lever on the rear doors down.
The door can now be opened from the outside only.
Safety switch for the rear
Press the button on the driver's door if children are being transported in the
rear.
This locks various functions so that they cannot be operated from the rear: safety switch, refer to page 48.
65
Page 66
Controls Driving

Driving

Vehicle equipment

All standard, country-specific and optional equipment that is offered in the model series is described in this chapter. Therefore, equipment is also described that is not available in a vehicle, e. g., because of the selected optional equip‐ ment or country variant. This also applies for safety-related functions and systems.

Start/Stop button, drive readiness states

The concept
The following ready states can be attained by pressing the Start/ Stop button:
▷ Radio ready state on/off.
▷ Ignition on/off.
▷ Activating/deactivating drive readiness.
To activate drive readiness, press the brake pedal.
Switching radio ready state on/off
The radio ready state is activated by pressing the Start/Stop button in the following situations:
▷ When the engine is running.
▷ When the engine is switched off automati‐
cally using the Auto Start/Stop function and the brake is not applied.
Some electronic systems/power consumers re‐ main ready for operation.
Radio ready state is switched off automatically:
▷ After approx. 8 minutes.
▷ When the vehicle is locked using the central
locking system.
▷ Shortly before the battery is discharged
completely, so that the engine can still be started.
Ignition on
Press the Start/Stop button, and do not press on the brake pedal at the same time.
All vehicle systems are ready for operation.
Most of the indicator and warning lamps in the instrument cluster light up for varying lengths of time.
To save battery power when the engine is off, switch off the ignition and any unnecessary electronic systems/power consumers.
The ignition is switched off automatically in the following situations:
▷ When locking the vehicle, if the low beams
are switched on.
▷ Shortly before the battery is discharged
completely, so that the engine can still be started.
Note
If the engine is switched off and the ignition is switched on, the system automatically switches to the radio ready state when the door is opened if the lights are switched off or the daytime run‐ ning lights are switched on.
Ignition off
Press the Start/Stop button again, and do not press on the brake pedal at the same time.
All indicator lamps in the instrument cluster go out.
To save battery power when the engine is off, switch off the ignition and any unnecessary electronic systems/power consumers.
66
Page 67
Driving Controls
Transmission position P with the ignition off
When the ignition is switched off, position P is engaged automatically. When in an automatic car wash, for example, ensure that the ignition is not switched off accidentally.◀
The ignition is switched off automatically in the following situations while the vehicle is station‐ ary and the engine is off:
▷ When locking the vehicle, and when the low
beams are activated.
▷ Shortly before the battery is discharged
completely, so that the engine can still be started. This function is only available when the low beams are switched off.
▷ When opening and closing the driver door, if
the driver's seat belt is unbuckled and the low beams are switched off.
▷ While the driver's seat belt is unbuckled, if
the driver's door is open and the low beams are switched off.
When the ignition is switched off, by opening or closing the driver's door or unbuckling the driv‐ er's seat belt, the radio ready state remains ac‐ tive.
Drive readiness
When drive readiness is activated, the vehicle is operational. Activated drive readiness is the equivalent of a running engine in conventional vehicles. Deactivated engine readiness is equiv‐ alent to switching the ignition off.
The following are the different drive readiness variants:
▷ Electric driving, refer to page 69:
The combustion engine is not switched on.
▷ Driving with the combustion engine, refer to
page 69:
The vehicle is powered by the combustion engine.

Drive readiness in detail

General information
Do not leave the vehicle unattended
Do not leave the vehicle unattended with drive readiness active; otherwise, it presents a potential source of danger.◀
Activating drive readiness
1. Close the driver's door.
2. Depress the brake pedal.
3. Press the Start/Stop button.
Drive readiness is activated:
▷ Starting the combustion engine or
▷ Electric drive readiness, Silent Start.
Electric drive readiness, Silent Start
The vehicle is ready for driving without starting the combustion engine.
Silent Start is possible after activating radio ready state if the conditions for electric driving, refer to page 69, have been met.
Display
The READY display indicates that the vehicle is ready for driv‐ ing.
Awareness of vehicle reduced when
driven in electric mode
When driving in electric mode, note that due to the lack of engine noise pedestrians and other road users will not be as aware of the vehicle as they usually would with a conventional engine. For instance, pay particular attention when ma‐ neuvering into and out of a parking space.◀
67
Page 68
Controls Driving
Starting the combustion engine
Enclosed areas
Do not let the engine run in enclosed areas; otherwise, breathing of exhaust fumes may lead to loss of consciousness and death. The exhaust gases contain carbon monoxide, an odorless and colorless but highly toxic gas.◀
Unattended vehicle
Do not leave the vehicle unattended with the engine running; doing so poses a risk of dan‐ ger.
Before leaving the vehicle with the engine run‐ ning, set the parking brake and place the trans‐ mission in position P or neutral to prevent the vehicle from moving.◀
Repeated starting in quick succession
Avoid repeated unsuccessful attempts to start the vehicle or starting the vehicle several times in quick succession. Otherwise, the fuel is not burned or is inadequately burned, posing a risk of overheating and damage to the catalytic converter.◀
The combustion engine is started with Activate drive, refer to page 67, readiness under the fol‐ lowing conditions:
▷ The drive system is not at operating tem‐
perature.
▷ The temperature of the hybrid system is too
high.
▷ The high-voltage battery has an insufficient
charge.
Driving away
Activate drive readiness.
1.
2. Select transmission position D, M/S or R.
3. Release the parking brake.
4. Drive away.
Deactivating drive readiness
After parking the vehicle, you may hear noises due to operation of the hybrid system, such as for cooling of the high-voltage battery.
After stopping the vehicle:
1. Select transmission position P.
2. Press the Start/Stop button.
3. Set the parking brake.
Before driving into a car wash
In order for the vehicle to be able to roll into a car wash, heed the information regarding Washing in automatic car washes, refer to page 204.

Auto Start/Stop function

The concept
The Auto Start/Stop function helps save fuel. The system switches off the combustion engine when conditions for electric driving, refer to page 69, have been met. The ignition remains switched on.
The tachometer registers 0 rpm. If necessary, the combustion engine starts automatically.
The combustion engine is also stopped during the trip when braking or coasting. This driving condition, in which the vehicle is traveling with‐ out power and energy recovery is not active, is referred to as coasting, refer to page 69.
Note
The combustion engine is not switched off au‐ tomatically in the following situations:
▷ The combustion engine is not yet at oper‐
ating temperature.
▷ The transmission selector lever is in position
M/S.
▷ The high-voltage battery charge is very low
or there is a high load on the vehicle electri‐ cal system, for instance due to a high load from automatic climate control.
68
Page 69
Driving Controls
▷ The interior is in the heating or cooling
phase.
▷ The engine compartment lid is unlocked.
▷ The vehicle is being optimized for the cur‐
rent driving style, for instance during the breaking-in period or after a service appoint‐ ment.
▷ There are hybrid system faults.
Safety mode
The combustion engine does not start automat‐ ically in the following situations after an auto‐ matic engine stop:
▷ When the driver's door is open and neither
the brake nor accelerator pedal are de‐ pressed.
▷ When the hood is unlocked.
The indicator lamps come on. The combustion engine can only be started via the Start/Stop button.
Switching off the vehicle during an automatic engine stop
During an automatic engine stop, the vehicle can be switched off permanently, e.g., when leaving it.
Press the Start/Stop button. The ignition is
1.
switched off. The Auto Start/Stop function is deactivated.
Transmission position P is engaged auto‐ matically.
2. Set the parking brake.
Malfunction
The Auto Start/Stop function no longer switches of the engine automatically in the event of a malfunction. A message is displayed. It is possible to continue driving. Have the system checked.

Electric driving: eDRIVE

Requirements
Electric driving is possible under the following conditions:
▷ Speed up to approx. 35 mph, approx.
60 km/h.
▷ The high-voltage battery is sufficiently
charged.
▷ Transmission position D or R is engaged.
▷ The drive system is at operating tempera‐
ture.
▷ The accelerator pedal is only slightly de‐
pressed.
▷ The driver's door is closed.
Possible cruising range
Depending on the charge of the high-voltage battery, the vehicle can be driven using electric power constantly for up to 2-2.5 miles/3-4 km.
Coasting
Under the conditions for electric driving, the combustion engine is also switched off during braking above 50 mph, approx. 80 km/h or when coasting above 35 mph, approx. 60 km/h.
This driving condition is referred to as coasting.
In ECO PRO mode, it is possible to coast below a speed of 100 mph, approx. 160 km/h.

Driving with the combustion engine: DRIVE

The combustion engine provides the drive power to move the vehicle. If necessary, the high-voltage battery is charged at the same time.
Automatic start while driving
The combustion engine is automatically started under the following conditions while driving:
69
Page 70
Controls Driving
▷ Transmission position M/S is engaged.
▷ The speed for electric driving is exceeded
while accelerating.
▷ The high-voltage battery charge is insuffi‐
cient or it is fully charged, such as when driv‐ ing downhill.
▷ The required power output is increased,
such as due to the accelerator pedal position or driving uphill.
▷ System-related requirement for hybrid
components.
▷ Preparation for an upcoming route section
with activated destination guidance.
Automatic stopping while driving
When reducing speed, the combustion engine is switched off when the conditions for electric driving, refer to page 69, are met.

Assistance for the combustion engine

The combustion engine provides the primary drive power to move the vehicle.
The electric motor provides assistance as needed with additional propulsive power.
ing and coasting. This recovered energy charges the high voltage battery. If necessary, this stored electrical energy is output to the electric motor.
The following conditions must be met to recover kinetic energy:
▷ The vehicle is moving.
▷ Transmission position D, M/S is engaged.
▷ The high-voltage battery is not fully
charged.
Energy recovery displays in the instrument clus‐ ter, refer to page 85.

Parking brake

The concept
The parking brake is used to prevent the vehicle from rolling when it is parked.
ASSIST
During normal vehicle operation, the electric motor assists the combustion engine, depend‐ ing on the situation.
eBOOST
Accelerating quickly, such as when passing, re‐ quires the maximum available power from the electric motor. To do this, apply extra force to the accelerator pedal.

Energy recovery: CHARGE

The hybrid system makes it possible to convert kinetic energy into electrical power when brak‐
70
Setting
Pull the switch.
The LED lights up.
The indicator lamp lights up red. The parking brake is set.
Lower lamp: indicator lamp in Canadian models
Set the parking brake and further secure the vehicle as required
Set the parking brake firmly when parking; oth‐ erwise, the vehicle could roll. On steep upward and downward inclines, further secure the vehi‐
Page 71
Driving Controls
cle, for example, by turning the steering wheel in the direction of the curb. ◀
While driving
Use while driving serves as an emergency brak‐ ing function:
Pull the switch and hold it. The vehicle brakes hard while the button is being pulled.
The indicator lamp lights up red, a signal sounds and the brake lamps light up.
Lower lamp: indicator lamp in Canadian models.
If the vehicle is braked to a speed of approx. 2 mph/3 km/h, the parking brake remains set.
Releasing
With the ignition switched on:
Automatic transmission: Press the switch while the brake is pressed or transmission
position P is engaged.
The LED and indicator lamp go out.
The parking brake is released.
Automatic Release in cars with automatic transmission
For automatic release, operate the accelerator pedal.
The LED and indicator lamp go out.
Subject to the following requirements, the park‐ ing brake is automatically released by operation of the accelerator pedal:
▷ Drive readiness on.
▷ Drive position engaged.
▷ Driver buckled in and doors closed.
Inadvertent operation of the accelerator pedal
Make sure that the accelerator pedal is not op‐ erated unintentionally; otherwise, the vehicle is set in motion and there is a risk of an accident.◀
Automatic Hold
The concept
This system assists the driver by automatically setting and releasing the brake, such as when moving in stop-and-go traffic.
The vehicle is automatically held in place when it is stationary.
On inclines, the system prevents the vehicle from rolling backward when driving away.
For your safety
Under the following conditions, Automatic Hold is automatically deactivated and the parking brake is set:
▷ The engine is switched off.
▷ A door is opened and driver's safety belt is
unbuckled while the vehicle is stationary.
▷ The moving vehicle is brought to a standstill
using the parking brake.
The indicator lamp switches from green to red and the letters AUTO H go out.
Lower lamp: indicator lamp in Canadian models.
Leaving the vehicle with the engine run‐ ning
Before leaving the vehicle with the engine run‐ ning, engage position P of the automatic trans‐ mission and ensure that the parking brake is set. Otherwise, the vehicle may begin to roll.◀
71
Page 72
Controls Driving
Activating
This function can be activated when the driver's door is closed and the safety belt is fastened, and while driving.
Press the button.
The LED and the letters AUTO H light
up.
The indicator lamp lights up.
Automatic Hold is activated.
Deactivating
Press the button again.
The LED and the letters AUTO H go
out.
Automatic Hold is deactivated.
If the vehicle is being held by Automatic Hold, press on the brake pedal to deactivate it.
When the parking brake is set manually, Auto‐ matic Hold is deactivated automatically.
Driving
Automatic Hold is activated: the vehicle is auto‐ matically secured against rolling when it stops.
The indicator lamp lights up green.
Step on the accelerator pedal to drive off.
The brake is released automatically.
The indicator lamp goes out.
Lower lamp: indicator lamp in Canadian models
Parking
The parking brake is automatically set if the en‐ gine is switched off while the vehicle is being held by Automatic Hold.
The indicator lamp changes from green to red.
The parking brake is not set if the engine is switched off while the vehicle is coast‐ ing to a halt. Automatic Hold is deacti‐
vated.
Lower lamp: indicator lamp in Canadian models
Take the remote control with you
Take the remote control with you when leaving the vehicle so that children, for example, cannot release the parking brake.◀
Malfunction
In the event of a failure or malfunction of the parking brake, secure the vehicle against rolling using a wheel chock, for example, when leaving it.

Turn signal, high beams, headlamp flasher

Turn signal
Using turn signals
Before driving into a car wash
Deactivate Automatic Hold; otherwise, the parking brake will be set when the vehicle is sta‐ tionary and the vehicle will no longer be able to roll.◀
72
Press the lever beyond the resistance point.
To switch off manually, press the lever to the re‐ sistance point.
Page 73
Driving Controls
Unusually rapid flashing of the indicator lamp in‐ dicates that a turn signal bulb has failed.
Triple turn signal activation
Press the lever to the resistance point.
The turn signal flashes three times.
The function can be activated or deactivated:
1. "Settings"
2. "Lighting"
3. "Triple turn signal"
Signaling briefly
Press the lever to the resistance point and hold it there for as long as you want the turn signal to flash.

Washer/wiper system

Switching the wipers on/off and brief wipe
Do not switch on the wipers if frozen
Do not switch on the wipers if they are fro‐ zen onto the windshield; otherwise, the wiper blades and the windshield wiper motor may be damaged.◀
No wiper operation on dry windshield
Do not use the windshield wipers if the windshield is dry, as this may damage the wiper blades or cause them to become worn more quickly.◀
Switching on
High beams, headlamp flasher
▷ High beams, arrow 1.
▷ Headlamp flasher, arrow 2.
Press the wiper levers up.
The lever automatically returns to its initial po‐ sition when released.
▷ Normal wiping speed: press up once.
The wipers switch to intermittent operation when the vehicle is stationary.
▷ Fast wiping speed: press up twice or press
once beyond the resistance point.
The wipers switch to normal speed when the vehicle is stationary.
73
Page 74
Controls Driving
Switching off and brief wipe
Press the wiper levers down.
The lever automatically returns to its initial po‐ sition when released.
▷ Brief wipe: press down once.
▷ To switch off normal wipe: press down once.
▷ To switch off fast wipe: press down twice.
Rain sensor
The concept
The rain sensor automatically controls the time between wipes depending on the intensity of the rainfall. The sensor is located on the wind‐ shield, directly behind the interior rearview mir‐ ror.
Deactivate the rain sensor in car washes
Deactivate the rain sensor when passing through an automatic car wash; otherwise, dam‐ age could be caused by undesired wiper activa‐ tion.◀
Rain sensor, sensitivity
Turn the thumbwheel.
Clean the windshield, headlamps
Activating/deactivating
Press the button on the wiper lever.
The LED in the wiper lever lights up and a wiping operation is started. At temperatures below 32 ℉/0 ℃, a wiping operation is not started.
74
Pull the wiper lever.
The system sprays washer fluid on the wind‐ shield and activates the wipers briefly.
In addition, the headlamps are cleaned at regular intervals when the vehicle lights are switched on.
Do not use the washer system at freezing
temperatures
Do not use the washers if there is any danger that the fluid will freeze on the windshield; oth‐ erwise, your vision could be obscured. For this reason, use antifreeze.
Page 75
Driving Controls
Avoid using the washer when the reservoir is empty; otherwise, you could damage the pump.◀
Windshield washer nozzles
The windshield washer nozzles are automati‐ cally heated while the ignition is switched on.
Fold-out position of the wipers
Required when changing the wiper blades or under frosty conditions, for example.
1. Switch the ignition on and off again.
2. Under frosty conditions, ensure that the
wiper blades are not frozen onto the wind‐ shield.
3. Press the wiper lever up beyond the point of
resistance and hold it for approx. 3 seconds, until the wiper remains in a nearly vertical position.
After the wipers are folded back down, the wiper system must be reactivated.
Fold the wipers back down
Before switching the ignition on, fold the wipers back down to the windshield; otherwise, the wipers may become damaged when they are switched on.◀
Switch on the ignition.
1.
2. Press the wiper levers down. The wipers
move to their resting position and are ready for operation.

Washer fluid

General information
Antifreeze for washer fluid
Antifreeze is flammable and can cause in‐ jury if it is used incorrectly.
Therefore, keep it away from sources of ignition.
Only keep it in the closed original container and inaccessible to children.
Follow the notes and instructions on the con‐ tainer.
United States: The washer fluid mixture ratio is regulated by the U.S. EPA and many individual states; do not exceed the allowable washer fluid dilution ratios limits that apply. Follow the usage instructions on the washer fluid container. Use BMW’s Windshield Washer Concentrate or the equivalent.◀
Washer fluid reservoir
Adding washer fluid
Only add washer fluid when the engine is cool, and then close the cover completely to avoid contact between the washer fluid and hot engine parts.
Otherwise, there is the danger of fire and a risk to personal safety if the fluid is spilled.◀
All washer nozzles are supplied from one reser‐ voir.
Fill with a mixture of windshield washer concen‐ trate and water and – if required – with a washer antifreeze, according to the manufacturer's rec‐ ommendations.
Mix the washer fluid before adding to maintain the correct mixing ratio.
Do not add windshield washer concentrate un‐ diluted and do not fill with pure water; this could damage the wiper system.
Do not fill with undiluted antifreeze.
For the capacity, refer to technical data.
75
Page 76
Controls Driving

Automatic transmission with Steptronic

Transmission positions
D Drive, automatic position
Position for normal vehicle operation. All for‐ ward gears are available.
R is Reverse
Select only when the vehicle is stationary.
N is Neutral
Use in automatic car washes, for example. The vehicle can roll.
When the ignition is switched off, refer to page 66, position P is engaged automatically.
P Park
Select only when the vehicle is stationary. The drive wheels are blocked.
P is engaged automatically:
▷ After deactivating drive readiness when the
vehicle is in radio ready state, refer to page 66, or when the ignition is switched off, refer to page 66, and when position R or D is engaged.
▷ With the ignition is off, if position N is en‐
gaged.
▷ If the safety belt is unbuckled, the driver's
door is opened, and the brake pedal is not pressed while the vehicle is stationary and transmission position R or D is engaged.
Before exiting the vehicle, make sure that posi‐ tion P of the automatic transmission is engaged. Otherwise, the vehicle may begin to roll.
Engaging the transmission position
▷ Transmission position P can only be disen‐
gaged when the vehicle drive readiness is engaged and the brake pedal is depressed.
▷ With the vehicle stationary, press on the
brake pedal before shifting out of P or N; otherwise, the shift command will not be executed: shift lock.
Depress the brake until you start driv‐
ing
To prevent the vehicle from creeping after you select a driving position, maintain pres‐ sure on the brake pedal until you are ready to start.◀
Engaging D, R and N
Briefly push the selector lever in the desired di‐ rection, beyond a resistance point if necessary.
After releasing the selector lever, it returns to its center position.
Kickdown
Kickdown is used to achieve maximum driving performance. Press on the gas pedal beyond the resistance point at the full throttle position.
76
Press unlock button, in order to:
▷ Engage R.
▷ Shift out of P.
Page 77
Driving Controls
Engaging P
Press button P.
Sport program DS and manual mode M/ S
Activating the sport program
Push the selector lever to the left out of trans‐ mission position D.
DS is displayed in the instrument cluster.
The sport program of the transmission is acti‐ vated.
EDRIVE electric driving and the Auto Start Stop function are deactivated. Coasting to a standstill and braking phases will be used more often to recover energy. The high voltage battery will be charged more quickly.
Activating the M/S manual mode
Push the selector lever to the left out of
1.
transmission position D.
2. Push the selector lever forward or backward.
Manual mode becomes active and the gear is changed.
The engaged gear is displayed in the instrument cluster, e.g., M1.
Once maximum engine speed is attained, M/S manual mode is automatically upshifted as needed.
Switching to manual mode
▷ To shift down: press the selector lever for‐
ward.
▷ To shift up: pull the selector lever rearwards.
Gears will only be shifted at appropriate engine and road speeds, e.g., downshifting is not pos‐ sible if the engine speed is too high.
The selected gear is briefly displayed in the in‐ strument cluster, followed by the current gear.
Sport automatic transmissions: prevent automatic upshifting in M/S manual mode
For vehicles with Sport automatic transmis‐ sions, automatic shift operations are not per‐ formed, at maximum engine speed for example, if one of the following conditions is met:
▷ DSC deactivated.
▷ TRACTION activated.
▷ SPORT+ activated.
In addition, the kickdown is deactivated.
Once maximum engine speed is attained, up‐ shifting is not automatically performed in M/S manual mode.
In addition, the kickdown is deactivated.
The lowest possible gear is selected by simul‐ taneously operating the kickdown and the left shift paddle.
However, this effect is not produced via the shift paddles when switching briefly from transmis‐ sion position D to manual mode.
77
Page 78
Controls Driving
Ending the sport program/manual mode
Push the selector lever to the right.
D is displayed in the instrument cluster.
Shift paddles for Sport automatic transmission
The shift paddles on the steering wheel allow you to shift gears quickly while keeping both hands on the steering wheel.
If the shift paddles on the steering wheel are used to shift gears in automatic mode, the trans‐ mission temporarily switches to manual mode.
If the shift paddles are not used and the vehicle is not accelerated for a certain time, the system switches back into automatic mode if the selec‐ tor lever is in transmission position D.
▷ Shift up: pull right shift paddle.
▷ Shift down: pull left shift paddle.
The vehicle only shifts up or down at appropriate engine and road speeds, e.g., it does not shift down if the engine speed is too high.
The selected gear is briefly displayed in the in‐ strument cluster, followed by the current gear.
Displays in the instrument cluster
The transmission position is dis‐ played, e.g.: P.
78
Page 79

Displays

Displays Controls

Vehicle equipment

All standard, country-specific and optional equipment that is offered in the model series is described in this chapter. Therefore, equipment

Instrument cluster

Overview, instrument cluster
is also described that is not available in a vehicle, e. g., because of the selected optional equip‐ ment or country variant. This also applies for safety-related functions and systems.
1 Fuel gauge  83
2 Speedometer
3 Indicator/warning lamps  81
4 Tachometer  83
5 Engine oil temperature  83
6 Electronic displays  80
7 Display/reset miles  83
79
Page 80
Controls Displays
Electronic displays
Overview, instrument cluster with enhanced features
1 Messages, e.g. Check Control  80
Time  83
2 Range  84
3 Computer  89
Date  84
Speed limit detection  87
4 Navigation display
Service requirements  86
Miles/trip miles  83

Check Control

The concept
The Check Control system monitors functions in the vehicle and notifies you of malfunctions in the monitored systems.
A Check Control message is displayed as a combination of indicator or warning lamps and text messages in the instrument cluster and in the Head-up Display.
80
5 Selection list, for instance radio  88
External temperature  83
Hybrid displays  84
Transmission display  78
In addition, an acoustic signal may be output and a text message may appear on the Control Dis‐ play.
Page 81
Displays Controls
Indicator/warning lamps
Instrument cluster
The indicator and warning lamps can light up in a variety of combinations and colors.
Several of the lamps are checked for proper functioning and light up temporarily when the engine is started or the ignition is switched on.
Overview: indicator/warning lamps
Symbol Function or system
Turn signal
Parking brake
Symbol Function or system
Cruise control
Lane departure warning
DSC Dynamic Stability Control
DSC Dynamic Stability Control or DTC Dynamic Traction Control
Tire Pressure Monitor
Flat Tire Monitor
Safety belts
Airbag system
Steering system
Engine functions
Parking brake in Canadian models
Automatic Hold
Front fog lamps
High beams
High-beam Assistant
Parking lamps, headlamp control
Engine functions in Canadian mod‐ els
Brake system
Brake system in Canadian models
ABS Antilock Brake System
81
Page 82
Controls Displays
Symbol Function or system
ABS Antilock Brake System in Cana‐ dian models
At least one Check Control message is displayed or is stored
Text messages
Text messages in combination with a symbol in the instrument cluster explain a Check Control message and the meaning of the indicator and warning lamps.
Supplementary text messages
Addition information, such as on the cause of a fault or the required action, can be called up via Check Control.
The supplementary text of urgent messages is displayed on the Control Display automatically.
Symbols
Depending on the Check Control message, the following functions can be selected.
▷ "Owner's Manual"
Display additional information about the Check Control message in the Integrated Owner's Manual.
▷ "Service request"
Contact the service partner.
▷ "Roadside Assistance"
Contact Roadside Assistance.
Hiding Check Control messages
Press the computer button on the turn signal lever.
▷ Some Check Control messages are dis‐
played continuously and are not cleared un‐ til the malfunction is eliminated. If several malfunctions occur at once, the messages are displayed consecutively.
These messages can be hidden for approx. 8 seconds. After this time, they are dis‐ played again automatically.
▷ Other Check Control messages are hidden
automatically after approx. 20 seconds. They are stored and can be displayed again later.
Displaying stored Check Control messages
"Vehicle Info"
1.
2. "Vehicle status"
3. "Check Control"
4. Select the text message.
Messages after trip completion
Special messages that are displayed during driving are displayed again after the ignition is switched off.
82
Page 83
Displays Controls

Fuel gauge

The vehicle inclination may cause the display to vary.
US models: the arrow beside the fuel pump symbol shows which side of the vehicle the fuel filler
flap is on.
Hints on refueling, refer to page 172.

Tachometer

Always avoid engine speeds in the red warning field. In this range, the fuel supply is interrupted to protect the engine.

Engine oil temperature

▷ Cold engine: the pointer is at
the low temperature end. Drive at moderate engine and vehicle speeds.
▷ Normal operating tempera‐
ture: the pointer is in the mid‐ dle or in the left half of the temperature display.
▷ Hot engine: the pointer is at the high end of
the temperature range. A Check Control message is also displayed.

Coolant temperature

If the coolant along with the engine becomes too hot, a Check Control message is displayed.
Check the coolant level, refer to page 187.

Odometer and trip odometer

▷ Odometer, arrow 1.
▷ Trip odometer, arrow 2.
Display/reset miles
Press the knob.
▷ When the ignition is switched
off, the time, external temper‐ ature and odometer are dis‐ played.
▷ When the ignition is switched on, the trip
odometer is reset.

External temperature

External temperature warning
If the indicator drops to +37 ℉/+3 ℃, a signal sounds.
A Check Control message is dis‐ played.
There is an increased risk of ice
on roads.
Ice on roads
Even at temperatures above +37 ℉/+3 ℃,
there can be a risk of ice on roads.
Therefore, drive carefully on bridges and shaded roads, for example, to avoid the increased risk of an accident.◀

Time

The time is displayed at the bot‐ tom of the instrument cluster.
Setting the time and time format, refer to page 91.
83
Page 84
Controls Displays

Date

The date is displayed in the in‐ strument cluster.
Setting the date and date format, refer to page 92.

Range

After the reserve range is reached:
▷ A Check Control message is
displayed briefly.
▷ The remaining range is
shown on the onboard com‐ puter.
▷ When a dynamic driving style is used, such
as when cornering quickly, operation of the engine is not always ensured.
The Check Control message appears continu‐ ously below a range of approx. 30 miles/50 km.
Refuel promptly
Refuel no later than at a range of 30 miles/50 km, or operation of the engine is not ensured and damage may occur.◀
Displaying the cruising range
"Settings"
1.
2. "Info display"
3. "Additional indicators"
The range is displayed in the instrument cluster.
▷ High-voltage battery charge indicator.
▷ Electric driving: eDRIVE.
▷ Acceleration boost: ASSIST and eBOOST.
▷ Energy recovery: CHARGE.
▷ Auto Start/Stop function: READY.
High-voltage battery charge indicator
When driving readiness is switched on in COM‐ FORT mode, displays the available charge of the high-voltage battery with bars in a battery sym‐ bol. If five bars are shown, the high-voltage bat‐ tery is fully charged.
During normal vehicle operation, the high-volt‐ age battery is charged up to approx. 80 %. This ensures optimum energy recovery when decel‐ erating or driving downhill.
Even if no bars are displayed in the battery sym‐ bol, the hybrid system is still under high voltage.
Electric driving: eDRIVE

Displays of the hybrid system

Displays in the instrument cluster
The concept
The display depends on the system's operating condition. The following functions of the hybrid system are shown in the instrument cluster.
84
When driving with electric power, the power out‐ put of the electric motor is indicated by arrows on the instrument cluster.
Page 85
Displays Controls
Depending on the position of the accelerator pedal, up to four arrows are displayed simulta‐ neously. The tachometer pointer stays on 0 rpm.
If all four arrows are already displayed and addi‐ tional power is required, such as for accelera‐ tion, the combustion engine switches on.
Acceleration boost: eBOOST
eBOOST: when the electric motor is delivering maximum output, eBOOST is displayed.
Energy recovery: CHARGE
Indications on the Control Display
Displaying the hybrid system utilization
1. "Vehicle Info"
2. "Hybrid"
3. "Hybrid usage"
Hybrid system utilization
Gray bars show the combustion engine fuel con‐ sumption, arrow 1. Blue bars show the percent‐ age of hybrid system functions utilized, arrow 2.
One bar stands for one minute.
The combustion engine's average fuel con‐ sumption is indicated by a line above the bar display and as a value to the right of the graph.
The energy recovered is indicated in the instru‐ ment cluster: in COMFORT mode by arrows and in ECO PRO mode by a bar below the CHARGE display. The high voltage battery is being charged.
Auto Start/Stop function: READY
The READY display indicates that the vehicle is ready for driv‐ ing.
Displaying the energy flow
"Vehicle Info"
1.
2. "Hybrid"
3.
"Energy flow"
Energy flow of the hybrid system
85
Page 86
Controls Displays
The display shows the active components of the hybrid system and the direction of the flow of energy.
▷ Orange: energy of combustion engine.
▷ Blue: energy of hybrid system.
Adapting to the course of the road
When the navigation system destination guid‐ ance is active, the hybrid system uses the navi‐ gation data. This makes it possible to switch off the combustion engine upon reaching the des‐ tination zone even before reaching the destina‐ tion. The vehicle is powered only by the electric motor.
The symbol indicates that the vehicle will switch off the combustion engine when it enters the destination zone.

Service requirements

Display
The driving distance or the time to the next scheduled mainte‐ nance is displayed briefly after the ignition is switched on.
The current service require‐ ments can be read out from the remote control by the service specialist.
With TeleService, data regarding the service status or legally mandated inspections of your vehicle are automatically transmitted to your service center before the service due date.
Detailed information on service requirements
More information on the scope of service re‐ quired can be displayed on the Control Display.
"Vehicle Info"
1.
2. "Vehicle status"
3. "Service required"
Required maintenance procedures and le‐ gally mandated inspections are displayed.
4. Select an entry to call up detailed informa‐
tion.
Symbols
Symbols Description
No service is currently required.
The deadline for service or a le‐ gally mandated inspection is approaching.
The service deadline has al‐ ready passed.
Entering appointment dates
Enter the dates for the required inspections.
Ensure that the vehicle date and time are set correctly.
"Vehicle Info"
1.
2. "Vehicle status"
3. "Service required"
4. "§ Vehicle inspection"
5. "Date:"
6. Adjust the settings.
7. Confirm.
The entered date is stored.
Automatic Service Request
Data regarding the service status or legally man‐ dated inspections of the vehicle are automati‐ cally transmitted to your service center before a service due date.
You can check when your service center was notified.
"Vehicle Info"
1.
2. "Vehicle status"
86
Page 87
Displays Controls
3. Open "Options".
4. "Last Service Request"

Speed limit detection with No Passing Information

The concept
Speed limit detection
Speed limit detection uses a symbol in the shape of a traffic sign to display the currently detected speed limit. The camera at the base of the interior rearview mirror detects traffic signs at the edge of the road as well as variable over‐ head sign posts. Traffic signs with extra symbols for wet road conditions, etc. are also detected and compared with vehicle interior data, such as for the rain sensor, and are displayed depending on the situation. The system takes into account the information stored in the navigation system and also displays speed limits present on routes without signs.
No Passing Information
No Passing Information in the instrument cluster displays the beginnings and ends of no passing zones detected by the camera. The system ac‐ counts for only the beginnings and ends of No Passing zones marked by signs.
No display is shown:
▷ In countries where No Passing zones are
primarily identified with road markings.
▷ On routes without signage.
▷ Where there are railroad crossings, highway
markings or other situations where no sig‐ nage is present, but passing would not be permitted.
Personal judgment
The system cannot serve as a substitute for the driver's personal judgment of the traffic situation.
The system assists the driver and does not re‐ place the human eye.◀
At a glance
Camera
The camera is located near the base of the mir‐ ror.
Keep the windshield in the area behind the in‐ terior rear view mirror clean and clear.
Switching on/off
"Settings"
1.
2. "Info display"
3. "Speed limit information"
If speed limit detection is switched on, it can be displayed on the info display in the instrument cluster via the onboard computer. No Passing Information is displayed together with the acti‐ vated speed limit information.
Display
The following is displayed in the instrument cluster.
Hints
Speed limits when towing a trailer are not shown.
87
Page 88
Controls Displays
Speed limit detection
Current speed limit.
Speed limit detection is not avail‐ able.
Speed limit detection can also be displayed in the Head-up Display.
No Passing Information
▷ Start of No Passing zone.
▷ End of No Passing zone.
▷ No Passing Information not
available.
No Passing Information can also be displayed in the Head-up Display.
System limits
The system may not be fully functional and may provide incorrect information in the following situations:
▷ In heavy fog, rain or snowfall.
▷ When signs are concealed by objects.
▷ When driving very close to the vehicle in
front of you.
▷ When driving toward bright lights.
▷ When the windshield behind the interior
rearview mirror is fogged over, dirty or cov‐ ered by a sticker, etc.
▷ In the event of incorrect detection by the
camera.
▷ If the speed limits stored in the navigation
system are incorrect.
▷ In areas not covered by the navigation sys‐
tem.
▷ When roads differ from the navigation, such
as due to changes in the road network.
▷ When passing buses or trucks with a speed
sticker.
▷ If the traffic signs are non-conforming.
▷ During calibration of the camera immedi‐
ately after vehicle shipment.

Selection lists in the instrument cluster

The concept
The following can be operated using the buttons and the thumbwheel on the steering wheel:
▷ Current audio source.
▷ Redial on telephone.
▷ Activation of the voice activation system.
Activating a list and adjusting the setting
On the right side of the steering wheel, turn the thumbwheel to activate the corresponding list.
88
Page 89
Displays Controls
Using the thumbwheel, select the desired set‐ ting and confirm it by pressing the thumbwheel.

Computer

Indication in the info display
The information from the on‐ board computer is shown in the info display in the instrument cluster.
Calling up information on the info display
Press the onboard computer button on the turn signal lever.
Information is displayed on the info display of the instrument cluster.
Information at a glance
Repeatedly pressing the button on the turn sig‐ nal lever calls up the following information on the info display:
▷ Range.
▷ Average fuel consumption.
▷ Average speed.
▷ Date.
▷ Speed limit detection.
▷ Time of arrival.
When destination guidance is activated in the navigation system.
▷ Distance to destination.
When destination guidance is activated in the navigation system.
▷ Arrow view of navigation system.
When destination guidance is activated in the navigation system.
When the arrow view in the Head-up Display is inactive.
▷ ECO PRO bonus range.
▷ Charge state of the high-voltage battery as
a percentage.
Adjusting the info display
You can select what information from the on‐ board computer is to be displayed on the info display of the instrument cluster.
"Settings"
1.
2. "Info display"
3. Select the desired displays.
Information in detail
Range
Displays the estimated cruising range available with the remaining fuel.
It is calculated based on your driving style over the last 20 miles/30 km.
If there is only enough fuel left for less than 45 miles/80 km, the color of the display changes.
Average fuel consumption
This is calculated for the period during which the engine is running.
The average fuel consumption is calculated for the distance traveled since the last reset by the onboard computer.
Average speed
Periods in which the vehicle is parked with the engine manually stopped do not enter into the calculation of the average speed.
89
Page 90
Controls Displays
Resetting average values
Press and hold the computer button on the turn signal lever.
Distance to destination
The distance remaining to the destination is dis‐ played if a destination is entered in the naviga‐ tion system before the trip is started.
The distance to the destination is adopted au‐ tomatically.
Time of arrival
The estimated time of arrival is displayed if a destination is en‐ tered in the navigation system before the trip is started.
The time must be correctly set.
Speed limit detection
Description of the speed limit detection, refer to page 87, function.
Speed limit
Display of a speed limit which, when reached, should cause a warning to be issued.
The warning is repeated if the vehicle speed drops below the set speed limit once by at least 3 mph/5 km/h.
Displaying, setting or changing the limit
"Settings"
1.
2. "Speed"
3. "Warning at:"
4. Turn the controller until the desired limit is
displayed.
5. Press the controller.
The speed limit is stored.
Activating/deactivating the limit
"Settings"
1.
2. "Speed"
3. "Warning"
4. Press the controller.
Setting your current speed as the limit
"Settings"
1.
2. "Speed"
3. "Select current speed"
4. Press the controller.
The current vehicle speed is stored as the limit.
Trip computer
The vehicle features two types of computer.
▷ "Onboard info": the values can be reset as
often as necessary.
▷ "Trip computer": the values provide an over‐
view of the current trip.
90
Resetting the trip computer
"Vehicle Info"
1.
2. "Trip computer"
3. "Reset": all values are reset.
Page 91
Displays Controls
"Automatically reset": all values are reset approx. 4 hours after the vehicle comes to a standstill.
Display on the Control Display
Display the onboard computer or trip computer on the Control Display.
"Vehicle Info"
1.
2. "Onboard info" or "Trip computer"
Resetting the fuel consumption or speed
"Vehicle Info"
1.
2. "Onboard info"
3. "Cons." or "Speed"

Settings on the Control Display

Time
Setting the time zone
1. "Settings"
2. "Time/Date"
3. "Time zone"
4. Select the desired time zone.
The time zone is stored.
Setting the time
"Settings"
1.
2. "Time/Date"
3. "Time:"
4. "Yes"
4. Turn the controller until the desired hours
are displayed.
5. Press the controller.
6. Turn the controller until the desired minutes
are displayed.
7. Press the controller.
The time is stored.
Setting the time format
"Settings"
1.
2. "Time/Date"
3. "Format:"
4. Select the desired format.
The time format is stored.
91
Page 92
Controls Displays
Date
Setting the date
1. "Settings"
2. "Time/Date"
3. "Date:"
4. Turn the controller until the desired day is
displayed.
5. Press the controller.
6. Make the necessary settings for the month
and year.
The date is stored.
Setting the date format
"Settings"
1.
2. "Time/Date"
3. "Format:"
4. Select the desired format.
3. "Language:"
4. Select the desired language.
The setting is stored for the remote control cur‐ rently in use.
Units of measure
Setting the units of measure
To set the units for fuel consumption, route/dis‐ tance and temperature:
"Settings"
1.
2. "Language/Units"
3. Select the desired menu item.
The date format is stored.
Language
Setting the language
To set the language on the Control Display:
"Settings"
1.
2. "Language/Units"
92
4. Select the desired unit.
The setting is stored for the remote control cur‐ rently in use.
Brightness
Setting the brightness
To set the brightness of the Control Display:
"Settings"
1.
2. "Control display"
Page 93
3. "Brightness"
4. Turn the controller until the desired bright‐
ness is set.
5. Press the controller.
The setting is stored for the remote control cur‐ rently in use.
Depending on the light conditions, the bright‐ ness control may not be clearly visible.
Displays Controls
93
Page 94
Controls Lamps

Lamps

Vehicle equipment

All standard, country-specific and optional equipment that is offered in the model series is described in this chapter. Therefore, equipment is also described that is not available in a vehicle, e. g., because of the selected optional equip‐ ment or country variant. This also applies for safety-related functions and systems.

At a glance

1 Rear fog lamps
2 Front fog lamps
3 Automatic headlamp control, Adaptive Light
Control, High-beam Assistant, Welcome lamps, Daytime running lights
4 Lamps off, daytime running lights
5 Parking lamps, daytime running lights
6 Low beams, welcome lamps, High-beam
Assistant
7 Instrument lighting
8 Headlamp range control
If the driver door is opened with the ignition switched off, the exterior lighting is automati‐ cally switched off at these switch settings.
Parking lamps
Switch position : the vehicle lamps light up on all sides, e.g., for parking.
Do not use the parking lamps for extended pe‐ riods; otherwise, the battery may become dis‐ charged and it would then be impossible to start the engine.
When parking, it is preferable to switch on the one-sided roadside parking lamps, refer to page 95.
Low beams
Switch position with the ignition switched on: the low beams light up.
Welcome lamps
When parking the vehicle, leave the switch in position or : the parking and interior lamps light up briefly when the vehicle is un‐ locked.
Activating/deactivating
"Settings"
1.
2. "Lighting"
3. "Welcome lights"

Parking lamps/low beams, headlamp control

General information
Switch position: 0, ,
94
The setting is stored for the remote control cur‐ rently in use.
Page 95
Lamps Controls
Headlamp courtesy delay feature
The low beams stay lit for a short while after the ignition is switched off, if the lamps are switched off and the headlamp flasher is switched on.
Setting the duration
1. "Settings"
2. "Lighting"
3. "Pathway light.: s"
4. Set the duration.
The setting is stored for the remote control cur‐ rently in use.
Automatic headlamp control
Switch position : the low beams are switched on and off automatically, e.g., in tunnels, in twi‐ light or if there is precipitation. The indicator lamp in the instrument cluster lights up.
A blue sky with the sun low on the horizon can cause the lights to be switched on.
The low beams always stay on when the fog lamps are switched on.
Personal responsibility
The automatic headlamp control cannot serve as a substitute for your personal judgment in determining when the lamps should be switched on in response to ambient lighting conditions.
For example, the sensors are unable to detect fog or hazy weather. To avoid safety risks, you should always switch on the lamps manually un‐ der these conditions.◀
Daytime running lights
With the ignition switched on, the daytime run‐ ning lights light up in position 0, After the ignition is switched off, the parking lamps light up in position .
or .
Activating/deactivating
In some countries, daytime running lights are compulsory, so it may not be possible to deac‐ tivate the daytime running lights.
1. "Settings"
2. "Lighting"
3. "Daytime running lamps"
The setting is stored for the remote control cur‐ rently in use.
Roadside parking lamps
The vehicle can be illuminated on one side.
Switching on
With the ignition switched off, press the lever either up or down past the resistance point for approx. 2 seconds.
95
Page 96
Controls Lamps
Switching off
Briefly press the lever to the resistance point in the opposite direction.

Adaptive light control

The concept
Adaptive Light Control is a variable headlamp control system that enables dynamic illumina‐ tion of the road surface.
Depending on the steering angle and other pa‐ rameters, the light from the headlamp follows the course of the road.
In tight curves, e.g., on mountainous roads or when turning, an additional, corner-illuminating lamp is switched on that lights up the inside of the curve when the vehicle is moving below a certain speed.
Activating
Switch position on.
The turning lamps are automatically switched on depending on the steering angle or the use of turn signals.
To avoid blinding oncoming traffic, the Adaptive Light Control does not swivel to the driver's side when the vehicle is at a standstill.
When driving in reverse, only the turning lamp is active.
with the ignition switched
Adaptive light control is malfunctioning or has failed. Have the system checked as soon as pos‐ sible.

Headlamp range control

With halogen headlamps, the headlamp range of the low beams can be manually adjusted for the vehicle load to avoid blinding oncoming traffic.
The values following the slash apply to trailer operation.
0 / 1 = 1 to 2 people without luggage.
1 / 1 = 5 people without luggage.
1 / 2 = 5 people with luggage.
2 / 2 = 1 person, full cargo area.

High-beam Assistant

The concept
When the low beams are switched on, this sys‐ tem automatically switches the high beams on and off. The procedure is controlled by a sensor on the front of the interior rearview mirror. The assistant ensures that the high beams are switched on whenever the traffic situation al‐ lows. The driver can intervene at any time and switch the high beams on and off as usual.
Activating
Self-leveling headlights
The self-leveling headlights feature adapts the light distribution to the contours of the road.
The light distribution is lowered on hilltops to avoid blinding oncoming traffic and tilted in de‐ pressions to increase visibility.
Malfunction
A Check Control message is displayed.
96
Turn the light switch to or .
1.
2. Press the button on the turn signal lever, ar‐
row.
Page 97
Lamps Controls
The indicator lamp in the instrument cluster lights up.
When the lights are switched on, the high beams are switched on and off automati‐ cally.
The system responds to light from oncoming traffic and traffic driving ahead of you, and to ad‐ equate illumination, e.g., in towns and cities.
The blue indicator lamp in the instru‐
ment cluster lights up when the system
switches on the high beams.
Switching the high beams on and off manually
▷ High beams on, arrow 1.
▷ High beams off/headlamp flasher, arrow 2.
▷ In very unfavorable weather conditions,
such as fog or heavy precipitation.
▷ In detecting poorly-lit road users, such as
pedestrians, cyclists, horseback riders and wagons; when driving close to train or ship traffic; and at animal crossings.
▷ In tight curves, on hilltops or in depressions,
in cross traffic or half-obscured oncoming traffic on freeways.
▷ In poorly-lit towns and cities and in the pres‐
ence of highly reflective signs.
▷ At low speeds.
▷ When the windshield in front of the interior
rearview mirror is fogged over, dirty or cov‐ ered with stickers, etc.
Camera
The High-beam Assistant can be switched off when manually adjusting the light. To reactivate the High-beam Assistant, press the button on the turn signal lever.
System limits
Personal responsibility
The high-beam assistant cannot serve as a substitute for the driver's personal judgment of when to use the high beams. Therefore, man‐ ually switch off the high beams in situations where this is required to avoid a safety risk.◀
The system is not fully functional in situations such as the following, and driver intervention may be necessary:
The camera is located near the base of the mir‐ ror.
Keep the windshield in the area behind the in‐ terior rear view mirror clean and clear.

Fog lamps

Front fog lamps
The parking lamps or low beams must be switched on.
Press the button. The green indicator lamp lights up.
If the automatic headlamp control, refer to page 95, is activated, the low beams will come
97
Page 98
Controls Lamps
on automatically when you switch on the front fog lamps.

Instrument lighting

Adjusting
The parking lamps or low beams must be switched on to adjust the brightness.
Adjust the brightness using the thumbwheel.

Interior lamps

General information
The interior lamps, footwell lamps, entry lamps and courtesy lamps are controlled automati‐ cally.
The brightness of some of these lamps is influ‐ enced by the thumbwheel for the instrument lighting.
Reading lamps
Press the button.
Reading lamps are located at the front and rear next to the interior lamps.
When the interior lamps are switched off per‐ manently, the reading lamps cannot be switched on.
Bang & Olufsen High End Surround Sound System
Adjusting speaker lighting
All speakers in the vehicle are illuminated. The lighting can be individually set.
"Settings"
1.
2. "Lighting"
3. "B & O"
4. Select the desired lighting setting.
▷ "Off": no lighting.
▷ "Reduced": all speakers in the field of
view are hidden while driving.
▷ "On": all speakers are always illumi‐
nated.
1 Interior lamps
2 Reading lamp
Switching the interior lamps on and off
Press the button.
To switch off permanently: press the button for approx. 3 seconds.
Switch back on: press button.
98
Page 99

Safety

Safety Controls

Vehicle equipment

All standard, country-specific and optional equipment that is offered in the model series is described in this chapter. Therefore, equipment

Airbags

is also described that is not available in a vehicle, e. g., because of the selected optional equip‐ ment or country variant. This also applies for safety-related functions and systems.
1 Front airbag, driver
2 Front airbag, front passenger
3 Head airbag
Front airbags
Front airbags help protect the driver and front passenger by responding to frontal impacts in which safety belts alone cannot provide ade‐ quate restraint.
Side airbags
In a lateral impact, the side airbag supports the side of the body in the chest and lap area.
4 Side airbag
5 Knee airbags
Head airbags
In a lateral impact, the head airbag supports the head.
Knee airbag
The knee airbag supports the legs in a frontal impact.
99
Page 100
Controls Safety
Protective action
Airbags are not triggered in every impact situa‐ tion, e.g., in less severe accidents or rear-end collisions.
Information on how to ensure the optimal protective effect of the airbags
▷ Keep at a distance from the airbags.
▷ Always grasp the steering wheel on the
steering wheel rim, holding your hands at the 3 o'clock and 9 o'clock positions, to keep the danger of injury to your hands or arms as low as possible if the airbag is triggered.
▷ There should be no people, animals, or ob‐
jects between an airbag and a person.
▷ Do not use the cover of the front airbag on
the front passenger side as a storage area.
▷ Keep the dashboard and window on the
front passenger side clear, i.e., do not cover with adhesive labels or coverings, and do not attach holders such as for navigation instru‐ ments and mobile phones.
▷ Make sure that the front passenger is sitting
correctly, i.e., keeps his or her feet and legs in the footwell; otherwise, leg injuries can occur if the front airbag is triggered.
▷ Do not place slip covers, seat cushions or
other objects on the front passenger seat that are not approved specifically for seats with integrated side airbags.
▷ Do not hang pieces of clothing, such as jack‐
ets, over the backrests.
▷ Make sure that occupants keep their heads
away from the side airbag and do not rest against the head airbag; otherwise, injuries can occur if the airbags are triggered.
▷ Do not remove the airbag restraint system.
▷ Do not remove the steering wheel.
▷ Do not apply adhesive materials to the air‐
bag cover panels, cover them or modify them in any way.
▷ Never modify either the individual compo‐
nents or the wiring in the airbag system. This also applies to steering wheel covers, the dashboard, the seats, the roof pillars and the sides of the headliner.◀
Even when all instructions are followed closely, injury from contact with the airbags cannot be ruled out in certain situations.
The ignition and inflation noise may lead to short-term and, in most cases, temporary hear‐ ing impairment in sensitive individuals.
In the case of a malfunction, deactivation and after triggering of the airbags
Do not touch the individual components imme‐ diately after the system has been triggered; oth‐ erwise, there is the danger of burns.
Only have the airbags checked, repaired or dis‐ mantled and the airbag generator scrapped by your service center or a workshop that has the necessary authorization for handling explosives.
Non-professional attempts to service the sys‐ tem could lead to failure in an emergency or un‐ desired triggering of the airbag, either of which could result in injury.◀
Warnings and information on the airbags are also found on the sun visors.
Functional readiness of the airbag system
When the ignition is switch on, the warn‐ ing lamp in the instrument cluster lights
up briefly and thereby indicates the op‐ erational readiness of the entire airbag system and the belt tensioner.
Airbag system malfunctioning
▷ Warning lamp does not come on when the
ignition is turned on.
▷ The warning lamp lights up continuously.
100
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
