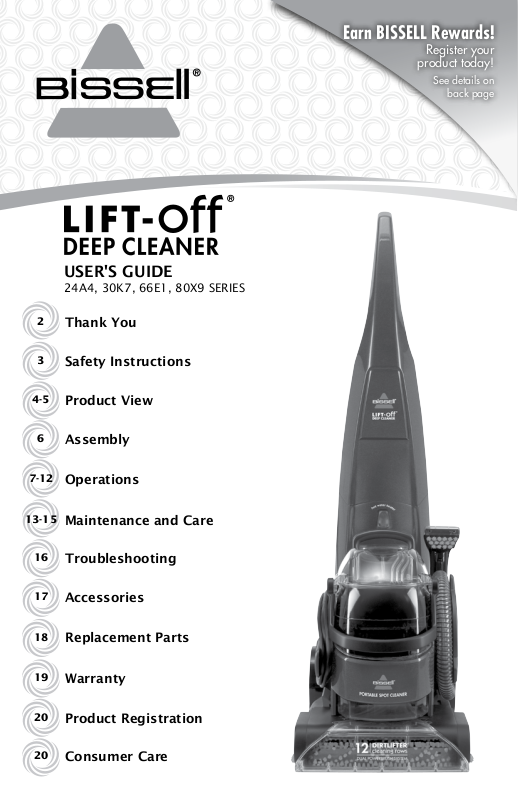

USER'S GUIDE

24A4, 30K7, 66E1, 80X9 SERIES

Thank You

Safety Instructions

4-5

Product View

Earn BISSELL Rewards!

product today!

See details on

back page

7-12

13-15

Assembly

Operations

Maintenance and Care

Troubleshooting

Accessories

Replacement Parts

Warranty

Product Registration

Consumer Care

Thanks for buying a BISSELL Deep Cleaner

We’re glad you purchased a BISSELL deep cleaner. Everything we know about floor care went into the innovative design and construction of this complete, high-tech home cleaning system.

Your BISSELL deep cleaner is well made, and we back it with a limited three-year warranty. We also stand behind it with a knowledgeable, dedicated Consumer Care department, so, should you ever have a problem, you’ll receive fast, considerate assistance.

My great-grandfather invented the floor sweeper in 1876. Today, BISSELL is a global leader in the design, manufacture, and service of high quality homecare products like your BISSELL deep cleaner.

Thanks again, from all of us at BISSELL.

Mark J. Bissell Chairman & CEO

DETACHABLE INNOVATION

Complete Line of BISSELL Lift-Off ® Products

Lift-Off

Steam Mop

www.bissell.com 800.237.7691

Deep Cleaner

For more information visit www.bissell.com

Lift-Off

PowerGlide

Deluxe Pet

Floors & More

Cordless Stick Vacuum

Lift-Off

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical should be observed, including the following:

READ ALL INSTRUCTIONS BEFORE USING YOUR DEEP CLEANER.

appliance, basic precautions

WARNING:

To reduce the risk of fire, electric shock, or injury:

■

Do not immerse.

■

Use only on surfaces moistened by the cleaning process.

■

Always connect to a properly grounded outlet.

■

See Grounding Instructions.

■

Unplug from outlet when not in use and before conducting

maintenance or troubleshooting.

■

Do not leave machine when it is plugged in.

■

Do not service machine when it is plugged in.

■

Do not use with damaged cord or plug.

■

If appliance is not working as it should, has been dropped,

damaged, left outdoors, or dropped into water, have it repaired at an authorized Service Center.

■

Do not expose to rain, store indoors.

■

Do not pull or carry by cord, use cord as a handle, close door on

cord, pull cord around sharp corners or edges, run appliance over cord, or expose cord to heated surfaces.

■

Unplug by grasping the plug, not the cord.

■

Do not handle plug or appliance with wet hands.

■

Do not put any object into appliance openings, use with blocked

opening, or restrict air flow.

■

Do not expose hair, loose clothing, fingers or body parts to

openings or moving parts.

■

Do not pick up hot or burning objects.

■

Do not pick up flammable or combustible materials (lighter fluid, gaso-

line, kerosene, etc.) or use in the presence of explosive liquids or vapor.

■

Do not use appliance in an enclosed space filled with vapors

given off by oil base paint, paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic vapors.

■

Do not pick up toxic material (chlorine bleach, ammonia, drain

cleaner, gasoline, etc.).

■

Do not modify the 3-prong grounded plug.

■

Do not allow to be used as a toy.

■

Do not use for any purpose other than described in this User’s Guide.

■

Do not unplug by pulling on the cord.

■

Use only manufacturer’s recommended attachments.

■

Use only cleaning products formulated by BISSELL for use in

this appliance to prevent internal component damage. See the cleaning fluid section of this guide.

■

Keep openings free of dust, lint, hair, etc.

■

Do not point attachment nozzle at people or animals

■

Keep appliance on a level surface.

■

Turn off all controls before unplugging.

■

Unplug before attaching the TurboBrush® Tool.

www.bissell.com 800.237.7691

■

Be extra careful when cleaning stairs.

■

Close attention is necessary when used by or near children.

SAVE THESE INSTRUCTIONS.

THIS MODEL IS FOR HOUSEHOLD USE ONLY.

GROUNDING INSTRUCTIONS

This appliance must be connected to a grounded wiring system. If it should malfunction or break down, grounding provides a safe path of least resistance for electrical current, reducing the risk of electrical shock. The cord for this appliance has an equipment-grounding conductor and a grounding plug. It must only be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Grounded

Outlets

Grounding Pin

WARNING:

Improper connection of the equipmentgrounding conductor can result in a risk of electrical shock. Check with a qualified electrician or service person if you aren’t sure if the outlet is properly grounded. DO NOT MODIFY THE PLUG. If it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance is designed for use on a nominal 120-volt circuit, and has a grounding attachment plug that looks like the plug in the drawing above. Make certain that the appliance is connected to an outlet having the same configuration as the plug. No plug adapter should be used with this appliance.

Product view

Heat Indicator Light

Formula & Water Tank

Upper Handle

Carry Handle

Specialty Tool (tools vary by model)

Power Button

Power Cord

Quick Release™ Cord Wrap

Portable Spot Cleaning Release Pedal

EdgeSweep Brushes

www.bissell.com 800.237.7691

Flex Hose

Dirty Tank

Removeable Nozzle

Product view

Spray Trigger

Cord Clip

Tool Storage

Support Handle

Tool Storage (some models)

Hose Secure Latch

Recline Pedal

Cleaning fluid

Keep plenty of genuine BISSELL 2X formula on hand so you can clean and protect whenever it fits your schedule. Always use genuine BISSELL deep cleaning formulas. Non-BISSELL cleaning solutions may harm the machine and will void the warranty.

WARNING:

To reduce the risk of fire and electric shock due to internal component damage, use only BISSELL cleaning fluids intended for use with the deep cleaner.

Professional

Deep Cleaning

Best for

2X Concentrated X X X X

Scotchgard™ Protection

Out cleans

all other formulas

Pet Stain & Odor

Removes tough pet stains and contains

patented odor

removal technology

X X X

Deep Clean

& Protect

Deep cleans carpets

and protects from future stains with

Scotchgard™ Protector

Allergen Cleansing Pet Stain PreTreat Stain PreTreat

Helps remove pet &

pollen allergens

Pretreat to help

remove tough pet

stains and odors

Pretreat to

penetrate

and loosen

tough stains

www.bissell.com 800.237.7691

Assembly

IMPORTANT

ASSEMBLY INSTRUCTIONS

Use a minimum of a #2 x 4" or #2 x 100mm Philips screwdriver for assembly.

Your deep cleaner comes in two easy to assemble components:

1. Upper handle

2. Portable spot cleaner/Base

The only tool you will need to assemble your cleaner is a Phillips screwdriver.

1. Slide the upper handle onto the body

of the machine by guiding the 2 posts on the body into the opening on the upper handle.

2. Firmly holding the upper handle in

place, screw 2 screws into the marked holes at an upward angle above the support handle.

3. At an upward angle, screw the remaining

2 screws into the marked outermost holes under the support handle.

4. Wrap power cord around Quick

Release Cord Wrap.

5. Wrap flex hose around the hose wrap

and secure with hose secure latch.

6. Align the product as image 4 shows

and firmly push down the portable spot cleaner until it is secured on both sides.

CORD SIDE

HOSE SIDE

7. Check latches on both sides to confirm

it is secured (5).

To further check if the portable spot

cleaner is secure, plug in and turn on to verify that the heat indicator light is illuminated. If the heat indicator light does not illuminate, release the pod and re-secure by pushing firmly until both sides snap into place.

8. Snap attachment(s) into the back of unit.

NOTE: Portable spot cleaner must be fully secure to operate in the upright mode.

WARNING:

Do not plug in your cleaner until you have completely assembled it per the above instructions and are familiar with all instructions and operating procedures.

www.bissell.com 800.237.7691
