Bg Radia R-600 Specifications
R-600
radia
S E R I E S
A r c h i t e c t u r a l L o u d s p e a k e r
T H E R A D I A S E R I E S

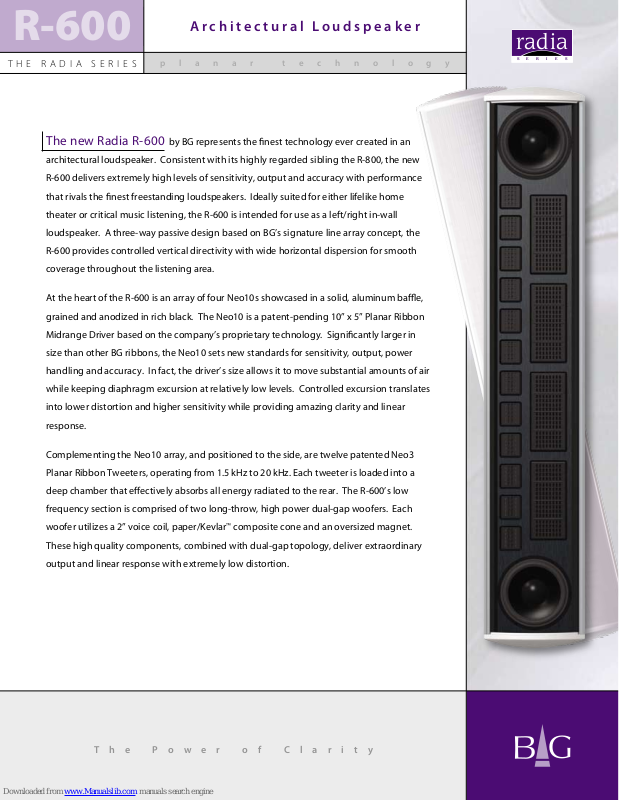

The new Radia R-600 by BG represents the finest technology ever created in an
architectural loudspeaker. Consistent with its highly regarded sibling the R-800, the new
R-600 delivers extremely high levels of sensitivity, output and accuracy with performance
that rivals the finest freestanding loudspeakers. Ideally suited for either lifelike home
theater or critical music listening, the R-600 is intended for use as a left/right in-wall
loudspeaker. A three-way passive design based on BG’s signature line array concept, the
R-600 provides controlled vertical directivity with wide horizontal dispersion for smooth
coverage throughout the listening area.
At the heart of the R-600 is an array of four Neo10s showcased in a solid, aluminum baffle,
grained and anodized in rich black. The Neo10 is a patent-pending 10” x 5” Planar Ribbon
Midrange Driver based on the company’s proprietary technology. Significantly larger in
size than other BG ribbons, the Neo10 sets new standards for sensitivity, output, power
p l a n a r t e c h n o l o g y
handling and accuracy. In fact, the driver’s size allows it to move substantial amounts of air
while keeping diaphragm excursion at relatively low levels. Controlled excursion translates
into lower distortion and higher sensitivity while providing amazing clarity and linear
response.
Complementing the Neo10 array, and positioned to the side, are twelve patented Neo3
Planar Ribbon Tweeters, operating from 1.5 kHz to 20 kHz. Each tweeter is loaded into a
deep chamber that effectively absorbs all energy radiated to the rear. The R-600’s low
frequency section is comprised of two long-throw, high power dual-gap woofers. Each
woofer utilizes a 2” voice coil, paper/Kevlar™ composite cone and an oversized magnet.
These high quality components, combined with dual-gap topology, deliver extraordinary
output and linear response with extremely low distortion.
T h e P o w e r o f C l a r i t y
A r c h i t e c t u r a l L o u d s p e a k e r
radia
S E R I E S
R-600
p l a n a r t e c h n o l o g y
Cutting edge Proprietary Neo10 Planar Ribbon Midrange Driver
›
Flexible placement Line Source acoustically coupled array with controlled vertical,
›
wide horizontal dispersion
High Sensitivity Allows for use with moderate-sized amplifiers
›
High Output For use in the most demanding residential applications
›
Awesome Bass Unique dual-gap, long-throw woofer technology for high output,
›
linear response and low distortion
G E N E R A L P A R A M E T E R S :
›
S y s t e m t y p e
S y s t e m d i m e n s i o n s
(H xW x In st al le d gr il l H)
W e i g h t
W a l l c u t - o u t s i z e, H x W
Three-way discrete line array in-wall system
63 5/8” x 11 5/8” x 3/4” (161.5 x 29.4 x 1.9 cm)
55 lbs. (25 kg)
60 3/4” x 10 3/8” (154.3 cm x 26.4 cm)
T H E R A D I A S E R I E S
L F W O O F E R S E C T I O N :
›
D r i v e r c o m p l e m e n t
P L A N A R R I B B O N L I N E A R R A Y :
›
D r i v e r c o n f i g u r a t i o n
C r o s s o v e r 250 Hz, 1.5 kHz, Linkwitz-Riley second order in acoustical domain
F r e q u e n c y r e s p o n s e
S e n s i t i v i t y
R a t e d i m p e d a n c e 4 ohms (2 kHz - 20 kHz), 26 ohms (250Hz - 2 kHz)
P o w e r h a n d l i n g 500 W RMS
W a r r a n t y
1
2
2 x 8” dual-gap long-throw woofers in controlled directivity array conguration
Uniformly driven 4 x Neo10 Planar Midrange Panels in a vertical array
Uniformly driven 12 x Neo3PDRW Planar Ribbon Tweeters in a vertical array
1
50 Hz – 20 kHz (-6 dB, half space)
93 dB/2.83V/1m
Lifetime to the original owner
The Radia R-600 is available through BG’s authorized network of specialty
custom retailers and integrators.
3535 Arrowhead Drive · Carson City, NV 89706 ·
1. Measured @ 3m (10’), ground plane and referenced to 1m, free-eld equivalent
2. Please see BG warranty for complete details
phone:
internet:
www.bgcorp.com ·
© Copyrigh t 2006 BG Corp. All rights res erved. Products, features and spe cications sub ject to change without notice.
775-884-1900 ·
email:
sales@bgcorp.com
toll free:
888-8PLANAR (888-875-2627)
01/06
