Beko GNE114622X, GNE114632X User Manual

Refrigerator

Kühlschrank

Réfrigérateur

Koelkast

Frigorífico

GNE114622X

GNE114632X

Please read this user manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

Therefore, read this entire user manual carefully before using the product and keep it as a reference. If you handover the product to someone else, give the user manual as well.

The user manual will help you use the product in a fast and safe way.

•Read the manual before installing and operating the product.

•Make sure you read the safety instructions.

•Keep the manual in an easily accessible place as you may need it later.

•Read the other documents given with the product.

Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

CImportant information or useful tips.

AWarning against dangerous conditions for life and property. BWarning against electric voltage.

CONTENTS

1 Your refrigerator	4
2 Important Safety
Warnings	5
Intended use......................................	5
General safety....................................	5
For products with a water dispenser;. 9
Child safety........................................	9
Compliance with WEEE Directive and
Disposing of the Waste Product: .......	9
Package information........................	10
HC warning......................................	10
Things to be done for energy saving.10
Recommendations for the fresh food
compartment...................................	11

4	Preparation	16
5	Using your refrigerator 17
Butter & Cheese section ..................		21
Sliding Body Shelves........................		22
Egg tray...........................................		22
Crisper ............................................		22
Chiller compartment.........................		22
Flexi Zone Storage Compartment		... 23
Rotating Middle Section ..................		23
Blue light..........................................		23
6	Maintenance and
cleaning		24
Protection of plastic surfaces ..........		24

3 Installation	12	7 Troubleshooting		25
Points to be considered when re-
transporting your refrigerator............	12
Before operating your refrigerator.....	12
Electric connection...........................	13
Disposing of the packaging..............	13
Disposing of your old refrigerator......	13
Placing and Installation.....................	13
Floor balance adjustment.................	14
Adjusting the gap between the upper
door.................................................	15

3 EN

1 Your refrigerator

	A
	*12
*1	13
2
3
4
5
*6	*14
*7
*8
9
*10	*15
*17
*11
	16

	B		C
A-	Fridge compartment	9-	Bottle shelf
B-	Freezer compartment	10-	Icematic
C-	Flexi Zone	11Frozen food storage compartments
1-	Fridge compartment door shelves	12Butter & Cheese shelf cover
2-	Fridge compartment adjustable	13Butter & Cheese shelf
cabinet shelves		14-	Bottle holder
3-	Diffuser cover	15-	Storage compartments
4-	Illumination lens	16-	Flexi Zone compartment
5-	Rotating middle section	17-	Fresh freezer drawer
6-	Chiller compartment	* OPTIONAL
7-	Crisper
8-	Water tank

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

4 EN

2	Important Safety Warnings
Please review the				authorized service
following information.				in order to learn the
Failure to observe this				required information and
information may cause				authorized bodies.
injuries or material				• Consult your authorized
damage. Otherwise, all				service for all your
warranty and reliability				questions and problems
commitments will				related to the refrigerator.
become invalid.				Do not intervene or let
The service life of your				someone intervene to
product is 10 years.				the refrigerator without
During this period,				notifying the authorised
original spare parts will be				services.
available to operate the				• For products with a
product properly.				freezer compartment;
Intended use				Do not eat cone ice
This product is intended				cream and ice cubes
to be used				immediately after you
• indoors and in closed				take them out of the
areas such as homes;				freezer compartment!
• in closed working				(This may cause frostbite
environments such as				in your mouth.)
stores and offices;				• For products with a
• in closed				freezer compartment;
accommodation areas				Do not put bottled
such as farm houses,				and canned liquid
hotels, pensions.				beverages in the
• It should not be used				freezer compartment.
outdoors.				Otherwise, these may
General safety				burst.
• When you want to				• Do not touch frozen food
dispose/scrap the				by hand; they may stick
product, we recommend				to your hand.
you to consult the		5		EN

•Unplug your refrigerator before cleaning or defrosting.

•Vapor and vaporized cleaning materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock.

•Never use the parts on your refrigerator such as the door as a means of support or step.

•Do not use electrical devices inside the refrigerator.

•Do not damage the parts, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.

•Do not cover or block the ventilation holes on

your refrigerator with any material.

•Electrical devices must be repaired by only authorised persons. Repairs performed by incompetent persons create a risk for the user.

•In case of any failure or during a maintenance or repair work, disconnect your refrigerator’s mains supply by either turning off the relevant fuse

or unplugging your appliance.

•Do not pull by the cable when pulling off the plug.

•Place the beverage with higher proofs tightly closed and vertically.

•Never store spray cans containing

flammable and explosive substances in the refrigerator.

•Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

•This product is not intended to be used by

6 EN

persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will

be responsible for their safety or who will instruct them accordingly for use of the product

•Do not operate a damaged refrigerator. Consult with the service agent if you have any concerns.

•Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.

•Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.

•Contact authorized service when there is a power cable damage to avoid danger.

•Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death

or serious injury may arise.

•This refrigerator is intended for only storing food items. It must not be used for any other purpose.

•Label of technical specifications is located on the left wall inside the refrigerator.

•Never connect your refrigerator to electricitysaving systems; they may damage the refrigerator.

•If there is a blue light on the refrigerator, do not look at the blue light with optical tools.

•For manually controlled refrigerators, wait for at least 5 minutes to start the refrigerator after power failure.

•This operation manual should be handed in to the new owner of the product when it is given to others.

•Avoid causing damage on power cable when transporting the refrigerator. Bending cable may cause fire.

7 EN

Never place heavy objects on power cable.

•Do not touch the plug with wet hands when plugging the product.

•Do not plug the refrigerator if the wall outlet is loose.

•Water should not be sprayed on inner or outer parts of the product for safety purposes.

•Do not spray substances containing inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.

•Never place containers filled with water on top of the refrigerator; in the event of spillages, this may cause electric shock or fire.

8

•Do not overload the refrigerator with food. If overloaded, the food

items may fall down and hurt you and damage refrigerator when you open the door.

•Never place objects on top of the refrigerator; otherwise, these objects may fall down when you open or close the refrigerator's door.

•As they require a precise temperature, vaccines, heat-sensitive medicine and scientific materials and etc. should not be kept in the refrigerator.

•If not to be used for a long time, refrigerator should be unplugged. A possible problem in power cable may cause fire.

•The plug's tip should be cleaned regularly with a dry cloth; otherwise, it may cause fire.

•Refrigerator may move if adjustable legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the

EN refrigerator to move.

•When carrying the refrigerator, do not hold it from door handle. Otherwise, it may be snapped.

•When you have to place your product next to another refrigerator or freezer, the distance between devices should be at least 8cm. Otherwise, adjacent side walls may be humidified.

For products with a water dispenser;

•In order to operate the water circuit of the refrigerator

smoothly, the water mains pressure must be between 1-8 bars. For conditions where water mains pressure exceeds 5 bars a pressure regulator should be used. If the water mains pressure exceeds 8 bars then the refrigerator’s water circuit should not be connected to the water mains. If you lack the knowledge of how to measure the water mains pressure, please

seek a professional support.Use drinking water only.

•Use only potable water.

Child safety

•If the door has a lock, the key should be kept away from reach of children.

•Children must be supervised to prevent them from tampering

with the product.

Compliance with WEEE Directive and Disposing of the Waste Product:

This product complies

with EU WEEE Directive (2012/19/EU). This product

bears a classification symbol for waste electrical and electronic equipment

(WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Please consult your local authorities

to learn the nearest collection point.

9 EN

Help protect the environment and natural resources by recycling used products. For children's safety, cut the power cable and break the locking mechanism of the door, if any, so

that it will be non-functional before disposing of the product.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Do not forget...

Any recycled substance is an indispensable matter for nature and our national asset wealth.

If you want to contribute to the re-evaluation of the packaging materials, you can consult to your environmentalist organizations or the municipalities where you are located.

HC warning

If your product's cooling system contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

Ignore this warning if your product's cooling system contains R134a.

Type of gas used in the product is stated in the type label which is on the left wall inside the refrigerator.

Never throw the product in fire for disposal.

Things to be done for energy saving

•Do not leave the doors of your refrigerator open for a long time.

•Do not put hot food or drinks in your refrigerator.

•Do not overload your refrigerator so that the air circulation inside of it is not prevented.

•Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators. Keep your refrigerator at least 30cm away from heat emitting sources and at least 5cm from electrical ovens.

•Pay attention to keep your food in closed containers.

•For products with a freezer compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined

by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer

according to the shapes and size of food to be frozen.

•Thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.

10 EN

Recommendations for the fresh food compartment

*optional

•Do not allow the food to touch the temperature sensor in fresh food compartment. To allow the fresh food compartment keep its ideal storage temperature, sensor must not be hindered by food.

•Do not place hot foods in the product.

11 EN

3 Installation

B Please remember that the manufacturer shall not be held liable if the information given in the instruction manual is not observed.

Points to be considered when re-transporting your refrigerator

1.Your refrigerator must be emptied and cleaned prior to any transportation.

2.Shelves, accessories, crisper and etc. in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.

3.Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed.

Please do not forget…

Every recycled material is an indispensable source for the nature and for our national resources.

If you wish to contribute to recycling the packaging materials, you can get further information from the environmental bodies or local authorities.

Before operating your refrigerator

Before starting to use your refrigerator check the following:

1.Is the interior of the refrigerator dry and can the air circulate freely in the rear of it?

2.Insert the 2 plastic wedges onto the rear ventilation as illustrated in the following figure. Unscrew the existing ones and use the screws given in the same bag of wedges. Plastic wedges will provide the required distance between your refrigerator and the wall in order to allow the air circulation.

3.Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning” section.

4.Plug the refrigerator into the wall outlet. When the door is open the respective interior light will come on.

5.You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.

6.Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

12 EN

Electric connection

Connect your refrigerator to a grounded socket which is being protected by a fuse with the appropriate capacity.

Important:

•The connection must be in compliance with national regulations.

•The power cable plug must be easily accessible after installation.

•Voltage and allowable fuse protection are specified in the “Technical Specifications” section.

•The specified voltage must be equal to your mains voltage.

•Extension cables and multiway plugs must not be used for connection.

BA damaged power cable must be replaced by a qualified electrician.

BThe appliance must not be operated before it is repaired! There is danger of electric shock!

Disposing of the packaging

The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose them of by classifying them in accordance with the waste instructions. Do not

dispose them of along with the normal household waste.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old machine without giving any harm to the environment.

•You may consult your authorized dealer or waste collection center of your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and Installation

Caution: Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.

If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, than call the authorized service to have them remove the doors of your refrigerator and pass it sideways through the door.

13 EN

1.Install your refrigerator to a place that allows ease of use.

2.Keep your refrigerator away from heat sources, humid places and direct sunlight.

3.There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation.

If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall.

If the floor is covered with a carpet, your product must be elevated 2.5 cm from the floor.

4.Place your refrigerator on an even floor surface to prevent jolts.

5.Do not keep your refrigerator in ambient temperatures under -5°C.

Floor balance adjustment

If your refrigerator is unbalanced;

1- Ventilation cover is removed by unscrewing its screws as illustrated in the figure before the procedure. You can balance your refrigerator by

turning the front legs of it as illustrated in the figure. The corner where the leg exists is lowered when you turn

in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

2.After the balance issue is remedied, install back the ventilation cover and fasten the screws.

3.Remove the screws fastening the lower ventilation cover using a Philips screwdriver.

4

1 2 3

14 EN

Adjusting the gap between the upper door

• You can adjust the gap between the fridge compartment doors as illustrated in the figures.

• Adjust the door as you desire by loosing the screws.

Door shelves should be empty when adjusting the door height.

• Using a screwdriver, remove the screw of upper hinge cover of the door you want to adjust.

Center Screw

• Fix the door you have adjusted by tightening the screws without changing the position of the door.

• Replace the hinge cover and fix with the screw.

15 EN

4 Preparation

•Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.

•The ambient temperature of the room where you install your refrigerator should at least be -5°C. Operating your refrigerator under cooler conditions is not recommended with regard to its efficiency.

•Please make sure that the interior of your refrigerator is cleaned thoroughly.

•If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them.

•When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.

•The door should not be opened frequently.

•It must be operated empty without any food in it.

•Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in

the “Recommended solutions for the problems” section.

•Original packaging and foam materials should be kept for future transportations or moving.

16 EN

5 Using your refrigerator

Indicator Panel

This touch-control indicator panel allows you to set the temperature without opening the door of your refrigerator. Just touch the relevant button with your finger to set the temperature.

1

18

7

11

12 15

4

2
17
3
	10	9	8	14	13
1.	Eco Extra/Vacation Button			10.	Freezer Compartment
2.	Fast Freeze / Ice Off Button				Temperature Indicator
3.	Freezer Compartment			11.	Fridge Compartment
	Temperature Setting Button				Temperature Indicator
4.	Fridge Compartment			12.	Quick Cool Function Indicator
	Temperature Setting Button			13.	Flexi Zone Storage
5.	Quick Cool Button				Compartment Temperature
6.	Flexi Zone Storage			14.	Indicator
	Compartment Temperature				Economy Mode Indicator
	Setting Button			15.	Error Status Indicator
7.	Vacation Function Indicator			16.	Key Lock Indicator
8.	Eco Extra Function Indicator			17. Ice off Function Button
9.	Quick Freeze Function			18. Ice off Function Indicator
	Indicator

5

16

6

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

17 EN

1.Eco Extra/Vacation Button

Press this button briefly to activate the Eco Extra function. Press and hold this button for 3 sec. to activate the Vacation function. Press this button again to deactivate the selected function.

2.Fast Freeze Button

Press this button briefly to activate the Fast Freeze function. Press this

button again to deactivate the selected function.

3.Freezer Compartment Temperature Setting Button

Press this button to set the temperature of the freezer compartment to -18, -20, -22, -24, -18... respectively. Press this button to set the desired temperature for the Freezer Compartment.

4.Fridge Compartment Temperature Setting Button

Press this button to set the temperature of the fridge compartment to 8, 6, 4, 2, 8... respectively.

Press this button to set the desired temperature for the Fridge Compartment.

5.Quick Cool Button

Press this button briefly to activate the Quick Cool function. Press this

button again to deactivate the selected function.

6. Flexi Zone Storage Compartment Temperature Setting Button

You can set the Flezi Zone Storage Compartment either as a Freezer or a Cooler. Press and hold this button for 3 sec. to set the Flexi Zone Storage Compartment either as a Freezer or a Cooler. This compartment is set as a Freezer Compartment at factory.

If the Flexi Zone Storage Compartment is set as a Freezer, then the temperature of the Flexi Zone Storage Compartment will change as -18,

-20, -22, -24, -18... respectively each time you press this button. If the Flexi Zone Storage Compartment is set as a Cooler, then the temperature of the Flexi Zone Storage Compartment will change as -6, 0, 2, 4, 6, 8, 10...

respectively each time you press this button.

7. Vacation Function Indicator

Indicates that the vacation function is active. If this function is active,

“- -“ appears on the indicator of the fridge compartment and no cooling is performed in the fridge compartment. Other compartments will be cooled in accordance with the temperature set for them.

Press the relevant button again to deactivate this function.

18 EN

8. Eco Extra Function Indicator

Indicates that the Eco Extra function is active. If this function is active, your refrigerator will automatically detect the least usage periods and energyefficient cooling will be performed during those times. Economy indicator will be active while energy-efficient cooling is performed.

Press the relevant button again to deactivate this function.

9. Quick Freeze Function Indicator

Indicates that the Quick Freezer function is active. Use this function when you place fresh food into the freezer compartment or when you need ice. When this function is active, your refrigerator will run for 6 hours without stopping.

Press the relevant button again to deactivate this function.

10.Freezer Compartment Temperature Indicator

Indicates the temperature set for Freezer Compartment.

11.Fridge Compartment Temperature Indicator

Indicates the temperature set for Fridge Compartment.

12. Quick Cool Function Indicator

Indicates that the Quick Cool function is active. Use this function when

you place fresh food into the fridge compartment or when you need to cool your food quickly. When this function is active, your refrigerator will run for 2 hours without stopping.

Press the relevant button again to deactivate this function.

13.Flexi Zone Storage Compartment Temperature Indicator

Indicates the temperature set for Flexi Zone storage compartment.

14.Economy Mode Indicator

Indicates that the refrigerator is running in energy-efficient mode. Freezer Compartment temperature

This indicator will be active if the function is set to -18 or the energy efficient cooling is being performed due to Eco-Extra function.

15. Error Status Indicator

If your refrigerator does not cool adequately or if there is a sensor failure, this indicator will be activated. When this indicator is active, Freezer Compartment Temperature indicator will display “E” and Fridge Compartment Temperature Indicator

will display numbers such as “1,2,3…”. These numbers on the indicator provides information about the error to the service personnel.

19 EN

16. Key Lock Indicator

Use this function if you do not want your refrigerator temperature setting changed. Press Quick Cool Button and Flexi Zone Storage Compartment Temperature Setting Button simultaneously for 3 sec. to activate this feature.

Press the relevant buttons again to deactivate this function.

17. Ice –off function button

To stop ice formation, ice-off function indicator is pressed for 3 seconds. When ice cancel is selected, no water will be sent to the ice box. Despite this, some ice may be leftover in the ice box which may be taken from there. To restart ice formation, ice-off function indicator has to be pressed for 3 seconds.

18. Ice –off function Indicator

If you do not want to get ice from the refrigerator, you need to use this

function. You may use this function by pressing the ice-off function indicator for 3 seconds.

Door Open Alarm:

If the either of the fridge compartment door or Flexi Zone Storage Compartment door remains open for minimum 1 minutes, audio Door Open Alarm will be activated. Just press any button on the indicator or close the open door to silence the alarm.

20 EN

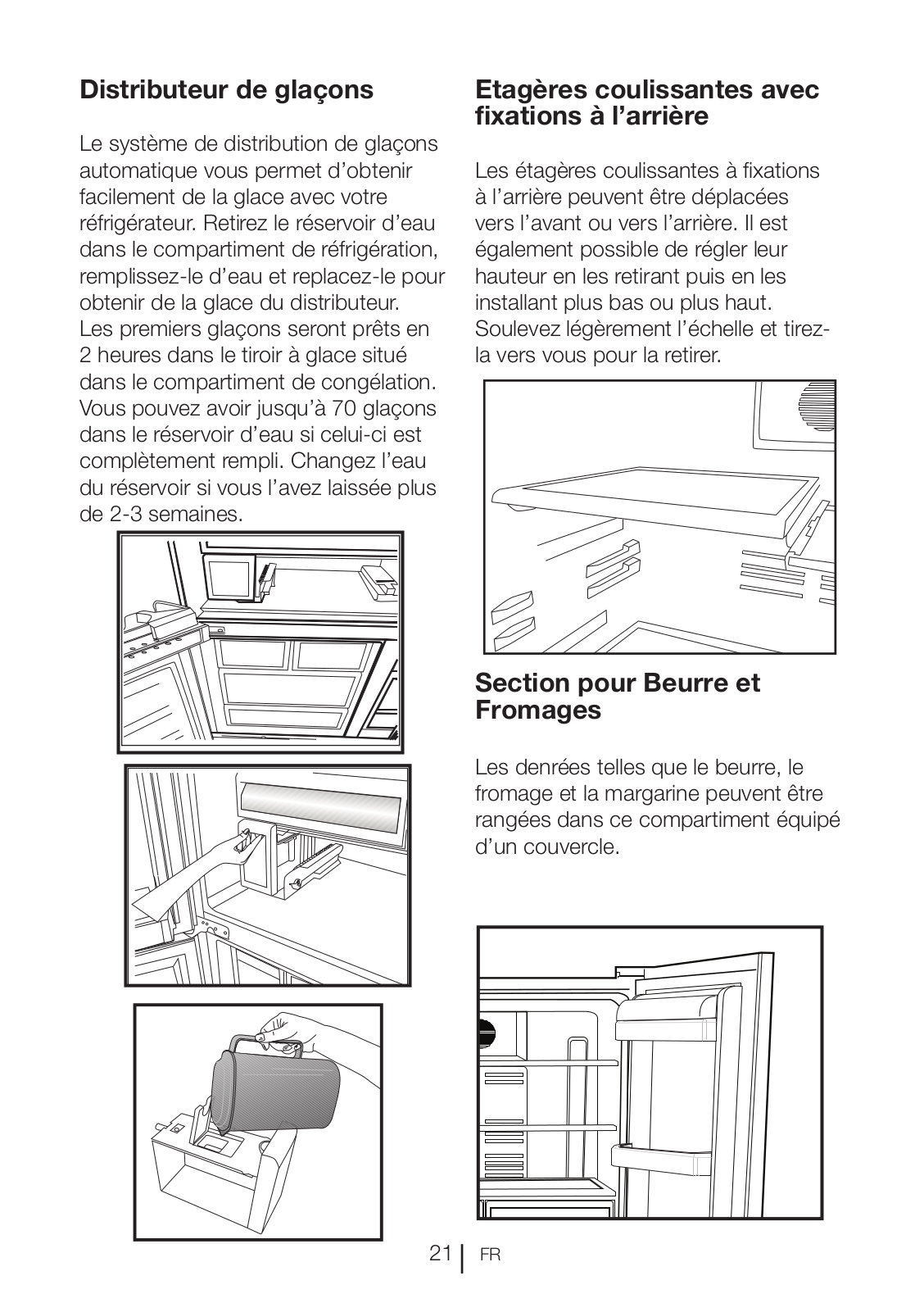

Auto Icematic

Auto Icematic system allows you to obtain ice from your refrigerator

easily. Remove the water tank in the fridge compartment, fill it wilt water and install it back to obtain ice from the icematic. First ice will be ready in 2 hours in the ice drawer located in the freezer compartment. You can obtain 70 ice cubes if the water tank

is completely full. Change the water in the water tank if it remains in the water tank for more then 2-3 weeks.

Sliding Body Shelves With

Rear Hangers

Sliding body shelves with rear hangers can be moved back and forth. Their height can also be adjusted by removing and installing them to a lower or upper position. Raise the shelf up slightly and pull towards yourself to remove it.

Butter & Cheese section

Food such as butter, cheese and margarine are stored in this compartment that has a cover.

21 EN

Egg tray

•You can install the egg holder to the desired door or body shelf.

•Never store the egg holder in the freezer compartment.

Sliding Body Shelves

• Sliding body shelves can be pulled by slightly lifting up from the front and moved back and forth. They come to a stop point when pulled towards front to allow you reach the foods placed at the back of the shelf; when it is pulled after slightly lifted upwards at the second stop point, the body shelf will be released.

The shelf should be hold tightly from the bottom as well in order to prevent it from tipping over. The body shelf is placed on the rails at the sides of the refrigerator body by bringing it to one lower or one upper level.

The body shelf should be pushed backwards to seat it completely.

1 2

3

4

22

Crisper

Crisper of your refrigerator is designed specially to keep your vegetables freshly without loosing their humidity. For this purpose, cool air circulation occurs around the crisper in general.

Chiller compartment

Chiller compartments enable the foods to be frozen become ready for freezing. You can also use these

compartments to store your food at a temperature a few degrees below the fridge compartment.

You can increase the inner volume of your refrigerator by removing any of the snack compartments. To do this, pull the compartment towards yourself; the compartment will lean against the stopper and stop. This compartment will be released when you lift it about 1 cm and pull it towards yourself.

EN

	Rotating Middle Section	Storage Compartment Temperature
		Setting Button. The temperature of
	Rotating middle section is intended	the Flexi Zone Storage Compartment
	to prevent the cold air inside your	may be set to 0 and 10 degrees in
	refrigerator from escaping outside.	addition to the fridge compartment
	Rotating middle section aids in	temperatures and to -6 degrees in
	sealing since the gaskets on the door	addition to the freezer compartment
	presses on the surface of the Rotating	temperatures. 0 degree is used to
	middle section when the doors of	store the deli products longer, and -6
	the fridge compartment are closed.	degrees is used to keep the meats
	Another reason that your refrigerator	up to 2 weeks in an easily cuttable
	is equipped with a rotating middle	condition.
	section is that it increases the net
	volume of the fridge compartment.	C The feature of switching to a Fridge
	Standard middle sections occupy	or Freezer compartment is provided by
	some non-usable volume in the	a cooling element located in the closed
	refrigerator.	section (Compressor Compartment)
	Flexi Zone Storage	behind the refrigerator. During
	Compartment	operation of this element, sounds
		similar to the sound of seconds heard
	The Flexi Zone Storage Compartment	from an analog clock may be heard.
		This is normal and is not fault cause.
	of your refrigerator may be used in
	any desired mode by adjusting it to	Blue light
	fridge (2/4/6/8 °C) or freezer (-18/-
	20/-22/-24) temperatures. You can
	keep the compartment in the desired	Foodstuff stored in the crispers that
	temperature with the Flexi Zone	are enlightened with a blue light
		continue their photosynthesis by
		means of the wavelength effect of blue
		light and thus, preserve their freshness
		and increase their vitamin content.
	23	EN

6 Maintenance and cleaning

A Never use gasoline, benzene or similar substances for cleaning purposes.

B We recommend that you unplug the appliance before cleaning.

B Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.

CUse lukewarm water to clean the cabinet of your refrigerator and wipe it dry.

CUse a damp cloth wrung out in a solution of one teaspoon of

bicarbonate of soda to one pint of water to clean the interior and wipe it dry.

B Make sure that no water enters the lamp housing and other electrical items.

B If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.

CCheck door seals regularly to ensure they are clean and free from food particles.

A To remove door racks, remove all the contents and then simply push the door rack upwards from the base.

ANever use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.

Protection of plastic surfaces

CDo not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

24 EN

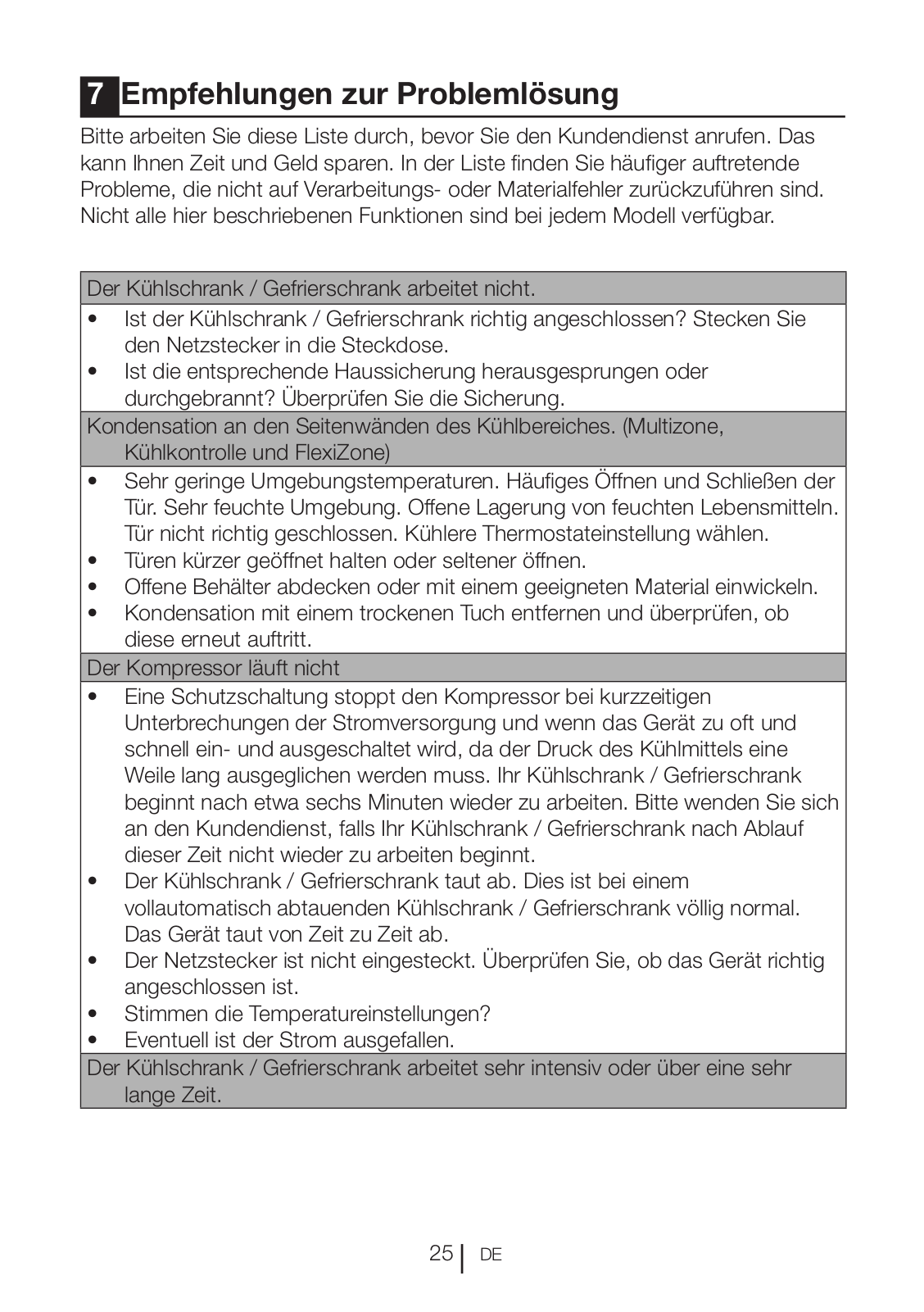

7 Troubleshooting

Please review this list before calling the service. It will save your time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The refrigerator does not operate.

•The plug is not inserted into the socket correctly. >>>Insert the plug into the socket securely.

•The fuse of the socket which your refrigerator is connected to or the main fuse have blown out. >>>Check the fuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

•Ambient is very cold. >>>Do not install the refrigerator in places where the temperature falls below 10 °C.

•Door has been opened frequently. >>>Do not open and close the door of refrigerator frequently.

•Ambient is very humid. >>>Do not install your refrigerator into highly humid places.

•Food containing liquid is stored in open containers. >>>Do not store food with liquid content in open containers.

•Door of the refrigerator is left ajar. >>>Close the door of the refrigerator.

•Thermostat is set to a very cold level. >>>Set the thermostat to a suitable level.

•Compressor is not running

•Protective thermic of the compressor will blow out during sudden power failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet. The refrigerator will start running

approximately after 6 minutes. Please call the service if the refrigerator does not startup at the end of this period.

•The fridge is in defrost cycle. >>>This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically.

•The refrigerator is not plugged into the socket. >>>Make sure that the plug is fit into the socket.

•Temperature settings are not made correctly. >>>Select the suitable temperature value.

•There is a power outage. >>>Refrigerator returns to normal operation when the power restores.

The operation noise increases when the refrigerator is running.

•The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault.

The refrigerator is running frequently or for a long time.

25 EN

•New product may be wider than the previous one. Larger refrigerators operate for a longer period of time.

•The room temperature may be high. >>>It is normal that the product operates for longer periods in hot ambient.

•The refrigerator might be plugged in recently or might be loaded with food.

>>>When the refrigerator is plugged in or loaded with food recently, it will take longer for it to attain the set temperature. This is normal.

•Large amounts of hot food might be put in the refrigerator recently. >>>Do not put hot food into the refrigerator.

•Doors might be opened frequently or left ajar for a long time. >>>The warm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Do not open the doors frequently.

•Freezer or fridge compartment door might be left ajar. >>>Check if the doors are closed completely.

•The refrigerator is adjusted to a very low temperature. >>>Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved.

•Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated. >>>Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature.

Freezer temperature is very low while the fridge temperature is sufficient.

•The freezer temperature is adjusted to a very low value. >>>Adjust the freezer temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.

•The fridge temperature is adjusted to a very low value. >>>Adjust the fridge temperature to a warmer degree and check.

Food kept in the fridge compartment drawers is frozen.

•The fridge temperature is adjusted to a very high value. >>>Adjust the fridge temperature to a lower value and check.

Temperature in the fridge or freezer is very high.

•The fridge temperature is adjusted to a very high value. >>>Fridge compartment temperature setting has an effect on the temperature of the freezer. Change the temperatures of the fridge or freezer and wait until the relevant compartments attain a sufficient temperature.

•Doors are opened frequently or left ajar for a long time. >>>Do not open the doors frequently.

•Door is ajar. >>>Close the door completely.

•The refrigerator is plugged in or loaded with food recently. >>>This is normal. When the refrigerator is plugged in or loaded with food recently, it will take longer for it to attain the set temperature.

•Large amounts of hot food might be put in the refrigerator recently. >>>Do not put hot food into the refrigerator.

26 EN

•Vibrations or noise.

•The floor is not level or stable. >>> If the refrigerator rocks when moved slowly, balance it by adjusting its feet. Also make sure that the floor is strong enough to carry the refrigerator, and level.

•The items put onto the refrigerator may cause noise. >>>Remove the items on top of the refrigerator.

There are noises coming from the refrigerator like liquid flowing, spraying, etc.

•Liquid and gas flows occur in accordance with the operating principles of your refrigerator. It is normal and not a fault.

Whistle comes from the refrigerator.

•Fans are used in order to cool the refrigerator. It is normal and not a fault. Condensation on the inner walls of refrigerator.

•Hot and humid weather increases icing and condensation. It is normal and not a fault.

•Doors are opened frequently or left ajar for a long time. >>>Do not open the doors frequently. Close them if they are open.

•Door is ajar. >>>Close the door completely.

Humidity occurs on the outside of the refrigerator or between the doors.

•There might be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear.

Bad odour inside the refrigerator.

•No regular cleaning is performed. >>>Clean the inside of the refrigerator regularly with a sponge, lukewarm water or carbonate dissolved in water.

•Some containers or package materials may cause the smell. >>>Use a different container or different brand packaging material.

•Food is put into the refrigerator in uncovered containers. >>>Keep the food in closed containers. Microorganisms spreading out from uncovered containers can cause unpleasant odours.

•Remove the foods that have expired best before dates and spoiled from the refrigerator.

The door is not closing.

•Food packages are preventing the door from closing. >>>Replace the packages that are obstructing the door.

•The refrigerator is not completely even on the floor. >>>Adjust the feet to balance the refrigerator.

•The floor is not level or strong. >>>Make sure that the floor is level and capable to carry the refrigerator.

Crispers are stuck.

• The food is touching the ceiling of the drawer. >>>Rearrange food in the drawer.

27 EN

Bitte lesen Sie zuerst diese Anleitung!

Lieber Kunde,

Wir sind sicher, dass Ihnen dieses Produkt, das in modernsten Fertigungsstätten hergestellt und den strengsten Qualitätsprüfungen unterzogen wurde, lange Zeit gute Dienste leisten wird.

Wir empfehlen Ihnen, vor Inbetriebnahme des Gerätes das gesamte Handbuch durchzulesen und es anschließend aufzubewahren.

Diese Anleitung...

•hilft Ihnen, Ihr Gerät schnell und sicher zu bedienen.

•Lesen Sie die Anleitung, bevor Sie Ihr Gerät aufstellen und bedienen.

•Halten Sie sich an die Anweisungen, beachten Sie insbesondere die Sicherheitshinweise.

•Bewahren Sie die Anleitung an einem leicht zugänglichen Ort auf, damit Sie jederzeit darin nachschlagen können.

•Lesen Sie auch die weiteren Dokumente, die mit Ihrem Produkt geliefert wurden.

•Bitte beachten Sie, dass diese Anleitung eventuell auch für andere Geräte eingesetzt werden kann.

Symbole und ihre Bedeutung

In dieser Anleitung finden Sie die folgenden Symbole:

C Wichtige Informationen oder nützliche Tipps.

AWarnung vor Verletzungen oder Sachschäden.

BWarnung vor elektrischem Strom.

INHALT

1 Ihr Kühlschrank

3

2 Wichtige

Sicherheitshinweise 4

4 Vorbereitung

16

5 So bedienen Sie Ihren Kühlschrank 17

	Bestimmungsgemäßer Einsatz...........	4		Anzeigefeld......................................	17
	Allgemeine Hinweise zu Ihrer			Auto-Eisbereiter ..............................	21
	Sicherheit...........................................	4		Butter- & Käsefach...........................	21
	Bei Geräten mit Wasserspender:........	9		Verschiebbare Ablagen.....................	22
	Kinder – Sicherheit.............................	9		Eierbehälter......................................	22
	Erfüllung von WEEE-Vorgaben zur			Gemüsefach ....................................	22
	Entsorgung von Altgeräten: ...............	9		Kühlfach...........................................	22
	Hinweise zur Verpackung...................	9		Drehbarer Mittelbereich ...................	23
	HC-Warnung....................................	10		FlexiZone-Bereich ..........................	23
	Tipps zum Energiesparen.................	10		Blaues Licht.....................................	23
	Empfehlungen zum Kühlbereich.......	11
	3 Installation	12		6 Wartung und Reinigung 24
				Schutz der Kunststoffflächen ...........	24
	Was Sie bei einem weiteren Transport
	Ihres Kühlschranks beachten			7 Empfehlungen zur	25
	müssen............................................	12		Problemlösung
	Bevor Sie Ihren Kühlschrank
	einschalten.......................................	12
	Elektrischer Anschluss......................	13
	Entsorgung der
	Verpackungsmaterialien...................	13
	Entsorgung von Altgeräten...............	13
	Aufstellung und Installation...............	14
	Gerade, ausbalancierte Aufstellung	.. 14

Spalt zwischen den Türen anpassen.15

2 DE

1 Ihr Kühlschrank

A

*1

2

3

4

5

*6

*7

*8

9

*10

*17

*11

B

A:Kühlbereich

B:Tiefkühlbereich

C:FlexiZone

1- Kühlbereich-Türablagen

2- Verstellbare Ablagen im Kühlbereich

3-	Leuchtenabdeckung
4-	Beleuchtung
5-	Drehbarer Mittelbereich
6-	Kühlfach
7-	Gemüsefach
8-	Wassertank

*12

13

*14

*15

16

C

9- Flaschenablage

10Eiswürfelmaschine

11Tiefkühlfächer

12Butter- & Käsefachabdeckung

13Butter- & Käsefach

14Flaschenhalter

15Ablagefächer

16Flexi Zone Fach

17Fresh Gefrierschublade

* FAKULTATIV

CAbbildungen und Angaben in dieser Anleitung sind schematisch und können etwas von Ihrem Produkt abweichen. Wenn die Teile nicht im gekauften Produkt enthalten sind, gelten sie für andere Modelle.

3 DE
