Cooker Hood
User Manual
EN ES PT
CWB 6460 X CWB 9460 X
Please read this user manual first!
Dear Customer,
Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.
Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
Important information or useful hints |
about |
C usage. |
|
|
|
Warning for hazardous situations with |
regard to |
A life and property. |
|
This product was manufactured using the latest technology in environmentally friendly conditions.
Complies with the WEEE Directive. |
Does not contain PCB. |
TABLE OF CONTENTS
1 |
Important instructions for safety and |
|
|
environment |
6-7 |
2 |
Installing your appliance |
8-9 |
|
|
|
3 |
Operating your appliance |
10-11 |
|
|
|
01M-8846193200-4814-04
01M-8846203200-4814-04
Cooker Hood / User Manual |
3 / 27 EN |
|
|
A |
B |
C |
M |
max 90 cm |
|||
Fig.1 |
|
|
|
|
<![if ! IE]> <![endif]>20 |
|
|
|
|
|
A |
|
= = |
|
|
|
|
A |
|
|
|
|
B |
Fig.2 |
|
|
Fig.3 |
|
C |
|
|
|
A |
|
|
Fig.4 |
|
|
Fig.5 |
|
B |
|
C |
Fig.6 |
Fig.7 |
Fig.8 |
Fig.11 |
Fig.9 |
Fig.10 |
1 Important instructions for safety and environment
General
Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations. The appliance has been designed for use in the ducting version (air exhaust to the outside - Fig.1B), filtering version (air circulation on the inside - Fig.1A) or with external motor (Fig.1C).
Safety precaution
•• Take care when the cooker hood is operating simultaneously with an open fireplace or burner that depend on the air in the environment and are supplied by other than electrical energy, as the cooker hood removes the air from the environment which a burner or fireplace need for combustion. The negative pressure in the environment must not exceed 4Pa (4x10-5 bar). Provide adequate ventilation in the environment for a safe operation of the cooker hood.
Follow the local laws applicable for external air evacuation.
Before connecting the model to the electricity network:
•• Control the data plate (positioned inside the appliance) to ascertain that the voltage and power correspond to the network and the socket is suitable. If in doubt ask a qualified electrician.
•• If the power supply cable is damaged, it must be replaced with another cable or a special assembly, which may be obtained direct from the manufacturer or from the Technical Assistance Centre.
•• This device must be connected to the supply network through either a plug fused 3A or hardwired to a 2 fase spur protected by 3A fuse.
In certain circumstances A electrical appliances may
be a danger hazard.
•• Do not check the status of the filters while the cooker hood is operating.
•• Do not touch bulbs or adjacent areas, during or straight after prolonged use of the lighting installation.
•• Flambè cooking is prohibited underneath the cooker hood.
•• Avoid free flame, as it is damaging for the filters and a fire hazard.
6 / 27 EN |
Cooker Hood / User Manual |
|
|
1 Important instructions for safety and environment
•• Constantly check food frying to avoid that the overheated oil may become a fire hazard.
•• Disconnect the electrical plug prior to any maintenance.
•• This appliance is not intended for use by young children or infirm persons without supervision.
•• Young children should be supervised to ensure they do not play with the appliance.
•• There shall be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels.
•• There is a risk of fire if cleaning is not carried out in accordance with the instructions.
Compliance with WEEE regulation and disposal of the waste product
This appliance conforms to the European Directive EC/2002/96, Waste Electrical and Electronic Equipment (WEEE). By making sure that this appliance is disposed of in a suitable manner, the user is helping to prevent potential damage to the environment or to public health.
The symbol on the product or on the ac-
companying paperwork indicates that
the appliance should not be treated as
domestic waste, but should be delivered to a suitable electric and electronic appliance recycling collection point. Follow local
guidelines when disposing of waste. For more information on the treatment, re-use and recycling of this product, please contact your local authority, domestic waste collection service or the shop where the appliance was purchased.
Cooker Hood / User Manual |
7 / 27 EN |
|
|
2 |
Installing your appliance |
•• Assembly and electrical connections must be carried out by specialized personnel.
•• Wear protective gloves before proceeding with the installation.
Electric Connection:
Note! Verify the data label placed inside the appliance:
•• If the symbol
appears on the plate, it means that no earth connection must be made on the appliance, therefore follow the instructions concerning insulation class II.
•• If the symbol
DOES NOT appear on the plate, follow the instructions concerning insulation class I.
Insulation class II
•• The appliance has been manufactured as a class II, therefore no earth cable is necessary. The plug must be easily accessible after the installation of the appliance.
•• If the appliance is equipped with power cord without plug, a suitably dimensioned omnipolar switch with 3 mm minimum opening between contacts must be fitted between the appliance and the electricity supply in compliance with the load and current regulations.
•• The connection to the mains is carried out as follows:
BROWN = L line BLUE = N neutral.
Insulation class I
This is a class I, appliance and must therefore be connected to an effiecient earthing system.
•• The appliance must be connected to the electricity supply as follows:
BROWN = L line BLUE = N neutral.
YELLOW/GREEN =
earth.
The neutral wire must be connected to the terminal with the N symbol while the YELLOW/ GREEN, wire must be connected to the terminal
by the earth symbol |
|
|
. |
|
|
When connecting the appliance to the electricity supply, make sure that the mains socket has an earth connection. After fitting the ducted cooker hood, make sure that the electrical plug is in a position where it can be accessed easily. If the appliance is connected directly to the electricity supply, an omnipolar switch with a minimum contact opening of 3 mm must be placed in between the two; its size must be suitable for the load required and it must comply with current legislation.
•• TIf the hob is electric, gas, or induction, the minimum distance between the same and the lower part of the hood must be at least 65 cm. If a connection tube composed of two parts is used, the upper part must be placed outside the lower part. Do not connect the cooker hood exhaust to the same conductor used to circulate hot air or for evacuating fumes from other appliances generated by other than an electrical source. Before proceeding with the assembly operations, remove the anti-grease filter(s) (Fig.5) so that the unit is easier to handle. In the case of assembly of the appliance in the suction version prepare the hole for evacuation of the air.
•• We recommend the use of an air exhaust tube which has the same diameter as the air exhaust outlet hole. If a pipe with a smaller diameter is used, the efficiency of the product may be reduced and its operation may become noisier.
•• If your appliance has been designed for use in habitations supplied with acentralised suction device perform the following operations:
8 / 27 EN |
Cooker Hood / User Manual |
|
|

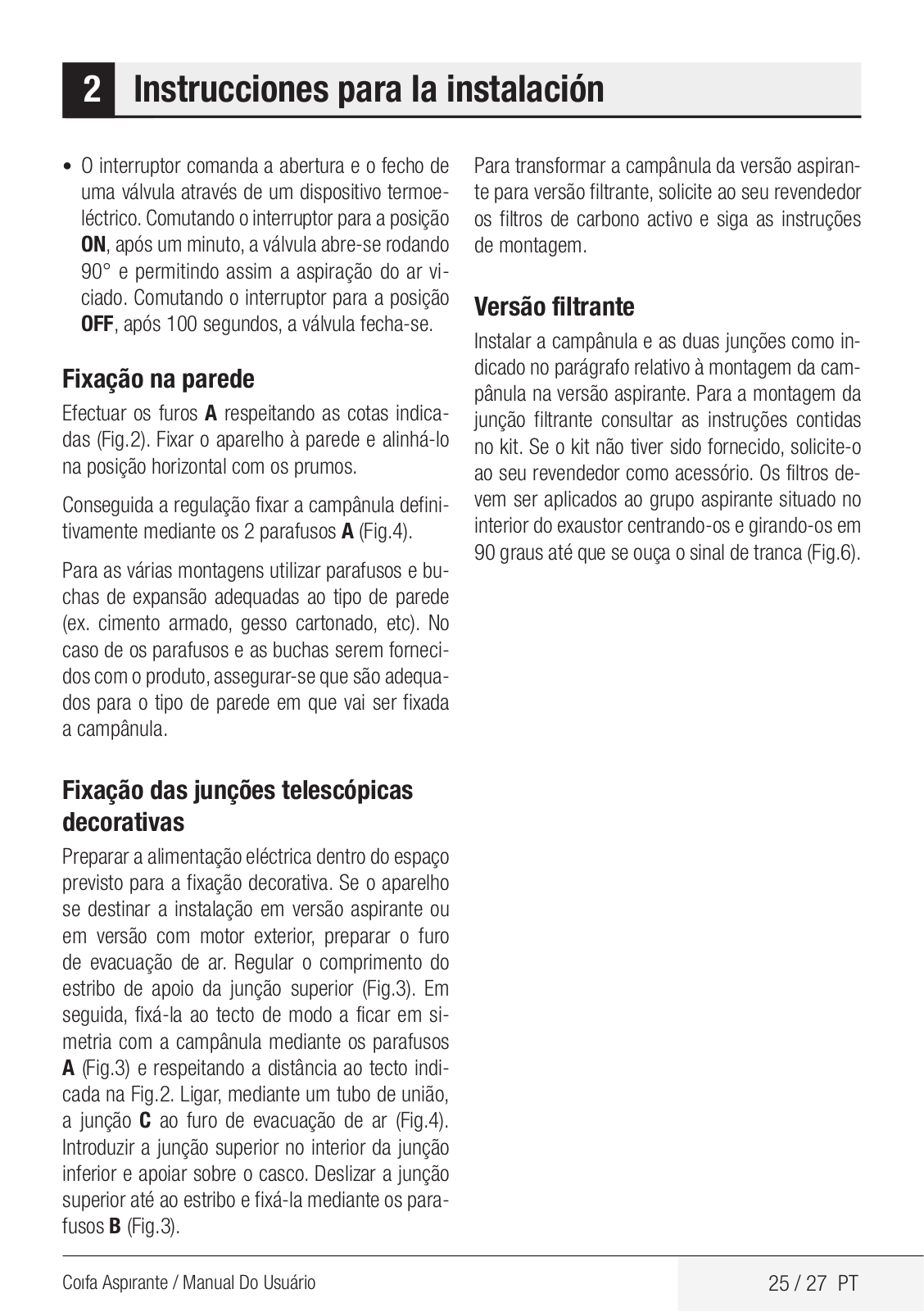

2 |
Installing your appliance |
•• The switch controls opening and closure of a valve using a thermoelectical device. By placing the switch in the ON position, after a minute, the valve opens rotating 90° allowing suction of the stale air. By placing the switch in the OFF position, the valve closes after 100 seconds.
Fixing to the wall:
Drill the holes A respecting the distances indicated (Fig.2). Fix the appliance to the wall and align it in horizontal position to the wall units. When the appliance has been adjusted, definitely fix the hood using the screws A (Fig.4). For the various installations use screws and screw anchors suited to the type of wall (e.g. reinforced concrete, plasterboard, etc.).
If the screws and screw anchors are provided with the product, check that they are suitable for the type of wall on which the hood is to be fixed.
Filtering version:
Install the hood and the two flues as described in the paragraph for installation of the hood in ducting version. To assemble the filtering flue refer to the instructions contained in the kit. If the kit is not provided, order it from your dealer as accessory. The filters must be applied to the suction unit positioned inside the hood. They must be centered by turning them 90 degrees until the stop catch is tripped (Fig.6).
Fixing the decorative telescopic flue:
Arrange the electrical power supply within the dimensions of the decorative flue. If your appliance is to be installed in the ducting version or in the version with external motor, prepare the air exhaust opening. Adjust the width of the support bracket of the upper flue (Fig.3). Then fix it to the ceiling using the screws A (Fig.3) in such a way that it is in line with your hood and respecting the distance from the ceiling indicated in Fig.2. Connect the flange C to the air exhaust hole using a connection pipe (Fig.4). Insert the upper flue into the lower flue and rest above the frame. Extract the upper flue up to the bracket and fix it with the screws B (Fig.3). To transform the hood from a ducting version into a filtering version, ask your dealer for the charcoal filters and follow the installation instructions.
Cooker Hood / User Manual |
9 / 27 EN |
|
|
3 |
Operating your appliance |
•• We recommend that the cooker hood is switched on before any food is cooked. We also recommend that the appliance is left running for 15 minutes after the food is cooked, in order to thoroughly eliminate all contaminated air. The effective performance of the cooker hood depends on constant maintenance; the an- ti-grease filter and the active carbon filter both require special attention.
•• The anti-grease filter is responsible retaining the grease particles suspended in the air, therefore it is subject to clogging with variable frequency according to the use of the appliance.
•• To prevent the danger of possible fires, at least every 2 months one must wash the anti-grease filters by hand using non-abrasive neutral liquid detergents or in the dishwasher at low temperatures and on short cycles.
•• In the event that acrylic anti-grease filters are used, hand-wash every 2 months, using neutral non-abrasive liquid detergents and replace them after every 6 washes.
•• After a few washes, colour alterations may occur. This does not give the right to claim their replacement.
•• The active carbon filters are used to purify the air that is sent back into the room and its function is to mitigate the unpleasant odours produced by cooking.
•• The non-regenerable active carbon filters must be replaced at least every 4 months. The saturation of the active charcoal depends on the more or less prolonged use of the appliance, on the type of kitchen and on the frequency with which anti-grease filter is cleaned.
•• Before remounting the anti-grease filters and the regenerable active charcoal filters it is important that they are completely dry.
•• Clean the hood frequently, both internally and externally, using a cloth dampened with denatured alcohol or neutral liquid detergents that are non abrasive.
•• The lighting .system is designed for use during cooking and not for the prolonged general lighting of the room. The prolonged use of the lighting system significantly decreases the average duration of the bulbs.
|
The non-compliance with |
the |
|
A |
hood cleaning warnings and with |
||
the replacement and cleaning of |
|||
the filters |
entails risk of fires. One |
||
|
therefore |
recommends keeping |
to |
|
the suggested instructions. |
|
|
Replacing halogen light bulbs (Fig.7A):
To replace the halogen light bulbs B, remove the glass pane C using a lever action on the relevant cracks. Replace the bulbs with new ones of the same type.
A Do not touch the light bulb with bare hands.
Replacing LED lamps (Fig.7B):
If the appliance version is with LED lamps, the intervention of a specialised technician is necessary to replace them.
Replacing the halogen/incandescent lamps (Fig.8):
Only use lamps of the same type and Wattage installed on the device.
10 / 27 EN |
Cooker Hood / User Manual |
|
|
3 |
Operating your appliance |
Commands mechanical (Fig.9) the key symbols are explained below:
A = LIGHT
B = OFF
C = SPEED I
D = SPEED II
E = SPEED III
Mechanical controls (Fig.10) the symbols are as follows:
A = LIGHT/ON-OFF key
B = OFF/FIRST SPEED key C = SECOND SPEED key D = THIRD SPEED key
If the hood is shut off at first, second or third speed, when it is turned back on, it will start at the same speed it was in when switched off.
Commands slider (Fig.11) the key symbols are explained below:
A = Light switch A1 = Off key A2 = On key
B = Warning light key C = Speed control C1 = Off key
C2 = FIRST SPEED key
C3 = SECOND SPEED key
C4 = THIRD SPEED key.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR EVENTUAL DAMAGES CAUSED BY BREACHING THE ABOVE WARNINGS.
Cooker Hood / User Manual |
11 / 27 EN |
|
|
