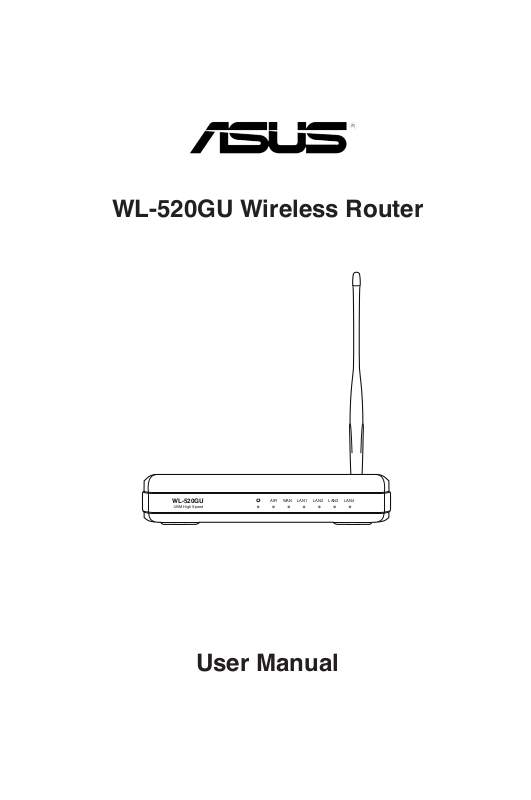

ASUS WL-520GU User Manual

WL-520GU Wireless Router

WL-520GU

125M High Speed

AIR WAN LAN1 LAN2 LAN3 LAN4

User Manual

E4258 First Edition

November 2008

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless such repair, modication of alteration is authorized in writing by ASUS; or (2)

the serial number of the product is defaced or missing. ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER

EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to infringe.

Table of contents

About this guide .................................................................................... 4

How this guide is organized .............................................................. 4

Conventions used in this guide ......................................................... 5

Chapter 1: Knowing your wireless router

Package contents .................................................................................. 6

System requirements ............................................................................ 6

Before you proceed ............................................................................... 6

Hardware features ................................................................................. 7

Front panel ........................................................................................ 7

Rear panel ......................................................................................... 8

Bottom panel ..................................................................................... 9

Mounting options ................................................................................. 10

Chapter 2: Setting up the hardware

Setting up the wireless router .............................................................11

Setting up a wired connection ..........................................................11

Setting up a wireless connection ..................................................... 12

Conguring the wireless router ......................................................... 12

Using the web GUI .......................................................................... 12

Chapter 3: Conguring the network clients

Accessing the wireless router ............................................................ 14

Setting an IP address for wired or wireless client ........................... 14

Chapter 4: Conguring via the web GUI

Conguring via the web GUI ............................................................... 21

Using the Network Map ....................................................................... 22

Setting up WAN using the Quick Internet Setup (QIS) .................... 23

Managing EzQoS bandwidth .............................................................. 24

Upgrading the rmware ...................................................................... 25

Restoring/Saving/Uploading settings ................................................ 26

Table of contents

Chapter 5: Installing the utilitieInstalling the utilities

Installing the utilities ........................................................................... 27

Device Discovery ................................................................................. 29

Firmware Restoration .......................................................................... 29

EZSetup ................................................................................................ 30

Using EZSetup ............................................................................... 30

Network Printer Setup ......................................................................... 36

Chapter 6: Troubleshooting

Troubleshooting ................................................................................... 39

Appendices

Notices .................................................................................................. 42

GNU General Public License .............................................................. 44

ASUS Contact information .................................................................. 50

About this guide

This user guide contains information that you need to install and congure the

ASUS Wireless Router.

How this guide is organized

This guide contains the following parts:

• Chapter 1: Knowing your wireless router

This chapter provides information on the package contents, system

requirements, hardware features, and LED indicators of the ASUS Wireless Router.

• Chapter 2: Setting up the hardware

This chapter provides instructions on setting up, accessing, and conguring the

ASUS Wireless Router.

• Chapter 3: Conguring the network clients

This chapter provides instructions on setting up the clients in your network to

work with your ASUS Wireless Router.

• Chapter 4: Conguring via the web GUI

This chapter provides instructions on conguring the ASUS Wireless Router

using its web graphics user interface (web GUI).

• Chapter 5: Installing the utilities

This chapter provides information on the utilities that are available from the

support CD.

• Chapter 6: Troubleshooting

This chapter provides you with a troubleshooting guide for solving common

problems you may encounter when using the ASUS Wireless Router.

• Appendices

This chapter provides you with the regulatory Notices and Safety Statements.

Conventions used in this guide

WARNING: Information to prevent injury to yourself when trying to

complete a task.

CAUTION: Information to prevent damage to the components when

trying to complete a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to aid in completing a task.

Knowing your

wireless router

Package contents

Check the following items in your ASUS Wireless Router package.

WL-520GU Wireless Router Power adapter Support CD (manual, utilities) RJ45 cable Quick Start Guide

Note: If any of the items is damaged or missing, contact your retailer.

System requirements

Before installing the ASUS Wireless Router, ensure that your system/network meets the following requirements:

• An Ethernet RJ-45 port (10Base-T/100Base-TX)

• At least one IEEE 802.11b/g device with wireless capability

• An installed TCP/IP and Internet browser

Before you proceed

Take note of the following guidelines before installing the ASUS Wireless Router:

• The length of the Ethernet cable that connects the device to the network (hub, ADSL/cable modem, router, wall patch) must not exceed 100 meters.

• Place the device on a at, stable surface as far from the ground as possible.

• Keep the device clear from metal obstructions and away from direct sunlight.

• Keep the device away from transformers, heavy-duty motors, uorescent lights,

microwave ovens, refrigerators, and other industrial equipment to prevent signal loss.

WL-520GU Chapter 1: Knowing your wireless router

• Install the device in a central area to provide ideal coverage for all wireless

WL-520GU

125M High Speed

AIR WAN LAN1 LAN2 LAN3 LAN4

mobile devices.

• Install the device at least 20cms from a person to insure that the product is operated in accordance with the RF Guidelines for Human Exposure adopted by the Federal Communications Commission.

Hardware features

Front panel

Status indicators

LED Status Indication

(Power)

AIR (Wireless Network)

WAN (Wide Area Network)

LAN 1-4 (Local Area Network)

Off No power

On System ready

Flashing-slow Firmware upgrade failed

Flashing-quick EZSetup processing

Off No power

On Wireless system ready

Flashing Transmitting or receiving data (wireless)

Off No power or no physical connection

On Has physical connection to an Ethernet

network

Flashing Transmitting or receiving data (through

Ethernet cable)

Off No power or no physical connection

On Has physical connection to an Ethernet

network

Flashing Transmitting or receiving data (through

Ethernet cable)

Chapter 1: Knowing your wireless router WL-520GU

Rear panel

Status indicators

Item Description

EZSetup Press this button to launch the EZSetup utility.

Restore Press this button to restore the router’s system to its

LAN1-LAN4 Connect RJ-45 Ethernet cables to these ports to

WAN Connect an RJ-45 Ethernet cable to this port to establish

USB Insert USB2.0 devices such as USB ash drives into this

DC In Insert the AC adapter into this port to connect your

factory default settings.

establish LAN connection.

WAN connection.

port.

router to a power source.

WL-520GU Chapter 1: Knowing your wireless router

Bottom panel

Item Description

Air vents

These vents provide ventilation to your router

Mounting hooks

Use the mounting hooks to mount your router on concrete or wooden surfaces using two roundhead screws.

Note: For details on mounting your router on a wall or ceiling, refer to the section Mounting options on the next page of this user manual.

Chapter 2: Setting up the hardware WL-520GU

Mounting options

Out of the box, the ASUS Wireless Router is designed to sit on a raised at surface like a le cabinet or book shelf. The unit may also be converted for mounting to a

wall or ceiling.

To mount the ASUS Wireless Router:

1. Look on the underside for the two mounting hooks.

2. Mark two upper holes in a at surface.

3. Tighten two screws until only 1/4'' is showing.

4. Latch the hooks of the ASUS Wireless Router onto the screws.

Note: Re-adjust the screws if you cannot latch the ASUS Wireless Router onto the screws or if it is too loose.

WL-520GU Chapter 2: Setting up the hardware

Setting up the hardware

Setting up the wireless router

The ASUS Wireless Router meets various working scenarios with proper

congurations. You may need to change the wireless router’s default settings so

as to meet the requirements in your wireless environment. It also provides you with EZSetup, a utility that enables you to easily set up a secure wireless network.

Notes:

• We recommend that you use wired connection for initial conguration to avoid possible

setup problems due to wireless uncertainty.

• For more details on EZSetup, refer to the section EZSetup in Chapter 4 of this user manual.

Setting up a wired connection

The ASUS Wireless Router is supplied with an Ethernet cable in the package. The wireless router has integrated auto-crossover function, so use either straight-through or crossover cable for wired connection.

To set up the wired connection:

1. Turn on your router and the modem.

2. Using an Ethernet cable, connect the router’s WAN port to the modem.

3. Using another Ethernet cable, connect the router’s LAN port to your PC’s LAN

port.

Chapter 2: Setting up the hardware WL-520GU

Setting up a wireless connection

To set up a wireless connection:

1. Turn on your router and the modem.

2. Using an Ethernet cable, connect the modem to the router’s WAN port.

3. Connect an IEEE 802.11b/g/n compatible WLAN card. Refer to your wirelessRefer to your wireless adapter user manual for wireless connection procedures. By default, the SSID of ASUS Wireless Router is “default” (in lower case), encryption is disabled and open system authentication is used.

Conguring the wireless router

The ASUS Wireless Router includes a web graphics user interface (web GUI)

which allows you to congure the wireless router using a web browser on your

computer.

Using the web GUI

If your PC connects to the router using a cable, launch a web browser and the

If your PC connects to the router wirelessly, you have to select the network rst.

To select the network:

1. Click Start > Control Panel > Network Connections > Wireless Network Connection.

2. Select a network from the Choose a wireless network window. Wait for it to connect.

Note: By default, the SSID of the wireless router is default. Connect to this default SSID.

WL-520GU Chapter 2: Setting up the hardware

3. After establishing a wireless connection, launch a web browser.

Notes:

• You may also manually key in the router's default IP address (192.168.1.1) to launch the router's web interface.

• For more details on conguring your wireless router using the web GUI, refer to Chapter 4:

Conguring via the web GUI.

Chapter 2: Setting up the hardware WL-520GU

Conguring the

network clients

Accessing the wireless router

Setting an IP address for wired or wireless client

To access the ASUS Wireless Router, you must have the correct TCP/IP settings on

your wired or wireless clients. Ensure that the clients’ IP addresses are within the same

subnet as the ASUS Wireless Router.

By default, the ASUS Wireless Router integrates the DHCP server functions, which automatically assigns IP addresses to the clients in your network.

But in some instances, you may want to manually assign static IP addresses on some of the clients or computers in your network rather than automatically getting IP addresses from your wireless router.

Follow the instructions below that correspond to the operating system installed on your client or computer.

Note: If you want to manually assign an IP address to your client, we recommend that you use the following settings:

• IP address: 192.168.1.xxx (xxx can be any number between 2 and 254. Ensure that the IP address is not used by another device)

• Subnet Mask: 255.255.255.0 (same as the ASUS Wireless Router)

• Gateway: 192.168.1.1 (IP address of the ASUS Wireless Router)

• DNS: 192.168.1.1 (ASUS Wireless Router) or assign a known DNS server in your network

WL-520GU Chapter 3: Conguring the clients

Windows® 9x/ME

1. Click Start > Control Panel > Network to display the Network

setup window.

2. Select TCP/IP then click Properties.

3. If you want your computer to automatically obtain an IP address, click Obtain an IP address automatically then click OK. Otherwise, click Specify an

IP address, then key in the IP address and Subnet Mask.

Chapter 3: Conguring the clients WL-520GU

4. Select Gateway tab, and key in New gateway then click Add.

5. Select the DNS conguration tab and click Enable DNS. Key in Host,

Domain, and DNS Server Search Order, then click Add.

6. Click OK.

WL-520GU Chapter 3: Conguring the clients

+ 35 hidden pages
