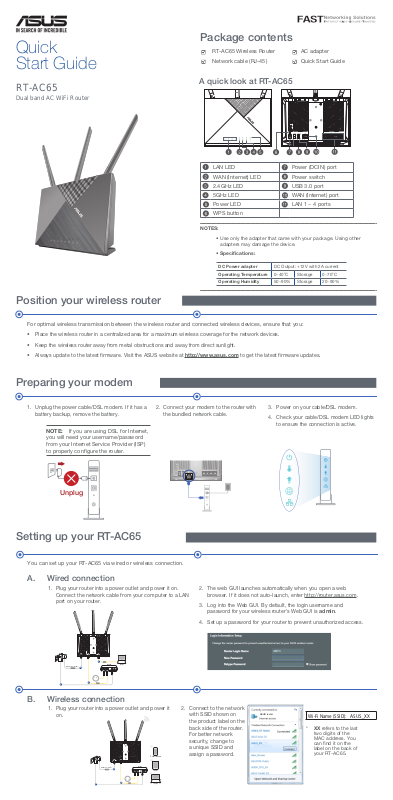

Asus RT-AC65 Quick Installation Guide

Package contents

Unplug

Wall Power Outlet

Modem

LINE LAN RESET PWR

Laptop

Power

WAN

LAN

a

d

c

b

ASUS router

Quick
Start Guide

RT-AC65

Dual band AC WiFi Router

RT-AC65 Wireless Router AC adapter

Network cable (RJ-45) Quick Start Guide

A quick look at RT-AC65

LAN LED Power (DCIN) port

WAN (Internet) LED Power switch

2.4GHz LED USB 3.0 port

5GHz LED WAN (Internet) port

Power LED LAN 1 ~ 4 ports

WPS button

NOTES:

• Use only the adapter that came with your package. Using other
adapters may damage the device.

• Specifications:

DC Power adapter DC Output: +12V with 2A current

Operating Temperature 0~40oC Storage 0~70oC

Operating Humidity 50~90% Storage 20~90%

Position your wireless router

For optimal wireless transmission between the wireless router and connected wireless devices, ensure that you:

• Place the wireless router in a centralized area for a maximum wireless coverage for the network devices.

• Keep the wireless router away from metal obstructions and away from direct sunlight.

• Always update to the latest firmware. Visit the ASUS website at http://www.asus.com to get the latest firmware updates.

Preparing your modem

1. Unplug the power cable/DSL modem. If it has a

2. Connect your modem to the router with

battery backup, remove the battery.

NOTE: If you are using DSL for Internet,
you will need your username/password
from your Internet Service Provider (ISP)
to properly configure the router.

Setting up your RT-AC65

You can set up your RT-AC65 via wired or wireless connection.

the bundled network cable.

3. Power on your cable/DSL modem.

4. Check your cable/DSL modem LED lights
to ensure the connection is active.

A. Wired connection

1. Plug your router into a power outlet and power it on.
Connect the network cable from your computer to a LAN
port on your router.

B. Wireless connection

1. Plug your router into a power outlet and power it
on.

Smart phone

2. The web GUI launches automatically when you open a web
browser. If it does not auto-launch, enter http://router.asus.com.

3. Log into the Web GUI. By default, the login username and
password for your wireless router’s Web GUI is admin.

4. Set up a password for your router to prevent unauthorized access.

2. Connect to the network
with SSID shown on
the product label on the
back side of the router.
For better network
security, change to
a unique SSID and
assign a password.

Wi-Fi Name (SSID): ASUS_XX

* XX refers to the last

two digits of the
MAC address. You
can find it on the
label on the back of
your RT-AC65.

Wall Power Outlet

a

Power

c

b

Modem

LINE LAN RESET PWR

WAN

Tablet

Laptop

3. You can choose either the web GUI or ASUS Router app to set up your router.

a. Web GUI Setup

• Once connected, the web GUI launches automatically when you open a

web browser. If it does not auto-launch, enter http://router.asus.com.

•

Log into the Web GUI. By default, the login username and password for
your wireless router’s Web GUI is admin.

•

Set up a password for your router to prevent unauthorized access.

b. App Setup

Download ASUS Router App to set up your router via your mobile devices.

• Turn on Wi-Fi on your mobile devices and connect to your RT-AC65’s network.

ASUS
Router

• Follow ASUS Router App setup instructions to complete the setup.

FAQ

Q1:

Where can I find more information about the wireless router?

• Technical support site: https://www.asus.com/support

• Customer hotline: refer to the Support Hotline section in

FREQUENTLY ASKED QUESTIONS

this Quick Start Guide

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for
protecting our environment. We believe in providing solutions for you to be able to responsibly
recycle our products, batteries, other components, as well as the packaging materials. Please go
to http://csr.asus.com/english/Takeback.htm for the detailed recycling information in dierent
regions.

REACH

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of
Chemicals) regulatory framework, we published the chemical substances in our products at
ASUS REACH website at http://csr.asus.com/english/REACH.htm

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause
undesired operation.

This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.

• Consult the dealer or an experienced radio/TV technician for help.

ASUS Router

Where can I submit feedback on the router?

Q2:

• App: Launch ASUS Router App and go to Setting > System
Settings > Feedback

• Web: Log into the web GUI of your router and go to
Advanced Settings > Administration > Feedback

Déclaration de conformité de Innovation, Sciences et Développement
économique Canada (ISED)

Le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement
économique Canada applicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2)
l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.

La bande 5150 – 5250 MHz est réservée uniquement pour une utilisation à l’intérieur an de
réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les
mêmes canaux.

CAN ICES-3(B)/NMB-3(B)

Informations concernant l’exposition aux fréquences radio (RF)

La puissance de sortie émise par cet appareil sans l est inférieure à la limite d'exposition aux
fréquences radio d'Innovation, Sciences et Développement économique du Canada (ISED).
Utilisez l'appareil sans l de façon à minimiser les contacts humains lors d'un fonctionnement
normal.

Cet équipement doit être installé et utilisé avec un minimum de 23 cm de distance entre la
source de rayonnement et votre corps.

L'utilisation de cet appareil est autorisée au Canada. Pour consulter l'entrée correspondant à
l'appareil dans la liste d'équipement radio (REL - Radio Equipment List) d'Innovation, Sciences et
Développement économique du Canada, rendez-vous sur :

http://www.ic.gc.ca/eic/site/ceb-bhst.nsf/eng/h_tt00020.html
Pour des informations supplémentaires concernant l'exposition aux fréquences radio au Canada,

rendez-vous sur : https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html

For product available in the US/Canada market, only channel 1~11 can be operated. Selection of
other channels is not possible.

Pour les produits disponibles aux États-Unis et au Canada, seuls les canaux 1 à 11 peuvent être
utilisés. La sélection d’autres canaux n’est pas possible.

This device is restricted for indoor use only.
Cet appareil convient uniquement à un usage intérieur.

WARNING! Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.

Prohibition of Co-location

This device and its antenna(s) must not be co-located or operating in conjunction with any other
antenna or transmitter.

IMPORTANT NOTE:

Radiation Exposure Statement: This equipment complies with FCC radiation exposure

limits set forth for an uncontrolled environment. End users must follow the specic operating
instructions for satisfying RF exposure compliance. To maintain compliance with FCC exposure
compliance requirement, please follow operation instruction as documented in this manual.

WARNING! This equipment must be installed and operated in accordance with
provided instructions and the antenna(s) used for this transmitter must be installed to
provide a separation distance of at least 20 cm from all persons and must not be co­located or operating in conjunction with any other antenna or transmitter.

Compliance Statement of Innovation, Science and Economic
Development Canada (ISED)

This device complies with Innovation, Science and Economic Development Canada licence
exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.

Operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful
interference to co-channel mobile satellite systems.

CAN ICES-3(B)/NMB-3(B)

Radio Frequency (RF) Exposure Information

The radiated output power of the ASUS Wireless Device is below the Innovation, Science and
Economic Development Canada radio frequency exposure limits. The ASUS Wireless Device
should be used in such a manner such that the potential for human contact during normal
operation is minimized.

This equipment should be installed and operated with a minimum distance of 23 cm between
the radiator any part of your body.

This device has been certied for use in Canada. Status of the listing in the Innovation, Science
and Economic Development Canada’s REL (Radio Equipment List) can be found at the following
web address:

http://www.ic.gc.ca/eic/site/ceb-bhst.nsf/eng/h_tt00020.html
Additional Canadian information on RF exposure also can be found at the following web:
https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html

Safety Notices

• Use this product in environments with ambient temperatures between 0°C(32°F) and
40°C(104°F).

• Refer to the rating label on the bottom of your product and ensure your power adapter
complies with this rating.

• DO NOT place on uneven or unstable work surfaces. Seek servicing if the casing has been
damaged.

• DO NOT place or drop objects on top and do not shove any foreign objects into the product.

• DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during
electrical storms.

• DO NOT cover the vents on the product to prevent the system from getting overheated.

• DO NOT use damaged power cords, accessories, or other peripherals.

• If the Adapter is broken, do not try to x it by yourself. Contact a qualied service technician
or your retailer.

• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet
before relocating the system.

• DO NOT mount this equipment higher than 2 meters.

• Utilisez ce produit dans un environnement dont la température ambiante est
comprise entre 0˚C (32°F) et 40˚C (104°F).

• Référez-vous à l'étiquette située au dessous du produit pour vérier que
l'adaptateur secteur répond aux exigences de tension.

• NE PAS placer sur une surface irrégulière ou instable. Contactez le service après-vente si le
châssis a été endommagé.

• NE PAS placer, faire tomber ou insérer d'objets sur/dans le produit.

• NE PAS exposer l'appareil à la pluie ou à l'humidité, tenez-le à distance des liquides.
NE PAS utiliser le modem lors d'un orage.

• NE PAS bloquer les ouvertures destinées à la ventilation du système pour éviter que
celui-ci ne surchaue.

• NE PAS utiliser de cordons d'alimentation, d'accessoires ou autres périphériques
endommagés.

• Si l'adaptateur est endommagé, n'essayez pas de le réparer vous-même. Contactez
un technicien électrique qualié ou votre revendeur.

• Pour éviter tout risque de choc électrique, débranchez le câble d'alimentation de la
prise électrique avant de toucher au système.

• Ne placez pas cet appareil à une hauteur supérieure à 2 mètres.

Manufacturer ASUSTeK Computer Inc.

Authorised representative in
Europe

Authorised distributors in
Turkey

Tel: [phone]
Address: 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112, Taiwan

ASUS Computer GmbH

Address: HARKORT STR. 21-23, 40880 RATINGEN, GERMANY

BOGAZICI BILGISAYAR TICARET VE SANAYI A.S.
Tel./FAX No.: [phone] / [phone]
Address: ESENTEPE MAH. BUYUKDERE CAD. ERCAN HAN B BLOK NO.121 SISLI, ISTANBUL 34394

CIZGI Elektronik San. Tic. Ltd. Sti.
Tel./FAX No.: [phone] / [phone]
Address: GURSEL MAH. AKMAN SK.47B 1 KAGITHANE/ISTANBUL

KOYUNCU ELEKTRONiK BiLGi iSLEM SiST. SAN. VE DIS TIC. A.S.
Tel. No.: [phone]
Address: EMEK MAH.ORDU CAD. NO:18, SARIGAZi, SANCAKTEPE ISTANBUL

ENDEKS BİLİŞİM SAN VE DIŞ TİC LTD ŞTİ
Tel./FAX No.: [phone] / [phone]
Address: NECIP FAZIL BULVARI, KEYAP CARSI SITESI, G1 BLOK, NO:115 Y.DUDULLU, UMRANIYE, ISTANBUL

PENTA TEKNOLOJI URUNLERI DAGITIM TICARET A.S
Tel./FAX No.: [phone]
Address: ORGANIZE SANAYI BOLGESI NATO YOLU 4.CADDE NO:1 UMRANIYE, ISTANBUL 34775
