Power Macintosh

User’s Guide

Includes setup, troubleshooting, and important health-related information for Power Macintosh 5200/75 LC computers

K Apple Computer, Inc.

written consent of Apple. Your rights to the software are governed by the accompanying software license agreement.

The Apple logo is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. Use of the “keyboard” Apple logo (Option-Shift-K) for commercial purposes without the prior written consent of Apple may constitute trademark infringement and unfair competition in violation of federal and state laws.

Every effort has been made to ensure that the information in this manual is accurate. Apple is not responsible for printing or clerical errors.

Apple Computer, Inc. 1 Infinite Loop Cupertino, CA 95014-2084 (408) 996-1010

Apple, the Apple logo, AppleScript, AppleShare, AppleTalk, EtherTalk, ImageWriter, LaserWriter, LocalTalk, Macintosh, MacTCP, MacTerminal, PowerTalk, and StyleWriter are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.

Apple Desktop Bus, Apple Extra, Balloon Help, Disk First Aid, Extensions Manager, Finder, Macintosh PC Exchange, Power Macintosh, and QuickDraw are trademarks of Apple Computer, Inc.

Adobe, Adobe Illustrator, Adobe Photoshop, and PostScript are trademarks of Adobe Systems Incorporated, which may be registered in certain jurisdictions.

ExposurePro is a registered trademark of Baseline Publishing, Inc. Helvetica and Times are registered trademarks of Linotype-Hell Company. IBM is a registered trademark, and PowerPC and the PowerPC logo are trademarks of

International Business Machines Corporation, used under license therefrom. Motorola is a registered trademark of Motorola Corporation. QMS is a registered trademark of QMS, Inc. QuarkXPress is a registered trademark of Quark, Inc. SuperPaint is a registered trademark of Aldus Corporation. Tektronix is a registered trademark of Tektronix, Inc. Trinitron is a trademark of Sony Corporation, registered in the U.S. and other countries. Simultaneously published in the United States and Canada. Mention of third-party products is for informational purposes only and constitutes neither an

endorsement nor a recommendation. Apple assumes no responsibility with regard to the performance or use of these products.

Con tents

Communications regulation information vi

Preface Welcome to Power Macintosh ix

1Getting Started 1

Plugging in the computer 1 Installing an expansion card 4 Connecting th e mouse and keyboard 5 Adjusting t he angl e of the screen 7 Connecting oth er equipment 7 Tur ning th e computer on for the first time 8 What’s next? 11 Learning the basics 12 Review ing the basics 13 Tur ning th e computer off 14 Tur ning th e computer on 15 Where to find answers 15

iii

2Getting Help 17

Getting answers to your questions 18 Identifying objects on the screen 26 Learning useful shortcuts 27

3Expanding Your Computer and Using Sp ecial Features 29

Your computer at a glance 30 Connecting additional equipment 31 Using the sound control buttons on your computer 32 Using the screen control buttons on your computer 33 Using the built-in microphone 34 Connecting to an E thernet network 35 Connecting a second monitor for video mir roring 36 Expanding memory 37 Installing internal drives 37

4Installing and Using Application Programs 39

Installing application programs 40 Working with several programs at a time 41 Backing up your files 42 Usi ng Power Macintosh application programs 43 Usi ng older Macintosh programs 44

5Troubleshooting 45

When you have questions 45 When you run into trouble 45 Solutions to common problems 48 If your computer’s p erformance decreases 59 Initializing a hard disk 60 Repairing a damaged disk 64 Installing or reinstalling system software 69

Contents

Appendix A Health, Safety, and Maintenance Tips 79

Health-related information about computer use 79 Safety in stru ctions 84 Handling your computer equipment 85 Cleaning your equipment 89 Locking and unlocking the mouse 91

Appendix B Installing an Expansion Card 93

Opening the computer 95 Installing an LC-PDS card 98 Installing a communication card 99 Closing the computer 101

Appendix C Special Keys on Your Keyboard 105

Index 107

Contents

Communications regulation information

FCC statement

This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in Part 15 of FCC rules. See instructions if interference to radio or television reception is suspected.

Radio and television interference

The equipment described in this manual generates, uses, and can radiate radio-frequency energy. If it is not installed and used properly—that is, in strict accordance with Apple’s instructions—it may cause interference with radio and television reception.

This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in Part 15 of FCC rules. These specifications are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation.

You can determine whether your computer system is causing interference by turning it off. If the interference stops, it was probably caused by the computer or one of the peripheral devices.

If your computer system does cause interference to radio or television reception, try to correct the interference by using one or more of the following measures:

m Turn the television or radio antenna until the interference stops. m Move the computer to one side or the other of the television or radio. m Move the computer farther away from the television or radio. m Plug the computer into an outlet that is on a different circuit from the television or radio.

(That is, make certain the computer and the television or radio are on circuits controlled by different circuit breakers or fuses.)

If necessary, consult an Apple-authorized service provider or Apple. See the service and support information that came with your Apple product. Or, consult an experienced radio/television technician for additional suggestions. You may find the following booklet helpful: Handbook (stock number 004-000-00493-1). This booklet, prepared by the Federal Communications Commission, is available from the U.S. Government Printing Office, Washington, DC 20402.

IMPORTANT

could void the FCC Certification and negate your authority to operate the product. This product was tested for FCC compliance under conditions that included the use of Apple

peripheral devices and Apple shielded cables and connectors between system components. It is important that you use Apple peripheral devices and shielded cables and connectors between system components to reduce the possibility of causing interference to radios, television sets, and other electronic devices. You can obtain Apple peripheral devices and the proper shielded cables and connectors through an Apple-authorized dealer. For non-Apple peripheral devices, contact the manufacturer or dealer for assistance.

Changes or modifications to this product not authorized by Apple Computer, Inc.,

Interference

Communications Regulation Information

DOC statement

DOC Class B Compliance This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus,” ICES-003 of the Department of Communications.

Observation des normes—Classe B Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur : “Appareils Numériques”, NMB-003 édictée par le ministre des Communications.

VCCI statement

CD-ROM drive

WARNING

equipment’s manual may result in hazardous exposure.

WARNING

this product is harmful to the eyes. The use of optical instruments, such as magnifying lenses, with this product increases the potential hazard to your eyes. For your safety, have this equipment serviced only by an Apple-authorized service provider.

If you have an internal Apple CD-ROM drive in your computer, your computer is a Class 1 laser product. The Class 1 label, located on the computer, indicates that the drive meets minimum safety requirements. A service warning label is on the CD-ROM drive inside the computer.

Making adjustments or performing procedures other than those specified in your

Do not attempt to disassemble the cabinet containing the laser. The laser beam used in

Communications Regulation Information

vii

Welcome to Power Macintosh

Congratulations on the purchase of your new Macintosh. Your computer is designed to give you the highest performa nce combined with real ease of use—it’s easy to set up, easy to use, and easy to expand. This book will guide you through the setup procedure, tell you how to expand your Macintosh, and provide many tips on using your new system.

Your Macintosh computer is powered by the new (or “chip”). This microprocessor was designed by Apple Computer, Inc., Motorola, Inc., and IBM Corporation. T h e † microprocessor uses Reduced Instruction Set Computing (RISC) technology to deliver very high performance at the lowest possible cost. T he † RISC micropro cessor represents the state of the art in microprocessor design.

Your new Macintosh will run almost all of your existing Macintosh software, but for best perfor ma nce and greatest speed, look for the new software programs designed especially for computers that contain the † microprocessor. You’ll find † microprocessor–compatible programs at any software store that carries products for the Macintosh computer.

† microprocessor

Keyboard

Macintosh computer

Keyboard cable

(sometimes built into the

keyboard as shown here)

Computer power cord

Mouse

Follow the instructions in this

chapter to set up your computer

and learn the basics.

Getting Started

The illustration on the facing page shows all th e equipment you will need to set up your computer a nd begin usi ng it. Place your equipment on a sturdy, flat surface near a grounded wall outlet. Before following the setup instructions in this chapter, you may want to read “Arranging Your Office” in Appendix A (in the section on h ealth-related information) for tips on adjusting your work furniture so that you’re comfortable when usi ng the co mputer.

Pluggin g in the computer

Before you plug your Macintosh into a wall socket, carefully read all the setup instructions in this chapter. Then, before you connect anything to your Macintosh, follow the i nstructions in this section to plug it in. The plug grounds the computer and protects it from electrical damage while you are setting up.

When you are ready to begin, follow these steps:

1Place the computer where you want it.

Carry the computer with its screen facing you. Most of its weight is near the screen. Lift with your knees, not your back.

Chapter 1

2Plug the socket end of the power cord into the recessed power plug (marked with the

“Off” position

Power switch

symbol≤) on the back of the computer.

Make sure at least one end of the power cord is within easy reach so that you can unplug the computer when you need to.

IMPORTANT

To protect both yourself and the computer from electrical hazards, the com puter should remain turned off until you are finished connecting its parts. Check the power switch at the back of the computer. Make sure that the side of the switch marked with the j symbol is pressed in.

Getting Started

3Plug the other end of the power cord into a three-hole grounded outlet or power strip.

Socket end of the power cord

Power cord plug

Installing an expansion c ard

WARNING

This equipment is intended to be electrically grounded. Your Macintosh is equipped with a three-wire grounding plug—a plug that has a third (grounding) pin. This plug will fit only a grounded AC outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact a licensed electrician to replace the outlet with a properly grounded outlet. Do not defeat the purpose of the grounding plug!

If you purchased an expansion card for your Macintosh, install it now. (See Appendix B, “Installing an Expansion Card,” for instructions.) If you don’t have an expansion card, continue with th e n ext section, “Connecting the Mouse and Keyboard.”

Chapter 1

Connecting the mou se and keyboard

This cable plugs into the Apple Desktop Bus (ADB) port on the back of the computer. The ADB port on the computer is marked with the

◊

icon.

Plug the mouse into the recessed port on the keyboard. The flat part of the plug should be pointing down, as shown here.

The way you connect th e mouse and keyboard depends on whether the keyboard has a built-in cable or a separate cable.

Connecting a keyboard with a built-in cable

1Plug the mouse cable into the recessed port on the back of the keyboard.

The plug and the port are marked with the ◊ icon (symbol). The positions of the port and icon on your keyboard may be different from those pictured.

By the way: A por t marked with the ◊ icon is called an Apple Desktop Bus (ADB) port.

2Plug the keyboard cable into the port marked with the

computer.

◊

icon on the back of the

Getting Started

Connecting a keyboard with a separate cable

ADB icon

1Plug the mouse cable into the port on either side of the keyboard.

Most right-handed people prefer to use the mouse with thei r right hand; most left-handed people prefer to use their left hand. Plug the mouse into the port on the side you prefer.

The plug and the port are marked with the ◊ icon (symbol). Align the icons before you insert the plug. (The positions of the port and icon on your keyboard may be different from those pictured here.)

By the way: A por t marked with the ◊ icon is called an Apple Desktop Bus (ADB) port.

Chapter 1

2Plug the keyboard cable (both ends are the same) into the other port on the keyboard. 3Plug the keyboard cable into the port marked with the

computer.

◊

icon on the back of the

Adjustin g the angl e of the screen

You can adjust the angle of the screen to avoid glare and reflections by using the computer’s tilt-and-swivel base. Tur n the computer to either side or tilt it slightly back or forward.

For more information on setting up your office for comfort and safety, see Appendix A, “Health, Safety, and Maintenance Tips.”

Connecting other equipment

If you are new to the Macintosh, it’s a good idea to get some experience using your computer before you connect other equipment, such as a printer or scanner. To learn basic Macintosh skills, continue with the instructions in this chapter.

When you’re ready to connect other equipment to your Macintosh, see the instructions in Chapter 3.

Getting Started

Turning th e computer on for the first time

To turn the computer on for the first time, follow these steps:

1 On the back of the computer, press the side of the power switch marked with the

symboli.

2Press the Power key (marked with a triangle) on your keyboard.

You hear a tone from the computer as it starts up.

Chapter 1

3Check to see what’s on your screen.

After a few moments you should see a screen like the one below. This means that system software has already been installed, and your computer is ready to us e.

Hard disk icon

Macintosh desktop

If something else happens, see “Problems Star ting Up?” on the next page.

Getting Started

Probl ems starting up?

If the screen is dark, ch eck these items to see if you can identify the problem:

m Is the computer turned on? T he power-on light on the front of the

computer should be on. Make sure the side of the power switch marked with the symbol i (on the back of the computer) is pressed in.

m Is the power cord connected to the computer, a nd is the cord plugged

into a power source?

m If the computer is plugged i nto a power strip, is the power strip

turned on?

m Are the keyboard and mouse cables connected correctly? (Don’t

disconnect the keyboard or mouse cable while the computer is on. You could damage your equipment.)

m Are the screen control buttons on the front of the computer (marked

with the ¸ icon) adjusted correctly?

m If you have an external hard disk attached to your computer, is that

hard disk turn ed on? Was it turn ed on before you turn ed on the computer? If you’re not sure, turn everything off. Then turn on the external hard disk b efore you turn on your computer.

If you see a blinking question mark on the screen, you probably need to to read “Solutions to Common Problems” in Chapter 5.

Chapter 1

What’s next?

Congratulations! You’ve finished setting up your computer. Now continue with one of the following steps:

m If you are new to the Macintosh, turn to the next section, “Learning the

Basics.”

m If you are an experienced Macintosh user, tur n to Chapter 2, “Getting

Help,” to learn about Macintosh Guide, your mai n source of information when you’re working with the Macintosh.

m If you want to connect other equipment, such as a printer, to your

computer, see Chapter 3, “Expanding Your Computer and Usi ng Special Features.”

m If you want to install application software on your computer, see Chapter 4

of this book for information on setting up your programs and managing memory. You’ll need this information to prop erly set up any software programs specifically designed for computers with PowerPC microprocessors.

Before you b egin working with your computer, be sure to read the impor tant health and safety information in Appendix A.

IMPORTANT

If you need to turn off your computer at any poi nt, please see “Turning the Computer Off” later in this chapter. It is very important to use the correct procedure for shutting down your Macintosh before turning it off.

Getting Started

Learning th e basics

Mouse button

If you are new to the Macintosh, you should begin by looking at the easyto-use program called the Macintosh Tutorial. The tutorial teaches you the basic skills you’ll n eed to use your computer. To start the tutorial, follow these steps:

1Slide your mouse along your mouse pad or desk.

Hold the mouse as shown, with the cable pointing away from you. Don’t press the mouse button (under your index finger). Notice that the arrow (8) on the screen moves in the same direction that you move the mouse.

If the arrow doesn’t move, make sure that the cables connecting the mouse and keyboard are secure and that your mouse is positioned as shown in the illustration.

2Move the tip of the arrow (8) to the question mark (h) in the upper-right portion of

the screen.

If you run out of room on your mouse pad or desk while moving the mouse, pick up the mouse and place it where there’s more room. (The arrow on the screen moves only when the mouse is in contact with the mouse pad or desk.)

3With the tip of the arrow on the question mark, press and hold down the mouse button.

A list of choices (called a me nu) appears. This is the Guide (h) menu, which is the place to go when you have a question about how to use your computer.

Chapter 1

4While holding down the mouse button, move the arrow until the words “Macintosh

Tutorial” are highlighted, then release the mouse button.

A window appears welcomi ng you to the tutorial. You can set this book aside for now and follow the instructions on the screen. When you have completed the tutorial, return to this book.

Reviewing the basic s

The following illustration summarizes many of the basic skills and terms you learned from the tutorial.

The strip across the

top of the screen is

called the menu bar.

The symbols and

words in it represent

menus of commands.

Icons are small pictures

that represent disks,

folders, programs, and

documents. To open

an icon, click the

icon twice quickly.

Windows are boxes

that display text,

graphics, or icons. To

bring a partially

covered window to the

front, click anywhere

in the window.

To move a window,

drag it by the title bar.

To close a window,

click the close box.

To find an answer to

a question, look in the

Guide (

To bring hidden portions of a window’s contents into view, click the scroll arrows.

) menu.

You can have several application programs open at once. To see which program is active or to switch from one program to another, use this menu (called the Application menu).

This icon represents your computer’s internal hard disk.

To change the size or shape of a window, drag the size box.

To throw away an item you no longer want, drag it to the Trash and choose Empty Trash from the Special menu.

Getting Started

Turning th e computer off

To turn the computer off, you choose Shut Down from the Special menu. Detailed instructions follow. (Note: The Shut Down command is also available in the Apple [K] menu.)

1Move the tip of the arrow (8) to the word “Special” at the top center of the screen.

If the word “Special” does not app ear at the top of the screen, you’re working in the wrong program. Pull down th e Application menu (to the right of the Guide [h] menu) and choose Finder. Then try step 1 again.

2With the tip of the arrow on the word “Special,” press and hold down the mouse button. 3While holding down the mouse button, move the arrow down the list of choices until the

words “Shut Down” are highlighted, then release the mouse button.

You can also shut down your computer from the keyboard:

1Press the Power key (marked with the triangle) on the keyboard.

You will see a message asking whether you wa nt to shut down or continue working.

2Click Shut Down.

Chapter 1

Turning th e computer on

User’s GuideUser’s Guide

MacintoshMacintosh

To turn the co mputer on after you’ve shut it down with eith er the menu command or the keyboard:

Press the Power key (marked with the triangle

Leave the power switch on the back of your computer in the “on” position. (The side of the switch marked with the i symbol should be pressed in.)

Whe re to find an swers

When you have questions about using your Macintosh, there are several places you can look for answers.

)

on the keyboard.

In this book

Use this book to help you set up your computer and learn about it, or to find solutions to problems.

In the Guide menu

The Guide menu (marked with the hicon) is your main source of information about the Macintosh. To learn how to get different kinds of help from the Guide menu, see Chapter 2 in this book.

In other manuals

For answers to questions about other equipment or about application programs you have purchased, see the manuals that came with the equipment or programs.

From Apple’s customer support hotline

If you can’t find an answer in any of the materials provided, call the customer support hotline. (The phone number for the hotline is in the service and support information that came with your computer.)

Getting Started

Use the instructions in this

chapter to learn about the help

available to you in the Guide menu.

Getting Help

TheGuide menu is your main source of infor mation when you’re working with your computer. The menu is identified by a question mark ( upper-right corner of the screen.

h) in the

Getting answers to your questions

When you have a question while working with your computer, you can get th e answer by choosi ng Macintosh Guide from the Guide menu.

1Pull down the Application menu (in the upper-right corner of the screen) and choose

Finder to make it the active application program.

A checkmark in the menu indicates that the Finder is the active program.

2Pull down the Guide menu (marked with the

icon) and choose Macintosh Guide.

The Macintosh Guide window appears.

Whenever you use Macintosh Guide, its window remains in front of other windows. If the window gets in your way, you can move it by dragging its title ba r (the gray bar across the top of the window).

Chapter 2

3Notice the three buttons at the top of the window: Topics, Index, and Look For.

Macintosh Guide gives you three ways of findi ng information:

Topics

lets you choose from a list of general subjects; it is like the table of

contents in a book.

Index

lets you choose from an alphab etical list of more specific subjects; it

is like the index in a book.

Look For

lets you search for information related to a specific word or phrase

that you type. In the following sections you will practice using each method. If you have problems while using Macintosh Guide, see “Tips for Using

Macintosh Guide” later in this chapter.

Getting answers with the Topics button

1 In the Macintosh Guide window, click the Topics button.

A list of general topics appears on the left side of the Macintosh Guide window. (Depending on the hardware and software you have, the list of topics may look different.)

Getting Help

2Click “Setting Options” in the list of topics.

When you click any topic area, a list of related questions appears on the right side of the Maci ntosh Guide window.

To get instructions, click a question…

…and then click OK.

3Click the question “How do I set the time and date?” and then click OK. Or double-click

the question.

A small window appears with instructions for you to follow.

If you want to

return to the main

Macintosh Guide

window, click here.

4 Read and follow the instructions in this window.

5When you have completed all the steps, click the Topics button in the lower-left corner to

Chapter 2

Click here to see the next step (if there is one).

Macintosh Guide provides step-by-step instructions to answer the question you selected. When you have completed each step, click the right arrow in the lower-right corn er to see the next step.

return to the main Macintosh Guide window.

Now continue with the next section.

Getting answers with the Index button

1 In the Macintosh Guide window, click the Index button.

An alphabetical list of subjects appears on the left side of the wi ndow.

Slider

Scroll bar

2Scroll through the alphabetical list until the phrase “background pattern” is visible.

You can scroll through the list either by dragging the slider to the letter B or

by using the scroll bar at the right of the list.

3Click the phrase “background pattern” in the alphabetical list.

When you click any index entry, a list of related questions appears on the right side of the Macintosh Guide window.

To get instructions, click a question…

…and then click OK.

Getting Help

4Click the question “How do I change the background pattern?” and then click OK. Or

If you want to

return to the main

Macintosh Guide

window, click here.

5 Read and follow the instructions in the window.

6When you have completed all the steps, click the Topics button in the lower-left corner to

double-click the question.

A small window appears with instructions for you to follow.

Click here to see the next step (if there is one).

Macintosh Guide provides step-by-step instructions to answer the question you selected. When you have completed each step, click the right arrow in the lower-right corn er to see the next step.

return to the main Macintosh Guide window.

Now continue with the next section.

Chapter 2

1 In the Macintosh Guide window, click the Look For button.

To activate the text

box, click here.

Type a word or phrase

in the text box…

…and then click here.

2Click the arrow button to activate the text box. 3Type “sound” in the text box and then click Search.

Getting answers with the Look For button

A small box appears on the left side of the window, where you can typ e text.

When you click Search, a list of questions related to the word or phrase you typed appears on the right side of the Macintosh Guide window.

To get instructions, click a question…

…and then click OK.

Getting Help

4Click the question “How do I change the beep sound?” and then click OK. Or double-

If you want to close

Macintosh Guide,

click here.

5 Read and follow the instructions in the window.

6When you have completed all the steps, click the close box in the upper-left corner to

click the question.

A small window appears with instructions for you to follow.

Click here to see the next step (if there is one).

Macintosh Guide provides step-by-step instructions to answer the question you selected. When you have completed each step, click the right arrow in the lower-right corn er to display the next step.

close Macintosh Guide.

Chapter 2

Tips for using Macintosh Guide

Here are a few tips for usi ng Macintosh Guide effectively:

m Macintosh Guide is available only when you are i n the Finder—the

desktop area where you can see the icons of disks, folders, a nd files. (Other programs may also have help available in the Guide menu, however.) If you don’t see Macintosh Guide in the Guide menu, pull down th e Application menu (to the right of the Guide menu) and choose Finder.

m Foll ow the steps when you’re instructed to; don’t skip ahead or read

ahead. That way the computer can check to make sure you’ve done a step correctly.

m Unlike most windows, the Macintosh Guide window stays i n front of

other windows on th e screen so that your instructions are never covered. If you need to move the Guide window out of the way, drag it by the title bar at the top of th e window.

You can also move the window out of the way by clicking the zoom box. Click the box once to shrink the wi ndow; click it a second time to expand the window to its original size.

m If you need more information about an i nstruction or a term, click the

button labeled “Huh?” to get further expla nation. (The “Huh?” button is dimmed when no additional information is available.)

m If you want to return to the main Macintosh Guide window, click the

Topi cs button in the lower-left corner of the Guide wi ndow.

m When you’re finished using Macintosh Guide, click the close box in

the upper-left corner of the window.

Close box

Topics button

“Huh?” button

Title bar

Zoom box

Right arrow

Getting Help

Identifying objects on the screen

Sometimes you’ll see an unfamiliar item on the screen and ask yourself, “What’s that?” You can get an answer by using a Maci ntosh feature known as Balloon Help.

Balloon Help explains the function of icons, menus, commands, and other items on the Macintosh screen i n balloons like those you see in comic strips.

Follow these steps to use Balloon Help:

1Pull down the Guide menu (marked with the

2Point to any object on the screen that you want to identify.

icon) and choose Show Balloons.

A balloon appears next to the object. In the following illustration, for example, pointing to the Trash displays a balloon that explains how to use th e Trash to throw items away.

Although balloons appear next to items when you point to them, the way you work do es not change; you can still select icons, choose commands, and so on.

3When you’re finished using Balloon Help, choose Hide Balloons from the Guide menu.

Chapter 2

Learning us eful shortcuts

You can perform many tasks in the Finder more quickly if you use keyboard or mouse shortcuts. For example, instead of clicking an icon and choosing Open from the File menu, you can simply double-click the icon to open it.

Foll ow these steps to learn keyboard and mouse shortcuts:

1Pull down the Guide menu (marked with the

icon) and choose Shortcuts.

The main Macintosh Shortcuts window appears.

Getting Help

2Click one of the category buttons.

If you want to

close the window,

click here.

Click here to return to

the main Macintosh

Shortcuts window for

more categories.

3 Read about the shortcuts available for the category you selected.

4When you finish reading about the shortcuts for your category, click the Topics button in

Another window appears, describing shortcuts for that category.

Click here to see the next window (if there is one).

Click the right arrow in the lower-right corner of the window to display the next window (if there is one).

the lower-left corner to return to the main Macintosh Shortcuts window. Or click the close box in the upper-left corner to close the window.

Chapter 2

Read this chapter for information on expanding

your computer system with additional hardware

Expanding Your Computer

and using special features of your computer.

and Using Special Features

Read this chapter to learn how to connect additional equipment to your Macintosh. Also read this chapter to learn about some of the sp ecial features of your Macintosh:

m using the sound control buttons m using the sc reen control buttons m using the built-i n microphone m connecting to a ne twork

Your computer at a glance

Mouse

Built-in microphone Color display

Your built-in monitor supports up to thousands of colors.

Headphone jack

Floppy disk drive

Sound control buttons

Use these buttons to change the volume of

the computer’s sound.

Screen control buttons

Use these buttons to lighten or darken your screen.

Keyboard

CD-ROM drive (optional)

Power-on light

A green light indicates that the computer is on.

CD-ROM drive Open/Close button

Power key

Use this key to turn your computer on and off.

Stereo speakers

Tilt-and-swivel base

Remote control sensor

This illustration shows a Power Macintosh 5200/75 system. You can expand your computer system by connecting additional hardware (such as a printer, modem, or scanner).

Chapter 3

Connecting additional equipment

SCSI port

Connects your Macintosh to SCSI equipment, such as external hard disk drives and scanners.

External video connector (optional)

Connects your Macintosh to a presentation system or a second monitor for video mirroring.

LC-PDS card access cover

Covers port for optional LC-processor-direct slot (LC-PDS) expansion card.

Sound output port

Connects your Macintosh to sound output equipment, such as externally powered (amplified) speakers.

Sound input port

Connects your Macintosh to another audio source, such as a compact disc or audio cassette player.

≈

Communication card access cover

Covers port for optional communication card.

Security lock port

TV tuner card (optional)

Connects your Macintosh to an external TV antenna or cable TV service.

Power switch

≤

Power socket

Hard disk drive (internal)

[

Printer port

Connects your Macintosh to a printer or LocalTalk

network.

Modem port

Connects an external

modem to your Macintosh.

ADB port

Connects your Macintosh to

an input device, such as a

keyboard or a trackball.

Video input

card (optional)

Connects your Macintosh to

a video camera, VCR, or

other video equipment.

The illustration on this page shows where equipment should be connected to your computer.

For instructions on connecting equipment such as a printer or scanner, see the manual that came with th e equipment.

Expanding Your Computer and Using Special Features

Using the sound control buttons on your computer

Sound control buttons

There are two sets of buttons on the front of your Macintosh. The set on the right (marked with the - icon) is for sound control. You can use these buttons to increase or decrease the volume of the sound your Macintosh plays:

m Press the button on the right to make the sound louder. m Press the button on the left to make the sound softer.

Chapter 3

You can also adjust the sound by using the Sound control panel. For more information about adjusting sound, see the “Sound” topic of Macintosh Guide, availab le in th e Guide (h) menu.

Using the scr een control buttons on your computer

Screen control buttons

You can adjust the level of light and dark on the screen of your built-in monitor by using the screen control buttons on your computer (marked with the ¸ icon).

m Press the button on the right to lighten your screen. m Press the button on the left to darken your screen.

Expanding Your Computer and Using Special Features

Using the built-in microphone

Built-in microphone

Your Macintosh comes with a built-in microphone for recording live sounds. The microphone is highly sensitive. Once you’ve turned it on (which you do with a sound-recording application program), it can pick up sounds within a range of several feet. For information on recordi ng sound, see the “Sound” topic of Ma c intosh Guide, available in the Guide (h) menu.

Chapter 3

WARNING

Do not stick any small objects into the built-in microphone.

Doing so may damage your equipment.

Connecting to an Ethernet network

If your computer has an optional Ethernet card, you can connect your Macintosh to any standard high-speed Ethernet network. You can connect your Macintosh to an existing Ethernet network that uses thin coaxial cables, 10BASE- T twisted pair cables, thick coaxial cables, or other standard cables.

You may need to purchase a n appropriate Apple Ethernet media adapter or other compatible media adapter to connect your Macintosh to a network. (Consult the service and support information that came with your computer for instructions on how to contact an Apple-authorized service provider or Apple for more information on Apple Ether n et media adapters.)

To use Ethernet, you need to change the network conn ection in the Network control panel. (For i nstructions on how to select a network connection and other information about using your Maci ntosh on a network, see the “Networks & Telecommunications” topic of Macintosh Guide, available in the Guide [h] menu.)

IMPORTANT

Your Macintosh supports EtherTalk Phase 2 (AppleTalk Phase 2 Protocols for Ethernet n etworks) and TCP/IP (via MacTCP software). Non-Apple products that you can use to communicate over Ethernet using protocols are also available. Your Macintosh does not support E therTalk Phase 1 (AppleTalk Phase 1 protocols for Ethernet n etworks).

CAUTION

The use of an Ethernet card will make your Macintosh a Class

A computing device, according to FCC regulations.

Expanding Your Computer and Using Special Features

Connecting a second monitor for video mirroring

Apple external video connector installed

You can connect a second, external monitor to your computer to display the same images that are on the computer’s built-i n monitor. Displayi ng your computer’s images on a second monitor, called

for presentations. If you want to use video mirroring, you need an external video connector

with an external monitor attached. (If your computer doesn’t have a connector, you can install one.)

video mirroring, is useful

The built-in monitor must use the same resolution and timing as the exter nal monitor. Depending on what type of monitor you have added, you may n eed to change the built-in monitor’s setting to one that the external monitor is capable of displayi ng.

If you want to display your built-i n monitor’s images on a standard TV or record them using a VCR, you’ll need the Apple Presentation System, which adds these capabilities when used with the external video connector kit. Th e external video connector kit and the Apple Presentation System are available for purchase from computer stores. (Some computers come with the Apple Presentation System.)

For more information about the monitors that you can connect to your computer for video mi rroring, see the Te c h nical Information booklet that came with your computer.

Chapter 3

Expanding memory

The random-access memory (RAM) in your computer can be expanded. Installing additional RAM adds more memory chips to your computer and expands its capabilities. The Tech n i c a l In fo rm atio n booklet that came with your computer describes how much additional memory can be installed in your Macintosh.

WARNING

only an Apple-cer tified technician i nstall additional RAM. Consult the service and suppor t information that came with your computer for instructions on how to contact an Apple-authorized service provider or Apple for service. If you attempt to install additional RAM yourself, any damage you may cause to your equipment will not be covered by the limited warranty on your computer. See an Apple-authorized dealer or service provider for additional information about this or any other warranty question.

Installing i n terna l d rives

Your Macintosh can hold up to three internal storage devices, including a floppy disk drive, a CD-ROM (compact disc read-only memory) drive, and a hard disk drive (several capacities are available). These drives may already be installed. If you want to add or replace an internal drive, see your Appleauthorized dealer.

To avoid damage to your computer, Apple recommends that

Expanding Your Computer and Using Special Features

Read this chapter for information on

installing and using application

programs with your computer.

Installing and Using Application Programs

Your computer has several application programs already installed, as well as some programs that you must install before you can use them. The programs that come with your computer include

m AppleScript, which allows you to automate any actions you perform

repeatedly on your Macintosh

m PowerTal k, which provides built-i n mail and collaboration services m QuickDraw GX, which gives your computer more powerful pri nting

capabilities

m Apple Video Player, which you use to watch video or TV on your computer Yo u’ ll find these programs in the Apple Extras folder on your hard disk. To

find out if a program needs to be installed, look inside the program’s folder for an icon labeled I nstaller. If you find an Installer icon and want to use that program, double-click the Installer and follow the instr uctions on the screen.

You may wa nt to experiment with AppleScript, one of the programs on your hard disk. With AppleScript you can automate tasks in the Finder and other scriptable programs (programs that support AppleScript). Instructions for using AppleScr ipt are also included in the AppleScript folder.

With A pple Video Player and a video input card, you can watch video on your computer. With Apple Video Player, a video input card, and a TV tuner card, you can watch video and TV. For instructions on using Apple Video Player, open Apple Video Player and then choose Apple Video Player Guide from the Guide (h) menu.

Installing application pro grams

Insert the floppy disk, metal end first, into the floppy disk drive of your computer.

Yo u’ ll probably want to buy and install additional application programs. See the manuals you receive with your programs for i nstructions on installing and using them.

In most cases, you’ll install an application program on your i nternal hard disk from floppy disks that contain the program. The following illustration shows how to insert a floppy disk in your computer’s disk drive.

To use your programs most effectively, follow these guideli nes: m Put only on e copy of each program on your hard disk. Having more than

one copy can cause errors.

Chapter 4

m Whenever you copy a program disk to your hard disk, be careful not to

copy a System Folder. Always check to see what you’ve copied, and drag any extra System Folders to the Trash.

m If a program malfunctions consistently, try installing a fresh copy. If that

doesn’t help, find out from the software manufacturer whether your version of the program is compatible with the system software you’re usi ng.

For instructions on how to eject floppy disks, see the “Disks” topic of Macintosh Guide, available in the Guide (h) menu.

Working w ith several programs at a time

You can open as many application programs and desk accessories as your computer’s memory allows.

All open programs are listed i n the Application menu at the right end of the menu bar. The name of the active program (the one you’re using right now) has a checkmark next to it, and its icon app ears in the menu bar.

The Finder icon

Commands to hide or display open windows

A checkmark

indicates the active

program.

Open programs

Finding out which progr ams are open

If you have several programs a nd windows open, you can find out which program is active and which other programs are op en by pulling down th e Application menu.

Switching programs

You can switch to another open program or desk accessory by choosing its name from the Application menu.

If a program’s icon is dimmed i n the menu, that means its windows are hidden. Choosi ng the program from the Application menu displays its windows.

You can also switch to another program by clicki ng in a window that belongs to an op en program, or by double-clicking a program icon (or the icon of a document that was created with the program).

Installing and Using Application Programs

Hiding and showing w indows on the desktop

You can hide all windows except those of the active program by choosing Hide Others from the Application menu.

The other programs remain open even though their windows are hidden. When you switch to another program, its windows become visible again.

If you want to see all the open windows, choose Show All from the Application menu.

Backing up your files

Making backup copies of important files is good protection against possible damage to the originals.

m You can back up files stored on your hard disk by copying them to

floppy disks.

m You can back up an entire floppy disk by copying it to another floppy disk,

or to a hard disk.

m You can use a commercial backup program to copy new and cha nged files

from a hard disk to another hard disk, to a tape drive, or to a series of floppy disks.

m If your computer is on a network, you can back up files by copying them to

a shared disk on the network.

Chapter 4

Using Power M acintosh application programs

Your Macintosh is compatible with most application programs intended for use with Macintosh computers. But certain programs are designed especially for Power Macintosh computers. (These are sometimes called “native” applications.) You’ll find that these programs take best advantage of your computer’s speed.

Special me mory requirements

Some Power Macintosh programs may be slightly larger than other programs and may take up more memory. If you find that you are runni ng out of memory when you use your Power Macintosh programs, you can use space on your computer’s hard disk as additional memory. For instructions on how to use hard disk space as memory, see the “Memory” topic of Macintosh Guide, availab le in th e Guide (h) menu.

You can also add more memory to your computer, as described in “Expanding Memory” in Chapter 3.

Shared libraries

Power Macintosh programs use special files called shared libraries. These files

help the programs to run more efficiently, and can be used by more than one Power Macintosh program simultaneously. Any necessary shared libraries are installed automatically in the System Folder when you install Power Macintosh programs.

If one of these programs requires a shared library and there is not enough memory available for the shared library, you’ll see a message that the program could not be opened because of insufficient system memory. If this happens, see the “Memory” topic of Macintosh Guide, available in the Guide (h) menu, for instructions on turning on vi rtual memory.

If a required shared library is missing, you’ll see a message that the program could not be opened because the shared library could not be found. If this happens, follow the directions that came with your program to reinstall the program. If the shared library is still missing, contact the program’s manufacturer for assistance.

Installing and Using Application Programs

Using older Macintosh programs

If you experience problems using a n older Macintosh program, it may be incompatible with your Power Macintosh. You may be able to use your older program if you change the Modern Memory Manager setting in your Memory control panel. For detailed instructions on using older programs with your Macintosh, see the “Working with Programs” topic of Macintosh Guide, availab le in th e Guide (h) menu.

Chapter 4

Consult this chapter if you experience

problems using your computer.

Troubleshooting

Whe n you have questions

If you want to know how to do a particular task with your computer, refer to Macintosh Guide in the Guide ( Macintosh Guide, see Chapter 2 of this manual.

Whe n you run into trouble

While you’re usi ng your computer, you may occasionally see a bomb icon or an error message, or you may have a problem such as the pointer (8) “freezing” on the screen. If you have trouble with your computer, take a few minutes to read the information in this chapter. If your problem is related to a particular pro cedure, you should also look for information on that procedure in Macintosh Guide, available in the Guide (h) menu. For additional troubleshooting information and a list of common questions relating to your system software, see the “Troubleshooting” topic of Macintosh Guide.

h) menu. For i nstructions on using

If you are unable to access Macintosh Guide (for example, if your screen is “frozen”), refer to this chapter to see if you can resolve the problem.

Take your time

When you see an error message, you don’t have to take action immediately. The message stays on th e screen until you click the OK button or turn off the Macintosh.

To help diagnose and correct the problem, gather as much infor mation on the situation as you ca n before starting over.

m Make a note of exactly what you were doing when the problem occurred.

Write down the message on the screen a nd its ID number (if any). Also list the programs you were using and the names of any items you know have been added to the System Folder since the system software was installed. This information will help a service person diagnose the problem. (It is helpful to keep a printed copy of the items in your System Folder. For instructions on printing the contents of a folder, see th e “Printing & Fonts” topic of Ma c intosh Guide, available in the Guide [h] menu.)

m Check the screen for any clues. Is a menu selected? What programs and

document icons are open? Note anything else that seems relevant.

m If you were typing text and were not able to save it before the problem

occurred, you can write down the parts of the text still visible on the screen so that some of your work will b e easy to replace.

m Ask other Maci ntosh users about the problem you’re having; they may have

a solution for it.

If you need repair service, consult the service and support information that came with your computer for instructions on how to contact an Appleauthorized service provider or Apple for assistance.

Chapter 5

Start over

Often you can eliminate a problem simply by clearing the computer’s memory and starting over.

If you can, save any open do cuments b efore restarting the Maci ntosh. If your system is frozen and do es not respond to anything you do, or if you have a “bomb” message on the screen, saving may not be possible. You can try pressing x-Option-Esc to quit the program in use when the problem occurred; if this works, you can then save the documents open in other programs before restarting.

To restart your Macintosh, try the following steps:

1If you can, choose Restart from the Special menu or from the dialog box that’s on

screen.

Dialog boxes contain messages from the computer. If something goes wrong, a message may appear on the screen, asking you to restart the computer.

2If you can’t choose Restart, hold down the

Power key (marked with a triangle).

and Control keys while you press the

This key combination restarts the computer. (Use this key combination only when you can’t choose Restart from the Special menu.)

3If nothing happens, turn off your computer with the power switch, wait at least 10

seconds, and then turn it on again.

4If the power switch doesn’t turn off the computer, unplug your Macintosh.

If you suspect that the problem is with other equipment, such as a printer or an external hard disk that’s attached to your computer, turn that equipment off for 10 seconds or longer, then turn it on agai n a nd restar t the Macintosh.

Rebuild your desktop regularly

A process known as “rebuildi ng the desktop” helps your Macintosh keep track of data on your startup disks. Although you usually use the hard disk in your computer as a star tup disk, you can also start up from any other disk that has system software installed. It’s a good idea to rebuild the desktop of your startup disks once a month or so.

Troubleshooting

To rebuild the desktop of a startup disk, follow these steps:

Vertical centering control

Horizontal centering control

1Hold down the Option and xkeys while you start up your computer.

Do not release the keys until you see a message aski ng whether you want to rebuild the desktop.

2Click OK.

Solutio ns to com mon pr obl ems

The computer is turned on but the screen is dark.

One of the following is probably the cause: m You have a screen saver program that darkens the screen when the

computer has not been used for a certain period. Press a key or move the mouse to turn off the screen saver.

m The screen control buttons (¸) are not adjusted properly.

Tur n up the screen’s brightness if necessary.

m The Macintosh is not getting power.

Check that the computer’s power cord is firmly conn ected to the computer and plugged into a grounded electrical outlet, and that the outlet has power.

The screen image is off center.

If the picture on your screen appears to be off center, use the centering controls on the back of the computer to adjust it. Use a small screwdriver to turn the controls.

The computer’s clock keeps time inaccurately.

Your computer has a clo ck that runs continuously. When the computer is turned off, a battery keeps the clo ck runni ng. If your clock begins to keep time inaccurately, have your Apple-authorized service provider replace the ba ttery.

Chapter 5

When you start up, a disk icon with a blinking question mark appears in the middle of the screen.

This icon indicates that your Macintosh cannot find the system software it needs to start up. On e of the following is probably the cause:

m Your computer may be having a problem recognizing external equipment

that uses the Small Computer System Interface (SCSI). Tur n off all external SCSI equipment and disconnect the first SCSI device

in the chain from your computer’s SCSI port. Then restart the computer. If the computer starts up after you disconnect your SCSI equipment, refer to the manuals that came with the equipment for information on the proper way to connect SCSI equipment and assign SCSI ID numbers.

If you have a printer connected to your computer’s SCSI port, make sure your printer is not supposed to be connected to the printer port instead. Check the manuals that came with your printer for i nformation on how to properly connect it.

m Syst em software is not installed on the startup hard disk, the system

software is damaged, or the hard disk is not working properly. Star t up your computer using the

Disk Tools floppy disk or (if you have a built-in CD-ROM drive) with the CD-ROM disc that contains system software. (For instructions on how to start up your computer from the CD-ROM disc, see “Starting Up From a CD-ROM Disc” in the section “Initializing a Hard Disk” later in this chapter.) Then follow the instructions in “Repairing a Damaged Disk” later in this chapter to test your startup hard disk and repair any damage.

If repairing the disk doesn’t h elp, follow the instructions in “Installing or Reinstalling System Software” later in this chapter to reinstall system software on your startup hard disk.

Troubleshooting

When you try to start up from a floppy disk, a disk icon with an X appears in the middle of the screen and the floppy disk is ejected.

This icon indicates that the floppy disk you tried to start up from is not a startup disk.

Wait a few seconds. The computer should start up from its internal hard disk. Make sure you insert floppy disks only after the computer has begun starting up.

A “sad Macintosh” icon appears and the computer won’t start up.

This icon indicates that your Macintosh cannot start up because of a problem with the system software or the computer hardware.

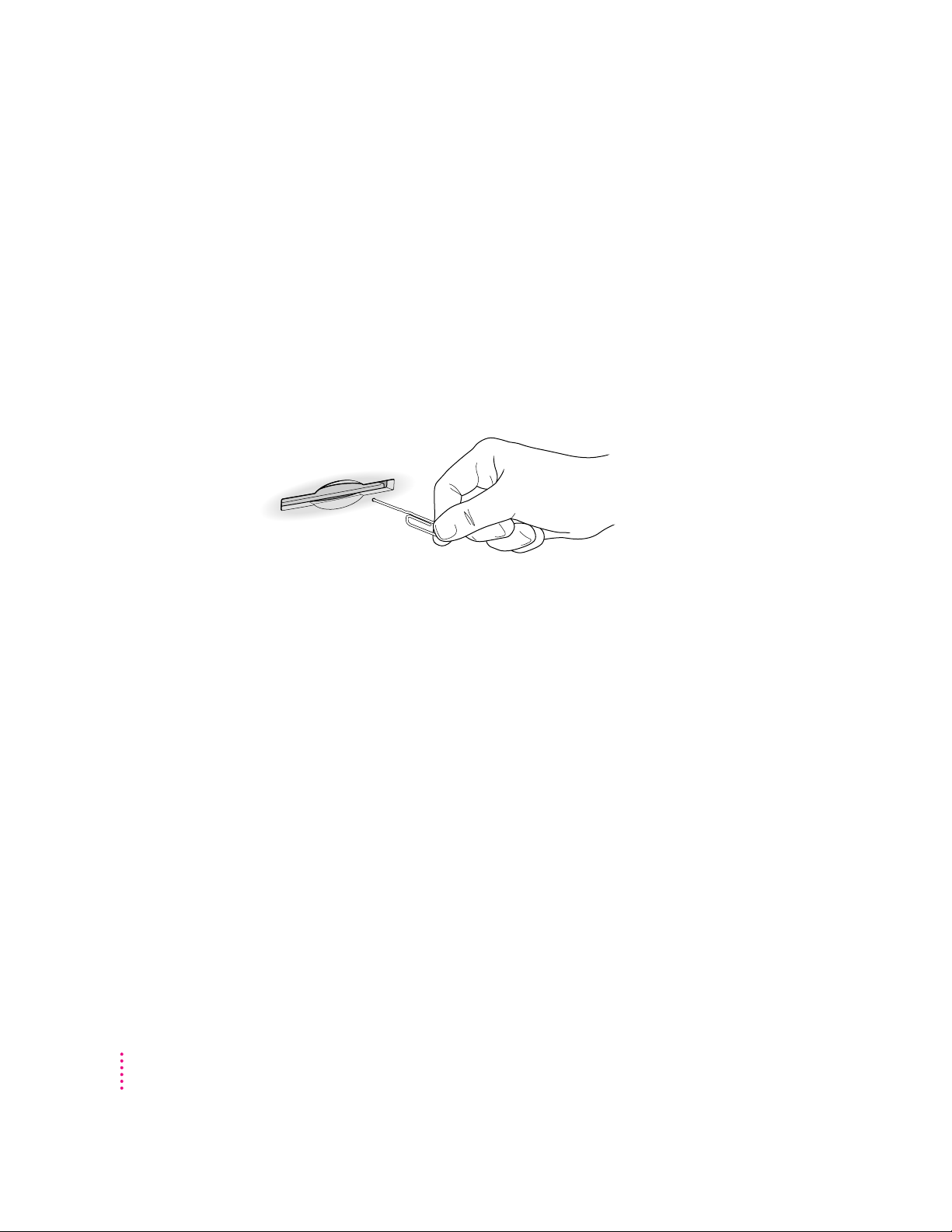

Eject any floppy disks by turning off the computer and then holding down the mouse button while you turn the computer on again. Try starting up with the Disk Tools floppy disk or (if you have a built-in CD-ROM drive) with the CD-ROM disc that contains system software. (For instr uctions on how to start up your computer from the CD-ROM disc, see “Starting Up From a CD-ROM Disc” in the section “Initializing a Hard Disk” later in this chapter.) If the “sad Macintosh” icon appears again, consult the service and support information that came with your computer for information on contacting an Appleauthorized service provider or Apple for assistance.

Chapter 5

The hard disk icon does not appear on the desktop.

If you don’t see a hard disk icon on the desktop, try the following: m If the hard disk is internal, shut down your computer, wait at least 10

seconds, a nd then turn it on again.

m If the hard disk is external, make sure that it is turned on and that its cable

is connected firmly; then restart the Macintosh.

m Check the ID numbers of all SCSI equipment connected to your computer.

See the manuals that came with your SCSI equipment for information on setting SCSI ID numbers.

m If the hard disk is your startup disk, start your computer usi ng the Disk

Tools floppy disk or (if you have a built-in CD-ROM drive) with the

CD-ROM disc that contains system software. (For instr uctions on how to start up your computer from th e CD-ROM disc, see “Starting Up From a CD-ROM Disc” in the section “Initializing a Hard Disk” later in this chapter.) Then follow the i nstructions in “Repairi ng a Damaged Disk” later in this chapter to test your startup hard disk and repair any damage.

If repairing the disk doesn’t h elp, follow the instructions in “Installing or Reinstalling System Software” later in this chapter to reinstall system software on your startup hard disk.

Icons do not appear correctly on your screen.

You need to rebuild the desktop—a process that helps your Macintosh keep track of files and folders on your hard disk. For instructions, see “Rebuild Your Desktop Regularly” in the section “When You Run I nto Trouble” earlier in this chapter.

If icons do not appear correctly after you rebuild the desktop, restart your computer while pressing the Shift key to temporarily tur n off system extensions. When you see the “Welcome to Macintosh—extensions off” message, release the Shift key and press the Option and x keys until you see a message asking if you want to rebuild the desktop.

Troubleshooting

Your Macintosh can’t read a floppy disk.

If you see a message that a floppy disk is unreadable, try one of the followi ng: m If the disk has never been used, you may simply need to initialize it. For

instructions, see the “Disks” topic of Macintosh Guide, available in the Guide (h) menu.

m The disk may be damaged. See “Repairing a Damaged Disk” later in this

chapter for information on testing and repairing disks.

If you are trying unsuccessfully to use a DOS floppy disk, consider the following:

m When formatting floppy disks on a DOS computer for use i n a Macintosh,

users need to format standard double-sided disks as 720K disks and highdensity disks as 14 4 0K disks. Because DOS computers allow standard double-sided disks to b e formatted in 1440K format and high-density disks to be formatted in 720K format, it’s possible that your disk has been given a format that won’t work in a Macintosh.

If you think your DOS floppy disk might have a for mat that doesn’t work in a Macintosh, use a DOS computer to copy the contents of your DOS floppy disk onto another DOS floppy disk that has been properly formatted for use in a Macintosh.

The pointer (8) freezes on the screen.

Your system has a software problem. m Press x-O ption-Esc to quit the application program in use when the

problem occurred. If this works, you can save the documents op en in other programs before restarting.

m Restart your Macintosh. (For instr uctions, see “Start Over” in the section

“When You Run Into Trouble” earlier in this chapter.) Most software problems are temporary, a nd restar ting usually corrects the problem.

Chapter 5

m Check the startup disk a nd program you were using when the problem

occurred. Make sure that all programs, desk accessories, and system extensions you’re using are compatible with the system software.

m Sometimes i n co m p atible system extensions or control panels can cause

system software problems. Restart while holdi ng down the Shift key; this temporarily turns off all system extensions. If your computer works normally after you do this, remove all extensions from the Extensions folder (inside the System Folder) a nd put them back into the Extensions folder on e at a time. Restart after you add each extension. This procedure should identify a ny incompatible extensions.

You can also use the Extensions Manager control panel to turn off individual extensions. For information on using this control panel to manage system extensions, see the “Setting Options” topic of Macintosh Guide, availab le in th e Guide (h) menu.

m If the problem recurs, you may need to reinstall system software. See

“Installing or Reinstalling System Software” later in this chapter for instructions.

A dialog box with a bomb appears.

Your system has a software problem. m Write down what you were doing when th e message appeared, and write

down th e message’s text and its number, if there is one.

m Restart your Macintosh. (See “Start Over” in the section “When You Run

Into Trouble” earlier in this chapter for instr uctions.) Most software problems are temporary, a nd restar ting usually corrects the problem.

m Check the startup disk and application program you were using when the

dialog box appeared. Make sure that all programs, desk accessories, and system extensions you’re usi ng are compatible with the system software. Reinstalling the system software may correct the problem.

Troubleshooting

m Sometimes i n co m p atible system extensions or control panels ca n cause

system software problems. Restart while holdi ng down the Shift key; this temporarily turns off all system extensions. If your computer works normally after you do this, remove all extensions from the Extensions folder (inside the System Folder) and put them back into the Extensions folder on e at a time. Restart after you add each extension. This procedure should identify a ny incompatible extensions.

m If the problem recurs, you may need to reinstall system software. See

“Installing or Reinstalling System Software” later in this chapter for instructions.

The pointer (8) doesn’t move when you move the mouse.

One of the following situations is probably the cause: m Your system has a software problem.

Press x-O ption-Esc to quit the application program in use when the problem occurred. If this works, you can save the documents op en in other programs before restarting.

Restart your Macintosh. See “Start Over” in the section “When You Run Into Trouble” earlier in this chapter for instr uctions.

Check the startup disk and program you were using when the problem occurred. Make sure that all programs, desk accessories, and system extensions you’re using are compatible with the system software. Try starting up the computer from the Disk Tools disk or the CD-ROM disc that contains system software. (For instructions on how to start up your computer from the CD-ROM disc, see “Starting Up From a CD-ROM Disc” in the section “Initializing a Hard Disk” later in this chapter.) If your computer starts up nor mally, there may be an extension conflict.

If the problem recurs, you may need to reinstall system software. See “Installing or Reinstalling System Software” later in this chapter for instructions.

Chapter 5

m The mouse is not connected properly.

Tur n th e computer off using the power switch, check that the mouse and keyboard cables are connected properly, and then restart the computer.

m Signals from the mouse are not reaching the computer, either because the

mouse needs cleaning or because there is something wrong with the mouse.

Clean the mouse according to the instr uctions in Appendix A of this book. If you have another mouse or pointing device, try connecti ng and using it.

(Turn off the computer before connecting it.) If the n ew device works, there is probably something wrong with the mouse you replaced.

If none of these procedures solves the problem, consult the service and support information that came with your computer for instructions on how to contact an Apple-authorized service provider or Apple for assistance.

Typing on the keyboard produces nothing on the screen.

One of the following is probably the cause: m Your system has a software problem.

Restart your Macintosh. For instr uctions, see “Start Over” in the section “When You Run Into Trouble” earlier in this chapter.

Check the startup disk and application program you were using when the problem occurred. Make sure that all programs, desk accessories, and system extensions you’re usi ng are compatible with the system software.

If the problem recurs, you may need to reinstall system software. See “Installing or Reinstalling System Software” later in this chapter for instructions.

m You haven’t selected any text or set the insertion point (i).

Make sure the program you want to type in is the active program. Then place the pointer (8

) in the active window and click to set an insertion

point (i) or drag to select text (if you want to replace the text with your typing).

Troubleshooting

m The keyboard is not connected properly.

Tur n off the computer using the power switch, then check that the keyboard cable i s connected properly at both ends.

If you have a keyboard with an ADB port (marked with the ◊ icon) on each end, turn off the Macintosh using th e power switch and plug the keyboard cable into the other ADB port on the keyboard. (You may have to unplug the mouse to do this.) Then restart the computer.

m The keyboard is damaged.

If you have access to another keyboard, try usi ng it instead. (Tur n the computer off before connecting it.) If the n ew keyboard works, there is probably something wrong with the one you replaced.

You can’t start an application program or it quits unexpectedly. Or, when you try to open a program, you see a message that not enough memory is available.

One of the following is probably the cause: m The Macintosh ran out of memory.

Quit the programs that you have open and then open the program you want to use, or restar t your Macintosh.

Make sure virtual memory is turned on in the Memory control panel. For more information on virtual memory, see the “Memory” topic of Macintosh Guide, available in the Guide (h) menu.

m The program needs more memory.

Use the program’s Info window to give it more memory. For more information on increasing a program’s memory, see the “Memory” topic of Macintosh Guide, available in the Guide (h) menu.

Chapter 5

m The program requires special hardware, such as a floating-point unit

(FPU), and your computer doesn’t have the hardware installed. Check the documentation that came with the program to find out if the

program requires a Macintosh with special hardware, such as an FPU. Then che ck the Tech n ic a l In fo r m a tio n booklet that came with your Macintosh to find out if your computer is equipped with such special hardware, or if the hardware can be installed. Consult your Apple-authorized service provider for information on installing special hardware in your computer.

You can’t open a document, or you see a message that an application program can’t be found.

m Some documents can be op ened by more than one application program.

Try starting a program that you think might be able to open the document, then choose Open from the program’s File menu to try to op en the document.

m Purchase and install the correct software to use the do cument, or find out

if the creator of the document can convert it to a form that one of your programs can use.

m Don’t try to open the files in your System Folder. Most of the files in your

System Folder are used by your computer for inter nal purposes and are not intended to be op en ed.

m Rebuild your desktop by holding down the Option and x keys while

starting up your computer. Keep holding down the keys until you see a message asking whether you want to rebuild the desktop. Click OK.

m If the document is from a DOS computer, use the PC Exchange control

panel to specify which Macintosh program will op en the document. For information about working with DOS documents on your Macintosh, see the “Using DOS Files & Disks” topic of Maci ntosh Guide, available in the Guide (h) menu.

Troubleshooting

You experience problems using a document from a DOS computer.

If you can’t open a DOS do cument using a Macintosh program, try the following:

m Open the document from within the program by choosing Open in the

program’s File menu.

m Use the PC Exchange control panel to change the do cument’s type to one

that can be opened by the program.

If a DOS document is displayed incorrectly, or you see strange codes or characters in the document, try one of the following:

m Your application program may have special proced ures for opening and

saving documents with different file formats. See the information that

came with your program. m Try opening the document in another program. Note: Some char acters that can be displayed on the Macintosh are not

accurately displayed on DOS computers, and vice versa. For more information about working with DOS documents on your

Macintosh, see the “Using DOS Files & Disks” topic of Macintosh Guide, available in the Guide (h) menu.

You see a message that your application program can’t be opened because a file can’t be found.

Power Macintosh programs use special files called shared libraries. Any necessary shared libraries should be installed automatically when you install Power Macintosh programs.

Follow the directions that came with your program to reinstall the program. If the shared library is still missing, contact the software program’s manufacturer for assistance.

You experience problems using an older Macintosh program.

Some older Macintosh programs are not completely compatible with Power Macintosh computers.

Open the Memory control panel and turn off Modern Memory Manager. For more detailed instructions, see the “Working with Programs” topic of Macintosh Guide, available in the Guide (h) menu.

Chapter 5

If your computer’s performance decreases

If you notice a decrease in your computer’s speed and general p erformance after you add special software (a control panel, system extension, or custom utility), it may be because your special software does not work well with Macintosh computers built with the PowerPC microprocessor.

m To find out if your special software is the problem, hold down the Shift key

while you restart the computer. This temporarily turns off cer tain kinds of software. If the computer performs better without this software, the software is likely to be the problem.

m Use the Ext ensions Manager control panel to turn off a system extension or

set of extensions. For detailed instructions, see the “Setting Options” topic of Macintosh Guide, available in the Guide (h)menu. If the computer performs better when an extension is tur ned off, contact th e extension’s manufacturer for information or an upgrade.

m Drag special software items out of the System Folder or remove them

permanently. (The special softwar e may be in the Control Panels or Extensions folder inside the System Folder.) If the computer performs better when the software is removed, contact the software’s manufacturer for information or an upgrade.

Hint: If you have more than one special software item, drag all the special items out of the Control Panels and Extensions folders. Then return them one at a time, restarting and checking your computer’s performance each time until you identify the one that is causing problems.

If you still do not notice an improvement, follow the instructions in “Installing or Reinstalling System Software” later in this chapter to reinstall system software on your star tup hard disk.

Troubleshooting

Initializi ng a hard disk

Before you can use a new disk, the disk must be prepared so that the computer knows where to store information on the disk. This preparation is called initializing (or formatting) the disk.

Whe n do you need to initialize a hard disk?

The hard disk inside your computer was initialized at the factory, so you shouldn’t need to i nitialize it. You need to initialize a hard disk only if

m you purchase a hard disk that has not been initialized at the factory m your hard disk is damaged

If a hard disk needs to be initialized, the disk’s icon does not appear on the desktop when you star t up the computer using another disk.

WARNING

Initializing a disk erases a ny information that may be on it. Before you i nitialize a damaged disk, try to repair it as described in “Repairing a Damaged Disk” later in this chapter.

Starting up from a CD-ROM disc

To initialize, test, or repair a hard disk, or to install system software on a hard disk, you need to start up your computer from another disk. If your computer has a CD-ROM drive, you can start up your computer usi ng the CD-ROM disc containing system software that came with the computer.

To star t up the computer using the CD-ROM disc, follow these steps:

1 Turn your computer on. 2Press the Open/Close button on your CD-ROM drive, and quickly insert the CD-ROM disc

containing system software into the drive.

3Immediately press the C key on your keyboard.

Continue to hold down the key until you see the “Welcome to Macintosh” message.

Chapter 5

If a blinking question mark appears, or if the computer starts up from your hard disk: You did not insert the CD-ROM disc quickly enough for the

computer to recognize it as a startup disk. Follow these steps:

1Shut down your computer.

The CD-ROM disc will remain in the CD-ROM drive.

2 Turn the computer on. 3Immediately press the C key on the keyboard.

Continue to hold down the key until you see the “Welcome to Macintosh” message.

Starting up from a floppy disk

To initialize, test, or repair a hard disk, or to install system software on a hard disk, you need to start up your computer from another disk. If you don’t have a built-in CD-ROM drive, you can start up the computer using either the Disk Tools or Install Me First floppy disk that came with your computer.

To start up your computer using a floppy disk, follow these steps:

1Shut down your computer. 2 Insert the floppy disk into the disk drive.

If you want to initialize, test, or repair your hard disk, use the Disk Tools disk to start up your computer. If you want to install system software, use the Install Me First disk.

3 Turn on the computer.

Troubleshooting

Reinitial izi ng your computer’s internal har d dis k

You i nitialize your internal hard disk using a program called Inter nal HD Format, which is on the floppy disk labeled Disk Tools tha t came with your computer. If your computer came with a CD-ROM drive and you did n’t receive floppy disks, you can find Internal HD Format on the CD-ROM disc that contains system software.

1 Start up your computer from the

system software.

Disk Tools

disk or the CD-ROM disc that contains

See “Starting Up From a CD-ROM Disc” or “Starting Up From a Floppy Disk” earlier in this section.

2Double-click the Internal HD Format icon to open it.

You may need to look in a folder called Utilities to find Internal HD Format.

3Type a name for your hard disk in the Name box. 4If you want to make sure that none of the hard disk’s original information is recognizable

after reinitialization, choose Zero Data from the Options menu.

If you choose Zero Data, initialization may take a few minutes. (If you don’t choose Zero Data, initialization will take less than 30 seconds.)

5Click Initialize.

A message informs you that initializing the disk erases all information on it.

6Click OK.

During initialization, a status bar shows you the progress of the initialization.

7When initialization is complete, click Done.

If a message reports that initialization failed, try again. If initialization fails a second time, take the disk to your Apple-authorized service provider for repair.

Chapter 5

Initial izi ng an external SCSI hard disk

You i nitialize an Apple external SCSI hard disk by using a program called Apple HD SC Setup, which is on the floppy disk labeled Disk Tools tha t came with your computer. If your computer came with a CD-ROM drive and you didn’t receive floppy disks, you can fi nd Apple HD SC Setup on the CD-ROM disc that contains system software.

1 Start up your computer from the

system software.

Disk Tools

disk or the CD-ROM disc that contains

See “Starting Up From a CD-ROM Disc” or “Starting Up From a Floppy Disk” earlier in this section.

2 Open the Apple HD SC Setup icon.

You may need to look in a folder called Utilities to find Apple HD SC Setup.

3Click Drive until the disk you want to initialize appears.

You cannot initialize the disk that you used to star t up your computer or the disk that contains the Apple HD SC Setup program.

SCSI ID number of the currently selected hard disk

4Click Initialize.

Name of the currently selected hard disk

Troubleshooting

5Click Init to initialize the hard disk.

6If a message appears asking you to name the disk, type a name and then click OK. 7Click Quit when you see a message reporting that initialization was successful.

If a message reports that initialization failed, try again. If initialization fails a second time, take the disk to your Apple-authorized service provider for repair.

Repairing a da mage d disk

Disks can become damaged by repeated use and handli ng.

Whe n do you need to repair a disk?

If you see a message repor ting that a disk is damaged or unreadable, you may need to repair the disk.

Try these suggestions first

If you can’t start up from a hard disk or you don’t see the hard disk icon on the desktop, try the following:

m If the hard disk is internal, shut down your Macintosh, wait at least 10

seconds, a nd then turn it on again.

m If the hard disk is external, make sure that it is turned on and that its cable

is connected firmly; then restart the Macintosh.

m If the hard disk is your startup disk, start up with a different startup disk.

If the hard disk’s icon appears on your desktop, reinstall system software on the hard disk (see “Installing or Reinstalling System Software” later in this chapter).

Chapter 5

m Check the ID numbers of all SCSI equipment connected to your computer.

Each device must have a unique ID number (the computer itself has the ID number 7). Also check that th e chain of devices is terminated properly. For information on setting SCSI ID numbers and terminating a SCSI chain, see the manuals that came with your SCSI equipment.

m Test th e disk by following the i nstructions that come next.

Chec king for dam age on your internal hard disk

You can check for damage on your internal hard disk with the Inter nal HD Format program, which is on the floppy disk labeled Disk Tools tha t came w i th your computer. If your computer came with a CD-ROM drive and you didn’t receive floppy disks, you can find Internal HD Format on the CD-ROM disc that contains system software.You can use Internal HD Format at any time to check for damaged blocks (segments of the hard disk that cannot reliably be used to store information).

1 Start up your computer from the

system software.

Disk Tools

disk or the CD-ROM disc that contains

See “Starting Up From a CD-ROM Disc” or “Starting Up From a Floppy Disk” in the section “Initializing a Hard Disk” earlier in this chapter.

2 Open the Internal HD Format icon.

You may need to look in a folder called Utilities to find Internal HD Format.

3Choose Scan All Blocks from the Functions menu.

If the program fi nds damaged blocks, it marks them so that the computer will not store information in them. This process does not harm any information on the hard disk.

Troubleshooting

Testing an external SCSI hard disk

You can test an external Apple SCSI hard disk with the Apple HD SC Setup program, which is on the floppy disk labeled Disk Tools tha t came with your computer. If your computer has a built-in CD-ROM drive, and you didn’t receive floppy disks, you can find the Apple HD SC Setup program on the CD-ROM disc that contains system software.

1 Start up your computer from the

system software.

Disk Tools

disk or the CD-ROM disc that contains

See “Starting Up From a CD-ROM Disc” or “Starting Up From a Floppy Disk” in the section “Initializing a Hard Disk” earlier in this chapter.

2 Open the Apple HD SC Setup icon.

You may need to look in a folder called Utilities to find Apple HD SC Setup.

3Click Drive until the disk you want appears.

SCSI ID number of the currently selected hard disk

Name of the currently selected hard disk

Chapter 5

4Click Test. 5When a message tells you that testing is complete, click Quit.

If the test reveals a problem, you may be able to cor rect it by using Disk First Aid or another disk repai r program (see the instr uctions in the next section), or you may need to reinitialize the disk (see “Initializing a Hard Disk” earlier in this chapter). Consult an Apple-authorized service provider for assistance if necessary.

How to repair a hard disk or floppy disk

You can repair some types of disk damage by using the Disk First Aid program, which is included either on the Disk Tools floppy disk or on the CD-ROM disc containing system software that came with your computer.

1 Start up your computer from the

system software.

Disk Tools

disk or the CD-ROM disc that contains

See “Starting Up From a CD-ROM Disc” or “Starting Up From a Floppy Disk” in the section “Initializing a Hard Disk” earlier in this chapter.

2 Open the Disk First Aid icon.

You may need to look in a folder called Utilities to find Disk First Aid.

Troubleshooting

3Click the icon of the disk you want to test.

Disk icons appear in a box at the top of the Disk First Aid window.

4Click Repair to begin testing and repairing the disk.

You can’t repai r the startup disk or the disk that contai ns the Disk First Aid program, but you can test these disks by clicking Verify. If the program reveals a problem with either of these disks, start up the computer from another disk so that you can repair the damaged disk.

If you want to test and repair another disk, click its icon and then click Repair.

5When testing and repair are finished, choose Quit from the File menu.

Chapter 5

If Disk First Aid cannot correct the problem

m Try repairing the disk again. Sometimes repeating the process corrects the

problem.

m Use another disk repair or recovery program. Some disk repair programs

let you recover information from a damaged disk.

m Consult a computer repair specialist for help. m Once you have recovered all the information you can, erase (reinitialize)

the disk. If initialization doesn’t work, discard the damaged disk (if it’s a floppy disk), or take it to your Apple-authorized service provider for repair (if it’s a hard disk).

Installin g or re installin g sys tem sof twa re

System software is the set of programs and other files that your computer uses to start itself up, keep track of your files, and run the application programs you use. System software is kept in the folder called the System Folder. When you turn on your computer, it looks for a startup disk, which is a disk that contains the system software. The startup disk is usually the hard disk that’s inside your computer, though another hard disk or a floppy disk can also be a startup disk.

Theaccessory kit that came with your Macintosh provides system software on either a set of floppy disks or a CD-ROM disc. You can use the floppy disks or the CD-ROM disc to install the system software on your Macintosh if you need to do so.

Whe n should you i nstall system software?

Your Macintosh came with all the necessary system software installed on its internal hard disk, so you don’t need to i nstall system software on that disk unless you encounter software problems.

If you have a new hard disk or a newly initialized hard disk that doesn’t contain system software, or if you want to upgrade to a more recent version of system software on a hard disk, follow the instructions in “Installing System Software” later i n this chapter.

Troubleshooting

Whe n should you reinstall system software?

If you have a problem with your system software, you may see this icon in the middle of the screen:

If this icon appears, follow the instr uctions in “Repairing a Damaged Disk” earlier in this chapter to test your startup hard disk and repair any damage.

If repairing the disk doesn’t help, follow the instructions in the next section, “Installing System Software,” to reinstall system software on your startup hard disk.

Installing system software

Foll ow the steps i n this section to do what is commonly called a “normal” installation of system software.

If you’re installing system software on a hard disk for th e first time, make sure that your hard disk has been initialized, a process that prepares the disk to store information. If you see the hard disk’s icon on the desktop when you start up the computer, the disk has been initialized. If no disk icon appears whe n you start up, see “Initializing a Hard Disk” earlier in this chapter for instructions.

Chapter 5

To do a normal installation, follow these steps:

1 Start up your computer from the

system software.

Disk Tools

disk or the CD-ROM disc that contains

See “Starting Up From a CD-ROM Disc” or “Starting Up From a Floppy Disk” in the section “Initializing a Hard Disk” earlier in this chapter.

2 Find and open the Disk First Aid icon.

You may need to look in a folder called Utilities to find Disk First Aid.

After Disk First Aid starts, follow the instructions on the screen. Disk First Aid checks your hard disk for any problems.

3When Disk First Aid has finished checking your hard disk, choose Quit from the

File menu.

If you are using the computer’s internal hard disk as the startup disk, go to step 7. If you are using an Apple external SCSI hard disk as the startup disk, continue with step 4.

4 Open the Apple HD SC Setup program.

You use the Apple HD SC Setup program to update your hard disk.

5Make sure the disk indicated on the screen is your startup disk, then click Update. 6When the update process is finished, quit Apple HD SC Setup. 7Shut down your computer. 8 Start up your computer from the

system software.

Install Me First

disk or the CD-ROM disc that contains

See “Starting Up From a CD-ROM Disc” or “Starting Up From a Floppy Disk” in the section “Initializing a Hard Disk” earlier in this chapter.

The Installer’s Welcome screen appears. You may have to double-click the Syst em S oftware I nstaller icon to open the Installer program.

Troubleshooting

9Click Continue.

The Easy Install dialog box appears.

Disk on which

system software

will be installed

10 Make sure that the hard disk named in the box is the one on which you want to install

11 Click Install. 12 Follow the instructions that appear on the screen.

13 When you see a message reporting that the installation was successful, click Restart.

Click here to install the software you need.

Click here to install on a different disk.

system software.

If it isn’t, click Switch Disk until the correct disk name appears.

If you’re installing system software from floppy disks, you see messages asking you to insert different disks.

If a message reports that installation was not successful, try installing again. (Follow the instructions on the screen.)

If, after reinstalling system software by doing a normal installation, you still experience problems with your computer, follow the steps in the next section for doing a “clean” installation of system software.

Chapter 5

IMPORTANT

Certain system extensions or application programs that were originally on your hard disk may not be installed with the Installer program. If you notice that a certai n extension or program was not installed, you may need to install it separately. You can find these additional extensions and programs on the CD-ROM disc that contains system software. If you don’t have a CD-ROM drive, see the ser vice and support information that came with your computer for information on how to contact Apple directly for assistance.

Doing a clean installation of system software

The steps i n this section outli n e what is commonly called a “clean” installation of system software. Do a clean installation if you can’t determine what is damaged in your System Folder (especially if you think any special software, such as control panels, system extensions, or custom utilities, may be causing th e problems you’re experiencing). You should also do a clean installation if you’re still having problems with your computer after you’ve reinstalled system software by doing a normal installation.

To do a clean installation, follow these steps:

1 Start up your computer from the

system software.

Disk Tools

disk or the CD-ROM disc that contains

See “Starting Up From a CD-ROM Disc” or “Starting Up From a Floppy Disk” in the section “Initializing a Hard Disk” earlier in this chapter.

2 Find and open the Disk First Aid icon.

You may need to look in a folder called Utilities to find Disk First Aid.

After Disk First Aid starts, follow the instructions on the screen. Disk First Aid checks your hard disk for any problems.

Troubleshooting

3When Disk First Aid has finished checking your hard disk, choose Quit from the

File menu.

If you are using the computer’s internal hard disk as the startup disk, go to step 8. If you are usi ng an Apple external SCSI hard disk as the startup disk, continue with step 4.

4 Find and open the Apple HD SC Setup icon.

You may need to look in a folder called Utilities to find Apple HD SC Setup.

5Click Drive until the disk on which you want to reinstall system software appears. 6Click Update and follow the instructions on the screen. 7When you see a message that the update was successful, click Quit. 8Shut down your computer. 9 Start up your computer from the

system software.

Install Me First

disk or the CD-ROM disc that contains

The Installer’s Welcome screen appears. You may have to double-click the Syst em S oftware I nstaller icon to open the Installer program.

Chapter 5

10 Click Continue.

Disk on which

system software

will be installed

11 Make sure that the hard disk named in the Destination Disk box is the one on which you

The Easy Install dialog box appears.

DO NOT click the Install button if you want a clean installation.

If you need to install on a different disk, you click this button.

want to install system software.

If it isn’t, click Switch Disk until the correct disk name appears.

12 Hold down Shift–x–K to start the clean installation.

The following dialog box appears.

Troubleshooting

13 Click the Install New System Folder button and click OK.

The Easy Install dialog box appears. The Install button has changed to Clean Install, and the contents of your old System Folder have been moved to a new folder named Previous System Folder.

14 Click Clean Install.

Click here to install the software you need.

15 Follow the instructions that appear on the screen.

It takes a few minutes to complete the installation.

Chapter 5

16 When you see a message reporting that the installation was successful, you may need to

click Restart.

You need to click Restart only if you installed software onto the startup disk. If a message reports that installation was not successful, try repeating the

clean installation procedure.

Replacing s pecial software

1Copy any special software items from the Previous System Folder back to your System

Folder one item at a time, restarting the computer after copying each item.

Special softwar e consists of items such as control panels, system extensions, or custom utilities that you may have added to your System Folder.

IMPORTANT

Be very careful not to replace (copy over) any of the files in the

Syst em Folder with files from the Previous System Folder.

2Check after each restart to make sure your computer is not having any software

problems.

If any of your special software items cause software problems, contact the software ma nufacturer for assistance or an upgrade.

Doing a custom installation

For most Macintosh users, the Easy Install procedure described in the previous sections is appropriate, because it automatically installs all the items you need. However, if you’d like to select a combination of system software files for your specific needs, you can customize your system software installation. You use custom installation to install or update one or more specific files, or to save space on your hard disk by installing only the files you want.

To install customized system software, follow these steps:

1 Start up your computer from the

system software.

Install Me First

disk or the CD-ROM disc that contains

See “Starting Up From a CD-ROM Disc” or “Starting Up From a Floppy Disk” in the section “Initializing a Hard Disk” earlier in this chapter.

2Click OK.

The Easy Install dialog box appears.

3Choose Custom Install from the pop-up menu.

Troubleshooting

The Custom Install dialog box appears, listing all available system software components.

4Scroll through the list of components, clicking the checkbox next to each component

you want to install.

To get additional information about each component listed, click the box with the letter i in it to the right of the component.

5Click Install.

6 Follow the instructions that appear on the screen. 7When you see a message reporting that the installation was successful, click Quit.

If a message reports that installation was not successful, try installing again. (Follow the instructions on the screen.)

8 Restart your Macintosh.

The system software is installed and your computer is ready to use.

Chapter 5

Appendix A Health, Safety, and Maintenance Tips

For your own safety a nd that of your equipment, follow all the instr uctions in this chapter. Keep th ese instructions available for reference by you and others.

Health-related information abou t c o mputer use

Muscle soreness, eye fatigue, and other discomforts and injuries sometimes associated with using computers can o ccur from performing any number of activities. In fact, misuse of the same muscles during multiple activities can create a problem that might not otherwise exist. For example, if you engage in nonwork activities that involve repetitive stress on the wrist—such as bicycling—and also use your computer’s keyboard improperly, you may increase your li kelihood of developing wrist problems. Some individ uals are at greater risk of developing these problems because of their health, physiology, lifestyle, and general exposure to stress. Work organization and conditions, such as workstation setup and lighting, also play a part in your overall health and comfort. Preventing health problems is a multifaceted task that requires careful attention to the way you use your body every hour of every day.

Read this appendix for important

health and safety instructions,

as well as tips on keeping your

computer in good working order.

The most common health effects associated with using a computer are musculoskeletal discomfort and eye fatigue. We’ll discuss each area of concern below.

Musculoskeletal discomfor t

As with any activity that involves sitting for long periods of time, using a computer can make your muscles sore and stiff. To minimize these effects, set up your work environment carefully, using the guidelines that follow, and take frequent breaks to rest tired muscles. To make working with your computer more comfortable, allow enough space in your work area so that you can change position frequently and maintain a relaxed posture.

Another type of musculoskeletal concern is repetitive stress i njuries (RSIs), also known as cumulative trauma disorders (CTDs). These problems can occur wh en a certain muscle or tendon is repeatedly overused and forced into an unnatural position. The exact causes of RSIs are not totally understood, but in addition to awkward posture, such factors as the amount of repetition, the force used in the activity, the i ndividual’s physiology, workplace stress level, and lifestyle may affect the likelihood of experiencing an RSI.

RSIs did not suddenly arise when computers were invented; tennis elbow and writer’s cramp, for example, are two RSIs that have been with us for a long time. Although less common than other RSIs, one serious RSI discussed more often today is a wrist problem called carpal tunn el syndrome, which may be aggravated by improper use of computer keyboards. This ner ve disorder results from excessive pressure on the median nerve as it passes through th e wrist to th e ha nd.

This section offers advice on setting up your work area to enhance your comfort while you use your computer. Since the effects of repetitive movements associated with using a computer can be compounded by those of other work and leisure activities to produce or aggravate physical problems, proper use of your computer system must be considered as just one element of a healthy lifestyle.

No one, of course, can guarantee that you won’t have problems even when you follow the most expe rt advice on using computer equipment. You should always check with a qualified health specialist if muscle, joint, or eye problems occur.

Appendix A

Eye fa ti g ue

Eye fatigue can occur whenever the eyes are focused on a nearby object for a long time. This problem occurs because the eye muscles must work harder to view an object that’s closer than about 20 feet (6 meters). I m proper lighting can hasten the development of eye fatigue. Although eye fatigue is annoying, there’s n o evidence that it leads to permanent damage.

Whenever you’re engaged in an activity that involves close-up work—such as reading a magazine, doing craft work, or using a computer—be sure to have sufficient glare-free lighting and give your eyes frequent rest breaks by looking up and focusing on distant objects. Remember to have your eyes examined regularly.

To prevent discomfort and eye fatigue:

m Arrange your work space so that the furniture is properly adjusted for you

and doesn’t contribute to an awkward working posture.

m Take frequent short breaks to give your muscles and eyes a chance to rest.

Arran ging your office

Here are some guidelines for adjusting the furniture i n your office to accommodate your physical size and shape.

m An adjustable chair that provides firm, comfortable support is best. Adjust

the height of the chair so your thighs are horizontal and your feet flat on the floor.

The back of the chair should support your lower back (lumbar region). Foll ow the manufacturer’s instr uctions for adjusting the backrest to fit your body properly.

m When you use th e computer keyboard, your shoulders should be relaxed.

Your upp er arm and forearm should form a n approximate right angle, with your wrist and hand in roughly a straight line.

Health, Safety, and Maintenance Tips

You may have to raise your chair so your forearms and ha nds are at the

Thighs horizontal

Shoulders relaxed

Screen positioned to avoid reflected glare

Forearms and hands

in a straight line

Forearms level

or tilted up slightly

Lower back supported

Feet flat on the floor

Top of the screen at or slightly below eye level (You may need to adjust the height of your computer by placing something under it or by raising your work surface.)

Clearance under work surface

45–70 cm (18–28 in.)

proper angle to the keyboard. If this makes it impossible to rest your feet flat on the floor, you can use a footrest with adjustable height and tilt to make up for any gap between th e floor and your feet. Or you may lower the desktop to eliminate the need for a footrest. Another option is to use a desk with a keyboard tray that’s lower than the regular work surface.

m Position the mouse at th e same height as your keyboard. Allow adequate

space to use the mouse comfortably.

m Arrange the monitor so the top of the screen is slightly below your eye

level when you’re sitti ng at the keyboard. The best distance from your eyes to the screen is up to you, although most people seem to prefer 18 to 28 inches (45 to 70 cm).

m Position the computer to minimize glare and reflections on the screen from

overhead lights and windows.

Appendix A

Av oiding fatigue

m Change your seated position, stand up, or stretch whenever you start to feel

tired. Frequent short breaks are helpful in reducing fatigue.

m Use a light touch when typing or using a mouse a nd keep your hands and

fingers relaxed.

m Some computer users may develop discomfor t in their hands, wrists, or

arms after intensive work without breaks. If you b egin to develop chronic pain or discomfort in your hands, wrists, or arms, consult a qualified health specialist.

m Allow adequate workspace so that you ca n use your keyboard and mouse

comfortably. Place papers or other items so you can view them easily while using your computer. A document stand may make reading papers more comfortable.

m Eye muscles must work harder to focus on nearby objects. Occasionally

focus your eyes on a distant object, and blin k often while you work.

m Clean your screen regularly. Keepi ng the screen clean helps reduce

unwanted reflections.

What about electromagnetic emissions?

There has been recent public discussion of the possible health effects of prolonged exposure to extremely low frequency (ELF) and very low frequency (VLF) electromagnetic fields. Such fields are associated with electromagnetic sources such as television sets, electrical wi ring, and some household appliances—as well as computer monitors.

Apple has reviewed scientific reports and sought the counsel of government regulatory agencies and respected health organizations. Based on the prevailing evidence and opinions, Apple believes that the electric and magnetic fields produced by computer monitors do not pose a health risk.

In response to those customers who wish to reduce their exposure to electromagnetic fields, Apple has lowered the emission levels of our products. We are also actively encouraging further scientific research so we can continue to promote the h ealth and safety of our customers and employees.

Health, Safety, and Maintenance Tips

Safety instructions

For your own safety a nd that of your equipment, always take the following precautions.

Tur n off the computer completely and disconnect the power plug (by pulling the plug, not the cord) if any of the following conditions exists:

m the power cord or plug becomes frayed or otherwise damaged m you spill something into the case m your Macintosh is exposed to rain or any other excess moisture m your Macintosh has been dropped or the case has been otherwise damaged m you suspect that your Maci ntosh needs service or repair m you want to clean the case (use only the recommended proced ure

Be sure that you always do the following:

m Keep your Macintosh away from sources of liquids, such as wash basins,

m Protect your Macintosh from dampness or wet weather, such as rain, snow,

described later in this chapter)

bathtubs, shower stalls, and so on.

and so on.

Appendix A

m Read all th e installation i nstructions carefully before you plug your

Macintosh into a wall socket.

m Keep these instructions handy for reference by you and others. m Follow all instructions and warnings dealing with your system.

WARNING

Electrical equipment may be hazardous if misused. Operation of this product, or similar products, must always be sup ervised by an adult. Do not allow children access to the interior of any electrical product and do not permit them to handle any cables.

Handling your computer equipment

Follow these guidelines for handling your computer and its components: m When setting up your computer, place components on a sturdy, flat surface,

and carefully follow all setup instr uctions.

m When connecting or disconnecting a cable, always hold the cable by its

connector (the plug, not the cord).

m Turn off your computer and all its components before connecti ng or

disconnecting a ny cables to add or remove any component. Failure to do so could seriously damage your equipment.

m Never force a connector into a por t. If the connector and port do not join

with reasonable ease, they probably don’t match. Make sure that the connector match es the port a nd that you have positioned the conn ector correctly in relation to the port.

m Take care not to spill a ny food or liquid on the computer, keyboard, mouse,

or other components. If you do, turn your computer off immediately and unplug it before cleaning up the spill. Depending on what you spilled and how much of it got into your equipment, you may have to bring your equipment to an Apple-authorized service provider.

m Protect the computer and its components from direct sunlight and rain or

other moisture.

m Keep all ventilation op enings clear and unobstructed. Without proper air

circulation, components can overheat, causing damage or un reliable operation.

WARNING

Health, Safety, and Maintenance Tips

Handling the built-in monitor

Follow these proced ures for handling the built-in monitor: m Tur n down the screen brightness control if you leave the computer turned

on for extended periods. If the brightness is not turned down, the image on the screen could “burn in” and damage the screen.

You can also use a “screen saver” program, which dims or varies the image on the screen when the computer has been idle for a specified period of time. These programs are available from independent suppliers and user groups.

m If there is interference on the monitor’s screen or on a television or radio

near your computer, move the affected equipment farther away.

Handling the keyboard

Take care not to spill a ny liquid on the keyboard. If you do, turn off your computer immediately.

m If you spill liquid that is thin and clear, un plug the keyboard, turn it upside

down to let the liquid drain out, and let it dry for 24 hours at room temperature. If, after you take these steps, the keyboard do esn’t work, take it to your Apple-authorized service provider for repair.

m If you spill liquid that is greasy, sweet, or sticky, unplug the keyboard and

take it to your Apple-authorized service provider for repair.

Appendix A

Handling floppy disks

125° F (52° C)

F (10° C)

Keep disks dry.

Do not use a pencil or an eraser on a disk or disk label.

Store disks at temperatures between 50

and 125

Do not touch the exposed part of the disk behind the metal shutter.

Keep disks away from magnets.

Avoid exposing disks to extremely hot temperatures.

Ejecting a disk

For instructions on ejecting a floppy disk, a CD-ROM disc, or a removable media disk, see the “Disks” topic of Macintosh Guide, available in the Guide (h) menu.

Health, Safety, and Maintenance Tips

If you can’t eject a floppy disk

If you can’t eject a floppy disk in the usual way, try the following in order: m Hold down the x and Shift keys and press the number 1 key on your

keyboard to eject a disk in the inter nal disk drive.

m Tur n off the computer. If the disk isn’t ejected, then hold down th e button

on your mouse or other pointing device while you turn the computer on again.

m Locate the small hole near the disk drive’s opening, and carefully insert the

end of a large straightened paper clip into it. P ush gently until the disk is ejected. Do not use excessive force.

If nothing works, take the computer or disk drive to your Apple-authorized service provider to have the disk removed.

Power supply

The power supply in your computer is a high-voltage component a nd should not be opened for any reason, even when the computer is off. If the power supply needs service, contact your Apple-authorized dealer or service provider.

Appendix A

Cleaning your equipment

Follow these general r ules when cleaning the outside of your computer and its components:

m Use a damp, soft, lint-free cloth to clean the computer’s exterior. Avoid

getting m oi sture in any openings.

m Don’t use aerosol sprays, solvents, or abrasives.

Cleaning the computer case

To clean the case, do the following:

1 Turn off the computer completely and then disconnect the power plug. (Pull the plug, not

the cord.)

2Wipe the surfaces lightly with a clean, soft cloth dampened with water.

Cleaning the monitor

To clean the screen, put household glass cleaner on a soft cloth and wipe the screen. Don’t spray the cleaner directly on the screen, because the liquid might drip into the monitor or computer.

Cleaning the mouse

The mouse contains a small ball that must roll smoothly for the mouse to work properly. You can keep this ball free of dirt a nd grease by using th e mouse on a clean, lint-free surface and cleaning it occasionally.

You need a few cotton swabs and a clean, soft, lint-free cloth.

1 Turn off your computer.

Health, Safety, and Maintenance Tips

2 Turn the mouse upside-down and turn the plastic ring on the bottom counterclockwise

to disengage it.

If you have an older mouse, you may need to press the plastic ri ng (rather than tur n it) to disengage it.

If the mouse is locked, see the next section, “Locking and Unlocki ng the Mouse,” for instructions on how to unlock it.

3 Turn the mouse right-side up with one hand and catch the ring and the ball with your

other hand.

4Clean the three small rollers inside the mouse with a cotton swab moistened with water.

Rotate the rollers to clean all around them.

5Wipe the mouse ball with a clean, soft, dry, and lint-free cloth. 6If necessary, wash the mouse ball with warm soapy water (use a mild soap such as a

dishwashing liquid) and then dry the mouse ball thoroughly.

7Gently blow into the mouse case to remove any dust that has collected there.

Appendix A

8Put the ball and the ring back in place.

The mouse ring is locked when the recessed area on the ring does not line up with the recessed area surrounding the ring.

Recessed area on ring

Recessed area surrounding ring

Insert a straightened paper clip into this hole.

(The hole may be located here on your mouse.)

Your mouse should roll smoothly across your mouse pad or desk. If it doesn’t, repeat these instructions carefully.

Locking and unlo cking the mouse

Some mous e devices ca n be locked so that the ball can’t b e removed. A locking mouse has a small hole on the plastic ring.

To lo ck th e mouse, follow these steps:

1 Insert a straightened paper clip into the hole on the plastic ring.

2Press down on the paper clip while you turn the ring clockwise.

Tur n th e ring a very short distance, until it stops. When the recessed area on the ring is

not lined up with the recessed area surrounding the ring, the mouse

is locke d.

Health, Safety, and Maintenance Tips

To unlock the mouse, follow these steps:

The mouse ring is unlocked when the recessed area on the ring lines up with the recessed area surrounding the ring.

Recessed area on ring

Recessed area surrounding ring

Insert a straightened paper clip into this hole.

(The hole may be located here on your mouse.)

1Insert a straightened paper clip into the hole on the plastic ring.

2Press down on the paper clip while you turn the ring counterclockwise.

Tur n th e ring a very short distance. When the recessed area on the ring is lined up with the recessed area surrounding the ring, the mouse is unlocked.

Appendix A

Read this appendix for

instructions on installing an

expansion card in your computer.

Appendix B Installing an Expansion Card

Expansion cards are printed circuit boards that can be installed in your computer to give it special features, such as enhanced video capabilities, networking and communications, a nd additional processi ng power. Your Macintosh has slots available for three different kinds of expansion cards:

m an LC-processor-direct slot (LC-PDS) for most expansion cards m a communication slot for an internal modem or Ethern et card m a video-in slot for a card that brings signals into the computer from a

videocassette recorder (VCR), laserdisc player, video camera, or similar device

You can also install the following additional options in your Macintosh: m an external video connector kit that allows video mi rroring on an

external monitor

m a TV tuner card that allows you to watch TV on your Macintosh

Apple Power Macintosh 5200/75 LC User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
