Alesis Steinberg Cubase LE 4 Software Setup Guide

Steinberg Cubase LE 4 Software Setup Guide

Contents:

Cubase LE 4 Installation.................................................................................................. 2

Windows XP Installation................................................................................................ 2

Windows Vista Installation.............................................................................................3

Macintosh Installation..................................................................................................... 5

Setting up Cubase with your Alesis Audio device.......................................................... 6

General Setup (for all devices) ....................................................................................... 6

Alesis IO|2 ...................................................................................................................... 7

Alesis MultiMix USB (1.0) Series Mixers ..................................................................... 7

Alesis MultiMix USB 2.0, MultiMix FireWire, IO|14, and IO|26 ................................. 8

Alesis MasterControl....................................................................................................11

Creating a Project........................................................................................................... 16

Registration ..................................................................................................................... 19

Find and write down your Soft-eLicenser code............................................................ 19

Request an Activation Code for Cubase LE 4..............................................................21

Activate your installation of Cubase LE 4.................................................................... 21

Cubase LE 4 Installation

Windows XP Installation

1. Insert the installation DVD into your computer’s drive.

2. The installer program should automatically launch after a few moments. If it does not

open automatically, perform the following:

a. Double-click the My Computer icon on your desktop. b. In the window that opens, double-click the disk named, Cubase LE 4. c. In the next window, open the folder titled, Cubase LE 4 for Windows. d. Then, open the application titled, Setup.exe

3. When the installer application opens, click the button labeled Install

4. In the next window, read the End-User License Agreement, and then click the box

titled I accept the terms in the License Agreement, then click Next.

5. The next window, titled Install Location, allows you to select the location on your

computer that Cubase LE 4 will be installed. In most cases, you should use the default settings which are already selected here, and simply click Next.

6. Then, on the next screen, click Install.

7. A progress bar will be displayed while the installation proceeds. When it is finished, a

second installer, the Syncrosoft License Control Setup will open. This application installs the required product registration components onto your computer. When it appears, click Next to proceed.

8. In the next window, read the End-User License Agreement, and then click the box

titled I accept the license agreement, then click Next.

9. In the window that appears after the software has been installed, click the box titled

Start ‘License Control Center’ after installation. Then click Finish.

10. The installation process will complete, and the License Control Center Application

will open. Proceed to Step 2 of the Registration section below.

Windows Vista Installation

1. Insert the installation DVD into your computer’s drive.

2. A window titled “AutoPlay” (Fig. 1) may appear. If it does, double-click Run

Autorun.exe

Fig. 1

3. A window titled “User Account Control” (Fig. 2) may then appear reporting that An

unidentified program wants access to your computer. Click Allow.

Fig. 2

4. In the window that opens, double-click the folder titled Cubase LE 4 for Windows.

5. In the next window, double-click the program titled Setup.

6. The Cubase LE 4 installation program will launch. In the window that opens, click

Install.

7. In the next window, read the End-User License Agreement, click I accept the terms

in the License Agreement, then click Next.

8. The next window, titled Install Location, allows you to select the location on your

computer that Cubase LE 4 will be installed. In most cases, you should use the default settings which are already selected here, and simply click Next.

9. Then, on the next screen, click Install.

10. A progress bar will be displayed while the installation proceeds. When it is finished, a

second installer, the Syncrosoft License Control Setup will open. This application installs the required product registration components onto your computer. When it appears, click Next to proceed.

11. In the next window, read the End-User License Agreement, click the box titled I

accept the license agreement, then click Next.

12. A window titled Windows Security may appear, reporting that Windows can’t

verify the publisher of this driver software. If this window appears, click Install this driver software anyway.

13. In the window that appears after the software has been installed, click the box titled

Start ‘License Control Center’ after installation. Then click Finish.

14. The installation process will complete, and the License Control Center Application

will open. Proceed to Step 2 of the Registration section below.

Macintosh Installation

1. Insert the installation DVD into your computer’s drive.

2. On the DVD, locate and open the folder, Cubase LE 4 for Mac OS X. Inside, this

folder, double-click the Cubase LE 4.mpkg installer package to begin the installation.

3. The following message (Fig. 3) will appear on the screen. Click Continue

Fig. 3

4. This window will close, and Welcome to the Cubase LE 4 Installer will be

displayed. Click Continue again.

5. In the next window, read the Software License Agreement, and then click Continue,

then click Agree.

6. You will then be asked to select which hard drive you would like to install the Cubase

onto. Choose a drive, and click on its name to select it. If you only have only hard disk in your computer, only one option will be presented here.

7. Click Continue, and then click Install.

8. A window titled Authenticate will appear. Enter your Macintosh Username

Password and click OK. For help with this password, click the icon in the bottom-left of the window.

9. A progress bar will be displayed while the installation proceeds. When it is finished,

the screen will read The Software was installed Successfully. Click the Close button.

Setting up Cubase with your Alesis Audio device

General Setup (for all devices)

1. Connect your USB device to a USB port on your computer. Some Alesis USB audio

devices have power cords, and some do not. If your device has a power cord, connect to an electrical outlet, and turn on the device.

2. Launch the Cubase LE 4 application.

• Windows XP and Vista: Navigate to the Cubase LE 4 application by using the

Start menu at the bottom-left of your screen: select Start > Programs > Steinberg Cubase LE 4 > Cubase LE 4.

• Macintosh: The Cubase LE 4 application is located in the “Applications” folder

on your Hard Disk. Double-click the program to open it.

3. Depending on your computer configuration, the first time you launch Cubase, you

may be presented with an error message indicating some problem with the sound setup. By going through this setup guide, and properly setting up Cubase LE 4, any such errors will be resolved. If an error is displayed at startup, click OK to continue.

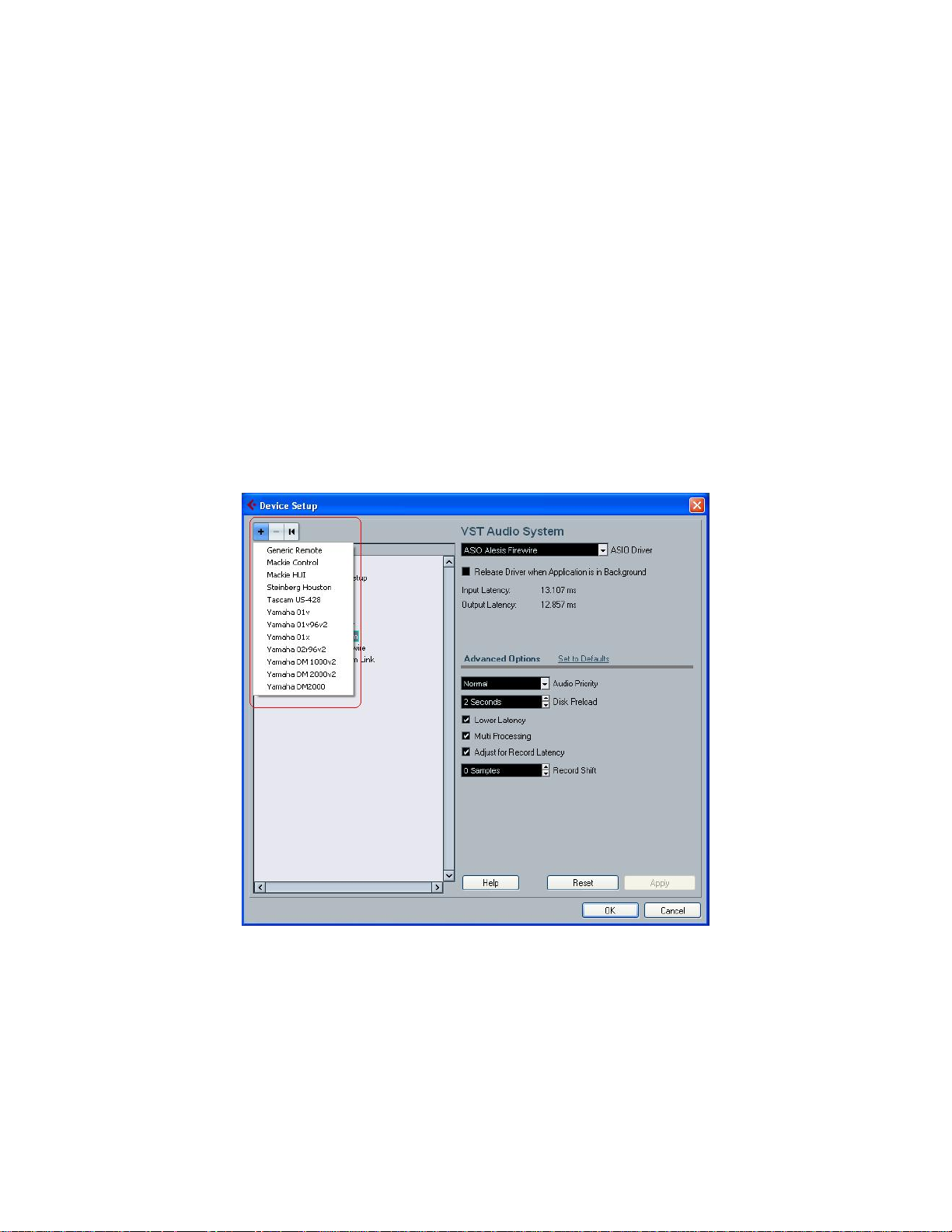

4. Once Cubase LE 4 is completely started up, select the Devices menu from the top of

the screen and choose Device Setup.

5. In the window that opens, select VST Audio System from the left-hand side of the

screen.

6. The ASIO Driver field on the right-hand side is where you select the audio

input/output device that Cubase LE 4 will use. Below is a list of Alesis Audio interfaces, and the correct ASIO Driver selection for each device for Windows and Macintosh platforms. Make the appropriate ASIO Driver selection for your device.

Alesis Audio Device Windows ASIO Driver Macintosh ASIO Driver

MultiMix USB Series………... ASIO DirectX Full Duplex Driver.. USB Audio CODEC MultiMix USB 2.0 Series……. Alesis USB Audio Device………... Alesis USB Audio Device MultiMix FireWire Series…….Alesis FireWire…………………... Alesis 1394 IO|14 and IO|26……………… Alesis FireWire…………………… Alesis 1394 MasterControl...……………… Alesis FireWire…………………… Alesis 1394 IO|2 …………………………... Alesis IO|2 USB ASIO…………… io|2

When you change the selected ASIO Driver, a window which reads, Do you want to switch the ASIO driver? may appear. If it does, click Switch.

Alesis IO|2

If you are using the Alesis IO|2, click Apply (if available), then OK to close the Device Setup window. Then proceed to the Creating a project section below.

Alesis MultiMix USB (1.0) Series Mixers

If you are using a MultiMix USB Series Mixer on a Windows PC, and have selected ASIO DirectX Full Duplex Driver for the ASIO Driver in the General Setup section

of this guide (see above), perform the following:

1. Click ASIO DirectX Full Duplex Driver underneath VST Audio System on the

left-hand side of the screen.

2. Then, click the Control Panel button on the right-hand side of the screen.

3. A window will open which has two white rectangular sections. Place an X next to

USB Audio CODEC in both the upper and lower sections as (see Fig. 4).

Fig. 4

7. Click OK to close the window. Then, click Apply (if available), then OK to close

the Device Setup window. Now proceed to the Creating a project section below.
