Agilent Technologies FS2100, FS2101 User Manual

FuturePlus Systems Corporation

LOCAL BUS

Active Analysis Probe Users Manual-

FS2100 / FS2101

For Agilent Technologies Logic Analyzers

Revision 1.8

FuturePlus is a trademark of FuturePlus Systems Corporation
Copyright 1998 FuturePlus Systems Corporation

HOW TO REACH US 5

PRODUCT WARRANTY 6

Limitation of warranty 6

Exclusive Remedies 6

Assistance 6

INTRODUCTION 7

How to Use This Manual 7

ANALYZING THE PCI LOCAL BUS 8

Duplicating the Master Diskette 8

Accessories Supplied 8

Minimum Equipment Required 9

Signal Naming Conventions 9

Viewing the interrupts 10

Configuring the front panel switches and LEDs 10

Powering the PCI Active Analysis Probe 11

Connecting to the PCI Active Analysis Probe 11

Multiplexed versus Demultiplexed 12
32 bit PCI Demultiplexed 12
32 bit PCI Multiplexed 12
64 bit PCI Multiplexed 13
64 bit PCI Demultiplexed 13

USER PINS 14

Installing the PCI Active Analysis Probe 14

How to install a PCI add-in card into the extender card connector 15

Operation of the PCI add-in card 15

The Extender Card Connector 15

Setting up the Analyzer from the diskette 16

The PCI Inverse Assembler 17

2

The Format Menu 17

The STAT variable 18
The ADDR, ADDR_B , ADDR_C, DATA_B and DATA variables 19
The BUS_UT variable 19
The L_CMD variable 19

Theory of Operation 20

The Input Buffers 20
The Latching Buffers 21
The interface to the Logic Analyzer 21
The Clocking and Cycle bit Generation Logic 21
The Data Parity Checking Logic 22

STATE ANALYSIS 23

Installation Quick Reference 23

Using the front panel switches in state mode 23

Acquiring Data 24

The State Display 24
Error Messages 25

INVASM OPTIONS 25

Setting up the Analyzer to use the PC Mapper Inverse Assembler 25

Acquiring Data 25

The State Display with the PCI PC Mapper 26
Error Messages 27

PCI PC Mapping for memory transactions 27

Interrupt Vector Table 28

PCI PC Mapping - I/O Transactions 30

TIMING ANALYSIS 33

Installation Quick Reference 33

Timing Mode Skew 33

Using the Cycle bits and L_CMD lines 34

Demultiplexed versus Multiplexed 34

Acquiring Data 34

3

The Waveform Display 34

GENERAL INFORMATION 36

Characteristics 36

Analysis Probe Interface Compatibility 36

JTAG Boundary Scan 36

The PCI Present Pins 36

Standards Supported 36

Power Requirements 36

Logic Analyzer Required 36

Number of Probes Used 36

Minimum Clock Period (State) 37

Signal loading 37

Operations 37

Environmental Temperature 37

Altitude 37

Humidity 37

Testing and Troubleshooting 37

Servicing 37

Signal Connections 38

4

How to reach us

For Technical Support:

FuturePlus Systems Corporation
36 Olde English Road
Bedford NH 03110
TEL: [phone]
FAX: [phone]
On the web

For Sales and Marketing Support:
FuturePlus Systems Corporation
TEL: [phone]
FAX: [phone]
On the web

FuturePlus Systems has technical sales
representatives in several major countries. For an up
to date listing please see

http://www.futureplus.com/contact.html.

Agilent Technologies is also an authorized reseller of
many FuturePlus products. Contact any Agilent
Technologies sales office for details

http://www.futureplus.com

http://www.futureplus.com

.

5

Product Warranty

This FuturePlus Systems product has a warranty against defects
in material and workmanship for a period of 1 year from the date
of shipment. During the warranty period, FuturePlus Systems
will, at its option, either replace or repair products proven to be
defective. For warranty service or repair, this product must be
returned to the factory.

For products returned to FuturePlus Systems for warranty
service, the Buyer shall prepay shipping charges to FuturePlus
Systems and FuturePlus Systems shall pay shipping charges to
return the product to the Buyer. However, the Buyer shall pay all
shipping charges, duties, and taxes for products returned to
FuturePlus Systems from another country.

FuturePlus Systems warrants that its software and hardware
designated by FuturePlus Systems for use with an instrument
will execute its programming instructions when properly installed
on that instrument. FuturePlus Systems does not warrant that
the operation of the hardware or software will be uninterrupted or
error-free.

Limitation of warranty

Exclusive Remedies

Assistance

The foregoing warranty shall not apply to defects resulting from
improper or inadequate maintenance by the Buyer, Buyer­supplied software or interfacing, unauthorized modification or
misuse, operation outside of the environmental specifications for
the product, or improper site preparation or maintenance. NO
OTHER WARRANTY IS EXPRESSED OR IMPLIED.
FUTUREPLUS SYSTEMS SPECIFICALLY DISCLAIMS THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE.

THE REMEDIES PROVIDED HEREIN ARE BUYER’S SOLE
AND EXCLUSIVE REMEDIES. FUTUREPLUS SYSTEMS
SHALL NOT BE LIABLE FOR ANY DIRECT, INDIRECT,
SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES,
WHETHER BASED ON CONTRACT, TORT, OR ANY OTHER
LEGAL THEORY.

Product maintenance agreements and other customer
assistance agreements are available for FuturePlus Systems
products. For assistance, contact the factory.

6

Introduction

The PCI Active Analysis Probe module provides a complete
interface between any PCI add-in slot and Agilent Logic
Analyzers. The Analysis Probe interface buffers and in state
mode latches and decodes all PCI cycle types and transactions.

The PCI Active Analysis Probe is a passive bus monitor which
does not assert any signals on the PCI bus. The PCI bus
signals are buffered and then terminated with 90k ohm/10pf
terminators so that they are impedance matched to the logic
analyzer. Since the PCI Active Analysis Probe does contains
high speed low skew buffers very little skew is introduced.

The configuration software on the diskette sets up the format
specification menu of the logic analyzer for compatibility with
your PCI bus. When the state configuration file is loaded, an
inverse assembler is also loaded which decodes PCI
transactions into easy to read mnemonics.

How to Use This Manual

This manual is organized to help you quickly find the information
you need.

• Analyzing the PCI Local Bus chapter introduces you to the
PCI Active Analysis Probe and lists the minimum equipment
required and accessories supplied for PCI bus analysis.

• The State Analysis chapter explains how to configure the
PCI Active Analysis Probe to perform state analysis on your
PCI bus.

• The Timing Analysis chapter explains how to configure the
PCI Active Analysis Probe to perform timing analysis on your
PCI bus.

• The General Information chapter provides some general
information including the operating characteristics for the
PCI Active Analysis Probe module and the cable header
pinout.

7

Analyzing the PCI Local Bus

This chapter introduces you to the PCI Active Analysis Probe
and lists the minimum equipment required and accessories
supplied for PCI Local Bus analysis. This chapter also contains
information that is common to both state and timing analysis.

Duplicating the Master Diskette

Accessories Supplied

Before you use the PCI Analysis Probe software, make a
duplicate copy of the master diskette. Then store the master
diskette and use the back-up copy to configure your logic
analyzer. This will help prevent the possibility of losing or
destroying the original files in the event the diskette wears out, is
damaged, or a file is accidentally deleted.

To make a duplicate copy, use the Duplicate Diskette operation
in the disk menu of your logic analyzer. For more information,
refer to the reference manual for your logic analyzer.

The PCI Active Analysis Probe product consists of the following
accessories:

• The Analysis Probe interface hardware, which includes the
interface circuit module.

• one jumper which is installed on the circuit module.

• The inverse assembly and configuration software on a 3.5

inch diskette.

• 11 cables

• This operating manual

8

The PCI Active Analysis Probe module

Minimum Equipment Required

Signal Naming Conventions

The minimum equipment required for analysis of a PCI Local
Bus consists of the following equipment:

• 1660A/C, 1661A/C, 1662A/C, 16550A, 16554A, 16555A,
16556A, 1670A, 1671A, 1672A

• The PCI Active Analysis Probe Product

• A PCI target bus

This operating manual uses the same signal notation as the PCI
LOCAL BUS SPECIFICATION - REVISION 2.1. That is, a #
symbol at the end of a signal name indicates that the signals
active state occurs when it is at a low voltage. The absence of a
# symbol indicates that the signal is active at a high voltage.

9

Viewing the interrupts

Pod 1 channel 0 can be configured to view any one of the four
PCI interrupts. Move the jumper so that it corresponds to the

desired interrupt and that interrupt line will be routed to POD 1
channel 0. The jumper and interrupt stake pins are clearly
labeled and are located under POD 7.

Interrupt Jumper

Pod 0 Channel 1 INT

I I I I
N N N N
T T T T
A B C D

Configuring the front panel switches and LEDs

Switch Setting LED

Parity On Parity Checking

enabled

Parity On Parity checking

disabled

No Wait No Wait cycles

acquired

No Wait All Wait cycles

acquired

No Idle No Idle cycles

acquired

No Idle All Idle cycles

acquired

TDO/TDI TDO connected to

TDI

TDO/TDI TDO not connected

to TDI

ON

OFF

ON

OFF

ON

YES

No LED, switch in
rightmost position

No LED, switch in

leftmost position
State/Timing State ON
State/Timing Timing OFF

10

Parity On

No Wait

No Idle

State

1 2 3 4

ON

Parity On
No Wait
No Idle
TD0-TD1

State
Timing

FuturePlus
Systems

PCI Active Analysis Probe front panel

Powering the PCI Active Analysis Probe

Connecting to the PCI Active Analysis Probe

The active circuitry on the PCI Active Analysis Probe module
gets its power from the logic analyzer PODs. No power is taken
from the target PCI system. Please Note: If the Analysis

Probe is plugged into the PCI bus and the logic analyzer is
not connected or powered up the input buffers on the
Analysis Probe will create a low impedance path to ground
thus inhibiting the PCI local bus and any card in the
extender card connector from working.

The Logic analyzer must be connected and powered on for
the PCI Active Analysis Probe to work properly. ONLY
connect to the analysis probe headers 7-10 if you are doing
64 bit analysis. Latchup may occur on the 64 bit interface
parts if they are powered on and not on a 64 bit bus.

The following explains how to connect the logic analyzer to the
PCI Active Analysis Probe for either state or timing analysis:

1. Remove the probe tip assemblies from the logic
analyzer cables.

2. Plug the logic analyzer cables into the PCI Active
Analysis Probe cable headers as shown in the
appropriate following tables.

11

Multiplexed versus Demultiplexed

32 bit PCI Demultiplexed

The PCI Local Bus specification specifies that the AD lines and
the C/BE lines carry different information at different times. This
is referred to as multiplexed. Using the extra clocking features
and additional pods of the logic analyzer the AD lines can be
demultiplexed. By using the PCI Active Analysis Probe in
demultiplexed mode the address of the transaction can be held
throughout the transaction thus making triggering and
performance analysis easier.

Please note that the C/BE lines have been demultiplexed on the
PCI Active Analysis Probe. Thus the command is held through
the transaction and no additional clocking or pods is required.
The latched command L_CMD signals are on pod 1 channels
10-7.

Logic Analyzer PCI Active Analysis

Probe

Master POD 1 Header 1
POD 2 Header 2
POD 3 Header 3

Comment

32 bit PCI Multiplexed

POD 4 Header 4
POD 5 Header 5 16554/5/6/7

expander
card POD 1

POD 6 Header 6 16554/5/6/7

expander
card POD 2

Logic Analyzer PCI Active Analysis

Probe

Master POD 1 Header 1
POD 2 Header 2
POD 3 Header 3
POD 4 Header 4

Comment

12

64 bit PCI Multiplexed

Logic Analyzer PCI Active Analysis

Probe

Master POD 1 Header 1
POD 2 Header 2
POD 3 Header 3
POD 4 Header 4
POD 5 Header 7 16554/5/6/7

POD 6 Header 8 16554/5/6/7

POD 7 Header 11 16554/5/6/7

Comment

expander
card POD 1

expander
card POD 2

expander
card POD 3

16550 expander

card Pod 1

64 bit PCI Demultiplexed

Logic Analyzer PCI Active Analysis

Probe

Master POD 1 Header 1
POD 2 Header 2
POD 3 Header 3
POD 4 Header 4
POD 5 Header 5 16554/5/6/7

POD 6 Header 6 16554/5/6/7

POD 7 Header 7 16554/5/6/7

POD 8 Header 8 16554/5/6/7

Comment

expander
card POD 1

expander
card POD 2

expander
card POD 3

16550 expander

card Pod 1

expander
card POD 4

16550 expander

card Pod 2

13

POD 9 Header 9 16554/5/6/7

expander 2
card POD 1

16550 expander

card Pod 3

POD 10 Header 10 16554/5/6/7

expander
card POD 2

16550 expander

card Pod 4

POD 11 Header 11 16554/5/6/7

expander
card POD 3

16550 expander

card Pod 5

USER PINS

Installing the PCI Active Analysis Probe

PCI Active Analysis Probe Header 4 contains 8 User Defined
pins. These pins are available to the user to connect whatever
additional signals the users wishes to view along with the PCI
bus. These pins are located below POD 3 on the PCI Active

Analysis Probe module and clearly marked
are available on the logic analyzer on POD 11 channels 15 thru

8.
These pins may be used to connect the individual IDSEL signals

from other PCI slots or the bus grant signals from the PCI bus
arbitration logic.

The PCI Active Analysis Probe can be installed in any slot of the
PCI Local bus. The following steps explain how to install the PCI
Active Analysis Probe into the PCI Local bus.

1. Install the logic analyzer cables as described in the
previous section.

2. Power off the PCI target. Align the PCI module with the
appropriate slot on the target system and plug the
module into the PCI connector. Power on the logic
analyzer and then power on the target.

If your PCI Local bus is 32 bits the upper portion of the edge
connector will not be inserted into any connector. This will not
affect the modules operation on a 32-bit PCI Local bus.

. These user pins

14

How to install a PCI
add-in card into the
extender card
connector

Operation of the PCI add-in card

The card edge connector of the PCI Active Analysis Probe
module can accommodate one 32 or 64 bit 5V OR 3V PCI add in
card. The extender card connector is either a 3V or 5V
connector depending on how the board was ordered and
configured at the factory.

Simply align the module with the connector and gently push the
module in until it is seated in the connector. There is sufficient
clearance for the add-in card front plate. The PCI Active
Analysis Probe/PCI add-in card combination can then be
installed in any slot of the PCI Local bus. For mechanical
stability the PCI Active Analysis Probe front plate should be
secured to the PCI target system chassis.

When removing the PCI add-in card from the card edge extender
connector grasp the PCI Active Analysis Probe with one hand
and the PCI add-in card with the other. Gently rock the PCI add­in card until it is free from the connector.

The nature of an extender card is that it extends the etch length
of the bus. Due to the sensitivity of most PCI designs, extending
the etch length can interfere with the PCI add-in card operation.
Operation of the PCI add-in card when installed in the card edge
extender connector is not guaranteed. Please check your
system design if you experience failures due to poor signal
fidelity.

The Extender Card Connector

The etch from the PCI local bus is routed directly from the PCI
local bus to the extender card connector. Although the etch is
connected to the input of the PCI Active Analysis Probe input
buffers, the extender card connector is NOT buffered from the
PCI local bus.

Please Note: If the Analysis Probe is plugged into the PCI
bus and the logic analyzer is not powered up, the input
buffers on the Analysis Probe will create a low impedance
path to ground thus inhibiting the PCI local bus and any
card in the extender card connector from working.

The PCI bus is extended up from the gold fingers to the input of
the IDT162260 buffers. From the buffer input the etch goes
directly to the extender card connector. The buffer input
provides a clamping diode. The etch is extended approximately
5 inches from the gold fingers and is on the inner most layer of
the board. There are no via’s on this inner layer in order to give
this etch a direct route.

One issue that has been encountered with using the extender
card connector is that the buffers need power in order to provide
a high impedance to the signal. This means that the logic
analyzer must be attached to the Analysis Probe and powered
up. The PCI Active Analysis Probe module itself is a universal
card. It can operate in either a 5V or 3V PCI system.

15

Setting up the Analyzer from the diskette

Logic Analyzer File

166x P32M_660 32 bit Multiplexed - Analysis Probe PODS 1-4

The logic analyzer can be configured for PCI analysis by loading
the PCI configuration file. Loading this file will load the PCI
Local bus inverse assembler and configure your logic analyzer.
To load the configuration and inverse assembler:

1. Install the PCI Active Analysis Probe software flexible
diskette in the disk drive of the logic analyzer.

2. Configure the menu to “Load” the analyzer with the
appropriate configuration file (see table below).

3. Execute the load operation to load the file into the logic
analyzer that the PCI Active Analysis Probe module is
connected to. DO NOT SELECT ALL OR SYSTEM.

Comment
nam
e for
State
Anal
ysis

connect to Logic Analyzer PODS 1-4

166x P32D_660 32 bit Demultiplexed - Analysis Probe PODS

1-6 connect to Logic Analyzer PODS 1-6

166x P64M_660 64-bit Multiplexed- Analysis Probe PODS 1-

4,7,8,11 to Logic Analyzer PODS 1-7

16550A P32M_550 32 bit Multiplexed- Analysis Probe PODS 1-4

connect to Logic Analyzer PODS 1-4

16550A P32D_550 32 bit Demultiplexed - Analysis Probe PODS

1-6 connect to Logic Analyzer PODS 1-6

16550A P64AD550 32 bit address Demultiplexed and 64 bit data

Analysis Probe PODS 1-6,7,8 and 11
connect to Logic Analyzer PODS 1-6 on
the Master card and 1-3 on the Slave card
respectively.

16550A P64M_550 64-bit Multiplexed - Analysis Probe PODS 1-

4,7,8,11 connect to LA PODS 1-6 on the
Master card and Pod 1 on the Slave card
respectively

16550A P64D_550 64 bit Demultiplexed- Analysis Probe PODS

1-11 connect to Logic Analyzer PODS 1-6
on the Master card and PODS 1-5 on the
Slave Card respectively

1655x,167x P32M_555 32 bit Multiplexed - Analysis Probe PODS 1-4

connect to Logic Analyzer PODS 1-4

16

1655x,1670/71 P32D_555 32 bit Demultiplexed - Analysis Probe PODS

1-6 connect to PODS 1-4 on the Master
card and 1-2 on the Slave card 1-2
respectively (PODS 1-6 on the 1670/71)

1655x,1670 P64M_555 64-bit Multiplexed - Analysis Probe PODS 1-

4,7,8,11 connect to Logic Analyzer PODS
1-4 on the Master card and PODS 1-3 on
the Slave Card respectively (PODS 1-7
on the \1670)

1655x P64D_555 64 bit Demultiplexed - Analysis Probe PODS

1-11 connect to Logic Analyzer PODS 1­4 on the Master card, 1-4 on the lower
slave card (positioned below the master
card in the mainframe) and PODS 1-3 on
the slave card positioned above the
master card in the mainframe respectively

1655x P64AD555 32 bit address Demultiplexed and 64 bit data

Analysis Probe PODS 1-6,7,8 and 11 to
Logic Analyzer PODS 1-4 on the Master
card, 1-4 on the lower slave card
(positioned below the master card in the
mainframe) and POD 1 on the slave card
positioned above the master card in the
mainframe respectively

The PCI Inverse Assembler

The Format Menu

The PCI Active Analysis Probe Inverse Assembler file IAP64E is
automatically loaded into the logic analyzer when the
configuration file is loaded. If the Inverse Assembler does not
appear on the state listing screen select the base of the label
DATA. From the menu that appears select INVASM. The
Inverse Assembler is only for use in state mode.

The PCI Active Analysis Probe diskette sets up the format menu
to include all of the signals that are presented to the logic
analyzer. This format is the same for both Timing and State
Analysis. the labels STAT, DATA , DATA_B, ADDR and
ADDR_B are required in order run the Inverse Assembler. They
should not be changed or deleted.

17

The STAT variable

The STAT variable is used by the PCI inverse assembler to
decode PCI bus transactions. It should not be changed or
deleted from the format menu. The signals that make up the
STAT variable are listed in the following table. The STAT
variable can be useful to set up SYMBOLS since it contains all of
the key PCI control and status signals.

STAT Variable PCI Bus Signal Name
Bit 29

Bit 28
Bit 27
Bit 26
Bit 25
Bit 24
Bit 23
Bit 22
Bit 21
Bit 20
Bit 19
Bit 18
Bit 17
Bit 16
Bit 15
Bit 14

C/BE7
C/BE6
C/BE5
C/BE4
REQ64#
AVALID_L
WNODEV_L
ACK64# (DATA64)
TABORT_L
DVALID_L
WTARGET_L
IWINITI_L
RETRY_L
SERR#
IDLE_L
PVALID_L

Bit 13
Bit 12
Bit 11
Bit 10
Bit 9
Bit 8
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0

MABORT_L
CPERR_L
STOP#
DEVSEL#
L_CM3
L_CM2
L_CM1
L_CM0
C/BE3
C/BE2
C/BE1
C/BE0
RESET#
PERR#

18

The ADDR, ADDR_B , ADDR_C, DATA_B and DATA variables

The ADDR, ADDR_B, ADDR_C, DATA_B and DATA variables
are defined in the format menu and used to pass the AD line
information to the Inverse Assembler during state analysis. They
are mapped as shown in the below table. These variables
should not be changed or deleted from the format Menu.

Mode ADDR ADDR_B ADDR_C DATA DATA_

B

The BUS_UT variable

32 BIT
MUX

32 BIT
DEMUX

64 BIT
MUX

64 BIT
DEMUX

LOWER
32 AD
LINES

LOWER
32 AD
LINES

- DATA
LOWER

32 AD
LINES

- DATA
LOWER

32 AD
LINES

- DATA

The Bus Utilization BUS_UT variable is made up of the following
cycle bits: WNODEV, ADVALID, TABORT, DVALID, WTARGET,
WINITI, RETRY, IDLE, MABORT. The list of symbols defined
for this variable are the signal names themselves. This is a
convenient grouping that helps make triggering and performance
analysis easier.

NOT
USED

LOWER 32
AD ­ADDRESS

NOT
USED

LOWER 32
AD ­ADDRESS

NOT USED LOWER

32 AD
LINES

NOT USED LOWER

32 AD
LINES ­DATA

NOT USED LOWER

32 AD
LINES ­DATA

UPPER 32
AD LINES ­ADDRESS

LOWER
32 AD
LINES ­DATA

NOT
USED

NOT
USED

UPPER
32 AD
LINES

UPPER
32 AD
LINES

The L_CMD variable

19

This variable is the C/BE[3:0] lines latched with the first rising
edge of the PCI clock with FRAME# asserted. These signals are
held until the end of the transaction. They indicated the
command that is being transmitted on the PCI Local bus. Below
is the encoding of these signals and the symbols defined for the
L_CMD variable. These encodings can also be found in the PCI
Specification.

Symbol L_CMD encoding

INTACK 0000
SPEC_CYC 0001
I/O_RD 0010
I/O_WR 0011

RESRVD 0100
RESRVD 0101
MEM_RD 0110
MEM_WR 0111
RESRVD 1000
RESRVD 1001
CON_RD 1010
CON_WR 1011
MEMRDM 1100
DAC_CY 1101
MEMRDL 1110
MEMWRI 1111
I/O_XACTIONS 001X
MEM_XACTIONS 011X

Theory of Operation

The Input Buffers

CONFIG_XACTIONS 101X

The PCI Active Analysis Probe is a universal PCI short card that
attaches to Agilent logic analyzers. The Analysis Probe has five
major parts:

1. The input buffers

2. The latching buffers

3. The interface to the logic analyzer

4. The clocking and cycle bit generation logic

5. The extender card connector

The input buffers present a single electrical load on the PCI bus
and are made up of IDT162260 tri-port buffers. The PCI clock is
buffered by a Motorola 807 high speed clock buffer.

When the Analysis Probe is in Timing mode output Port 2 of the
tri-port buffers goes directly to the logic analyzer input
terminators. When in State mode output Port 2 is tri-stated.
Output port 1 is always enabled and goes to the latching buffers.

20

The Latching Buffers

The latching buffers are used only for state mode. The entire
PCI bus (except the clock) is latched in these buffers on the
rising edge of the PCI clock. The input to the latching buffers is
output port 1 from the input buffers. The latching buffers are IDT
162511 latching buffers with party generation. These buffers are
tri-stated in timing mode. In state mode their outputs go directly
to the logic analyzer input terminators.

The User pin signals are not latched.

The interface to the Logic Analyzer

The Clocking and Cycle bit Generation Logic

The input to the logic analyzer consists of 3 parts.

1. The RC terminators (90 ohm/10pf)

2. The 40 pin headers

3. The 40 pin cables
The user is instructed to remove the probe tip assemblies from

the logic analyzer headers. The 40 pin logic analyzer headers
then go directly the 40 pin headers of the Analysis Probe
provided cables. Any unused cables can be removed from the
Analysis Probe.

The logic analyzer provides the power to the onboard logic. No
power is obtained from the target.

The master clock is controlled by the front panel switches and is
generated by the on-board CPLD devices. When the user has
loaded the DEMULTIPLEXED configuration file an additional
Slave clock is added. This Slave clock is the falling edge of the
Analysis Probe generated AVALID signal. This signal asserts
with the first assertion of FRAME# and the rising edge of the PCI
clock. All of the PCI cycle bits are generated based on the
latched version of the PCI control signals. Their meaning is
listed in the following table.

Cycle bit name Function

EOFT_L - End of Transaction True for one clock cycle and indicates

the last cycle of a transaction

CPERR_L - Calculated Parity
Error

MABORT_L - Master Abort True when a Master Abort condition has

21

True for one clock cycle and indicates
that the on board parity logic has
detected a parity that is different than
the parity transmitted on the bus.
Please note that the Parity Checking
switch must be in the ON position.

been detected. Five clock cycles on a
single data transfer with no DEVSEL
assertion and six clock cycles on a
multi-beat transfer with no DEVSEL
asserted. Remains true for one clock
cycle.

PVALID_L - Parity Valid True for the cycles in which parity is

being transmitted on the PCI bus.

IDLE_L - Idle cycle True when the bus is IDLE. False when

the bus is busy.

DVALID_L - Data Valid True when data is being transferred on

the PCI bus.

WINITI_L - Master Initiated
Wait State

WTARGET_L - Target
Initiated Wait State

RETRY_L - Retry True when a retry condition has been

TABORT_L - Target Abort True when a Target Abort condition has

WNODEV_L - Wait state
caused by no assertion of
DEVSEL#

GNT_L - The Grant signal for
that slot

L_CMD - The latched
command lines

True when a wait state is being initiated
by the master

True when a wait state is being initiated
by the target

detected on the PCI bus

been detected on the PCI bus. This
signal is true for one clock bit.

True when a wait state has been
caused by no assertion of DEVSEL#.

In State Mode this signal is latched and
held until end of transaction. Useful as
a store qualifier.

In timing mode the GNT# from the PCI
bus is passed through to the logic
analyzer.

The C/BE signals latched during the
command /address phase and held until
end of transaction.

The Data Parity Checking Logic

AVALID_L - Address Valid True on the first assertion of FRAME#

and the rising edge of the PCI clock.
True for one cycle except on Dual
Address cycles when it is true for two
cycles.

Parity checking is only available in STATE Mode and is
controlled by the PARITY ON switch on the front panel. The
parity generation is done by the IDT 162511 latching buffers.
Only data parity is generated and then checked against the data
parity that is transferred on the bus. If they are not the same
then the signal CPERR_L will be asserted on the cycle that the
parity is valid. This signal will remain valid for one clock tic.

22

State Analysis

This chapter explains how to configure the PCI Active Analysis
Probe to perform state analysis on the PCI Local Bus. The
configuration software on the flexible diskette sets up the format
specification menu of the logic analyzer for compatibility with the
PCI Local Bus. The next chapter explains how to configure the
PCI Active Analysis Probe to perform timing analysis.

Installation Quick Reference

Using the front panel switches in state mode

The following procedure describes the major steps required to
perform measurements with the PCI Active Analysis Probe
module.

1. After removing the probe tip assemblies, plug the logic
analyzer cables into the Analysis Probe cable headers.
See page 11 of this manual for details.

2. Set the STATE/TIMING switch to STATE. The State
LED will be lit.

3. Power off the target. Install the PCI Active Analysis
Probe module into a slot in the target PCI Local bus.
Then power on the target.

Load the logic analyzer configuration file by loading the
appropriate file from the Analysis Probe interface diskette. See
page 16 of this manual for details.

The front panel switches are only useful in STATE MODE. They
are clearly marked on the front panel.

• The Parity On switch controls parity checking. If the Parity
On LED is lit then parity checking will be done.

• The No Wait switch controls the acquisition of WAIT cycles.
If the No Wait LED is lit then no wait cycles will be acquired.

• The No Idle switch controls the acquisition of IDLE cycles. If
the No Idle LED is lit then NO IDLE cycles will be acquired.

• The TDO-TDI switch from the top connects TDO to TDI. If
the switch is to the rightmost position TDO is connected to
TDI.

• The State/Timing switch controls the on board latches.
When the State LED is lit then the PCI Active Analysis Probe
is in State mode.

Refer to page 10 for more details on the LEDs and switches.

23

Acquiring Data

The

State Display

Touch RUN and, as soon as there is activity on the bus, the logic
analyzer will begin to acquire data. The analyzer will continue to
acquire data and will display the data when the analyzer memory
is full, the trigger specification is TRUE or when you touch
STOP.

The logic analyzer will flash “Slow or Missing Clock” when the
data is not being transmitted across the bus.

Captured data is as shown in the following figure. The below
figure displays the state listing after disassembly. The inverse
assembler is constructed so the mnemonic output closely
resembles the actual commands, status conditions, messages
and phases specified in the PCI Local Bus specification.
Symbols have also been defined to help aid in analysis. The
non-disassembled state listing displays PCI bus mnemonics in
addition to data. All data is displayed in hex. One exception is
the decode of the address for a CONFIGURATION READ or a
CONFIGURATION WRITE transaction. The Function (FUNC=)
and Bus (BUS=) data is displayed in decimal.

24

Error Messages

INVASM OPTIONS

The following error messages are reported by the PCI
inverse assembler.

ERROR-NO DEVICE SELECTED

This error is displayed during a non special cycle data phase
when IRDY and TRDY are asserted and DEVSEL is not
asserted.

ERROR DEVSEL ASSERTED

This error is displayed during a special cycle data phase if
DEVSEL is asserted.

SYSTEM ERROR

This error is displayed anytime SERR# is asserted.

The INVASM OPTIONS feature is not included with the PCI
Active Analysis Probe software. The same or better capability
for post processing acquired data can be achieved using the
16505A Pattern Filters.

Setting up the
Analyzer to use the
PC Mapper Inverse
Assembler

Acquiring Data

After the configuration file is loaded the PCI PC Mapper software
can be loaded:

1. Install the PCI Analysis Probe software flexible diskette

in the disk drive of the logic analyzer.

2. Configure the menu to “Load” the analyzer that is

connected to the PCI Active Analysis Probe with the file
names IAP64EXM.

3. Execute the load operation to load the file into the logic

analyzer.

Data can be acquired by touching the RUN button. As soon as
there is activity on the bus, the logic analyzer will begin to
acquire data. The analyzer will continue to acquire data and will
display the data when the analyzer memory is full, the trigger
specification is TRUE or when you touch STOP.

The logic analyzer will flash “Slow or Missing Clock” if the PCI
Clock signal is not being detected by the logic analyzer. In this
case, check the logic analyzer to PCI Active Analysis Probe
connection (refer to your User’s Manual).

25

The State Display with the PCI PC Mapper

Captured data is as shown in the following figure. The first figure
displays the state listing after disassembly. The PCI PC Mapper
is constructed so the mnemonic output closely resembles the
actual commands, status conditions, messages and phases
specified in the PCI Local Bus specification. Symbols have also
been defined to help aid in analysis. The non-disassembled
state listing displays PCI bus mnemonics in addition to data. All
data is displayed in hex. One exception is the decode of the
address for a CONFIGURATION READ or a CONFIGURATION
WRITE transaction. The Function (FUNC=) and Bus (BUS=)
data is displayed in decimal.

The above display data using the PCI Inverse Assembly
software without the PCI PC Mapper functionality is shown as
follows.

26

Error Messages

PCI PC Mapping for memory transactions

The error messages reported by the PCI PC Mapper are the
same as those reported with the standard non mapper version of
the PCI Inverse Assembler.

This section lists the addresses, the commands and the
corresponding mapping done by the PCI PC Mapper software.
For information on the standard PCI configuration register
mapping please refer to the PCI Local Bus Specification Rev 2.0.

Address bits 23-0 PC Mapper output

greater than 0FFFFFH System Memory
0FFFFF-0E0000H System BIOS
0DFFFF-0C0000H ROM Scan
0BFFFF-0A0000H Video Memory
09FFFF-000400H System Memory
0003FF-000000H See Interrupt Vector Table

27

Interrupt Vector Table

Address bits
23-0

0003C4H INT #F1-FF USER PROGRAMS
000200H INT #80-F0 BASIC
0001E0H INT #78-7F USER PROGRAMS
0001DCH INT #77 IRQ15
0001D8H INT #76 IRQ14
0001D4H INT #75 IRQ13
0001D0H INT #74 IRQ12
0001CCH INT #73 IRQ11
0001C8H INT #72 IRQ10
0001C4H INT #71 IRQ9
0001C0H INT #70 IRQ8
0001A0H INT #68-6F RESERVED
00019CH INT #67 EXP MEM MANG
000180H INT #60-66 USER PROGRAMS
00012CH INT #4B-5F RESERVED
000128H INT #4A USER RTC ALARM
00011CH INT #47-49 RESERVED
000118H INT #46 HD DISK #1 PARAM
000110H INT #44-45 RESERVED
00010CH INT #43 VIDEO CHAR TABLE
000108H INT #42 EGA BIOS
000104H INT #41 HD DISK #0 PARAM
000100H INT #40 FLOPPY DISK ISR
000080H INT #20-3F RESERVED DOS
00007CH INT #1F VIDEO CHAR TABLE
000078H INT #1E FLOPPY PARAMS
000074H INT #1D AVAILABLE
000070H INT #1C AVAILABLE
00006CH INT #1B KEYBOARD BREAK
000068H INT #1A RTC ISR
000064H INT #19 BOOSTRAP LOADER
000060H INT #18 ROM BASIC
00005CH INT #17 LPT PRINTER BIOS
000058H INT #16 KEYBOARD BIOS
000054H INT #15 SYS SERVICE BIOS
000050H INT #14 SERIAL PORT BIOS
00004CH INT #13 FLOPPY DISK BIOS
000048H INT #12 MEM SIZE INT
000044H INT #11 EQUIP LIST
000040H INT #10 VIDEO BIOS
00003CH INT #0F IRQ7 LPT1
000038H INT #0E IRQ6 FLOPPY DISK
000034H INT #0D IRQ5 LPT2
000030H INT #0C IRQ4 SERIAL #1
00002CH INT #0B IRQ3 SERIAL #2
000028H INT #0A IRQ2 SLAVE INT
000024H INT #09 KEYBOARD
000020H INT #08 IRQ0 SYS TIMER
00001CH INT #07 NUM COPROCESSOR
000018H INT #06 INVALID OPCODE
000014H INT #05 PRINT SCREEN
000010H INT #04 OVERFLOW DETECT
00000CH INT #03 BREAKPOINT TRACE

PC Mapper output

28

000008H INT #02 NMI
000004H INT #01 SINGLE STEP
000000H INT #00 DIVIDE BY ZERO

29

PCI PC Mapping - I/O Transactions

Address bits
23-0

0000H MSTR DMA CH 0
0001H MSTR DMA CH 0
0002H MSTR DMA CH 1
0003H MSTR DMA CH 1
0004H MSTR DMA CH 2
0005H MSTR DMA CH 2
0006H MSTR DMA CH 3
0007H MSTR DMA CH 3
0008H MSTR DMA STAT REG
0009H UNKNOWN IO DEVICE
000AH MSTR DMA MASK REG
000BH MSTR DMA MODE REG
000CH MSTR DMA CLR BYTE PTR
000DH MSTR DMA MSTR CLEAR
000EH MSTR DMA CLEAR MASK
000FH MSTR DMA WRT MASK
0018H MSTR DMA CH EXT FUNCT REG
001AH MSTR DMA EXT FUNCT
0020H MSTR INT REQ REG
0021H MSTR INT REQ REG2
0040H INTERVAL TIMER TIMER 0
0042H INTERVAL TIMER SPKR TIMER
0043H INTRVAL TIMER #1 CNTRL
0044H INTERVL TIMER #2 WATCHDOG
0047H INTERVAL TIMER #2 CNTRL
0060H KEYBOARD/MOUSE DATA PORT
0061H SYSTEM CONTOL PORT B
0064H KEYBOARD/MOUSE CMD PORT
0070H RTC/CMOS RAM ADDR PORT
0071H RTC/CMOS RAM DATA PORT
0074H EXT CMOS RAM ADDR PORT
0075H EXT CMOS RAM ADDR PORT
0076H EXT CMOS RAM DATA PORT
0081H CH 2 DMA PAGE REGISTER
0082H CH 3 DMA PAGE REGISTER
0083H CH 1 DMA PAGE REGISTER
0087H CH 0 DMA PAGE REGISTER
0089H CH 6 DMA PAGE REGISTER
008AH CH 7 DMA PAGE REGISTER
008BH CH 5 DMA PAGE REGISTER
008FH CH 4 DMA PAGE REGISTER
0090H ARB CNTRL POINT REG
0091H FEEDBACK REG
0092H SYSTEM CONTROL PORT A
0094H SYS SETUP/CARD ENABLE REG
0096H ADAPTOR SETUP/ENABLE REG
00A0H SLAVE INTERRUPT CNTRLR
00A1H SLAVE INTERRUPT CNTRLR
00C0H SLAVE DMA CH4 MEM ADDR
00C2H SLAVE DMA CH4 TRANS COUNT
00C4H SLAVE DMA CH5 MEM ADDR
00C6H SLAVE DMA CH5 TRANS COUNT
00C8H SLAVE DMA CH6 MEM ADDR

PC Mapper output

30

00CAH SLV DMA CH6 TRANS COUNT
00CCH SLAVE DMA CH7 MEM ADDR
00CEH SLAVE DMA CH7 TRANS COUNT
00D0H SLV DMA STATUS REG CH 4-7
00D4H SLV DMA MASK REG CH 4-7
00D6H SLAVE DMA MODE REG CH 4-7
00D8H SLAVE DMA CLEAR BYTE PNTR
00DAH SLAVE DMA MASTER CLEAR
00DCH SLV DMA CLR MASK CH 4-7
00DEH SLAVE DMA WRITE MASK REG
00E0H IBM MODELS - ENCODE REG
00E1H IBM MODELS - ENCODE REG
00F1H NUMERIC COPROCESSOR RESET
00F8H NUMERIC COPROCESSOR PORT
00F9H NUMERIC COPROCESSOR PORT
00FAH NUMERIC COPROCESSOR PORT
00FBH NUMERIC COPROCESSOR PORT
00FCH NUMERIC COPROCESSOR PORT
0100H ADAPTER CARD POS REG 0
0101H ADAPTER CARD POS REG 1
0102H SYS BD/ADP CD POS REG 2
0103H SYS BD/ADP CD POS REG 3
0104H ADAPTER CARD POS REG 4
0105H ADAPTER CARD POS REG 5
0106H ADAPTER CARD POS REG 6
0107H ADAPTER CARD POS REG 6
0278H PARALLEL PORT 3 DATA PORT
0279H PARALLEL PORT 3 STAT PORT
027AH PARALLEL PORT 3 CMD PORT
02F8H SERIAL PORT 2 XMIT/REC
02F9H SER PORT 2 DIV LATCH/INT
02FAH SERIAL PORT 2 INT ID REG
02FBH SERIAL PORT 2 CNTRL REG
02FDH SERIAL PORT 2 MODEM CNTRL
02FEH SERIAL PORT 2 MODEM STAT
02FFH SERIAL PORT 2 SCRTCH REG
0378H PARALLEL PORT 2 DATA PORT
0379H PARALLEL PORT 2 STAT PORT
037AH PARALLEL PORT 2 CMD PORT
03B4H VGA CRT CNTRLR ADDR REG
03B5H VGA CRT CNTRLR DATA REG
03BAH VGA STAT 1/FEATURE CNTRL
03BCH PARALLEL PORT 1 DATA PORT
03BDH PARALLEL PORT 1 STAT PORT
03BEH PARALLEL PORT 1 CMD PORT
03C0H VGA ATTRIBUTE CNTRLR ADDR
03C1H VGA ATTRIBUTE CNTRLR DATA
03C2H VGA OUTPUT/STAT REG
03C3H VGA VIDEO SUBSYSTM ENABLE
03C4H VGA SEQUENCER ADDR REG
03C5H VGA SEQUENCER DATA REG
03C6H VIDEO DAC PEL MASK
03C7H VIDEO DAC PAL ADDR/STAT
03C8H VIDEO DAC PAL ADDR/WRITE
03C9H VIDEO DAC PALETTE DATA

31

03CAH VGA FEATURE CONTOL REG
03CCH VGA MISC OUTPUT REG
03CEH VGA GRAPHICS CNTRLR ADDR
03CFH VGA GRAPHICS CNTRLR ADDR
03D4H VGA CRT CNTRLR ADDR REG
03D5H VGA GRAPHICS CNTRLR DATA
03DAH VGA COLOR STAT 1/FEATURE
03F0H FLOPPY STATUS REG A
03F1H FLOPPY STATUS REG B
03F2H FLOPPY DIGITAL OUTPUT REG
03F4H FLOPPY DISK CNTRLR STAT
03F5H FLOPPY DISK CNTRLR DATA
03F7H FLOPPY CONFIG CONTROL REG
03F8H SERIAL PORT 1 XMIT/RCV BUF
03F9H SER PORT 1 DIV LATCH/INT
03FAH SERIAL PORT 1 INT ID/FIFO
03FBH SERIAL PORT 1 LINE CNTRL
03FCH SERIAL PORT 1 MODEM CNTRL
03FDH SERIAL PORT 1 STAT REG
03FEH SERIAL PORT 1 MODEM STAT
03FFH SERIAL PORT 1 SCRATCH REG
0680H MANUFCTURNG CHCKPNT PORT

32

Timing Analysis

Installation Quick Reference

Timing Mode Skew

The following procedure describes the major steps required to
perform timing analysis measurements with the PCI Active
Analysis Probe module.

1. Set the State/Timing switch to TIMING. The State LED

will be doused. See page 10 of this manual for details
on the front panel switches.

2. After removing the probe tip assemblies, plug the logic

analyzer cables into the Analysis Probe cable headers.
See pages 12 and 13 of this manual for details.

3. Power down the PCI target. Install the PCI Active

Analysis Probe module into a slot in the non-powered
target PCI Local bus. Then power up the target.

4. Load the logic analyzer configuration file by loading the

appropriate file from the Analysis Probe interface
diskette. See pages 16 and 17 of this manual for
details.

Since the PCI Active Analysis Probe contains active input
buffers it introduces skew to the PCI Local Bus signals. The
skew is as follows:

• Any PCI bus signal to the PCI clock -1.0 to +2.3ns
maximum

• Any PCI bus signal to any other PCI bus signal 2.1ns
maximum

33

Using the Cycle bits and L_CMD lines

Demultiplexed versus Multiplexed

Acquiring Data

Although the Cycle bit and the L_CMD lines were designed for
state analysis they can prove to be very useful in Timing
analysis. These bits can be effectively used to trigger the timing
analyzer. Note that the cycle bits and L_CMD lines pass through
more active logic than the PCI signals directly from the bus. For
this reason they may not line up exactly with the ADDR lines and
should not be used for precise timing measurements.

The demultiplexed feature of the PCI Active Analysis Probe is
not applicable to timing mode. Therefore for 32 bit timing mode
analysis does not require PODS 5 and 6 and 64 bit timing mode
analysis does not require PODS 9 and 10.

If switching between demultiplexed state and timing mode those
PODS can be ignored when in timing mode. If doing only timing
mode the multiplexed files should be used.

Touch RUN and the logic analyzer will begin to acquire data.
The analyzer will continue to acquire data and will display the
data when the analyzer memory is full, the trigger specification is
TRUE or when you touch STOP.

The logic analyzer will flash “Waiting for Trigger” while the trigger
specification is NOT TRUE.

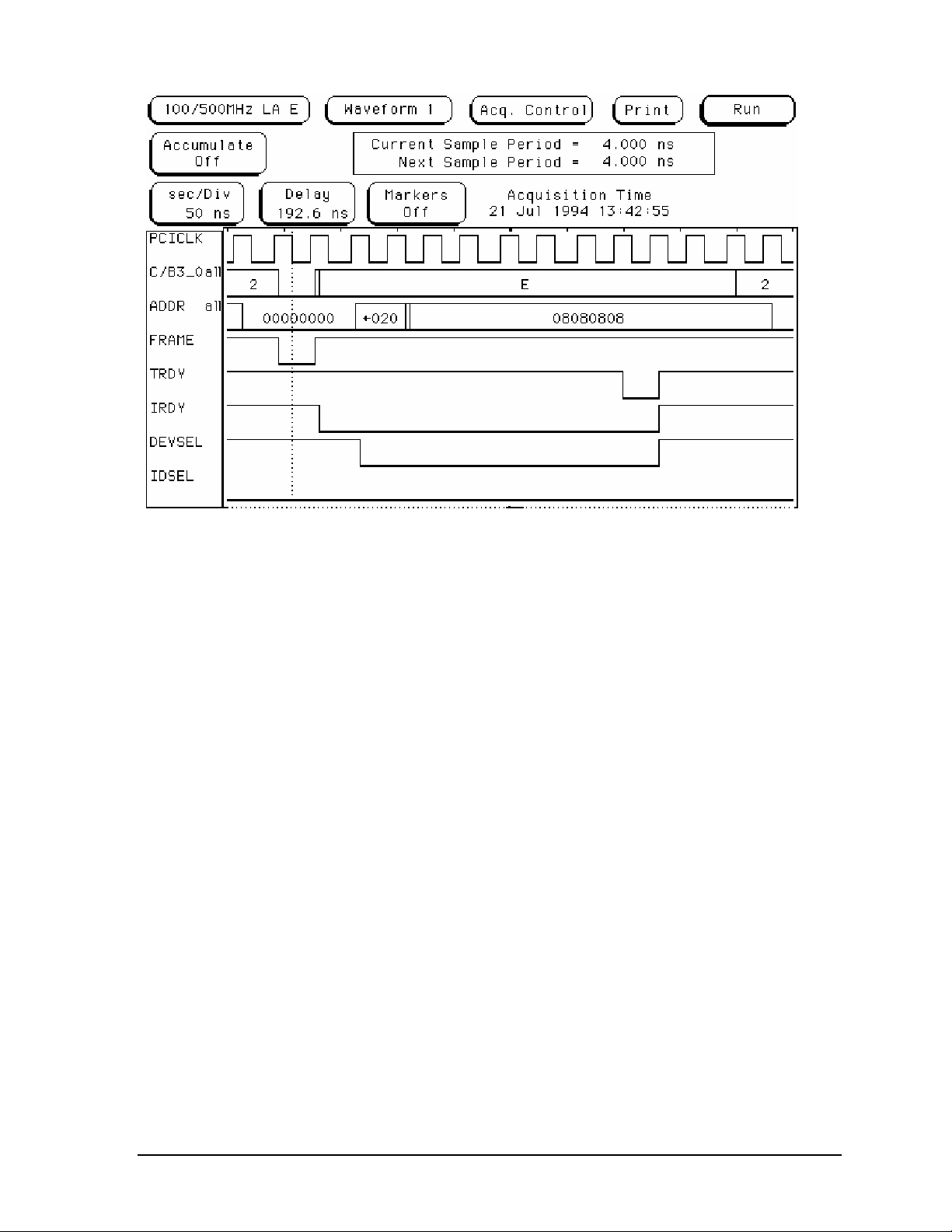

The Waveform Display

Captured data is displayed as shown in the following figure.

34

35

General Information

This chapter provides additional reference information including
the characteristics and signal connections for the PCI Active
Analysis Probe module.

Characteristics

Analysis Probe Interface Compatibility

JTAG Boundary Scan

The PCI Present Pins

Standards Supported
Power Requirements

Logic Analyzer Required

Number of Probes Used

The following operating characteristics are not specifications, but
are typical operating characteristics for the PCI Active Analysis
Probe module.

32/64 bit PCI Local bus accepting the short card length and
universal connector pinout. All PCI local bus ground pins of the
universal board pinout are connected to the ground plane of the
PCI Active Analysis Probe module.

The PCI Active Analysis Probe does not implement JTAG
Boundary SCAN. Pins TDI and TBO (pins 4a and 4b) are
connected together so the scan chain is not broken.

The PCI signals PRSNT1# and PRSNT2# are routed to the PCI
Active Analysis Probe extender card connector.

The PCI Local Bus Specification Revision 2.1.
The PCI Active Analysis Probe contains several active

components that buffer the PCI signals before they are acquired
by the logic analyzer. The Analysis Probe takes no power from
the PCI bus but is powered by the logic analyzer.

1660A/C, 1661A/C, 1662A/C, 16550A, 16554A, 16555A,
16556A, 1670A, 1671A, 1672A

32 bit PCI multiplexed - 4 cable headers
32 bit PCI demultiplexed - 6 cable headers
32 bit address demultiplexed, 64 bit data - 9 headers
64 bit PCI multiplexed - 7 cable headers

64 bit PCI demultiplexed - 11 cable headers

36

Minimum Clock Period (State)

Signal loading

Operations
Environmental

Temperature
Altitude

Humidity

Testing and Troubleshooting

0 to 33Mhz PCI clock for State mode and 0-100Mhz for Timing
Mode.

The PCI Active Analysis Probe logic analyzer interface presents
only one electrical load on each PCI bus signal. However, the
extender card connector is an additional 4 inches beyond the
maximum allowed stub length.

All PCI Local Bus operations supported.
Operating:0 to 55 degrees C (+32 to +131 degrees F)
Non operating:-40 to +75 degrees C (-40 to +167 degrees F)

Operating: 4,6000m (15,000 ft)
Non operating: 15,3000m (50,000 ft)

Up to 90% non condensing. Avoid sudden, extreme temperature
changes which would cause condensation on the Analysis Probe
module.

There are no automatic performance tests or adjustments for the
PCI Active Analysis Probe module. If a failure is suspected in
the PCI Active Analysis Probe module contact the factory or your
FuturePlus Systems authorized distributor.

Servicing

The repair strategy for the PCI Active Analysis Probe is module
replacement. However, if parts of the PCI Active Analysis Probe
module are damaged or lost contact the factory for a list of
replacement parts.

37

Signal Connections

The PCI Active Analysis Probe module monitors signals for both
state and timing analysis. The below figure displays how the
cable headers are numbered.

39 37 35 33 31 29 27 25 23 21 19 17 15 13 11 9 7 5 3 1
40 38 36 34 32 30 28 26 24 22 20 18 16 14 12 10 8 6 4 2

The following tables list the PCI Active Analysis Probe cable
headers and the corresponding PCI Local Bus signals after
these signals have been terminated by the 90K ohm/10pf
terminators.

Analysis Probe
Cable Header and
Pin number

Header 1 pin 3 CLK/16 PCI Clock
5 no connect
7 15 FRAME#

Logic Analyzer
channel number

PCI Signal name

9 14 IRDY#
11 13 TRDY#
13 12 STOP#
15 11 DEVSEL#
17 10 L_CMD3
19 9 L_CMD2
21 8 L_CMD1
23 7 L_CMD0
25 6 C/BE3#
27 5 C/BE2#
29 4 C/BE1#
31 3 C/BE0#
33 2 RST#
35 1 PERR#
37 0 INTx#

38

Analysis Probe
Cable Header and

Logic Analyzer
channel number

Signal name

Pin number

Header 2 pin 3 CLK/16 GNT_L
5 no connect
7 15 REQ#
9 14 IDSEL#
11 13 WNODEV_L
13 12 ACK64# (DATA64)
15 11 TABORT_L
17 10 RETRY_L
19 9 WTARGET_L
21 8 WINITI_L
23 7 DVALID_L
25 6 SERR#
27 5 IDLE_L
29 4 PVALID_L
31 3 MABORT_L
33 2 CPERR_L
35 1 EOFT_L
37 0 PAR

39

Analysis Probe
Cable Header and

Logic Analyzer
channel number

PCI Signal name

Pin number

Header 3 pin 3 CLK/16 M_CLK_H
5 no connect
7 15 AD15
9 14 AD14
11 13 AD13
13 12 AD12
15 11 AD11
17 10 AD10
19 9 AD09
21 8 AD08
23 7 AD07
25 6 AD06
27 5 AD05
29 4 AD04
31 3 AD03
33 2 AD02
35 1 AD01
37 0 AD00

40

Analysis Probe
Cable Header and

Logic Analyzer
channel number

PCI Signal name

Pin number

Header 4 pin 3 CLK/16 AVALID_L
5 no connect
7 15 AD31
9 14 AD30
11 13 AD29
13 12 AD28
15 11 AD27
17 10 AD26
19 9 AD25
21 8 AD24
23 7 AD23
25 6 AD22
27 5 AD21
29 4 AD20
31 3 AD19
33 2 AD18
35 1 AD17
37 0 AD16

41

Analysis Probe
Cable Header and

Logic Analyzer
channel number

PCI Signal name

Pin number

Header 5 pin 3 CLK/16
5 no connect
7 15 AD15
9 14 AD14
11 13 AD13
13 12 AD12
15 11 AD11
17 10 AD10
19 9 AD09
21 8 AD08
23 7 AD07
25 6 AD06
27 5 AD05
29 4 AD04
31 3 AD03
33 2 AD02
35 1 AD01
37 0 AD00

42

Analysis Probe
Cable Header and

Logic Analyzer
channel number

PCI Signal name

Pin number

Header 6 pin 3 CLK/16
5 no connect
7 15 AD31
9 14 AD30
11 13 AD29
13 12 AD28
15 11 AD27
17 10 AD26
19 9 AD25
21 8 AD24
23 7 AD23
25 6 AD22
27 5 AD21
29 4 AD20
31 3 AD19
33 2 AD18
35 1 AD17
37 0 AD16

43

Analysis Probe
Cable Header and

Logic Analyzer
channel number

PCI Signal name

Pin number

Header 7 pin 3 CLK/16 REQ64#
5 no connect
7 15 AD47
9 14 AD46
11 13 AD45
13 12 AD44
15 11 AD43
17 10 AD42
19 9 AD41
21 8 AD40
23 7 AD39
25 6 AD38
27 5 AD37
29 4 AD36
31 3 AD35
33 2 AD34
35 1 AD33
37 0 AD32

44

Analysis Probe
Cable Header and

Logic Analyzer
channel number

PCI Signal name

Pin number

Header 8 pin 3 CLK/16
5 no connect
7 15 AD63
9 14 AD62
11 13 AD61
13 12 AD60
15 11 AD59
17 10 AD58
19 9 AD57
21 8 AD56
23 7 AD55
25 6 AD54
27 5 AD53
29 4 AD52
31 3 AD51
33 2 AD50
35 1 AD49
37 0 AD48

45

Analysis Probe
Cable Header and

Logic Analyzer
channel number

PCI Signal name

Pin number

Header 9 pin 3 CLK/16
5 no connect
7 15 AD47
9 14 AD46
11 13 AD45
13 12 AD44
15 11 AD43
17 10 AD42
19 9 AD41
21 8 AD40
23 7 AD39
25 6 AD38
27 5 AD37
29 4 AD36
31 3 AD35
33 2 AD34
35 1 AD33
37 0 AD32

46

Analysis Probe
Cable Header and

Logic Analyzer
channel number

PCI Signal name

Pin number

Header 10 pin 3 CLK/16
5 no connect
7 15 AD63
9 14 AD62
11 13 AD61
13 12 AD60
15 11 AD59
17 10 AD58
19 9 AD57
21 8 AD56
23 7 AD55
25 6 AD54
27 5 AD53
29 4 AD52
31 3 AD51
33 2 AD50
35 1 AD49
37 0 AD48

47

Analysis Probe
Cable Header and

Logic Analyzer
channel number

Signal name

Pin number

Header 11 pin 3 CLK/16
5 no connect
7 15 USER PIN 8
9 14 USER PIN 7
11 13 USER PIN 6
13 12 USER PIN 5
15 11 USER PIN 4
17 10 USER PIN 3
19 9 USER PIN 2
21 8 USER PIN 1
23 7 LOCK#
25 6 PAR64
27 5 SONE
29 4 SBO
31 3 CBE7
33 2 CBE6
35 1 CBE5
37 0 CBE4

48
