ZyXEL MAX208M User Manual

Page 1
Appendix DIP Addresses and Subnetting
The following table is a summary for subnet planning on a network with a 16-bit network number.
Table 72 16-bit Network Number Subnet Planning
NO. #BORROWED$ HOST BITS
1 255.255.128.0 (/17) 2 32766
2 255.255.192.0 (/18) 4 16382
3 255.255.224.0 (/19) 8 8190
4 255.255.240.0 (/20) 16 4094
5 255.255.248.0 (/21) 32 2046
6 255.255.252.0 (/22) 64 1022
7 255.255.254.0 (/23) 128 510
8 255.255.255.0 (/24) 256 254
9 255.255.255.128 (/25) 512 126
10 255.255.255.192 (/26) 1024 62
11 255.255.255.224 (/27) 2048 30
12 255.255.255.240 (/28) 4096 14
13 255.255.255.248 (/29) 8192 6
14 255.255.255.252 (/30) 16384 2
15 255.255.255.254 (/31) 32768 1
SUBNET MASK NO. SUBNETS
NO. HOSTS PER SUBNET
Configuring IP Addresses
Where you obtain your network number depends on your particular situation. If the ISP or your network administrator assigns you a block of registered IP addresses, follow their instructions in selecting the IP addresses and the subnet mask.
If the ISP did not explicitly give you an IP network number, then most likely you have a single user account and the ISP will assign you a dynamic IP address when the connection is established. If this is the case, it is recommended that you select a network number from 192.168.0.0 to 192.168.255.0. The Internet Assigned Number Authority (IANA) reserved this block of addresses specifically for private use; please do not use any other number unless you are told otherwise. You must also enable Network Address Translation (NAT) on the WiMAX Device.
Once you have decided on the network number, pick an IP address for your WiMAX Device that is easy to remember (for instance, 192.168.1.1) but make sure that no other device on your network is using that IP address.
The subnet mask specifies the network number portion of an IP address. Your WiMAX Device will compute the subnet mask automatically based on the IP
MAX208M User s Guide
201
Page 2
Appendix DIP Addresses and Subnetting
address that you entered. You don't need to change the subnet mask computed by the WiMAX Device unless you are instructed to do otherwise.
Private IP Addresses
Every machine on the Internet must have a unique address. If your networks are isolated from the Internet (running only between two branch offices, for example) you can assign any IP addresses to the hosts without problems. However, the Internet Assigned Numbers Authority (IANA) has reserved the following three blocks of IP addresses specifically for private networks:
! 10.0.0.0 * 10.255.255.255
! 172.16.0.0 * 172.31.255.255
! 192.168.0.0 * 192.168.255.255
You can obtain your IP address from the IANA, from an ISP, or it can be assigned from a private network. If you belong to a small organization and your Internet access is through an ISP, the ISP can provide you with the Internet addresses for your local networks. On the other hand, if you are part of a much larger organization, you should consult your network administrator for the appropriate IP addresses.
Regardless of your particular situation, do not create an arbitrary IP address; always follow the guidelines above. For more information on address assignment, please refer to RFC 1597, Address Allocation for Private Internets and RFC 1466, Guidelines for Management of IP Address Space.
IP Address Conflicts
Each device on a network must have a unique IP address. Devices with duplicate IP addresses on the same network will not be able to access the Internet or other resources. The devices may also be unreachable through the network.
Conflicting Computer IP Addresses Example
More than one device can not use the same IP address. In the following example computer A has a static (or fixed) IP address that is the same as the IP address that a DHCP server assigns to computer B which is a DHCP client. Neither can access the Internet. This problem can be solved by assigning a different static IP
202
MAX208M User s Guide
Page 3
address to computer A or setting computer A to obtain an IP address automatically.
Figure 122 Conflicting Computer IP Addresses Example
Conflicting Router IP Addresses Example
Since a router connects different networks, it must have interfaces using different network numbers. For example, if a router is set between a LAN and the Internet (WAN), the router s LAN and WAN addresses must be on different subnets. In the following example, the LAN and WAN are on the same subnet. The LAN computers cannot access the Internet because the router cannot route between networks.
Appendix DIP Addresses and Subnetting
Figure 123 Conflicting Computer IP Addresses Example
Conflicting Computer and Router IP Addresses Example
More than one device can not use the same IP address. In the following example, the computer and the router s LAN port both use 192.168.1.1 as the IP address.
MAX208M User s Guide
203
Page 4
Appendix DIP Addresses and Subnetting
The computer cannot access the Internet. This problem can be solved by assigning a different IP address to the computer or the router s LAN port.
Figure 124 Conflicting Computer and Router IP Addresses Example
204
MAX208M User s Guide
Page 5
APPENDIX E
Importing Certificates
This appendix shows you how to import public key certificates into your web browser.
Public key certificates are used by web browsers to ensure that a secure web site is legitimate. When a certificate authority such as VeriSign, Comodo, or Network Solutions, to name a few, receives a certificate request from a website operator, they confirm that the web domain and contact information in the request match those on public record with a domain name registrar. If they match, then the certificate is issued to the website operator, who then places it on the site to be issued to all visiting web browsers to let them know that the site is legitimate.
Many ZyXEL products, such as the NSA-2401, issue their own public key certificates. These can be used by web browsers on a LAN or WAN to verify that they are in fact connecting to the legitimate device and not one masquerading as it. However, because the certificates were not issued by one of the several organizations officially recognized by the most common web browsers, you will need to import the ZyXEL-created certificate into your web browser and flag that certificate as a trusted authority.
Note: You can see if you are browsing on a secure website if the URL in your web
browser s address bar begins with https:// or there is a sealed padlock icon () somewhere in the main browser window (not all browsers show the padlock in the same location.)
In this appendix, you can import a public key certificate for:
! Internet Explorer on page 206
! Firefox on page 216
! Opera on page 222
! Konqueror on page 230
MAX208M User s Guide
205
Page 6
Appendix EImporting Certificates
Internet Explorer
The following example uses Microsoft Internet Explorer 7 on Windows XP Professional; however, they can also apply to Internet Explorer on Windows Vista.
1 If your device s web configurator is set to use SSL certification, then the first time
you browse to it you are presented with a certification error.
Figure 125 Internet Explorer 7: Certification Error
2 Click Continue to this website (not recommended).
Figure 126 Internet Explorer 7: Certification Error
206
MAX208M User s Guide
Page 7
Appendix EImporting Certificates
3 In the Address Bar, click Certificate Error > View certificates.
Figure 127 Internet Explorer 7: Certificate Error
4 In the Certificate dialog box, click Install Certificate.
Figure 128 Internet Explorer 7: Certificate
MAX208M User s Guide
207
Page 8
Appendix EImporting Certificates
5 In the Certificate Import Wizard, click Next.
Figure 129 Internet Explorer 7: Certificate Import Wizard
6 If you want Internet Explorer to Automatically select certificate store based
on the type of certificate, click Next again and then go to step 9.
Figure 130 Internet Explorer 7: Certificate Import Wizard
208
MAX208M User s Guide
Page 9
Appendix EImporting Certificates
7 Otherwise, select Place all certificates in the following store and then click
Browse.
Figure 131 Internet Explorer 7: Certificate Import Wizard
8 In the Select Certificate Store dialog box, choose a location in which to save the
certificate and then click OK.
Figure 132 Internet Explorer 7: Select Certificate Store
MAX208M User s Guide
209
Page 10
Appendix EImporting Certificates
9 In the Completing the Certificate Import Wizard screen, click Finish.
Figure 133 Internet Explorer 7: Certificate Import Wizard
10 If you are presented with another Security Warning, click Yes.
Figure 134 Internet Explorer 7: Security Warning
210
MAX208M User s Guide
Page 11
Appendix EImporting Certificates
11 Finally, click OK when presented with the successful certificate installation
message.
Figure 135 Internet Explorer 7: Certificate Import Wizard
12 The next time you start Internet Explorer and go to a ZyXEL web configurator
page, a sealed padlock icon appears in the address bar. Click it to view the page s Website Identification information.
Figure 136 Internet Explorer 7: Website Identification
MAX208M User s Guide
211
Page 12
Appendix EImporting Certificates
Installing a Stand-Alone Certificate File in Internet Explorer
Rather than browsing to a ZyXEL web configurator and installing a public key certificate when prompted, you can install a stand-alone certificate file if one has been issued to you.
1 Double-click the public key certificate file.
Figure 137 Internet Explorer 7: Public Key Certificate File
2 In the security warning dialog box, click Open.
Figure 138 Internet Explorer 7: Open File - Security Warning
212
3 Refer to steps 4-12 in the Internet Explorer procedure beginning on page206 to
complete the installation process.
MAX208M User s Guide
Page 13
Removing a Certificate in Internet Explorer
This section shows you how to remove a public key certificate in Internet Explorer
7.
1 Open Internet Explorer and click TOOLS > Internet Options.
Figure 139 Internet Explorer 7: Tools Menu
Appendix EImporting Certificates
2 In the Internet Options dialog box, click Content > Certificates.
Figure 140 Internet Explorer 7: Internet Options
MAX208M User s Guide
213
Page 14
Appendix EImporting Certificates
3 In the Certificates dialog box, click the Trusted Root Certificates Authorities
tab, select the certificate that you want to delete, and then click Remove.
Figure 141 Internet Explorer 7: Certificates
4 In the Certificates confirmation, click Yes.
Figure 142 Internet Explorer 7: Certificates
5 In the Root Certificate Store dialog box, click Yes.
Figure 143 Internet Explorer 7: Root Certificate Store
214
MAX208M User s Guide
Page 15
Appendix EImporting Certificates
6 The next time you go to the web site that issued the public key certificate you just
removed, a certification error appears.
MAX208M User s Guide
215
Page 16
Appendix EImporting Certificates
Firefox
The following example uses Mozilla Firefox 2 on Windows XP Professional; however, the screens can also apply to Firefox 2 on all platforms.
1 If your device s web configurator is set to use SSL certification, then the first time
you browse to it you are presented with a certification error.
2 Select Accept this certificate permanently and click OK.
Figure 144 Firefox 2: Website Certified by an Unknown Authority
216
MAX208M User s Guide
Page 17
Appendix EImporting Certificates
3 The certificate is stored and you can now connect securely to the web configurator.
A sealed padlock appears in the address bar, which you can click to open the Page Info > Security window to view the web page s security information.
Figure 145 Firefox 2: Page Info
MAX208M User s Guide
217
Page 18
Appendix EImporting Certificates
Installing a Stand-Alone Certificate File in Firefox
Rather than browsing to a ZyXEL web configurator and installing a public key certificate when prompted, you can install a stand-alone certificate file if one has been issued to you.
1 Open Firefox and click TOOLS > Options.
Figure 146 Firefox 2: Tools Menu
2 In the Options dialog box, click ADVANCED > Encryption > View Certificates.
Figure 147 Firefox 2: Options
218
MAX208M User s Guide
Page 19
Appendix EImporting Certificates
3 In the Certificate Manager dialog box, click Web Sites > Import.
Figure 148 Firefox 2: Certificate Manager
4 Use the Select File dialog box to locate the certificate and then click Open.
Figure 149 Firefox 2: Select File
5 The next time you visit the web site, click the padlock in the address bar to open
the Page Info > Security window to see the web page s security information.
MAX208M User s Guide
219
Page 20
Appendix EImporting Certificates
Removing a Certificate in Firefox
This section shows you how to remove a public key certificate in Firefox 2.
1 Open Firefox and click TOOLS > Options.
Figure 150 Firefox 2: Tools Menu
2 In the Options dialog box, click ADVANCED > Encryption > View Certificates.
Figure 151 Firefox 2: Options
220
MAX208M User s Guide
Page 21
Appendix EImporting Certificates
3 In the Certificate Manager dialog box, select the Web Sites tab, select the
certificate that you want to remove, and then click Delete.
Figure 152 Firefox 2: Certificate Manager
4 In the Delete Web Site Certificates dialog box, click OK.
Figure 153 Firefox 2: Delete Web Site Certificates
5 The next time you go to the web site that issued the public key certificate you just
removed, a certification error appears.
MAX208M User s Guide
221
Page 22
Appendix EImporting Certificates
Opera
The following example uses Opera 9 on Windows XP Professional; however, the screens can apply to Opera 9 on all platforms.
1 If your device s web configurator is set to use SSL certification, then the first time
you browse to it you are presented with a certification error.
2 Click Install to accept the certificate.
Figure 154 Opera 9: Certificate signer not found
222
MAX208M User s Guide
Page 23
Appendix EImporting Certificates
3 The next time you visit the web site, click the padlock in the address bar to open
the Security information window to view the web page s security details.
Figure 155 Opera 9: Security information
MAX208M User s Guide
223
Page 24
Appendix EImporting Certificates
Installing a Stand-Alone Certificate File in Opera
Rather than browsing to a ZyXEL web configurator and installing a public key certificate when prompted, you can install a stand-alone certificate file if one has been issued to you.
1 Open Opera and click TOOLS > Preferences.
Figure 156 Opera 9: Tools Menu
224
MAX208M User s Guide
Page 25
Appendix EImporting Certificates
2 In Preferences, click ADVANCED > Security > Manage certificates.
Figure 157 Opera 9: Preferences
MAX208M User s Guide
225
Page 26
Appendix EImporting Certificates
3 In the Certificates Manager, click Authorities > Import.
Figure 158 Opera 9: Certificate manager
4 Use the Import certificate dialog box to locate the certificate and then click
Open.
Figure 159 Opera 9: Import certificate
226
MAX208M User s Guide
Page 27
Appendix EImporting Certificates
5 In the Install authority certificate dialog box, click Install.
Figure 160 Opera 9: Install authority certificate
6 Next, click OK.
Figure 161 Opera 9: Install authority certificate
7 The next time you visit the web site, click the padlock in the address bar to open
the Security information window to view the web page s security details.
MAX208M User s Guide
227
Page 28
Appendix EImporting Certificates
Removing a Certificate in Opera
This section shows you how to remove a public key certificate in Opera 9.
1 Open Opera and click TOOLS > Preferences.
Figure 162 Opera 9: Tools Menu
2 In Preferences, ADVANCED > Security > Manage certificates.
Figure 163 Opera 9: Preferences
228
MAX208M User s Guide
Page 29
Appendix EImporting Certificates
3 In the Certificates manager, select the Authorities tab, select the certificate
that you want to remove, and then click Delete.

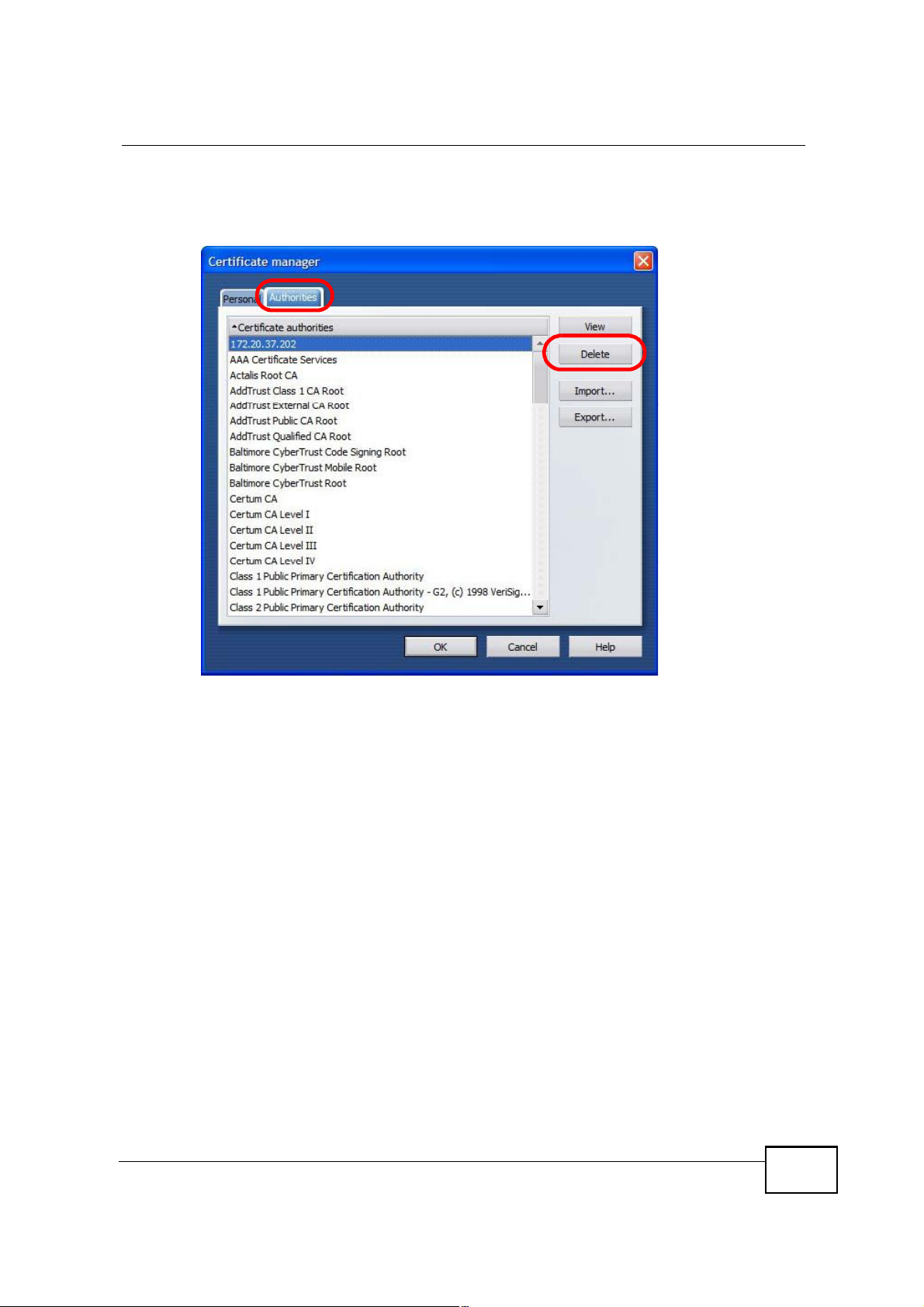

Figure 164 Opera 9: Certificate manager
4 The next time you go to the web site that issued the public key certificate you just
removed, a certification error appears.
Note: There is no confirmation when you delete a certificate authority, so be
absolutely certain that you want to go through with it before clicking the button.
MAX208M User s Guide
229
Page 30
Appendix EImporting Certificates
Konqueror
The following example uses Konqueror 3.5 on openSUSE 10.3, however the screens apply to Konqueror 3.5 on all Linux KDE distributions.
1 If your device s web configurator is set to use SSL certification, then the first time
you browse to it you are presented with a certification error.
2 Click Continue.
Figure 165 Konqueror 3.5: Server Authentication
3 Click Forever when prompted to accept the certificate.
Figure 166 Konqueror 3.5: Server Authentication
230
MAX208M User s Guide
Page 31
Appendix EImporting Certificates
4 Click the padlock in the address bar to open the KDE SSL Information window
and view the web page s security details.
Figure 167 Konqueror 3.5: KDE SSL Information
MAX208M User s Guide
231
Page 32
Appendix EImporting Certificates
Installing a Stand-Alone Certificate File in Konqueror
Rather than browsing to a ZyXEL web configurator and installing a public key certificate when prompted, you can install a stand-alone certificate file if one has been issued to you.
1 Double-click the public key certificate file.
Figure 168 Konqueror 3.5: Public Key Certificate File
2 In the Certificate Import Result - Kleopatra dialog box, click OK.
Figure 169 Konqueror 3.5: Certificate Import Result
232
The public key certificate appears in the KDE certificate manager, Kleopatra.
Figure 170 Konqueror 3.5: Kleopatra
MAX208M User s Guide
Page 33
Appendix EImporting Certificates
3 The next time you visit the web site, click the padlock in the address bar to open
the KDE SSL Information window to view the web page s security details.
MAX208M User s Guide
233
Page 34
Appendix EImporting Certificates
Removing a Certificate in Konqueror
This section shows you how to remove a public key certificate in Konqueror 3.5.
1 Open Konqueror and click Settings > Configure Konqueror.
Figure 171 Konqueror 3.5: Settings Menu
2 In the Configure dialog box, select Crypto.
3 On the Peer SSL Certificates tab, select the certificate you want to delete and
then click Remove.
Figure 172 Konqueror 3.5: Configure
4 The next time you go to the web site that issued the public key certificate you just
removed, a certification error appears.
234
MAX208M User s Guide
Page 35
Appendix EImporting Certificates
Note: There is no confirmation when you remove a certificate authority, so be
absolutely certain you want to go through with it before clicking the button.
MAX208M User s Guide
235
Page 36
Appendix EImporting Certificates
236
MAX208M User s Guide
Page 37
APPENDIX F
Common Services
The following table lists some commonly-used services and their associated protocols and port numbers. For a comprehensive list of port numbers, ICMP type/ code numbers and services, visit the IANA (Internet Assigned Number Authority) web site.
! Name: This is a short, descriptive name for the service. You can use this one or
create a different one, if you like.
! Protocol: This is the type of IP protocol used by the service. If this is TCP/
UDP, then the service uses the same port number with TCP and UDP. If this is USER-DEFINED, the Port(s) is the IP protocol number, not the port number.
! Port(s): This value depends on the Protocol. Please refer to RFC 1700 for
further information about port numbers.
! If the Protocol is TCP, UDP, or TCP/UDP, this is the IP port number.
! If the Protocol is USER, this is the IP protocol number.
! Description: This is a brief explanation of the applications that use this service
or the situations in which this service is used.
Table 73 Commonly Used Services
NAME PROTOCOL PORT(S) DESCRIPTION
AH (IPSEC_TUNNEL)
AIM/New-ICQ TCP 5190 AOL s Internet Messenger service. It
AUTH TCP 113 Authentication protocol used by some
BGP TCP 179 Border Gateway Protocol.
BOOTP_CLIENT UDP 68 DHCP Client.
BOOTP_SERVER UDP 67 DHCP Server.
CU-SEEME TCP
DNS TCP/UDP 53 Domain Name Server, a service that
User-Defined 51 The IPSEC AH (Authentication
Header) tunneling protocol uses this service.
is also used as a listening port by ICQ.
servers.
UDP
7648
24032
A popular videoconferencing solution from White Pines Software.
matches web names (for example
www.zyxel.com) to IP numbers.
MAX208M User s Guide
237
Page 38
Appendix FCommon Services
Table 73 Commonly Used Services (continued)
NAME PROTOCOL PORT(S) DESCRIPTION
ESP (IPSEC_TUNNEL)
FINGER TCP 79 Finger is a UNIX or Internet related
FTP TCP
H.323 TCP 1720 NetMeeting uses this protocol.
HTTP TCP 80 Hyper Text Transfer Protocol - a
HTTPS TCP 443 HTTPS is a secured http session often
ICMP User-Defined 1 Internet Control Message Protocol is
ICQ UDP 4000 This is a popular Internet chat
IGMP (MULTICAST)
IKE UDP 500 The Internet Key Exchange algorithm
IRC TCP/UDP 6667 This is another popular Internet chat
MSN Messenger TCP 1863 Microsoft Networks messenger
NEW-ICQ TCP 5190 An Internet chat program.
NEWS TCP 144 A protocol for news groups.
NFS UDP 2049 Network File System - NFS is a client/
NNTP TCP 119 Network News Transport Protocol is
PING User-Defined 1 Packet INternet Groper is a protocol
POP3 TCP 110 Post Office Protocol version 3 lets a
User-Defined 50 The IPSEC ESP (Encapsulation
Security Protocol) tunneling protocol uses this service.
command that can be used to find out if a user is logged on.
20
TCP
User-Defined 2 Internet Group Management Protocol
21
File Transfer Program, a program to enable fast transfer of files, including large files that may not be possible by e-mail.
client/server protocol for the world wide web.
used in e-commerce.
often used for diagnostic or routing purposes.
program.
is used when sending packets to a specific group of hosts.
is used for key distribution and management.
program.
service uses this protocol.
server distributed file service that provides transparent file sharing for network environments.
the delivery mechanism for the USENET newsgroup service.
that sends out ICMP echo requests to test whether or not a remote host is reachable.
client computer get e-mail from a POP3 server through a temporary connection (TCP/IP or other).
238
MAX208M User s Guide
Page 39
Appendix FCommon Services
Table 73 Commonly Used Services (continued)
NAME PROTOCOL PORT(S) DESCRIPTION
PPTP TCP 1723 Point-to-Point Tunneling Protocol
enables secure transfer of data over public networks. This is the control channel.
PPTP_TUNNEL (GRE)
RCMD TCP 512 Remote Command Service.
REAL_AUDIO TCP 7070 A streaming audio service that
REXEC TCP 514 Remote Execution Daemon.
RLOGIN TCP 513 Remote Login.
RTELNET TCP 107 Remote Telnet.
RTSP TCP/UDP 554 The Real Time Streaming (media
SFTP TCP 115 Simple File Transfer Protocol.
SMTP TCP 25 Simple Mail Transfer Protocol is the
SNMP TCP/UDP 161 Simple Network Management
SNMP-TRAPS TCP/UDP 162 Traps for use with the SNMP
SQL-NET TCP 1521 Structured Query Language is an
SSH TCP/UDP 22 Secure Shell Remote Login Program.
STRM WORKS UDP 1558 Stream Works Protocol.
SYSLOG UDP 514 Syslog allows you to send system logs
TACACS UDP 49 Login Host Protocol used for (Terminal
TELNET TCP 23 Telnet is the login and terminal
User-Defined 47 PPTP (Point-to-Point Tunneling
Protocol) enables secure transfer of data over public networks. This is the data channel.
enables real time sound over the web.
control) Protocol (RTSP) is a remote control for multimedia on the Internet.
message-exchange standard for the Internet. SMTP enables you to move messages from one e-mail server to another.
Program.
(RFC:1215).
interface to access data on many different types of database systems, including mainframes, midrange systems, UNIX systems and network servers.
to a UNIX server.
Access Controller Access Control System).
emulation protocol common on the Internet and in UNIX environments. It operates over TCP/IP networks. Its primary function is to allow users to log into remote host systems.
MAX208M User s Guide
239
Page 40
Appendix FCommon Services
Table 73 Commonly Used Services (continued)
NAME PROTOCOL PORT(S) DESCRIPTION
TFTP UDP 69 Trivial File Transfer Protocol is an
VDOLIVE TCP 7000 Another videoconferencing solution.
Internet file transfer protocol similar to FTP, but uses the UDP (User Datagram Protocol) rather than TCP (Transmission Control Protocol).
240
MAX208M User s Guide
Page 41
APPENDIX G
Legal Information
Copyright
Copyright © 2011 by ZyXEL Communications Corporation.
The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a retrieval system, translated into any language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without the prior written permission of ZyXEL Communications Corporation.
Published by ZyXEL Communications Corporation. All rights reserved.
Disclaimers
ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it convey any license under its patent rights nor the patent rights of others. ZyXEL further reserves the right to make changes in any products described herein without notice. This publication is subject to change without notice.
Your use of the WiMAX Device is subject to the terms and conditions of any related service providers.
Do not use the WiMAX Device for illegal purposes. Illegal downloading or sharing of files can result in severe civil and criminal penalties. You are subject to the restrictions of copyright laws and any other applicable laws, and will bear the consequences of any infringements thereof. ZyXEL bears NO responsibility or liability for your use of the download service feature.
Trademarks
Trademarks mentioned in this publication are used for identification purposes only and may be properties of their respective owners.
MAX208M User s Guide
241
Page 42
Appendix G Legal Information
r
Certifications
Federal Communications Commission (FCC) Interference Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particula installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
The device complies with Part 15 of FCC rules. Operation is subject to the following two conditions:
This device complies with part 15 of the FCC Rules.
Operation is subject to the condition that this device does not cause harmful
interference.
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this device does cause harmful interference to radio/television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1 Reorient or relocate the receiving antenna.
IMPORTANT NOTE: Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
2 Increase the separation between the equipment and the receiver.
3 Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
4 Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
To comply with FCC RF exposure compliance requirements, a separation
distance of at least 20 cm must be maintained between the antenna of this device and all persons.
Page 43
Appendix GLegal Information
Notices
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil num rique de la classe B est conforme la norme NMB-003 du Canada.
Viewing Certifications
1 Go to http://www.zyxel.com.
2 Select your product on the ZyXEL home page to go to that product's page.
3 Select the certification you wish to view from this page.
ZyXEL Limited Warranty
ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in materials or workmanship for a period of up to two years from the date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, ZyXEL will, at its discretion, repair or replace the defective products or components without charge for either parts or labor, and to whatever extent it shall deem necessary to restore the product or components to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal or higher value, and will be solely at the discretion of ZyXEL. This warranty shall not apply if the product has been modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions.
MAX208M User s Guide
243
Page 44
Appendix GLegal Information
Note
Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser. This warranty is in lieu of all other warranties, express or implied, including any implied warranty of merchantability or fitness for a particular use or purpose. ZyXEL shall in no event be held liable for indirect or consequential damages of any kind to the purchaser.
To obtain the services of this warranty, contact your vendor. You may also refer to the warranty policy for the region in which you bought the device at http:// www.zyxel.com/web/support_warranty_info.php.
Registration
Register your product online to receive e-mail notices of firmware upgrades and information at www.zyxel.com.
244
MAX208M User s Guide
Page 45
Index
Index
A
AAA 58
accounting server
see AAA
activity 58
Advanced Encryption Standard
see AES
AES 153
ALG 80
alternative subnet mask notation 196
Application Layer Gateway
see ALG
authentication 58, 151
inner 154 key server 58 types 154
authorization 151
request and reply 153 server 58
auto-discovery
UPnP 100
B
base station
see BS
BS 57!58
links 58
CA 59 formats 60 verification 153
certification
notices 243 viewing 243
Certification Authority, see CA
chaining 153
chaining message authentication
see CCMP
CMAC
see MAC
copyright 241
counter mode
see CCMP
coverage area 57
cryptography 151
D
data 151!153
decryption 151 encryption 151 flow 153
DHCP 77
server 77
diameter 58
digital ID 60, 151
Dynamic Host Configuration Protocol
see DHCP
C
CA 59, 60
CBC-MAC 153
CCMP 151, 153
cell 57
certificates 151
MAX208M User s Guide
E
EAP 58
EAP (Extensible Authentication Protocol) 60
EAP-TLS 60
EAP-TTLS 60
encryption 151!153
245
Page 46
Index
traffic 153
Ethernet
encapsulation 79
Extensible Authorization Protocol
see EAP
F
FCC interference statement 242
firewall 107
FTP 113
restrictions 113
I
IANA 202
identity 58, 151
idle timeout 114
IEEE 802.16 57, 151
IEEE 802.16e 57
IGD 1.0 81
inner authentication 154
Internet
access 58 gateway device 81
Internet Assigned Numbers Authority
see IANA 202
interoperability 57
see MAC
message integrity 153
Metropolitan Area Network
see MAN
microwave 57, 58
mobile station
see MS
MS 58
N
NAT 201
and remote management 114 server sets 79 traversal 81
network
activity 58 services 58
P
pattern-spotting 153
PKMv2 58, 151, 154
plain text encryption 153
Privacy Key Management
see PKM
private key 151
product registration 244
public certificate 153
public key 151
K
key 151
request and reply 153
M
MAC 153
MAN 57
Management Information Base (MIB) 116
Message Authentication Code
246
R
RADIUS 58, 60, 152
Message Types 152 Messages 152 Shared Secret Key 152
registration
product 244
related documentation 3
remote management and NAT 114
remote management limitations 113
MAX208M User s Guide
Page 47
Index
S
safety warnings 7
secure communication 151
secure connection 58
security 151
security association 153
see SA
services 58
SIP
ALG 80 Application Layer Gateway, see ALG
SNMP 114
manager 116
SS 57, 58
subnet 193
mask 194
subnetting 196
subscriber station
see SS
syntax conventions 5
system timeout 114
T
tampering
TCP/IP configuration 77
TEK 153
TFTP restrictions 113
TLS 151
transport encryption key
see TEK
transport layer security
see TLS
trigger port forwarding
process 95
TTLS 151, 154
tunneled TLS
see TTLS
U
unauthorized device 151
Universal Plug and Play
see UPnP
UPnP 80
application 81 auto-discovery 100 security issues 81 Windows XP 98
user authentication 151
V
verification 153
W
WiMAX 57!58
security 153 WiMAX Forum 57
Wireless Interoperability for Microwave Access
see WiMAX
Wireless Metropolitan Area Network
see MAN
wireless network
access 57 standard 57
wireless security 151
wizard setup 27
MAX208M User s Guide
247
Page 48
Index
248
MAX208M User s Guide
Page 49
Index
MAX208M User s Guide
249
Page 50
Index
250
MAX208M User s Guide
Loading...
