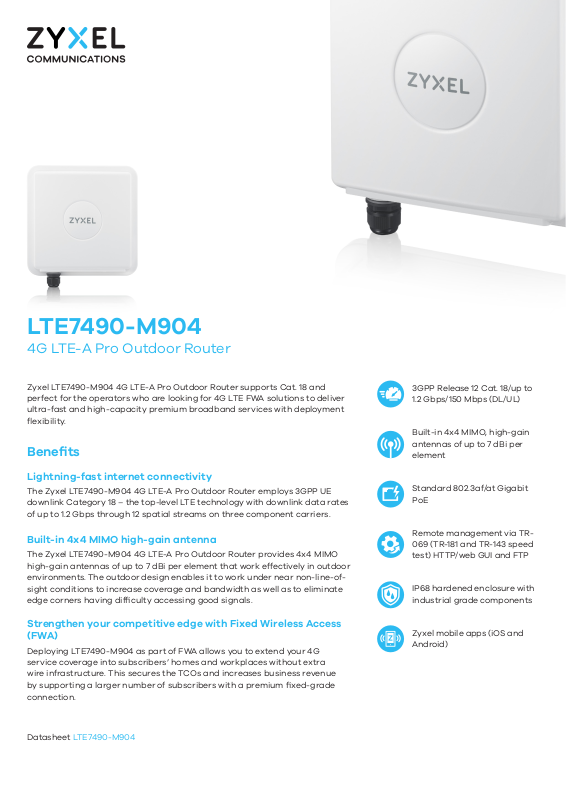

LTE7490-M904
4G LTE-A Pro Outdoor Router
Zyxel LTE7490-M904 4G LTE-A Pro Outdoor Router supports Cat. 18 and
perfect for the operators who are looking for 4G LTE FWA solutions to deliver
ultra-fast and high-capacity premium broadband services with deployment
flexibility.
Benefits
Lightning-fast internet connectivity
The Zyxel LTE7490-M904 4G LTE-A Pro Outdoor Router employs 3GPP UE
downlink Category 18 – the top-level LTE technology with downlink data rates
of up to 1.2 Gbps through 12 spatial streams on three component carriers.
Built-in 4x4 MIMO high-gain antenna
The Zyxel LTE7490-M904 4G LTE-A Pro Outdoor Router provides 4x4 MIMO
high-gain antennas of up to 7 dBi per element that work effectively in outdoor
environments. The outdoor design enables it to work under near non-line-ofsight conditions to increase coverage and bandwidth as well as to eliminate
edge corners having difficulty accessing good signals.
Strengthen your competitive edge with Fixed Wireless Access
(FWA)
Deploying LTE7490-M904 as part of FWA allows you to extend your 4G
service coverage into subscribers’ homes and workplaces without extra
wire infrastructure. This secures the TCOs and increases business revenue
by supporting a larger number of subscribers with a premium fixed-grade
connection.
3GPP Release 12 Cat. 18/up to
1.2 Gbps/150 Mbps (DL/UL)
Built-in 4x4 MIMO, high-gain
antennas of up to 7 dBi per
element
Standard 802.3af/at Gigabit
PoE
Remote management via TR069 (TR-181 and TR-143 speed
test) HTTP/web GUI and FTP
IP68 hardened enclosure with
industrial grade components
Zyxel mobile apps (iOS and
Android)
Datasheet LTE7490-M904
Non-stop connectivity with LTE 2nd WAN for
failover
The wireless LTE allows you to take advantage of the
2nd WAN without a cabling plan. As long as the gateway
supports "Dual-WAN Failover ", you can just connect Zyxel
LTE7490-M904 to the existing gateway and set LTE as the
failover WAN and relieve the risk of network outage.
Easy installation with Zyxel's mobile app
Easy Installation is realized with a flexible wall or pole
mounting kit, integrated 802.3af/at PoE injector support,
and dedicated WiFi interface. The LTE7490-M904 connects
to Zyxel's mobile app with intuitive RF signal strength
graphics for base station alignment.
Internet
4G LTE
Wire broadband access
Router
Remote management, TR-069, HTTP/web GUI
and FTP
With TR-069, TR-181 and TR-143 support, the Zyxel
LTE7490-M904 effectively secures OPEX by reducing the
frequency of on-site support and by providing simplified
diagnostic, configuration and troubleshooting processes.
Environmentally-hardened
With IP68-compliant K.21 6 kV/300 A lightning protection,
the Zyxel LTE7490-M904 guarantees high-quality
connections, a longer device life despite the weather and
natural challenges. The LTE7490-M904 can operate within
a wide range of temperature and humidity, which supports
your service deployed in wide territorial scopes.
Specifications
System specification
IP networking
• Supports IPv4/IPv6 dual stack (NDP
IPv6)
• DHCP server
• Supports ICMP
• Virtual Private Network (VPN) passthrough
• Supports NAT/NAPT
• Supports NAT DMZ
• Supports port forwarding/triggering
• Supports ALG
Routing
• Supports router mode
• Supports bridge (IP pass-through)
mode
• Supports dynamic DNS for first APN
• Supports remote management under
bridge mode
IP firewall
• Firewall can be enabled or disabled
via GUI
• DoS attack prevention
• Supports SPI
• Application-level firewall
• Filters LAN MAC addresses
• Filters URLs
Management
• Supports local/remote device
management and firmware upgrade
via TR-069, HTTP/web GUI and FTP
• APN management
• Account management
• PIN/PUK management
• Network selection
• Operating frequency band selection
• CLI/SSH (local and remote SSH
access)
• Supports UPnP IGD
• Supports SSH with key access
certification management
• Supports bandwidth/quota
management
Datasheet LTE7490-M904
2
• Supports mobile apps (iOS and
Android) for easy installation and
local management only
• Supports remote throughput testing
by TR-143
• WiFi Protected Setup (WPS)
• Hidden SSID
Hardware specifications
LTE interface
• Standard-compliant: 3GPP UE DL
Category 18, UL Category 13
• Supports LTE bands :
B1/B3/B5/B7/B8/B20/B28/38/40/41
• Supports DL transmission mode
TM1/2/3/4/6/7/8/9
• LTE antennas: 4 embedded
directional antennas of up to 7 dBi/
element (4x4 MIMO)
• Supports DL 5xCA**, 2x2 MIMO
• Supports DL 3xCA, 4x4 MIMO,
B1/3/7**
• Supports DL modulations QPSK,
16-QAM, 64-QAM and 256-QAM
• Supports UL modulations QPSK,
16-QAM and 64-QAM
• Supports UL 2xCA** intra-band,
B3/7/38/40/41
• Peak data rates:
■
DL: 1.2 Gbps within 100 MHz
bandwidth
■
UL: 150 Mbps within 40 MHz
bandwidth
UMTS Air interface
• Standard-compliant: WCDMA bands
1/3/5/8
• Supported frequencies:
■
HSPA+/UMTS: 2100/1800/900/850
MHz (bands 1/3/5/8)
■
WCDMA: 2100/1800/900/850 MHz
• HSPA+ downlink data rates up to
42 Mbps
• HSUPA uplink data rates up to
5.76 Mbps
WiFi Air interface***
• Wireless standards: 802.11 b/g/n,
2.4 GHz, 300 Mbps
• Wireless omni antennas:
■
WiFi 2.4 GHz: 2x2 internal antennas
up to 3 dBi
Hardware Interface
• One Gigabit RJ-45 PoE LAN port
• One LED indicator for:
■
Power status
■
Internet status
■
LTE signal strength
■
WiFi status
■
LAN status
• One WiFi on/off button
• One 3FF micro SIM card socket
• One reset to default button
Power specifications
• Standard 802.3af/at Power over
Ethernet (PoE)
• Power consumption at PoE < 16 W
Power consumption
• 16 watt (peak)
Physical specifications
• Item dimensions (WxDxH):
254 x 255 x 58 mm
(9.99” x 10.03” x 2.28”)
• Item weight: 1100 g (2.43 lb.)
• Package dimensions (WxDxH):
280 x 402 x 108 mm
(11.02” x 15.83” x 4.25”)
• Package weight: 2520 g (5.55 lb.)
Environmental specifications
Ingress Protection rating
• IP68 harden for outdoor
environments
Lightning protection
• K.21 enhanced mode, 6 kV
Operating environment
• Temperature:
-40°C to 60°C (-40°F to 140°F)
• Humidity:
5% to 95% (non-condensing)
Storage environment
• Temperature:
-40°C to 70°C (-40°F to 158°F)
• Humidity:
5% to 95% (non-condensing)
Certification
• CE
• WEEE (Waste Electrical and
Electronic Equipment) Directive
certification
• RoHS (Restriction of Hazardous
Substances) Directive certification
• HSF (Hazardous Substance Free)
• European Parliament and Council
Directive 94/62/EC of 20 December
1994 on packaging and packaging
waste
Package contents
• Standard 802.3af/at Power of
Ethernet (PoE) injector
• 1.8 m Ethernet cable yellow 8P8C
• Power cord
• PG19 thread (cable gland)
• Quick Start Guide
• Warranty card
• DoC and safety warning
• Wall/pole mounting kit
• Wire grounding kit
* The maximum data rate is a theoretical value.
The actual data rates depends on the operator.
** Details carrier aggregation combination please
contact with local sales.
*** WiFi interface is used for local management
purpose only.
Datasheet LTE7490-M904
3
Application diagram
Antenna
700-2700 MHz
Ethernet
Fiber
WiFi
Hardware description
LTE7490-M904
4G LTE-A Pro Outdoor Router
Gateway
4x4 MIMO directional antennas
Gigabit PoE
WiFi on/off &
WPS button
LED
indicators
Micro SIM card slot
Reset &
reboot button
For more product information, visit us on the web at www.zyxel.com
Copyright © 2020 Zyxel and/or its affiliates. All rights reserved. All specifications are subject
to change without notice.
Datasheet LTE7490-M904
28/07/20
