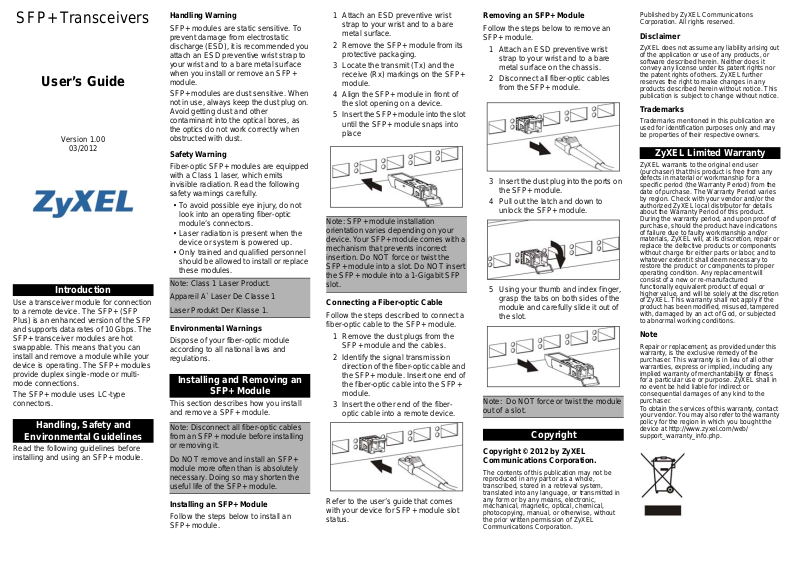

ZyXEL Copper SFP+ User Manual

SFP+ Transceivers

User’s Guide

Version 1.00

03/2012

Introduction

Use a transceiver module for connection to a remote device. The SFP+ (SFP Plus) is an enhanced version of the SFP and supports data rates of 10 Gbps. Th e SFP+ transceiver modules are hot swappable. This means that you can install and remove a module while your device is operating. The SFP+ modules provide duplex single-mode or multimode connections.

The SFP+ module uses LC-type connectors.

Handling, Safety and

Environmental Guidelines

Read the following guidelines before installing and using an SFP+ module.

Handling Warning

SFP+ modules are static sensitive. To prevent damage from electrostatic discharge (ESD), it is recommended you attach an ESD preventive wrist strap to your wrist and to a bare metal surface when you install or remove an SFP+ module.

SFP+ modules are dust sensitive. When not in use, always keep the dust plug on. Avoid getting dust and other contaminant into the optical bores, as the optics do not work correctly when obstructed with dust.

Safety Warning

Fiber-optic SFP+ modules are equipped with a Class 1 laser, which emits invisible radiation. Read the following safety warnings carefully.

• To avoid possible eye injury, do not look into an operating fiber-optic module’s connectors.

• Laser radiation is present when the device or system is powered up.

• Only trained and qualified personnel should be allowed to install or replace these modules.

Note: Class 1 Laser Product. Appareil A` Laser De Classe 1 Laser Produkt Der Klasse 1.

Environmental Warnings

Dispose of your fiber-optic module according to all national laws and regulations.

Installing and Removing an

SFP+ Module

This section describes how you install and remove a SPF+ module.

Note: Disconnect all fiber-optic cables from an SFP+ module before installing or removing it.

Do NOT remove and install an SFP+ module more often than is absolutely necessary. Doing so may shorten the useful life of the SFP+ module.

Installing an SFP+ Module

Follow the steps below to install an SFP+ module.

1 Attach an ESD preventive wrist

strap to your wrist and to a bare metal surface.

2 Remove the SFP+ module from its

protective packaging.

3 Locate the transmit (Tx) and the

receive (Rx) markings on the SFP+ module.

4 Align the SFP+ module in front of

the slot opening on a device.

5 Insert the SFP+ module into the slot

until the SFP+ module snaps into place

Note: SFP+ module installation orientation varies depending on your device. Y our SFP+ module co mes with a mechanism that prevents incorrect insertion. Do NOT force or twist the SFP+ module into a slot. Do NOT insert the SFP+ module into a 1-Gigabit SFP slot.

Connecting a Fiber-optic Cable

Follow the steps described to connect a fiber-optic cable to the SFP+ module.

1 Remove the dust plugs from the

SFP+ module and the cables.

2 Identify the signal transmission

direction of the fiber-optic cable and the SFP+ module. Insert one end of the fiber-optic cable into the SFP+ module.

3 Insert the other end of the fiber-

optic cable into a remote device.

Refer to the user’s guide that comes with your device for SFP+ module slot status.

Removing an SFP+ Module

Follow the steps below to remove an SFP+ module.

1 Attach an ESD preventive wrist

strap to your wrist and to a bare metal surface on the chassis.

2 Disconnect all fiber-optic cables

from the SFP+ module.

3 Insert the dust plug into the ports on

the SFP+ module.

4 Pull out the latch and down to

unlock the SFP+ module.

5 Using your thumb and index finger,

grasp the tabs on both sides of the module and carefully slide it out of the slot.

Note: Do NOT force or twist the module out of a slot.
