Set this according to the use of the USB audio signal path.
MUSIC mode

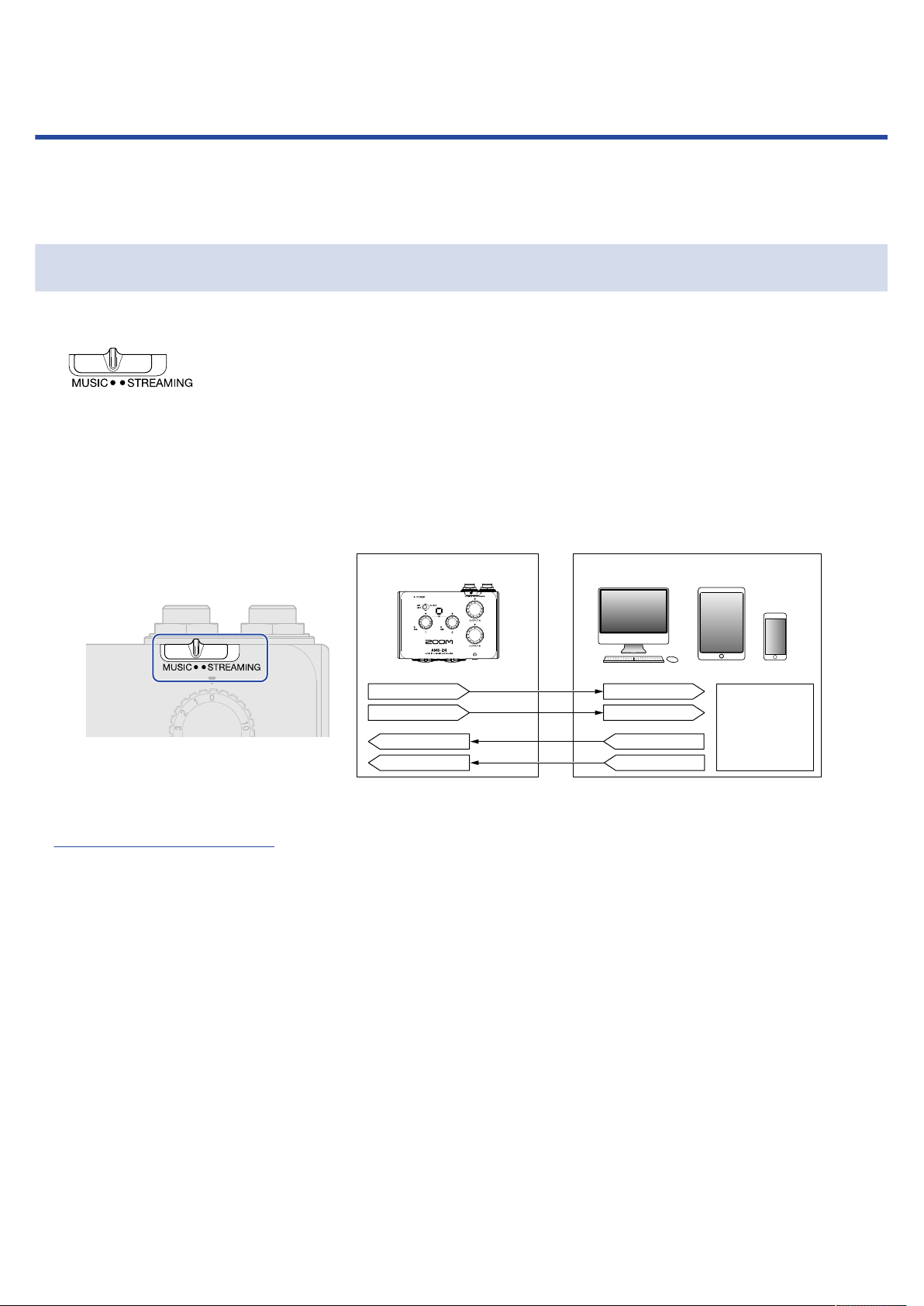

The MUSIC mode setting is good for making music with a DAW, for example.
Set to MUSIC.
This mode is useful for recording a guitar and vocals simultaneously to separate tracks, for example. Input
sounds are handled as separate signals by the computer, smartphone or tablet in the same way as with an
ordinary audio interface.
Different sounds can be output from the computer, smartphone or tablet through headphone jacks A
and B. This enables recording while a person operating the computer and a person performing listen to
different sounds.

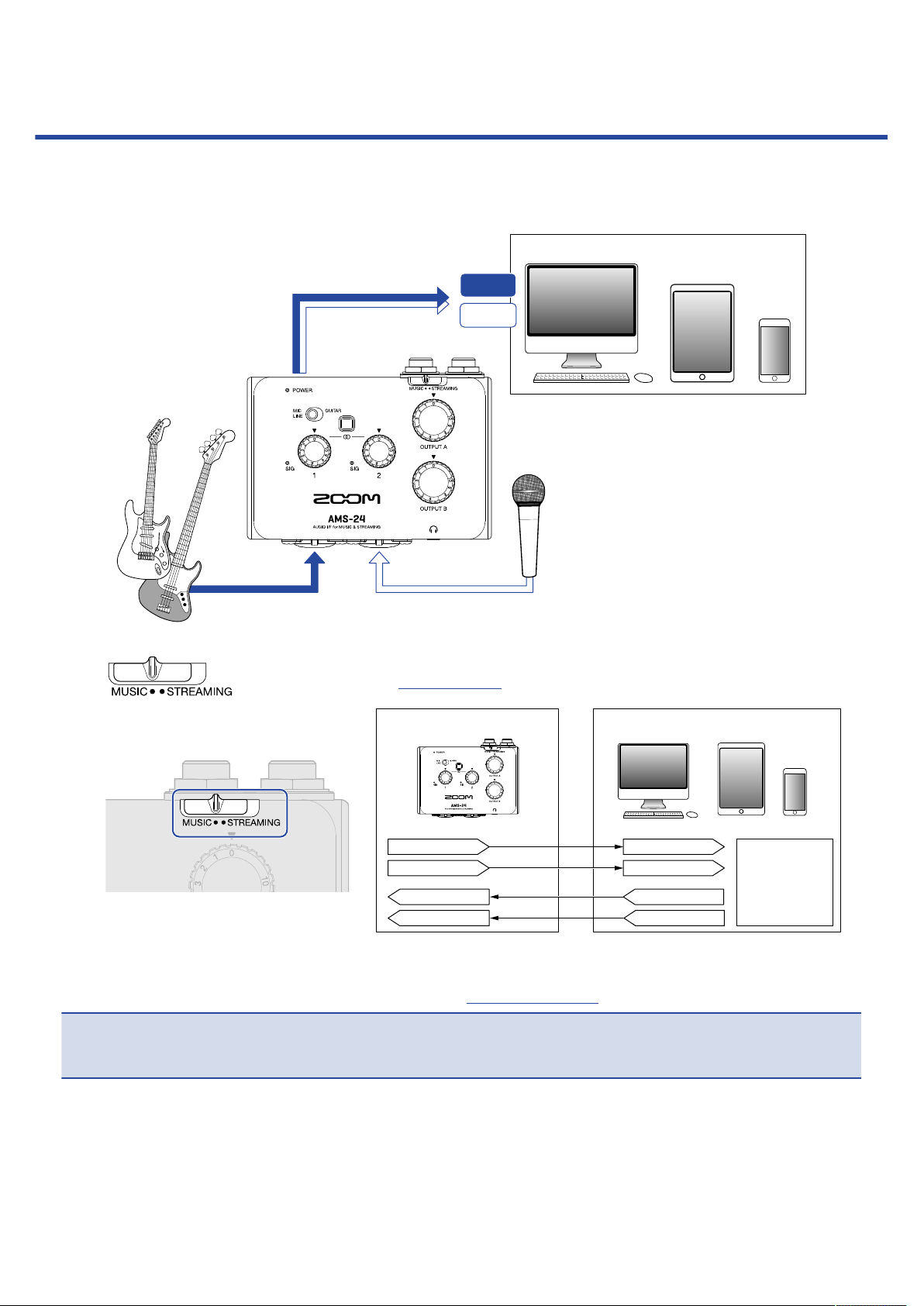

■ Use example
→ Use example: Making music
4
Page 5
STREAMING mode
WEB
INPUT1
INPUT2
OUTPUT A
OUTPUT B
INPUT1
INPUT2
OUTPUT 1/2
OUTPUT 3/4
R
L
AMS-24

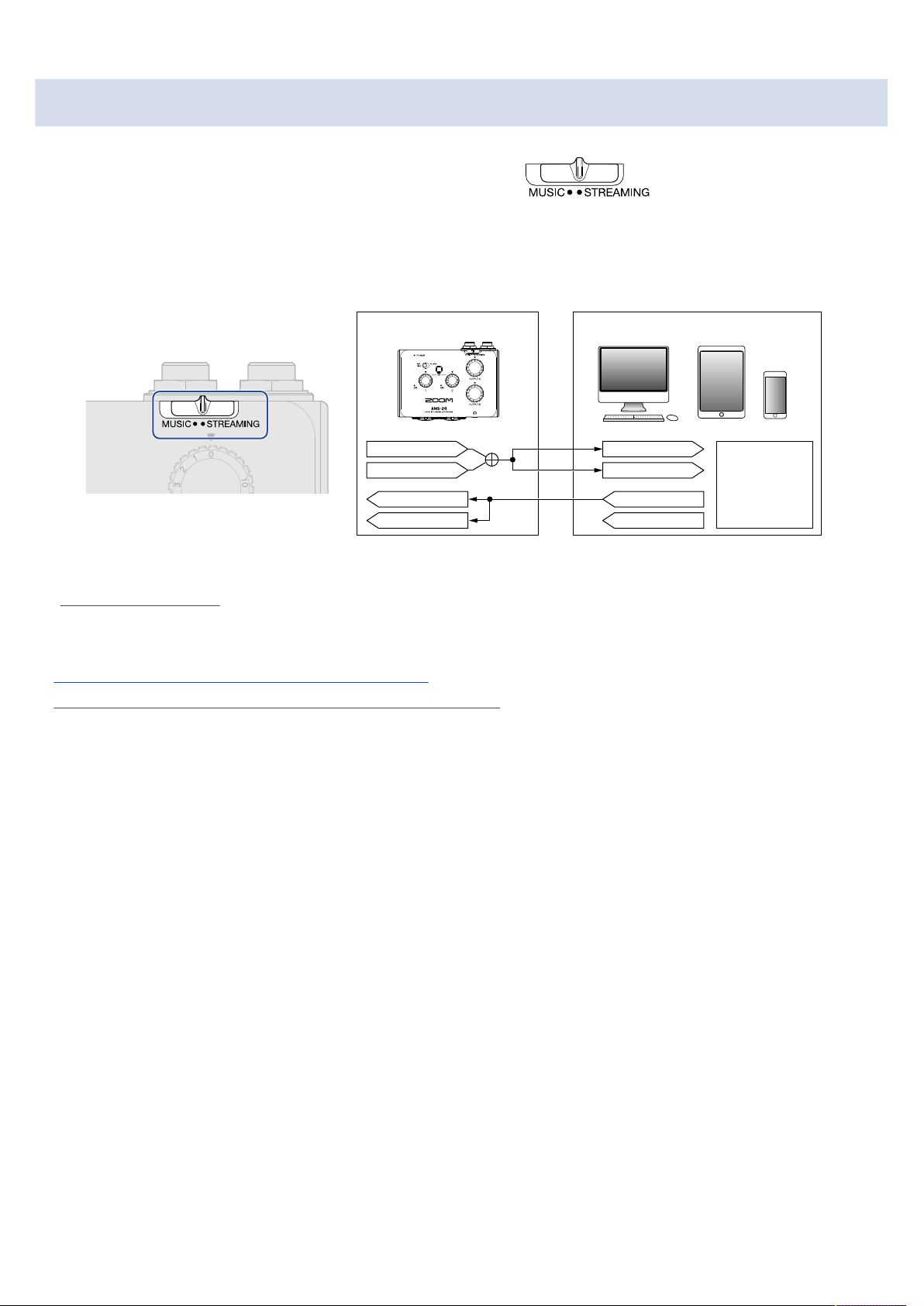

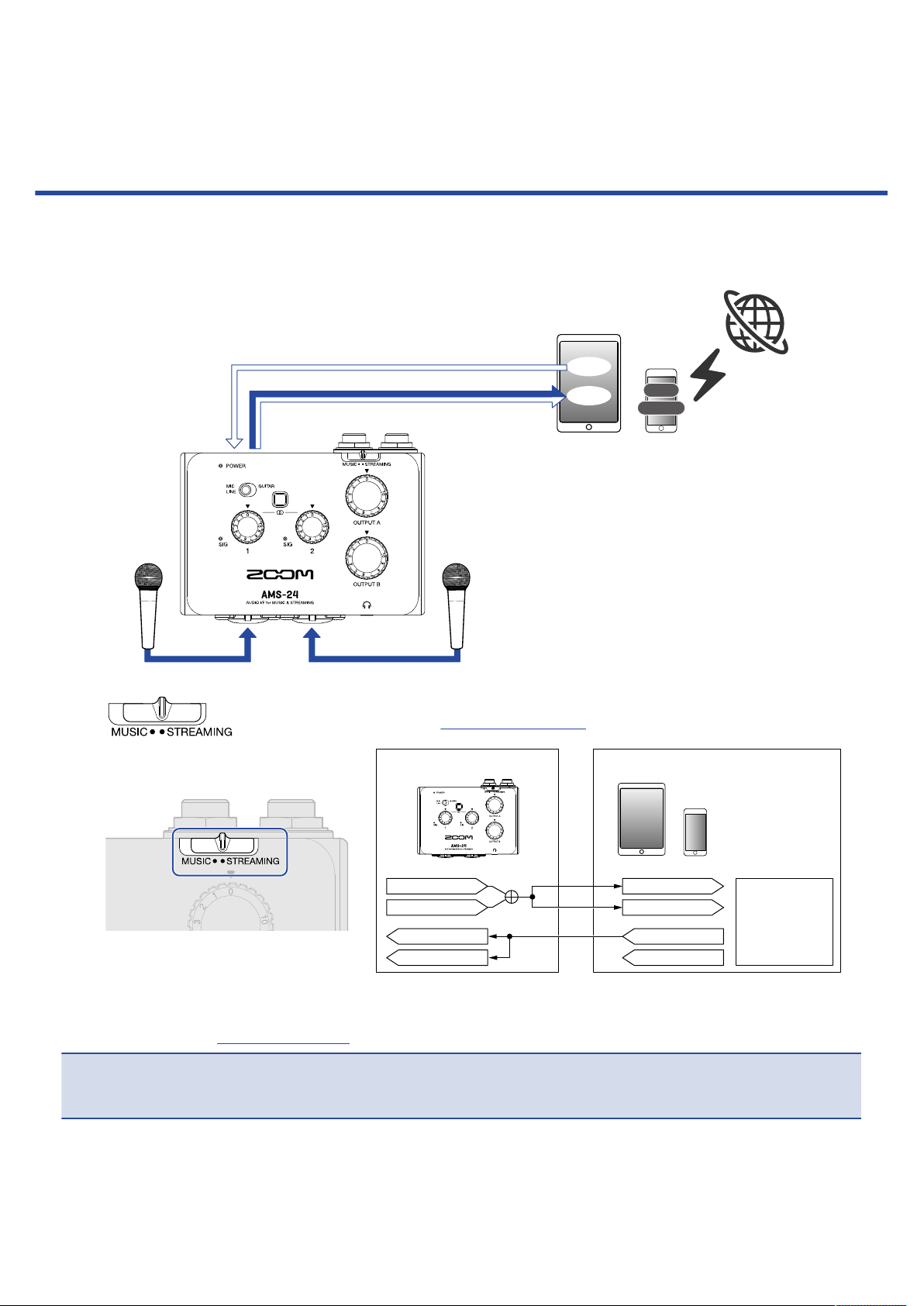

The STREAMING mode setting is good for web streaming. Set to STREAMING.
This mode is useful for streaming solo performances of vocals accompanied by guitar, for example. Input
sounds can be mixed like using an audio mixer and then sent to the computer, smartphone or tablet.
Since the sound from the computer, smartphone or tablet (USB OUTPUT 1/2) is output from both OUTPUT
A and B, this can also be used to record podcasts while two people monitor the same sound.
When the AMS-24 Stereo Link switch is on, Input 1 (left) and Input 2 (right) function as a stereo input.
(→Stereo link overview)

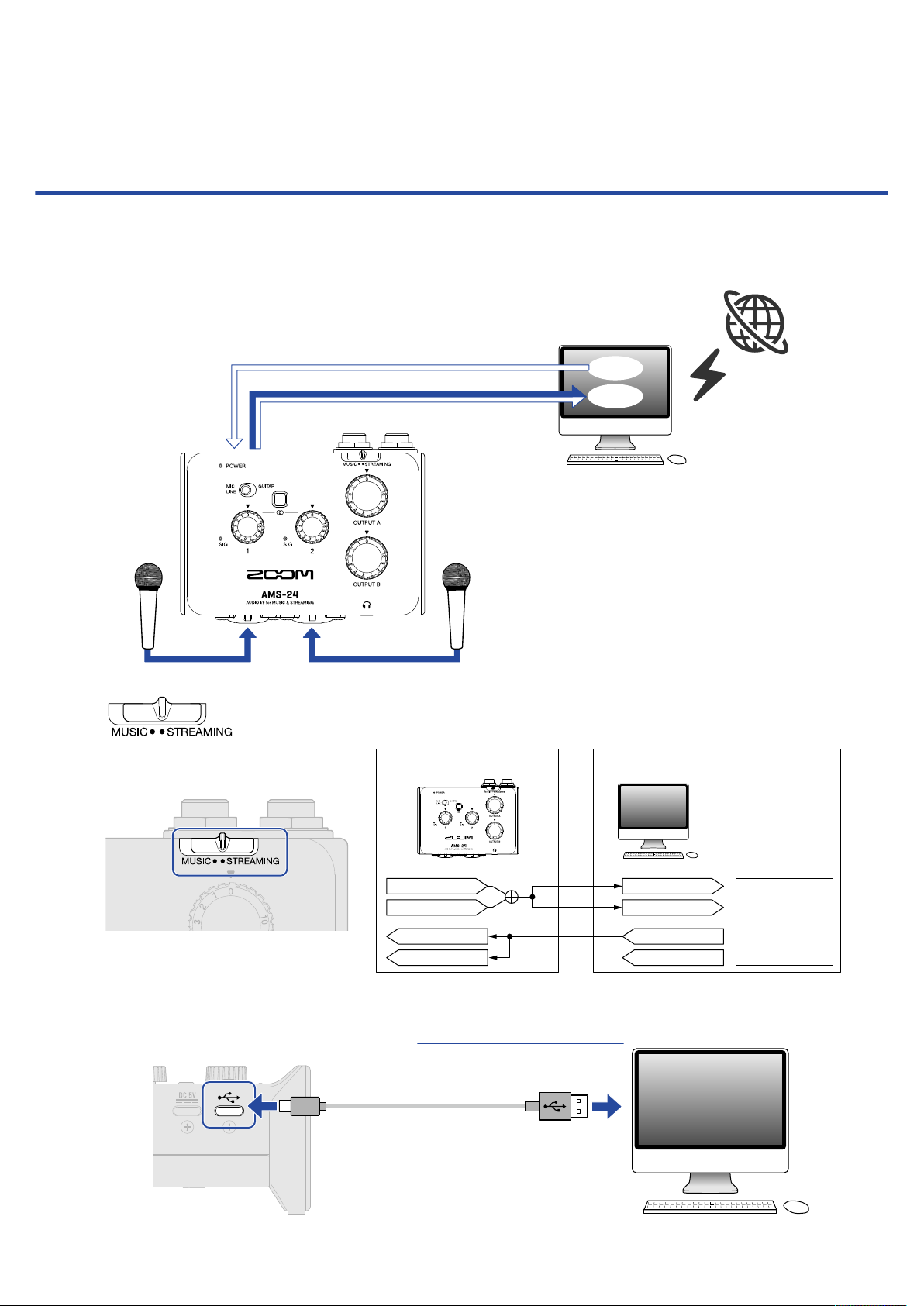

■ Use examples
→ Use example: Web streaming using a computer
→ Use example: Web streaming using a smartphone/tablet
5
Page 6
Functions of parts
Top and bottom
■ Top■ Bottom

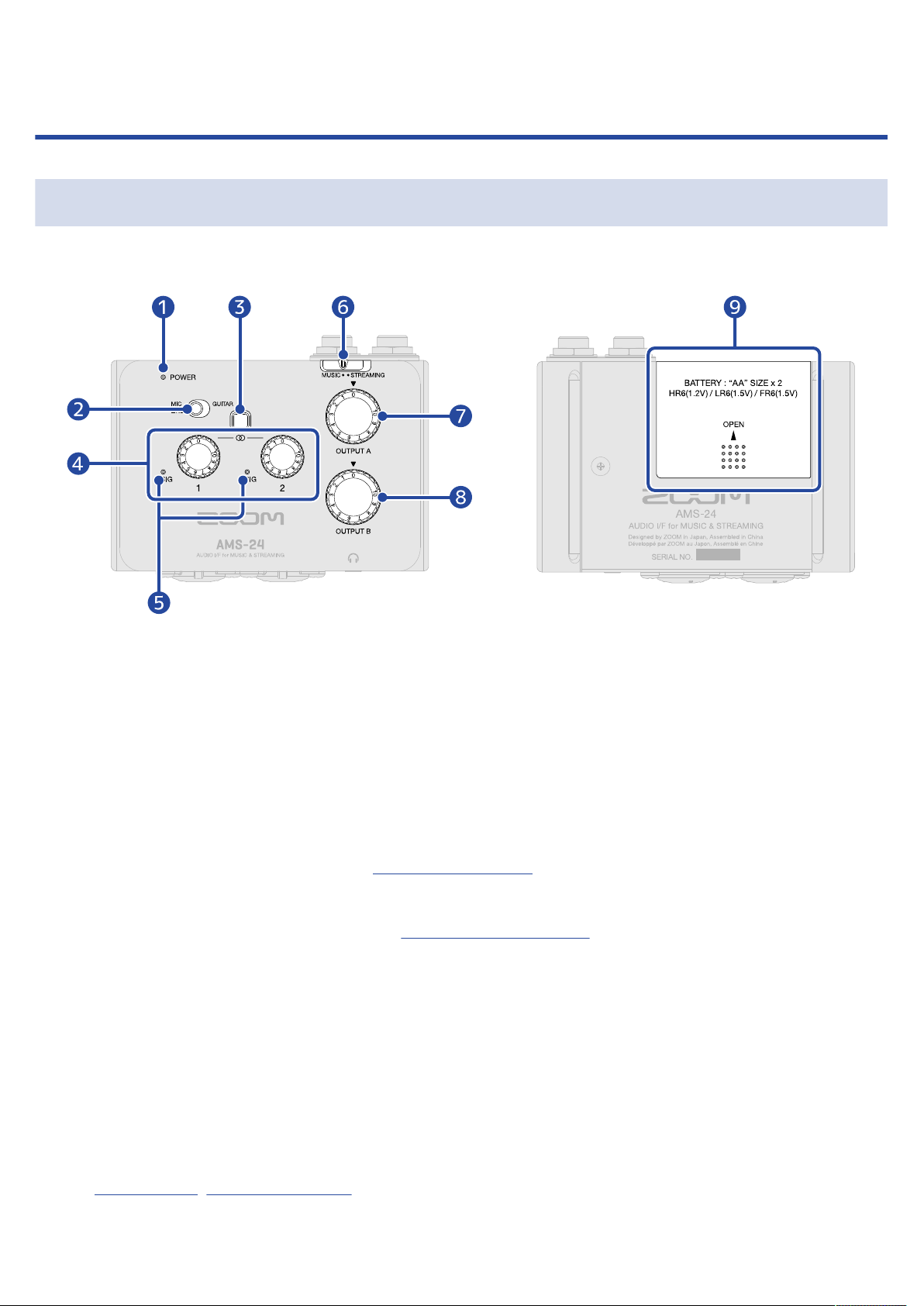

POWER indicator
❶
This lights when the power is on. This blinks when the remaining battery charge is low.
Input type switch
❷
Set this according to the equipment connected to Input 1.
Stereo Link switch
❸
Turn this on when inputting a stereo signal through Inputs 1–2. Input 1 will become the left signal while
Input 2 will become the right signal. When the Stereo Link switch is on, the input gain for both Inputs 1
and 2 is controlled by Gain knob 1. (→Stereo link overview)
Gain knobs
❹
Use these to adjust input signal levels. (→Adjusting the input gain)

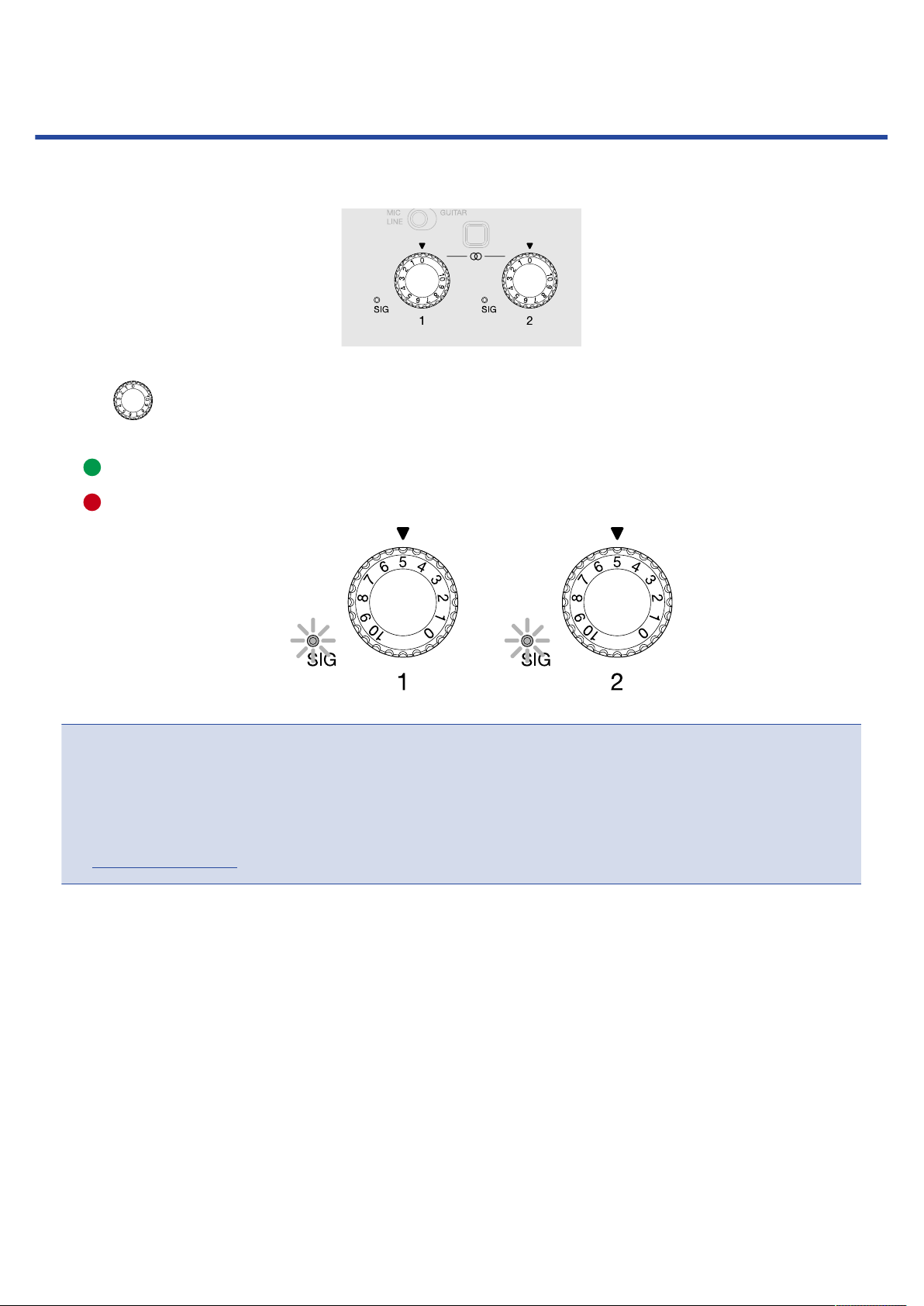

Level indicators
❺
These indicators show signal levels after gain knob adjustment.
The indicator colors change according to the signal levels.
Lit green: Input signal is present. (−48 dBFS or higher)
Lit red: Input signal is clipping. (−1 dBFS or higher)
MUSIC/STREAMING switch
❻
This switches between MUSIC and STREAMING modes. Set it to MUSIC when using the AMS-24 to make
music with a DAW, for example. Set it to STREAMING when using it to stream on the web, for example.
(→ MUSIC mode, STREAMING mode)
6
Page 7
OUTPUT A knob
❼

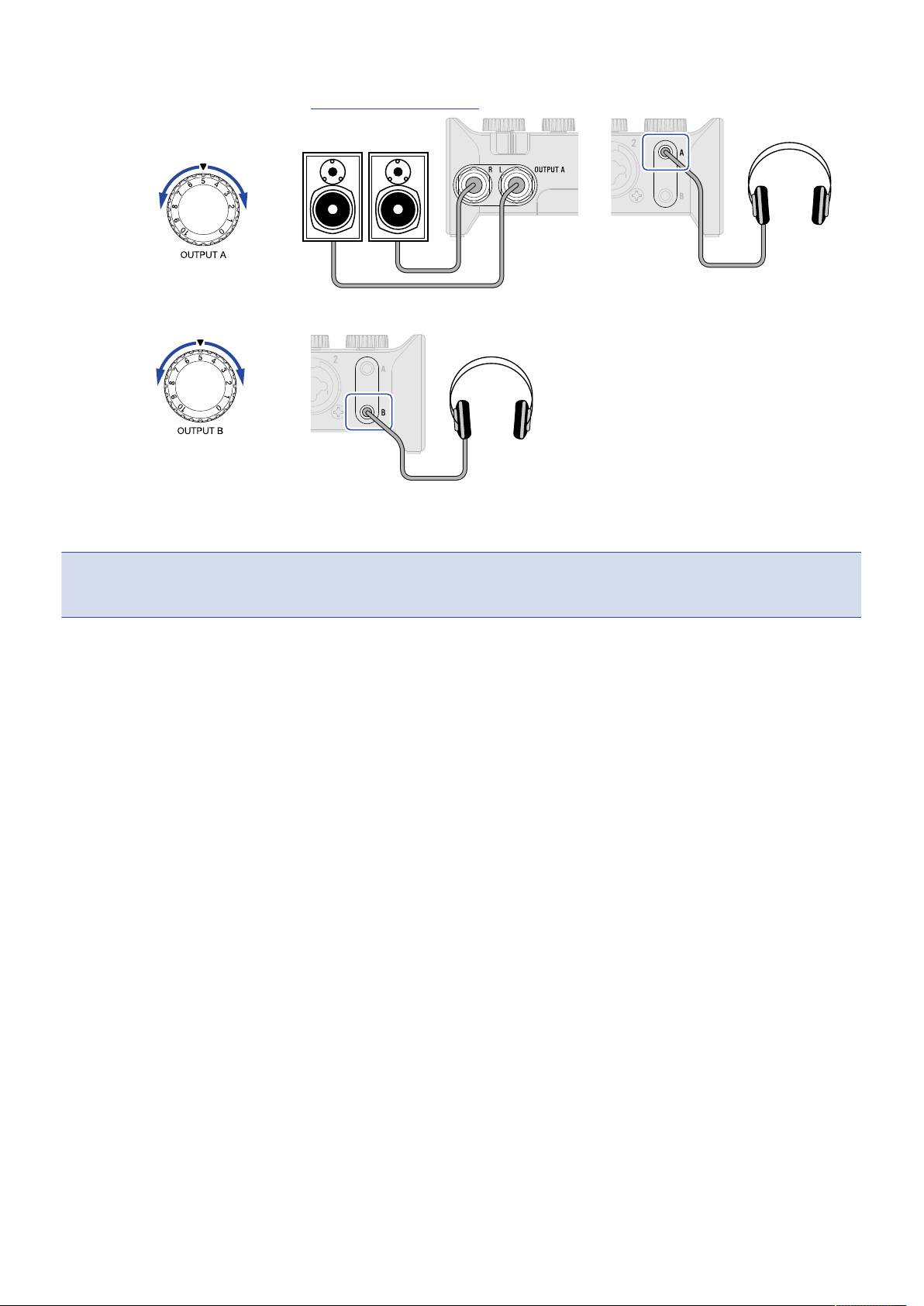

Use this to adjust the volumes of signals output from the OUTPUT A standard phone jacks and the
Headphone A jack. (→Adjusting OUTPUT A volume)
OUTPUT B knob
❽
Use this to adjust the volume of signals output from the Headphone B jack. (→Adjusting OUTPUT B
volume)
Battery cover
❾
Slide this to remove it when loading batteries. (→Using batteries)
Left and right sides
■ Left side■ Right side

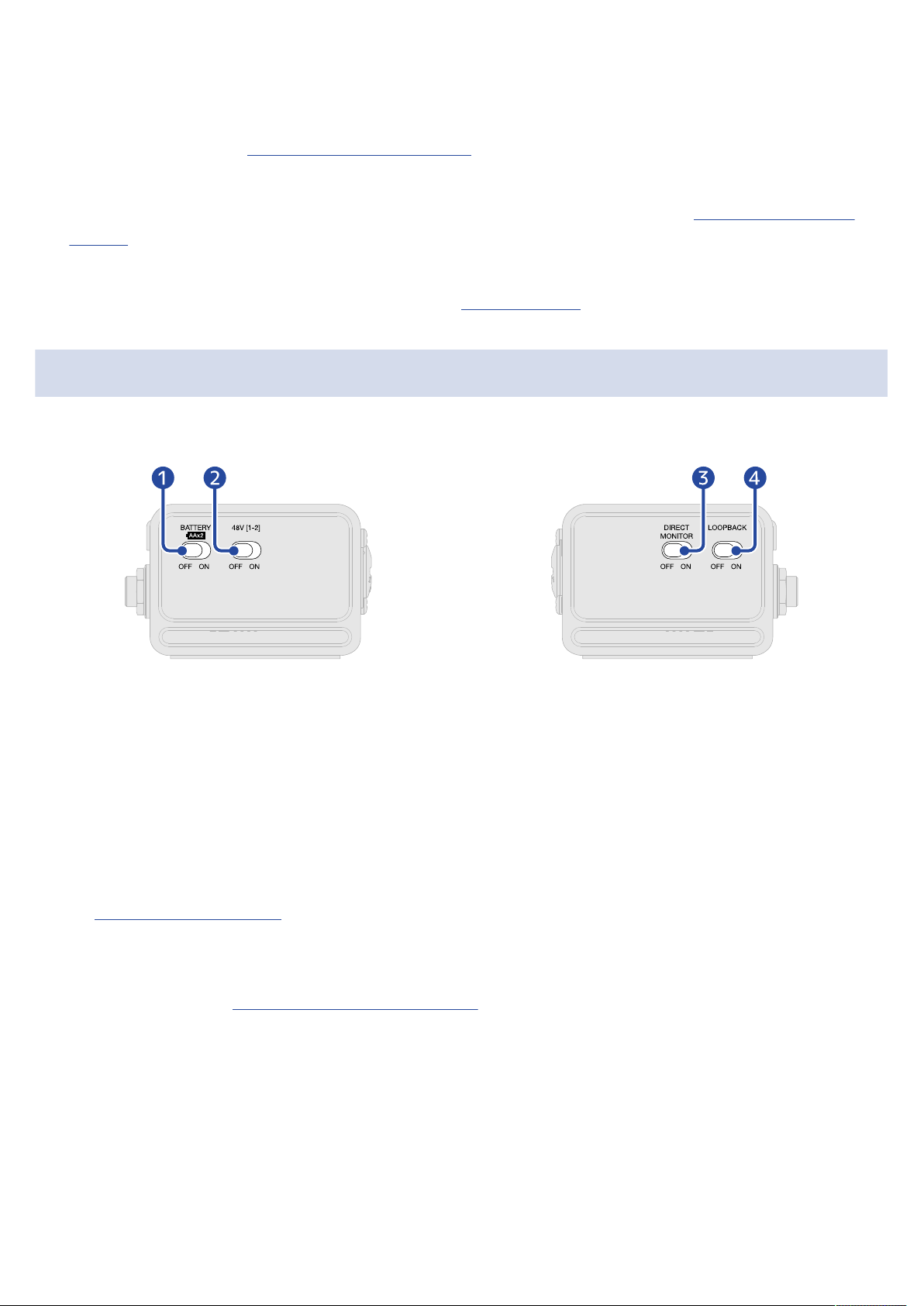

BATTERY switch
❶
Set this to ON to use battery power. Set this to OFF to use USB bus power or an external power supply.
48V switch
❷
This turns +48V phantom power ON/OFF. Set this to ON when connecting condenser mics. Phantom
power is supplied to both inputs 1 and 2 simultaneously.
DIRECT MONITOR switch
❸

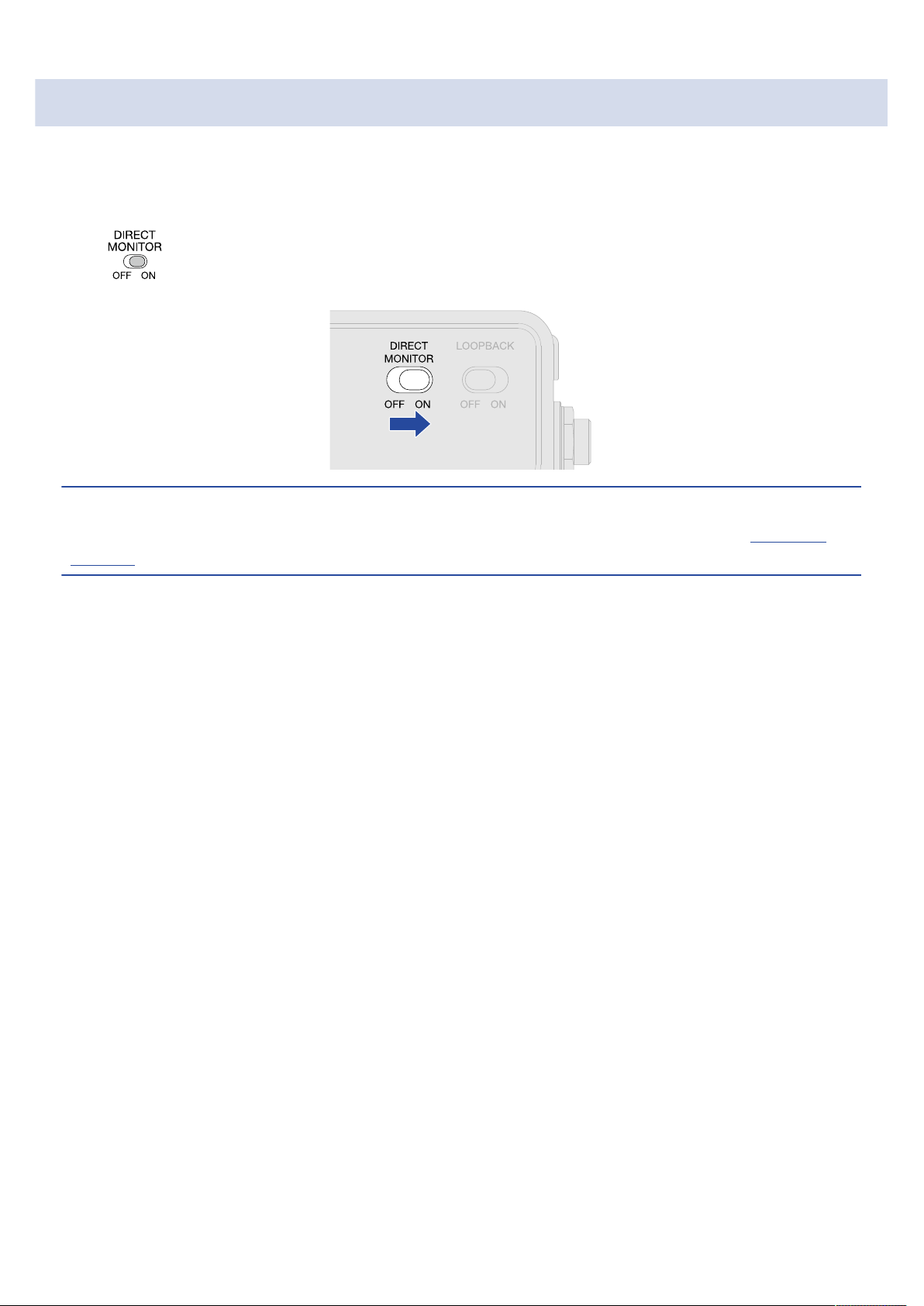

Set this to ON to directly monitor sounds from the Input jacks before they pass through the computer.
(→Using direct monitoring)
LOOPBACK switch
❹
Set this to ON to send a mix of the sounds played by the computer and input through the AMS-24 back
to the computer. (→Enabling the loopback function)
7
Page 8
Front and back
XLR
1
2
3
■ Front■ Back

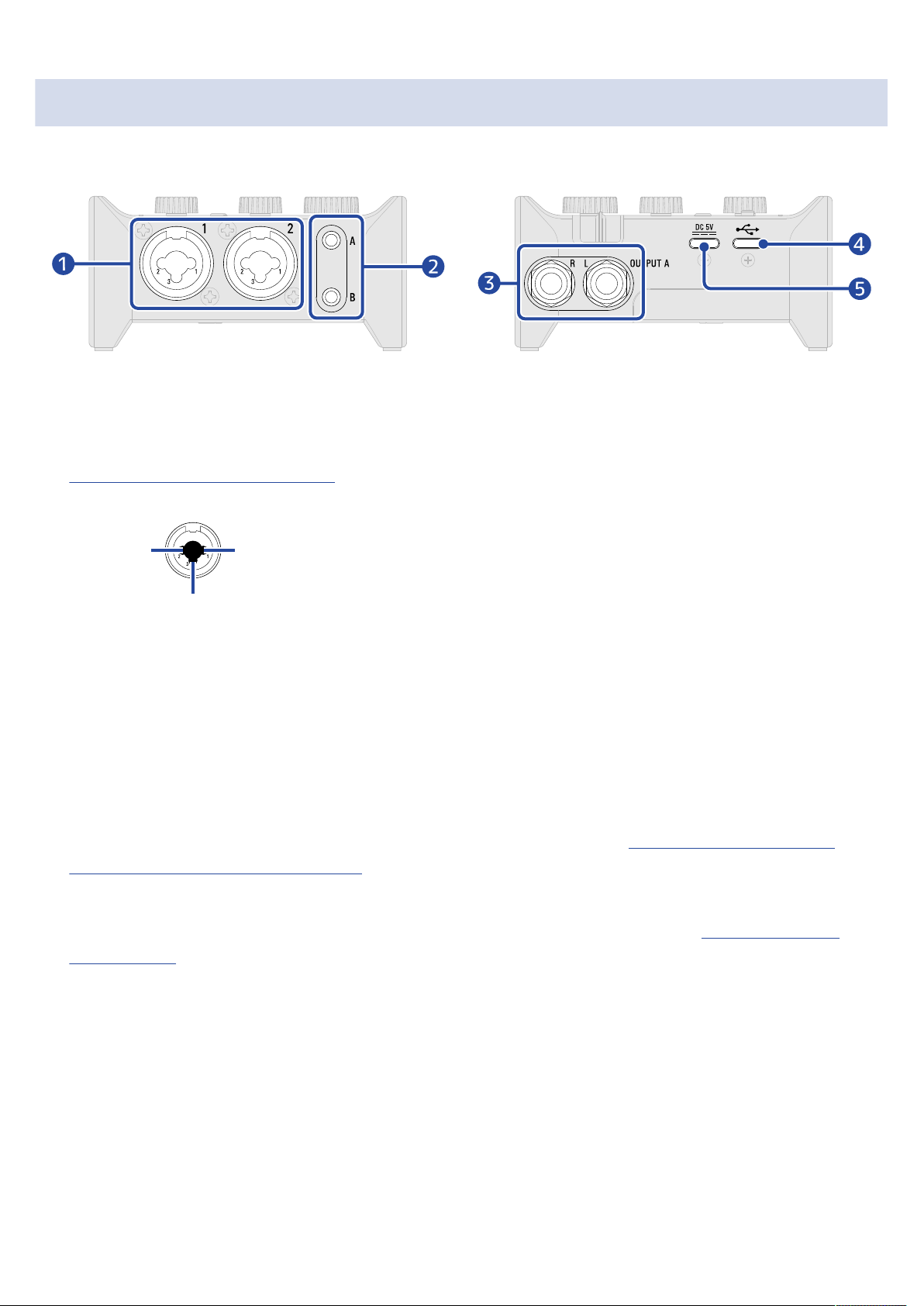

Input jacks 1–2
❶
These input jacks have built-in mic preamps. Connect mics, keyboards, guitars and other audio sources
to them. These can be used with both XLR and standard phone (balanced or unbalanced) plugs. (→
Connecting instruments and mics)
1: GND
2: HOT
3: COLD
Headphone output jacks A–B
❷
These output stereo signals. Connect headphones to these.
OUTPUT A standard phone jacks
❸
These output the left (L) and right (R) channels of stereo signals. Connect these to speakers with built-in
amplifiers, for example.
USB port (Type-C)
❹
Use this USB port to connect computers, smartphones and tablets. (→Connecting to a computer,
Connecting smartphones and tablets)
DC 5V port (Type-C)
❺
Use this power supply USB port to connect an AC adapter or mobile battery. (→Using an external
power supply)
8
Page 9

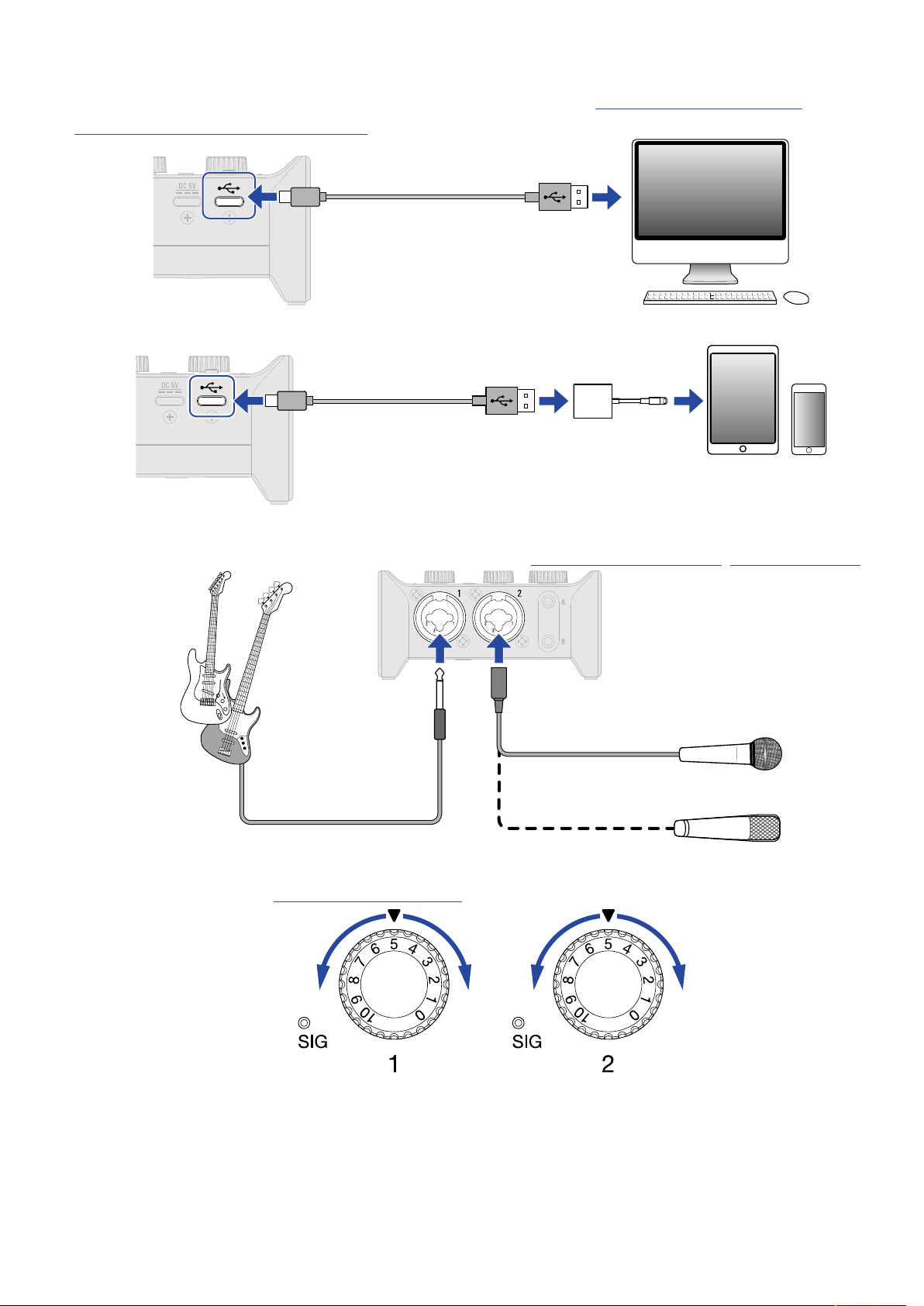

Connecting to a computer
USB Type-C
The AMS-24 is compatible with USB bus power, so power can be supplied to it from a computer through a
USB cable. In addition to USB bus power, it can also be operated using an external power supply (dedicated
AC adapter or mobile battery) or batteries. (→Using an external power supply, Using batteries)
1. Install the dedicated driver before using an AMS-24 to record for the first time with a DAW application
on a Windows computer. (→Installing the driver on Windows computers)
NOTE:
A driver is not necessary when using a Mac.
2. Minimize the volume before connecting speakers, headphones or other output devices to the AMS-24.
(→ Adjusting the volume)

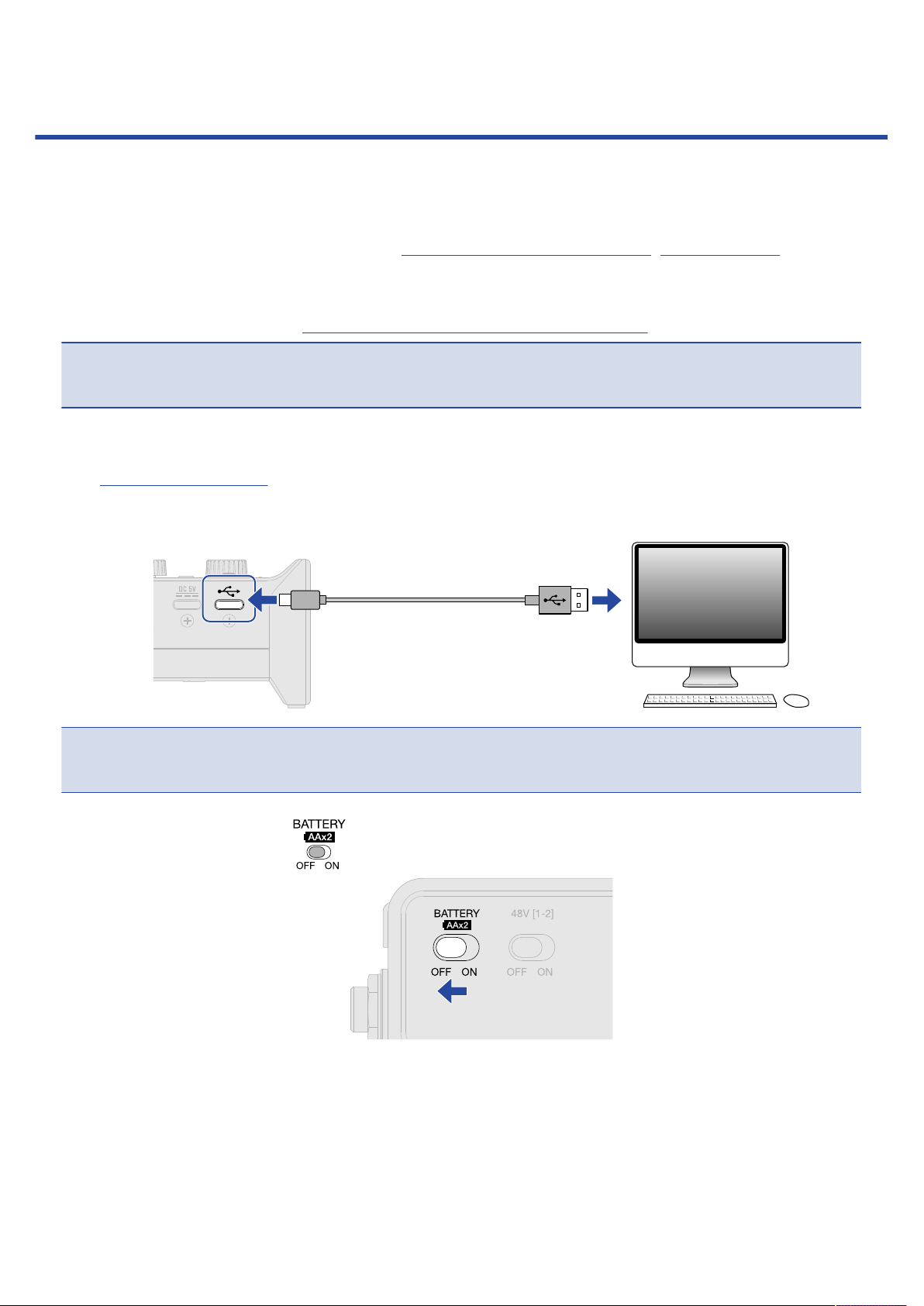

3. Use a USB cable to connect the AMS-24 USB port (Type-C) to a USB port on the computer.
NOTE:
Use a USB cable that supports data transfer.
4. To use USB bus power, set to OFF.
9
Page 10

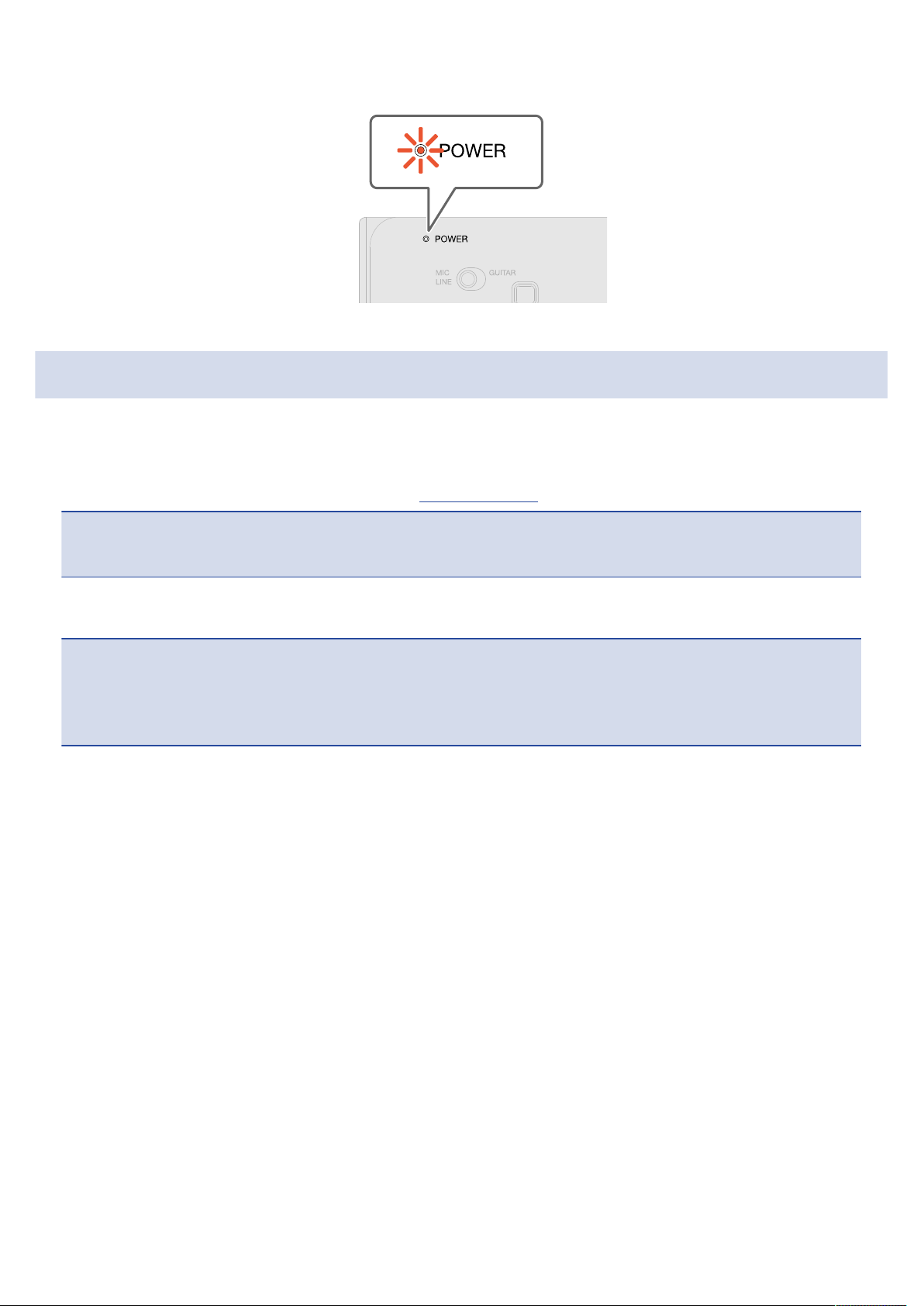

5. Confirm that the POWER indicator is lit red.
Installing the driver on Windows computers
The dedicated driver must be installed on a Windows computer before using a DAW app on it to record.
1. Download the “ZOOM AMS-24 Driver” from zoomcorp.com to the computer.
NOTE:
The latest “ZOOM AMS-24 Driver” can be downloaded from the above website.
2. Launch the installer and follow the instructions to install the “ZOOM AMS-24 Driver”.
NOTE:
• Do not connect the AMS-24 to the computer during installation.
• See the Installation Guide included in the driver package for detailed installation procedures.
10
Page 11
Connecting smartphones and tablets
USB Type-C
During use with a smartphone or tablet, an external power supply or batteries must be used.
1. Minimize the volume before connecting speakers, headphones or other output devices to the AMS-24.
(→ Adjusting the volume)
2. Connect an external power supply or use batteries. (→ Using an external power supply, Using
batteries)
NOTE:
Power must be provided before connecting a smartphone or tablet to the AMS-24.

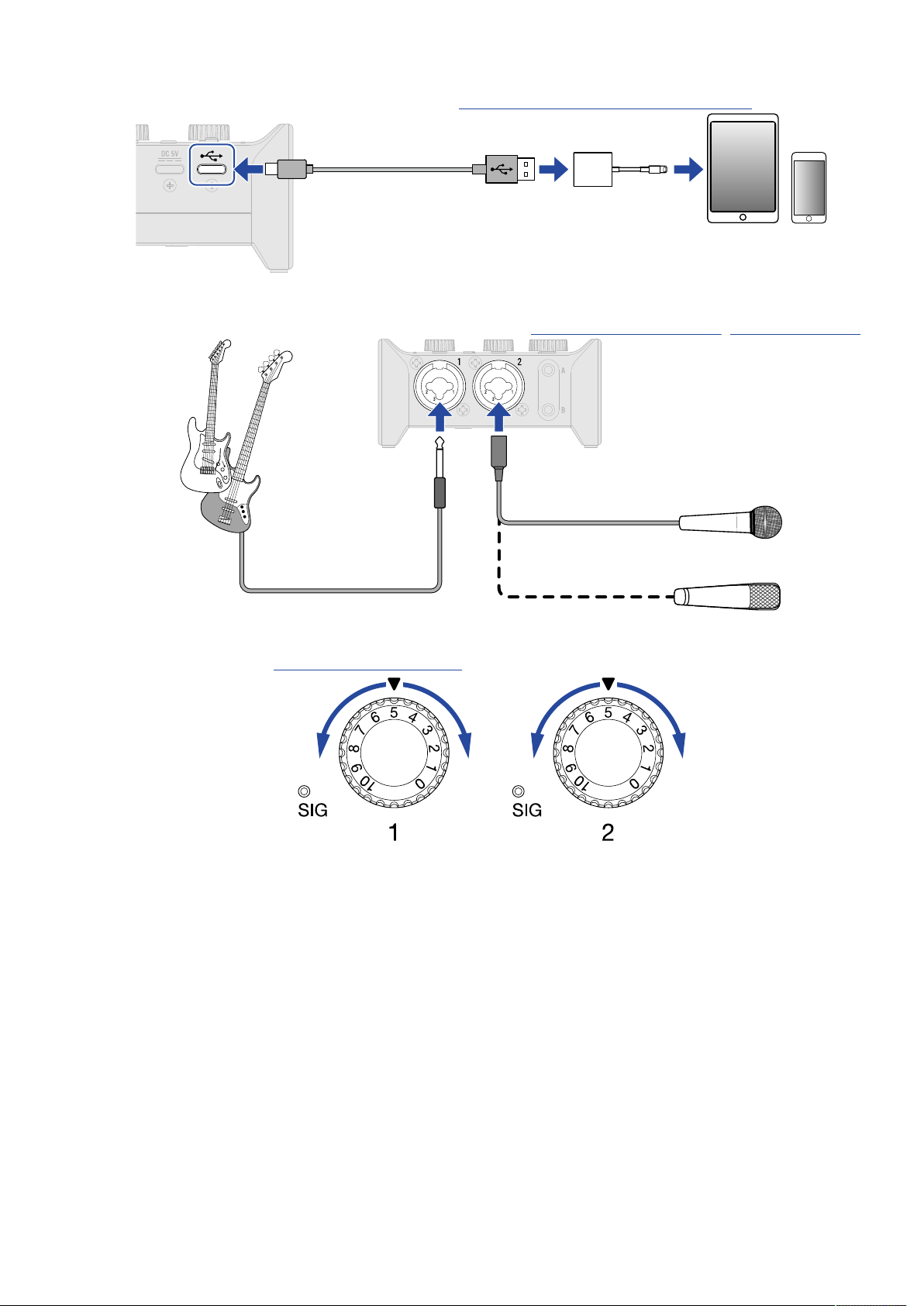

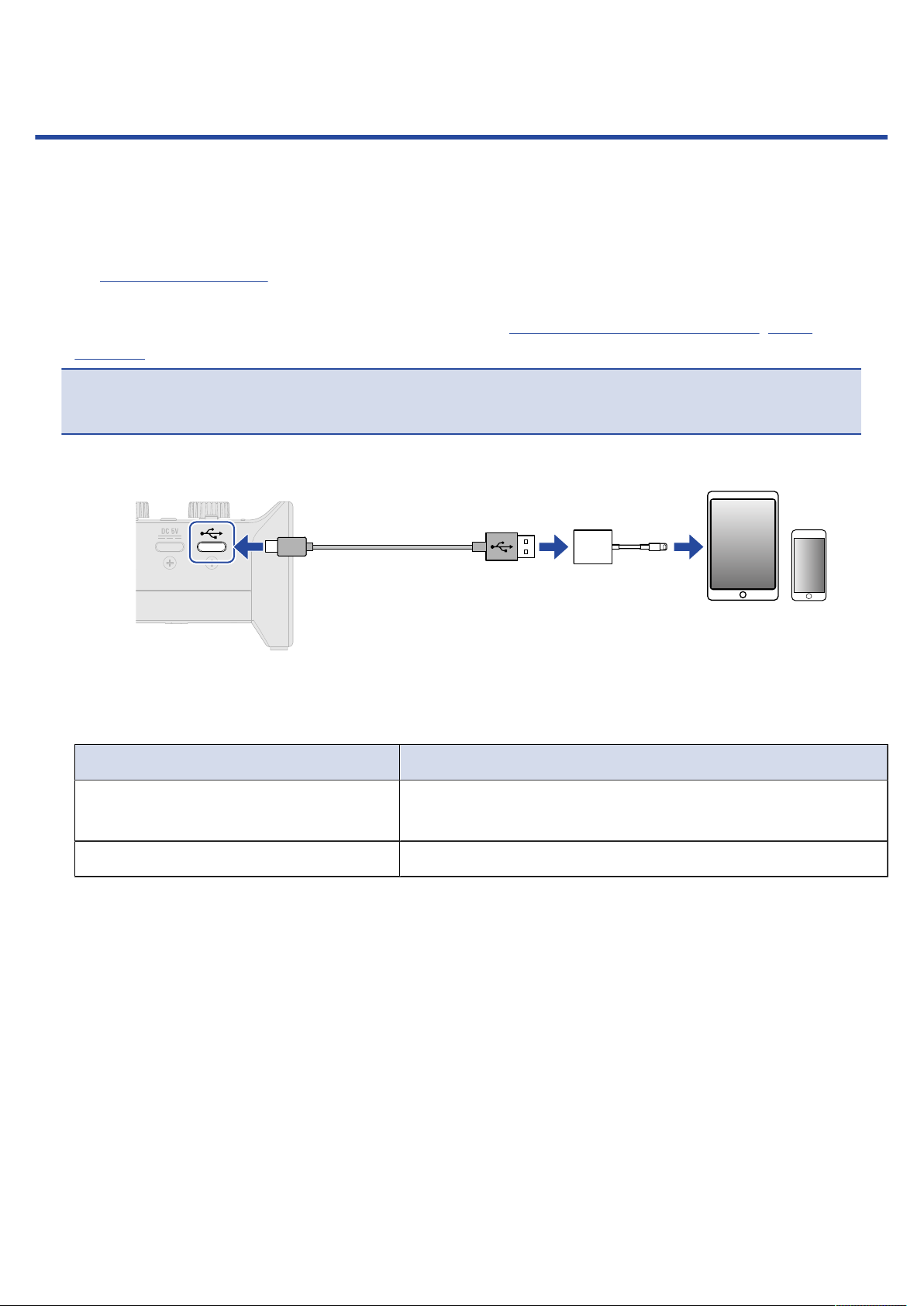

3. Use a USB cable to connect the AMS-24 USB port (Type-C) to the smartphone/tablet.
To connect smartphones and tablets, prepare USB cables and adapters that match their connectors as
necessary.
Use a USB cable that supports data transfer.
Connector typeNecessary USB cable/adapter
Lightning connectorUSB Type-A to Type-C cable, Lightning to USB 3 Camera
Adapter
Type-C connectorUSB Type-C to Type-C cable
11
Page 12
Supplying power
Using an external power supply
A dedicated AC adapter (ZOOM AD-17) or a commercially-available USB mobile battery can be used.

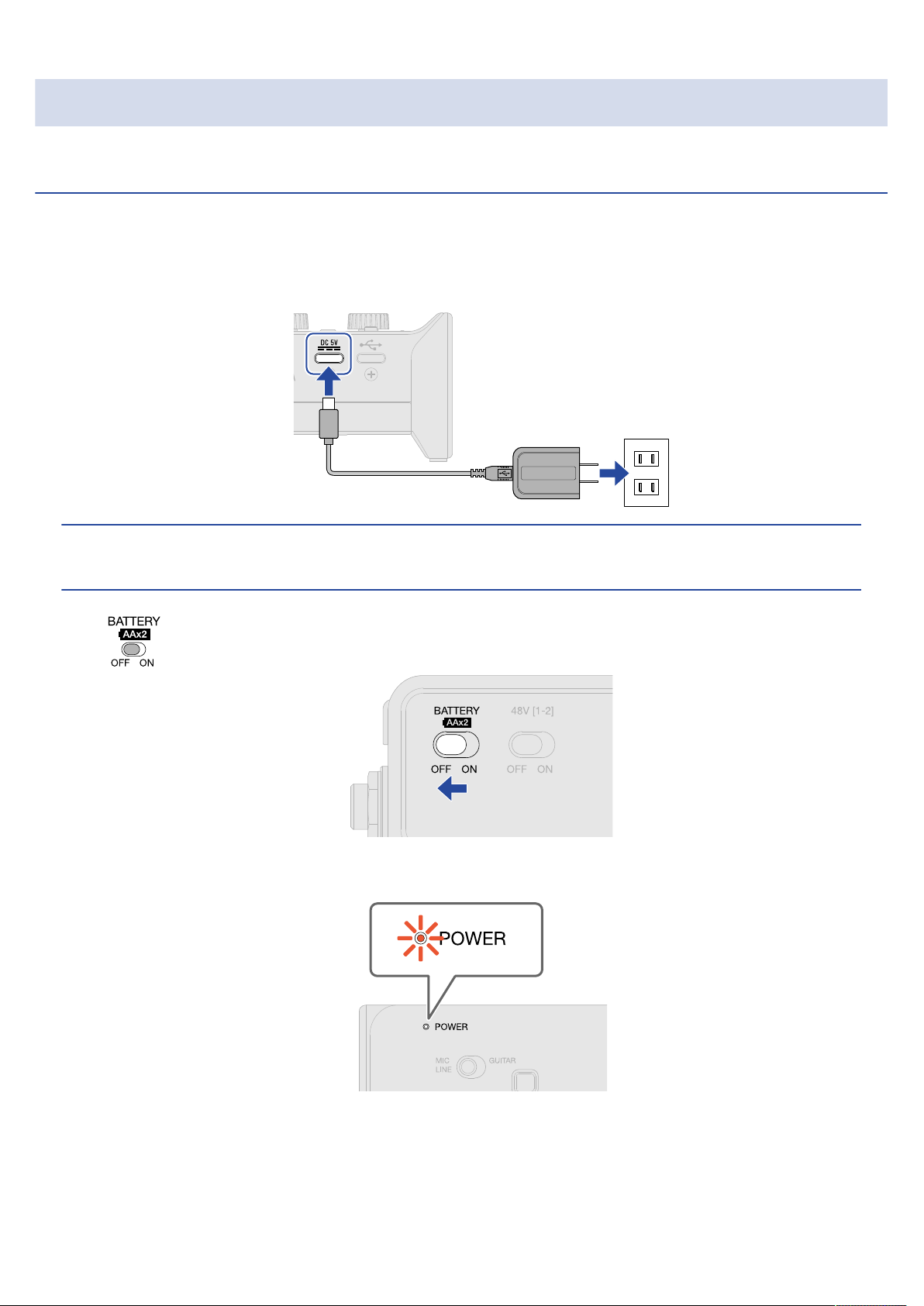

1. Connect the USB connector of the dedicated AC adapter to the DC 5V port (Type-C), and plug the AC
adapter into an outlet.
HINT:
To use a USB mobile battery, connect its USB cable to the DC 5V port (Type-C).
2. Set to OFF.
3. Confirm that the POWER indicator is lit red.
12
Page 13
Using batteries

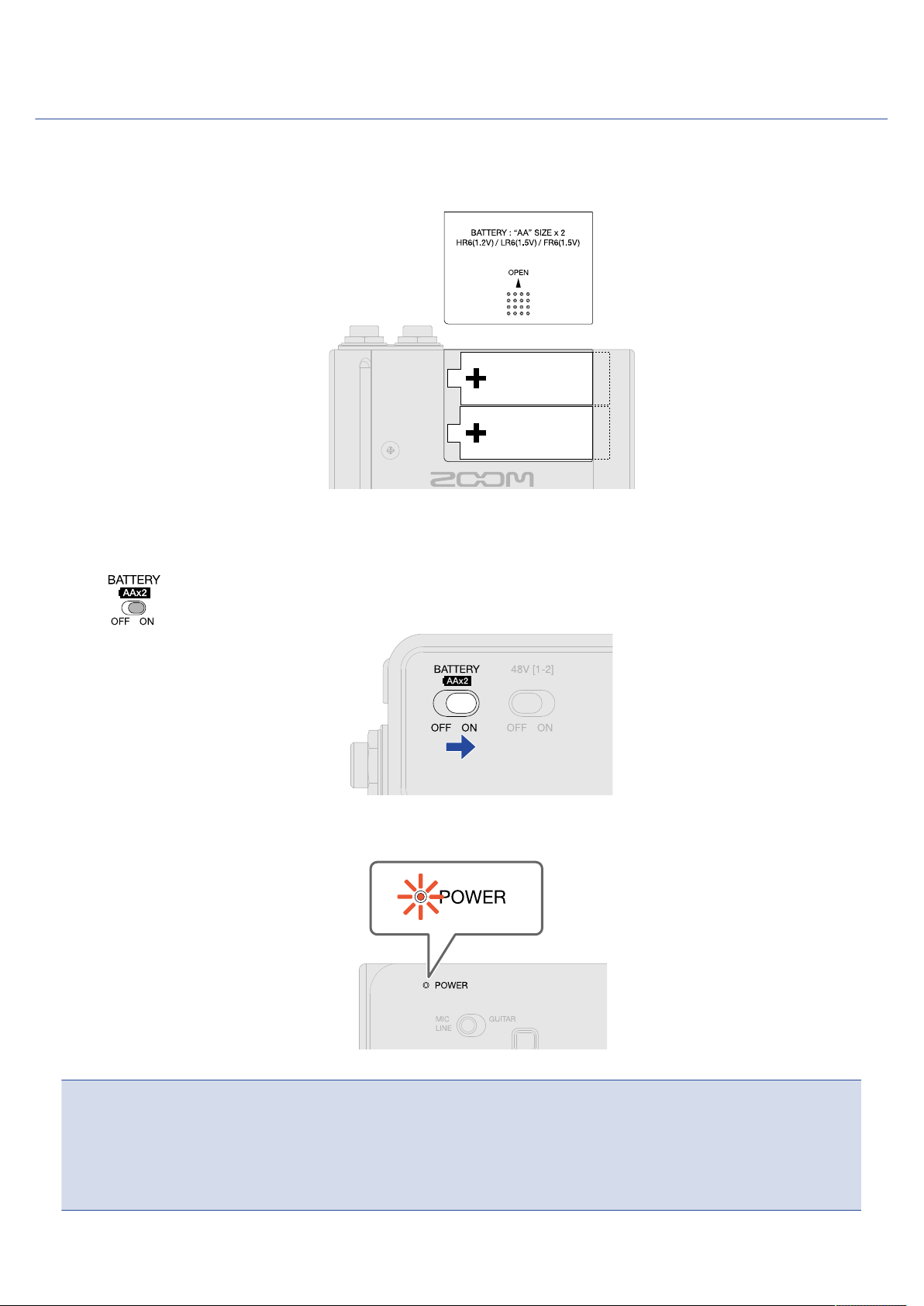

Prepare two AA batteries.
1. Slide open the battery cover on the bottom of the AMS-24 and install the batteries.
2. Slide the battery cover to close it.
3. Set to ON.
4. Confirm that the POWER indicator is lit red.
NOTE:
• Use only one type of battery (alkaline, NiMH or lithium) at a time.
• The POWER indicator will blink when the battery charge becomes low. Replace the batteries with new
ones.
13
Page 14
Connecting instruments and mics
Always set to 0 and to OFF before connecting instruments and mics.
Connecting instruments

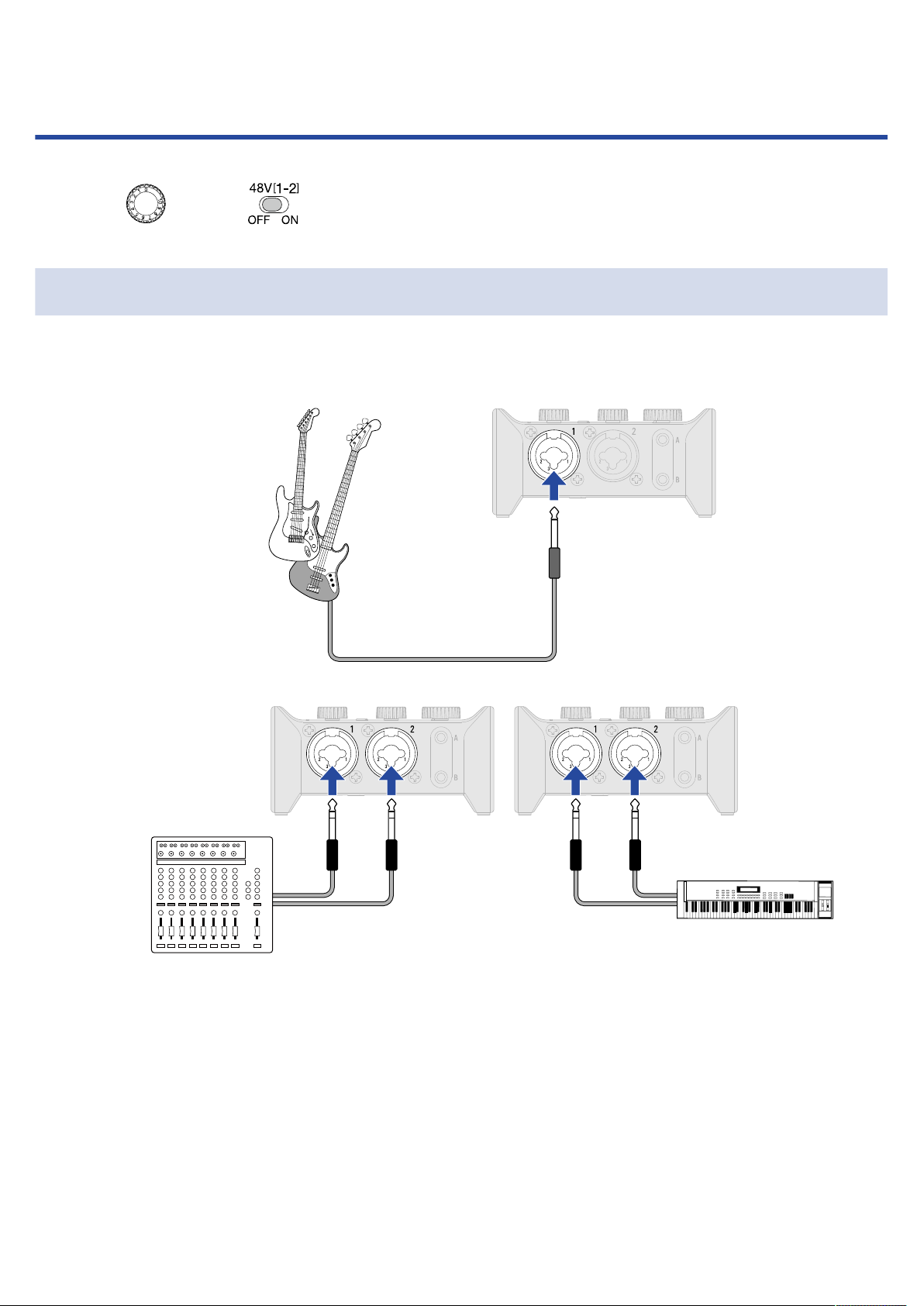

1. Connect an instrument to the AMS-24.
• Use an instrument cable to connect a guitar or bass, for example, to the Input 1 jack.
• Use instrument or TRS cables to connect a keyboard, or mixer, for example, to the Input 1–2 jacks.
14
Page 15
2. Set according to the device connected to the Input 1 jack.
Switch positionExplanation
Use this setting when connecting a passive guitar or bass.
Set this to GUITAR to support high-impedance (Hi-Z) input. This does not
need to be set to GUITAR when connecting an active guitar or bass.
Use this setting when connecting a mic or keyboard, for example.
NOTE:
• Phantom power (48 V) is only supplied to the XLR connectors.
• When is set to GUITAR, phantom power (48 V) to the Input 1 jack is disabled. When
connecting a condenser mic to the Input 1 jack and using phantom power (48 V), set to
MIC/LINE.
3. When connecting a keyboard or other equipment with stereo output, set the Stereo Link switch to ON.
(→Stereo link overview)
15
Page 16
Connecting mics
1. Use mic cables to connect dynamic and condenser mics to the Input 1 and 2 jacks.
2. When connecting a mic to the Input 1 jack, set to MIC/LINE.
3. Use to set phantom power.
Phantom power is supplied to the XLR connectors of both Inputs 1 and 2 simultaneously.
Switch positionExplanation
Use this to supply phantom power to condenser mics.
Use this when connecting dynamic mics.
16
Page 17
NOTE:
L
R
L
R
Do not set to ON when connecting equipment that is not compatible with phantom power. Doing so
could damage the equipment.
Stereo link overview

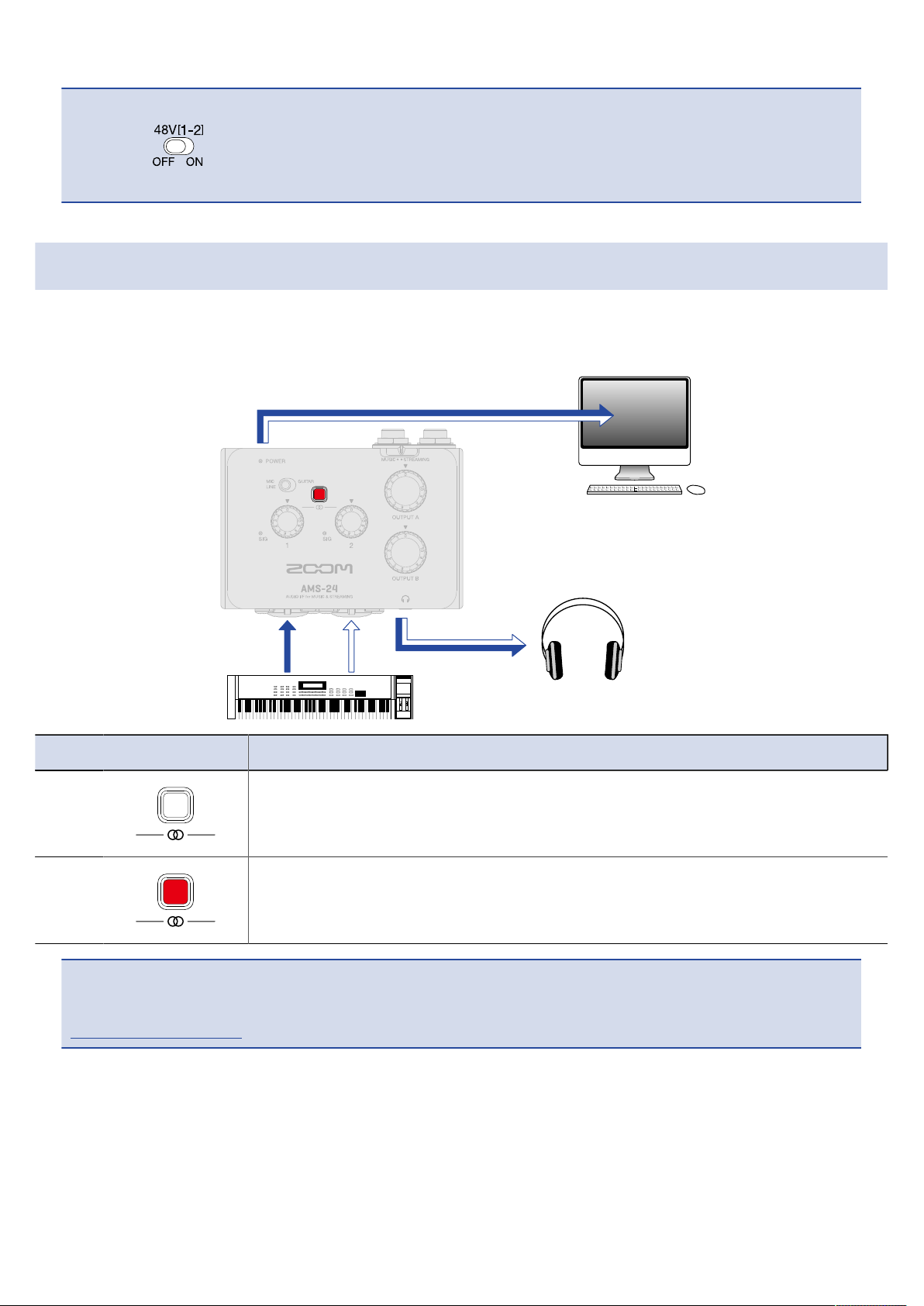

Turning on the stereo link enables stereo input with sound from Input 1 to the left and Input 2 to the right.
When connecting a keyboard or other equipment with stereo output, set the Stereo Link switch to ON.
Switch statusDirect monitoring and USB Inputs 1/2 (when in STREAMING mode)
Inputs 1 and 2 are mono.
OFF
L: Inputs 1 and 2
R: Inputs 1 and 2
Inputs 1 and 2 are stereo.
ON
L: Input 1
R: Input 2
NOTE:
When the Stereo Link switch is on, the input gain for both Inputs 1 and 2 is controlled by Gain knob 1. (→
Adjusting the input gain)
17
Page 18
Adjusting the input gain
The input sensitivity of Inputs 1–2 can be adjusted.
1. Use to adjust the input signals while inputting sound from instruments and mics.
Level indicators
: Input signal present (−48 dBFS or higher).
: Input signal is clipping (−1 dBFS or higher).
NOTE:
• Set these so that their level indicators do not light red.
• To minimize noise, set the gain for any input jack not being used to 0.
• When the Stereo Link switch is on, the input gain for both Inputs 1 and 2 is controlled by Gain knob 1. (→
Stereo link overview)
18
Page 19
Using direct monitoring
When direct monitoring is turned on, sound input to the AMS-24 can be directly monitored using
headphones, for example, before it passes through the computer. This enables monitoring without latency.
1. Set to ON.
HINT:
When the Stereo Link switch is on, sounds from Inputs 1 and 2 can be monitored in stereo. (→Stereo link
overview)
19
Page 20
Adjusting the volume
The volume output from speakers and headphones connected to the AMS-24 can be adjusted.
The connected jacks have different knobs to adjust their volumes.
NOTE:
Set the AMS-24 volume to 0 before connecting speakers or headphones.
Failure to do so could result in unexpected loud sounds, causing harm to hearing, for example.

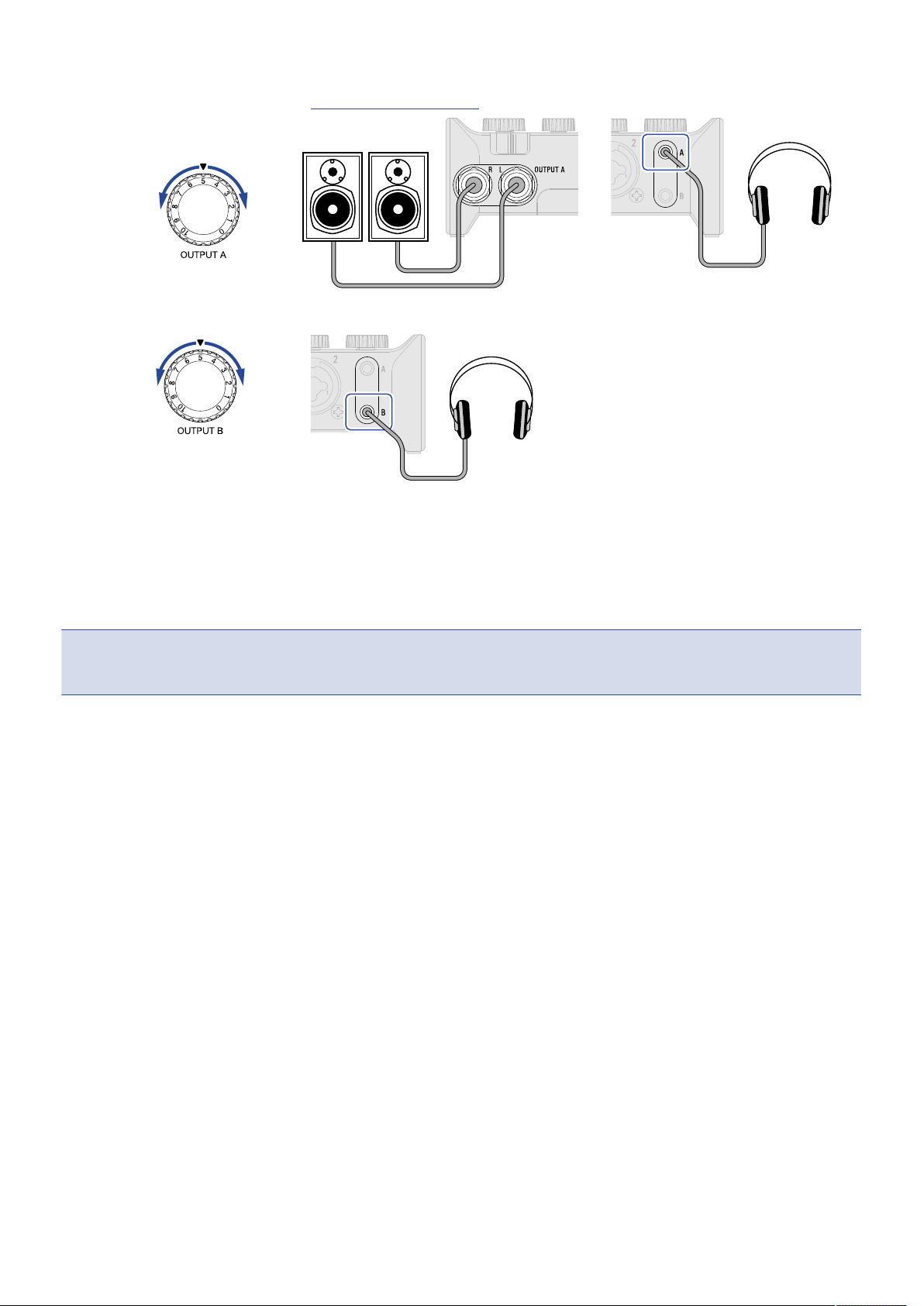

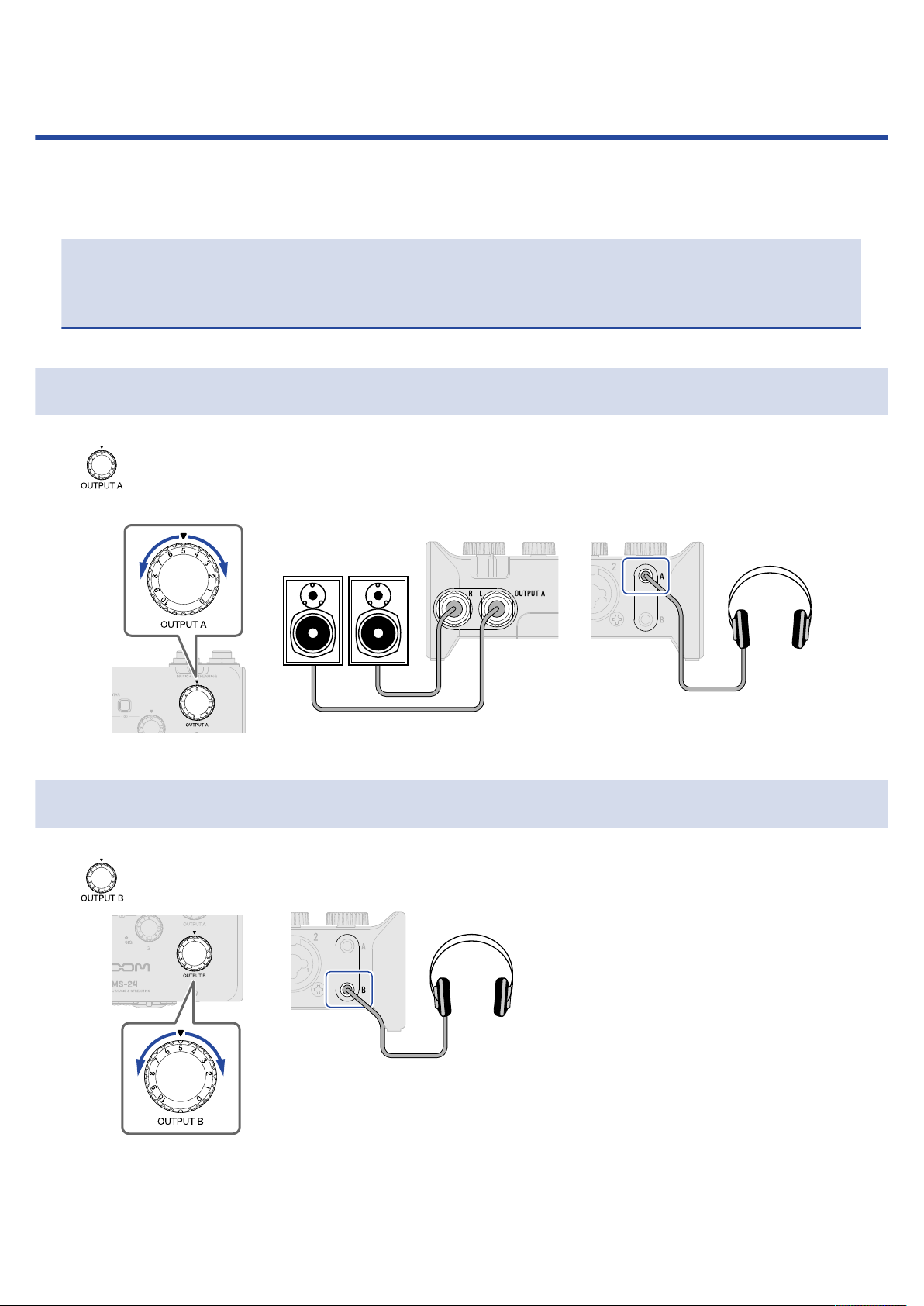

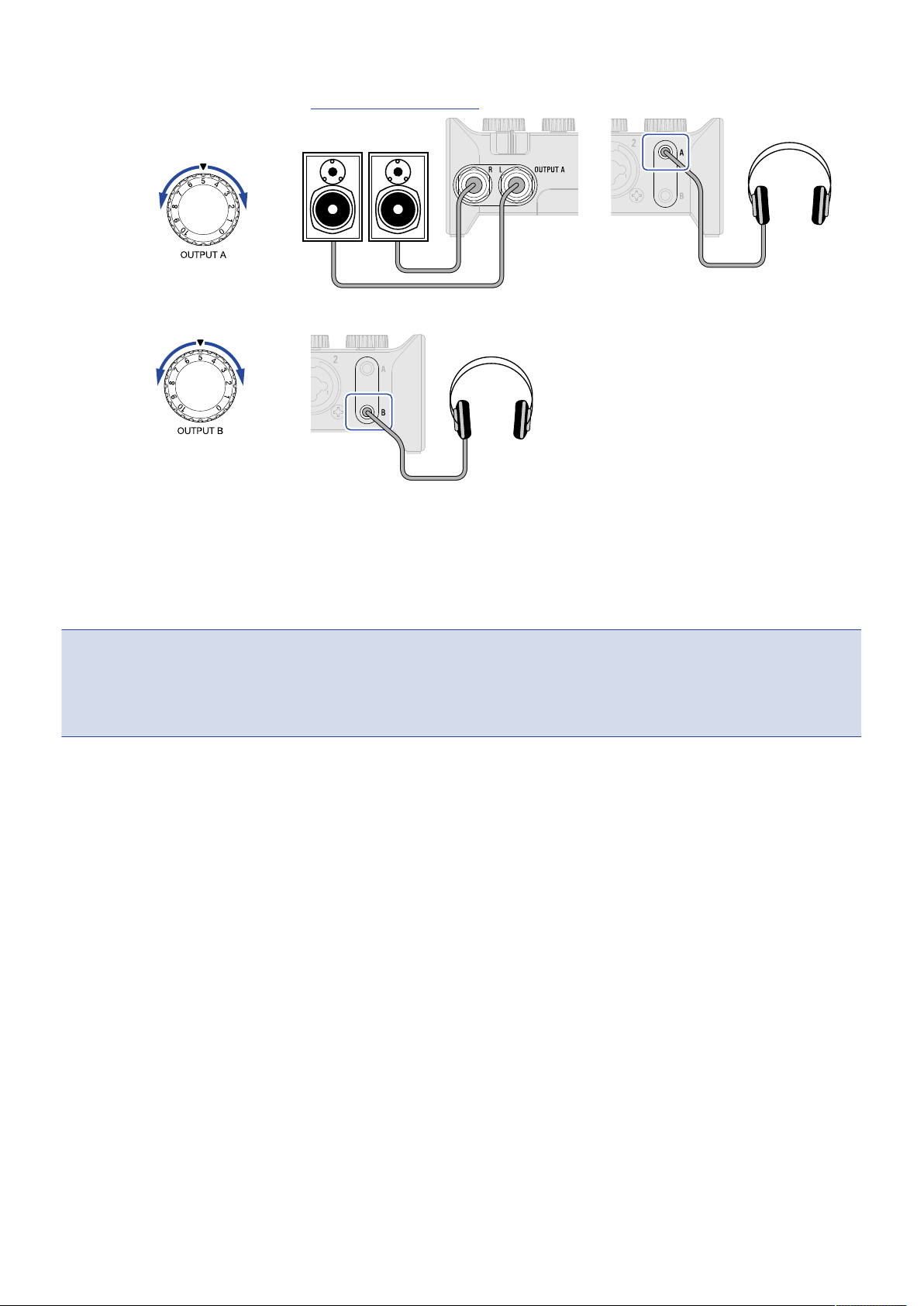

Adjusting OUTPUT A volume
Turn to adjust the volume for the Headphone A output jack on the front of the unit and OUTPUT A
standard phone jacks on the back of the unit.
Adjusting OUTPUT B volume
Turn to adjust the volume for the Headphone B output jack on the front of the unit.
20
Page 21
Enabling the loopback function
BGM
ON AIR
WEB
LOOPBACKLOOPBACK

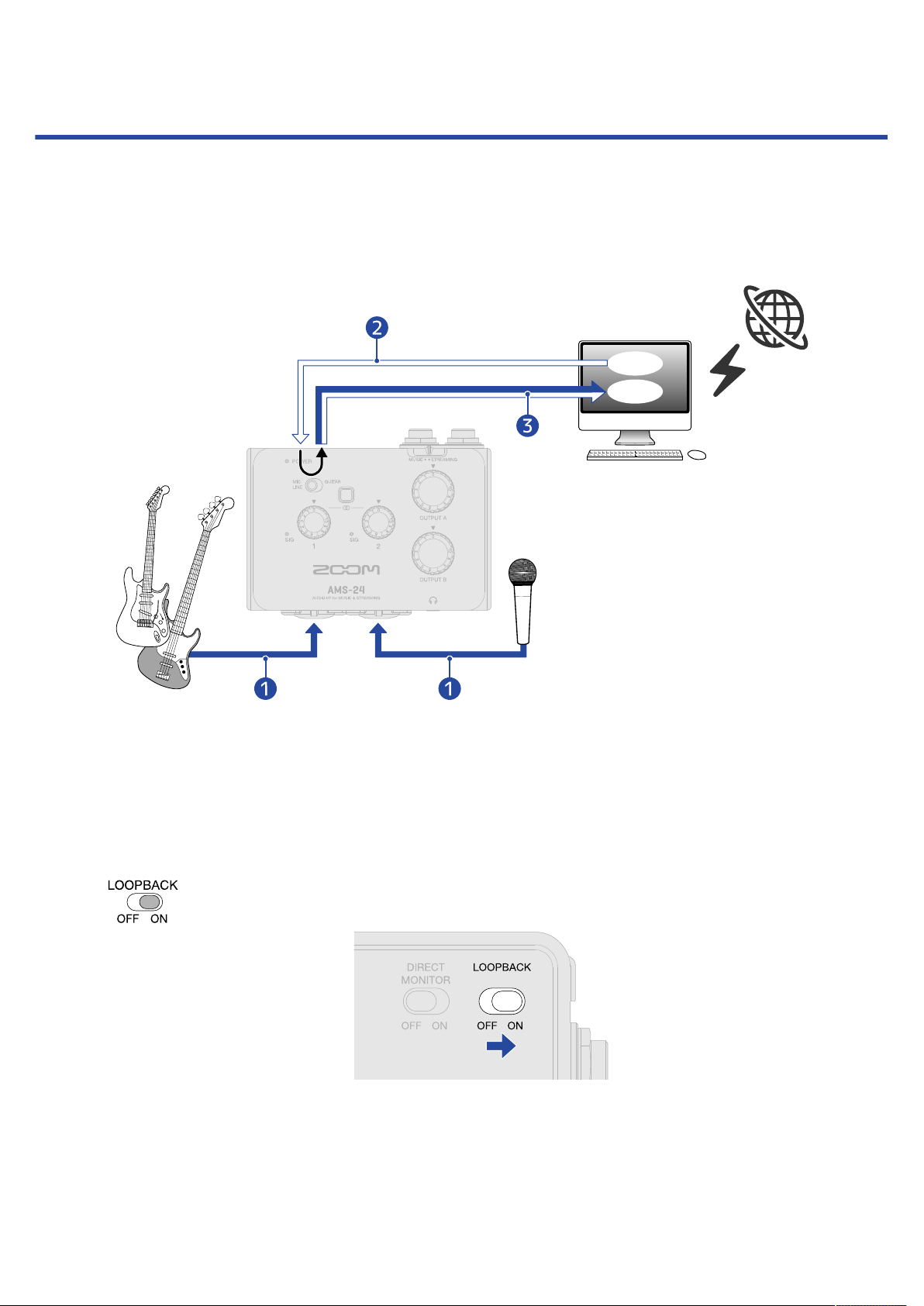

By turning the LOOPBACK function ON, sound input through the AMS-24 Input 1–2 jacks and sound output
from the computer can be mixed and then input to the computer again (looped back).
This is convenient for mixing background music played on the computer with sound input through the
AMS-24 and streaming it live, for example.
Mic and instrument sounds are input to the AMS-24.
❶
BGM from the computer is input to the AMS-24.
❷
The mic and instrument sounds and the BGM from the computer are mixed and output to the
❸
computer.
1. Set to ON.
21
Page 22
NOTE:
• When is set to ON, disable AMS-24 monitoring in the DAW or streaming application.
If enabled, a feedback loop could be generated, which might cause loud noise to be output.
• The USB OUTPUT 3/4 sound will not be looped back.
22
Page 23
Use example: Making music
DAW
INPUT1
INPUT2
INPUT1
INPUT2
OUTPUT A
OUTPUT B
INPUT1
DAW
INPUT2
OUTPUT 1/2
OUTPUT 3/4
AMS-24
To make music using a DAW app to record guitar and vocals at the same time, for example, set the AMS-24
to MUSIC mode. The audio from the guitar and vocals can be recorded to separate tracks.
1. Set to MUSIC mode. (→MUSIC mode)
2. Supply power if using a smartphone or tablet. (→Supplying power)
NOTE:
Power must be provided before connecting a smartphone or tablet to the AMS-24.
23
Page 24
3. Connect the AMS-24 and the computer, smartphone or tablet. (→Connecting to a computer,
USB Type-C
USB Type-C
Connecting smartphones and tablets)
4. Connect the mic and instrument and set the switches. (→Connecting instruments, Connecting mics)
5. Adjust the input gain. (→Adjusting the input gain)
24
Page 25
6. Adjust the output volume. (→Adjusting the volume)
7. Launch the DAW app on the computer, smartphone or tablet, and select the AMS-24 as the audio
interface.
8. Create recording tracks in the DAW app, and start recording.
NOTE:
Refer to the DAW app manual for how to use it.
25
Page 26
Use example: Web streaming using a
BGM
ON AIR
WEB
WEB
INPUT1
INPUT2
OUTPUT A
OUTPUT B
INPUT1
INPUT2
OUTPUT 1/2
OUTPUT 3/4
R
L
AMS-24
USB Type-C
computer
When connecting with a computer for web streaming or podcast recording, set the AMS-24 to STREAMING
mode.
1. Set to STREAMING mode. (→STREAMING mode)
2. Connect the AMS-24 and the computer. (→Connecting to a computer)
26
Page 27

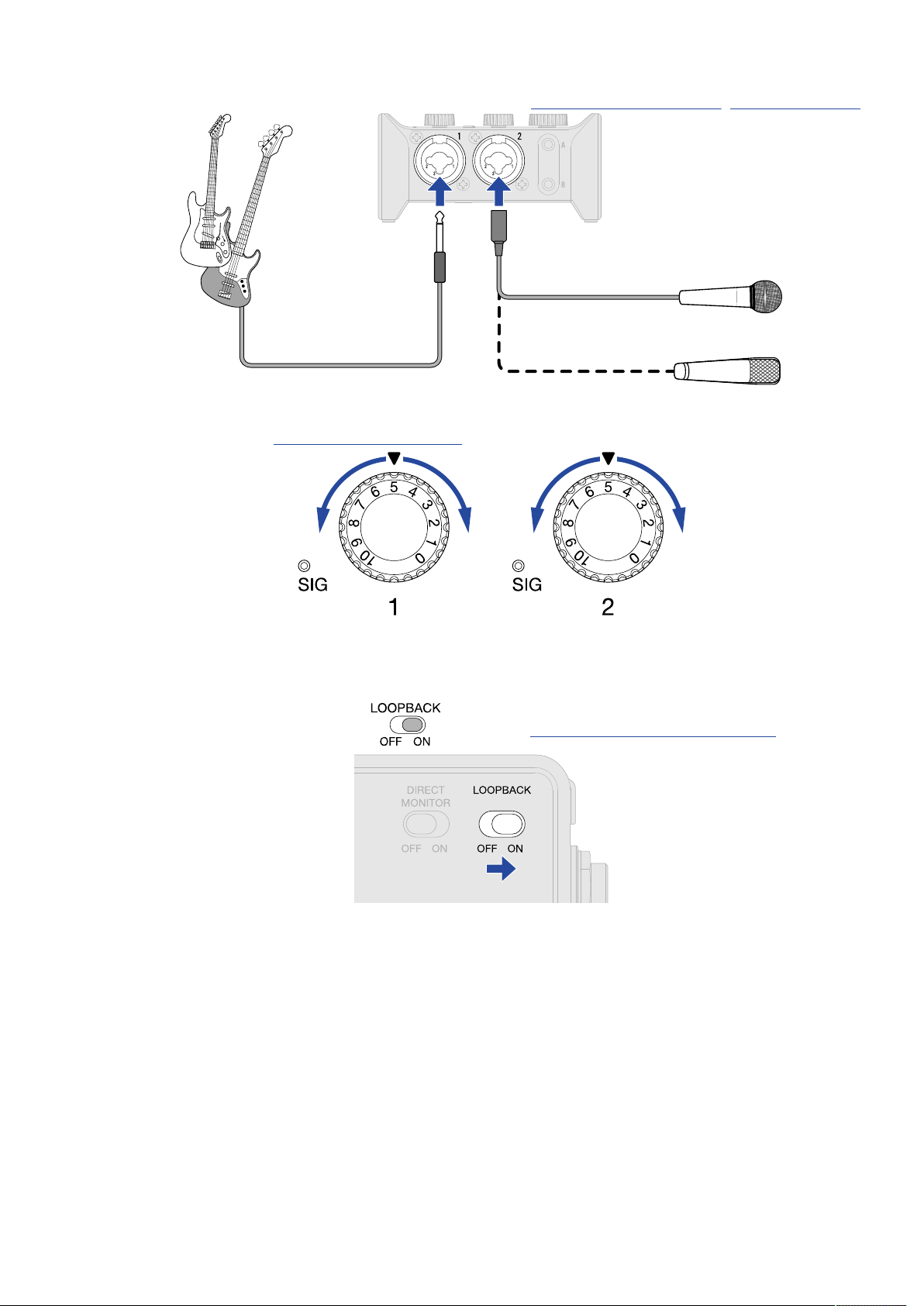

3. Connect the mic and instrument and set the switches. (→Connecting instruments, Connecting mics)
4. Adjust the input gain. (→Adjusting the input gain)
5. Select the AMS-24 as the computer input and output device.
6. To enable the loopback function, set to ON. (→Enabling the loopback function)
27
Page 28
7. Adjust the output volume. (→Adjusting the volume)
8. Launch the streaming app on the computer, smartphone or tablet, and select the AMS-24 as the
“audio” or “input/output” device.
9. Start streaming.
NOTE:
• Use BGM with permission from its creators.
• Refer to the streaming app manual for how to use it.
28
Page 29
Use example: Web streaming using a
BGM
ON AIR
WEB
BGM
ON AIR
WEB
INPUT1
INPUT2
OUTPUT A
OUTPUT B
INPUT1
INPUT2
OUTPUT 1/2
OUTPUT 3/4
R
L
AMS-24
smartphone/tablet
When using a smartphone/tablet for web streaming or podcast recording, set the AMS-24 to STREAMING
mode.
1. Set to STREAMING mode. (→STREAMING mode)
2. Supply power. (→Supplying power)
NOTE:
Power must be provided before connecting a smartphone or tablet to the AMS-24.
29
Page 30
3. Connect the AMS-24 and smartphone/tablet. (→Connecting smartphones and tablets)
USB Type-C
4. Connect the mic and instrument and set the switches. (→Connecting instruments, Connecting mics)
5. Adjust the input gain. (→Adjusting the input gain)
30
Page 31
6. Adjust the output volume. (→Adjusting the volume)
7. Launch the streaming app on the smartphone/tablet, and start streaming.
NOTE:
Refer to the streaming app manual for how to use it.
31
Page 32

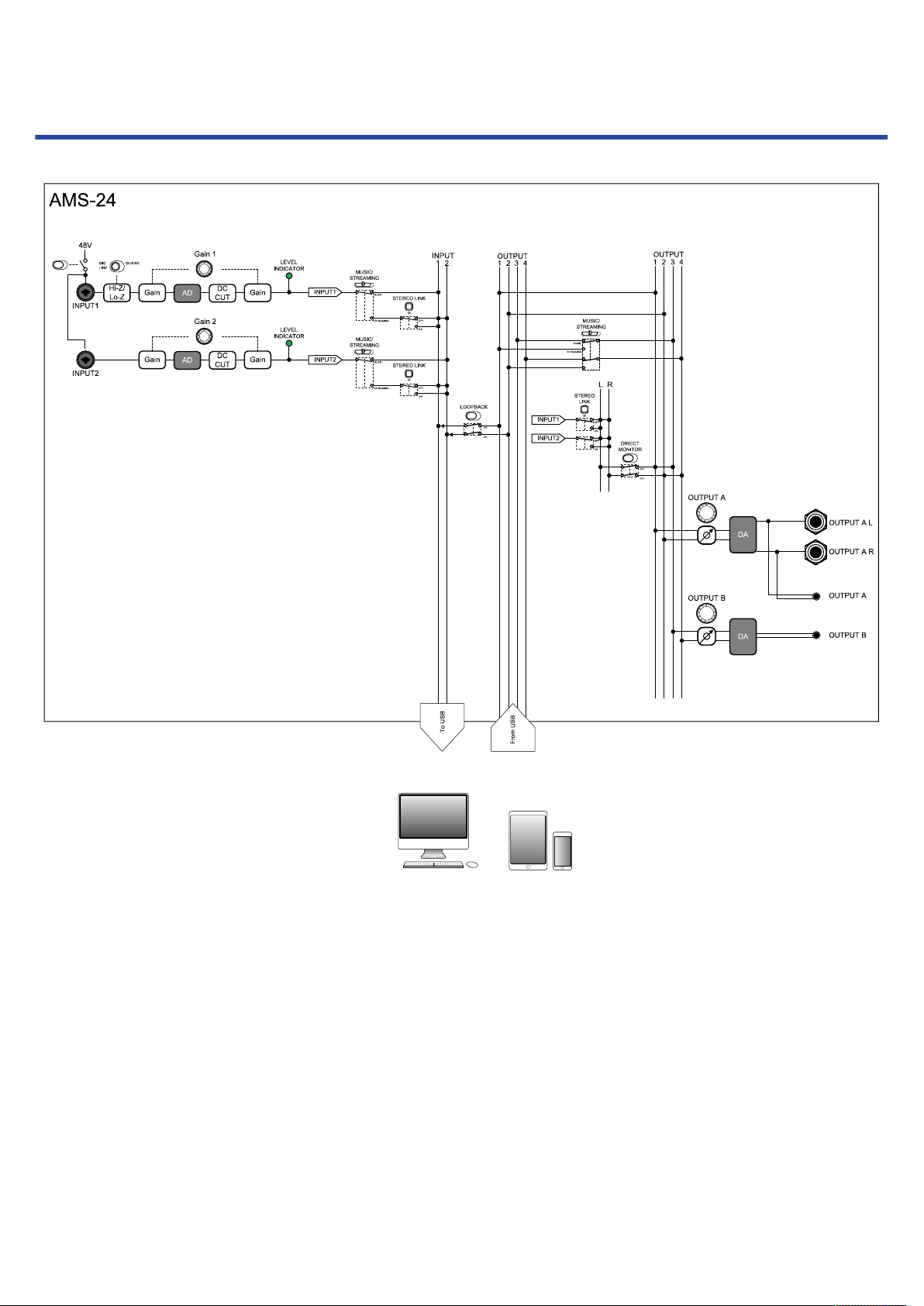

Mixer diagram
32
Page 33
Terms used in this manual
USB audio interface
This is a device that can input sound from mics and instruments, for example, to a computer, smartphone
or tablet as well as output sound from such a device to speakers and headphones.
Dynamic mic
These mics do not require phantom power and are tough and durable.
Condenser mic
These mics usually have high sensitivity and can capture sound with high quality. These require phantom
power supply for use.
Phantom power (48 V)
This is a function that supplies power to devices that require an external power supply, including some
condenser mics.
+48 V is standard.
33
Page 34
Troubleshooting
Cannot select or use the AMS-24 device
• Confirm that the AMS-24 has been connected correctly on the computer. (→Connecting to a computer)
• Quit all software that is using the AMS-24. Then, disconnect and reconnect the USB cable connected to
the AMS-24.
• If using a USB hub, stop using it. Connect the AMS-24 directly to a USB port on the computer.
• When connecting to a Windows computer, installing the dedicated driver can resolve problems with
applications other than DAWs. (→Installing the driver on Windows computers)
• Reinstall the dedicated driver.
The sounds of devices connected to input jacks are
distorted, too quiet or silent
• When using a condenser mic, set to ON.
• Confirm that the level indicator is not lighting red. If it is lighting red, use the Gain knob to lower
the input gain.
• Use the Gain knob to adjust the signal level.
• Use OUTPUT A and OUTPUT B knobs to adjust the volume.
Cannot play or record
• Confirm that “ZOOM AMS-24” is selected in the “Sound” setting of the computer being used.
• Confirm that AMS-24 is set for input and output in the software being used.
• Quit all software that is using the AMS-24. Then, disconnect and reconnect the USB cable connected to
the AMS-24.
34
Page 35

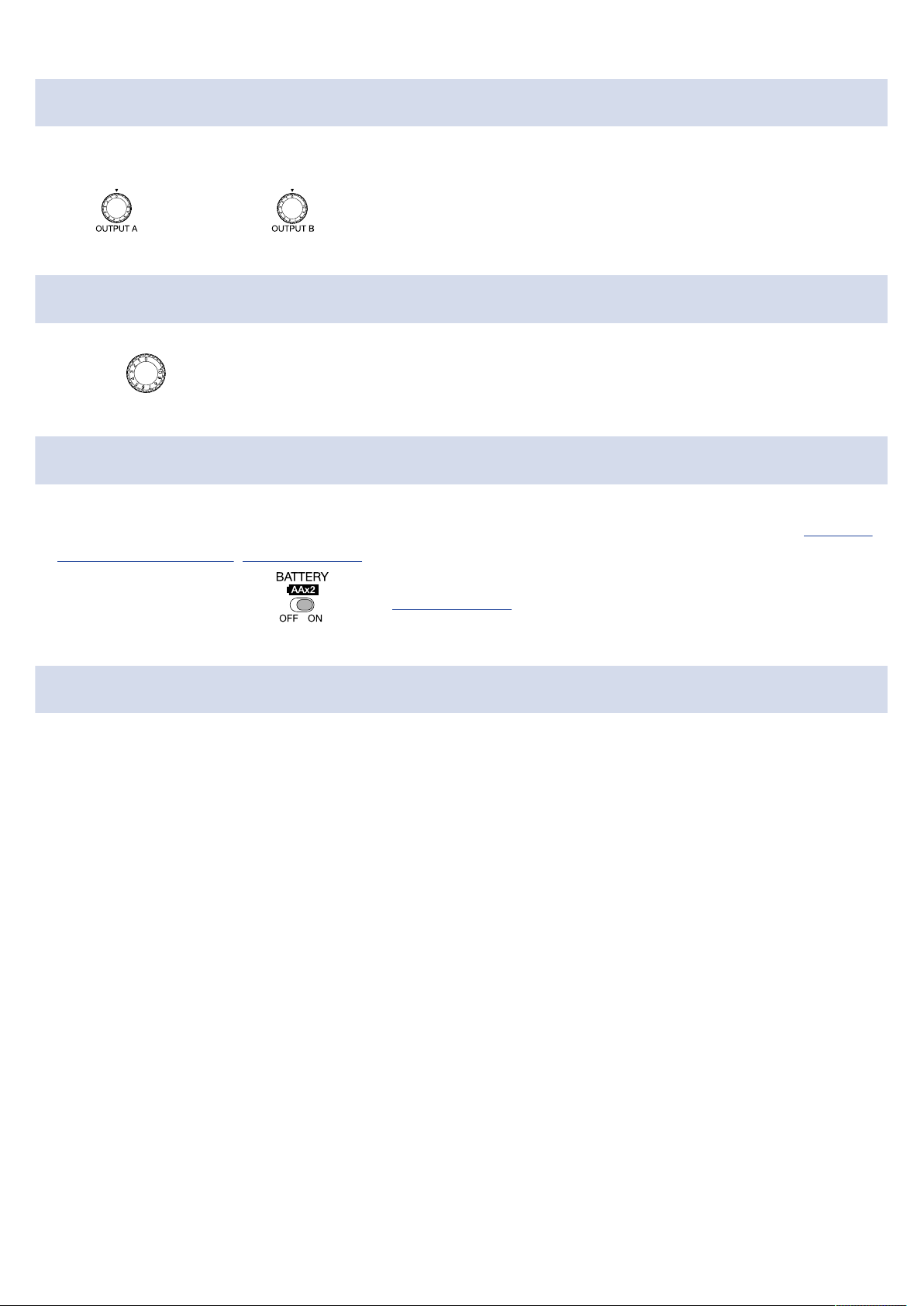

Playback sound cannot be heard or is quiet
• Check the connections and volume settings of the speakers.
• Use OUTPUT A and OUTPUT B knobs to adjust the volume.
Recorded audio is too loud, too quiet or silent
• Use the Gain knobs to adjust the signal levels.
A smartphone or tablet cannot be used
• Confirm that the external power supply is connected or that batteries are loaded correctly. (→Using an
external power supply, Using batteries)
• When using batteries, turn on. (→Using batteries)
Sound skips during playback or recording
• If the audio buffer size of the software being used can be adjusted, increase it.
• Turn off the automatic sleep function and other computer power saving settings.
• If using a USB hub, stop using it. Connect the AMS-24 directly to a USB port on the computer.
35
Page 36
Specifications
Input and output channels
Connectors
Number of input
channels
Number of output
channels
Input 1–2
OUTPUT A
(standard phone jacks)
Mono (MIC/LINE)2
Stereo (TRS)1
Stereo (PHONES)2
TypeXLR/TRS combo jacks
(XLR: 2 HOT, TRS: TIP HOT)
Input gain−∞ – +58 dB / −∞ – +50 dB (when
set to GUITAR)
Input impedanceXLR: 2.7 kΩ
TRS: 18 kΩ / 330 kΩ (when set to
GUITAR)
Maximum input levelXLR: +6 dBu
TRS: +22 dBu / +8.5 dBu (when set
to GUITAR)
Phantom+48 V
TypeTRS phone jacks (impedance
balanced)
Maximum output
level
Output impedance100 Ω
OUTPUT A–B
(headphone jacks)
USBUSB Type-C (audio interface
DC 5VUSB Type-C (for power supply)
Frequency response44.1 kHz: ±1 dB (20 Hz – 20 kHz)
Equivalent input noise–120 dBu or less (IHF-A) at
Audio interface
Input and output
channels
Type3.5mm stereo mini jacks
Output impedance10 Ω
+10 dBu (at 0 dBFS)
30 mW + 30 mW (32 Ω load)
function)
• Use a USB cable that supports
data transfer. USB bus power is
supported.
