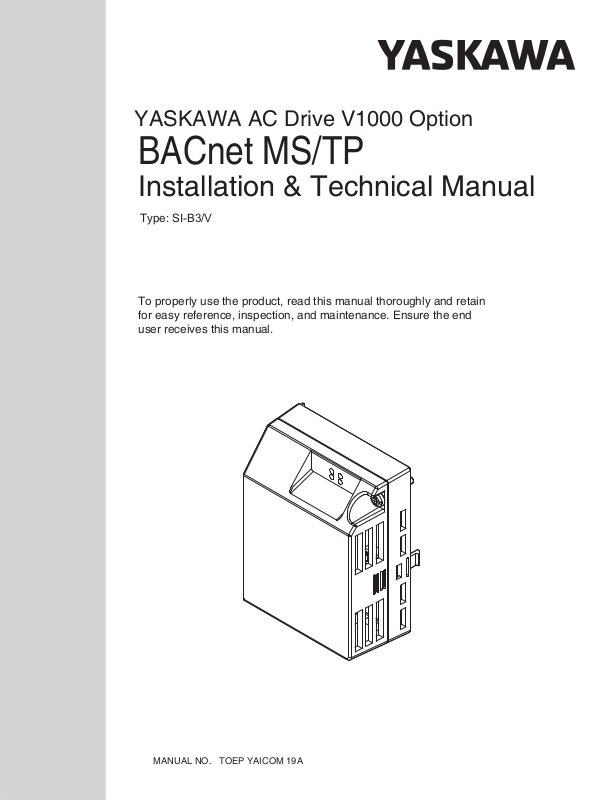

Yaskawa MSTPSI-B3V User Manual

YASKAWA AC Drive V1000 Option

BACnet MS/TP

Installation & Technical Manual

Type: SI-B3/V

To properly use the product, read this manual thoroughly and retain for easy reference, inspection, and maintenance. Ensure the end user receives this manual.

MANUAL NO. TOEP YAICOM 19A

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written permission of Yaskawa. No patent liability is assumed with respect to the use of the information contained herein. Moreover, because Yaskawa is constantly striving to improve its high-quality products, the information contained in this manual is subject to change without notice. Every precaution has been taken in the preparation of this manual. Yaskawa assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.

Table of Contents

1 PREFACE AND SAFETY.....................................4

2 PRODUCT OVERVIEW........................................9

3 RECEIVING.......................................................10

4 OPTION COMPONENTS....................................11

5 INSTALLATION PROCEDURE...........................15

6 RELATED DRIVE PARAMETERS......................29

7 TROUBLESHOOTING........................................31

8 DRIVE OPERATIONS BY BACNET....................35

9 BACNET OBJECTS SUPPORTED.....................36

10 ACCESSING DRIVE PARAMETERS AND THE

ENTER COMMAND...........................................43

11 BACNET PROTOCOL IMPLEMENTATION

CONFORMANCE STATEMENT (PICS)...............45

12 SPECIFICATIONS.............................................48

TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

YASKAWA

1 Preface and Safety

Yaskawa manufactures products used as components in a wide variety of industrial systems and equipment. The selection and application of Yaskawa products remain the responsibility of the equipment manufacturer or end user. Yaskawa accepts no responsibility for the way its products are incorporated into the final system design. Under no circumstances should any Yaskawa product be incorporated into any product or design as the exclusive or sole safety control. Without exception, all controls should be designed to detect faults dynamically and fail safely under all circumstances. All systems or equipment designed to incorporate a product manufactured by Yaskawa must be supplied to the end user with appropriate warnings and instructions as to the safe use and operation of that part. Any warnings provided by Yaskawa must be promptly provided to the end user. Yaskawa offers an express warranty only as to the quality of its products in conforming to standards and specifications published in the Yaskawa manual. NO OTHER WARRANTY, EXPRESS OR IMPLIED, IS OFFERED. Yaskawa assumes no liability for any personal injury, property damage, losses, or claims arising from misapplication of its products.

Applicable Documentation

The following manuals are available for the SI-B3/V option:

Yaskawa AC Drive V1000 Option SI-B3/V BACnet Installation & Technical Manual (TOEPYAICOM19)

he Installation & Technical Manual is packaged with the SI-B3/V option and contains detailed information required to install the option and set up related drive parameters. This manual also contains information about troubleshooting procedures and BACnet supported objects.

V1000 Series AC Drive Quick Start Guide (TOEPC71060647)

This guide contains basic information required to install and wire the drive. It also gives an overview of fault diagnostics, maintenance, and parameter settings. The purpose of this guide is to prepare the drive for a trial run with an application and for basic operation. This manual is available for download on our documentation website, www.yaskawa.com.

V1000 Series AC Drive Technical Manual (SIEPC71060618)

This manual provides detailed information on parameter settings, drive functions, and MEMOBUS/Modbus specifications. Use this manual to expand drive functionality and to take advantage of higher performance features. This manual is available for download on our documentation website, www.yaskawa.com.

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

1 Preface and Safety

Terms

Note: Indicates supplemental information that is not related to safety messages.

Drive: Yaskawa V1000-Series Drive

Option: Yaskawa AC Drive V1000 SI-B3/V BACnet Option

Registered Trademarks

All trademarks are the property of their respective owners.

Supplemental Safety Information

Read and understand this manual before installing, operating, or servicing this option. The option must be installed according to this manual and local codes.

The following conventions are used to indicate safety messages in this manual. Failure to heed these messages could result in serious or possibly even fatal injury or damage to the products or to related equipment and systems.

DANGER

Indicates a hazardous situation, which, if not avoided, will result in death or serious injury.

WARNING

Indicates a hazardous situation, which, if not avoided, could result in death or serious injury.

WARNING! may also be indicated by a bold key word embedded in the text followed by an italicized safety message.

CAUTION

Indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury.

CAUTION! may also be indicated by a bold key word embedded in the text followed by an italicized safety message.

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

1 Preface and Safety

NOTICE

Indicates a property damage message.

NOTICE: may also be indicated by a bold key word embedded in the text followed by an italicized safety message.

General Safety

General Precautions

• The diagrams in this manual may be indicated without covers or safety shields to show details. Replace the covers or shields before operating the drive and run the drive according to the instructions described in this manual.

• Any illustrations, photographs, or examples used in this manual are provided as examples only and may not apply to all products to which this manual is applicable.

• The products and specifications described in this manual or the content and presentation of the manual may be changed without notice to improve the product and/or the manual.

• When ordering a new copy of the manual due to damage or loss, contact your Yaskawa representative or the nearest Yaskawa sales office and provide the manual number shown on the front cover.

• If nameplate becomes worn or damaged, order a replacement from your Yaskawa representative or the nearest Yaskawa sales office.

DANGER

Heed the safety messages in this manual.

Failure to comply will result in death or serious injury.

The operating company is responsible for any injuries or equipment damage resulting from failure to heed the warnings in this manual.

Electrical Shock Hazard

Do not connect or disconnect wiring while the power is on.

Failure to comply will result in death or serious injury.

Failure to comply will result in death or serious injury. Before servicing, disconnect all power to the equipment. The internal capacitor remains charged even after the power supply is turned off. The charge indicator LED will extinguish when the DC bus voltage is below 50 Vdc. To prevent electric shock, wait for at least the time specified on the warning label once all indicators are OFF, and then measure the DC bus voltage level to confirm it has reached a safe level.

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

V1000

Warning information

AVERTISSEMENT

Lire le manuel avant l'installation. Attendre 5 minutes apres la coupure de l'alimentation, pour permettre la decharge des condensateurs. Pour repondre aux exigences , s assurer que le neutre soit relie a la terre, pour la serie 400V.

WARNING

Read manual before installing. Wait 5 minutes for capacitor discharge after disconnecting power supply. To conform to 　 requirements, make sure to ground the supply neutral for 400V class.

Risk of electric shock.

Risque de decharge electrique.

1 Preface and Safety

NOTICE

Observe proper electrostatic discharge procedures (ESD) when handling the drive and circuit boards.

Failure to comply may result in ESD damage to the drive circuitry.

Do not perform a withstand voltage test on any part of the drive.

Failure to comply could result in damage to the sensitive devices within the drive.

Do not operate damaged equipment.

Failure to comply could result in further damage to the equipment.

Do not connect or operate any equipment with visible damage or missing parts.

Do not expose the drive to halogen group disinfectants.

Failure to comply may cause damage to the electrical components in the drive.

Do not pack the drive in wooden materials that have been fumigated or sterilized.

Do not sterilize the entire package after the product is packed.

Option Unit Warning Labels

Warning information is displayed on the option unit as shown in the figure below. Follow all warnings and safety instructions when using the product.

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

AVERTISSEMENT

WARNING

Read manual before installing. Wait 5 minutes for capacitor discharge after disconnecting power supply. To conform to 　 requirements, make sure to ground the supply neutral for 400V class.

Risk of electric shock.

Risque de decharge electrique.

1 Preface and Safety

Warning Contents

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

2 Product Overview

About this Product

The SI-B3/V option connects a V1000 drive to a BACnet network and facilitates the exchange of data.

This manual explains the handling, installation and specifications of this product.

The SI-B3/V option is a simple, networking solution that reduces the cost and time to wire and install building automation devices, while providing interchangeability of like components from multiple vendors.

Drives can be monitored and controlled by a controller on a Building Automation and Control network (BACnet) using RS-485 technology and MS/TP (Master-Slave/Token-Passing) protocol. The drives conform to the BACnet application specific controller (B-ASC) device profile.

Up to 127 drives can communicate on a single BACnet MS/TP network. If more drives or BACnet devices are required, then a BACnet router is required to allow another MS/TP network to be available with up to another 127 drives.

Applicable Models

The option can be used with the drive models in Table 1.

Table 1 Applicable Models

Drive Series

V1000

<1> See “PRG” on the drive nameplate for the software version number.

Drive Model Number

CIMR-VooAoooo

Software Version

1012 and later

<1>

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

MANUAL

3 Receiving

Please perform the following tasks upon receipt of the option:

• Inspect the option for damage. Contact the shipper immediately if the option appears damaged upon receipt.

• Verify receipt of the correct model by checking the model number printed on the name plate of the option package.

• Contact your supplier if you have received the wrong model or the option does not function properly.

Option Package Contents

Description Option Unit Ground Wire Warning Labels

–

Quantity 1 4 1 1

Tools Required for Installation

Installation

Manual

• A Phillips screwdriver (M3, M3.5 to M6 metric or #1, #2 U.S. standard) is required to install the option. Screw sizes vary by drive capacity. Select a screwdriver appropriate for the drive capacity.

• A straight-edge screwdriver (blade depth: 0.4 mm, width: 2.5 mm) is required to wire the option terminal block.

Note: Tools required to prepare the option cables for wiring are not listed in this manual.

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

4 Option Components

00000000000000

SI-B3/V

1XXX

Option with cover removed

Underside

Option with cover attached

D E

SI-B3/V BACnet Option Unit

4 Option Components

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

A –

B –

LED (MS)

LED (NS)

<1>

C – Option cover D –

E –

LED (RX)

LED (TX)

<1>

F – Attachment screw hole

for option cover G – Nameplate H – Functional earth cable

I – Mounting tab J –

Ground wire

<2>

K – Pass-through hole for

ground wire L – Installation hole M – Terminal block TB1 N – Terminating resistor

switch S1 O – Option connector

connection (FE)

Figure 1 Option Unit Components

<1> Refer to Option LED Display on page 12 for details on the LEDs.

<2> A selection of ground wires are packaged loose in the option shipping package. Connect the

appropriate ground wire based on drive model during installation.

27 mm (1.06 in.)

4 Option Components

Terminal Block TB1

Refer to Table 2 for details on removable terminal block TB1 terminal descriptions.

Table 2 Option Terminal Descriptions

Terminal Pin Signal Description

1 IG5 Isolated supply ground reference

2 + RX/TX (+) signal

3 - RX/TX (-) signal

4 SHLD Shield Ground

Dimensions

The installed option adds 27 mm (1.06 in.) to the total depth of the drive.

Option LED Display

The option has four LEDs.

Two bi-color Status LEDs:

• Module status (MS) red/green

• Network status (NS) red/green Two BACnet LEDs:

• Transmit (TX) green

• Receive (RX) green

Figure 2 Dimensions

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

4 Option Components

The operational states of the option LEDs after completion of the BACnet power-up diagnostic LED sequence are described in Table 3. Wait at least 2 seconds for the power-up diagnostic process to complete before verifying LED states.

Table 3 Option LED States

Name

Display

Color Status

– OFF Power supply OFF Power is not being supplied to the drive.

Green ON Normal operation

Green Flashing Standby/Initializing

Red Flashing Minor fault

Red ON Major fault

Green/Red Flashing Option self-test The option is in self-test mode.

– OFF Power supply OFF –

Green ON Connected

Green Flashing Not connected

Red Flashing Minor fault A minor recoverable fault has occurred.

Red ON Major fault

Green/Red Flashing Network test Power-up sequence and testing

– OFF

Green Flashing

– OFF

Green Flashing

Operating Status Remarks

The option is operating normally and initialization is complete.

The option is in process of configuring or waiting for configuration information.

The option has detected a recoverable minor fault such as incomplete configuration.

The option has detected an unrecoverable major fault.

The device is currently communicating on the network.

The device currently is not communicating, but is correctly configured. The state is “waiting” for communication to resume.

A non-recoverable major network fault has occurred.

No data being sent to the network

Data being sent to the network

No data seen on the network

Data is seen on the network

This node is not sending any data.

This node is sending network data.

The option is not physically connected to the network or there is no network activity.

The option is connected to a network.

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

4 Option Components

Power-Up Diagnostics

An LED test is performed each time the drive is powered up. The initial boot sequence may take several seconds. After the LEDs have completed the diagnostic LED sequence, the option is successfully initialized. The LEDs then assume operational conditions as shown in

Table 3.

Table 4 Power-Up Diagnostic LED Sequence

Sequence Module Status (MS) Network Status (NS) Time (ms)

1 Green OFF 250

2 Red OFF 250

3 Green OFF –

4 Green Green 250

5 Green Red 250

6 Green OFF –

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

5 Installation Procedure

Section Safety

DANGER

Electrical Shock Hazard

Do not connect or disconnect wiring while the power is on.

Failure to comply will result in death or serious injury.

Disconnect all power to the drive and wait at least the amount of time specified on the drive front cover safety label. After all indicators are off, measure the DC bus voltage to confirm safe level, and check for unsafe voltages before servicing. The internal capacitor remains charged after the power supply is turned off.

WARNING

Electrical Shock Hazard

Do not remove the option unit cover while the power is on.

Failure to comply could result in death or serious injury.

The diagrams in this section may include options and drives without covers or safety shields to show details. Be sure to reinstall covers or shields before operating any devices. The option should be used according to the instructions described in this manual.

Do not allow unqualified personnel to use equipment.

Failure to comply could result in death or serious injury.

Maintenance, inspection, and replacement of parts must be performed only by authorized personnel familiar with installation, adjustment, and maintenance of this product.

Do not use damaged wires, stress the wiring, or damage the wire insulation.

Failure to comply could result in death or serious injury.

Do not use damaged wires, place excessive stress on wiring, or damage the wire insulation.

Failure to comply could result in death or serious injury.

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

5 Installation Procedure

WARNING

Fire Hazard

Tighten all terminal screws to the specified tightening torque.

Loose electrical connections could result in death or serious injury by fire due to overheating of electrical connections.

NOTICE

Observe proper electrostatic discharge procedures (ESD) when handling the drive and circuit boards.

Failure to comply may result in ESD damage to the drive circuitry.

Never shut the power off while the drive is outputting voltage.

Failure to comply may cause the application to operate incorrectly or damage the drive.

Do not operate damaged equipment.

Failure to comply may cause further damage to the equipment.

Do not connect or operate any equipment with visible damage or missing parts.

Do not use unshielded cable for control wiring.

Failure to comply may cause electrical interference resulting in poor system performance.

Use shielded twisted-pair wires and ground the shield to the ground terminal of the drive.

Properly connect all pins and connectors.

Failure to comply may prevent proper operation and possibly damage equipment.

Check wiring to ensure that all connections are correct after installing the option and connecting any other devices.

Failure to comply could result in damage to the option.

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

5 Installation Procedure

Prior to Installing the Option

Prior to installing the option, wire the drive, make necessary connections to the drive terminals, and verify that the drive functions normally without the option installed. Refer to the drive Quick Start Guide for information on wiring and connecting the drive.

Installing the Option

DANGER! DANGER! Electrical Shock Hazard. Do not connect or disconnect wiring while the power is on.

Failure to comply could result in death or serious injury. Before installing the option, disconnect all power to the drive and wait at least the amount of time specified on the drive front cover safety label. After all indicators are off, measure the DC bus voltage to confirm safe level, and check for unsafe voltages before servicing. The internal capacitor remains charged after the power supply is turned off.

Shut off power to the drive, wait at least five minutes after confirming the DC bus

voltage is safe, then loosen the screw that fastens the front cover in place and remove the front cover. This drive front cover will be replaced by the option cover. Cover removal varies depending on drive size.

NOTICE: Damage to Equipment. Observe proper electrostatic discharge procedures (ESD) when handling the option, drive, and circuit boards. Failure to comply may result in ESD damage to circuitry.

Figure 3 Remove the Front Cover

The remaining installation steps differ based on drive model. Find the drive model

number on the drive nameplate and refer to the step indicated in Table 5 based on your model number

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

Bottom Cover

Terminal Cover

5 Installation Procedure

Enclosure Type Drive Model Proceed to Step Page

IP20/Open-Chassis

IP20/NEMA Type 1

<1> Installing the option on an IP20/NEMA Type 1 enclosure drive voids NEMA Type 1 protection while maintaining IP20 conformity.

For IP20/Open-Chassis models CIMR-VooAooooB, remove the bottom cover of

the drive by applying pressure to the tabs on each side of the bottom cover. Pull the bottom cover away from the drive while pushing in on the tabs to release the cover from the drive. Refer to Figure 4 for details.

Refer to Figure 5 for drive models BA0006B to BA0018B, 2A0008B to 2A0069B, and 4A0001B to 4A0038B, which require removing the terminal cover prior to removing the bottom cover.

Figure 4 Remove the Bottom Cover on an IP20/Open-Chassis Drive

(Models BA0001B to BA0003B and 2A0001B to 2A0006B)

Table 5 Installation Steps Based on Drive Model

CIMR-VooAooooB

<1>

CIMR-VooAooooF

3 18

6 19

Figure 5 Remove the Terminal Cover and Bottom Cover on an IP20/Open-Chassis

Drive

(Models BA0006B to BA0018B; 2A0008B to 2A0069B; 4A0001B to 4A0038B)

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

Ground terminal

Ground wire

Drive-side connector Screw size: M3.5 to M6

Option unit connector Screw size: M3

5 Installation Procedure

On IP20/Open-Chassis models, connect the drive side of the ground wire to the drive

ground terminal.

Note: The different ground wires packaged with the option connect the option to different drive

models. Select the proper ground wire depending on drive size. Refer to Table 6 for ground wire selection by drive model.

Figure 6 Connect the Ground Wire on an IP20/Open-Chassis Drive

Table 6 Ground Wire Selection

Ground Wire

Length

(mm/in)

150/5.9

200/7.9

250/9.8 –

400/15.7 –

For IP20/Open-Chassis models, go to Step 9. on page 36.

For IP20/NEMA Type 1 enclosure models CIMR-VooAooooF, loosen the screw

on the front of the NEMA Type 1 terminal cover and remove it from the drive. Refer to Figure 7 for details.

Single-Phase

200 V Class

BA0001 BA0002 BA0003

BA0006 BA0010 BA0012 BA0018

Drive Model

Three-Phase

200 V Class

2A0001 2A0002 2A0004 2A0006

2A0010 2A0012 2A0020

2A0030 2A0040

2A0056 2A0069

Three-Phase

400 V Class

4A0001 4A0002 4A0004 4A0005 4A0007 4A0009 4A0011

4A0018 4A0023

4A0031 4A0038

–

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

5 Installation Procedure

Refer to Figure 8 for drive models BA0006F to BA0018F, 2A0010F to 2A0069F, and 4A0001F to 4A0038F, which require removing the plastic terminal cover prior to removing the NEMA Type 1 terminal cover.

Note: Installing the option on an IP20/NEMA Type 1 enclosure drive voids NEMA Type 1 protection

while maintaining IP20 conformity.

Figure 7 Remove the NEMA Type 1 Terminal Cover

(Models BA0001F to BA0003F and 2A0001F to 2A0006F)

Figure 8 Remove the Terminal Cover on an IP20/NEMA Type 1 Drive

(Models BA0006F to BA0018F; 2A0008F to 2A0069F; 4A0001F to 4A0038F)

For models BA0001F to BA0003F and 2A0001F to 2A0006F, loosen the screws

attaching the NEMA Type 1 conduit bracket to the drive to remove the NEMA Type 1 conduit bracket.

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

Ground terminal

Ground wire

Drive ground terminal/ NEMA Type 1 conduit bracket screw

Ground wire

Drive-side connector Screw size: M3.5 to M6

Option unit connector Screw size: M3

5 Installation Procedure

Figure 9 Remove the NEMA Type 1 Conduit Bracket

(Models BA0001F to BA0003F and 2A0001F to 2A0006F)

On models (BA0001F to BA0003F and 2A0001F to 2A0006F), the screw for the drive

ground terminal also acts as one of the screws that attaches the NEMA Type 1 conduit bracket to the drive. Reattach the NEMA Type 1 conduit bracket according to Figure 27 and connect the drive-side of the ground wire to the drive ground terminal.

Note: The different ground wires packaged with the option connect the option to different drive

models. Select the proper ground wire depending on drive size. Refer to Table 6 on page 19 for ground wire selection by drive model.

Figure 10 Reattach the NEMA Type 1 Conduit Bracket and Connect the Ground Wire

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

(Models BA0001F to BA0003F and 2A0001F to 2A0006F)

IP20/Open-Chassis IP20/NEMA Type 1 Enclosure

5 Installation Procedure

Reattach the bottom cover. Keep the ground wire inside of the bottom cover when

reattaching.

On models BA0006 to BA0018, 2A0008 to 2A0069, and 4A0001 to 4A0038, reattach

10.

the terminal cover.

Refer to Figure 12 and Figure 13 for drive models BA0006 to BA0018, 2A0008 to 2A0020, and 4A0001 to 4A0011, which require routing the ground wire through the provided notch when reinstalling the terminal cover.

Figure 11 Reattach the Bottom Cover

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

Ground wire routing notch

5 Installation Procedure

(Models BA0006 to BA0018; 2A0008 to 2A0069; 4A0001 to 4A0038)

(Models BA0006 to BA0018; 2A0008 to 2A0020; 4A0001 to 4A0011)

Remove the option cover and pass the ground wire through the inside of the drive

11.

Figure 12 Reattach the Terminal Cover

Figure 13 Terminal Cover Ground Wire Notch

bottom cover and into the through-hole for the ground wire at the front of the option.

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

Line up tabs

5 Installation Procedure

Attach the option to the drive. Properly seat the tabs on the left and right sides of the

12.

option to the drive case.

Figure 14 Ground Wire Routing

13.

Figure 15 Connect the Option

Connect the ground wire at the option ground terminal. Tighten the screw to 0.5 to

0.6 N•m or (4.4 to 5.3 in lbs) using an M3 Phillips screwdriver.

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

Option ground terminal

V1000

U/T1 V/T2

W/T3

R/L1 S/L2 T/L3

SI-B3/V BACnet

Option

CN5-A

CN1

TB1

IG5 +

SHLD

RX/TX (+) Signal

RX/TX (-) Signal

BACnet Controller

MotorPower

Common

Shield

5 Installation Procedure

Figure 16 Connect the Ground Wire to the Option

Connect the BACnet communication cables to the option modular connector terminal

14.

block (TB1).

Note: Separate the communications cables from the main circuit cables and other wiring and power

cables. Use properly grounded shielded cables for the communication cables to prevent problems caused by electrical interference.

Figure 18 explains the wiring for multiple connections using BACnet communication.

Figure 17 Option Connection Diagram

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

Router

SHLD

Drive

OFFSHLD

TXRX-

TXRX+

IG5

Drive

OFFSHLD

TXRX-

TXRX+

IG5

Drive

SHLD

TXRX-

TXRX+

IG5

SI-B3/V BACnet

COMMON

SI-B3/V BACnet

BACnet

MS/TP

BACnet over Ethernet or BACnet/IP

Router

MS/TP

STOP

(Hz)

(Hz) (A) (V)

V1000

STOP

(Hz)

(Hz) (A) (V)

V1000

STOP

(Hz)

(Hz) (A) (V)

V1000

STOP

(Hz)

(Hz) (A) (V)

V1000

STOP

(Hz)

(Hz) (A) (V)

V1000

STOP

(Hz)

(Hz) (A) (V)

V1000

5 Installation Procedure

Figure 18 Connection Diagram for Multiple Connections

Figure 19 Connecting Multiple Drives to a BACnet Workstation – System Overview

The two ends of the BACnet network must be terminated with a 120 ohm resistor between the “+” and “-” and signals. The SI-B3 has a built in termination resistor that can be enabled or disabled using DIP switch S1. If a drive is located at the end of a

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

Line up tabs

5 Installation Procedure

network line, enable the termination resistor by setting DIP switch S1 to the ON position. Disable the termination resistor on all slaves that are not located at the end of the network line by setting DIP switch S1 to the OFF position (The factory setting for DIP switch S1 is OFF).

Attach the option cover by aligning the tabs with the mounting holes, seat the front

15.

cover into place, and tighten the screw on the front.

Figure 20 Attach the Option Cover

Note: Take proper precautions when wiring the option so that the front covers will easily fit back onto

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

the drive. Make sure no cables are pinched between the front covers and the drive when replacing the covers.

Set drive parameters in Table 7 for proper option performance.

16.

5 Installation Procedure

BACnet Node Addressing

The BACnet node address is configurable by parameter F6-45 in the drive. This defines the physical address of the drive on the MS/TP network. In addition, both the Device Object Instance Identifier (parameters F6-48 and F6-49) and the Device Object Name are configurable. These allow the drive to have a virtual address and simplify the controller configuration.

After setting the addressing, a controller can initiate communication to the drive. The drive will perform the specified function and then send a response back to the controller. The drive will usually respond immediately, but may delay its response until it gets the token for commands that may take extra local processing time.

Electronic Protocol Implementation Conformance Statement (EPIC) Files

For easy network implementation of drives equipped with the SI-B3/V option, an EPIC file can be obtained from: U.S.: http://www.yaskawa.com Other areas: Contact a Yaskawa representative.

Refer to BACnet Protocol Implementation Conformance Statement (PICS) on page 45

for the SI-B3/V PICS.

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

6 Related Drive Parameters

The following parameters are used to set up the drive for operation with the option. Parameter setting instructions can be found in the drive Quick Start Guide or Technical Manual.

Confirm proper setting of the all parameters in Table 7 before starting network communications. After changing parameter settings, cycle power to the drive for the new settings to take effect.

Table 7 Related Parameters

No.

(Addr.

Hex)

b1-01

(0180)

<1>

b1-02

(0181)

F6-01

(03A2)

F6-02

(03A3)

F6-03

(03A4)

F6-04

(03A5)

F6-07

(03A8)

Name Description Values

Selects the frequency reference input source.

Frequency Reference Selection

Run Command Selection

Communications Error Operation Selection

External Fault from Comm. Option Detection Selection

External Fault from Comm. Option Operation Selection

bUS Error Detection Time

Multi-Step Speed Enable/Disable Selection when NefRef/ComRef is Selected

0: Operator - Digital preset speed d1-01 to d1-17 1: Terminals - Analog input terminal A1 or A2 2: MEMOBUS/Modbus communications 3: Option PCB 4: Pulse Input (Terminal RP)

Selects the run command input source. 0: Digital Operator - RUN and STOP keys 1: Digital input terminals S1 to S7 2: MEMOBUS/Modbus communications 3: Option PCB

0: Ramp to stop. Decelerate to stop using the deceleration time in C1-02. 1: Coast to stop 2: Fast Stop. Decelerate to stop using the deceleration time in C1-09.

3: Alarm only

1: Detection during run only

0: Ramp to stop. Decelerate to stop using the deceleration time in C1-02. 1: Coast to stop 2: Fast Stop. Decelerate to stop using the deceleration time in C1-09.

3: Alarm only

Sets the delay time for error detection if a bUS error occurs.

0: Multi-step reference disabled (same as F7) 1: Multi-step reference enabled (same as V7)

<2>

Default: 1 Range: 0 to 4 (Set to 3 for BACnet)

Default: 1 Range: 0 to 3 (Set to 3 for BACnet)

Default: 1 Range: 0 to 3

Default: 0 Range: 0, 1

Default: 1 Range: 0 to 3

Default: 2.0 s Min.: 0.0 Max.: 5.0

Default: 1 Range: 0, 1

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

6 Related Drive Parameters

No.

(Addr.

Hex)

F6-08

(036A)

<3>

F6-14

(03BB)

F6-45

(02FB)

F6-46

(02FC)

F6-47

(02FD)

F6-48

(02FE)

<2>

F6-49

(02FF)

<2>

F7-16

(03F4)

<1> To start and stop the drive with the option master device using serial communications, set b1-02 to 3. To control

<2> These parameters set the Instance Identifier of the BACnet Device Object, where the F6-48 value is the least

<3> Parameter setting value is not reset to the default value when the drive is initialized.

Name Description Values

Reset Communication Parameters

bUS Error Auto Reset

Drive Node Address

Communication Speed Selection

Drive Transmit Wait Time

BACnet Device Object Identifier 0

BACnet Device Object Identifier 1

Communication Loss Timeout

the drive frequency reference via the master device, set b1-01 to 3.

significant word and the F6-49 value is the most significant word. Example 1: Set the Device Object Instance Identifier of "1234". 1234 decimal is equal to 4D2H (hexadecimal). Set F6-48 to 4D2H and F6-49 to 0. Example 2: Set Device Object Instance Identifier to "1234567". 1234567 decimal is equal to 12D687H. Set F6-48 to D687H and set F6-49 to 12H.

0: Communication-related parameters (F6-oo/F7-oo) are not reset when the drive is initialized using A1-03. 1: Reset all communication-related parameters (F6-oo/F7-oo) when the drive is initialized using A1-03.

0: Disabled 1: Enabled

Sets the BACnet MS/TP MAC address (physical node address).

Sets the communication speed. 0: 1200 bps 1: 2400 bps 2: 4800 bps 3: 9600 bps 4: 19200 bps 5: 38400 bps 6: 57600 bps 7: 76800 bps 8: 115200 bps

Sets the time the drive waits after receiving data from a master before transmitting response data.

Set the Instance Identifier of the BACnet Device Object, where the F6-48 value is the least significant word.

Set the Instance Identifier of the BACnet Device Object, where the F6-49 value is the most significant word.

Sets the timeout value for communication loss detection in tenths of a second. Example: An entered value of 100 represents 10.0 seconds.

Default: 0 Range: 0, 1

Default: 1 Range: 0 to 127

Default: 3 Range: 0 to 8

Default: 5 ms Range: 5 to 65

Default: 1 Range: 0 to FFFFH

Default: 0 Range: 0 to 3FH

Default: 0.0 Min.: 0.0 Max.: 30.0

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

7 Troubleshooting

Drive-Side Error Codes

Drive-side error codes appear on the drive digital operator. Causes of the errors and corrective actions are listed below. Refer to the drive manual for additional error codes that may appear on the drive digital operator.

Faults

Both bUS (Option Communication Error) and EF0 (Option Card External Fault) can appear as an alarm or as a fault. When a fault occurs, the digital operator ALM LED remains lit. When an alarm occurs, the ALM LED flashes.

If communication stops while the drive is running, use the following questions as a guide to help remedy the fault:

• Is the option properly installed?

• Are the communication lines properly connected to the option? Are the wires loose?

• Is the controller program working? Has the controller/PLC CPU stopped?

• Did a momentary power loss interrupt communications?

Digital Operator Display Fault Name

Option Communication Error

bUS

Cause Possible Solution

Master controller (PLC) has stopped communicating

Communication cable is not connected properly

A data error occurred due to noise

Option is damaged

• The connection was lost after establishing initial communication.

• Only detected when the Run command or frequency reference is assigned to the option (b1-01 = 3 or b1-02 = 3).

• Check that power is supplied to the PLC

• Check that PLC is not in program mode

• Check for faulty wiring

• Correct any wiring problems

• Check the various options available to minimize the effects of noise

• Counteract noise in the control circuit, main circuit, and ground wiring

• If a magnetic contactor is identified as a source of noise, install a surge absorber to the contactor coil

• Make sure the cable used meets requirements

• Make sure the option ground wire is connected between option FE terminal and the drive ground terminal connected to earth ground

• If available, use IG5 to connect to network common. Refer to Connection

Diagram for Multiple Connections on page 26 for proper wiring.

If there are no problems with the wiring and the error continues to occur, replace the option.

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

7 Troubleshooting

Digital Operator Display Fault Name

EF0

Cause Possible Solutions

An external fault was received from the PLC and F6-03 is set to a value other than 3.

Problem with the PLC program Check the PLC program and correct problems.

Digital Operator Display Fault Name

oFA00

Cause Possible Solution

Digital Operator Display Fault Name

oFA01

Cause Possible Solution

The option card connection is faulty

Digital Operator Display Fault Name

oFA03

oFA04

oFA30 to

oFA43

Cause Possible Solution

Option card or hardware is damaged.

Option Card External Fault

The alarm function for an external device has been triggered.

• Remove the cause of the external fault.

• Remove the external fault input from the PLC.

Option Card Connection Error at Option Port CN5.

The option card is incompatible with the drive.

Option Card Fault

Option not properly connected

• Turn off the power and reconnect the option card.

• Check if the option card is properly plugged into the option port. Make sure the card is fixed properly.

Option Card Fault

Option card self-diagnostic error

Option Card Fault

An error occurred attempting to write to the option card memory.

Option Card Fault

Communication ID error

Replace the option card. Contact Yaskawa for consultation.

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

Minor Faults and Alarms

Digital Operator Display Minor Fault Name

CALL

Cause Possible Solutions

Communications wiring is faulty, there is a short circuit, the wiring is incorrect, or the connections are poor.

Programming error on the master side.

Communications circuitry is damaged.

Serial Communication Transmission Error

Communication has not yet been established.

• Check for wiring errors.

• Correct the wiring.

• Check for disconnected cables and short circuits. Repair as needed.

Check communications at start-up and correct programming errors.

• Perform a self-diagnostics check.

• If the problem continues, replace the control board or the entire drive. Contact Yaskawa for instructions on replacing the control board.

7 Troubleshooting

Minor Fault

(H2-oo = 10)

YES

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

7 Troubleshooting

Communication Errors

Errors that may occur when accessing drive parameters using the BACnet objects are shown in Table 8.

Table 8 MEMOBUS to BACnet Error Conversion

Error Code Description

03d

27d

37d

40d

bUS Fault Tolerance

bUS Fault Auto-Restart

BN_ERR_DEVICE_IS_BUSY Writing to a parameter was attempted while the drive was saving parameters to non-volatile memory.

BN_ERR_READ_ACCESS_DENIED Invalid parameter register number used when reading.

BN_ERR_VALUE_OUT_OF_RANGE Value written to the parameter is out of the valid range.

BN_ERR_WRITE_ACCESS_DENIED An invalid parameter register number was used when writing. Writing to a parameter was attempted while the drive was in a mode that disables writing (i.e., writing while the drive was Auto-Tuning). Writing to a parameter was attempted while the DC Bus had an Undervoltage (Uv) fault.

Parameter F6-14, bUS Fault Auto Reset Select, will appear when the option is installed.

Setting F6-14 = 0 (Disabled) or F6-01 = 3 or greater (Alarm only) will cause the drive to declare an alarm after the time set in F6-04 has passed.

Setting F6-14 = 1 (Enabled) AND F6-01 ≠ 3 (Fault) will cause the following operation: The bUS fault occurs after the F7-16 + F6-04 delay time and the Run command is removed from the drive. Then the option throws a bUS fault to the drive. When the condition is removed, the option commands a fault reset and returns control of the drive to the BACnet network.

Note: The option will only read parameters F6-01 and F6-14 from the drive during power-up.

bUS Fault Delay

Parameter F7-16, Communications Loss Detection Time Delay, will appear when the option is installed.

The setting value of F7-16 + F6-04 is the length of time that the option will delay sending the bUS fault to the drive.

The status LEDs on the option are not affected by the delay time set in F7-16; the LEDs will indicate the bUS condition immediately.

Note: The option will only read parameters F6-04 and F7-16 from the drive during power-up.

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

8 Drive Operations by BACnet

The drive operations that can be performed by BACnet communication depend on drive parameter settings. This section explains the functions that can be used and related parameter settings.

Observing the Drive Operation

A controller can perform the following actions with BACnet communications at any time regardless of parameter settings:

• observe drive status and drive control terminal status from a controller

• read and write parameters

• set and reset faults

• set multi-function inputs.

Note:

Select an external reference and adjust the parameters in Table 9 accordingly to start and stop the drive or set the frequency reference using BACnet communications.

Reference Source Parameter Name Required Setting

External Reference 1

External Reference 2

Input settings from the input terminals So and from BACnet communications are both linked by a logical OR operation.

Controlling the Drive

Table 9 Setting Parameters for Drive Control from BACnet

b1-01 Frequency Reference Selection 1 3

b1-02 Run Command Selection 1 3

b1-15 Frequency Reference Selection 2 3

b1-16 Run Command Selection 2 3

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

9 BACnet Objects Supported

Present Value Access

The Present Value (PV) of BACnet objects can be read. In addition, some PVs can be written or commanded. A commandable PV is similar to writing the value, but the value is actually written into a priority array. The value occupying the highest priority in the array will be used by the drive. The convention for showing how the PV is accessed is shown in Table 10 and will be noted for the PV of each object.

Table 10 Present Value Access Values

PV Access Name Description

C Commandable

R Readable Value is read-only

W Writable Value written to the drive

Supported Properties of Objects

Property

Object_Identifier Yes Yes Yes Yes Yes Yes Yes

Object_Name Yes Yes Yes Yes Yes Yes Yes

Object_Type Yes Yes Yes Yes Yes Yes Yes

System_Status Yes – – – – – –

Vendor_Name Yes – – – – – –

Vendor_Identifier Yes – – – – – –

Model_Name Yes – – – – – –

Firmware_Revision Yes – – – – – –

Protocol_Version Yes – – – – – –

Protocol_Revision Yes – – – – – –

Protocol_Services_Supported Yes – – – – – –

Protocol_Object_Types_Supported Yes – – – – – –

Object_List Yes – – – – – –

Max_ADPU_Length_Accepted Yes – – – – – –

Segmentation_Supported Yes – – – – – –

Value written to a priority array. The highest priority value in the array is then written to the drive.

Table 11 Object Properties

Object Type

Device

Analog

Input

Analog Output

Analog

Value

Binary

Input

Binary Output

Binary

Value

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

9 BACnet Objects Supported

Object Type

Property

ADPU_Timeout Yes – – – – – –

Number_Of_ADPU_Retries Yes – – – – – –

Max_Masters Yes – – – – – –

Max_Info_Frames Yes – – – – – –

Device_Address_Binding Yes – – – – – –

Database_Revision Yes – – – – – –

Present_Value – Yes Yes Yes Yes Yes Yes

Status_Flags – Yes Yes Yes Yes Yes Yes

Event_State – Yes Yes Yes Yes Yes Yes

Reliability – Yes Yes Yes Yes Yes Yes

Out_Of_Service – Yes Yes Yes Yes Yes Yes

Units – Yes Yes Yes – – –

Priority_Array – –

Relinquish_Default – –

Polarity – – – – Yes Yes –

Inactive_Text – – – – Yes Yes Yes

Active_Text – – – – Yes Yes Yes

<1> For Commandable Object Instances only.

Analog Input Objects

Object ID Object Name

AI1 Analog Input 1 Level 004EH XXXX.X – % R

AI2 Analog Input 2 Level 004FH XXXX.X – % R

AI3 Not Used AI3 – – – – –

AI4 Not Used AI4 – – – – –

AI5 Not Used AI5 – – – – –

AI6 Display Format o1-03 0502H XXXXX – – R

AI7 Scale Format b5-20 01E2H XXXXX – – R

AI8 Inverter Model o2-04 0508F XXXXX – – R

AI9 Rated Current n9-01 05D0H XXXX.X – Amps R

Device

Analog

Table 12 Analog Input Objects

Modbus

Address

Analog

Input

Output

Yes

Precision Range Units PV Access

<1>

Analog

Yes

Value

<1>

Binary

Input

Binary Output

– Yes Yes

Binary

Value

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

9 BACnet Objects Supported

Analog Output Objects

Table 13 Analog Output Objects

Object ID Object Name

AO1 Analog Output 1 Level 0007H XXXX.X 0 to 100.0 % C

AO2 Not Used AO2 0008H XXXX.X 0 to 100.0 % C

Analog Value Objects

Object ID Object Name

AV1 Operation Cmd 0001H XXXXX 0 to 65535 – C

AV2 Frequency Cmd 0002H

AV3 PI Setpoint Cmd 0006H XXX.XX

AV4 MF Output 1 Cmd 0009H XXXXX 0 to 255 – C

AV5 Reference Select Cmd 000FH XXXXX – – C

AV6 Drive Status 0020H XXXXX – – R

AV7 Fault Details 0021H XXXXX – – R

AV8 Data Link Status 0022H XXXXX – – R

AV9 Frequency Reference 0040H

AV10 Output Frequency 0041H

AV11 Output Voltage 0045H XXXX.X – Volts R

AV12 Output Current 0026H XXXX.X – Amps R

AV13 Output Power 0047H

AV14 Torque Reference 0048H XXXX.X – % R

AV15 MF Input Status 002BH XXXXX – – R

Modbus Address

Table 14 Analog Value Objects

Modbus Address

Precision Range Units PV Access

XXX.XX

Depends on

o1-03

XXX.XX

Depends on

o1-03

XXX.XX

Depends on

o1-03

XXXX.X

(for drives

rated above

11 kVA)

XXX.XX

(for drives

rated 11

kVA or

lower)

0.00 to

600.00

0.00 to

100.00

–

– kW R

Depends on

o1-03

% C

Depends on

o1-03

Depends on

o1-03

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

9 BACnet Objects Supported

Object ID Object Name

AV16 Drive Status 2 002CH XXXXX – – R

AV17 MF Output Status 002DH XXXXX – – R

AV18 DC Bus Voltage 0031H XXXX.X – Volts R

AV19 PI Feedback Level 0038H XXXX.X – % R

AV20 PI Input Level 0039H XXXX.X – % R

AV21 PI Output Level 003AH XXXX.X – % R

AV22 CPU Software 004DH XXXXX – – R

AV23 Flash Number 005BH XXXXX – – R

AV24 Comm Error Detail 003DH XXXXX – – R

AV25 kVA Setting 0508H XXXXX – – R

AV26 Control Method 0102H XXXXX – – R

AV27 Accel Time 0200H

AV28 Decel Time 0201H

<1>

AV29

AV30

AV31 Not Used – – – – –

AV32 Not Used – – – – –

AV33 Drive kWH

AV34 Not Used – – – – –

<1> Refer to Accessing Drive Parameters and the Enter Command on page 43 for an explanation of how to read

Parameter Number – XXXXX 0 to FFFFH – W

<1>

Parameter Data – XXXXX 0 to FFFFH – W

and write drive parameters not listed in the analog or binary objects.

Modbus

Address

0x005C and

0x005D

Precision Range Units PV Access

XXXX.X

(when

C1-10 = 1)

XXX.XX

(when

C1-10 = 0)

XXXX.X

(when

C1-10 = 1)

XXX.XX

(when

C1-10 = 0)

XXXXXXX.X0.0 to

0.0 to 6000.0 (when

C1-10 = 1)

0.00 to

600.00 (when

C1-10 = 0)

0.0 to 6000.0 (when

C1-10 = 1)

0.00 to

600.00 (when

C1-10 = 0)

32767999.9

Sec W

kWH R

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

9 BACnet Objects Supported

Binary Input Objects

Table 15 Binary Input Objects

Object ID Object Name

BI1 Input Terminal 1 002BH:bit 0 ON OFF R

BI2 Input Terminal 2 002BH:bit 1 ON OFF R

BI3 Input Terminal 3 002BH:bit 2 ON OFF R

BI4 Input Terminal 4 002BH:bit 3 ON OFF R

BI5 Input Terminal 5 002BH:bit 4 ON OFF R

BI6 Input Terminal 6 002BH:bit 5 ON OFF R

BI7 Input Terminal 7 002BH:bit 6 ON OFF R

BI8 Multi-Function Out 1 0020H:bit 5 ON OFF R

BI9 Multi-Function Out 2 0020H:bit 6 ON OFF R

Binary Output Objects

Table 16 Binary Output Objects

Object ID Object Name

BO1 MF Output M1-M2 0009H:bit 0 ON OFF C

BO2 MF Output P1-PC 0009H:bit 1 ON OFF C

BO3 MF Output P2-PC 0009H:bit 2 ON OFF C

BO4 Ref Sel: PI Setpoint 000FH:bit 1 ON OFF C

BO5 Ref Sel: Term S5 IN 0001H: bit 8 ON OFF C

BO6 Ref Sel: Term S6 IN 0001H: bit 9 ON OFF C

BO7 Ref Sel: Term S7 IN 0001H: bit 10 ON OFF C

Modbus Address

Active Text

Inactive

Text

Inactive

Text

PV Access

Binary Value Objects

Table 17 Binary Value Objects

Object ID Object Name

BV1 Run FWD Cmd 0001H:bit 0 RUN OFF C

BV2 Run REV Cmd 0001H:bit 1 REV OFF C

BV3 Ext Fault Cmd 0001H:bit 2 FAULT OFF C

BV4 Fault Reset Cmd 0001H:bit 3 RESET OFF C

BV5 Com Net Cmd 0001H:bit 4 COM LOCAL C

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

Modbus Address

Active Text

Inactive

Text

PV Access

9 BACnet Objects Supported

Object ID Object Name

BV6 Com Cntrl Cmd 0001H:bit 5 COM LOCAL C

BV7 MF Input 3 Cmd 0001H:bit 6 ON OFF C

BV8 MF Input 4 Cmd 0001H:bit 7 ON OFF C

BV9 MF Input 5 Cmd 0001H:bit 8 ON OFF C

BV10 MF Input 6 Cmd 0001H:bit 9 ON OFF C

BV11 MF Input 7 Cmd 0001H:bit 10 ON OFF C

BV12 Set Fault Contact Cmd 0009H:bit 6 ENABLE OFF C

BV13 RUN-STOP 0020H:bit 0 RUN OFF R

BV14 REV-FWD 0020H:bit 1 REV FWD R

BV15 READY 0020H:bit 2 READY OFF R

BV16 FAULT 0020H:bit 3 FAULTED OFF R

BV17 Data Set Error 0020H:bit 4 ERROR OFF R

BV18 Overcurrent – Gnd Fault 0021H:bit 0 OC-GF OFF R

BV19 Main Ckt Overvoltage 0021H:bit 1 OV OFF R

BV20 Drive Overload 0021H:bit 2 OL2 OFF R

BV21 Drive Overheat 0021H:bit 3 OH1-OH2 OFF R

BV22 Fuse Blown 0021H:bit 5 PUF OFF R

BV23 PI Feedback Loss 0021H:bit 6 FBL OFF R

BV24 External Fault 0021H:bit 7 EF0-EF OFF R

BV25 Hardware Error 0021H:bit 8 CPF OFF R

BV26 Mtr Ovrld-OvrTorque 0021H:bit 9 OL1-OL3 OFF R

BV27 Overspeed 0021H:bit 10 OS-DEV OFF R

BV28 Main Ckt Undervoltage 0021H:bit 11 UV OFF R

BV29 MCU, Cntl Pwr Sy Err 0021H:bit 12 UV1-2-3 OFF R

BV30 Output Phase Loss 0021H:bit 13 LF OFF R

BV31 Communication Error 0021H:bit 14 CE OFF R

BV32 Operator Disconnect 0021H:bit 15 OPR OFF R

BV33 Operating 002CH:bit 0 OPERATING OFF R

BV34 Zero Speed 002CH:bit 1 ON OFF R

BV35 Frequency Agree 002CH:bit 2 ON OFF R

BV36 Desired Freq Agree 002CH:bit 3 ON OFF R

BV37 Frequency Detect 1 002CH:bit 4 ON OFF R

BV38 Frequency Detect 2 002CH:bit 5 ON OFF R

BV39 Drv Startup Complete 002CH:bit 6 ON OFF R

Modbus Address

Active Text

Inactive

Text

PV Access

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

9 BACnet Objects Supported

Object ID Object Name

BV40 Low Voltage Detect 002CH:bit 7 ON OFF R

BV41 Base Block 002CH:bit 8 ON OFF R

BV42 Frequency Ref Mode 002CH:bit 9 COM LOCAL R

BV43 Run Command Mode 002CH:bit 10 COM LOCAL R

BV44 Overtorque Detect 002CH:bit 11 ON OFF R

BV45 Frequency Refer Lost 002CH:bit 12 ON OFF R

BV46 Retry Error 002CH:bit 13 ON OFF R

BV47 Modbus Comms Error 002CH:bit 14 ON OFF R

BV48 Modbus Timeout Error 002CH:bit 15 ON OFF R

BV49 CRC Error 003DH:bit 0 ON OFF R

BV50 Invalid Data Length 003DH:bit 1 ON OFF R

BV51 Parity Error 003DH:bit 3 ON OFF R

BV52 Overrun Error 003DH:bit 4 ON OFF R

BV53 Framing Error 003DH:bit 5 ON OFF R

BV54 Timeout Error 003DH:bit 6 ON OFF R

<1>

BV55

BV56

BV57 Drive Comms Error - ON OFF R

<1> Refer to Accessing Drive Parameters and the Enter Command on page 43 for an explanation of how to read

and write drive parameters not listed in the analog or binary objects.

Device Object

Parameter Accept 0910H:bit 0 ON OFF W

<1>

Parameter Enter 0900H:bit 0 ON OFF W

Modbus Address

Active Text

Inactive

Text

PV Access

The Device Object fully describes the BACnet device to the network. Notable is that the Device Object Instance ID and the Device Object Name are configurable.

The Device Object Instance ID is a unique internetwork-wide numerical value. It is a 22-bit value that can range from 0 to 4,194,303. It is configurable by parameters F6-48 and F6-49. Any changes to these parameters will not take effect until the power is cycled to the drive.

The Device Object Name is a unique internetwork-wide character string. It is a 20-character string. It is writable from the BACnet network. Any new string written will not take effect until the power is cycled to the drive.

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

10 Accessing Drive Parameters and the Enter Command

10 Accessing Drive Parameters and the

Enter Command

Reading Drive Parameters

Reading drive parameters not listed in the analog or digital objects is accomplished using AV29 and AV30 as shown below:

In decimal, write the desired Modbus register to AV29.

In decimal, read the value at the given register from AV30.

For example, to read the Frequency Reference Upper Limit, read from parameter d2-01.

Parameter d2-01 is located at Modbus register 0289H, which is decimal 649.

Set AV29 to “649”

Read AV30 to get the value.

Writing Drive Parameters

Writing drive parameters not listed in the analog or digital objects is accomplished using AV29, AV30, and BV55 or BV56 as shown below:

In decimal, write the desired Modbus register to AV29.

In decimal, write the value to be written into AV30.

At this point the value is pending. One of two actions must be taken to complete the

writing process:

Set BV55 to “ON” to move data to active memory.

Set BV56 to “ON” to move data into active memory and save to non-volatile memory.

For example, to reset the KWH Monitor, write a value of “1” to parameter o1-12.

Parameter o1-12 is located at Modbus register 0512H, which is decimal 1298.

Set AV29 to “1298”

Set AV30 to “1”

Set BV55 to “ON”.

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

10 Accessing Drive Parameters and the Enter Command

Enter Command

Enter Commands are only required when using AV29 and AV30 to write drive parameters. An Enter command is not required when reading or writing to the other BACnet objects.

When writing parameters to the drive from a controller using BACnet communications, an Enter command must be issued to enable these parameters. This section describes the types and functions of the Enter commands.

Enter Command Types

The drive supports two types of Enter commands as shown in Table 18.

Table 18 Enter Command Types

BACnet Object Modbus Address Description

BV55 (Write “ON”) 0910H (bit 0)

BV56 (Write “ON”) 0900H (bit 0)

Note: The EEPROM can only be written to 100,000 times, so it is recommended to limit the number of times

writing to the EEPROM. The Enter command registers 0900H and 0910H are write-only and if these registers are read, the register address will be invalid. However, BACnet objects BV55 and BV56 can be read without error.

Writes data in the active RAM only. Parameter changes are lost when the drive is shut off.

Simultaneously writes data into the EEPROM (non-volatile memory) of the drive and enables the data in active RAM. Parameter changes remain after cycling power.

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

11 BACnet Protocol Implementation Conformance Statement (PICS)

11 BACnet Protocol Implementation

Conformance Statement (PICS)

Date: 03/27/2015

Vendor Name: Yaskawa

Product Name: AC Motor Controller

Product Model Number: SI-B3

Application Software Version: VST80026x Firmware Revision: 1.7 BACnet Protocol Revision: 4

Product Description: The Yaskawa SI-B3/V BACnet option connects a V1000 Drive to a

standard BACnet MS/TP network. The V1000 may be fully controlled and monitored over BACnet. All drive parameters are available for reading and writing.

BACnet Standardized Device Profile (Annex L):

 BACnet Operator Workstation (B-OWS)

 BACnet Building Controller (B-BC)

 BACnet Advanced Application Controller (B-AAC)

■BACnet Application Specific Controller (B-ASC)

 BACnet Smart Sensor (B-SS)

 BACnet Smart Actuator (B-SA)

List all BACnet Interoperability Building Blocks Supported (Annex K):

• Data Sharing-ReadProperty-B (DS-RP-B)

• Data Sharing-WriteProperty-B (DS-WP-B)

• Data Sharing - ReadProperty Multiple - B (DS-RPM-B)

• Data Sharing - WriteProperty Multiple - B (DS-WPM-B)

• Device Management-Dynamic Device Binding-B (DM-DDB-B)

• Device Management-Dynamic Object Binding-B (DM-DOB-B)

• Device Management-DeviceCommunicationControl-B (DM-DCC-B)

• Device Management-ReinitializeDevice-B (DM-RD-B)

Segmentation Capability:

 Segmented requests supported Window Size____

 Segmented responses supported Window Size____

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

11 BACnet Protocol Implementation Conformance Statement (PICS)

Standard Object Types Supported:

• Device Object

• Analog Input Object

• Analog Output Object

• Analog Value Object

• Binary Input Object

• Binary Output Object

• Binary Value Object

Data Link Layer Options:

 BACnet IP, (Annex J)

 BACnet IP, (Annex J), Foreign Device

 ISO 8802-3, Ethernet (Clause 7)

 ANSI/ATA 878.1, 2.5 Mb. ARCNET (Clause 8)

 ANSI/ATA 878.1, RS-485 ARCNET (Clause 8), baud rate(s)____

■ MS/TP master (Clause 9), baud rate(s): 9600bps, 19200bps, 38400bps, 76800bps.

 MS/TP slave (Clause 9), baud rate(s):____

 Point-To-Point, EIA 232 (Clause 10), baud rate(s):____

 Point-To-Point, modem, (Clause 10), baud rate(s):____

 LonTalk, (Clause 11), medium:____

 Other:

Device Address Binding:

Is static device binding supported? (This is currently necessary for two-way communication with MS/TP slaves and certain other devices.) Yes ■No

Networking Options:

 Router, Clause 6 - List all routing configurations, e.g., ARCNET-Ethernet, Ethernet-MS/ TP, etc.

 Annex H, BACnet Tunneling Router over IP

 BACnet/IP Broadcast Management Device (BBMD)

Does the BBMD support registrations by Foreign Devices?  Yes ■No

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

11 BACnet Protocol Implementation Conformance Statement (PICS)

Character Sets Supported:

Indicating support for multiple character sets does not imply that they can all be supported simultaneously.

■ ANSI X3.4  IBM /Microsoft  DBCS  ISO 8859-1  ISO 10646 (UCS-2)  ISO 10646 (UCS-4)  JIS C 6226

If this product is a communication gateway, describe the types of non-BACnet equipment/networks(s) that the gateway supports:

Not supported

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

12 Specifications

Table 19 Option Specifications

Item Specification

Model SI-B3/V option

Interface

Option Conformance BTL certified

Connector Type 4-pin removable terminal block

Max Number of Drives 127 per MS/TP network segment

Protocol BACnet MS/TP

Communication Speed 1200, 2400, 4800, 9600,19200, 38400, 57600, 76800, 115200 bps

Ambient Temperature

Humidity 95% relative humidity (non-condensing)

Storage Temperature

Area of Use Indoors

Altitude

MS/TP (Master-Slave/Token-Passing) RS-485

-10 to +60 °C

-20 to +85 °C

Up to 1000 meters without derating, up to 3000 m with output current and voltage derating.

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

This Page Intentionally Blank

12 Specifications

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

Revision History

MANUAL NO.

Example:

TOEP YAICOM 19A

Published in USA April 2015 15-4

Date of publication

Date of original publication

The revision dates and the numbers of the revised manuals appear on the bottom of the back cover.

Date of Publication

April 2015 - - First Edition

Revision

Number

Section Revised Content

YASKAWA TOEP YAICOM 19A V1000 Option BACnet MS/TP SI-B3/V Installation & Technical Manual

YASKAWA AC Drive V1000 Option

BACnet MS/TP

Installation & Technical Manual

YASKAWA AMERICA, INC.

2121 Norman Drive South, Waukegan, IL 60085, U.S.A. Phone: (800) YASKAWA (927-5292) or 1-847-887-7000 Fax: 1-847-887-7310 http://www.yaskawa.com

YASKAWA ELÉTRICO DO BRASIL LTDA.

Avenida Piraporinha 777, Diadema, São Paulo, 09950-0000, Brasil Phone: 55-11-3585-1100 http://www.yaskawa.com.br

Fax: 55-11-3585-1187

YASKAWA AMERICA, INC.

In th e event that t he end user of this product i s to be the mi litary and sai d produ ct is t o be em ployed in any weapons s ystems or the manufact ure there of, the export will f all und er the relevant regulatio ns as s tipulat ed in t he Foreig n Exch ange an d Foreign Trade Regulatio ns. T herefor e, be sure to foll ow all procedures an d submi t all rele vant docum entati on accordi ng to any and all rul es, regul ations and law s that m

Speci ficatio ns are subject to change withou t notic e for ongo ing pro duct mo difica tions a nd impr ovement s.

MANUAL NO. TOEP YAICOM 19A

Published in U.S.A. April 2015 15-4

ay ap ply.

Yaskawa MSTPSI-B3V User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Preface and Safety

Applicable Documentation

Terms

Registered Trademarks

Supplemental Safety Information

2 Product Overview

About this Product

Applicable Models

3 Receiving

Option Package Contents

Tools Required for Installation

4 Option Components

SI-B3/V BACnet Option Unit

Terminal Block TB1

Dimensions

Option LED Display

5 Installation Procedure

Section Safety

Prior to Installing the Option

Installing the Option

BACnet Node Addressing

Electronic Protocol Implementation Conformance Statement (EPIC) Files

6 Related Drive Parameters

7 Troubleshooting

Drive-Side Error Codes

8 Drive Operations by BACnet

Observing the Drive Operation

Controlling the Drive

9 BACnet Objects Supported

Present Value Access

Supported Properties of Objects

Analog Input Objects

Analog Output Objects

Analog Value Objects

Binary Input Objects

Binary Output Objects

Binary Value Objects

Device Object

Reading Drive Parameters

Writing Drive Parameters

Enter Command

12 Specifications
