Yard-Man 844 User Manual

Specifications and Main Features

  • Model: Yard-Man 844 Series
  • Engine Type: Internal combustion engine
  • Cutting Deck Width: 46” or 50”
  • Transmission: High-low transmission ranges.
  • Speed Control: Manual speed control lever
  • Drive Method: Rear-wheel drive
  • Ignition Type: Key start
  • Blade Engagement: Manual
  • Parking Brake: Manual
  • Wheel Size: An industry-standard maximum tyre pressure is 30 psi for both front and rear tyres.
  • Grass Collection: Optional grass collector available
  • Dimensions: Varies with model details.
  • Weight: Varies with model details.
  • Safety Features: A safety interlock system, blade guards and a chute deflector
  • Fuel Type: Gasoline
  • Oil Type: SAE 30 engine oil

Frequently Asked Questions

  • Q: How do I start the engine?

A: To start the engine, the ignition switch must be turned ON and the clutch-brake pedal depressed, the PTO lever must be set to the disengaged position.

  • Q: What type of fuel should I use?

A: The unit uses regular gasoline only.

  • Q: How often should I check the oil level?

A: It is recommended to check the oil level prior to using the engine and to top up if low.

  • Q: Is it safe to use the tractor on steep inclines?

A: It is permitted but a greater level of care is needed and try not to mow across the slope but rather perpendicular.

  • Q: What further steps should I take if my engine continues to be unresponsive?

A: Ensure proper connection has been made on the battery clamps, double check if the safety ignition cuts are done and inspect if the fuel tank has fuel left in it.

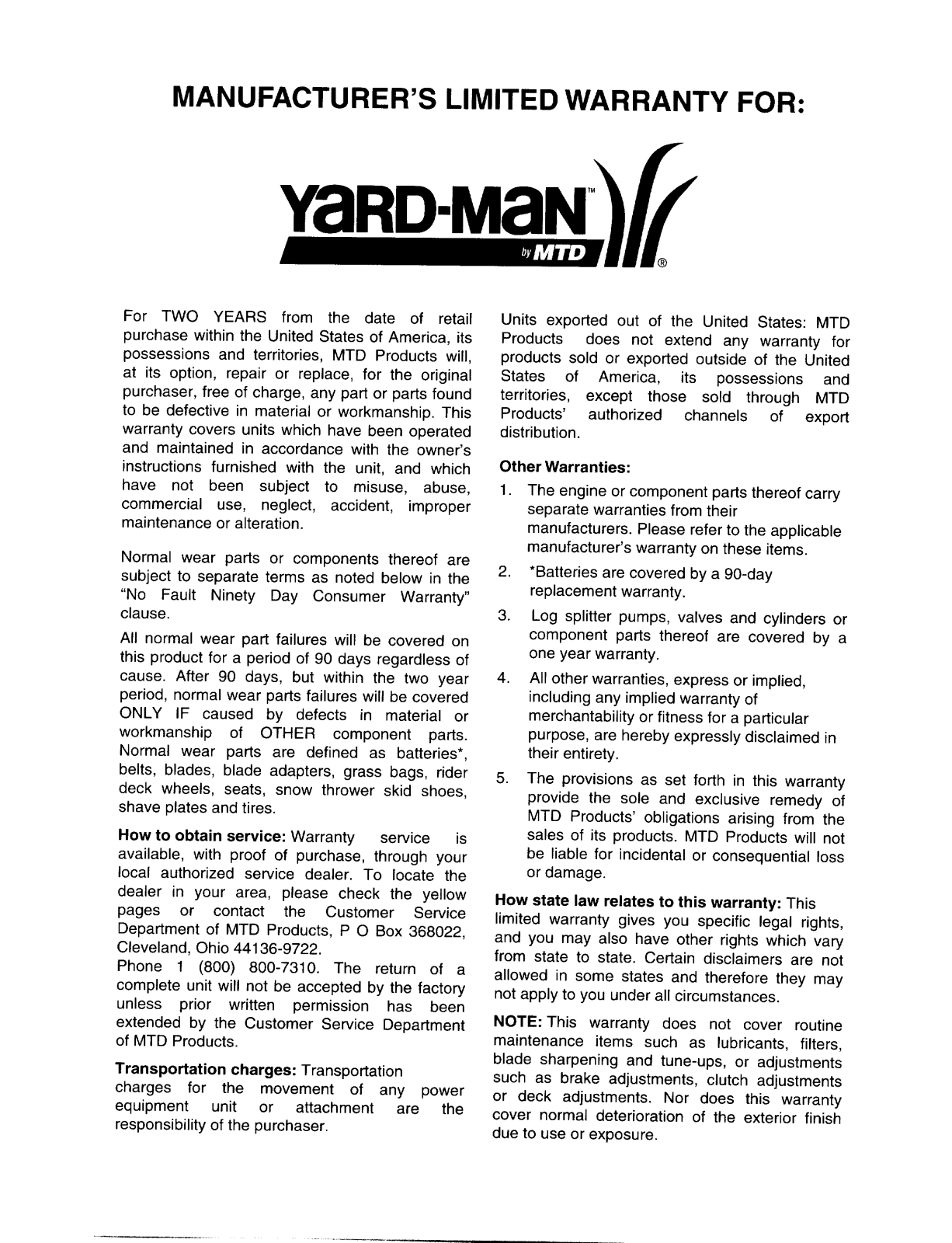

  • Q: Is there a warranty provided for this product?

A: Indeed, the warranty encompasses two years to cover any material or construction defects.

  • Q: What maintenance is needed on cub cadet riding mower?

A: Ordinary maintenance on cub cadet necessitates oil checks and changes, sharpening blades, cleaning the air filter, and monitoring nut and bolt tensions.

  • Q: What is the method of changing the cutting height?

A: Employ the lift lever to reposition the appendage to the wanted milieu.

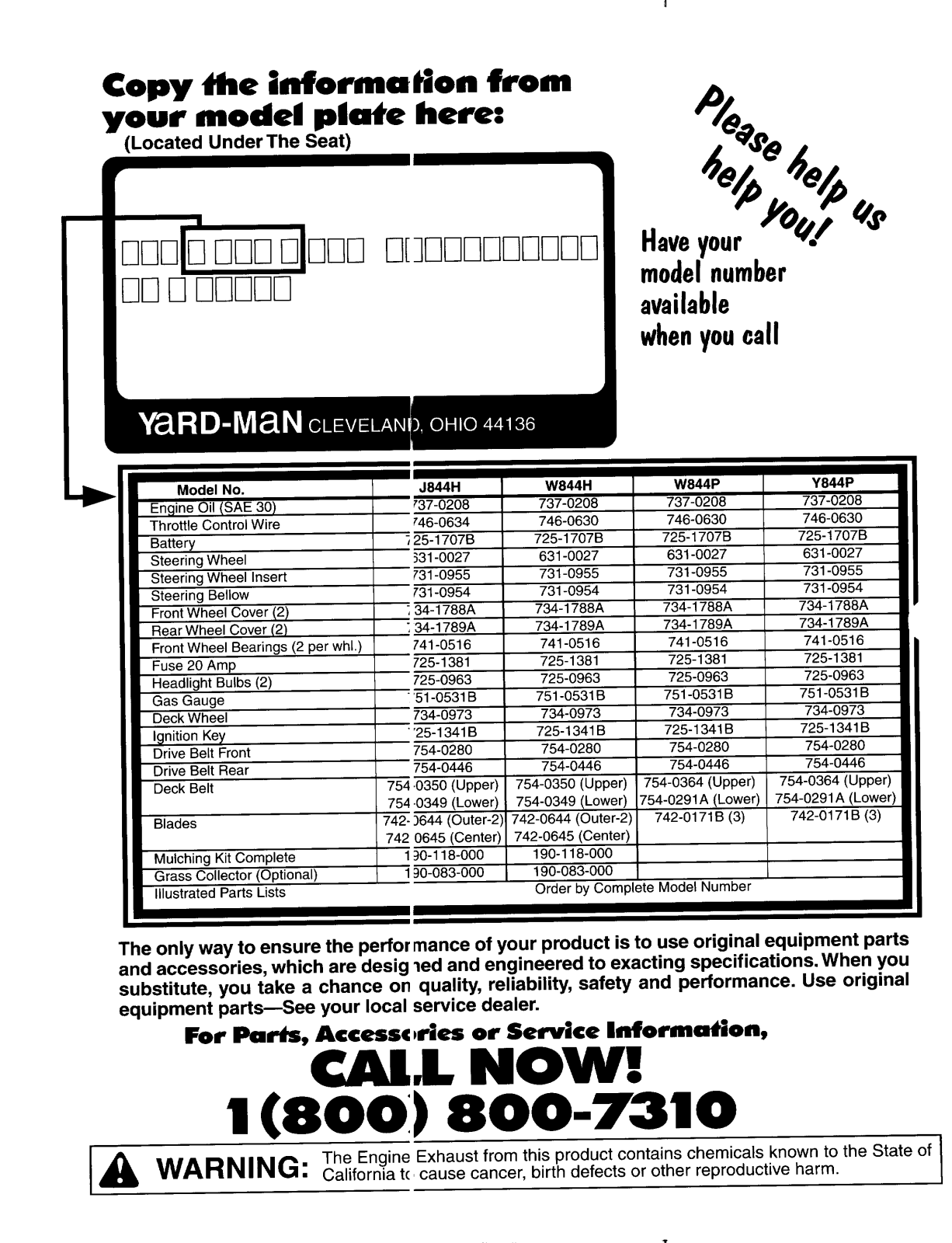

  • Q: What is the process of acquiring replacement parts?

A: Local dealers can be contacted for replacement parts and customer services can assist you over a call.
