OPERATOR’S MANUAL

21” Rotary Mower — Model 829

IMPORTANT

READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION

Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brushcovered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.

PRINTED IN U.S.A.



FORM NO. 769-01607

MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

1/4/2005

This Operator’s Manual is an important part of your new lawn mower. It will help you assemble, prepare and maintain the unit for best performance. Please read and understand what it says.

Table of Contents

Slope Gauge .......................................................

3

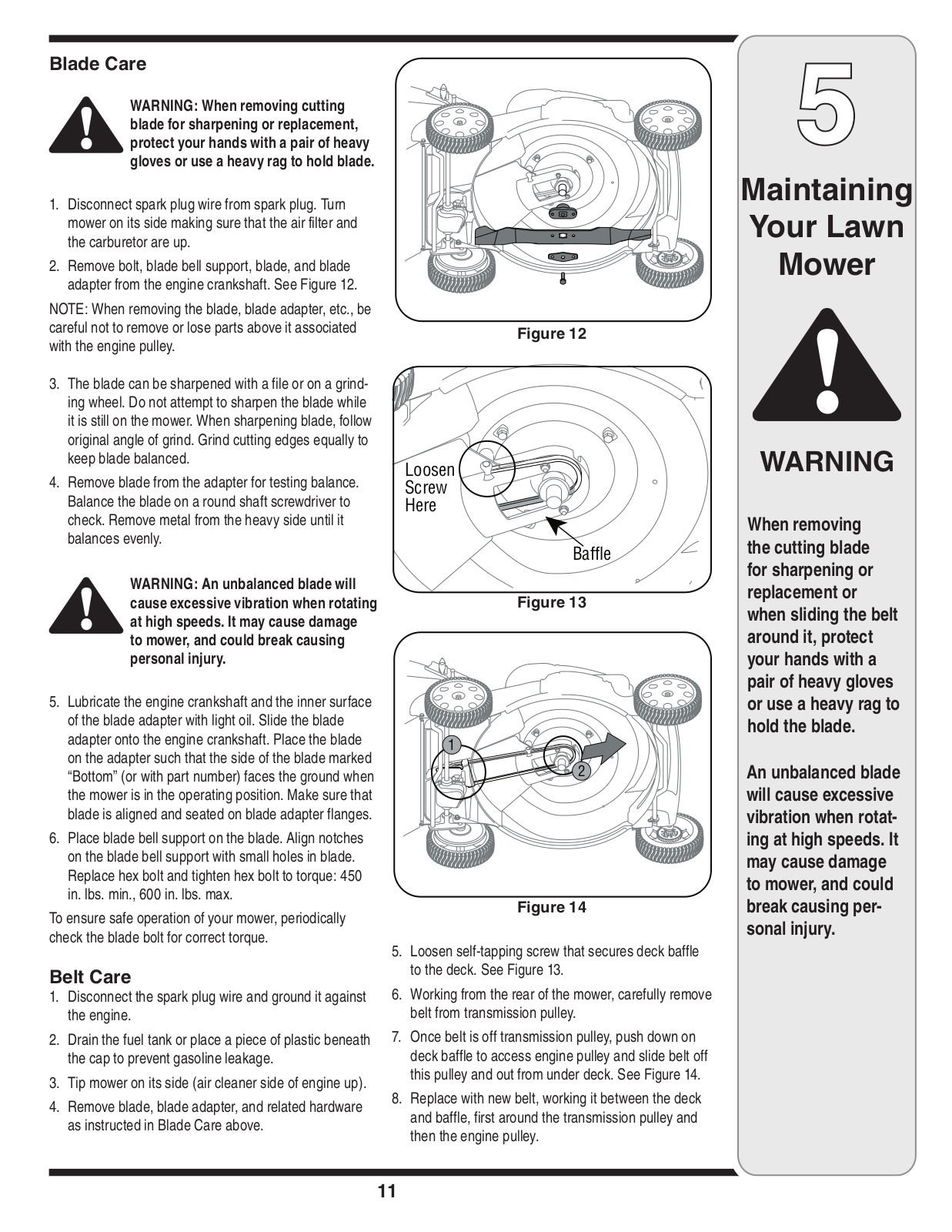

MaintainingYour Lawn Mower.........................

10

Safe Operation Practices...................................

4

Trouble Shooting ..............................................

14

Setup and Adjustment .......................................

6

Safety Labels ....................................................

15

OperatingYour Lawn Mower..............................

8

Parts List ...........................................................

16

Finding and Recording Model Number

BEFORE YOU START ASSEMBLING

YOUR NEW EQUIPMENT,

please locate the model plate on the equipment and copy the information to the sample model plate provided to the right. You can locate the model plate by standing at the operating position and looking down at the rear of the deck . This information will be necessary to use the manufacturer’s web site and/or obtain assistance from the Customer Support

Department or an authorized service dealer.

Model Number

Serial Number

MTD LLC

P. O. BOX 361131 CLEVELAND,OH 44136

www.yardman.com 330-220-4683

800-800-7310

Customer Support

Please do NOT return the unit to the retailer from which it was purchased, without first contacting Customer Support.

If you have difficulty assembling this product or have any questions regarding the controls, operation or maintenance of this unit, you can seek help from the experts. Choose from the options below:

1. Visit yardman.com for many useful suggestions. Click on Customer Support button and you will get the four options reproduced in this sample to the right. Click on the appropriate button and help is immediately available.

2. Phone a Customer Support Representative at 1(800) 800-7310.

3. The engine manufacturer is responsible for all enginerelated issues with regards to performance, power-rating, specifications, warranty and service. Please refer to the engine manufacturer’s Owner’s/Operator’s Manual, packed separately with your unit, for more information.

2

Use this page as a guide to determine slopes where you may not operate safely. Do not operate your lawn mower on such slopes.

1

Slope Gauge

WARNING

Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately

2-1/2 feet every 10 feet). A riding mower could overturn and cause serious injury. If operating a walkbehind mower on such a slope, it is extremely difficult to maintain your footing and you could slip, resulting in serious injury.

Operate RIDING mowers up and down slopes, never across the face of slopes.

Operate

WALK-BEHIND mowers across the face of slopes, never up and down slopes.

3

2

Safe

Operation Practices

WARNING

This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others.

Read and follow all instructions in this manual before attempting to operate this machine.

Failure to comply with these instructions may result in personal injury.

When you see this symbol.

HEED ITS WARNING

Your

Responsibility

Restrict the use of this power machine to persons who read,

understand

and follow the warnings and instructions

in this manual and on the machine.

WARNING: Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to State of California to cause cancer and birth defects or other reproductive harm.

DANGER: This machine was built to be operated according to the rules for safe operation in this manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.

Children

Tragic accidents can occur if operator is not alert to presence of children. Children are often attracted to mower and mowing activity.They do not understand the dangers. Never assume that children will remain where you last saw them.

1.Keep children out of the mowing area and under watchful care of a responsible adult other than the operator.

2.Be alert and turn mower off if a child enters the area.

3.Before and while moving backwards, look behind and down for small children.

4.Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects that may obscure your vision of a child who may run into the mower.

5.Keep children away from hot or running engines.They can suffer burns from a hot muffler.

6.Never allow children under 14 years old to operate a power mower. Children 14 years old and over should read and understand operation instructions and safety rules in this manual and should be trained and supervised by a parent.

General Operation

1.Read this operator’s manual carefully in its entirety before attempting to assemble this machine. Read, understand, and follow all instructions on the machine and in the manual(s) before operation. Be completely familiar with the controls and the proper use of this machine before operating it. Keep this manual in a safe place for future and regular reference and for ordering replacement parts.

2.This machine is a precision piece of power equipment, not a plaything. Therefore, exercise extreme caution at all times. Your unit has been designed to perform one job: to mow grass. Do not use it for any other purpose.

3.Never allow children under 14 years old to operate this machine. Children 14 years old and over should read and understand the instructions in this manual and should be trained and supervised by a parent. Only responsible individuals who are familiar with these rules of safe operation should be allowed to use this machine.

4.Thoroughly inspect the area where the equipment is to be used. Remove all stones, sticks, wire, bones, toys and other foreign objects which could be tripped over or picked up and thrown by the blade. Thrown objects can cause serious personal injury. Plan your mowing pattern to avoid discharge of material toward roads, sidewalks, bystanders and the like. Also, avoid discharging material against a wall or obstruction which may cause discharged material to ricochet back toward the operator.

5.To help avoid blade contact or a thrown object injury, stay in operator zone behind handles and keep children, bystanders, helpers and pets at least 75 feet from mower while it is in operation. Stop machine if anyone enters area.

6.Always wear safety glasses or safety goggles during operation and while performing an adjustment or repair to protect your eyes. Thrown objects which ricochet can cause serious injury to the eyes.

7.Wear sturdy, rough-soled work shoes and close-fitting slacks and shirts. Shirts and pants that cover the arms and legs and steel-toed shoes are recommended. Never operate this machine in bare feet, sandals, slippery or light weight (e.g. canvas) shoes.

8.Do not put hands or feet near rotating parts or under cutting deck. Contact with blade can amputate hands and feet.

9.A missing or damaged discharge cover can cause blade contact or thrown object injuries.

10.Many injuries occur as a result of the mower being pulled over the foot during a fall caused by slipping or tripping. Do not hold on to the mower if you are falling; release the handle immediately.

11.Never pull the mower back toward you while you are walking. If you must back the mower away from a wall or obstruction first look down and behind to avoid tripping and then follow these steps:

a.Step back from mower to fully extend your arms.

b.Be sure you are well balanced with sure footing.

c.Pull the mower back slowly, no more than half way toward you.

d.Repeat these steps as needed.

12.Do not operate the mower while under the influence of alcohol or drugs.

13.Do not engage the self-propelled mechanism on units so equipped while starting engine.

14.The blade control handle is a safety device. Never attempt to bypass its operation. Doing so makes the safety device inoperative and may result in personal injury through contact with the rotating blade. The blade control handle must operate easily in both directions and automatically return to the disengaged position when released.

15.Never operate the mower in wet grass. Always be sure of your footing. A slip and fall can cause serious personal injury. If you feel you are losing your footing, release the blade control handle immediately and the blade will stop rotating within three seconds.

16.Mow only in daylight or good artificial light. Walk, never run.

17.Stop the blade when crossing gravel drives, walks or roads.

18.If the equipment should start to vibrate abnormally, stop the engine and check immediately for the cause. Vibration is generally a warning of trouble.

19.Shut the engine off and wait until the blade comes to a complete stop before removing the grass catcher or unclogging the chute.

4

The cutting blade continues to rotate for a few seconds after the engine is shut off. Never place any part of the body in the blade area until you are sure the blade has stopped rotating.

20.Never operate mower without proper trail shield, discharge cover, grass catcher, blade control handle or other safety protective devices in place and working. Never operate mower with damaged safety devices. Failure to do so, can result in personal injury.

21.Muffler and engine become hot and can cause a burn. Do not touch.

22.Only use parts and accessories made for this machine by manufacturer. Failure to do so can result in personal injury.

23.If situations occur which are not covered in this manual, use care and good judgment. Contact your dealer for assistance. Telephone 1-800-800-7310 for the name of your nearest dealer.

Slope Operation

Slopes are a major factor related to slip and fall accidents which can result in severe injury. Operation on slopes requires extra caution. If you feel uneasy on a slope, do not mow it. For your safety, use the slope gauge included as part of this manual to measure slopes before operating this unit on a sloped or hilly area. If the slope is greater than 15 degrees, do not mow it.

Do:

1.Mow across the face of slopes; never up and down. Exercise extreme caution when changing direction on slopes.

2.Watch for holes, ruts, rocks, hidden objects, or bumps which can cause you to slip or trip. Tall grass can hide obstacles.

3.Always be sure of your footing. A slip and fall can cause serious personal injury. If you feel you are losing your balance, release the blade control handle immediately, and the blade will stop rotating within 3 seconds.

Do Not:

1.Do not mow near drop-offs, ditches or embankments, you could lose your footing or balance.

2.Do not mow slopes greater than 15 degrees as shown on the slope gauge.

3.Do not mow on wet grass. Unstable footing could cause slipping.

Service

Safe Handling Of Gasoline:

1.To avoid personal injury or property damage use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Serious personal injury can occur when gasoline is spilled on yourself or your clothes which can ignite.

2.Wash your skin and change clothes immediately.

3.Use only an approved gasoline container.

4.Never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place containers on the ground away from your vehicle before filling.

5.Remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment on a trailer with a portable container, rather than from a gasoline dispenser nozzle.

6.Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lock-open device.

7.Extinguish all cigarettes, cigars, pipes and other sources of ignition.

8.Never fuel machine indoors because flammable vapors will accumulate in the area.

9.Never remove gas cap or add fuel while engine is hot or running. Allow engine to cool at least two minutes before refueling.

10.Never over fill fuel tank. Fill tank to no more than ½ inch below bottom of filler neck to provide for fuel expansion.

11.Replace gasoline cap and tighten securely.

12.If gasoline is spilled, wipe it off the engine and equipment. Move unit to another area. Wait 5 minutes before starting engine.

13.Never store the machine or fuel container near an open flame, spark or pilot light as on a water heater, space heater, furnace ,clothes dryer or other gas appliances.

14.To reduce fire hazard, keep mower free of grass, leaves, or other debris build-up. Clean up oil or fuel spillage and remove any fuel soaked debris.

15.Allow a mower to cool at least 5 minutes before storing.

General Service:

1.Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless and deadly gas.

2.Before cleaning, repairing, or inspecting, make certain the blade and all moving parts have stopped. Disconnect the spark plug wire and ground against the engine to prevent unintended starting.

3.Check the blade and engine mounting bolts at frequent intervals for proper tightness. Also, visually inspect blade for damage (e.g., bent, cracked, worn) Replace blade with the original equipment manufacture’s (O.E.M.) blade only, listed in this manual.“Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety!”

4.Mower blades are sharp and can cut.Wrap the blade or wear gloves, and use extra caution when servicing them.

5.Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition.

6.Never tamper with safety devices. Check their proper operation regularly.

7.After striking a foreign object, stop the engine, disconnect the spark plug wire and ground against the engine. Thoroughly inspect the mower for any damage. Repair the damage before starting and operating the mower.

8.Never attempt to make a wheel or cutting height adjustment while the engine is running.

9.Grass catcher components, discharge cover, and trail shield are subject to wear and damage which could expose moving parts or allow objects to be thrown. For safety protection, frequently check components and replace immediately with original equipment manufacturer’s (O.E.M.) parts only, listed in this manual. “Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety!”

10.Do not change the engine governor setting or overspeed the engine.The governor controls the maximum safe operating speed of the engine.

11.Maintain or replace safety labels, as necessary.

12.Observe proper disposal laws and regulations. Improper disposal of fluids and materials can harm the environment.

2

Safe

Operation Practices

WARNING

This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others.

Read and follow all instructions in this manual before attempting to operate this machine.

Failure to comply with these instructions may result in personal injury.

When you see this symbol.

HEED ITS WARNING

Your

Responsibility

Restrict the use of this power machine to persons who read,

understand

and follow the warnings and instructions

in this manual and on the machine.

5

Yard-Man 829 User Manual

3

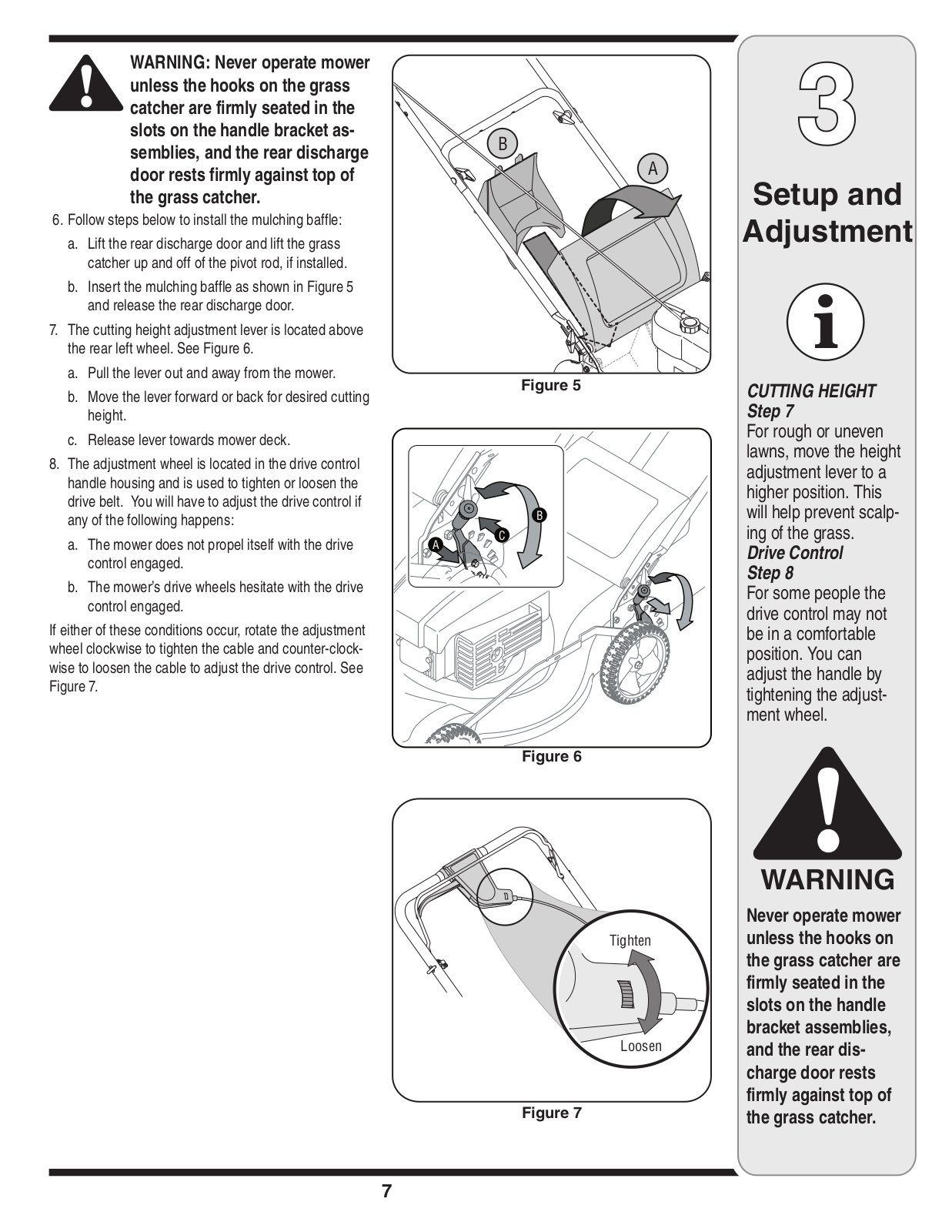

Setup and

Adjustment

NOTE: Stand behind the mower as if you were going to operate it. Your right hand corresponds to the right side of the mower; your left hand corresponds to the left side of the mower.

NOTE: For shipping purposes your mower is set with the wheels in a low cutting height position. For best results raise the cutting position until it is determined which height is best for your lawn. See Step 7 for details.

IMPORTANT

DO NOT crimp the cables when lifting the handle up.

IMPORTANT

This unit is shipped without gasoline or oil in the engine. Fill up gasoline and oil as instructed in the accompanying engine manual BEFORE operating your mower.

A

B

Figure 1

Figure 2

A

C

B

Figure 3

1.Remove grass catcher and any packing material which may be between upper and lower handles.

a.Remove hand knobs from handle brackets and pull up and back on upper handle as shown in Figure 1. Make certain the lower handle is seated securely into the handle mounting brackets.

b.Tighten hand knobs securing upper handle to lower handle. Make sure that each carriage bolt is seated properly in the handle.

2.Replace and tighten hand knobs removed earlier securing lower handle to handle brackets. See Figure 2.

3.The rope guide is attached to the right side of the upper handle. Loosen the wing nut which secures the rope guide. See Figure 3.

a.Hold the blade control against upper handle.

b.Pull starter rope out of the engine. Release the blade control.

c.Slip starter rope into rope guide. Tighten wing nut.

4.Attach cables to the lower handle with the cable ties already on the lower handle. Insert pegs on cable ties into the holes on the lower handle. Pull cable ties tight and cut off the extra.

5.Follow steps below to attach grass catcher:

a.Lift rear discharge door and remove mulching baffle.

b.Place grass catcher on the pivot rod. Let go of discharge door so that it rests on the grass catcher. See Figure 4.

B A

Figure 4

6
