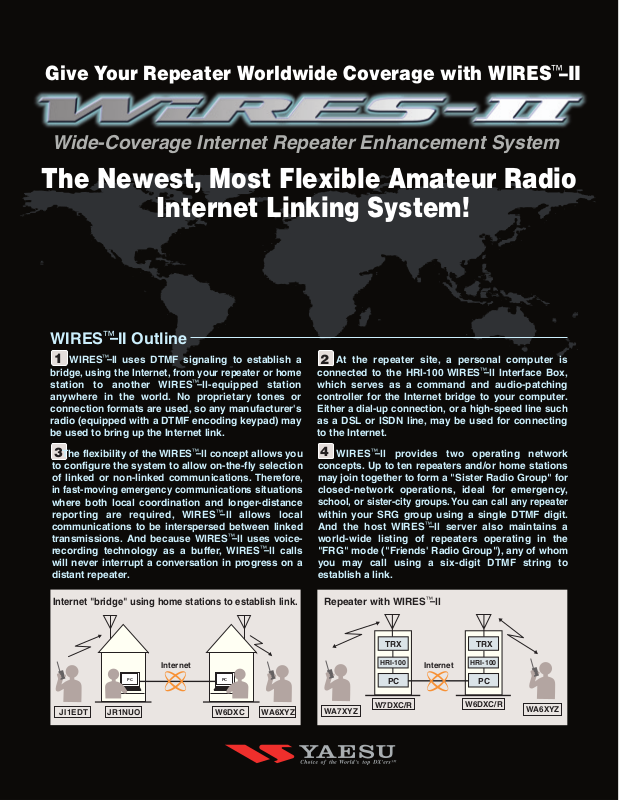

Yaesu WIRES-II BROCHURE

Give Your Repeater Worldwide Coverage with WIRES

™

–II

Wide-Coverage Internet Repeater Enhancement System

The Newest, Most Flexible Amateur Radio

Internet Linking System!

WIRES™–II Outline

1

WIRES™–ll uses DTMF signaling to establish a
bridge, using the Internet, from your repeater or home
station to another WIRES™–ll-equipped station
anywhere in the world. No proprietary tones or
connection formats are used, so any manufacturer's
radio (equipped with a DTMF encoding keypad) may
be used to bring up the Internet link.

3

The flexibility of the WIRES™–ll concept allows you
to configure the system to allow on-the-fly selection
of linked or non-linked communications.
in fast-moving emergency communications
where both local coordination and longer-distance
reporting are required, WIRES™–ll allows local
communications to be interspersed between linked
transmissions. And because WIRES™–ll uses voice­recording technology as a buffer, WIRES™–ll calls
will never interrupt a conversation in progress on a
distant repeater.

Internet "bridge" using home stations to establish link.

Therefore,

situations

At the repeater site, a personal computer is

2

connected to the HRI-100 WIRES
which serves as a command and audio-patching
controller for the Internet bridge to your computer.
Either a dial-up connection, or a high-speed line such
as a DSL or ISDN line, may be used for connecting
to the Internet.

4

WIRES
concepts. Up to ten repeaters and/or home stations
may join together to form a "Sister Radio Group" for
closed-network operations, ideal for emergency,
school, or sister-city groups. You can call any repeater
within your SRG group using a single DTMF digit.
And the host WIRES™–ll server also maintains a
world-wide listing of repeaters operating in the
"FRG" mode ("Friends' Radio Group"), any of whom
you may call using a six-digit DTMF string to
establish a link.

Repeater with WIRES™–ll

™

–ll provides two operating network

TRX

™

–ll Interface Box,

TRX

Internet

PC

J I1EDT WA6XYZJR1NUO W6DXC

PC

WA7XYZ

HRI-100 HRI-100

PC

W7DXC/R

Internet

PC

W6DXC/R

WA6XYZ

Your Hand-held or Mobile is Now Your Bridge to the World,

and Your "Local" Repeater Will Never Be the Same!

WIRES™–II uses DTMF signaling to connect your hand-held or car transceiver, via the

HRI-100 Interface Box, to the Internet, and from there the sky really is the limit!

WIRES™–ll Introduces Two Unique Networking Modes for Radio-Internet Linking:

A closed network of up to ten repeaters that have agreed to form a "Sister Radio Group" (SRG). Access to any other group station

SRG

is accomplished by the sending of a single DTMF digit at the beginning of the first transmission.

Repeaters around the world, as they register into the WIRES™–ll Host Server, may become part of the "Friends' Radio Group" (FRG),

FRG

and you might get a call from just about anywhere in the world the next time you're on the air during your morning commute!

System Diagram

WIRES™–II Amateur Radio Internet Linking Kit

Components

HRI-100 Interface Box

Connections:

DC In: 12 V ±10 %, negative ground, 1 A max.
SP Jack: Input from Sound Card, 600 mV rms @ 600 Ω
MIC Jack: Output to Sound Card, 500 mV p-p @ 600 Ω
Radio Jack: TX AF IN 500 mV rms @ 600 Ω
DISC OUT 500 mV rms @ 600 Ω
PTT (Positive 5 V DC)
Dimensions
Weight: 0.66 lb (300 g)

WIRES™–ll Internet Linking System Requirements

•WIRES™–II Kit (HRI-100 Controller, Cables, Manual, Software)

•Transceiver or Repeater (XCVR with standard PKT Jack recommended:

FT-8900R, FT-817, FT-847, FT-897, etc.)

•Intel

•Internet Connection (56K dial-up, ISDN, DSL, or other high speed lines OK)

•Microsoft

(Requires 12 V DC Input)

(W x H x D): 4.4" x 1.0" x 5.3" (111 x 25.4 x 133 mm)

®

MMX 200 MHz (or faster) processor

®

Windows® 98SE or later operating system

AP01 CD-ROM (Including Manual)
Power Cable
Data Cable (RS-232C DB-9 Plug)
Data Cable (8-pin Mini-DIN Plug)
Audio Cable (3.5 mm Plug) (2)

™

–ll User/Server Agreement

WIRES

Optional Accessory:

•

NC-72B AC Adapter

•30 MB of available Hard Disk space

•64 MB (or more) RAM

•CD-ROM Drive for installation

•640 x 480 color display recommended, with 256-bit color support on video card

•56 kbps Modem (for dial-up connections)

•Sound Card with 44.1 kHz sampling rate (some sound cards may not work)

UHF Transceiver (such as FT-8900R).Set Packet Baud
Rate to 1200 bps.Connects to standard Packet Jack on
Rear of Transceiver.

DATA IN/OUT

HRI-100

SP

MIC

12 V DC

RS-232C

Personal Computer

MODEM or LAN

To Internet Line

Notice! Please note the important conditions regarding the use of this product.

(Further detail and terms of your use of this product are contained in the License Agreement included with the Software.)

Only the customer who agrees to abide by the terms of the license with VERTEX STANDARD CO., LTD. may use this software.

The user must agree to abide by the terms of the "WIRES™ END-USER LICENSE AGREEMENT" and register the necessary
items in the WIRES
assigned to you, and only then may you connect to the WIRES

This software is owned by VERTEX STANDARD CO., LTD. and is protected under copyright laws and international copyright
treaties. This software is licensed for use by the purchaser, and no rights other than a license to use this product in a manner in
accordance with the End-User License Agreement are conveyed. Copying or other reproduction, in whole or in part, of this
software and manual without permission are prohibited.

™

SERVER, operated by VERTEX STANDARD CO., LTD. After registration, a Server ID Number will be

™

Server at VERTEX STANDARD CO., LTD.

Regarding this software and the descriptions contained in the manual, VERTEX STANDARD CO., LTD. has the right to patent or
to apply for all patents, copyrights, trademarks and other rights pertaining to this product, and VERTEX STANDARD CO., LTD.
does not convey to the customer any permission to sell any of these rights to any party, and does not allow to use these rights in
any other manner.

The specifications, functions of the hardware and software, and the descriptions written in the manuals are subject to change
without notice or obligation.

VERTEX STANDARD CO., LTD. will make reasonable efforts to maintain and operate the WIRES™ Server for the enjoyment of
Amateur Radio operators and the development of Amateur Radio technology; however, we may suspend the maintenance and
operation of the Server in the future, at our sole discretion.

VERTEX STANDARD CO., LTD. specifically disclaims any responsibility for claims arising out of such discontinuation of
WIRES™ Server operation.
