Xerox ApeosPort-II C2200, ApeosPort-II C3300, ApeosPort-II C4300, DocuCentre-II C2200, DocuCentre-II C3300 Network Administrator Guide
...
ApeosPort-II C4300/C3300/C2200
DocuCentre-II C4300/C3300/C2200
Network Administrator Guide
Microsoft, MS-DOS, Windows NT, Microsoft Network are trademarks or registered trademarks
of Microsoft Corporation in the U.S. and other countries.
Novell, NetWare, IntranetWare, NDS are registered trademarks of Novell, Inc. in the United
States. and other countries.
Adobe, Acrobat, PostScript, Adobe PostScript 3, and the PostScript logo are trademarks of
Adobe Systems Incorporated.
EtherTalk, Macintosh, Mac OS, TrueType are registered trademarks of Apple Computer, Inc.
Intel and Pentium are trademarks or registered trademarks of Intel Corporation.
UNIX is a registered trademark in the United States and other countries, licensed exclusively
through X/Open Company Ltd.
Solaris, Sun OS, and NIS (Network Information Services) are trademarks or registered
trademarks of Sun Microsystems Inc. in the United States.
PCL, HP-GL, and HP-GL/2 are registered trademarks of Hewlett-Packard Corporation.
All product/brand names are trademarks or registered trademarks of the respective holders.
Permission has been obtained from Microsoft Corporation for use of software screen shots.
The data saved in the hard disk of the machine may be lost if there is any problem in the
hard disk. Fuji Xerox is not responsible for any direct and indirect damages arising from or
caused by such data loss.
Fuji Xerox is not responsible for any breakdown of machines due to infection of computer
virus or computer hacking.
Important
1. This manual is copyrighted with all rights reserved. Under the copyright laws, this manual
may not be copied or modified in whole or part, without the written consent of the
publisher.
2. Parts of this manual are subject to change without prior notice.
3. We welcome any comments on ambiguities, errors, omissions, or missing pages.
4. Never attempt any procedure on the machine that is not specifically described in this
manual. Unauthorized operation can cause faults or accidents. Fuji Xerox is not liable for
any problems resulting from unauthorized operation of the equipment.
An export of this product is strictly controlled in accordance with Laws concerning Foreign
Exchange and Foreign Trade of Japan and/or the export control regulations of the United
States.
Xerox, The Document Company, Ethernet, CentreWare, and the digital X are trademarks of
Xerox Corporation. All Xerox and Fuji Xerox product names are either registered trademarks or
trademarks of Xerox Corporation and Fuji Xerox Co., Ltd.
Table of Contents
Table of Contents ..............................................................................................1
1 Before Using the Machine .............................................................................. 7
Preface ..............................................................................................................8
Using This Guide............................................................................................... 9
Related Information Sources ........................................................................9
Organization of this Guide ..........................................................................10
Conventions................................................................................................ 11
2 Product Overview.......................................................................................... 13
Machine Components .....................................................................................14
Overview of Features ......................................................................................21
Print ............................................................................................................ 21
CentreWare Internet Services ....................................................................22
Scan ...........................................................................................................23
E-mail..........................................................................................................24
iFax .............................................................................................................24
Table of Contents
Tools................................................................................................................ 25
Power On / Off.................................................................................................27
Powering On ............................................................................................... 27
Powering Off ...............................................................................................28
Interface Cables .............................................................................................. 29
Using the Parallel Interface......................................................................... 29
Using the USB Interface ............................................................................. 29
Using the Ethernet Interface ....................................................................... 30
Control Panel................................................................................................... 31
Internal Fonts .................................................................................................. 34
3 Installation When Using Parallel Port.......................................................... 37
Preparations ....................................................................................................38
Installation Procedure......................................................................................38
Installation Overview................................................................................... 38
Configuration on the Machine..................................................................... 38
Configuration on the Computer................................................................... 39
4 Installation When Using USB Port...............................................................41
Preparations ....................................................................................................42
Installation Procedure......................................................................................42
Installation Overview................................................................................... 42
Configuration on the Machine..................................................................... 42
Configuration on the Computer................................................................... 43
1
5 Installation When Using TCP/IP (LPD/Port 9100)....................................... 45
Preparations.................................................................................................... 46
Installation Procedure ..................................................................................... 46
Installation Overview .................................................................................. 46
Configuration on the Machine..................................................................... 46
Configuration on the Computer ..................................................................48
6 Installation When Using NetWare................................................................ 49
Preparations.................................................................................................... 50
Installation Procedure ..................................................................................... 50
Installation Overview .................................................................................. 50
Configuration on the Machine..................................................................... 51
Configuration on the Computer ..................................................................52
7 Installation When Using Microsoft Network (SMB).................................... 55
Preparations.................................................................................................... 56
Installation Procedure ..................................................................................... 56
Installation Overview .................................................................................. 56
Configuration on the Machine..................................................................... 56
Configuration on the Computer ..................................................................57
8 Installation When Using Internet Printing Protocol (IPP) .......................... 59
Preparations.................................................................................................... 60
Installation Procedure ..................................................................................... 60
Installation Overview .................................................................................. 60
Configuration on the Machine..................................................................... 60
Configuration on the Computer ..................................................................61
9 Installation When Using EtherTalk .............................................................. 63
Preparations.................................................................................................... 64
Installation Procedure ..................................................................................... 64
Installation Overview .................................................................................. 64
Configuration on the Machine..................................................................... 64
Configuration on the Computer ..................................................................65
10 Using CentreWare Internet Services ........................................................... 67
Preparations.................................................................................................... 68
Installation Procedure ..................................................................................... 68
Installation Overview .................................................................................. 68
Configuration on the Machine..................................................................... 68
Confirmation of the Configuration............................................................... 70
Network Setting Items (Port/Protocol) for CentreWare Internet Services ....... 71
Ethernet ...................................................................................................... 72
Parallel........................................................................................................ 73
USB ............................................................................................................ 74
2
Table of Contents
EtherTalk .................................................................................................... 75
SMB............................................................................................................76
NetWare......................................................................................................77
TCP/IP ........................................................................................................ 78
LPD............................................................................................................. 80
SNMP ......................................................................................................... 81
IPP..............................................................................................................83
Port 9100 .................................................................................................... 84
E-mail..........................................................................................................85
SMTP.......................................................................................................... 89
POP3 .......................................................................................................... 90
HTTP .......................................................................................................... 91
WebDAV.....................................................................................................92
Bonjour ....................................................................................................... 93
11 E-mail..............................................................................................................95
E-mail Overview .............................................................................................. 96
Preparations ....................................................................................................97
Installation Procedure......................................................................................99
Installation Overview................................................................................... 99
Enabling Port and Setting TCP/IP ..............................................................99
Configuring E-mail Environment...............................................................100
12 Using the Scan Service............................................................................... 105
Scan Service Overview .................................................................................106
Configuration of E-mail..................................................................................107
Preparations ............................................................................................. 107
Installation Overview................................................................................. 107
Enabling Port and Setting TCP/IP ............................................................107
Configuring E-mail Environment...............................................................108
Configuration of Scan to Mailbox ..................................................................113
Installation Overview................................................................................. 113
Enabling Port and Setting TCP/IP ............................................................113
Registering a Mailbox ...............................................................................115
Configuration of Network Scanning (Job Template Scanning)......................118
Preparations ............................................................................................. 118
Installation Overview................................................................................. 118
Enabling Port and Setting TCP/IP ............................................................118
Configuring the SNMP Port ......................................................................119
Configuration on a Computer.................................................................... 120
Configuration of Scan to PC..........................................................................121
Preparations ............................................................................................. 121
Installation Overview................................................................................. 121
Enabling Port and Setting TCP/IP ............................................................122
Configuration on the Computer................................................................. 123
3
Configuration of the Job Flow ....................................................................... 124
Installation Overview ................................................................................ 124
Enabling Port and Setting TCP/IP ............................................................ 124
Configuring the SNMP Port ...................................................................... 125
Configuration on the Computer ................................................................ 126
13 Using the iFax Service................................................................................ 127
iFax Overview ............................................................................................... 128
Preparations.................................................................................................. 128
System Requirements for the Machine .................................................... 128
Installation Procedure ................................................................................... 129
Installation Overview ................................................................................ 129
Enabling the Port and Setting TCP/IP ...................................................... 129
Configuring the E-mail Environment......................................................... 130
Testing iFax .............................................................................................. 134
14 Security ........................................................................................................ 135
Security Service Overview ............................................................................ 136
Communication Security Service.............................................................. 136
Scan File Security Services...................................................................... 136
Configuration of HTTP Communication Encryption ...................................... 137
Installation Overview ................................................................................ 137
Configuration on the Machine................................................................... 137
Configuration on a Computer ................................................................... 138
Configuration of E-mail Encryption/Digital Signature .................................... 140
Installation Overview ................................................................................ 140
Configuration on the Machine................................................................... 140
Configuration on a Computer ................................................................... 142
Configuration of Scan File Signature
(PDF/DocuWorks Signature)......................................................................... 143
Installation Overview ................................................................................ 143
Configuration on the Machine................................................................... 143
Configuration on a Computer ................................................................... 144
15 Problem Solving.......................................................................................... 145
SMB .............................................................................................................. 146
Troubleshooting........................................................................................ 146
Notes and Restrictions ............................................................................. 147
NetWare ........................................................................................................ 150
When you cannot print.............................................................................. 150
When "Switch the machine off" is displayed............................................. 152
When the print output is not as you expected .......................................... 152
When no notification is received............................................................... 153
TCP/IP........................................................................................................... 154
Troubleshooting........................................................................................ 154
4
Table of Contents
Notes and Restrictions.............................................................................. 156
EtherTalk .......................................................................................................158
Troubleshooting........................................................................................ 158
Notes and Restrictions.............................................................................. 158
Bonjour..........................................................................................................160
Notes and Restrictions.............................................................................. 160
CentreWare Internet Services ....................................................................... 161
Troubleshooting........................................................................................ 161
Scanner Features..........................................................................................163
Troubleshooting........................................................................................ 163
Notes and Restrictions.............................................................................. 163
E-Mail Features .............................................................................................165
Troubleshooting........................................................................................ 165
Internet/Intranet Connection.......................................................................... 166
Troubleshooting........................................................................................ 166
Notes and Restrictions.............................................................................. 168
Index ...................................................................................................................169
5
1 Before Using the Machine
This chapter describes how to use this guide.
z
Preface .........................................................................................................8
z
Using This Guide ..........................................................................................9
1 Before Using the Machine
Preface
Before Using the Machine
1
Thank you for selecting the Fuji Xerox ApeosPort-II C4300/C3300/C2200,
DocuCentre-II C4300/C3300/C2200 (hereafter referred to as "the machine").
This guide describes a number of configuration procedures for using this machine on
a network.
This guide assumes that the operator has a basic knowledge of the operating
environment of the personal computer in use, networking environments, and how to
operate a personal computer. Please read this guide thoroughly to obtain the best
performance on the machine. After reading this guide, be sure to keep it handy for quick
reference. It will be useful in case you forget how to perform operations or if a problem
occurs with the machine.
Refer to the User Guide or the ApeosPort Function Guide for the machine operation,
clearing paper jams, daily maintenance, setting various items and safety information.
For details about optional accessories, also refer to the guide provided with each
optional accessory.
Since the machine is equipped with anti-counterfeit features, in some rare cases,
certain kinds of documents may be unable to copy.
8
Using This Guide
Using This Guide
This section describes the organization of this guide.
Related Information Sources
We provide the following guides for optimum usage of the machine.
Included Manuals
Several manuals are included with this product. They are referred to as accompanying
manuals.
These accompanying manuals include descriptions on configurations and operation of
the product.
The following manuals are included with the machine.
User Guide
Describes all the necessary steps for copy/print/scan/fax, clearing paper jams, daily
care, setting the various items and safety information.
ApeosPort Function Guide
Describes unique functions in the copy/print/scan/fax features of ApeosPort that differ
from functions equipped with DocuCentre. For common features, refer to the User
Guide.
Before Using the Machine
1
Network Administrator Guide (this guide)
Aimed toward network administrators, as a guide to setting up the network
environment.
Manual (HTML)
A guide to installing print drivers, configuring the printer environment, etc. This manual
is included in the CD-ROM of the Driver CD Kit.
Guides for Optional Accessories
Optional accessories are also available for the machine. User Guides are provided with
the optional accessories exclusively for the ApeosPort-II C4300/C3300/C2200,
DocuCentre-II C4300/C3300/C2200. These User Guides are referred to as "guides for
optional accessories". Guides for optional accessories are provided in two forms, as
printed or as On-line Help.
Guides for optional accessories describe all the necessary steps for operating optional
accessories and installing software.
9
1 Before Using the Machine
Organization of this Guide
This guide consists of the following chapters.
Before Using the Machine
1 Before Using the Machine
Describes the organization of this guide.
2 Product Overview
Describes basic information such as identifying the major components, how to switch
the machine on and off, and how to use the touch screen.
3 Installation When Using Parallel Port
Describes how to install the machine using a parallel interface.
1
4 Installation When Using USB Port
Describes how to install the machine using a USB interface.
5 Installation When Using TCP/IP (LPD/Port 9100)
Describes how to install the machine using the TCP/IP (LPD/Port 9100) protocol.
6 Installation When Using NetWare
Describes how to install the machine to a NetWare network.
7 Installation When Using Microsoft Network (SMB)
Describes how to install the machine to a Microsoft Networks (SMB).
8 Installation When Using Internet Printing Protocol (IPP)
Describes how to install the machine to enable Internet printing.
9 Installation When Using EtherTalk
Describes how to install the machine to an EtherTalk network.
10 Using CentreWare Internet Services
Describes how to use the CentreWare Internet Services.
11 E-mail
10
Describes how to use the E-mail feature on this machine.
12 Using the Scan Service
Describes how to use the scan service on this machine.
13 Using the iFax Service
Describes how to use the iFax service on this machine.
14 Security
Describes how to use services using the communication security function on this
machine.
15 Problem Solving
Describes how to solve the problems you may encounter.
Conventions
z
z
z
z
Using This Guide
In this document, “Computer” refers to a personal computer or workstation.
The following icons are used in this guide.
Important Indicates important information that you should read.
Note Indicates additional information on operations or features.
The following conventions are used in this guide:
" " : A cross-reference included in this guide.
" " : Refers to names of CD-ROM, features, and touch screen
messages and input text.
[ ] : Refers to folders, files, applications, button or menu names
displayed in the touch screen, as well as the names of menus,
commands, windows, or dialog boxes displayed on the
computer screen and their buttons and menu names.
< > button: Indicates a hardware button on the computer.
< > key: Indicates a key on the keyboard of the computer.
Orientation of documents or paper is described in this guide as follows:
Before Using the Machine
1
, ,Long Edge Feed (LEF) : Loading with one of the long edges of the document
or paper.
, ,Short Edge Feed (SEF): Loading with one of the short edges of the document
or paper.
LEF Orientation SEF Orientation
Paper feed direction Paper feed direction
11
1 Before Using the Machine
Before Using the Machine
1
12
2 Product Overview
This chapter describes the names of each component, features and tools,
switching on and off of the machine, cable connections, and the operation of the
touch screen.
z
Machine Components.................................................................................14
z
Overview of Features..................................................................................21
z
Tools ...........................................................................................................25
z
Power On / Off ............................................................................................27
z
Interface Cables..........................................................................................29
z
Control Panel ..............................................................................................31
z
Internal Fonts.............................................................................................. 34
Product Overview
2
2 Product Overview
Machine Components
This section describes the main components and functions of ApeosPort-II C4300/
C3300/C2200, DocuCentre-II C4300/C3300/C2200 (hereafter referred to as "the
machine").
4 Tray Model
1
2
3
4
5
6
7
9
8
10
No. Component Function
1 Document cover Holds the document down.
2 Document glass Originals are loaded here.
3 Control panel Consists of operation buttons, LED indicators and a touch screen.
Refer to "Control Panel" (P.31).
4 Center output tray
(Output tray)
5 Paper stopper Set upright for use when making copies or prints.
6 Power switch Switches the power of the machine on/off.
Printed or copied documents are delivered with the printed side facing
down.
7 Front cover Open this cover to replace consumables.
8 Tray 1, 2, 3, 4 (optional) Accommodates papers.
9 Tray 5 (Bypass) Used for loading non-standard paper (thick-stock paper, and other
special media) that cannot be loaded in the Trays 1 to 4.
10 Locking casters Used for locking the wheels of the machine. Lock these casters after
moving the machine to its installation site.
14
Left Side and Back
Machine Components
Product Overview
Tandem Tray Model + Side Output Tray
2
Tray 4
(High Capacity)
Tray 3
(High Capacity)
* The tandem tray model is available for the ApeosPort-II C4300,
DocuCentre-II C4300 only.
No. Component Function
11 Top left cover Push up the unlock lever to access the insides of the machine to clear
paper jams and replace consumables.
12 Duplex module cover Open this cover to access the insides of the machine to clear paper
jams when the duplex module is installed.
13 Left center cover Open this cover to access the insides of the machine to clear paper
jams.
14 Bottom left cover Open this cover to access the insides of the machine to clear paper
jams.
15 <RESET> button Automatically turns the power off when detecting current leakage.
16 Parallel interface connector
(optional)
17 USB 1.1 interface
connector
18 10BASE-T / 100BASE-TX
connector
19 Fax interface connector Used to connect to the fax kit.
Connected to a computer using a centronics standard interface cable.
Used when using the Voice Assistant (optional).
Connected to a network cable.
15
2 Product Overview
No. Component Function
Product Overview
2
20 USB 2.0 interface
connector (optional)
21 Side output tray (optional) Copies and prints are delivered here facing up.
Connected to a USB cable.
Internal Components
No. Component Function
22 Stopper Fastens the handle in place.
23 Toner cartridge Four toner (image forming powder) cartridges are provided: Black (K1),
Cyan (C), Magenta (M) and Yellow (Y).
24 Handle Unlock stopper and press this down when replacing the drum
cartridges.
25 Drum cartridge
(A1, A2, A3, A4)
26 Waste toner container
cover
27 Fuser (E) Fuses the printed image on the paper by fusing the toner. Do not touch
Contains a photo conductor.
Drum cartridges are arranged in order A1, A2, A3 and A4 from the left
as you face the main body.
Waste toner container (B), which stores waste toner, is located at the
other side of this cover. Open this cover to access the insides of the
machine when replacing the waste toner container.
this unit as it is extremely hot.
16
Duplex Automatic Document Feeder
5
12 3
4
6
7
Machine Components
Product Overview
8
2
No. Component Function
1 Confirmation indicator This indicator lights to confirm that the document is loaded correctly.
2 Wheel Turn this wheel to clear paper jams.
3 Left cover Open this cover to access the insides of the machine to clear paper
jams.
4 Inner cover Open this cover to access the insides of the machine to clear paper
jams.
5 Document guides Use these guides to align the edges of the document.
6 Document feeder tray Load documents here.
7 Document output tray Receives scanned documents.
8 Document feeder glass Scans documents.
Note • In text descriptions, the Duplex Automatic Document Feeder is abbreviated as "Document
Feeder".
17
2 Product Overview
Product Overview
Telephone Line Connectors
2
1
2
3
5
4
Screen displayed
No.
Name on the
machine cover
on the touch
screen while
Function
operating
1 OP.TEL - Use this interface to connect an external telephone
receiver fitted with an Extra G3 Port Kit (optional).
Do not connect to the TEL connector; external
telephones cannot be connected to the TEL
connector.
2 TEL - Used to connect an external telephone. Do not
connect devices other than telephones. If the "TEL"
connector is covered and you cannot connect a
telephone, contact our Customer Support Center.
3 LINE 1 Line 1 Connected to a public telephone network.
4 LINE 2 Line 2 Connected to a public telephone network.
5 LINE 4 Line 4 Connected to a public telephone network.
18
Note • Fax features are not available for some models. An optional package is required. For
information, contact our Customer Support Center.
B Finisher
7
Machine Components
1
2
Product Overview
3
5
4
6
No. Component Function
1 Finisher top cover button Press this button to open the upper cover of the finisher when clearing
paper jams.
2 Finisher tray Stapled documents are delivered.
3 Front cover Open this cover to clear staple jams, or replace staples.
4 Staple cartridge Contains staples. Pull out the cartridge to clear staple jams, or replace
staples.
5 Stand Connects the machine and the finisher.
6 Finisher transport cover Open this cover to clear paper jams. Make sure to move the finisher to
the right before opening the cover.
7 Center tray exit Open this cover to clear paper jams, or replace staples.
Note • The B Finisher is optional. In text descriptions, the B Finisher is abbreviated as
finisher.
2
19
2 Product Overview
Product Overview
C Finisher, C Finisher with Booklet Maker
1
2
3
4
5
6
2
7
8
No. Component Function
1 Front cover Open this cover to access the insides of the machine to clear paper or
staple jams, replace staples, or throw punch dust away.
2 Output tray Receives documents.
3 Exit cover Open this cover to access the insides of the machine to clear paper
jams.
4 Finisher tray Stapled documents are delivered.
5 Staple cartridge Contains staples. Pull out the cartridge to clear staple jams, or replace
staples.
6 Booklet tray
(For C Finisher with Booklet
Maker Only)
7 Booklet unit
(For C Finisher with Booklet
Maker Only)
Documents are delivered here when Folding is selected in the booklet
creation function.
This unit is for folding documents in half and stapling the folded
documents.
8 Center tray (Finisher
interface top cover)
Note • The C Finisher and C Finisher with Booklet Maker are optional. In text descriptions,
20
Documents are delivered here when the output tray or finisher tray
cannot be used.
Open this cover upward to access the insides of the machine to clear
paper jams.
Note • Remove the documents output to the center output tray frequently.
the C Finisher and C Finisher with Booklet Maker is abbreviated as finisher.
Overview of Features
The following features are provided in a network environment.
z
z
CentreWare Internet Services
z
Scan
z
E-mail
z
iFax
Print
This section describes the environment where the machine is able to provide print
services.
This machine can be used as a local printer by directly connecting to a computer, or as
a network printer when connecting to a network.
Enable the necessary port using the control panel.
Overview of Features
Product Overview
2
Using as a Local Printer
When using as a local printer, the machine can be connected by the following methods.
z
Parallel : Used to connect the machine with a computer using a parallel interface
cable.
z
USB : Used to connect the machine with a computer using a USB interface
cable.
Using as a Network Printer
When using as a network printer, the machine can be connected by the following
methods.
z
LPD : Used when communicating with the machine using the TCP/IP protocol.
z
NetWare : Used when sharing the machine using a NetWare server.
z
SMB : Used when printing through Microsoft Networks.
z
IPP : Used when printing through the Internet.
z
Port 9100:Used when using the port 9100 port.
21
2 Product Overview
z
EtherTalk:Used when printing from Macintosh machines. PostScript 3 Kit (optional)
is required.
Supported Operating Systems
Product Overview
2
Connection
method
Port
Protocol - -
Windows 95 O O
Windows 98 O O
Windows Me O O
Windows NT
4.0
O
Windows
2000
S
Windows XP O O
Windows
Server 2003
UNIX O
Macintosh O
Local
connection
Parallel
O OOOOO
OO
OO
USB
2.0
*1, 7
*1,3,6
LPD NetWare SMB IPP
TCP/IPTCP/IPIPX/
*2
OOOO O
*2
O
*1
O
*1
*1
*1
OOOOOOO
OOO OOO
OOO OOO
*3,5
O
OOOO O
*2
OOOOOO
*4
Network connection
Net
TCP/IPTCP/IPTCP/IPApple
SPX
BEUI
Port
9100
*1: USB 2.0 Expansion kit (optional) is required. In addition, a computer used must be
equipped with a USB 2.0 port.
*2: Use our TCP/IP Direct Print Utility for Windows 95/98 and Windows Me.
*3: A PostScript 3 Kit (optional) is required.
*4: A PostScript 3 Kit (optional) and a Unix filter are required to print PostScript data.
*5: Supports Mac OS X 10.2.x/10.3.3 to 10.4.3 only.
*6: Supports Mac OS 8.6 to 9.2.2, and Mac OS X 10.2.x/10.3.3 to 10.4.3 only.
*7: Supports Windows 98SE or later.
For detail information on network environments, refer to the manual in the CD-ROM of the Driver CD
Kit.
Ether
Talk
Talk
*2
*2
*2
*3
O

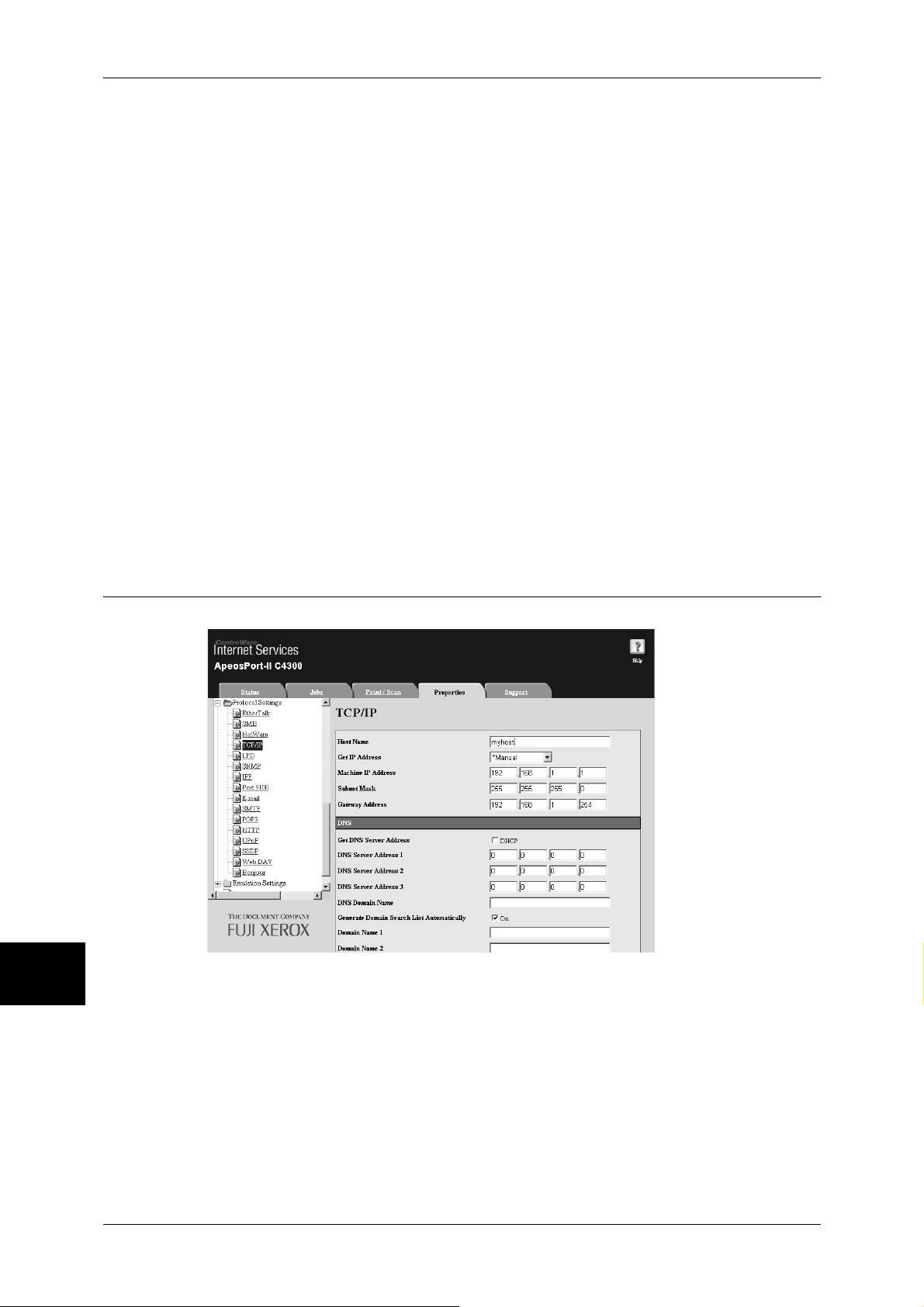

CentreWare Internet Services
CentreWare Internet Services provides services such as displaying the status of the
machine and jobs, and altering configurations using a web browser in a TCP/IP
environment.
For setting as a printer, the properties screen of the services allows users to configure
the system settings and port settings for each network that are otherwise operated on
the touch screen on the machine.
The following are functions offered under each tab within CentreWare Internet Services
when the machine is enabled with the Internet Services (HTTP) port.
22
Tab name Main function
Overview of Features
Status
Job
Print/Scan
Property
Support
z
Displaying the machine status
Displaying the status of the paper trays, output trays and consumables
such as toners.
z
Linking to the copyright screen.
z
Displaying a list of jobs and job history, and deleting jobs.
z
Print Command
Prints a specified file stored on your computer.
z
Scan Command
Creates and edits job templates.
z
Displaying and setting the following items:
Machine information, structure information such as memory and printing
language, configuration of the counter, paper trays and papers, energy
saving mode, address book, mailboxes, job flow sheets, PKI (Public Key),
mail notice, login setup/auditron administration, remote authentication
server, Internet services, proxy server, and port activation.
z
Port settings
z
Protocol settings
z
Emulation settings
z
Memory settings
z
Displaying support information.
z
Displaying error history information.
z
System administrator settings
z
Pool server settings
z
Web Applications
z
Auditron Log
Product Overview
2
Scan
The following scan services are available:
Note • This feature does not appear for some models. An optional package is necessary. For
details, contact our Customer Support Center.
E-mail
Scanned documents can be converted into an electronic format and transmitted via Email.
Scan to Mailbox
Scanned documents are saved into a mailbox.
When the machine is connected to a TCP/IP network, scanned documents in a mailbox
can be retrieved from a computer connected to the network.
Network Scanning (Job Template Scanning)
A job template is a configuration file for defining scanning conditions. You can apply a
template to a scanned document on the machine. The scanned document will be saved
as files on the machine and then sent automatically to computers (servers) such as
SMB servers connected to the network.
Note • This feature is only available for ApeosPort-II C4300/C3300/C2200.
Scan to PC
23
2 Product Overview
Product Overview
When the machine is connected to a network which can use either the FTP or SMB
protocol, the scanned documents can be saved on a network computer.
Job Flow Sheet
Scanning is performed according to a job flow.
Note • This feature is only available for ApeosPort-II C4300/C3300/C2200.
The following E-mail services are available:
Note • This feature does not appear for some models. An optional package is necessary. For
details, contact our Customer Support Center.
E-mail
Scanned documents can be converted into an electronic format and transmitted via email.
2
E-mail Printing
E-mail with attachments in either TIFF, JPEG, or PDF format can be sent to the
machine from computers. Received e-mail will be automatically printed.
Consumables Status Notice
E-mail containing contents (status of consumables, paper, and replaceable parts, etc.)
set in [Mail Notice Settings] of CentreWare Internet Services is sent to a specified
recipient. You can properly determine when to replace toner and drum cartridges by
receiving their status periodically.
Job Completion Notice
When a computer has submitted a job to the machine, its completion can be notified by
E-mail.
iFax
You can send and receive data scanned by the machine as e-mail attachments via a
corporate network or the Internet. This feature differs from regular faxes in that you do
not need to transmit data via a telephone line.
24
Tools
The following tools are provided with this machine. Configurable items vary by the tools.
Control Panel
The control panel is located at the center on top of the machine. It consists of operation
buttons, LED indicators and a touch screen.
The touch screen is located at the center of the control panel. Messages required for
operation and feature buttons are displayed on this display. You can directly touch the
buttons and tabs displayed in the touch screen to set features or to instruct operations
in screens.
CentreWare Internet Services
CentreWare Internet Services provides services such as displaying the status of this
machine as a printer and its print data, altering configurations and operating on
mailboxes using a web browser in a TCP/IP environment.
For setting as a printer, the properties screen of the services allow users to configure
the system settings and port settings for each network that are otherwise operated on
the touch screen on the machine.
Tools
Product Overview
2
Tools in the Driver CD Kit
Various tools such as print drivers and software for easy installation of print drivers are
included in the CD-ROM of the Driver CD Kit.
EasyOperator allows you to print or send documents via fax by dragging and dropping
files with a mouse. Also, this tool enables the remote operation of mailbox registration
and scan configuration.
If you use Document Monitor, when a print job is submitted from a computer, the
machine status such as out of paper, toner low, paper jams, starting and completing
the job, will be displayed. It also allows the users to confirm the print data processing
status, and to pause, restart, and stop the print jobs.
ApeosWare EasyAdmin
ApeosWare EasyAdmin is a tool to reduce the management tasks for printers, faxes,
and scanners. It allows user to centrally configure multiple items on multiple devices
from a computer.
Note • ApeosWare EasyAdmin is an optional.
25
2 Product Overview
The relation of the tools and their configurable items are as follows:
Note that the description in this manual is focused on the configuration from the
control panel.
Product Overview
2
CentreWare
Item Control Panel
Enabling a port
OO
Setting an IP
address
Configuring the email environment
Registering a
mailbox
Address book O U XO
Confirming printer
status
Confirming print
data (job) status
Setting
authentication
Setting personal
authentication
information
O
U OXU
OO
U O
XOOX
O U XO
OOX O
Internet
Services
O
(change only)
Tools in the
Driver CD Kit
U (IP Address
Setting Tool/
LPD only)
O (IP Address
Setting Tool)O (change only)
O
(EasyOperator)
O (Document
Monitor)
ApeosWare
EasyAdmin
U
O
X
O : Configurable U : Partly configurable X : Not configurable
26
Power On / Off
Turn on the power before operating the machine.
The machine is ready for operation within 45 seconds after the power is turned on. The
time may vary depending on the machine configuration.
Turn the machine off at the end of the day or when it is not in use for a long period of
time. Also, you can use the power saving feature when not in use for a while to reduce
the power consumption.
Important • Switching off the power of the machine may cause loss of data being processed.
For information on the power saving feature, refer to "Power Saver Mode" in Chapter 2 of the User
Guide.
Note • When the power is turned off, all functions of the machine will stop. Do not turn the
Powering On
The procedure for turning on the power is as follows.
Power On / Off
Product Overview
machine off if it is used all day for receiving faxes.
2
1 Press the power switch to the [ | ]
position to turn the power on.
Note • The “Please wait...”
message indicates that the
machine is warming up.
The machine cannot be
used during warming up.
The machine will be ready
for operation within 45
seconds. The time may
vary depending on the
machine configuration.
Note • When the power does not
come on, check if the
power cord is plugged into
the power outlet and the
<RESET> button is in a
reset state (button is
pressed in).
27
Product Overview
2
2 Product Overview
Powering Off
The procedure for turning the power off is as follows.
Important • Turning off the power of the machine may cause loss of data being processed.
1 Before turning the power off, make sure that all copy or print jobs have completely
finished. Also, make sure that the <Online> indicator and the <Job in Memory>
indicator are not lit.
Important • Never turn the power off in the following instances:
- While data is being received
- While jobs are being printed
- While jobs are being copied
- While a scan is being executed
- While jobs are being faxed
2 Press the power switch to the [ ] position.
Important • Power off processing is performed internally on the machine for a while after the power
switch is turned off. Therefore, do not unplug the power cord from the power outlet
immediately after turning the power switch off.
Note • Before you turn the power back on after turning it off, wait a few seconds.
28
Interface Cables
When connecting the machine directly to a computer, use either the parallel interface
or USB interface. When connecting to a network, use the Ethernet interface.
Using the Parallel Interface
Interface Cables
This section describes the installation procedure for the parallel interface.
Note • When connecting with a computer using parallel interface, our parallel interface cable
(optional) is required. For information on accessories, refer to "Optional Components" in
"Chapter 16 Appendix" in the User Guide.
1 Confirm that the machine is off.
2 Insert the connector of the interface
cable into the machine’s parallel
interface connector and fasten it
with the clips on either side of the
connector.
3 Connect the other end of the
interface cable to a computer.
4 Switch on the machine.
5 Restart the computer.
For details of setting items, refer to "Installation When Using Parallel Port" (P.37).
Using the USB Interface
The USB interface (optional) supports USB 2.0.
This section describes the installation procedure for the USB interface.
Product Overview
2
1 Confirm that the machine is off.
2 Attach the core provided with the
machine to a USB interface cable.
3 Connect the USB interface cable to
the USB 2.0 interface connector on
the back of the machine.
4 Connect the other end of the USB
interface cable to a computer.
5 Switch on the machine.
6 Restart the computer.
For details of setting items, refer to "Installation When Using USB Port" (P.41).
29
Product Overview
2
2 Product Overview
Using the Ethernet Interface
The Ethernet interface supports the following 2 types.
z
100BASE-TX
z
10BASE-T
This section describes the installation procedure for the Ethernet interface.
1 Confirm that the machine is off.
2 Attach the core provided with the
machine to a network cable.
3 Connect the network cable to the
Ethernet interface connector.
Note • Prepare a network cable
suitable for your network
connection. When changing
the network cable, consult our
customer engineers.
4 Switch on the machine.
30
Control Panel
The following describes the names and functions of components on the control panel.
DocuCentre Series
Control Panel
001 002 003
004 005 006
007 008 009
010 011 012
013 014 015
016 017 018
019 020 021
022 023 024
025 026 027
028 029
ApeosPort Series
001 002 003
004 005 006
007 008 009
010 011 012
013 014 015
016 017 018
019 020 021
022 023 024
025 026 027
028 029 030
1 4
030
2 3
2021
5 6 7 8
123
456
78
9
0
#
C
16
1517 141819
123
456
789
0 㧏
C
9
Product Overview
10
11
12
13
2
No. Component Function
1 Contrast dial Adjusts the contrast of the touch screen. Use this dial to enhance or
decrease the contrast.
2 Touch screen Displays messages required for operation and buttons for various
features. You can directly touch the touch screen to instruct operations
in screens and set features.
3 <Online> indicator Lights when the machine is sending or receiving data to or from a client.
4 <Job in Memory> indicator Lights when data is stored in the machine's memory.
You can check stored documents in [Stored Documents List]. For
information on [Stored Documents List], refer to "Print Report/List"
under "Chapter 12 Machine Status" in the User Guide.
31
Product Overview
2
2 Product Overview
No. Component Function
5 <Job Status> button Press this button to confirm or cancel currently executing or completed
jobs, or to confirm or print saved documents.
In this manual, this button is indicated as the <Job Status> button.
6 <Review> button Press this button to open the [Review] screen. In this screen, you can
check a list of the status of copy, fax and scan features whose settings
have changed from the defaults. You can also check the destination
information for sending faxes and e-mail.
In this manual, this button is indicated as the <Review> button.
7 <Machine Status> button Press this button to confirm the machine status and meters, check the
state of consumables, and print reports.
In this manual, this button is indicated as the <Machine Status> button.
8 <Log In/Out> button Press this button to display the user ID input screen for System
Administration mode or Login Setup/Auditron Administration.
In this manual, this button is indicated as the <Log In/Out> button.
9 <Power Saver> button If the machine is not operated for a while, the machine's power
consumption is lowered to enter the power saver mode. In the power
saver mode, this button lights up. To cancel the power saver mode,
press this button again.
In this manual, this button is indicated as the <Power Saver> button.
10 <Clear All> button Returns the statuses of all displayed services to their default values.
The machine will be reset to this state after it is turned on.
In this manual, this button is indicated as the <Clear All> button.
11 <Interrupt> button/indicator Press this button to temporarily stop a continuous copy job or printing to
give another job higher priority. During an interrupt, the interrupt
indicator lights up. Pressing the <Interrupt> button again cancels the
interrupt and the previous operation is resumed.
In this manual, this button is indicated as the <Interrupt> button.
Some jobs cannot be executed during the interruption. For detail
information, refer to "Notes and Restrictions on the Interrupt Mode"
under "Chapter 16 Appendix" in the User Guide.
12 <Stop> button Press this button to stop the current copy job or communications.
In this manual, this button is indicated as the <Stop> button.
13 <Start> button Press this button to start copying or scanning.
In this manual, this button is indicated as the <Start> button.
14 Numeric keypad Press these buttons to enter the number of copies, passwords and other
numerical values.
In this manual, these buttons are indicated as the “numeric keypad”.
15 <Speed Dial> button Used to specify a destination phone number for fax or e-mail.
In this manual, this button is indicated as the <Speed Dial> button.
16 <C (Clear)> button Press this button if you have entered the wrong numerical value with the
numeric keypad.
In this manual, this button is indicated as the <C> button.
17 <Dial Pause> button Used to insert a pause into a destination number.
In this manual, this button is indicated as the <Dial Pause> button.
18 <Custom> buttons
(<Copy>, <Custom 2>,
<Custom 3> buttons)
Used to call a custom feature.
You can assign a feature to the buttons selected from the features
displayed on the [All Services] screen and [Language].
For information on registering a feature with a button, refer to "Screen
Defaults" under "Chapter 10 System Settings" in the User Guide.
32
Control Panel
No. Component Function
19 <All Services> button Used to display the [All Services] screen.
In this manual, this button is indicated as the <All Services> button.
You can change the features that appear in the <All Services> screen.
For detail information, refer to "Screen Defaults" in "Chapter 10 System
Settings" in the User Guide.
20 One touch button panels Panels for one touch buttons.
You can leaf through panels to display 001 to 030, 031 to 060, and 061
to 070. M01 to M20 are reserved for the stored programming feature.
These buttons correspond to jobs registered in 01 to 20.
Note • This feature is not available for some models. An optional package is
necessary. For more information, contact our Customer Support
Center.
21 One touch buttons Specify a recipient with one button. These buttons are available for fax
and iFax.
Registered preset recipient numbers 001 to 070 are supported.
Product Overview
2
33
2 Product Overview
Internal Fonts
The following fonts are available as standard.
Refer to the manual in the PostScript Driver Library CD-ROM for the PostScript fonts.
Product Overview
2
Stroke fonts
(for PCL5 and HP-GL/2)
Outline
fonts
European
ESC/P Roman
PDF Arial
PCL CG Times
• European Stroke fonts
Sans Serif
Arial Italic
Arial Bold
Arial Bold Italic
Courier
Courier Italic
Courier Bold
CG Times Italic
CG Times Bold
CG Times Bold Italic
Univers Medium
Univers Medium Italic
Univers Bold
Univers Bold Italic
Univers Medium Condensed
Univers Medium Condensed
Italic
Univers Bold Condensed
Univers Bold Condensed Italic
Antique Olive
Antique Olive Italic
Antique Olive Bold
CG Omega
CG Omega Italic
CG Omega Bold
CG Omega Bold Italic
Garamond Antiqua
Garamond Kursiv
Garamond Halbfett
Garamond Kursiv Halbfett
(Default): Courier
Courier Italic
Courier Bold
Courier Bold Italic
Letter Gothic
Letter Gothic Italic
Letter Gothic Bold
Albertus Medium
Albertus Extra Bold
Clarendon Condensed
Coronet
Marigold
Arial
Arial Italic
Arial Bold
Arial Bold Italic
Times New
Times New Italic
Courier Bold Italic
Symbol
Times New Roman
Times New Roman Bold Italic
ITC Zepf Dingbats
GoldSEMM
Gold SAMM
Times New Bold
Times New Bold Italic
Symbol
Wingdings
Line Printer
Times Roman
Times Italic
Times Bold
Times Bold Italic
Helvetica
Helvetica Oblique
Helvetica Bold
Helvetica Bold Oblique
CourierPS
CourierPS Oblique
CourierPS Bold
CourierPS Bold Oblique
SymbolPS
Palatino Roman
Palatino Italic
Palatino Bold
Palatino Bold Italic
ITC Bookman Light
ITC Bookman Light Italic
ITC Bookman Demi
ITC Bookman Demi Italic
Helvetica Narrow
Helvetica Narrow Oblique
Helvetica Narrow Bold
Helvetica Narrow Bold Oblique
New Century Schoolbook Roman
New Century Schoolbook Italic
New Century Schoolbook Bold
New Century Schoolbook Bold Italic
ITC Avant Garde Book
ITC Avant Garde Book Oblique
ITC Avant Garde Demi
ITC Avant Garde Demi Oblique
ITC Zapf Chancery Medium Italic
ITC Zapf Dingbats
34
Internal Fonts
KO PCL5 Muyngio
Gothic
R- Gothic
KS Muyngio
Gothic
R- Gothic
Graphic
Kungso
Saemmul
TC PCL5 ShuSong
SC PCL5
ESC/P-K
ShuSong
Graphic
Kungso
Saemmul
T-Myungio
T-Gothic
TR-Gothic
T-Graphic
T-Kungso
T-Saemmul
Product Overview
2
35
Product Overview
2
2 Product Overview
36
3 Installation When Using
Parallel Port
This chapter describes how to install the machine when using the parallel
interface.
z
Preparations ...............................................................................................38
z
Installation Procedure ................................................................................. 38
Installation When Using Parallel Port
3
3 Installation When Using Parallel Port
Preparations
Prepare the following items to install the machine when using a parallel interface.
z
Parallel interface cable
z
Parallel port (optional)
z
CD-ROM of the Driver CD Kit (provided with the machine)
Installation Procedure
Installation Overview
The machine can be connected directly to a computer using a parallel interface cable.
Other computers on the same network can also print via the computer that the machine
is connected to.
The following is the configuration procedure to use a parallel interface.
z
Configuration on the machine
Configuring the parallel port on the machine.
z
Configuration on the computer
Installing a print driver.
Configuration on the Machine
The following describes the configuration procedure to use a parallel interface on the
machine.
Note • The configuration can also be performed using CentreWare Internet Services.
For information on how to use CentreWare Internet Services, refer to "Using CentreWare Internet
Services" (P.67).
1 Connect a parallel interface cable to the parallel interface connector on the machine.
2 Display the [System Administrator Menu] screen.
1) Press the <Log In/Out> button.
2) Enter the user ID with the numeric keypad or a keyboard displayed by pressing
[Keyboard], and select [Confirm].
Note • The default user ID is "11111". When using the Authentication feature, a passcode is
required. The default passcode is "x-admin".
3) Select [System Settings].
3 Enable the parallel port.
1) Select [System Settings].
38
2) Select [Network Settings].
3) Select [Port Settings].
4) Select [Parallel], and select [Change Settings].
5) Select [Port Status], and select [Change Settings].
6) Select [Enabled], then select [Save].
Installation Procedure
4 Configure the following items as necessary.
z
Print Mode
Configure the print language on the machine to match the received data.
z
PJL
Enable when receiving a job using PJL commands.
The PJL commands are independent of any print languages. A print language used
in the next data can be set independently of the current print language.
z
Auto Eject Time
Configure the time that the data so far received by the machine will automatically be
printed since data is no longer sent to the printer.
z
Adobe Communication Protocol
Configure the protocol defining the communication method between PostScript
printers and a host.
z
Bi-directional Communication
Configure the parallel port for either half duplex transmission or full duplex
transmission.
Note • Adobe Communication Protocol can be configured when the PostScript 3 Kit (optional) is
installed.
• Do not need to change the default settings for normal use. Some items may be required to
be changed depending on the operating system on the computer.
5 Select [Close] repeatedly until the [System Settings] screen is displayed.
Installation When Using Parallel Port
3
6 Select [Exit].
7 After the machine is restarted, print out a settings list to confirm that the parallel port is
enabled.
For information on how to print a settings list, refer to "Print Report/List" under "Chapter 12 Machine
Status" in the User Guide.
8 Turn off the computer.
9 Connect a parallel interface cable to the parallel interface on the computer.
10 Restart the computer.
Configuration on the Computer
The following describes the configuration procedure for the computer.
In order to print from the machine, the computer needs to have a print driver installed.
For information on the supported OS, refer to "Supported Operating Systems" (P.22).
For information on the driver installation procedure, refer to the manual contained in the CD-ROM of
the Driver CD Kit.
39
3 Installation When Using Parallel Port
Installation When Using Parallel Port
3
40
4 Installation When Using USB
Port
This chapter describes how to install the machine when using a USB interface.
z
Preparations ...............................................................................................42
z
Installation Procedure ................................................................................. 42
4 Installation When Using USB Port
Preparations
Prepare the following items to install the machine when using a USB interface.
z
USB cable
z
CD-ROM of the Driver CD Kit (provided with the machine)
z
USB 2.0 kit (optional)
z
Installation When Using USB Port
PostScript 3 Kit (optional: when using Macintosh)
Installation Procedure
Installation Overview
The machine can be connected directly to a computer using a USB cable.
The following is the procedure to use a USB interface.
z
Configuration on the machine
4
Configuring the USB port on the machine.
z
Configuration on the computer
Installing a print driver.
Configuration on the Machine
The following describes the configuration procedure to use a USB interface on the
machine.
Note • The configuration can also be performed using CentreWare Internet Services.
For information on how to use CentreWare Internet Services, refer to "Using CentreWare Internet
Services" (P.67).
1 Display the [System Administrator Menu] screen.
1) Press the <Log In/Out> button.
2) Enter the user ID with the numeric keypad or a keyboard displayed by pressing
[Keyboard], and select [Confirm].
Note • The default user ID is “11111”. When using the Authentication feature, a password is
required. The default password is “x-admin”.
3) Select [System Settings].
2 Display the USB port configuration screen.
42
1) Select [System Settings].
2) Select [Network Settings].
3) Select [Port Settings].
4) Select [USB], and select [Change Settings].
5) Select [Port Status], and select [Change Settings].
6) Select [Enabled], then select [Save].
Installation Procedure
3 Configure the following items as necessary.
z
Print Mode
Configure the print language on the machine to match the received data.
z
PJL
Enable when receiving a job using PJL commands.
The PJL commands are independent of any print languages. A print language used
in the next data can be set independently of the current print language.
z
Auto Eject Time
Configure the time that the data so far received by the machine will automatically be
printed since data is no longer sent to the printer.
z
Adobe Communication Protocol
Configure the protocol defining the communication method between PostScript
printers and a host.
4 Select [Close] repeatedly until the [System Settings] screen is displayed.
5 Select [Exit].
Installation When Using USB Port
6 After the machine is restarted, print out a settings list to confirm that the USB port is
enabled.
For information on how to print a settings list, refer to "Print Report/List" under "Chapter 12 Machine
Status" in the User Guide.
Configuration on the Computer
The following describes the configuration procedure for the computer.
In order to print from the machine, the computer needs to have a print driver installed.
For information on the supported operating systems, refer to "Supported Operating Systems" (P.22).
For information on the driver installation procedure, refer to the manual contained in the CD-ROM of
the Driver CD Kit.
You can also print from a Macintosh using USB. You will need an optional PostScript 3 Kit. Refer to the
manual contained in the CD-ROM provided with the kit for the print driver installation procedure.
4
43
4 Installation When Using USB Port
Installation When Using USB Port
4
44
5 Installation When Using TCP/
IP (LPD/Port 9100)
This chapter describes how to install the machine when using a TCP/IP (LPD/
Port 9100) protocol.
z
Preparations ...............................................................................................46
z
Installation Procedure ................................................................................. 46
5 Installation When Using TCP/IP (LPD/Port 9100)
Preparations
Prepare the following items to install the machine when using a TCP/IP (LPD/Port
9100) protocol.
z
TCP/IP network environment
z
Installation When Using TCP/IP (LPD/Port 9100)
CD-ROM of the Driver CD Kit (provided with the machine)
z
PostScript 3 Kit (optional: when using Macintosh)
Installation Procedure
Installation Overview
The machine can be connected to a computer using a TCP/IP (LPD/Port 9100)
protocol.
The following is the procedure to use a TCP/IP(LPD/Port 9100) protocol.
z
Configuration on the machine
5
Configuring TCP/IP (LPD/Port 9100) on the machine.
z
Configuration on the computer
Installing a print driver.
Configuration on the Machine
The following describes the configuration procedure to use a TCP/IP (LPD/Port 9100)
protocol on the machine. Enable a LPD Port/Port 9100 port, then assign an IP address.
Note • The configuration can also be performed using CentreWare Internet Services or IP Address
Setting Tool included in the CD-ROM of the Driver CD Kit.
For information on how to use CentreWare Internet Services, refer to "Using CentreWare Internet
Services" (P.67).
1 Display the [System Administrator Menu] screen.
1) Press the <Log In/Out> button.
2) Enter the user ID with the numeric keypad or a keyboard displayed by pressing
[Keyboard], and select [Confirm].
Note • The default user ID is “11111”. When using the Authentication feature, a password is
required. The default password is “x-admin”.
3) Select [System Settings].
46
2 Enable either the LPD port or the Port 9100 port as appropriate. In this example, the
LPD port is enabled.
1) Select [System Settings].
2) Select [Network Settings].
3) Select [Port Settings].
4) Select [LPD], and select [Change Settings].
5) Select [Port Status], and select [Change Settings].
6) Select [Enabled], then select [Save].
7) Select [Close] repeatedly until the [Network Settings] screen is displayed.
Installation Procedure
3 Set an IP address.
If an IP address is already set, this step is not necessary. Also, in an environment with
DHCP or BOOTP, configure the way to obtain an IP address. Either the address
cannot be obtained automatically or manual configuration is preferred, configure an IP
address, a subnet mask, and a gateway address.
1) Select [Protocol Settings].
2) Select [TCP/IP - Get IP Address] and then select [Change Settings].
3) Select one from [DHCP], [BOOTP], [RARP], [DHCP/Autonet] or [Manual] and then
select [Save]. If you select anything other than [Manual], proceed to Step 4.
Note • When using a DHCP server, also configure the WINS (Windows Internet Name Service)
server. To set a DHCP server, use CentreWare Internet Services. For details, refer to "Using
CentreWare Internet Services" (P.67).
4) Select [TCP/IP - IP Address] and select [Change Settings].
5) Enter the IP address using the numeric keypad.
Note • Enter IP address in the format “xxx.xxx.xxx.xxx”. The "xxx" should be a numeric value in the
range from 0 to 255. However, 224.xxx.xxx.xxx, 255.xxx.xxx.xxx, and 127.xxx.xxx.xxx
cannot be used.
• When you make an entry mistake, press the <C> (clear) button and enter again.
• When you want to move to the next value without entering all 3 digits, select [save/select
next].
6) Select [Save].
7) Configure [TCP/IP - Subnet Mask] and [TCP/IP - Gateway Address] as the above.
Note • Enter gateway address in the format “xxx.xxx.xxx.xxx”. The "xxx" should be a numeric value
in the range from 0 to 255. However, 224.xxx.xxx.xxx, 255.xxx.xxx.xxx, and 127.xxx.xxx.xxx
cannot be used.
• Specify the subnet mask by a combination of the numbers 0, 128, 192, 224, 240, 248, 252,
254, and 255. However, you cannot use 0 between non-zero values.
• If you do not want to set the gateway address, enter "0.0.0.0".
8) Select [Close] repeatedly until the [Network Settings] screen is displayed.
Installation When Using TCP/IP (LPD/Port 9100)
5
4 If the operating system on the client is MacOS X v10.2 or later, the discovery feature
that automatically detects printers on the IP network can be enabled.
Note • [Bonjour] can be set when the PostScript 3 Kit is installed.
• In order to print from a printer detected by [Bonjour], the LPD
advance.
port must be activated in
1) Select [Port Settings].
2) Select [Bonjour] and then select [Change Settings].
3) Select [Port Status] and select [Change Settings].
4) Select [Enabled] then select [Save].
5) Select [Close] repeatedly until the [Network Settings] screen is displayed.
5 Select [Close] repeatedly until the [System Settings] screen is displayed.
6 Select [Exit].
7 After the machine is restarted, print out a settings list to confirm that the LPD port is
enabled and TCP/IP is configured.
For information on how to print a settings list, refer to "Print Report/List" under "Chapter 12 Machine
Status" in the User Guide.
Configure other LPD settings as necessary. Refer to "LPD" (P.80) for the LPD configuration. Also if
using Port 9100, configure the Port 9100 as necessary. Refer to "Port 9100" (P.84) for the Port 9100
configuration.
47
5 Installation When Using TCP/IP (LPD/Port 9100)
Configuration on the Computer
The following describes the configuration procedure for the computer.
In order to print from the machine, the computer needs to have a print driver installed.
For information on the supported operating systems, refer to "Supported Operating Systems" (P.22).
For information on the driver installation procedure, refer to the manual contained in the CD-ROM of
the Driver CD Kit.
Installation When Using TCP/IP (LPD/Port 9100)
You can also print from a Macintosh using TCP/IP (LPD). You will need an optional PostScript 3 Kit.
Refer to the manual contained in the CD-ROM provided with the kit for the print driver installation
procedure.
5
48
6 Installation When Using
NetWare
This chapter describes how to use the machine when using a NetWare network.
z
Preparations ...............................................................................................50
z
Installation Procedure ................................................................................. 50
6 Installation When Using NetWare
Preparations
Prepare the following items to install the machine when using a NetWare network.
z
NetWare server
z
TCP/IP or IPX/SPX network environment
z
CD-ROM of the Driver CD Kit (provided with the machine)
Installation Procedure
Installation Overview
Installation When Using NetWare
6
The machine supports a PServer mode both for the NetWare Directory Service and
Bindery Service. The PServer mode enables the machine to function as a print server
and to capture print jobs in the print queue to output. The printer created for the
machine consumes one file server license.
Note • The machine does not support a Remote Printer (RPrinter) mode.
• You can use the machine as a printer in a NDPS environment by using a Novell NDPS
Gateway. When using in a NDPS environment, settings of the machine to be used under a
NetWare print environment are required. Or, you need to enable LPD in advance and set it
as a gateway destination in a Novell NDPS Gateway setup. However, attribute information
that can be set or captured by NDPS is not supported.
Supported interfaces
z
100BASE-TX
z
10BASE-T
Supported frame types
z
Ethernet II specification
z
IEEE802.3 specification
z
IEEE802.3 / IEEE802.2 specification
z
IEEE802.3 / IEEE802.2 / SNAP specification
Note • The machine will send packets of each frame type on the network, and will initialize for the
same frame type as the first reply packet received. You can fix a flame type in use. However,
if there are multiple protocols running on the same network, use Ethernet II specification.
• Some network equipment (hubs, etc.) may not support the automatic frame type detection. If
a data link indicator corresponding to the port of the network equipment connected with the
machine does not light up, change the settings of the frame type of the machine to the frame
type of the file server. Configuration can also be performed using CentreWare Internet
Services.
The following describes the configuration procedure to connect the machine to a
NetWare network.
z
Configuration on the Machine
- To use IPX/SPX, configure the machine using the CD-ROM of the Driver CD Kit
after enabling the NetWare port of the machine.
- To use a LPD port in NDPS, configure the machine using the CD-ROM of the
Driver CD Kit after enabling the LPD port of the machine and setting TCP/IP.
z
Configuration on the computer
50
Installing a print driver.
Configuration on the Machine
The following describes the configuration procedure to connect the machine to a
NetWare network.
Note • The configuration can also be performed using CentreWare Internet Services or IP Address
Setting Tool included in the CD-ROM of the Driver CD Kit.
For information on how to use CentreWare Internet Services, refer to "Using CentreWare Internet
Services" (P.67).
Using IPX/SPX
1 Display the [System Administrator Menu] screen.
1) Press the <Log In/Out> button.
2) Enter the user ID with the numeric keypad or a keyboard displayed by pressing
[Keyboard], and select [Confirm].
Note • The default user ID is “11111”. When using the Authentication feature, a password is
required. The default password is “x-admin”.
3) Select [System Settings].
2 Enable the NetWare port.
Installation Procedure
Installation When Using NetWare
1) Select [System Settings].
2) Select [Network Settings].
3) Select [Port Settings].
4) Select [NetWare], and select [Change Settings].
5) Select [Port Status], and select [Change Settings].
6) Select [Enabled], then select [Save].
3 Select [Close] repeatedly until the [System Settings] screen is displayed.
4 Select [Exit].
5 After the machine is restarted, print out a settings list to confirm that the NetWare port
is enabled, the NetWare device name and the network address.
For information on how to print a settings list, refer to "Print Report/List" under "Chapter 12 Machine
Status" in the User Guide.
6 Configure the machine using the CD-ROM of the Driver CD Kit.
Refer to the manual contained in the CD-ROM of the Driver CD Kit for the configuration procedure.
Using a LPD Port in NDPS
1 Display the [System Administrator Menu] screen.
1) Press the <Log In/Out> button.
6
2) Enter the user ID with the numeric keypad or a keyboard displayed by pressing
[Keyboard], and select [Confirm].
Note • The default user ID is “11111”. When using the Authentication feature, a password is
required. The default password is “x-admin”.
3) Select [System Settings].
2 Enable the LPD port.
1) Select [System Settings].
2) Select [Network Settings].
51
6 Installation When Using NetWare
3) Select [Port Settings].
4) Select [LPD] and then select [Change Settings].
5) Select [Port Status] and select [Change Settings].
6) Select [Enabled] then select [Save].
7) Select [Close] repeatedly until the [Network Settings] screen is displayed.
3 Set an IP address.
If an IP address is already set, this step is not necessary. Also, in an environment with
DHCP or BOOTP, configure the way to obtain an IP address. Either the address
cannot be obtained automatically or manual configuration is preferred, configure an IP
address, a subnet mask, and a gateway address.
1) Select [Protocol Settings].
2) Select [TCP/IP - Get IP Address] and then select [Change Settings].
3) Select one from [DHCP], [BOOTP], [RARP], [DHCP/Autonet] or [Manual] and then
Installation When Using NetWare
select [Save]. If you select anything other than [Manual], proceed to Step 4.
Note • When using a DHCP server, also configure the WINS (Windows Internet Name Service)
4) Select [TCP/IP - IP Address] and select [Change Settings].
server. To set a DHCP server, use CentreWare Internet Services. For details, refer to "Using
CentreWare Internet Services" (P.67).
6
5) Enter the IP address using the numeric keypad.
Note • Enter IP address in the format “xxx.xxx.xxx.xxx”. The "xxx" should be a numeric value in the
range from 0 to 255. However, 224.xxx.xxx.xxx, 255.xxx.xxx.xxx, and 127.xxx.xxx.xxx
cannot be used.
• When you make an entry mistake, press the <C> (Clear) button and enter again.
• When moving to the next value without entering all 3 digits, select [Next].
6) Select [Save].
7) Configure [TCP/IP - Subnet Mask] and [TCP/IP - Gateway Address] as the above.
Note • Enter gateway address in the format “xxx.xxx.xxx.xxx”. The "xxx" should be a numeric value
in the range from 0 to 255. However, 224.xxx.xxx.xxx, 255.xxx.xxx.xxx, and 127.xxx.xxx.xxx
cannot be used.
• Specify the subnet mask by a combination of the numbers 0, 128, 192, 224, 240, 248, 252,
254, and 255. However, you cannot use 0 between non-zero values.
• If you do not want to set the gateway address, enter "0.0.0.0".
4 Select [Close] repeatedly until the [System Settings] screen is displayed.
5 Select [Exit].
6 After the machine is restarted, print out a settings list to confirm that the LPD port is
enabled and TCP/IP is configured.
For information on how to print a settings list, refer to "Print Report/List" under "Chapter 12 Machine
Status" in the User Guide.
Configure other LPD settings as necessary. Refer to "LPD" (P.80) for the LPD configuration.
7 Configure the machine using the CD-ROM of the Driver CD Kit.
Refer to the manual contained in the CD-ROM of the Driver CD Kit for the configuration procedure.
Configuration on the Computer
The following describes the configuration procedure for the computer.
In order to print from the machine, the computer needs to have a print driver installed.
For information on the supported operating systems, refer to "Supported Operating Systems" (P.22).
52
Installation Procedure
For information on the driver installation procedure, refer to the manual contained in the CD-ROM of
the Driver CD Kit.
Installation When Using NetWare
6
53
6 Installation When Using NetWare
Installation When Using NetWare
6
54
7 Installation When Using
Microsoft Network (SMB)
This chapter describes how to install the machine when using a Microsoft
Network (SMB).
z
Preparations ...............................................................................................56
z
Installation Procedure ................................................................................. 56
7 Installation When Using Microsoft Network (SMB)
Preparations
Prepare the following items to use the machine when using a Microsoft Network (SMB).
z
TCP/IP or NetBEUI network environment
z
CD-ROM of the Driver CD Kit (provided with the machine)
Installation Procedure
Installation Overview
Installation When Using Microsoft Network (SMB)
The machine can be connected to computers using Microsoft Networks (SMB).
Depending on the network environment, the machine may need to be configured with
an IP address, subnet mask and gateway address. Confirm with the network
administrator and set up the necessary items.
The following is the procedure to connect the machine to a Microsoft Network (SMB).
z
Configuration on the machine
7
Enabling the SMB port on the machine and configuring TCP/IP.
z
Configuration on the computer
Installing a print driver.
Configuration on the Machine
The following describes the configuration procedure to connect the machine to
Microsoft Networks (SMB). First enable the SMB port, then set the TCP/IP settings.
Note • The configuration can also be performed using CentreWare Internet Services or IP Address
Setting Tool included in the CD-ROM of the Driver CD Kit.
For information on how to use CentreWare Internet Services, refer to "Using CentreWare Internet
Services" (P.67).
1 Display the [System Administrator Menu] screen.
1) Press the <Log In/Out> button.
2) Enter the user ID with the numeric keypad or a keyboard displayed by pressing
[Keyboard], and select [Confirm].
Note • The default user ID is “11111”. When using the Authentication feature, a password is
required. The default password is “x-admin”.
3) Select [System Settings].
56
2 Enable the SMB port.
1) Select [System Settings].
2) Select [Network Settings].
3) Select [Port Settings].
4) Select [SMB], and select [Change Settings].
5) Select [Port Status], and select [Change Settings].
6) Select [Enabled], then select [Save].
7) Select [Close] repeatedly until the [Network Settings] screen is displayed.
Installation Procedure
3 Set an IP address.
If an IP address is already set, this step is not necessary. Also, in an environment with
DHCP or BOOTP, configure the way to obtain an IP address. Either the address
cannot be obtained automatically or manual configuration is preferred, configure an IP
address, a subnet mask, and a gateway address.
1) Select [Protocol Settings].
2) Select [TCP/IP - Get IP Address] and then select [Change Settings].
3) Select one from [DHCP], [BOOTP], [RARP], [DHCP/Autonet] or [Manual] and then
select [Save]. If you select anything other than [Manual], proceed to Step 4.
Note • When using a DHCP server, also configure the WINS (Windows Internet Name Service)
server. To set a DHCP server, use CentreWare Internet Services. For details, refer to "Using
CentreWare Internet Services" (P.67).
4) Select [TCP/IP - IP Address] and select [Change Settings].
5) Enter the IP address using the numeric keypad.
Note • Enter IP address in the format “xxx.xxx.xxx.xxx”. The "xxx" should be a numeric value in the
range from 0 to 255. However, 224.xxx.xxx.xxx, 255.xxx.xxx.xxx, and 127.xxx.xxx.xxx
cannot be used.
• When you make an entry mistake, press the <C> (Clear) button and enter again.
• When moving to the next value without entering all 3 digits, select [Next].
6) Select [Save].
Installation When Using Microsoft Network (SMB)
7) Configure [TCP/IP - Subnet Mask] and [TCP/IP - Gateway Address] as the above.
Note • Enter gateway address in the format “xxx.xxx.xxx.xxx”. The "xxx" should be a numeric value
in the range from 0 to 255. However, 224.xxx.xxx.xxx, 255.xxx.xxx.xxx, and 127.xxx.xxx.xxx
cannot be used.
• Specify the subnet mask by a combination of the numbers 0, 128, 192, 224, 240, 248, 252,
254, and 255. However, you cannot use 0 between non-zero values.
• If you do not want to set the gateway address, enter "0.0.0.0".
4 Select [Close] repeatedly until the [System Settings] screen is displayed.
5 Select [Exit].
6 After the machine is restarted, print out a settings list to confirm that the SMB port is
enabled and TCP/IP is configured.
For information on how to print a settings list, refer to "Print Report/List" under "Chapter 12 Machine
Status" in the User Guide.
Note • If using the NetBEUI protocol, select [NetBEUI] as the protocol used by SMB for the port
configuration using CentreWare Internet Services.
Configure other SMB settings as necessary. Refer to "SMB" (P.76) for the SMB configuration.
Configuration on the Computer
The following describes the configuration procedure for the computer.
In order to print from the machine, the computer needs to have a print driver installed.
For information on the supported operating systems, refer to "Supported Operating Systems" (P.22).
For information on the driver installation procedure, refer to the manual contained in the CD-ROM of
the Driver CD Kit.
7
57
7 Installation When Using Microsoft Network (SMB)
Installation When Using Microsoft Network (SMB)
7
58
8 Installation When Using
Internet Printing Protocol
(IPP)
This chapter describes how to install the machine when using an Internet
Printing Protocol (IPP).
z
Preparations ...............................................................................................60
z
Installation Procedure ................................................................................. 60
8 Installation When Using Internet Printing Protocol (IPP)
Preparations
Prepare the following items to install the machine when using a Internet Printing
Protocol (IPP).
z
TCP/IP network environment
z
CD-ROM of the Driver CD Kit (provided with the machine)
Installation Procedure
Installation Overview
Installation When Using Internet Printing Protocol (IPP)
The machine can be connected to computers using IPP.
The following is the procedure to enable Internet Printing (IPP).
z
Configuration on the machine
Enabling an IPP port on the machine and configuring TCP/IP.
z
Configuration on the computer
8
Installing a print driver.
Configuration on the Machine
The following describes the configuration procedure to enable Internet Printing (IPP)
on the machine. First enable the IPP port, then set the TCP/IP.
Note • The configuration can also be performed using CentreWare Internet Services or IP Address
Setting Tool included in the CD-ROM of the Driver CD Kit.
For information on how to use CentreWare Internet Services, refer to "Using CentreWare Internet
Services" (P.67).
1 Display the [System Administrator Menu] screen.
1) Press the <Log In/Out> button.
2) Enter the user ID with the numeric keypad or a keyboard displayed by pressing
[Keyboard], and select [Confirm].
Note • The default user ID is “11111”. When using the Authentication feature, a password is
required. The default password is “x-admin”.
3) Select [System Settings].
2 Enable the IPP port.
1) Select [System Settings].
60
2) Select [Network Settings].
3) Select [Port Settings].
4) Select [IPP], and select [Change Settings].
5) Select [Port Status], and select [Change Settings].
6) Select [Enabled], then select [Save].
7) Select [Close] repeatedly until the [Network Settings] screen is displayed.
Installation Procedure
3 Set an IP address.
If an IP address is already set, this step is not necessary. Also, in an environment with
DHCP or BOOTP, configure the way to obtain an IP address. Either the address
cannot be obtained automatically or manual configuration is preferred, configure an IP
address, a subnet mask, and a gateway address.
1) Select [Protocol Settings].
2) Select [TCP/IP - Get IP Address] and then select [Change Settings].
3) Select one from [DHCP], [BOOTP], [RARP], [DHCP/Autonet] or [Manual] and then
select [Save]. If you select anything other than [Manual], proceed to step 4.
Note • When using a DHCP server, also configure the WINS (Windows Internet Name Service)
server. To set a DHCP server, use CentreWare Internet Services. For details, refer to "Using
CentreWare Internet Services" (P.67).
4) Select [TCP/IP - IP Address] and select [Change Settings].
5) Enter the IP address using the numeric keypad.
Note • Enter IP address in the format “xxx.xxx.xxx.xxx”. The "xxx" should be a numeric value in the
range from 0 to 255. However, 224.xxx.xxx.xxx, 255.xxx.xxx.xxx, and 127.xxx.xxx.xxx
cannot be used.
• When you make an entry mistake, press the <C> (Clear) button and enter again.
• When moving to the next value without entering all 3 digits, select [Next].
6) Select [Save].
Installation When Using Internet Printing Protocol (IPP)
7) Configure [TCP/IP - Subnet Mask] and [TCP/IP - Gateway Address] as the above.
Note • Enter gateway address in the format “xxx.xxx.xxx.xxx”. The "xxx" should be a numeric value
in the range from 0 to 255. However, 224.xxx.xxx.xxx, 255.xxx.xxx.xxx, and 127.xxx.xxx.xxx
cannot be used.
• Specify the subnet mask by a combination of the numbers 0, 128, 192, 224, 240, 248, 252,
254, and 255. However, you cannot use 0 between non-zero values.
• If you do not want to set the gateway address, enter "0.0.0.0".
4 Select [Close] repeatedly until the [System Settings] screen is displayed.
5 Select [Exit].
6 After the machine is restarted, print out a settings list to confirm that the IPP port is
enabled and TCP/IP is configured.
For information on how to print a settings list, refer to "Print Report/List" under "Chapter 12 Machine
Status" in the User Guide.
Configure other IPP settings as necessary. Refer to "IPP" (P.83) for the IPP configuration.
Configuration on the Computer
The following describes the configuration procedure for the computer.
In order to print from the machine, the computer needs to have a print driver installed.
For information on the supported operating systems, refer to "Supported Operating Systems" (P.22).
For information on the driver installation procedure, refer to the manual contained in the CD-ROM of
the Driver CD Kit.
8
61
8 Installation When Using Internet Printing Protocol (IPP)
Installation When Using Internet Printing Protocol (IPP)
8
62
9 Installation When Using
EtherTalk
This chapter describes how to install the machine when using an EtherTalk
network.
z
Preparations ...............................................................................................64
z
Installation Procedure ................................................................................. 64
9 Installation When Using EtherTalk
Preparations
Prepare the following items to install the machine when using EtherTalk interface.
z
EtherTalk network environment
z
PostScript 3 Kit (optional)
Installation Procedure
Installation Overview
The machine can be connected to computers using an EtherTalk network.
The following is the procedure to use EtherTalk.
z
Configuration on the Machine
Setting EtherTalk on the machine.
z
Configuration on the computer
Installation When Using EtherTalk
9
Installing a print driver.
Configuration on the Machine
The following describes the configuration procedure to connect the machine to an
EtherTalk network.
Enable the EtherTalk port
Note • EtherTalk can be configured when a PostScript 3 Kit (optional) is installed.
• The configuration can also be performed using CentreWare Internet Services.
For information on how to use CentreWare Internet Services, refer to "Using CentreWare Internet
Services" (P.67).
1 Display the [System Administrator Menu] screen.
1) Press the <Log In/Out> button.
2) Enter the user ID with the numeric keypad or a keyboard displayed by pressing
[Keyboard], and select [Confirm].
Note • The default user ID is “11111”. When using the Authentication feature, a password is
required. The default password is “x-admin”.
3) Select [System Settings].
2 Enable the EtherTalk port.
64
1) Select [System Settings].
2) Select [Network Settings].
3) Select [Port Settings].
4) Select [EtherTalk], and select [Change Settings].
5) Select [Port Status], and select [Change Settings].
6) Select [Enabled], then select [Save].
3 Select [Close] repeatedly until the [System Settings] screen is displayed.
4 Select [Exit].
5 After the machine is restarted, print out [Settings List] to confirm that the EtherTalk
port is enabled.
For information on how to print a settings list, refer to "Print Report/List" under "Chapter 12 Machine
Status" in the User Guide.
Configure other EtherTalk settings as necessary. Refer to "EtherTalk" (P.75) for EtherTalk
configuration.
Configuration on the Computer
The following describes the configuration procedure for the computer.
In order to print from the machine, the computer needs to have a print driver installed.
For information on the supported operating systems, refer to "Supported Operating Systems" (P.22).
For information on how to install a print driver, refer to the manual contained in the CD-ROM included
in the PostScript 3 Kit.
Installation Procedure
Installation When Using EtherTalk
9
65
9 Installation When Using EtherTalk
Installation When Using EtherTalk
9
66
10 Using CentreWare Internet
Services
This chapter describes how to use CentreWare Internet Services.
z
Preparations ...............................................................................................68
z
Installation Procedure ................................................................................. 68
z
Network Setting Items (Port/Protocol) for CentreWare Internet Services... 71
10 Using CentreWare Internet Services
Preparations
Prepare the following items to use CentreWare Internet Services.
z
Computer supporting the TCP/IP protocol
z
Configuration on the machine
- IP address
- Subnet mask
Refer to "Problem Solving" (P.145) when any troubles occur during the configuration.
Installation Procedure
Installation Overview
CentreWare Internet Services provides services such as displaying the status of the
machine as a printer and jobs, and altering configurations using a web browser in a
TCP/IP environment.
For setting as a printer, the properties screen of the services allows users to configure
the system settings and port settings for each network that are otherwise operated on
the touch screen on the machine.
Follow the procedure below to use CentreWare Internet Services.
z
Configuration on the Machine
Using CentreWare Internet Services
Configuration on the Machine
10
Configuring the machine to be able to use CentreWare Internet Services. First
enable the Internet Service (HTTP) port, then set the IP address.
z
Confirmation of the Configuration
Confirming whether the machine is set to use CentreWare Internet Services.
The following describes the configuration procedure for using CentreWare Internet
Services on the machine.
First enable the Internet Service (HTTP) port, then set the IP address.
1 Display the [System Administrator Menu] screen.
1) Press the <Log In/Out> button.
2) Enter the user ID with the numeric keypad or a keyboard displayed by pressing
[Keyboard], and select [Confirm].
Note • The default user ID is “11111”. When using the Authentication feature, a password is
required. The default password is “x-admin”.
3) Select [System Settings].
2 Enabling the Internet service (HTTP) port on the machine.
1) Select [System Settings].
2) Select [Network Settings].
3) Select [Port Settings].
4) Select [Internet Services (HTTP)] and then select [Change Settings].
5) Select [Port Status] and then select [Change Settings].
68
Installation Procedure
6) Select [Enabled] then select [Save].
7) Select [Close] repeatedly until the [Network Settings] screen is displayed.
3 Set an IP address.
If an IP address is already set, this step is not necessary. Also, in an environment with
DHCP or BOOTP, configure the way to obtain an IP address. Either the address
cannot be obtained automatically or manual configuration is preferred, configure an IP
address, a subnet mask, and a gateway address.
1) Select [Protocol Settings].
2) Select [TCP/IP - Get IP Address] and then select [Change Settings].
3) Select one from [DHCP], [BOOTP], [RARP], [DHCP/Autonet] or [Manual] and then
select [Save]. If you select anything other than [Manual], proceed to Step 4.
Note • When using a DHCP server, also configure the WINS (Windows Internet Name Service)
server. To set a DHCP server, use CentreWare Internet Services. For details, refer to "Using
CentreWare Internet Services" (P.67).
4) Select [TCP/IP - IP Address] and select [Change Settings].
5) Enter the IP address using the numeric keypad.
Note • Enter IP address in the format “xxx.xxx.xxx.xxx”. The "xxx" should be a numeric value in the
range from 0 to 255. However, 224.xxx.xxx.xxx, 255.xxx.xxx.xxx and 127.xxx.xxx.xxx cannot
be used.
• When you make an entry mistake, press the <C> (Clear) button and enter again.
• When moving to the next value without entering all 3 digits, select [Next].
6) Select [Save].
7) Configure [TCP/IP - Subnet Mask] and [TCP/IP - Gateway Address] as the above.
Note • Enter gateway address in the format “xxx.xxx.xxx.xxx”. The "xxx" should be a numeric value
in the range from 0 to 255. However, 224.xxx.xxx.xxx, 255.xxx.xxx.xxx and 127.xxx.xxx.xxx
cannot be used.
• Specify the subnet mask by a combination of the numbers 0, 128, 192, 224, 240, 248, 252,
254, and 255. However, you cannot use 0 between non-zero values.
• If you do not want to set the gateway address, enter "0.0.0.0".
4 Select [Close] repeatedly until the [System Settings] screen is displayed.
Using CentreWare Internet Services
5 Select [Exit].
6 After the machine is restarted, print out a settings list to confirm that the port for
CentreWare Internet Services is enabled and TCP/IP is configured.
For information on how to print a settings list, refer to "Print Report/List" under "Chapter 12 Machine
Status" in the User Guide.
10
69
10 Using CentreWare Internet Services
Confirmation of the Configuration
Connect to CentreWare Internet Services from a computer.
1 Start a web browser.
2 Enter the machine's IP address or the Internet address to the address entry column on
the web browser, and press the <Enter> key.
z
Example of the IP address entry (when the machine's IP address is 192.168.1.1)
http://192.168.1.1/
z
Example of the Internet address entry (when the machine's Internet address is
myhost.example.com)
http://myhost.example.com/
Using CentreWare Internet Services
10
Note • If your network uses DNS (Domain Name System) and the machine's host name is
registered with the domain name server, you can access the device using a combination of
the host name and the domain name as the “Internet address”. For example, if the host
name is “myhost”, and the domain name is “example.com”, then the “Internet address”
becomes “myhost.example.com”.
• When specifying a port number, add “:” and a port number to the end of the Internet address.
• If the Logon Setup feature is enabled on the machine, enter a user ID and a password in
[User ID] and [Password]. Contact your System Administrator about the user ID and
password.
• If you have encrypted communication by selecting [Enable] under [Properties] > [PKI (Public
Key) Settings] > [SSL/TSL Settings] > [SSL/TSL Communication], enter an address
beginning with “https” instead of "http” into the address column in the web browser.
Example of the IP address entry
https://192.168.1.1/
Example of the Internet address entry
https://myhost.example.com/
Refer to "Problem Solving" (P.145) if CentreWare Internet Services is not displayed.
70
Network Setting Items (Port/Protocol) for CentreWare Internet Services
Network Setting Items (Port/Protocol) for CentreWare Internet
Services
CentreWare Internet Services enable you to alter various settings on the machine from
