Find out more
on the web www.wilburcurtis.com
Models Included
•ALPHA 1GT
•ALPHA 2GT
•ALPHA 2GTW
•ALPHA 3GT
•ALPHA 3GTR
•ALPHA 3GTL
•ALPHA 4GT
•ALPHA 5GT
•ALPHA 5GTR
•ALPHA 5GTL
•ALPHA 6GT
•ALPHA 6GTN
CAUTION: Please use this setup procedure before attempting to use
this brewer. Failure to follow the instructions can result in injury or the
voiding of the warranty.
CAUTION: DO NOT connect this brewer to hot water. The inlet valve is
not rated for hot water.
CAUTION: When cleaning, DO NOT use powders, liquids, cleans-
ers, or any substance containing chlorine. These products promote corrosion, cause pitting of stainless steel and will void the warranty.
C
ISO 9001 REGISTERED
WILBUR CURTIS COMPANY
Montebello, CA 90640
Wilbur Curtis Company, Inc.
Service Manual, Alpha G3 - Decanter Brewer
Important Safeguards/Conventions
This appliance is designed for commercial use. Any servicing other than cleaning and maintenance should be performed by an authorized Wilbur Curtis service center.
• Do NOT immerse the unit in water or any other liquid
• To reduce the risk of fire or electric shock, do NOT open top or rear panel. No user serviceable parts inside. Repair should be done only by authorized service personnel.
• Keep hands and other items away from hot parts of unit during operation.
• Never clean with scouring powders, bleach or harsh implements.
Conventions
WARNINGS – To help avoid personal injury
Important Notes/Cautions – from the factory
Sanitation Requirements
Your Curtis ADS System is Factory Pre-Set and Ready to Go… Right from the Carton.
Following are the Factory Settings for your ALPHA™ GT Coffee Brewing Systems:
•Brew Temperature = 200°F
•Brew Volume = Set to dispensing vessel requirements (60 oz)
•Warmer Setting on HIGH with Quality Timer OFF
Generally there will never be a reason to change your G3 programming. However, should you need to make slight adjustments to meet your brewing needs, programming instructions are provided later in this manual.
System Requirements:
• Water Source 20 – 90 PSI. Must have a minimum flow rate of ½ GPM (preferred flow rate is 1 gpm).
• Electrical: See attached schematic for standard model or visit www.wilburcurtis.com for your model. Equipment to be installed to comply with applicable federal, state, or local plumbing/electrical codes having jurisdiction.
SETUP STEPS
The unit should be level (left to right and front to back), located on a solid counter top. Connect a water line from the water filter to the brewer. NOTE: Some type of water filtration device must be used to maintain a trouble-free operation. (In areas with extremely hard water, we suggest that a sedimentary and taste & odor filter be installed.) This will prolong the life of your brewing system and enhance coffee quality.
NSF International requires the following water connection:
1. A quick disconnect or additional coiled tubing (at least 2x the depth of the unit) so that the machine can be moved for cleaning underneath.
2.In some areas an approved backflow prevention device may be required between the brewer and the water supply.
1.A 3/8” NPT x 1/4” Flare elbow has been supplied for water line connection. Use tubing sized sufficiently to provide a minimum of
½gallon per minute.
2.Connect the unit to an appropriate electrical power circuit.
3.Turn on the toggle (STANDBY/ON) switch behind the unit. The heating tank will start to fill. When the water level in the tank rises to the correct volume, the heating elements will energize automatically. With ADS Systems there is no danger of element burnout caused by an empty tank.
4.The heating tank will require 20 to 30 minutes to reach operating temperature (200°F) as indicated by READY-TO-BREW displayed on the LED.
5.Prior to brewing, dispense 12 ounces of hot water through the hot water faucet.
6.Brew a cycle of at least 12 ounces, to purge the water lines of any air that may be trapped after filling.
BREWING INSTRUCTIONS
1.Brewer should be ON (Confirm at rear toggle switch, then press ON/OFF button). Ready-to-Brew should be displayed.
2.Place empty decanter (not included with Alpha brewer) on warmer plate.
3.Place a new filter in brewcone.
4. Pour ground |
5. Position |
6. Press Brew |
coffee into |
brewcone |
button. |
brewcone. |
into brew |
|
|
rails. |
|
For the Latest Specifications and information go to www.wilburcurtis.com 1
Your Curtis G3 System is Factory Pre Set for Optimum Performance.
After connection to water and power; the rear toggle switch must be on. You will hear a beep sound, indicating power is available to the controller.
The control displays |
|
CURTIS |
|
. Press ON/OFF button and the screen will display |
<ALP3/4/5> |
. After three seconds, |
||
|
|
|
CURTIS |
|||||
|
|
|
|
|
|
|
|
|
Water will fill the tank (approximately 2-3 minutes depending on water flow rate). When the proper level is reached |
CURTIS |
|||||||
HEATING |
||||||||
mately 20 minutes to reach setpoint temperature of 200°F. |
|
|
||||||
|
|
|
||||||
|
|
|
|
|
|
|
|
|
Control will display |
|
CURTIS |
when temperature reaches the setpoint (200°F). Unit is now ready to brew. |
|
||||
READY TO BREW |
|
|||||||
CURTIS |
is displayed. |
FILLING |
will appear on the screen. It takes approxi-
To Go Into Programming
Turn off (dark display) by pressing ON/OFF button (yellow). Press and hold BREW button (green) and then press and release ON/OFF button (yellow).
Continue holding BREW button. Display will read tons (see illustration below).
The default code set at the factory is 1 2 3 4. Then
ENTERING PROGRAM |
, wait until |
ENTER CODE |
is displayed Enter the 4 digit access code, the digits 1 4 correspond to the but- |
||
– – – – |
|||||
MODE |
|||||
|
|||||
|
|
|
|
|
|
PROGRAM MENUS |
|
will be displayed. |
|
||
< SELECT > |
|
|
|||
All programming selections are performed with the three center buttons. The symbols below the buttons are:
Scroll LEFT
SELECTION or ENTER to save new parameter
Scroll RIGHT
1 |
2 |
3 |
4 |
Model Select – Always perform this first. This feature re-sets all settings to the factory defaults.
Scroll through the menu to Model Select. The choices are ALPHA-1, ALPHA-2, ALPHA-3/4/5, Airpot Brewer and Thermo-Alpha. You should select only ALPHA-1, ALPHA-2 or ALPHA-3/4/5.
PROGRAM MENUS
Brew Volume
Selecting Brew by Volume or Brew by Time depends on whether you know your brew time before starting. From Program Menus press > display will now show the next feature.
During the actual brew cycle, a 2-minute drip mode is added to the brew time. The programmed water level compensates for back to back brewing Delta 3 to allow for an increase of water volume.
Brew by Volume (Factory set to 60 oz.): Press to Select, Display will now show Push START To Begin... Press the BREW button then hot water starts running, when desired volume is reached press BREW button again to stop the flow. Now the volume has been set. Pressing > button will display the subsequent menu features.
Brew by Time (Factory set to 2min–40sec). Press to Select to change the brew time. Display will now show the current time. By pressing < or > you can toggle back and forth from minutes to seconds to exit (ex). Change the time or set and exit by pressing .
Temperature (Factory set to 200°F) Press to Select. Press < or > to move to desired temperature and then to set. Temperature is programmable from 170ºF to 204ºF, in 2 degree increments.
Energy Save Mode (Factory set to OFF) Press to Select, < or > ON, OFF or ON 140ºF , to set. When in ON, unit will automatically shut off 4 hours from last brew. When feature is OFF, unit does not have the energy saving mode. In the ON 140ºF position, temperature goes down to 140ºF. if unit has not brewed in 4 hours. This feature will save energy by lowering the tank temperature during periods of non operation.
Brew Count Odom. Press to display total gallons brewed. Press ex or Reset
Pre-Infusion (Factory set to OFF) Press to Select. Current setting in seconds is displayed < to decrease or select > to increase (range from OFF to 10 through 60 seconds), to set.
If Pre-infusion is selected (ON), Cold Brew Lock is set to Delta 1 within 5ºF of set point and Cold Brew Lock is disappears from the list of program selections. When Pre-infusion is ON, Pulse Brew disappears from the list of program selections.
Quality Timer (Factory set to OFF) Press to Select, < or > OFF or ON 20 minutes to 120 minutes in 10 minute increments. Press to set. An audible alarm will sound when time is expired.
Brew Count Total Press to Select, Shows total gallons and total brew cycles on the unit. Is read only and not resettable
2
PROGRAM MENUS
Cold Brew Lock . . . (Factory set to 15º) Press to select, < or > to select desired setting (CBL 5, 15 or OFF), to set.
The Cold Brew Lock feature allows the brewer to brew at three different temperature levels from the actual set point. The first setting is within 5 degrees of set point, next is within 15 degrees of set point, OFF is within 30 degrees of set point for the Ready to Brew message, however it will brew at any temperature. This feature will operate after initialization to set temperature after the rear standby toggle switch is reset to ON.
Master Reset Press to display Are You Sure? Then < for Yes, > for No. Brewer factory defaults are then reset.
Service Call (Phone number Factory set to [800] 995-0417) Press to display number and change number or < to move place and EX to exit when complete This number will be displayed during a Heating system SENSOR ERROR or during a WATER ERROR.
Access Code (Factory set to 1 2 3 4) Press to display number and change number, (the number can be change 1 to 4) or < to move place and ex to exit when complete.
Banner Name (Factory set to CURTIS) Press to display letters and change letters or < to move place and EX to exit when complete. This feature allows up to 14 letters to be programmed for company name or regional name. Programming all blanks disables Banner Name.
Warmers Auto OFF (Factory set to Disable) Press to Select. Press < or > to move to desired time and then to set. Timer is programmable from 2 to 4 hours in one hour increments or OFF.
P-Maintenance (Factory set to OFF) Press to Select, Set gallons brewed to indicate P-Maintenance. Press < or > to adjust from Off to 3000 gallons. Press to exit.
Beeper On/Off (Factory set to ON) Press to display ON or OFF. Pressing either < or > toggles between on and off. to set. Pulse Brew (Factory setting OFF) Press to select, < or > to select OFF or one of five pulse patterns (A to E) .
Guidelines for Pulse Brew:
This feature allows tuning of the coffee flavor. The pot level should always be set first with this option OFF. Depending on your grind profile and water conditions, the five Pulse Brew options help “tune” or change the coffee flavor. Filter Pack type coffees typically extract better with the A and B pulse setting. Decaffeinated coffees typically extract better with the B pulse setting. High-Yield coffees typically extract better with the C pulse setting. Of course, any of the A, B or C settings may be used to suit your taste profile. There are two additional settings (D and E) that allow you to manually set the ON TIME pulses and OFF TIME.
If Pulse Brew is selected (ON), Cold Brew Lock is set to Delta 1 within 5ºF of set point and Cold Brew Lock disappears from the list of program selections. When Pulse Brew is ON, Pre-infusion disappears from the list of program selections.
Display Brew Time (Factory set to ON). Press to display ON or OFF. Pressing either < or > toggles between on and off. to set. When on, the Display Brew Time feature allows you to see the remaining time in the brewcyle counting down.
Drip-Out Mode (Factory set to 2 min) Press to select. Press > to increase time (to a maximum of 5 minutes) or < to decrease the time and turn OFF. Time counts up in 5 second increments. Press to set.
Model Select Press to select, < or > to select model. The selections are: ALPHA-1, ALPHA-2, ALPHA-3/4/5, Airpot Brewer, Thermo-Alpha (for the D60GT). Press to set. When the Model Select feature is changed, all settings are reset to the defaults of the newly selected model.
Exit Press to select, exits program mode and returns unit to operation.
Brew Volume – Easy Access
Units produced beginning January 2008 can be easily adjusted from the front panel. Written into the software on the Alpha GT UCM, is a feature to access the brew volume without entering the program mode.
The UCM must be on. To adjust the ALP1GT models, press and hold down the center, Select button 2 . The screen will read will adjust the brew volume up or down, ± 20 oz, in 1 ounce increments.
Vol. Adj. < -0 > Oz. |
pressing < or > |
- Select + |
|
On any multi-station Alpha (ALP2/3/4/5/6GT): Press the center Select button 2 twice, with the second press hold down the button for around five [5] seconds.
The screen will display Vol. Adj. < -0 > Oz. pressing < or > will adjust the brew volume up or down, ± 20 oz, in 1 ounce increments.
- Select +
Warmer Temperature Control
Turn on brewer at the control panel ON/OFF button. Warmer button should be OFF (LED off). Press and hold desired WARMER button. Screen will display current setting in % of power. Press < or > to increase or decrease power to warmer (50% to 100% in 10% increments). Press to set.
Tank Temperature Check
Turn on brewer at the control panel ON/OFF button. Press and hold 3 button (see illustration, page 2) for 5 seconds. Water Temperature will be displayed. The temperature will not display while the unit is in the process reheating.
NOTE: Alpha 3GT ONLY; when checking tank temperature, first make sure REAR warmer is ON (red LED on) and then press 3 for 5 seconds to display tank temperature.

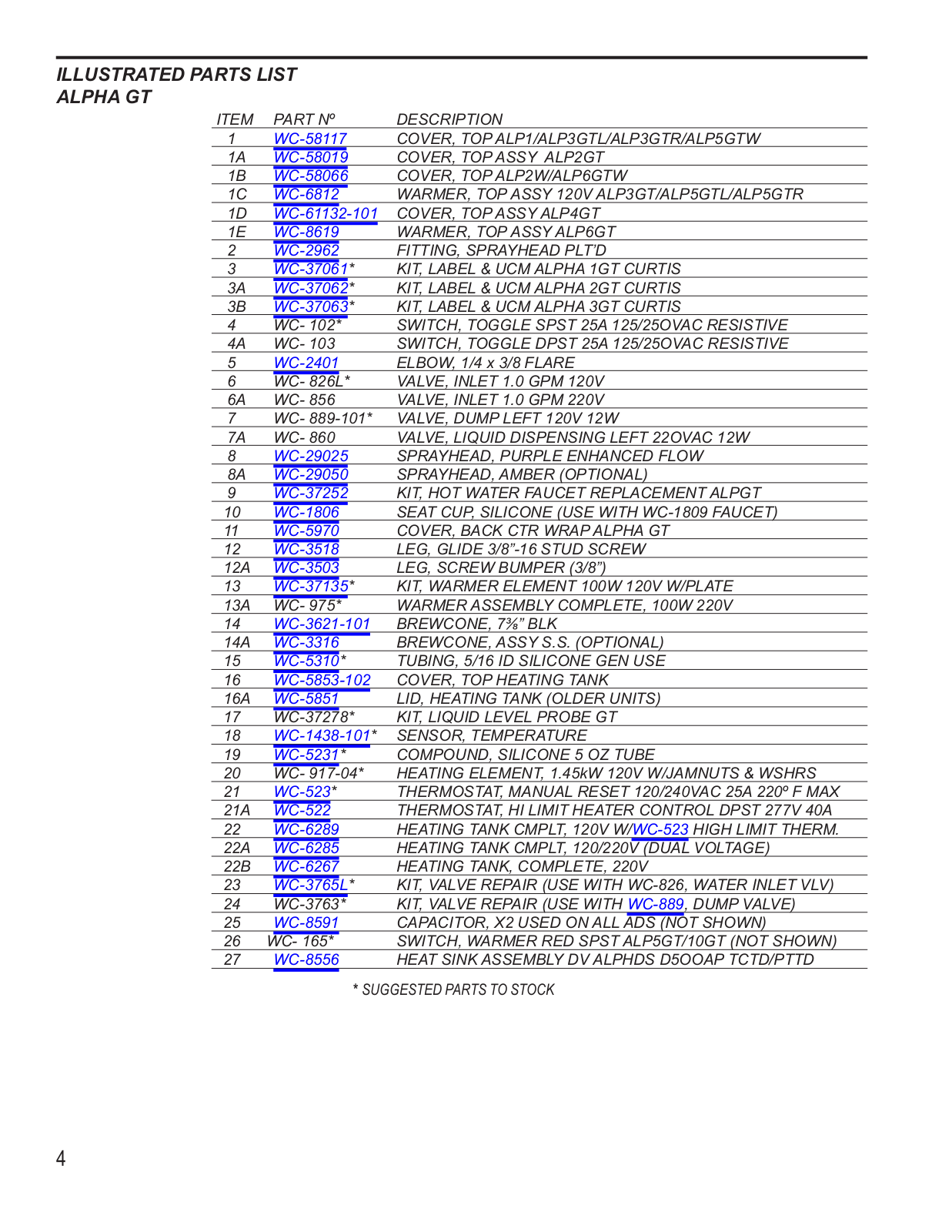

3
