MODEL
• TLP
CAUTION: Please use this setup procedure before attempting to use this brewer. Failure to
follow the instructions can result in injury or the voiding of the
warranty.
CAUTION: DO NOT connect this brewer to hot water. The inlet valve is not rated for hot water.
IMPORTANT: This equipment is to be installed
to comply with the applicable federal, state,
or local plumbing and electrical codes having jurisdiction.
WARNING: To avoid scalding, do NOT remove brew cone while brew indicator light is flashing.
IMPORTANT: The brewcycle is adjusted at the factory to fill a
standard 2.5 liter airpot with 2.2 liters of brewed coffee. The duration of the brewcycle is set from 3 to 4 minutes.
C
ISO 9001:2008 REGISTERED
WILBUR CURTIS CO., INC.
6913 West Acco Street
Montebello, CA 90640-5403 For the latest information go to www.wilburcurtis.com
Tel: 800-421-6150
Fax: 323-837-2410
Wilbur Curtis Company, Inc.
Service Manual – TLP Brewer
Important Safeguards/Symbols
This equipment is designed for commercial use. Any servicing other than cleaning and routine maintenance should be performed by an authorized Wilbur Curtis Company Service Technician.
• DO NOT immerse the unit in water or any other liquid
• To reduce the risk of fire or electric shock, DO NOT open service panels. There are no user serviceable parts inside.
•Keep hands and other items away from hot areas of the unit during operation.
•Never clean with scouring powders or harsh chemicals.
Symbols
WARNINGS – To help avoid personal injury
Important Notes/Cautions – from the factory
Sanitation Requirements
System Requirements
•Water Source: 20 100 PSI. Must have a Minimum Flow Rate of 1/2 GPM (preferred flow rate is 1 gpm).
•Electrical: See attached schematic for your model.
Setup Steps
1.The unit should be level (left to right - front to back), on a secure surface.
2.Connect the water line to the water inlet fitting on the rear of the unit. Water volume flow to the machine should be consistent. Use tubing sized sufficiently to provide a minimum flow rate of one gallon per minute.
NSF International requires the following water connection:
1. Aquick disconnect or additional coiled tubing (at least 2x the depth of the unit) is required so that the unit can be moved for cleaning.
2.This unit must be installed with adequate backflow protection to comply with applicable federal, state and local codes.
3.Water pipe connections and fixtures directly connected to a potable water supply shall be sized, installed and maintained in accordance with federal, state, and local codes.
3.Connect the unit to electrical outlet with appropriate amperage rating (see serial tag on machine). Once power has been supplied to the unit, flip the toggle switch to the ‘ON’ position (located on the rear of the unit), the water tank will begin to fill. When the water level in the tank reaches the probe, the heating element will turn on.
4.Turn on the control panel by pressing the ON/OFF button.
5.The heating tank will require 20 to 30 minutes to reach operating temperature (200°F). The READY TO BREW light will come on.
6.Prior to brewing, dispense 12 ounces of hot water through the hot water faucet.
7.Run brew cycle of at least 16 ounces to purge the water line of any air trapped in the lines after filling.
Brewing Coffee
1. Place a clean, empty air- |
2. Place a new filter into |
3. Slide the brewcone into |
4. Press the BREW button. |
|
pot in position, centered |
the brewcone. Pour the |
position on brew rails. |
The indicator light above |
|
under the brew cone. |
proper amount of ground |
|
the selected brew button |
|
|
coffee into the filter. |
|
will flash during the brew- |
|
|
|
|
cycle. |
|
For the latest specifications and information go to www.wilburcurtis.com |
1 |
STEPS TO PROGRAMMING
Your Curtis TLP system is factory pre set for optimum performance. Generally, there will not be a need to change programming.
CAUTION: These steps involve working with hot water. Avoid against
splashing and spilling.
Changing the TLP Program
The TLP features a dynamic memory. In the event of a power loss, it will remember ALL program settings.
Brew Temperature – Factory Pre-Set to 200°F
Function to set brew temperature, 170° to 206°F. Brew temperature will be indicated by READY-TO-BREW light blinking.
ENTERING THE PROGRAM MODE #1
ForALL functions you must first enter the programming mode.
Turn OFF the power from the Control Panel by pressing .
Press and HOLD and press and RELEASE .
Continue HOLDING until |
starts blinking; RE- |
LEASE. |
|

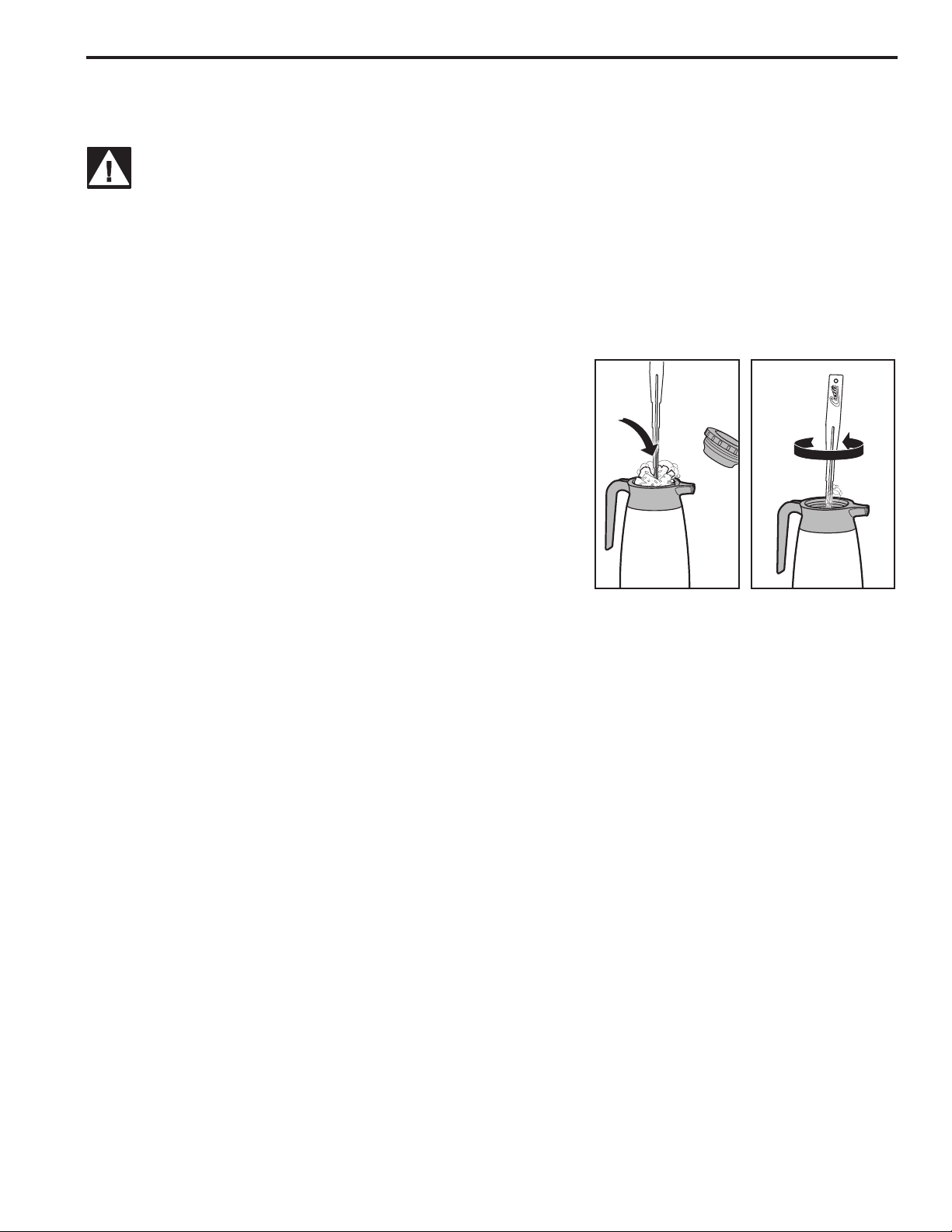

CONFIRM/RESET BREW TEMPERATURE - Factory Preset to 200ºF
ENTER THE PROGRAMMING MODE #1:
Press for two seconds, then RELEASE.
will start blinking. Each blink equals 2º F, starting at 170º (max. temp. 206º F or 19 blinks).
To change Temperature, press and HOLD .
will start QUICK flashing. Each QUICK flash equals 2º F. After reaching 206º, temperature starts over at 170º.
RELEASE when the desired temperature is reached (new temp. will now be displayed).
To set and exit, press .
|
Temperature Table |
|
|
||
|
Nº of |
|
|
Nº of |
|
|
Blinks |
Temp. |
|
Blinks |
Temp. |
|
1 |
170º F |
|
11 |
190º F |
|
2 |
172º F |
|
12 |
192º F |
|
3 |
174º F |
|
13 |
194º F |
|
|
|
|
|
|
|
4 |
176º F |
|
14 |
196º F |
|
5 |
178º F |
|
15 |
198º F |
|
|
|
|
|
|
|
6 |
180º F |
|
16 |
200º F |
|
|
|
|
|
|
|
7 |
182º F |
|
17 |
202º F |
|
|
|
|
|
|
|
8 |
184º F |
|
18 |
204º F |
|
|
|
|
|
|
|
9 |
186º F |
|
19 |
206º F |
|
|
|
|
|
|
2 |
10 |
188º F |
|
|
|
|
|
|
|
|
Brew Volume - Factory Pre-set Full Brew to 2.2 Liters
When setting the brew volume, place an empty airpot under the brewcone to determine volume level. The factory default for the Half Brew button is half the brew volume of the Full Brew button. The brew volume of the Half Brew button can be set independently (see Half Brew Volume below).
Before changing the brew volume, wait until unit reaches brew temperature (Ready to Brew light comes on), insert the brewcone into place on the brewer, then place an airpot or some kind of measuring container centered beneath the brewcone.
Press and HOLD until hot water starts running from sprayhead; then RELEASE.
When desired volume is reached, press again to stop flow and set brew volume.
HALF BREW VOLUME
ENTER THE PROGRAMMING MODE #1
Have an empty brewcone & airpot in position under the sprayhead.
Press and HOLD until hot water starts running from sprayhead; then RELEASE.
When desired volume is reached, press again to stop flow and set
brew volume.
BREW CYCLE COUNTER
ENTER THE PROGRAM MODE #2 |
TO ACCESS BREW CYCLE COUNTER |
||||||
|
Turn OFF the power from the Control Panel by press- |
ENTER THE PROGRAMMING MODE #2: |
|||||
|
ing |
. |
|
|
|
will now start a pattern of LONG and SHORT blinks. |
|
|
Press and HOLD |
and press and RELEASE |
|
||||
This pattern identifies the number of brew cycles. SHORT blinks indicate |
|||||||
|
|
|
|
|
|||
|
Continue HOLDING |
until |
STOPS blink- |
the brew number from one [1] to nine [9]. LONG blinks separate the 1’s, |
|||
10’s, 1,000’s and 10,000’s. |
|||||||
|
ing; RELEASE. |
|
|
||||
|
|
|
|
|
PULSE BREW
ENTER THE PROGRAM MODE #3 |
CHANGING THE PULSE BREW FEATURE |
|||||
Turn OFF the power from the Control Panel by press- |
To change: |
|
|
|||
ing |
. |
|
|
Press and HOLD |
until |
shows one quick flash, then |
Press and HOLD |
and press and RELEASE |
RELEASE. You have now added a blink to your blinking light pattern. |
||||
|
|
|
||||
. |
|
|
|
By pressing and holding |
|
you add another blink. |
Continue HOLDING |
until |
STOPS blinking |
To set and exit, press |
|
. |
|
and remains on, then RELEASE |
. |
|
||||
PULSE OPTIONS: |
|
|
||||
|
|
|
|
|
|
|
|
will now blink one of three different flashing light |
OFF = One Long Flash (Factory Default) |
||||
patterns (refer to Pulse Options, right). |
#1 = One Long Flash + 1 Short Flash |
|||||
|
|
|
|
#2 = One Long Flash + 2 Short Flash |
||
|
|
|
|
#3 = One Long Flash + 3 Short Flash |
||
|
|
|
|
Option #1 produces a pulse of 40 seconds ON, 40 seconds OFF, then |
ON until the end of the brew cycle.
|
|
Option #2 provides a pulse of 30 seconds ON, 5 seconds OFF, repeated |
|
|
|
four times, then continuously ON until the end of the brew cycle. |
|
ON |
OFF |
Option #3 is 40 seconds ON, 40 seconds OFF, 60 seconds ON, 25 |
|
|
|
seconds OFF, then ON until the end of the brew cycle. |
3 |
|
|
|
