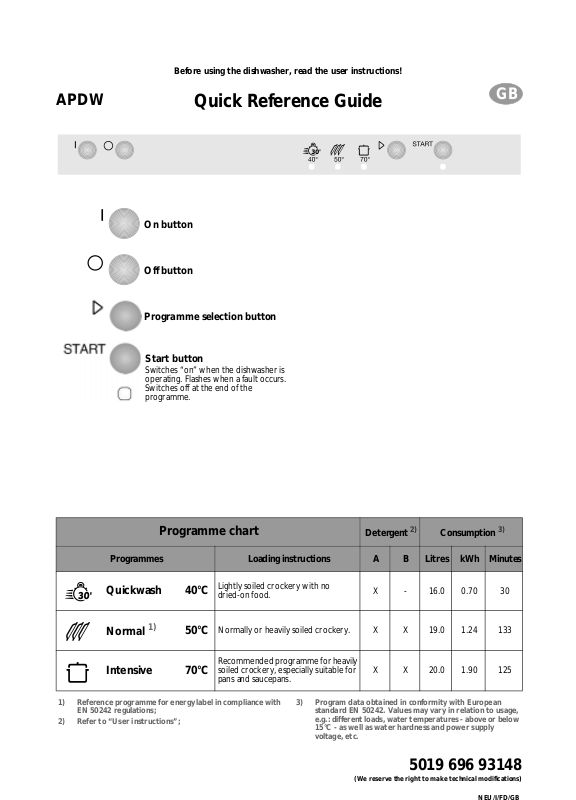

Before using the dishwasher, read the user instructions!
APDW |
Quick Reference Guide |
GB |
|
|
|||
|
|
|
|
|
|
|
|
On button
Off button
Programme selection button
Start button
Switches “on” when the dishwasher is operating. Flashes when a fault occurs. Switches off at the end of the programme.
Programme chart |
Detergent 2) |
Consumption 3) |
|||||
|
|
|
|
|
|
|
|
Programmes |
|
Loading instructions |
A |
B |
Litres |
kWh |
Minutes |
|
|
|
|
|
|
|
|
Quickwash |
40°C |
Lightly soiled crockery with no |
X |
- |
16.0 |
0.70 |
30 |
|
|
dried-on food. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Normal 1) |
50°C |
Normally or heavily soiled crockery. |
X |
X |
19.0 |
1.24 |
133 |
|
|
|
|
|
|
|
|
Intensive |
70°C |
Recommended programme for heavily |
|
|
|
|
|
soiled crockery, especially suitable for |
X |
X |
20.0 |
1.90 |
125 |
||
|
|
pans and saucepans. |
|
|
|
|
|
|
|
|
|
|
|
|
|
1)Reference programme for energy label in compliance with EN 50242 regulations;
2)Refer to “User instructions”;
3)Program data obtained in conformity with European standard EN 50242. Values may vary in relation to usage, e.g.: different loads, water temperatures - above or below 15°C - as well as water hardness and power supply voltage, etc.
5019 696 93148
(We reserve the right to make technical modifications)
NEU/I/FD/GB
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Open the door, switch on the appliance
How to fill the detergent dispenser
Check the rinse aid level
Check the regeneration salt level
Load the racks
Select a programme
Select options
Press the Start button
Turn on the water tap close the dishwasher door
Wash cycle
Switch off the appliance
Turn off the water tap, unload the racks
Press the ON button. |
|
|
Large compartment A: |
|
C |
With each wash cycle. |
A B |
|
Small compartment B: |
|
|
For programmes with pre-wash |
|
|
only. |
|
|
Mechanical indicator C.
Electric indicator on control panel (if provided).
On models with water softener system only.
Mechanical indicator D. Electric indicator on control panel (if provided).
Refer to the dishwasher loading instructions.
The last programme selected will light up.
Press the
button until the desired programme lights up.
If necessary (and if provided) the corresponding indicator lamp lights up.
The selected programme is then memorised (even in the event of power failure).
“Change programme”
Press the START button for 2 sec. until the Start indicator lamp switches off;
Select another programme and press the START button again.
-Only open the dishwasher if necessary (Warning: beware of hot steam).
-If the appliance is switched off during a wash cycle, when switched on again it will resume the cycle from where it was interrupted.
At the end of the programme an acoustic signal will sound.
Only after the START button has switched off: press the OFF button. All the indicator lamps switch off.
Warning: when the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
NEU/II/FD/GB
