009-03 - Gas fry-top

2

Models and dimensions page 3

Data of appliances 8

Technical data 8-9

Operating instructions 10

Construction, equipment installed

and safety devices 10

Assembly 10

Location 10

Legal and technical requisites 10

Installation 10

Installation procedure 10

Gas venting 10

Commissioning the appliance 11

Before commissioning the appliance 11

Start-up 11

Testing the power rating 11

Checking input pressure 11

Checking power rating using the

volumetric method 11

Checking power rating when using

LP gas 11

Checking the pilot light 11

Checking the primary air 12

Checking the functions 12

Note for the installer 12

Running the appliance on other types

of gas 12

Replacing the main burner nozzle 12

Replacing the pilot burner nozzle 12

Adjusting the low flame 12

Maintenance 13

Replacing parts 13

Ignition plung page 13

Gas tap 13

Thermocouple 13

Using the appliance

Smooth and grooved plates start-up

14

First time use of the plate 14

Ignition 14

Turning the pilot burner on 14

Turning the main burner on and adjusting

the temperature 14

Turning the appliance off 14

Turning the appliance off during

normal operation 14

Turning the appliance off

in an emergency 14

What to do if something goes wrong or if

not using the appliance for a long time 14

Taking care of the appliance -

frequency of maintenance 14

Smooth/grooved surface 14

Chrome-platd plates start-up

15

First time use of the plate 15

Ignition 15

Turning the pilot burner on 15

Turning the main burner on and adjusting

the temperature 15

Turning the appliance off 15

Turning the appliance off during

normal operation 15

Turning the appliance off

in an emergency 15

Warning 16

INDEX

009-03 - Gas fry-top

3

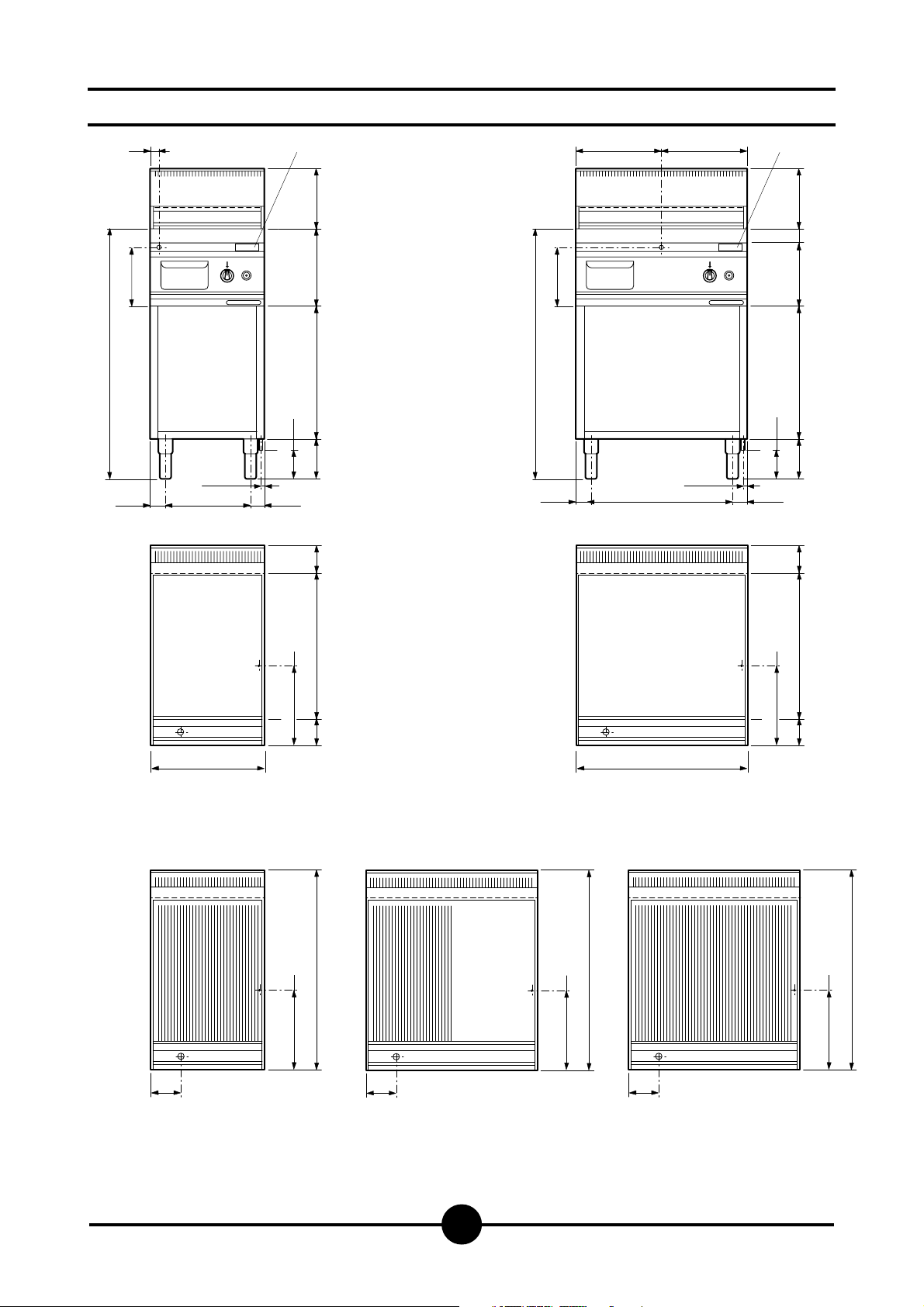

Dimensions

30

205.5

40 40

320

G

13.5

±1

80

±2

35

±1

270

30

52

510

93

131

300

210

T

±1

270

205.5

40 40

320

G

80

13.5

30

±1

±2

80

T

300

97

510

93

400

AGB 601/WP AGB 603/WP

G

104

AGB 602/WP

13.5

±2

35

±1

655

400

AGB 533/WP AGB 535/WP

G

104

AGB 534/WP

13.5

±1

±2

80

700

Gas connection (1/2")

G

Data plate

T

009-03 - Gas fry-top

4

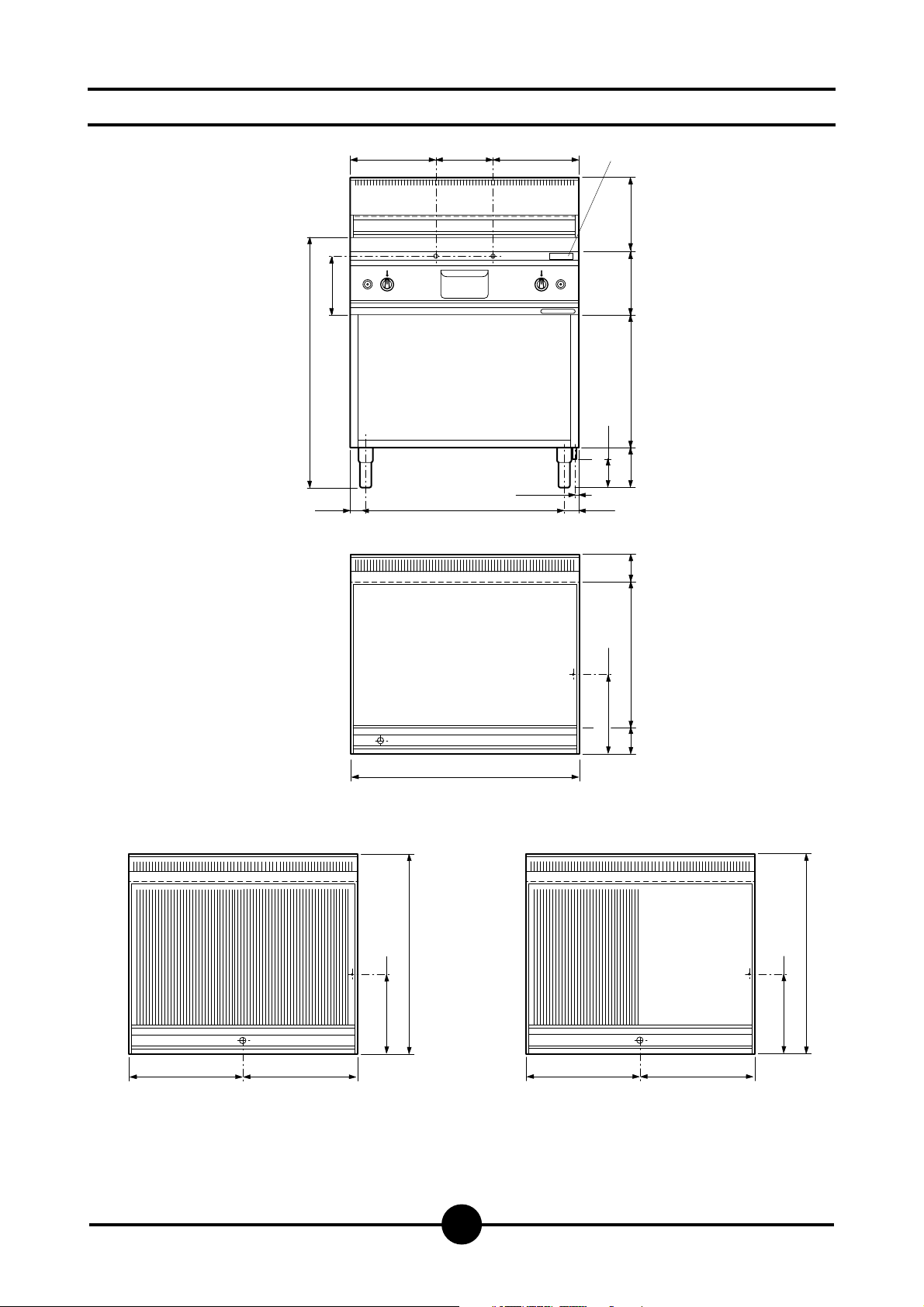

Dimensions

300 300

205.5

40 40

520

G

600

AGB 607/WP

G

±1

80

13.5

±2

35

270

30

±1

52

510

93

130

300

210

T

205.5

40 40

520

G

±1

80

13.5

270

30

±1

300

97

±2

80

510

93

600

13.5

±1

G

104

AGB 608/WP

±2

35

655

104

13.5

±1

±2

35

G

655

104

13.5

±2

80

700

±1

±2

80

700

G

Gas connection (1/2")

T

Data plate

009-03 - Gas fry-top

5

Dimensions

300 200 300

205.5

40 40

720

800

G

13.5

±1

80

±2

35

±1

270

30

52

510

93

130

300

T

205.5

40 40

720

800

210

±1

270

300

80

30

G

13.5

±1

97

±2

80

510

93

Gas connection (1/2")

G

Data plate

T

13.5

±1

±2

35

G

""

655

AGB 540/WP AGB 541/WP

13.5

±1

±2

80

G

""

AGB 542/WP

700

009-03 - Gas fry-top

6

Dimensions

30

205.5

875

1

13.5

52.5 52.5

295

G

2

98

T

270 210

205.5

875

465

300 300

T

210

50

465 220

G

2

140

97

1

13.5

52.5 52.5

495

98

140

97

400

AGB 548/WP AGB 550/WP

104

G

1

280

G

2

280

510

93

700

104

G

2

280

700

104

600

G

2

280

510

93

G

2

280

700

AGB 549/WP

Gas connection (1/2")

G

Data plate

T

009-03 - Gas fry-top

7

Dimensions

300 300200

205.5

875

1

13.5

52.5 52.5

695

G

2

98

T

465 220 270

140

97

"" ""

800

AGB 555/WP AGB 557/WP

700

G

2

280

G

510

1

280

93

"" ""

AGB 556/WP

G

2

280

700

Gas connection (1/2")

G

Data plate

T

009-03 - Gas fry-top

8

2 - DATA OF APPLIANCES

The instructions contained in this manual apply to our gas Fry Top in the II2H3+ category (see table on page 9). The data plate is located on the front of the appliance and

CAT/KAT GAS/GAZ G30 G31 G20 G25

II2H3B/P P mbar 30 30 20 -

II2H3+ P mbar 30 37 20--

II2H3+ P mbar 28 37 20 -

0051 TIPO/TYPE

MOD.

ART.

N.

Qn kW

MOD.

V AC kW Hz

THE APPLIANCE MUST BE CONNECTED IN COMPLIANCE WITH THE LAWS IN FORCE AND INSTALLED IN A WELL-VENTILATED ROOM. READ THE INSTRUCTION MANUALS BEFORE INSTALLING AND USING THE APPLIANCE. THE APPLIANCE MUST BE INSTALLED BY QUALIFIED PERSONNEL.

m3/h

II2ELL3B/P P mbar 50 50 20 20

II2E+3+ P mbar 28 37 20 25

II2H3B/P P mbar 50 50 20 -

I2E P mbar - - 20 -

II2H3+ P mbar 28 37 20 -

I3B/P P mbar 30 30

I3+ P mbar 28 37

Predisposto a gas: - Gas preset: - Prevu pour gaz:

Eingestelt für Gas: - Preparado para gas: -

25II2L3B/P P mbar 30 30

--II2H3B/P P mbar 30 30

--

Geschuckt voor:

3 - TECHNICAL DATA

Model

AGB 601/WP · AGB 603/WP · AGB 602/WP

AGB 533/WP · AGB 535/WP · AGB 534/WP

AGB 548/WP · AGB 550/WP · AGB 549/WP

AGB 607/WP

AGB 608/WP

AGB 540/WP · AGB 541/WP · AGB 542/WP

AGB 555/WP · AGB 557/WP · AGB 556/WP

Version

Gas Fry Top Varipan

Gas Fry Top Varipan - 2 separate cooking areas

on the control panel. It contains all necessary reference data such as the name of the manufacturer, input pressure, gas type setting, etc.

SE FI DK CZ SK SI

IT CH PT

ES IE GB GR

NL

DE

FR BE

AT C H

LU

EE LV LT

NO MT CY IS HU

CY

MADE IN ITALY

G30/G31 28/37 mbar

G20 20 mbar

Dim.: LxWxH

400 x 650 x 300 (430)

400 x 700 x 300 (510)

400 x 700 x 875 (1080)

400 x 650 x 300 (430)

400 x 700 x 300 (510)

400 x 700 x 875 (1080)

600 x 650 x 300 (430)

600 x 700 x 300 (510)

600 x 700 x 875 (1080)

600 x 650 x 300 (430)

600 x 700 x 300 (510)

600 x 700 x 875 (1080)

600 x 650 x 300 (430)

600 x 700 x 300 (510)

600 x 700 x 875 (1080)

600 x 650 x 300 (440)

600 x 700 x 300 (510)

600 x 700 x 875 (1080)

800 x 650 x 300 (430)

800 x 700 x 300 (510)

800 x 700 x 875 (1080)

800 x 650 x 300 (430)

800 x 700 x 300 (510)

800 x 700 x 875 (1080)

N.

51BQ2907

51BQ2908

51BQ2909

51BQ2907

009-03 - Gas fry-top

9

Model

Category

Construction type

Air necessary for combustion

Nominal thermal power

Minimum thermal power

Connection pressure

Methane gas 2H

Liquid gas 3+

G20

G30/G31

Gas connection values

Methane gas 2H

Liquid gas 3+

(HuB = 9.45 kWh/m

(HuB = 12.87 kWh/kg) kg/h

Nozzles Ø 1/100 mm

G20

Main burner

G30/31

Nominal capacity

Low flame

Nominal capacity

Low flame

II2H3+

A

3

/h

m

kW

20 mbar

28/37 mbar

3

) m3/h

TABLE 1

AGB 601/WP AGB 603/WP AGB 602/WP AGB 533/WP AGB 535/WP AGB 534/WP AGB 548/WP AGB 550/WP AGB 549/WP

11

5.3

2.4

0.561

0.415

175

adjustable

115

70

AGB 607/WP AGB 608/WP

17

8.5

3.7

0.899

0.665

225

adjustable

150

90

AGB 540/WP AGB 541/WP AGB 542/WP AGB 555/WP AGB 557/WP AGB 556/WP

22

5.3+5.3=10.6

2.4+2.4=4.8

1.122

0.833

2 x 175

adjustable

2 x 115

2 x 70

19

4.5+4.5=9.0

2.3+2.3=4.6

0.952

0.704

155

adjustable

105

2 x 70

No. of nozzles, pilot burner

G20

G30/G31

Primary air distance “A”

Methane gas G20

Liquid gas G30/G31

36

19

15

36

19

15

2 x 36

2 x 19

15

35

20

-

009-03 - Gas fry-top

10

Construction, equipment installed and safety devices

Robust steel frame, with 4 legs (adjustable in height). 18/10 chrome-nickel steel outer panelling. The surface of the special steel plate can be either smooth or grooved; the plate comes with side and back splashguards made of 18/10 chrome-nickel steel. The appliance is also fitted with a stainless steel fat tray. The plate is heated by tubular chromium-plated steel burners, built to withtand thermomechanical stress. The pilot burner has fixed injectors. The combustion chamber and flues are made of electrogalvanised steel sheeting. The temperature is set using the safety taps provided. It goes from low (minimum) to high (maximum) through a range of easily selectable intermediate levels. Our fry-tops are available either with a grooved or with a smooth surface. Models AGB 608/WP - AGB 555/WP - AGB 557/WP AGB 556/WP - AGB 540/WP - AGB 541/WP - AGB 542/WP have two separate grilling areas on the plate. Each area has its own temperature controls.

ASSEMBLY

Location

The appliance should be installed in a well ventilated room, and if possible under a range hood. The appliance can be installed on its own or alongside other equipment. If the appliance is to be installed near inflammable walls, a minimum distance of 200 mm. around the sides and back should be allowed. If this is impossible, take proper steps to ensure the installation is safe, such as fitting tiles or heat-reflecting material to the walls. Before connecting up the appliance to the gas supply, check on the data plate that the appliance is fitted for the type of gas available. If not, consult paragraph “Running the appliance on other types of gas”, page 12.

Legal and technical requisites

During assembly, the following legal and technical requisites should be adhered to:

- relevant national legislation;

- local building and fire safety regulations;

- worksheet “Technical rules for installing gas”;

- worksheet “Technical rules for LP gas”;

- worksheet “Gas installations in industrial kitchens”;

- industrial injury legislation;

- local Gas Board regulations;

- current CEI regulations.

INSTALLATION

Assembly, installation and maintenance, i.e.: assembly, connecting the gas supply, checking power rating, transforming or adapting the appliance to run on other types of gas, and commissioning, must all be done by contractors authorised by the local Gas Board in accordance with local and national legislation. Before doing anything else, seek advice from your Gas Board.

Installation procedure

To level the appliance correctly, adjust the height of the four legs. The R 1/2” gas off-take on the appliance can either be permanently fixed to the mains or made detachable using a standard adaptor. If flexible hose is used, it must be in stainless steel and to current regulations. After completing connection, check for leaks using a special leak-detector spray.

Gas venting

These appliances are A construction type, thus no gas venting is required. For advice on ventilating the premises where the appliance is installed, observe current regulations.

OPERATING INSTRUCTIONS

009-03 - Gas fry-top

11

It is normally enough, however, simply to check that the nozzles are functioning correctly.

Checking input pressure (Fig. 3)

Input pressure should be measured using a gauge (e.g. a gooseneck pipe, min. resolution 0.1 mbar). Remove screw (22) from the pressure socket and connect it to the tube on the gauge; after measuring, the screw should be retightened absolutely airtight (22).

Checking power rating using the volumetric method

Using a gas meter and a chronometer, you can read the volume of gas output per time unit. The correct volume will be the value of “E” expressed in li tres per hour (It/hr) or litres per minute (It/min). The following formula is used to calculate the value of “E”:

Capacity should only be measured when the appliance is at a standstill. The heat value can be obtained from your local Gas Board. To obtain the nominal and minimum capacities in relation to the nominal pressure, consult “TECHNICAL DATA” table (Gas Flow Setting).

WARNING

It is not possible to adjust nominal capacity in advance.

Checking power rating when using LP gas

Check that the type of nozzles used match manufacturer's specifications. Check that the output pressure regulator installed collaterally to the plant conforms to the specifications laid down in paragraph "Testing the power rating" (see data plate or measure the pressure).

Capacity

Heat value

E =

Before commissioning the appliance

Before commissioning the appliance, remove the protective wrapping. Thoroughly clean the work-surface and the outside of the appliance using lukewarm water and detergent. With a damp cloth eliminate all traces of the rust-proofing applied in the workshop then dry with a clean cloth.

Start-up

Before starting the appliance up, check that its specifications (category and type of gas used) match those of the family and group of the gas available locally. If not, adapt the appliance to the gas family or group required (see paragraph “Running the appliance on other types of gas”, page 12). To start the appliance up, see the instructions for regular use.

Testing the power rating

Use the specific nozzles for the nominal capacity on the appliance. Capacity can be of two types:

- nominal, as given on the data plate;

- minimum.

These nozzles are shown in “TECHNICAL DATA” table . The following are the operating pressure tolerances to obtain the nominal power according to the agreed nozzles:

- from 15 to 22.5 mbar for gases of the second family;

- from 25 to 35 mbar for gases of the third family (propane).

The appliance will not work outside the above pressure thresholds. To adjust the capacity to its minimum value, use the data in “TECHNICAL DATA” table 1. If you wish to check the nominal capacity further, you may do so using a gas meter according to the so-called ”volumetric method”.

Smooth and groved plates

WITH SAFETY COCK

Chrome-plated plates

WITH THERMOSTAT

3

COMMISSIONING THE APPLIANCE

17

18

16

20

21

22

20

17

21

16

18

22

009-03 - Gas fry-top

12

Checking the pilot light

When correctly adjusted, the pilot light flame will completely surround the thermocouple and will not flicker; if it does, make sure that the nozzle is the correct one for the type of gas used.

Checking the primary air

The plates, whether smooth or grooved, can be adjusted. Air volume flow is correct when there is sufficient protection against the flame rising when the burner is cold or lightback when it is hot.

Checking the functions

- Start the appliance in accordance with the instructions;

- Check the gas tubes for leaks;

- Check that the flame on the main burner lights properly and is correctly formed, even on low;

- Check that the pilot light is correctly regulated;

- Draw up a servicing and maintenance contract.

Note for the installer

- Explain and demonstrate to the user how the machine

works according to the instructions, and hand him this manual.

- Remind the user that any structural alterations to the

room housing the appliance may affect the combustion air supply. Once the alterations have been completed, the appliance and its functions should be thoroughly checked.

Running the appliance on other types of gas

When changing to another type of gas, e.g. from natural to LP, or to another gas group, consult the “TECHNICAL DATA” table to determine the correct nozzles to use. The nozzles for the main burners and pilot light for different types of gas, marked in 100ths of mm, are in a

case supplied with the appliance (the pilot burner nozzles are marked with a code number). When the appliance has been transformed or adapted, recheck its functions as described in paragraph "Checking the functions".

Replacing the main burner nozzle

To change nozzle (30), pull out the fat tray and loosen the fixing screws holding the control panel in place. Remove the panel. Unscrew the nozzle from the nozzle holder with an adjustable spanner; replace with a new nozzle (see “TECHNICAL DATA” table). To make changing the nozzle easier, loosen screw (39) to push the air adjustment sleeve back. After fitting the nozzle, reset primary air distance “A” (see “TECHNICAL DATA” table).

Replacing the pilot burner nozzle (Fig. 5)

To get at the pilot burner, slide out the fat tray and remove the control panel (as previously described). The pilot burner has a fixed gas supply. To change to another type of gas, replace the nozzle on burner (36) according to the type of gas used, by loosening hose (35) (see “TECHNICAL DATA” table).

Adjusting the low flame (Fig. 3)

Referring to the “TECHNICAL DATA” table, set the low flame screw (20) as follows:

- if the appliance is to run on LP gas, tighten the low flame screw as far as it will go;

- if the appliance is to run on natural gas, turn the low flame screw while simultaneously adjusting the primary air:

- read off the setting in It/min which corresponds to the heat value (calculated by the “Volumetric Method”) in the Gas Flow Setting Table (1); start the appliance up according to the instructions;

WITH THERMOSTATIC VALVE

3a

21

22

16

1

18 17

- after allowing the appliance to run for 45 mins., turn

the knob to low and set minimum gas flow by turning screw (20) (to the right = gas flow decreases; to the left

= gas flow increases). On models AGB 608/WP - AGB 555/WP - AGB 557/WP AGB 556/WP - AGB 540/WP - AGB 541/WP - AGB 542/WP each burner must be adjusted separately.

MAINTENANCE

The following maintenance programme should be carried out at least once a year:

- Check that all the safety and setting devices are

working properly;

- Check that the burners are working properly with

regard to:

- ignition

- combustion safety;

- Check the functions of the appliance as described in

paragraph "Checking the functions", page 12. If the main burner needs cleaning, proceed as follows:

a) remove the control knobs and the fat tray; unscrew the fixing screws and remove the control panel; b) unscrew hose clamp (28) to disconnect the gas vent connector from the nozzle holder; c) unscrew the fixing screws and remove the front panel of the combustion chamber; loosen the fixing screws on the panel on the front of the main burner. The main burner can now be removed for cleaning. Take care when cleaning the flame apertures. Make sure you use a prong with the right diameter. When reassembling the burner, make sure the back slots properly into the combustion chamber.

- Check the gas venting path (make sure the gas is correctly evacuated).

REPLACING PARTS

All parts must be replaced by authorised technicians only!

To replace the following parts, first remove the control knobs, slide out the fat tray and remove the control panel (after unscrewing its fixing screws).

Ignition plug (Fig. 5)

The ignition plug (37) must be removed from below. Disconnect the ignition lead, loosen the lock nut and insert a new plug.

Gas tap (Fig. 3)

Loosen the gas piping and thermocouple hoses, then loosen the screws fixing the gas supply to the gas ramp and insert a new tap.

Thermocouple (Figs. 3 & 5)

Loosen the screws fixing the thermocouple to the gas taps and valves and to the pilot lamp; insert the new part. After replacing the parts, fit the control panel and its parts back in the right order.

WARNING

Every time a replacement involving gas input parts is made, recheck all functions and test for leakage.

009-03 - Gas fry-top

13

2

5

40

30

31

39

26

2928

34

37

29

36

35

009-03 - Gas fry-top

14

Turning the appliance off in an emergency

In an emergency turn off the gas supply.

What to do if something goes wrong or if not using the appliance for a long time

If the appliance is not to be used for a long time, or if it breaks down or works incorrectly, close the tap to the gas mains located outside the appliance. If anything goes wrong, call the aftersales department.

TAKING CARE OF THE APPLIANCE FREQUENCY OF MAINTENANCE

Smooth/grooved surface

After using the grilling plate, clean its surface while it is still quite warm. Use emery paper or steel wool. To prevent rust from forming, spread a thin coating of vegetable oil over the grilling plate after cleaning. The fat tray should be emptied and cleaned daily after use. Giving the appliance a thorough clean every day (after turning it off) will keep it in perfect working order and make it last longer. All steel parts should be cleaned with water and a detergent, using a damp cloth; do not use abrasive substances or corroding detergents. Do not use steel wool anywhere but on the grilling plate since this might cause rust. For the same reason, avoid touching the appliance with anything made of iron. Do not clean any parts of the appliance other than the grilling plate with emery or sandpaper. If absolutely necessary, you may use powdered pumice stone. If the appliance is extremely dirty, use a synthetic sponge

SMOOTH AND GROOVED PLATES START-UP

FIRST-TIME USE OF THE PLATE Important!

Before using the appliance for the first time, thoroughly clean the smooth or grooved surface of the plate with lukewarm water and detergent, using a soft cloth to eliminate all trace of the rust-proofing applied in the workshop. Dry with a clean cloth.

IGNITION

Turning the pilot burner on (Fig. 4)

Press knob (4) and turn it to the left . Keep the knob pressed down while repeatedly pressing piezo ignition button (6) until you can see through aperture (10) on the control panel that the flame has caught. Keep the knob pressed down for another 15-20 seconds; if the flame goes out after the knob is released, start again.

Turning the main burner on and adjusting the temperature (Fig. 4)

To light the main burner, turn the knob to the right until it is on ‘high’ , or else continue until it reaches low ; the heating capacity must be set between these two positions.

TURNING THE APPLIANCE OFF

Turning the appliance off during normal operation

To turn the main burner off only, simply turn the knob to ; this way only the pilot burner will stay on. To turn the appliance off completely, turn the knob to ●; this will turn the pilot burner off as well.

Safety cock

Thermosta Thermostatic valve

4

USING THE APPLIANCE

10

5

4

6

2

3

7

6

5

4

009-03 - Gas fry-top

15

such as Scotchbrite. After cleaning the appliance, rinse with clean water and dry with a clean cloth. All maintenance work must be carried out by qualified personnel only. Have the appliance checked at least once a year; we strongly recommend that you stipulate a servicing and maintenance contract with your supplier.

CHROME-PLATED PLATES START-UP

FIRST-TIME USE OF THE PLATE Important!

Before using the appliance for the first time, thoroughly clean the smooth or grooved surface of the plate with lukewarm water and detergent, using a soft cloth to eliminate all trace of the rust- proofing applied in the workshop. Dry with a clean cloth.

IGNITION

Turning the pilot burner on (Fig. 4)

P Keep the knob pressed down while repeatedly pressing piezo ignition button (6) until you can see through aperture (10) on the control panel that the flame has caught. Keep the knob pressed down for another 15-20 seconds; if the flame goes out after the knob is released, start again.

Turning the main burner on and adjusting the temperature (Fig. 4)

To light the main burner, turn the knob on the left further to reach desidered position. The thermostat has 8 positions, from 1 to 7; the indicative values of temperature for each positon are the following:

Position degrees °C

1 160 2 175 3 195 4 220 5 240 6 265 7 290

- The minimum for the thermostatic valve is in position 1 and the maximum in position 7.

TURNING THE APPLIANCE OFF

Turning the appliance off during normal operation

To turn the main burner off only, simply turn the knob to ; this way only the pilot burner will stay on. To turn the appliance off completely, turn the knob to ●; this will turn the pilot burner off as well.

Turning the appliance off in an emergency

In an emergency turn off the gas supply.

009-03 - Gas fry-top

16

WARNING

DUE TO ITS POLICY OF CONTINUAL PRODUCT IMPROVEMENT, THE MANUFACTURER RESERVES THE RIGHT TO MAKE ANY CHANGES DEEMED NECESSARY.

THE MANUFACTURER CANNOT BE HELD RESPONSIBLE IF THE INSTRUCTIONS CONTAINED IN THIS MANUAL ARE NOT OBSERVED.

WHIRLPOOL EUROPE srl

V.le Guido Borghi, 27

I – 21025 Comerio – VA

Whirlpool AGB 534/WP, AGB 535/WP, AGB 550/WP, AGB 541/WP, AGB 556/WP INSTRUCTION FOR USE

Specifications and Main Features

Frequently Asked Questions

User Manual
