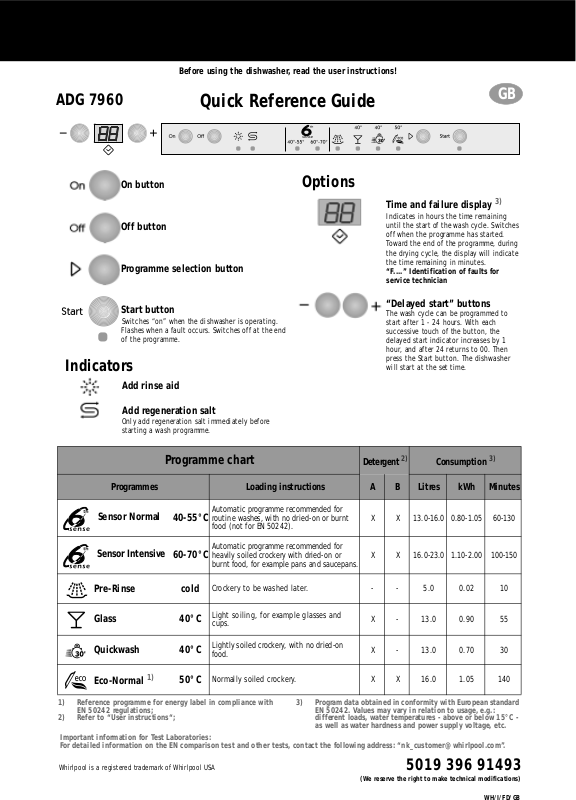

Whirlpool ADG 7960 Quick reference guide

Before using the dishwasher, read the user instructions!

ADG 7960

Indicators

Quick Reference Guide

On button

Off button

Programme selection button

Start button

Switches “on” when the dishwasher is operating.
Flashes when a fault occurs. Switches o ff at th e end
of the programme.

Add rinse aid

Add regeneration salt

Only add regeneration salt immediately before
starting a wash programme.

Options

GB

Time and failure display

Indicates in hours the time remaining
until the start of the wash cycle . Switches
off when the programme has started.
Toward the end of the programme, during
the drying cycle, the display will indicate
the time remaining in minutes.

“F....” Identification of faults for

service technician

“Delayed start” buttons

The wash cycle can be programmed to
start after 1 - 24 hours. With each
successive touch of the button, the
delayed start indicator increases by 1
hour, and after 24 returns to 00. Then
press the Start button. The dishwasher
will start at the set time.

3)

Programme chart

Detergent

2)

Consumption

3)

Programmes Loading instructions A B Litres kWh Minutes

Sensor Normal

Sensor Intensive

40-55°C

60-70°C

Pre-Rinse cold

Glass 40°C

Quickwash 40°C

Eco-Normal

1) Reference programme f or energy label in compliance with
EN 50242 regulations;

2) Refer to “User instructions“;

Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address: “[e-mail]”.

Whirlpool is a registered trademark of Whirlpool USA

1)

Automatic programme recomm end ed f or
routine washes, with no d ri ed-on or burnt
food (not for EN 50 242).

Automatic programme recomm end ed f or
heavily soiled crockery with dri ed-on or
burnt food, for example pans and saucepan s.

Crockery to be washed later. - - 5.0 0.02 10

Light soiling, for example glasses and
cups.

Lightly soiled crockery, with no dried-on
food.

Normally soiled crockery. X X 16.0 1.05 140

50°C

3) Program data obtained in conformity with European standard
EN 50242. Values may vary in relation to usage, e.g.:
different loads, water te mperatures - above or belo w 15 °C ­as well as water hardness and power supply voltage, etc.

X X 13.0-16.0 0.80-1.05 60-130

X X 16.0-23.0 1.10-2.00 100-150

X - 13.0 0.90 55

X - 13.0 0.70 30

5019 396 91493

(We reserve the right to make technical modifications)

WH/I/FD/GB

How to use the appliance

Further indications are given in the single chapters and in the user instructions.

Open the door,

switch on the appliance

How to fill the

detergent dispenser

Check the rinse aid level

Check the regeneration

salt level

Load the racks

Select a programme

Select options

Press the ON button.

Large compartment A:
With each wash cycle.
Small compartment B:
For programmes with pre-wash only.

Mechanical indicator C.
Electric indicator on control panel (if provided).

On models with water softener system only .

Mechanical indi cator D. Electri c indi cator
on control panel (if provided).

Refer to the dishwasher loading instructions.

The last programme selected will light up.
Press the button until the desired programme lights up.

If necessary (and if provided)
the corresponding indicator lamp lights up.

ABC

Press the Start button

Turn on the water tap

close the dishwasher door

Wa sh cycle

Switch off the appliance

Turn off the water tap,

unload the racks

The selected progr amme is then
memorised (even in th e event
of power fai lur e).

At the end of the progr amme an acoustic sign al will sound.
Only after the ST ART button has switched o ff: press th e OFF button.
All the indi cator lamps switch off.

Warning: when the door is opened steam comes out!

Unload the appliance, starting from the lower rack.

“Change progra mme”

Press the START button for 2 sec. until
the Start indicator lamp switches off;
Select another programme and press

the START button again.

- Only open the dishwasher if necessary
(Warning: beware of hot steam).

- If the appliance is switched o ff d urin g a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.

WH/II/FD/GB
